Bosch WTA3500UC/04

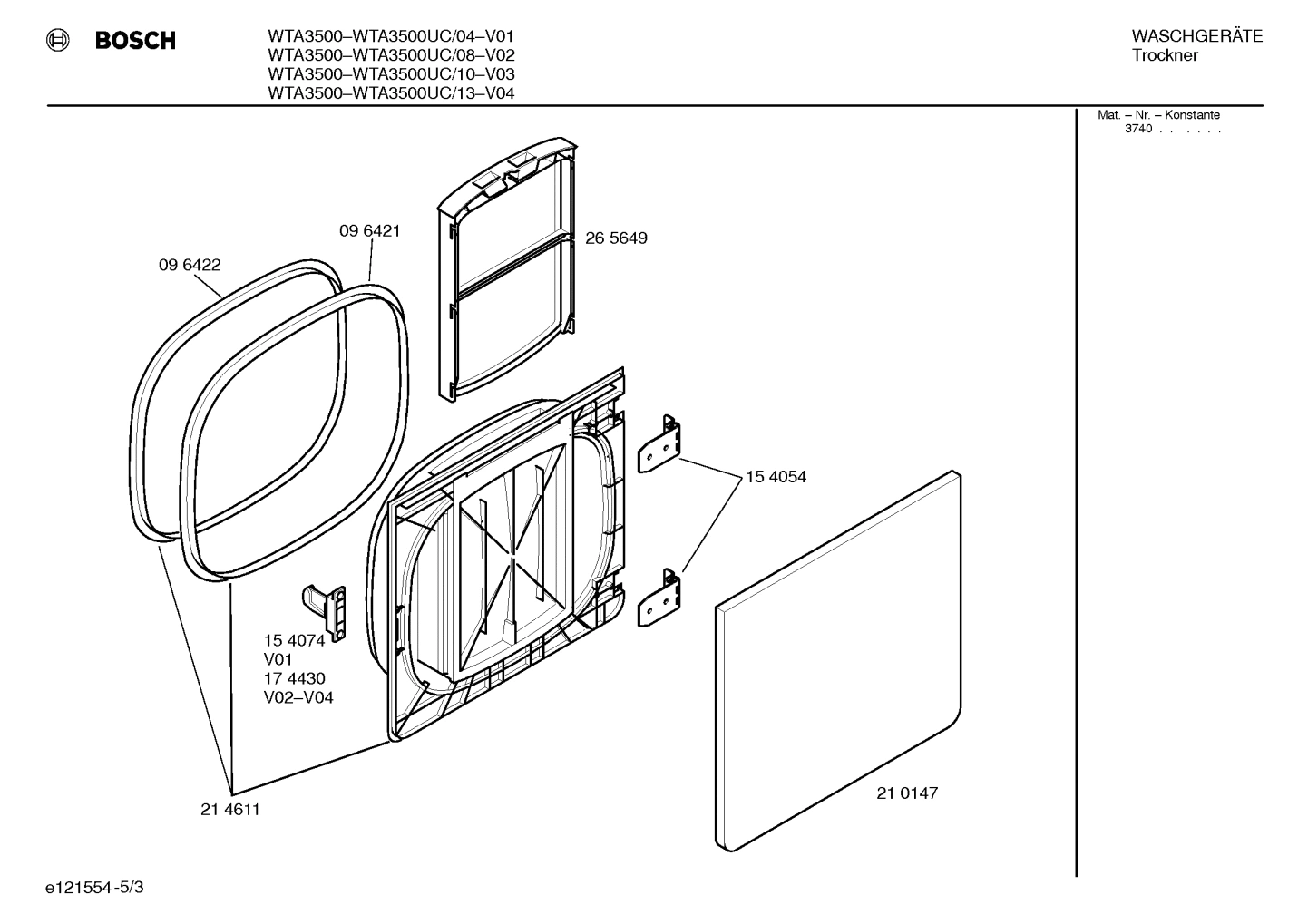

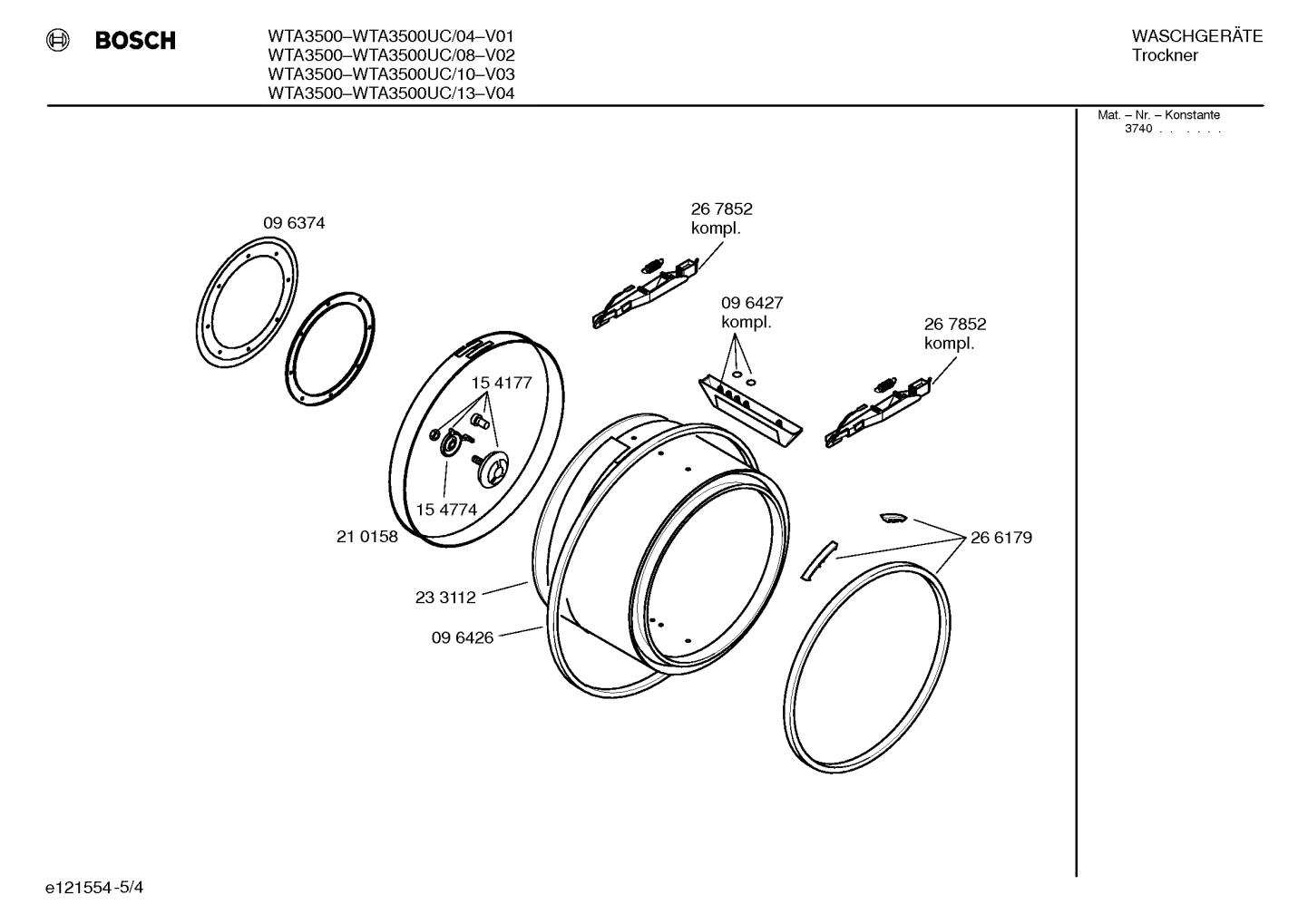

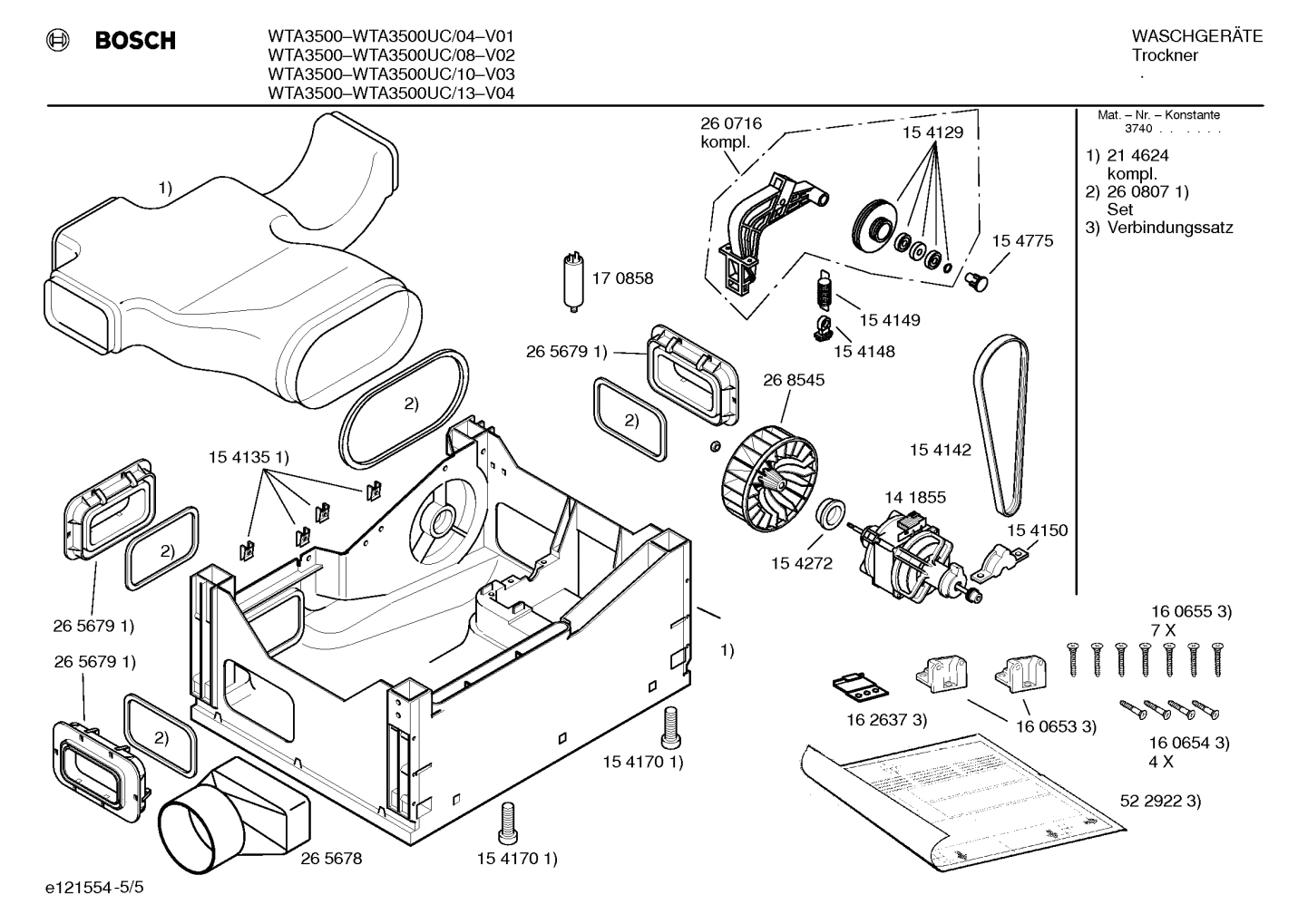

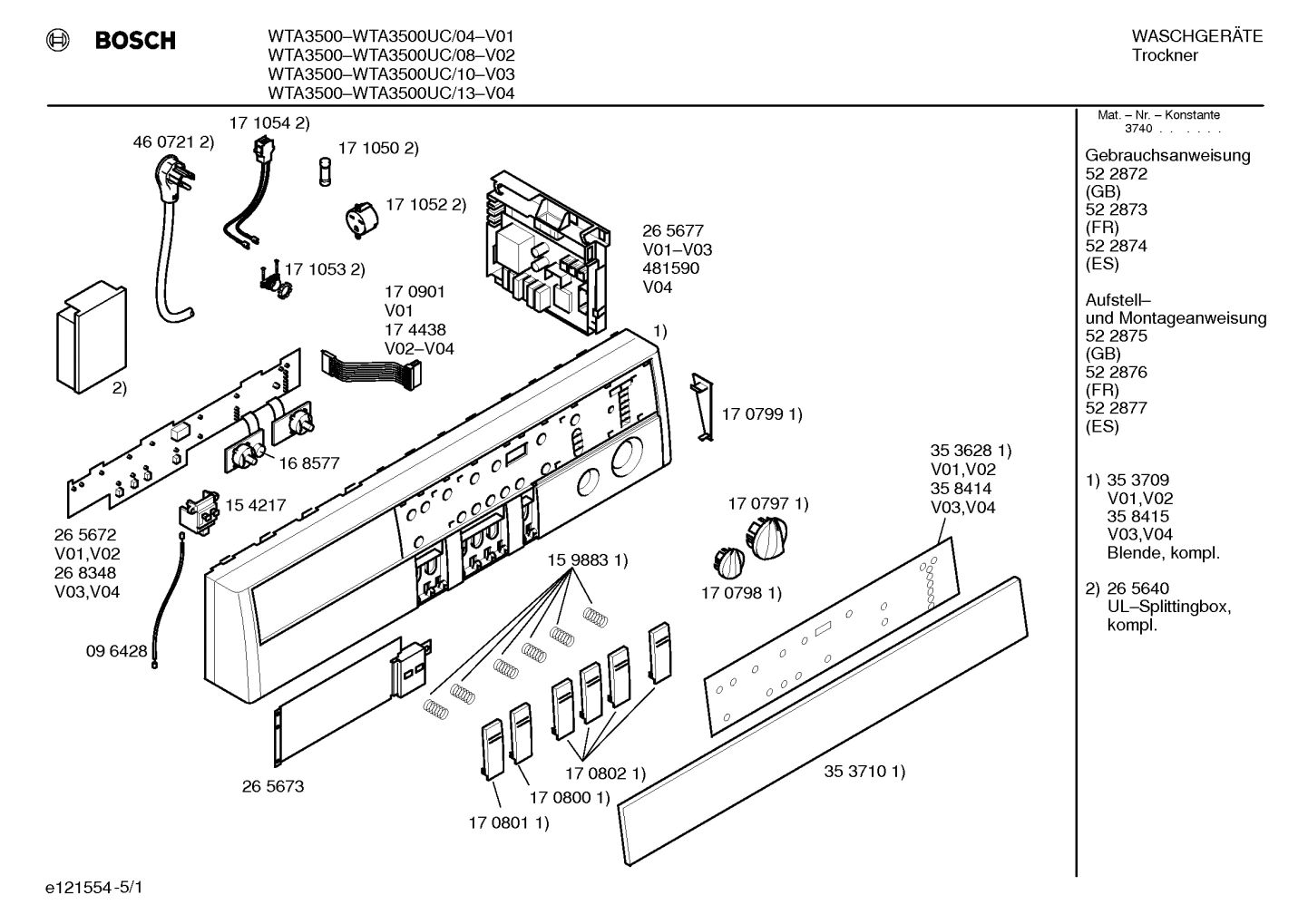

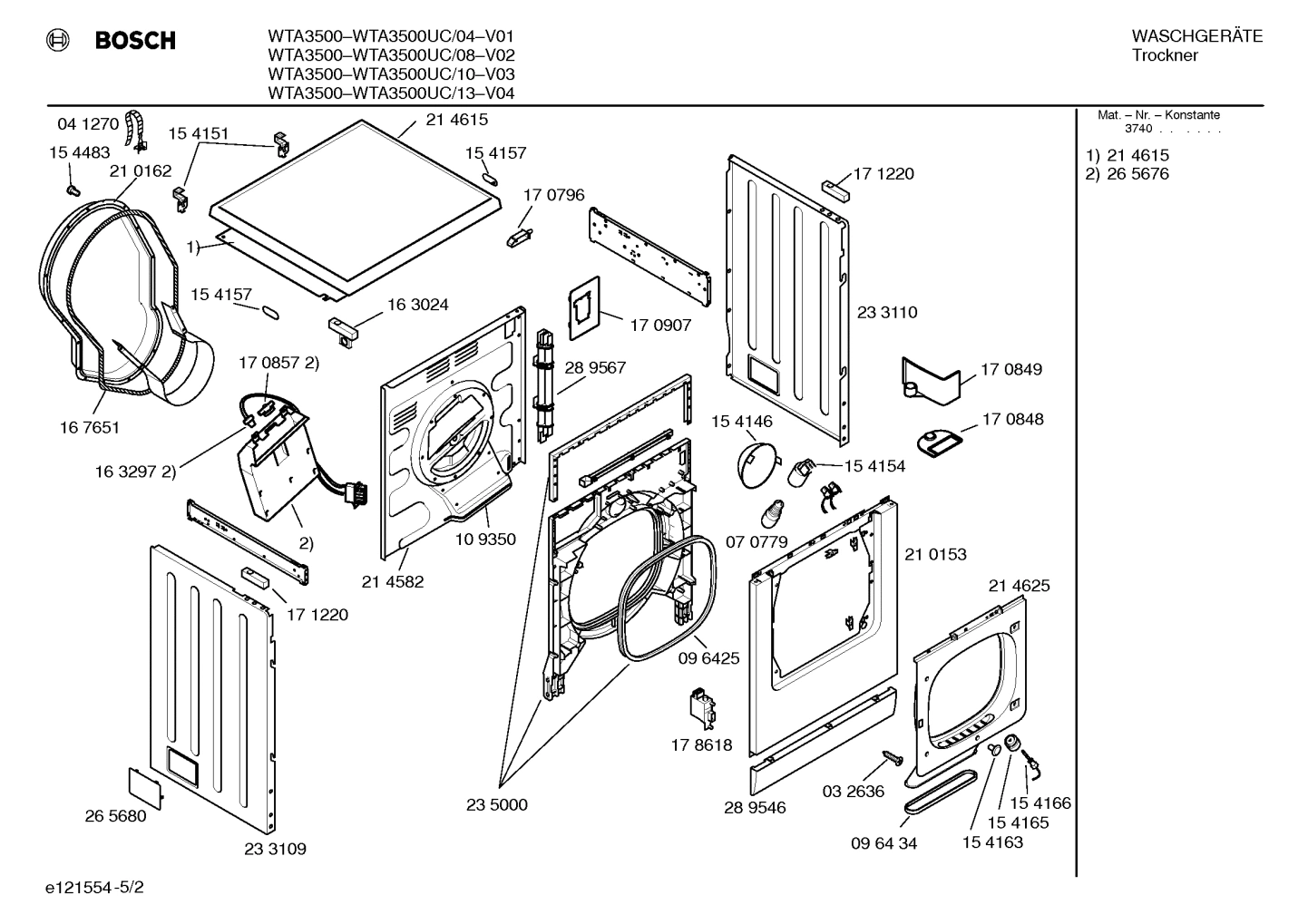

Model Bosch WTA3500UC/04 Dryer – Common Parts & Diagrams

Common parts from model Bosch WTA3500UC/04 Dryer

Knob-time

Knob-time BOS 00170798 Contact Us For Availability

00154514 Bosch Dryer Push Button Cap

00154514 Bosch Dryer Push Button Cap In Stock BOS 00154514 $9.13

00159883 Bosch Laundry Spring

00159883 Bosch Laundry Spring In Stock BOS 00159883 $64.24

00096428 Bosch Laundry Bowden Cable

00096428 Bosch Laundry Bowden Cable Backorder BOS 00096428 $54.75

00167651 Bosch Laundry Sealing

00167651 Bosch Laundry Sealing Backorder BOS 00167651 $21.03

00170857 Bosch Laundry Temperature Limiter

00170857 Bosch Laundry Temperature Limiter In Stock BOS 00170857 $42.55

Limiter-temperature

Limiter-temperature BOS 00163297 No Longer Available

00070779 Bosch Lamp

00070779 Bosch Lamp In Stock BOS 00070779 $13.27

00178618 Bosch Laundry Electric Lock

00178618 Bosch Laundry Electric Lock In Stock BOS 00178618 $154.42

Screw

Screw BOS 00032636 Contact Us For Availability

10010119 Bosch Laundry Repair Set

10010119 Bosch Laundry Repair Set In Stock BOS 10010119 $26.08

00154165 Bosch Laundry Seal

00154165 Bosch Laundry Seal Backorder BOS 00154165 $19.20

Cover

Cover BOS 00265680 No Longer Available

00154146 Bosch Laundry Cover

00154146 Bosch Laundry Cover Backorder BOS 00154146 $7.30

00154074 Bosch Laundry Hook

00154074 Bosch Laundry Hook In Stock BOS 00154074 $11.44

00265649 Bosch Laundry Fluff Filter

00265649 Bosch Laundry Fluff Filter In Stock BOS 00265649 $39.33

00183897 Bosch Laundry Bearing Set

00183897 Bosch Laundry Bearing Set Backorder BOS 00183897 $271.02

00096426 Bosch Laundry Drive Belt

00096426 Bosch Laundry Drive Belt In Stock BOS 00096426 $49.87

00265678 Bosch Laundry Stud

00265678 Bosch Laundry Stud In Stock BOS 00265678 $49.87

00611942 Bosch Laundry Foot

00611942 Bosch Laundry Foot In Stock BOS 00611942 $8.69

00481698 Bosch Laundry Holder

00481698 Bosch Laundry Holder In Stock BOS 00481698 $269.26

Roller-tension

Roller-tension BOS 00154129 Contact Us For Availability

00154148 Bosch Laundry Holder

00154148 Bosch Laundry Holder Backorder BOS 00154148 $4.12

00154142 Bosch Laundry Drive Belt

00154142 Bosch Laundry Drive Belt In Stock BOS 00154142 $21.03

00154272 Bosch Laundry Bushing

00154272 Bosch Laundry Bushing Backorder BOS 00154272 $59.71
