Bosch WTA3200AU/04 Parts List

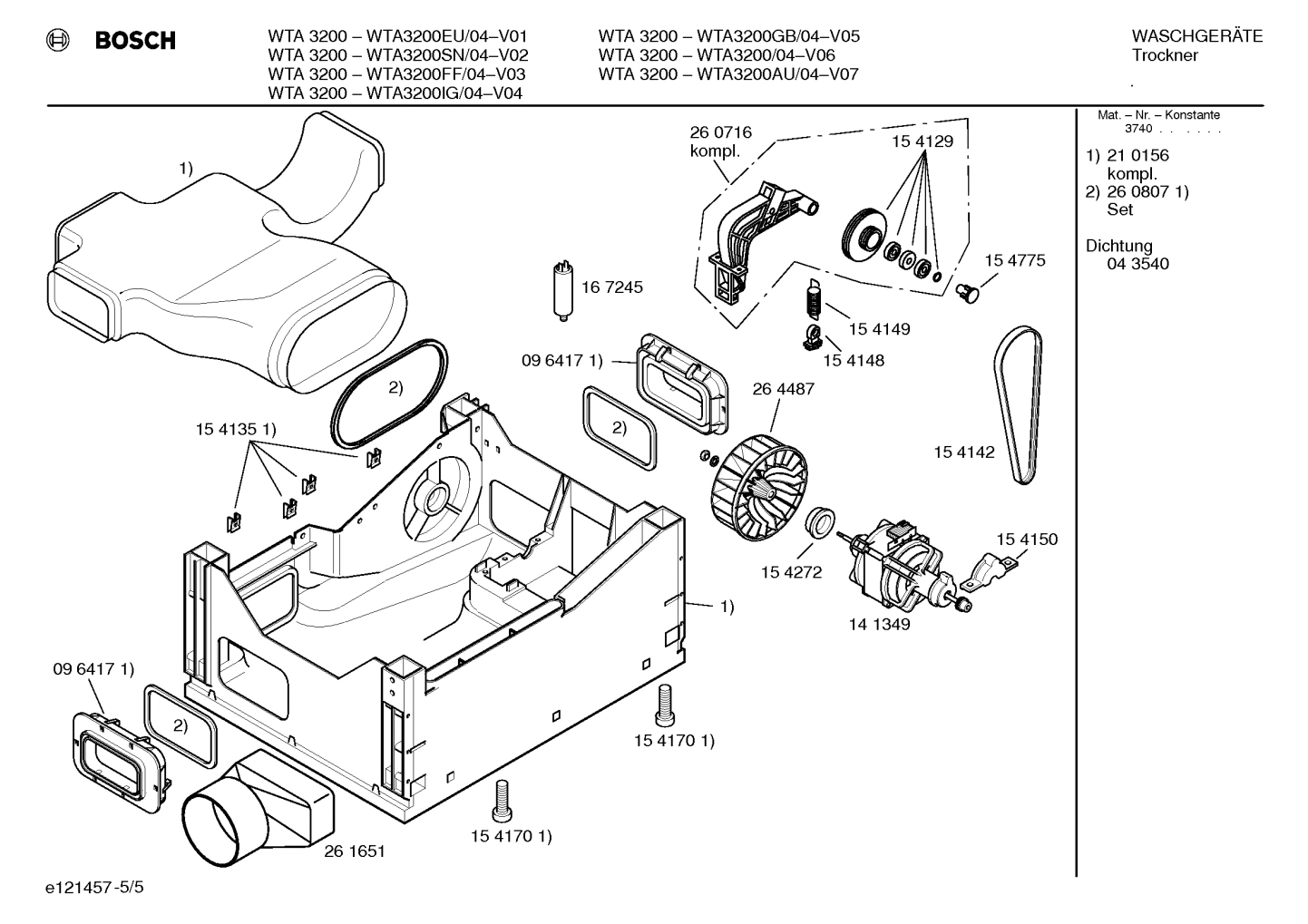

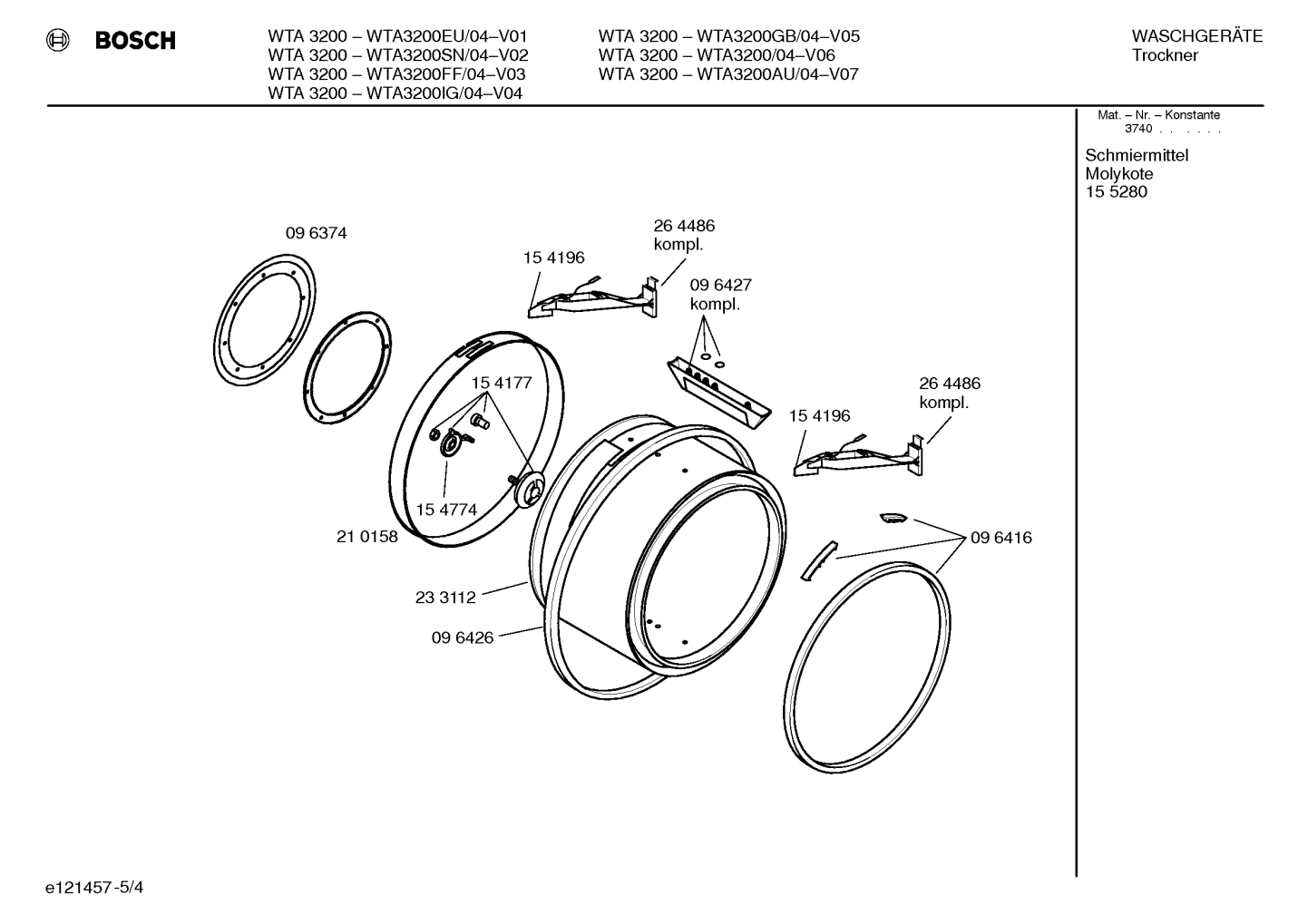

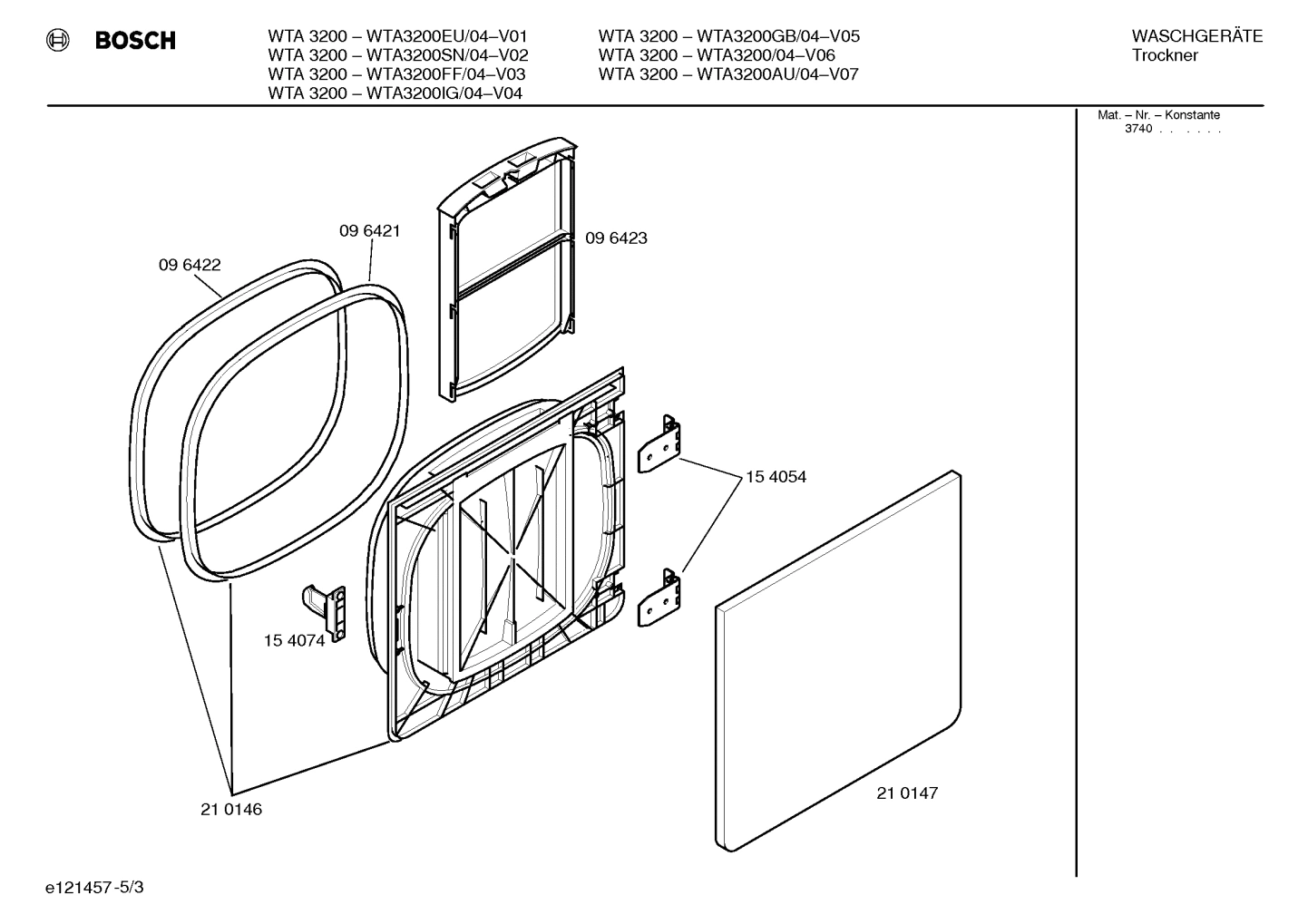

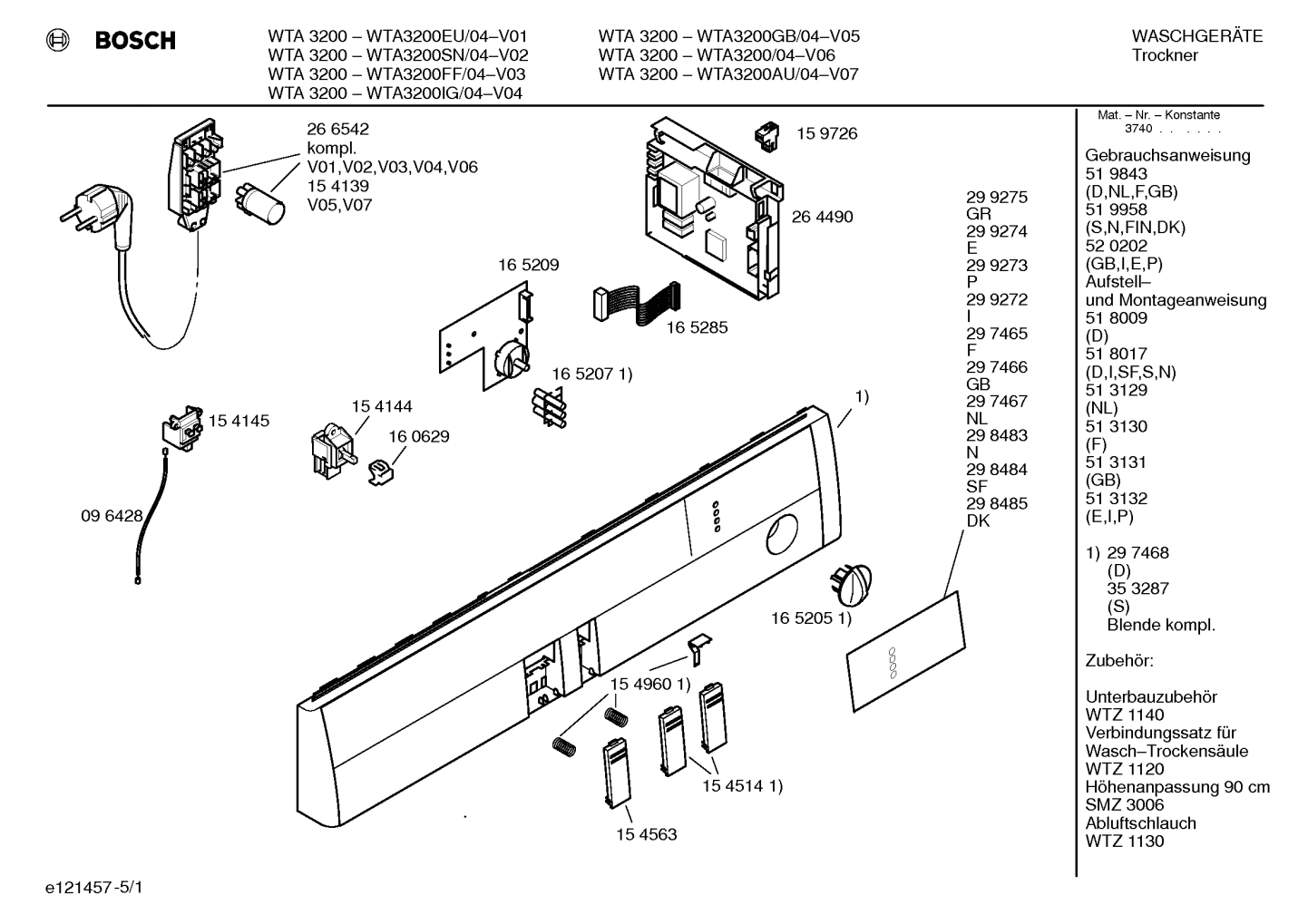

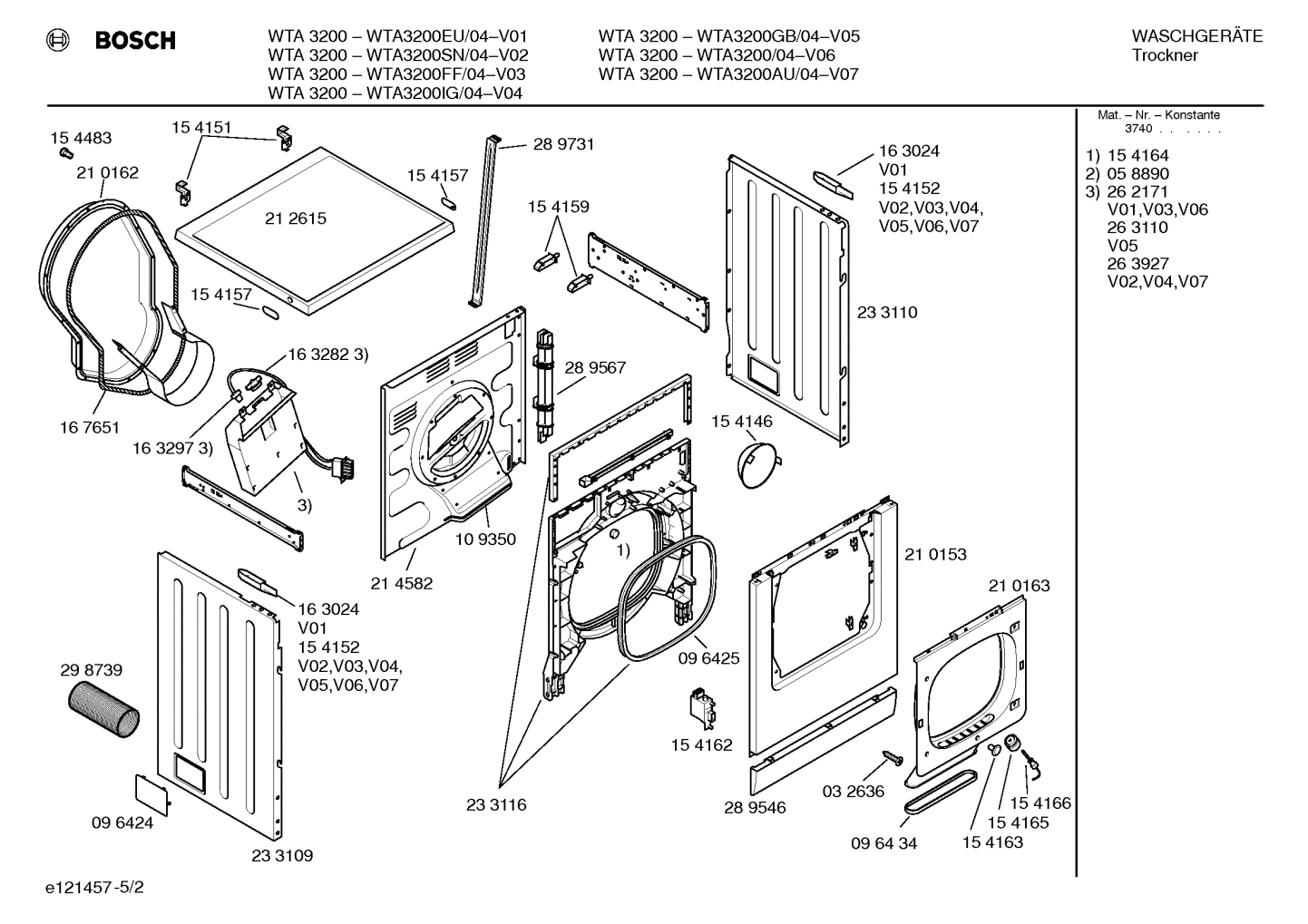

Model Bosch WTA3200AU/04 Dryer – Common Parts & Diagrams

Common parts from model Bosch WTA3200AU/04 Dryer

00096428 Bosch Laundry Bowden Cable

00096428 Bosch Laundry Bowden Cable Backorder BOS 00096428 $59.73

00154514 Bosch Dryer Push Button Cap

00154514 Bosch Dryer Push Button Cap In Stock BOS 00154514 $10.07

Sealing

Sealing BOS 00167651 Contact Us For Availability

Limiter-temperature

Limiter-temperature BOS 00163297 Contact Us For Availability

Screw

Screw BOS 00032636 Contact Us For Availability

00154165 Bosch Laundry Seal

00154165 Bosch Laundry Seal Backorder BOS 00154165 $21.05

Repair-set

Repair-set BOS 10010119 Contact Us For Availability

00154074 Bosch Laundry Hook

00154074 Bosch Laundry Hook In Stock BOS 00154074 $12.81

Bearing set

Bearing set BOS 00183897 Contact Us For Availability

00096426 Bosch Laundry Drive Belt

00096426 Bosch Laundry Drive Belt In Stock BOS 00096426 $53.99

00265678 Bosch Laundry Stud

00265678 Bosch Laundry Stud Backorder BOS 00265678 $53.99

00611942 Bosch Laundry Foot

00611942 Bosch Laundry Foot In Stock BOS 00611942 $10.07

00481698 Bosch Laundry Holder

00481698 Bosch Laundry Holder In Stock BOS 00481698 $291.28

Roller-tension

Roller-tension BOS 00154129 Contact Us For Availability

Holder

Holder BOS 00154148 Contact Us For Availability

00154272 Bosch Laundry Bushing

00154272 Bosch Laundry Bushing Backorder BOS 00154272 $65.16
