Bosch WIT8440GB/01

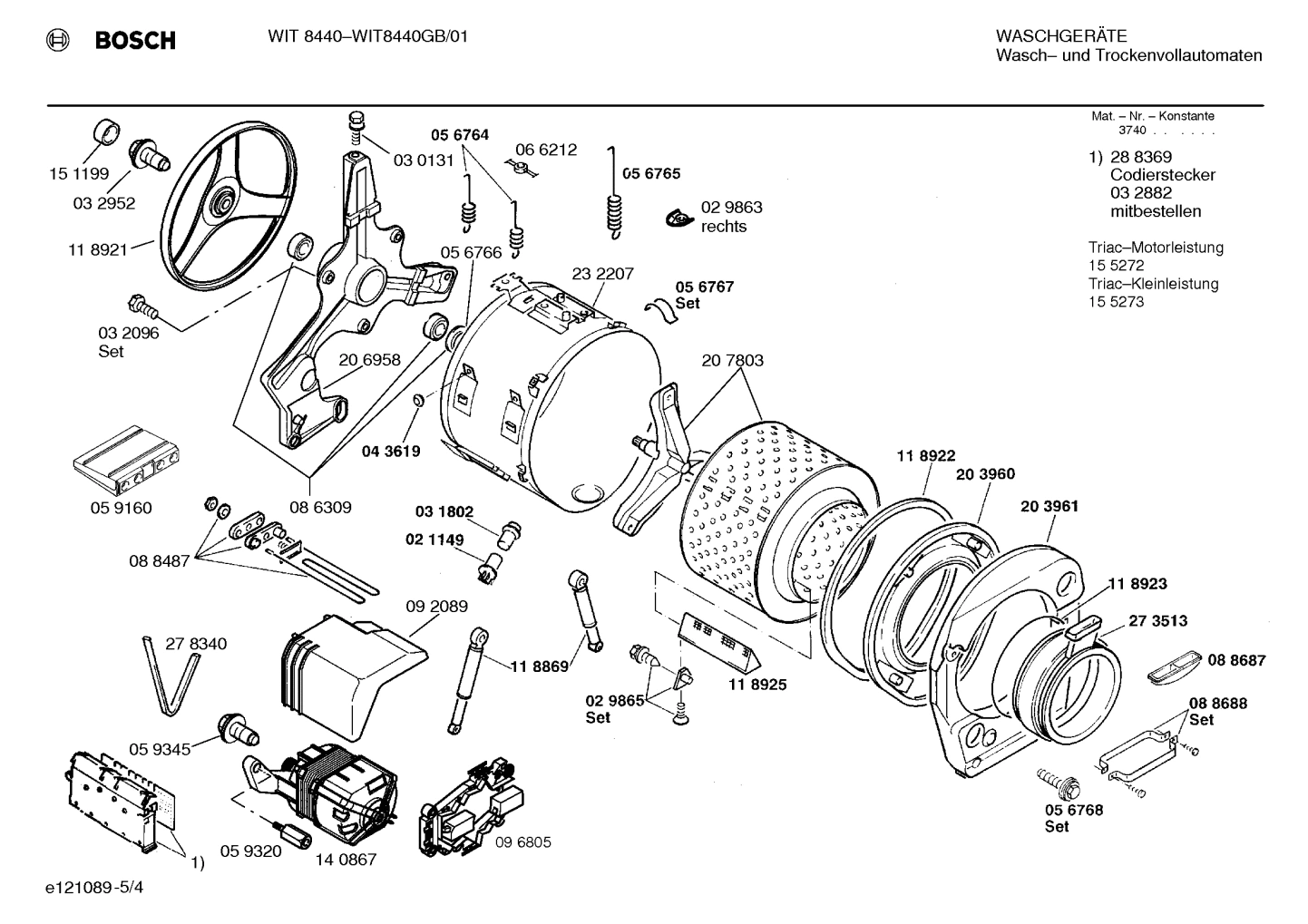

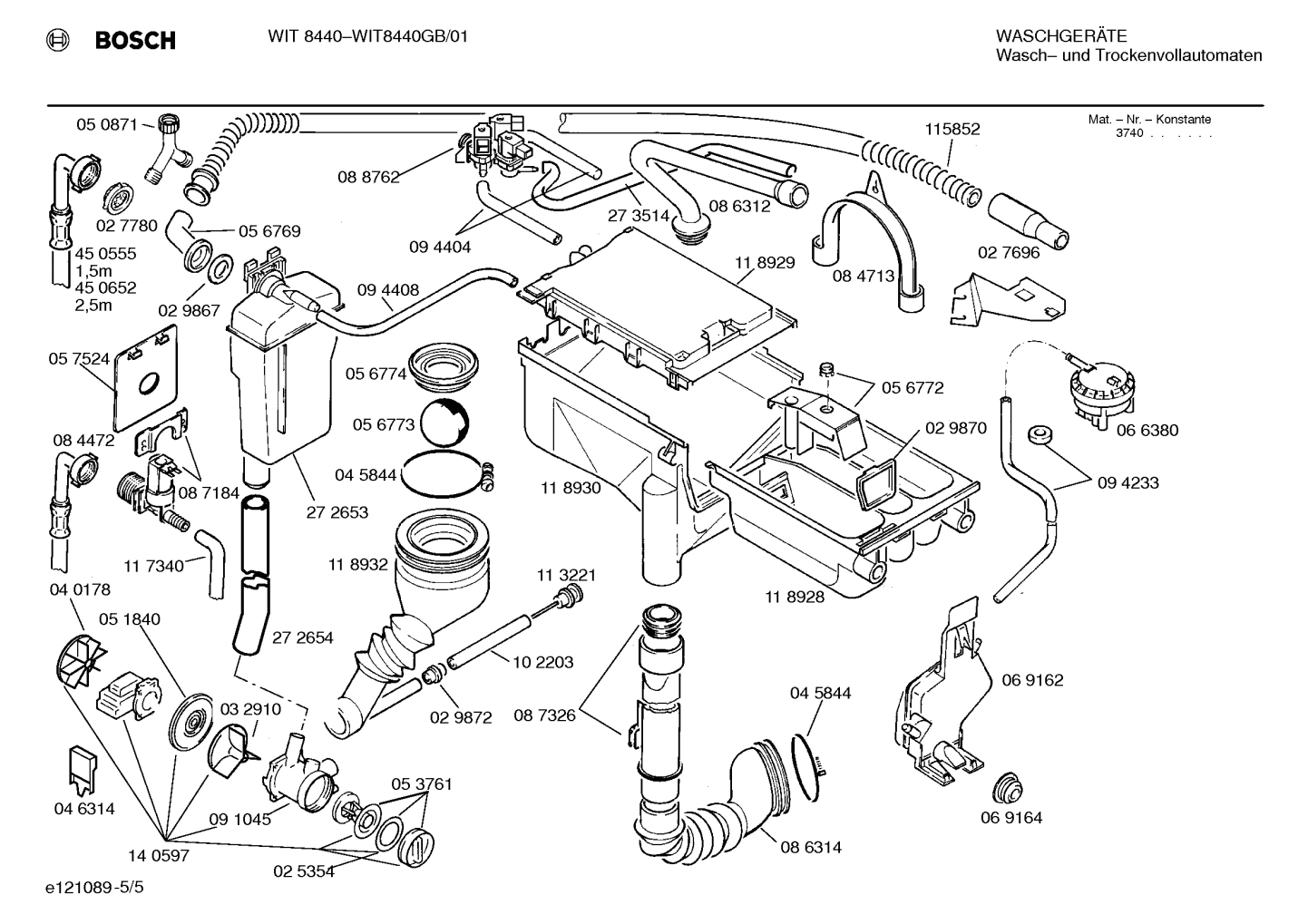

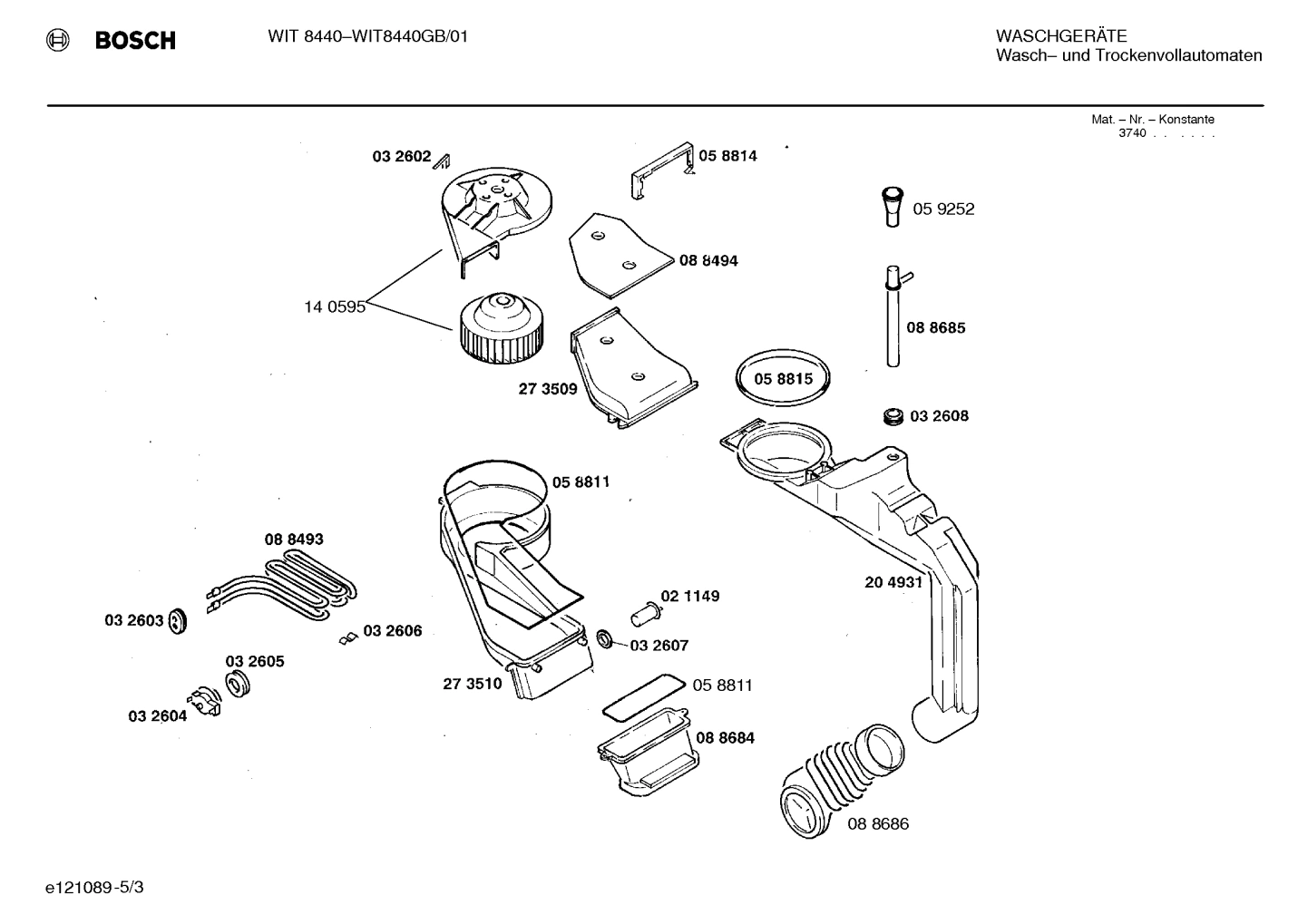

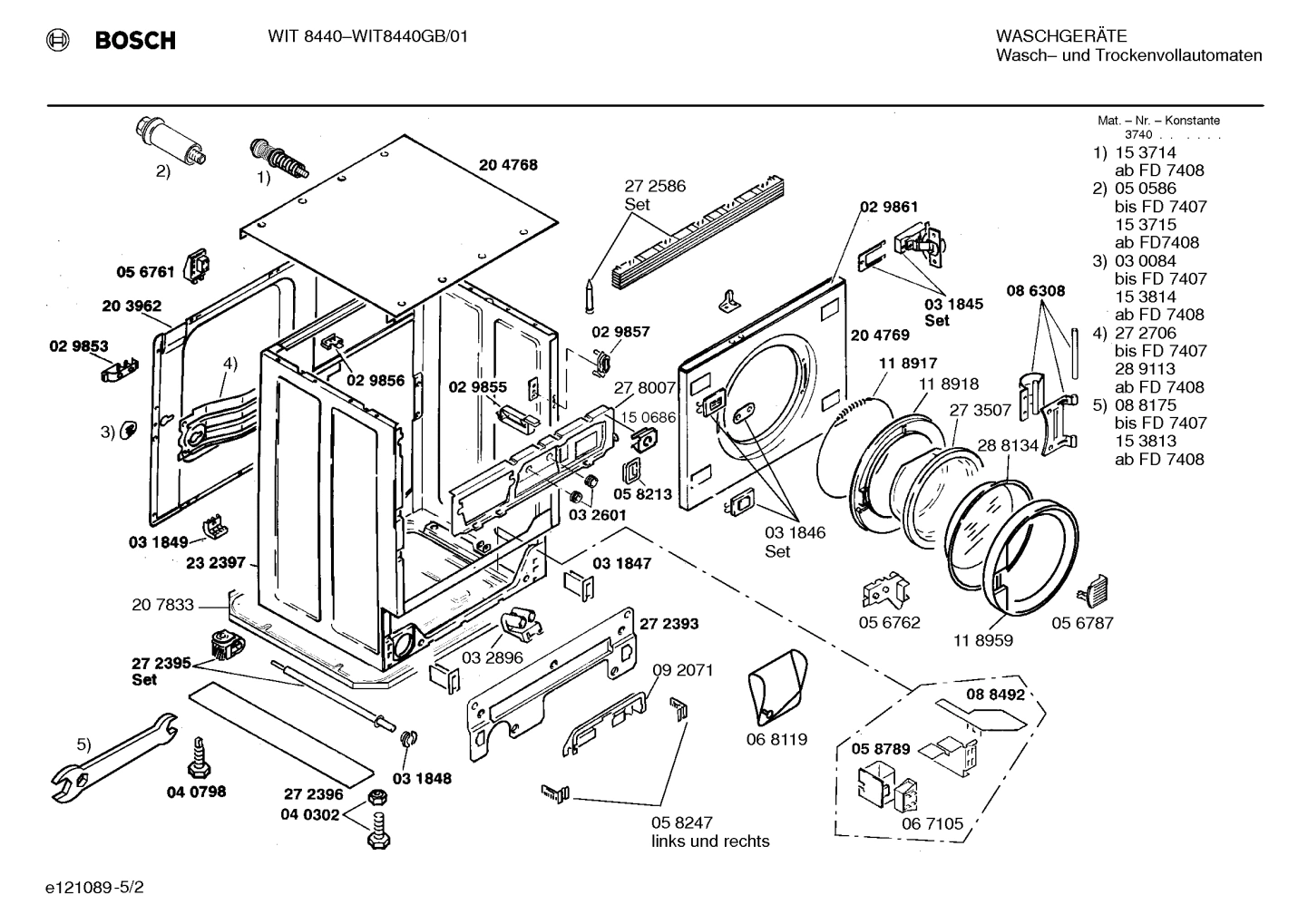

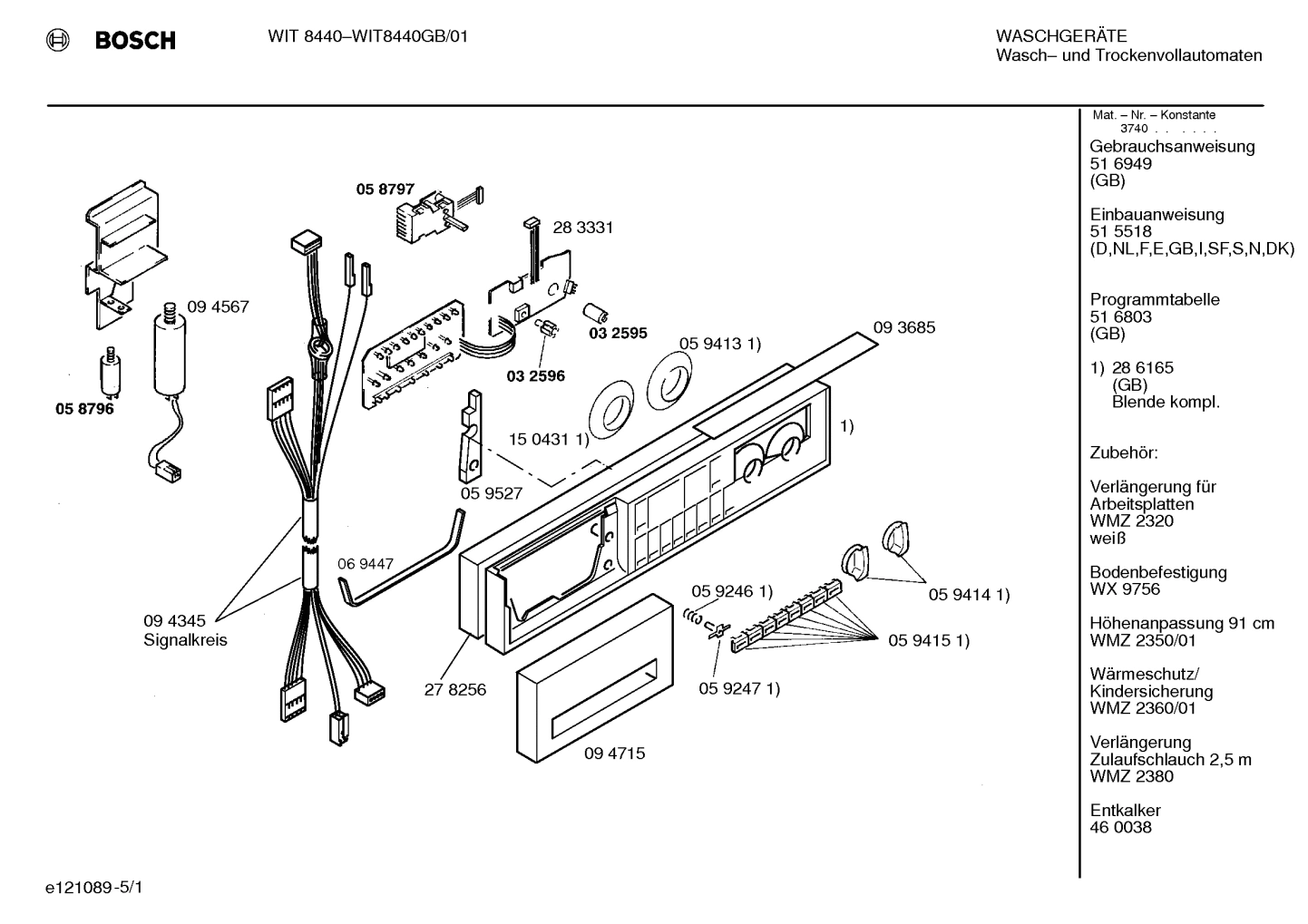

Model Bosch WIT8440GB/01 Washer – Common Parts & Diagrams

Common parts from model Bosch WIT8440GB/01 Washer

00059246 Bosch Laundry Spring

00059246 Bosch Laundry Spring Backorder BOS 00059246 $4.56

00040302 Bosch Laundry Foot

00040302 Bosch Laundry Foot Backorder BOS 00040302 $10.96

00118917 Bosch Laundry Lock Clamp

00118917 Bosch Laundry Lock Clamp Backorder BOS 00118917 $17.37

Electric lock

Electric lock BOS 00056762 Contact Us For Availability

00153813 Bosch Laundry Auxiliary Tool

00153813 Bosch Laundry Auxiliary Tool Backorder BOS 00153813 $8.22

00171270 Bosch Screw

00171270 Bosch Screw Backorder BOS 00171270 $3.64

Pulley

Pulley BOS 00118921 Contact Us For Availability

SCREW

SCREW Backorder BOS 00059345 $7.30

00059320 Bosch Laundry Holder

00059320 Bosch Laundry Holder Backorder BOS 00059320 $10.96

00056766 Bosch Laundry Shaft Seal

00056766 Bosch Laundry Shaft Seal Backorder BOS 00056766 $42.99

00086309 Bosch Laundry Bearing Set

00086309 Bosch Laundry Bearing Set Backorder BOS 00086309 $129.92

00118869 Bosch Laundry Shock Absorber

00118869 Bosch Laundry Shock Absorber Backorder BOS 00118869 $70.57

00056764 Bosch Laundry Spring Tank

00056764 Bosch Laundry Spring Tank Backorder BOS 00056764 $30.18

00066212 Bosch Laundry Guide Spring

00066212 Bosch Laundry Guide Spring Backorder BOS 00066212 $15.54

Spring guide

Spring guide BOS 00029863 Contact Us For Availability

00056765 Bosch Laundry Spring

00056765 Bosch Laundry Spring Backorder BOS 00056765 $21.94

00118922 Bosch Laundry Sealing Assembly

00118922 Bosch Laundry Sealing Assembly Backorder BOS 00118922 $34.75

Hose connection inlet

Hose connection inlet BOS 00056769 Contact Us For Availability

00272654 Bosch Laundry Hose

00272654 Bosch Laundry Hose Backorder BOS 00272654 $66.95

Sealing

Sealing BOS 00051840 Contact Us For Availability

00171263 Bosch Laundry Sump Ball

00171263 Bosch Laundry Sump Ball Backorder BOS 00171263 $11.88

00603523 Bosch Fastening Ring

00603523 Bosch Fastening Ring Backorder BOS 00603523 $12.79

00432060 Bosch Laundry Outlet Hose

00432060 Bosch Laundry Outlet Hose Backorder BOS 00432060 $40.24

00655300 Bosch Laundry Holder

00655300 Bosch Laundry Holder Backorder BOS 00655300 $13.71

00027696 Bosch Laundry Stud

00027696 Bosch Laundry Stud Backorder BOS 00027696 $11.88

00050871 Bosch Laundry Branching Piece

00050871 Bosch Laundry Branching Piece Backorder BOS 00050871 $31.09

00027780 Bosch Laundry Inlet Water Filter

00027780 Bosch Laundry Inlet Water Filter Backorder BOS 00027780 $13.71
