Model Bosch WIM3410GB/15 Washer – Common Parts & Diagrams

Common parts from model Bosch WIM3410GB/15 Washer

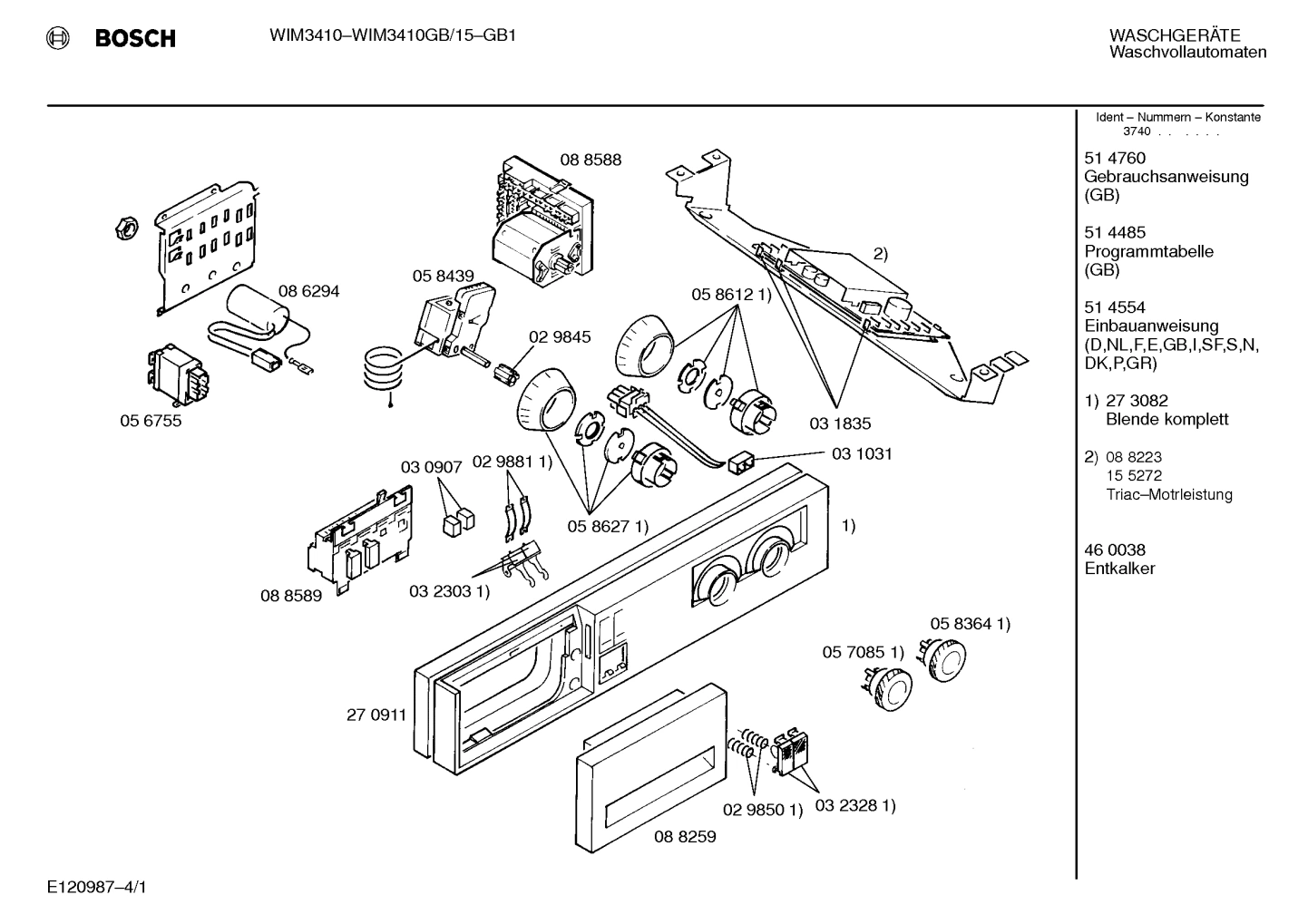

Diagram 1

Print

• This Diagram
• All Diagrams

0041

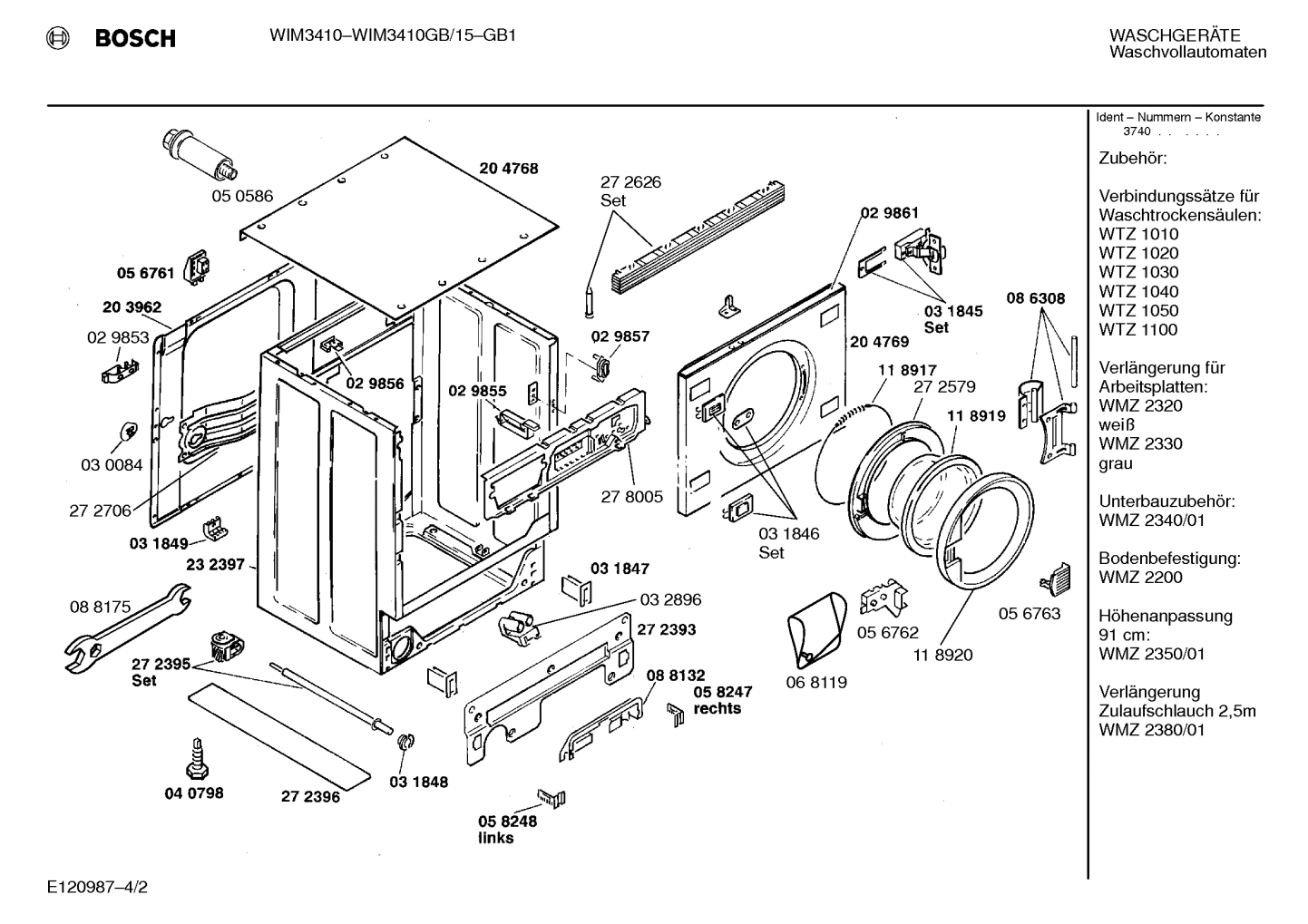

Electric lock BOS 00056762 Contact Us For Availability

View on Model

0046

00118917 Bosch Laundry Lock Clamp Backorder BOS 00118917 View Details $18.14

View on Model

0048

Window BOS 00118919 Contact Us For Availability

View on Model

0061

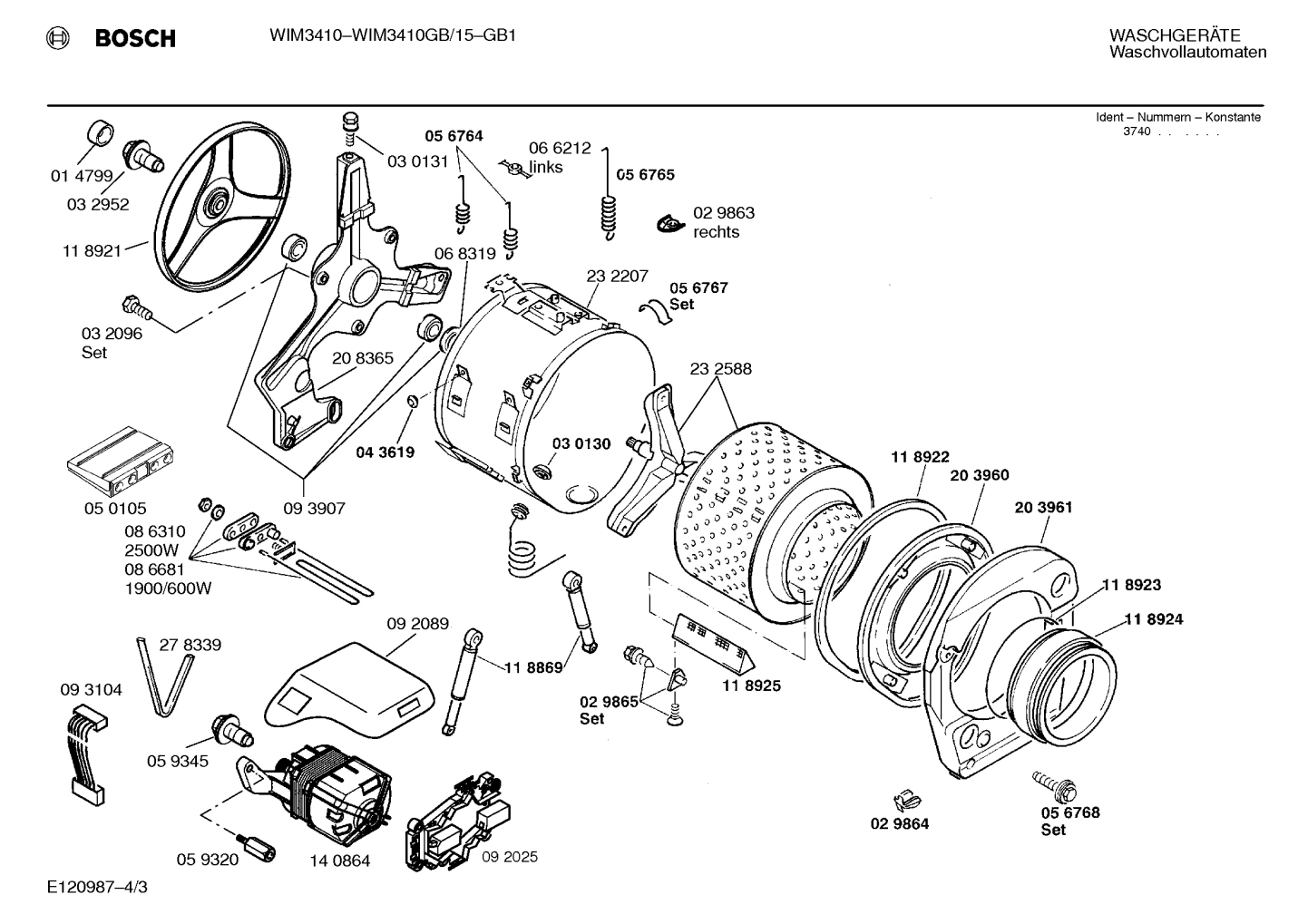

Spring guide BOS 00029863 Contact Us For Availability

View on Model

0067

00171270 Bosch Screw Backorder BOS 00171270 View Details $3.72

View on Model

0070

00056764 Bosch Laundry Spring Tank Backorder BOS 00056764 View Details $31.62

View on Model

0071

00056765 Bosch Laundry Spring Backorder BOS 00056765 View Details $23.25

View on Model

0074

Shaft seal BOS 00068319 Contact Us For Availability

View on Model

0075

00059320 Bosch Laundry Holder Backorder BOS 00059320 View Details $11.16

View on Model

0076

Screw BOS 00059345 Contact Us For Availability

View on Model

0081

00118869 Bosch Laundry Shock Absorber Backorder BOS 00118869 View Details $74.52

View on Model

0082

Pulley BOS 00118921 Contact Us For Availability

View on Model

0083

00118922 Bosch Laundry Sealing Assembly Backorder BOS 00118922 View Details $36.27

View on Model

0093

00278339 Bosch Washer Drive Belt Backorder BOS 00278339 View Details $36.27

View on Model

0097

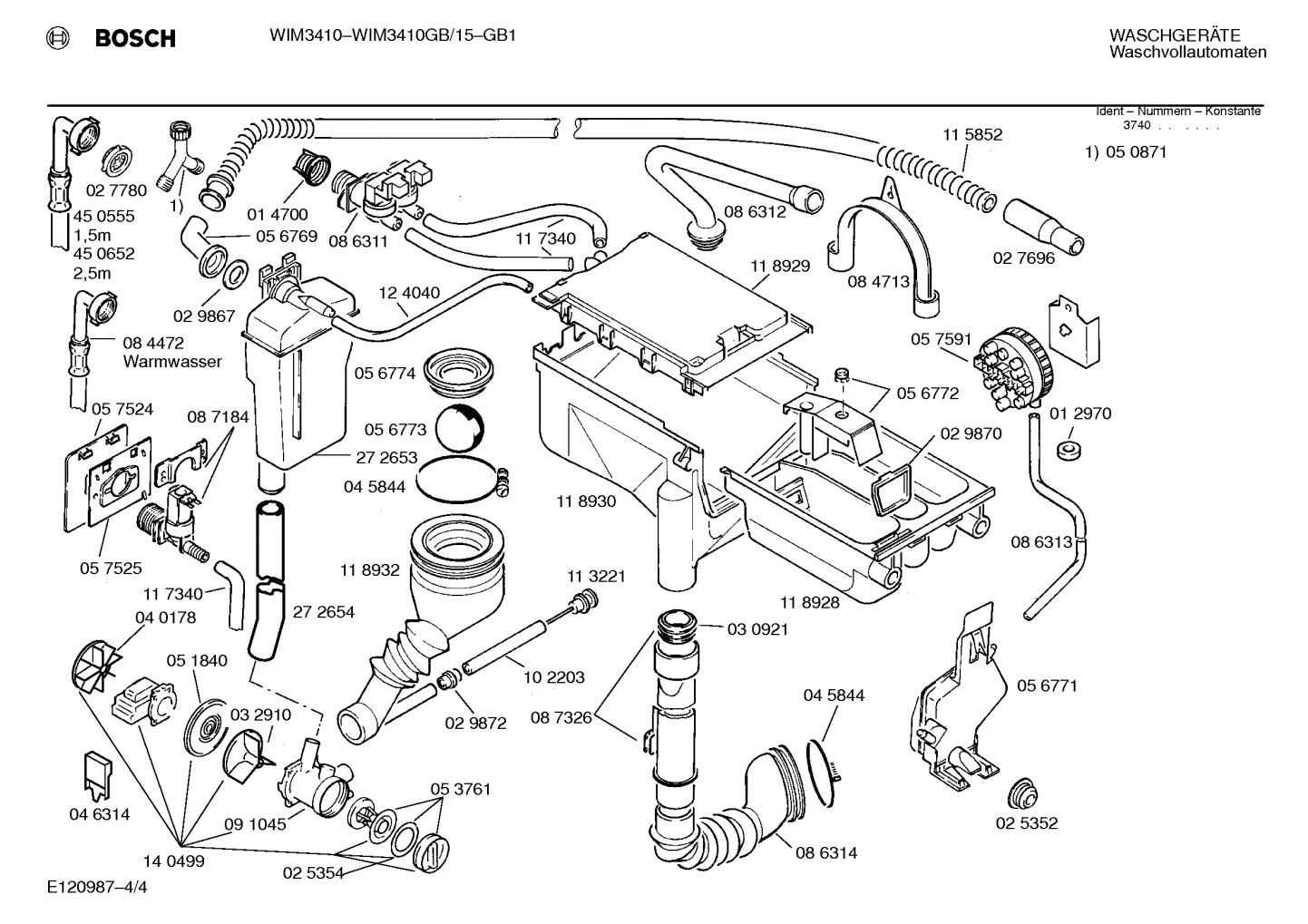

00027696 Bosch Laundry Stud Backorder BOS 00027696 View Details $12.09

View on Model

0104

00603523 Bosch Fastening Ring Backorder BOS 00603523 View Details $13.02

View on Model

0106

Sealing BOS 00051840 Contact Us For Availability

View on Model

0108

Hose connection inlet BOS 00056769 Contact Us For Availability

View on Model

0111

00171263 Bosch Laundry Sump Ball Backorder BOS 00171263 View Details $12.09

View on Model

0114

00655300 Bosch Laundry Holder Backorder BOS 00655300 View Details $14.42

View on Model

0122

Latch BOS 00113221 Contact Us For Availability

View on Model

0123

00432060 Bosch Laundry Outlet Hose Backorder BOS 00432060 View Details $41.85

View on Model

0131

00272654 Bosch Laundry Hose Backorder BOS 00272654 View Details $70.38

View on Model

0134

00027780 Bosch Laundry Inlet Water Filter Backorder BOS 00027780 View Details $14.42

View on Model

0137

00050871 Bosch Laundry Branching Piece Backorder BOS 00050871 View Details $32.09

View on Model

×
