Bosch WFT8440GB/02

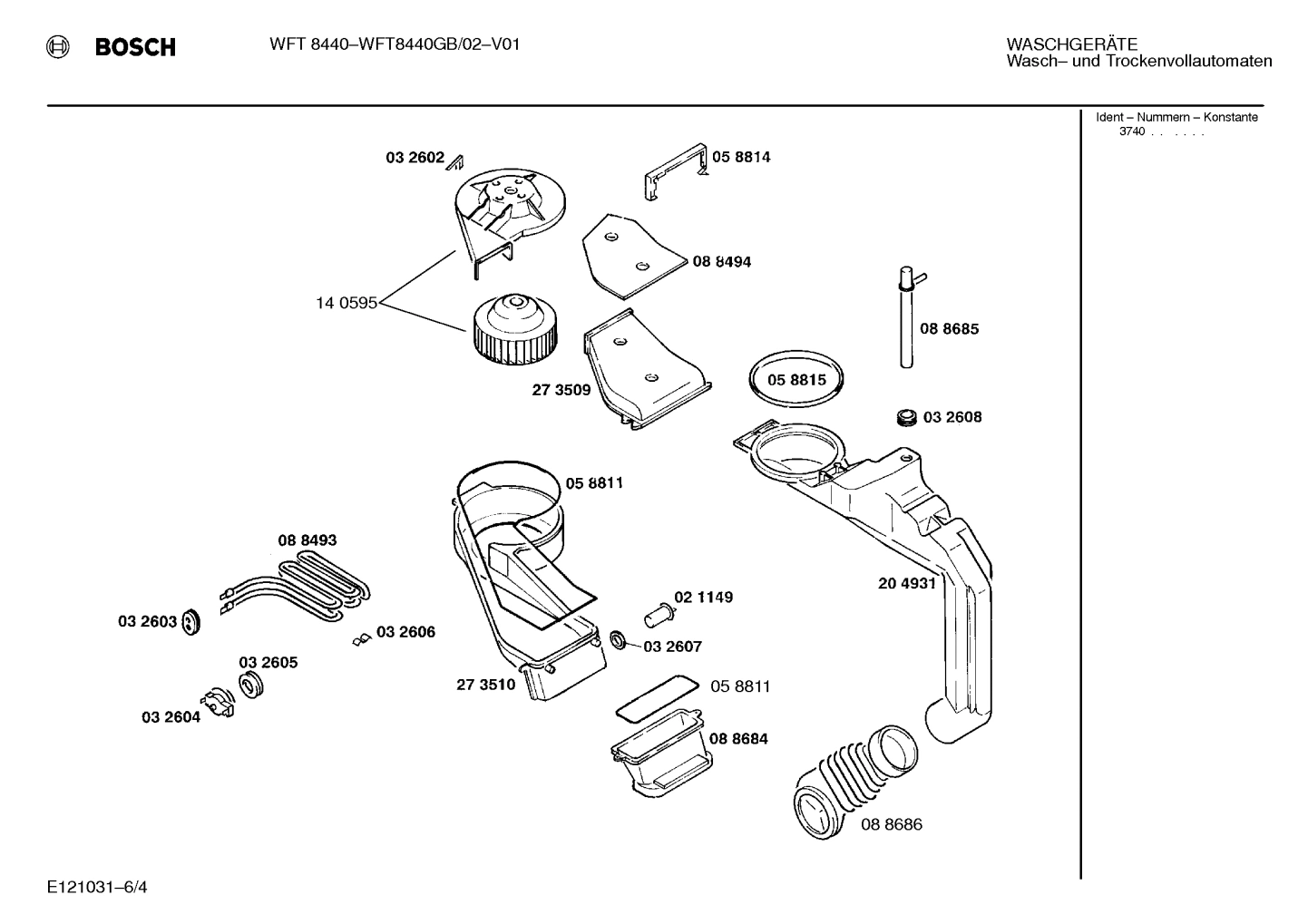

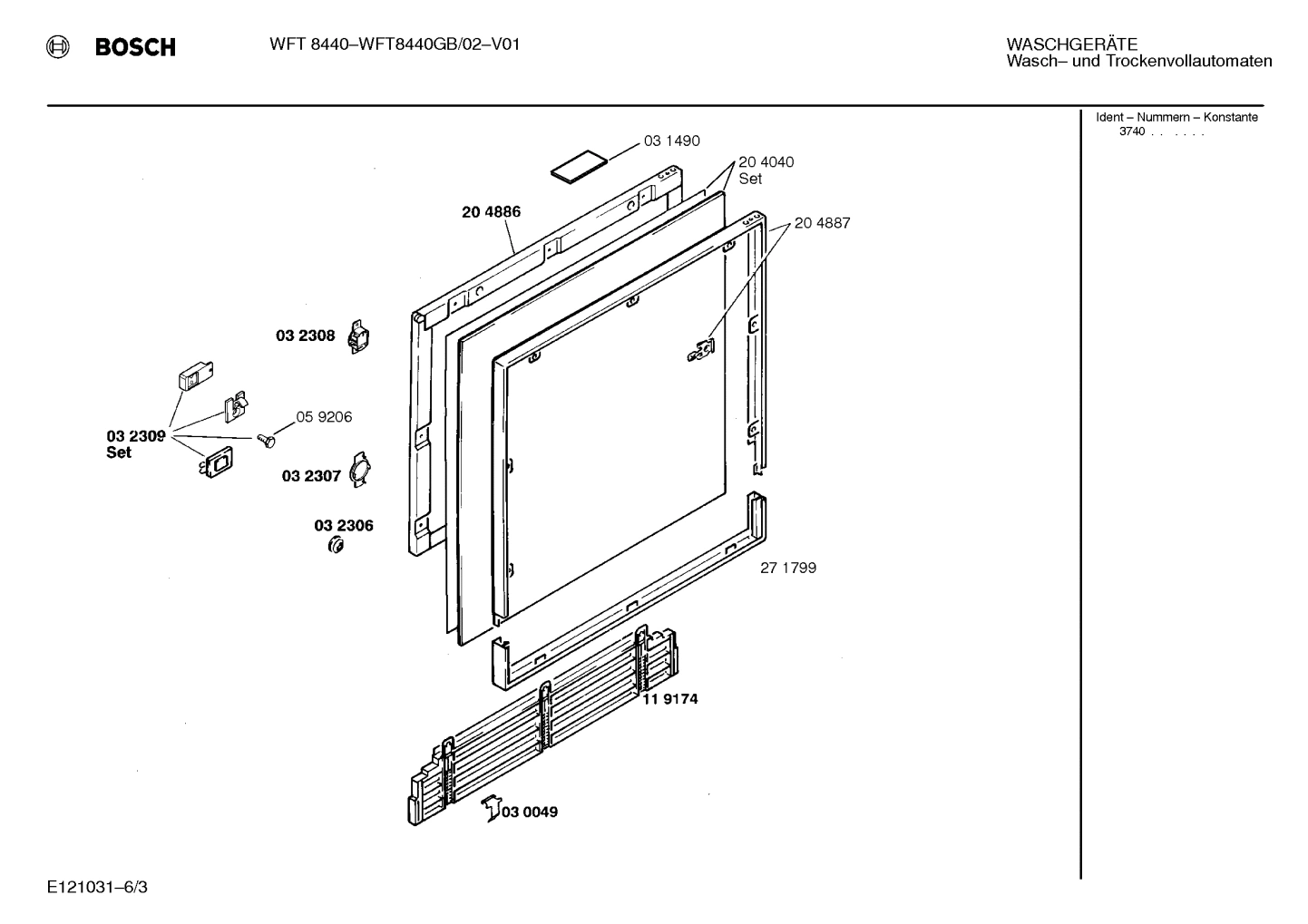

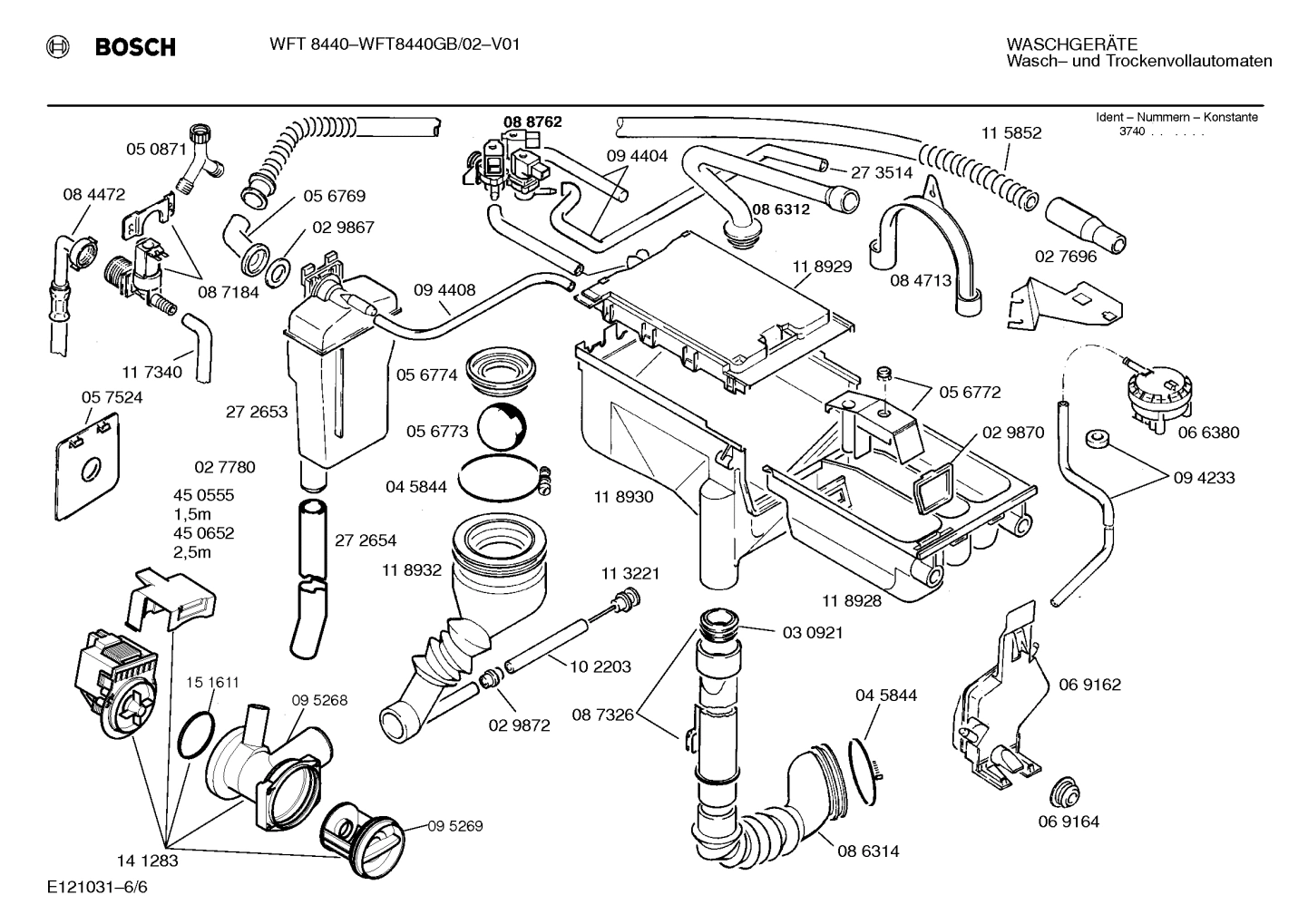

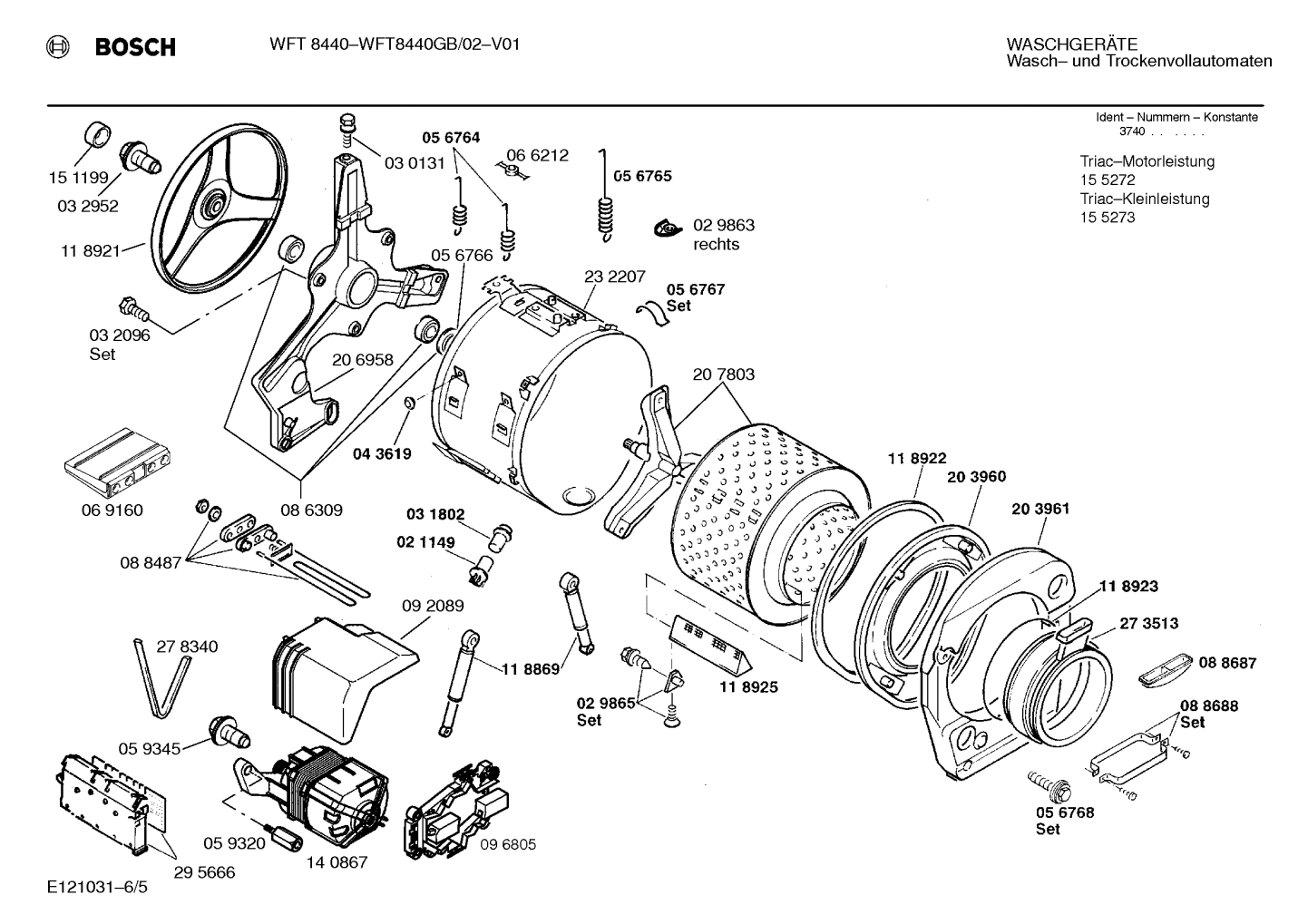

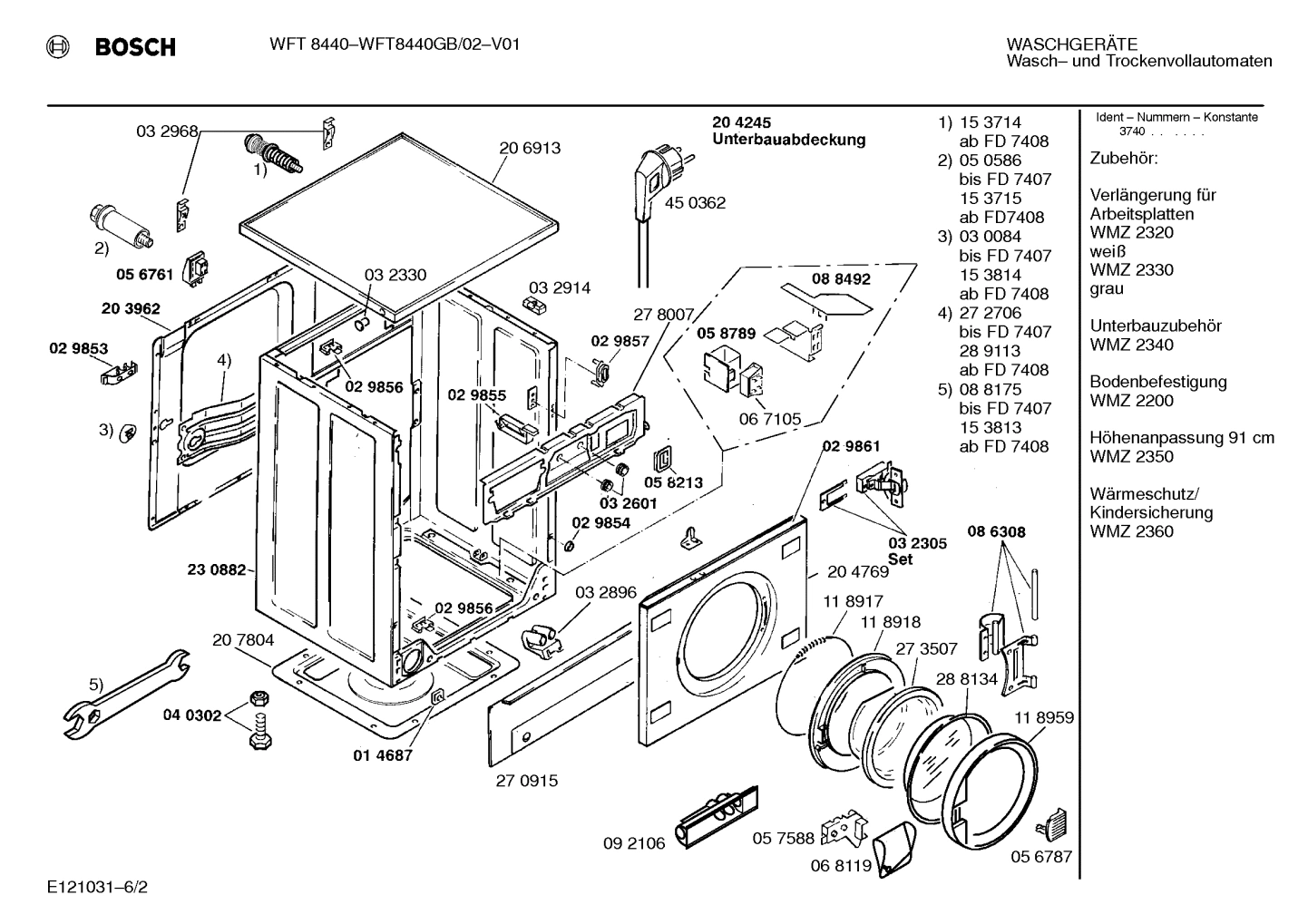

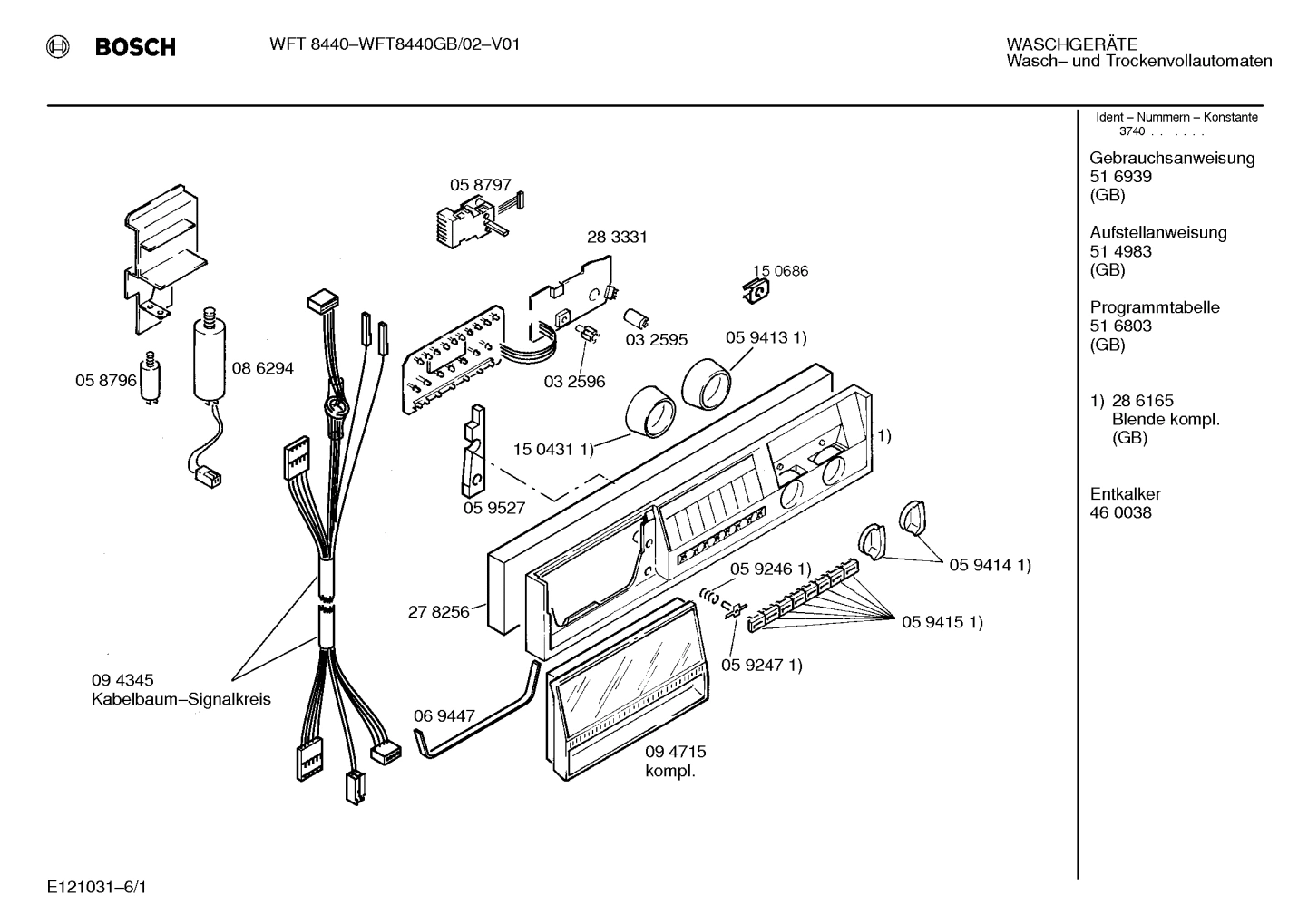

Model Bosch WFT8440GB/02 Washer – Common Parts & Diagrams

Common parts from model Bosch WFT8440GB/02 Washer

00059246 Bosch Laundry Spring

00059246 Bosch Laundry Spring Backorder BOS 00059246 $4.12

00032968 Bosch Laundry Holder

00032968 Bosch Laundry Holder Backorder BOS 00032968 $29.26

Case-bottom

Case-bottom BOS 00207804 Contact Us For Availability

00040302 Bosch Laundry Foot

00040302 Bosch Laundry Foot Backorder BOS 00040302 $10.05

15000636 Bosch Power Cord

15000636 Bosch Power Cord Backorder BOS 15000636 $21.50

00606923 Bosch Laundry Holder

00606923 Bosch Laundry Holder Backorder BOS 00606923 $4.56

00118917 Bosch Laundry Lock Clamp

00118917 Bosch Laundry Lock Clamp Backorder BOS 00118917 $16.01

00153813 Bosch Laundry Auxiliary Tool

00153813 Bosch Laundry Auxiliary Tool Backorder BOS 00153813 $7.78

00171270 Bosch Screw

00171270 Bosch Screw Backorder BOS 00171270 $3.11

Pulley

Pulley BOS 00118921 Contact Us For Availability

Screw

Screw BOS 00059345 Contact Us For Availability

00059320 Bosch Laundry Holder

00059320 Bosch Laundry Holder Backorder BOS 00059320 $9.61

00056764 Bosch Laundry Spring Tank

00056764 Bosch Laundry Spring Tank Backorder BOS 00056764 $27.91

00056766 Bosch Laundry Shaft Seal

00056766 Bosch Laundry Shaft Seal Backorder BOS 00056766 $39.80

00086309 Bosch Laundry Bearing Set

00086309 Bosch Laundry Bearing Set Backorder BOS 00086309 $120.13

00066212 Bosch Laundry Guide Spring

00066212 Bosch Laundry Guide Spring Backorder BOS 00066212 $14.18

Spring guide

Spring guide BOS 00029863 Contact Us For Availability

00056765 Bosch Laundry Spring

00056765 Bosch Laundry Spring Backorder BOS 00056765 $20.59

00118869 Bosch Laundry Shock Absorber

00118869 Bosch Laundry Shock Absorber Backorder BOS 00118869 $65.14

00118922 Bosch Laundry Sealing Assembly

00118922 Bosch Laundry Sealing Assembly Backorder BOS 00118922 $32.01

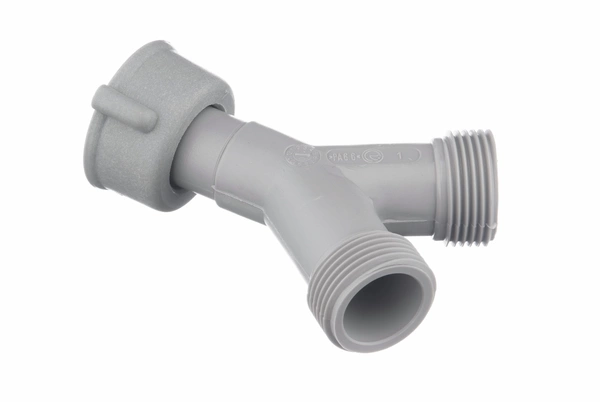

00050871 Bosch Laundry Branching Piece

00050871 Bosch Laundry Branching Piece Backorder BOS 00050871 $28.35

00027780 Bosch Laundry Inlet Water Filter

00027780 Bosch Laundry Inlet Water Filter Backorder BOS 00027780 $12.79

Hose connection inlet

Hose connection inlet BOS 00056769 Contact Us For Availability

00171263 Bosch Laundry Sump Ball

00171263 Bosch Laundry Sump Ball Backorder BOS 00171263 $10.52

00272654 Bosch Laundry Hose

00272654 Bosch Laundry Hose Backorder BOS 00272654 $62.43

00655300 Bosch Laundry Holder

00655300 Bosch Laundry Holder Backorder BOS 00655300 $12.79

00603523 Bosch Fastening Ring

00603523 Bosch Fastening Ring Backorder BOS 00603523 $11.44

00432060 Bosch Laundry Outlet Hose

00432060 Bosch Laundry Outlet Hose Backorder BOS 00432060 $37.06

00027696 Bosch Laundry Stud

00027696 Bosch Laundry Stud Backorder BOS 00027696 $10.96
