Bosch WFT6410FG/01

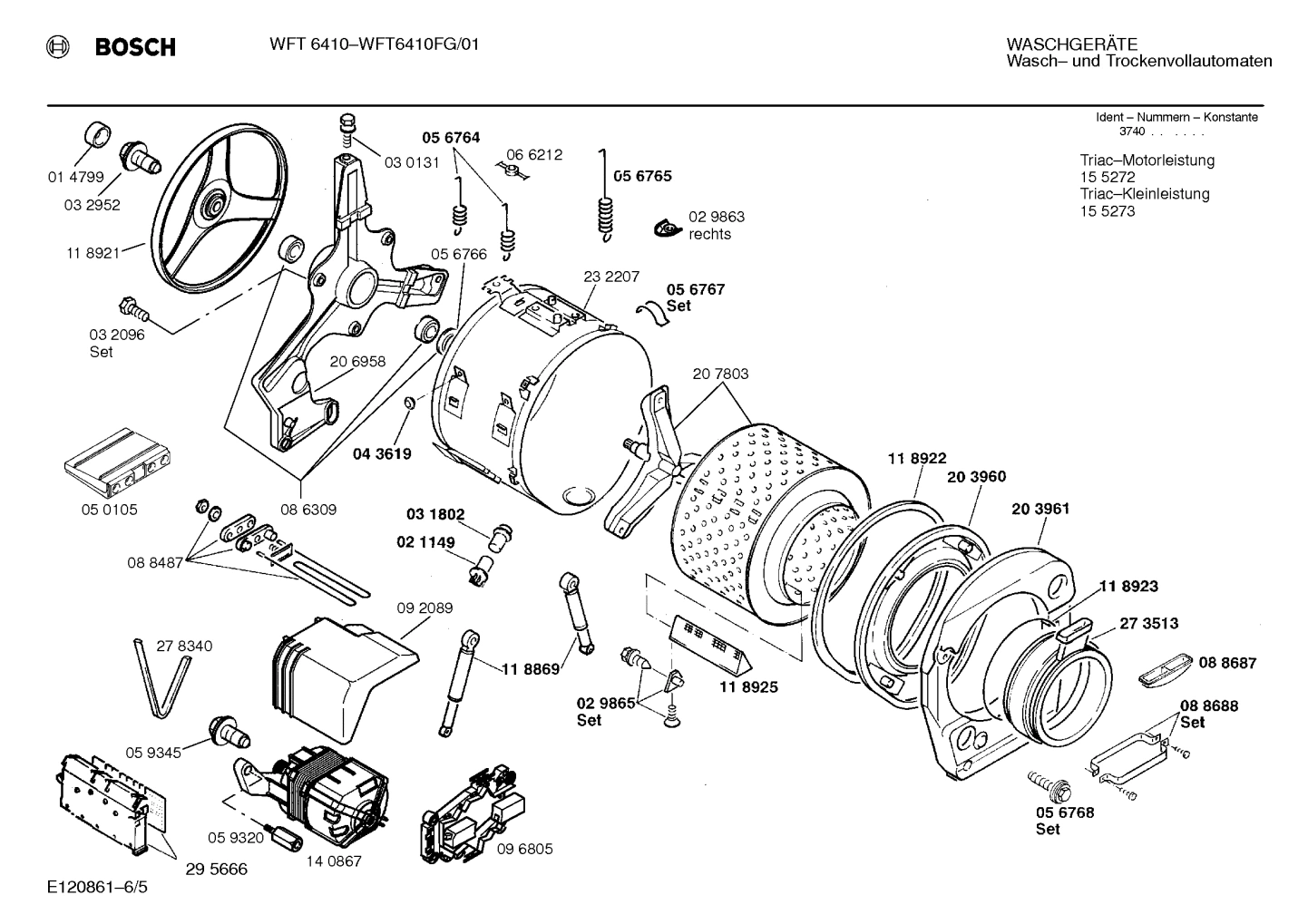

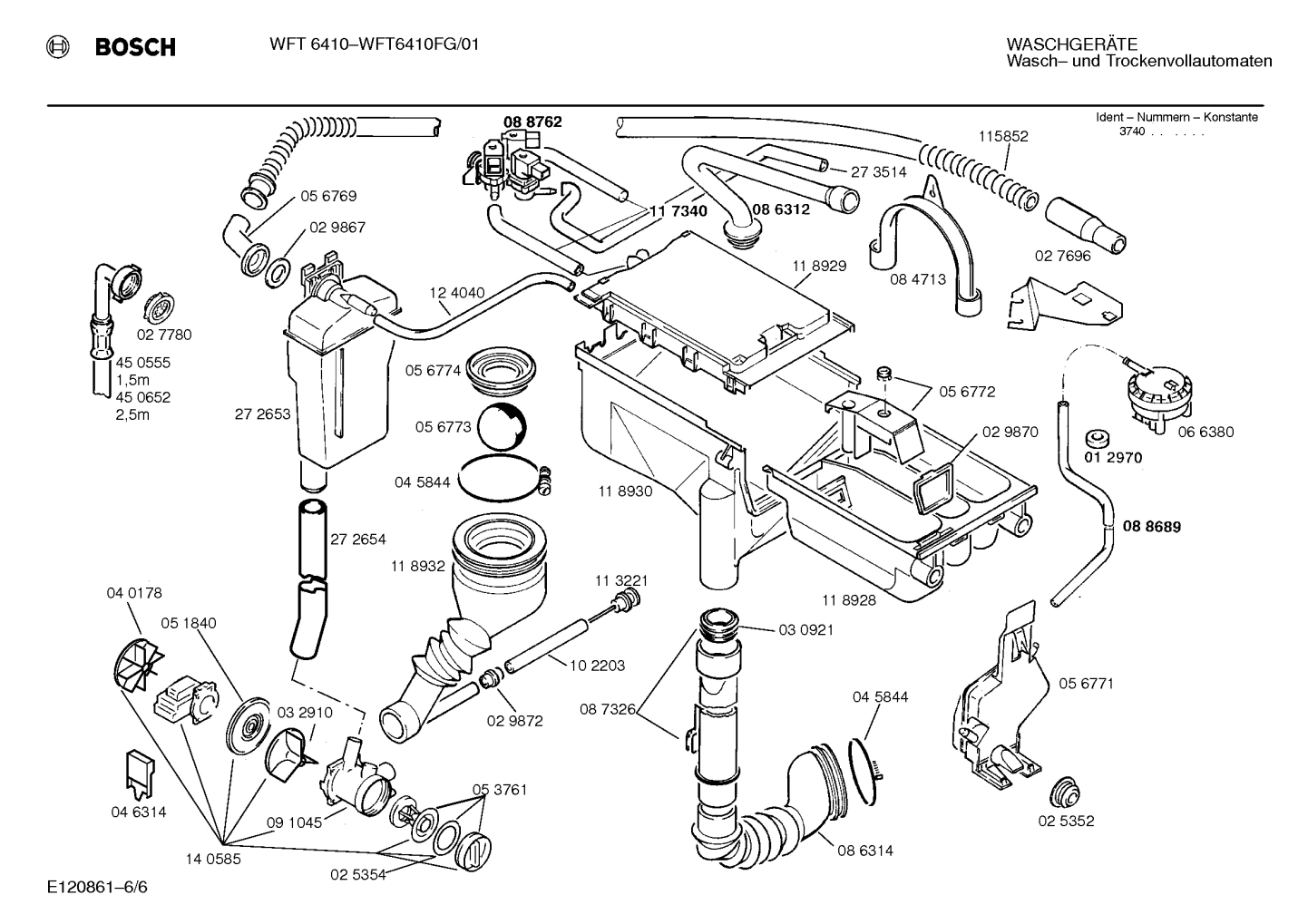

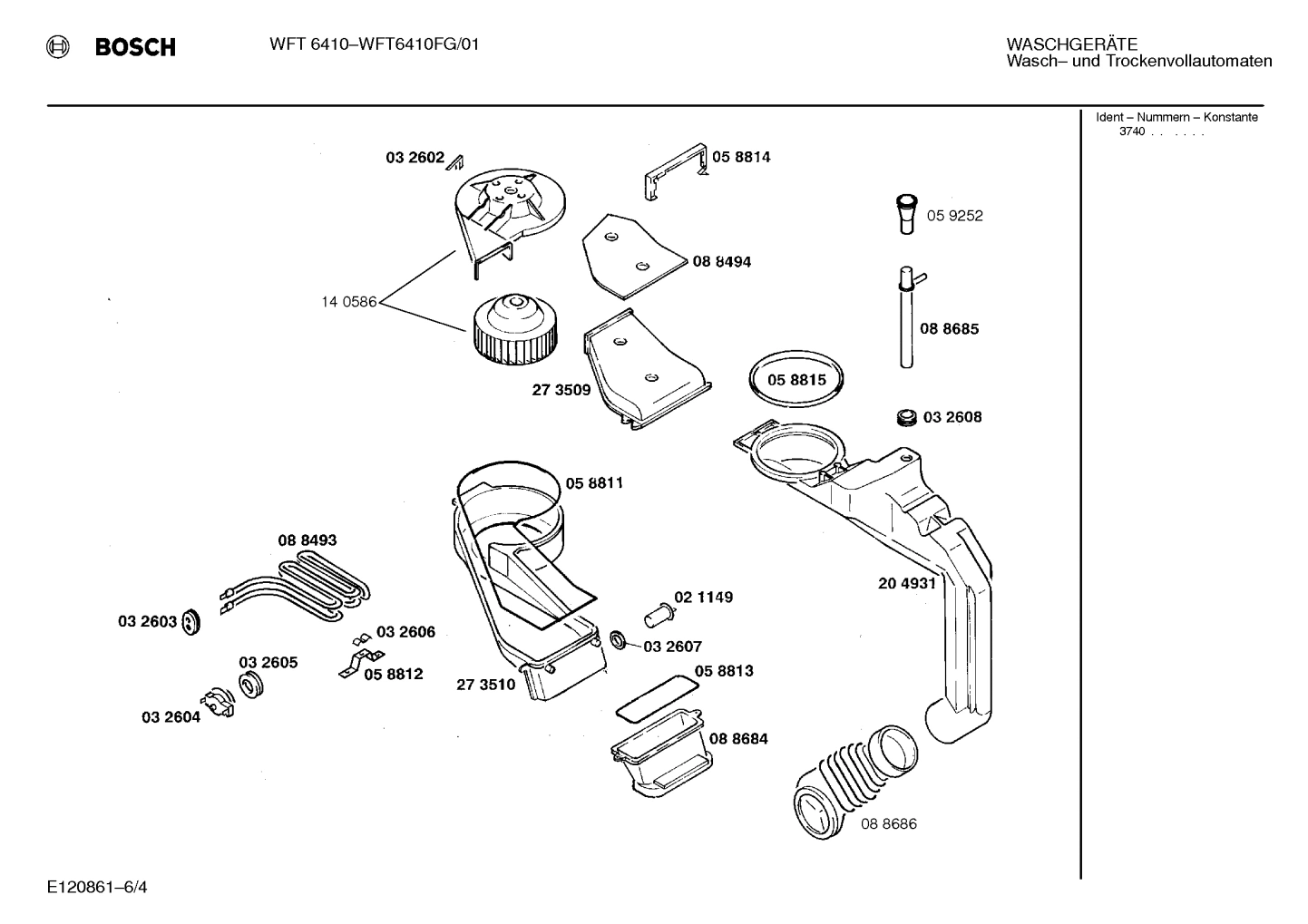

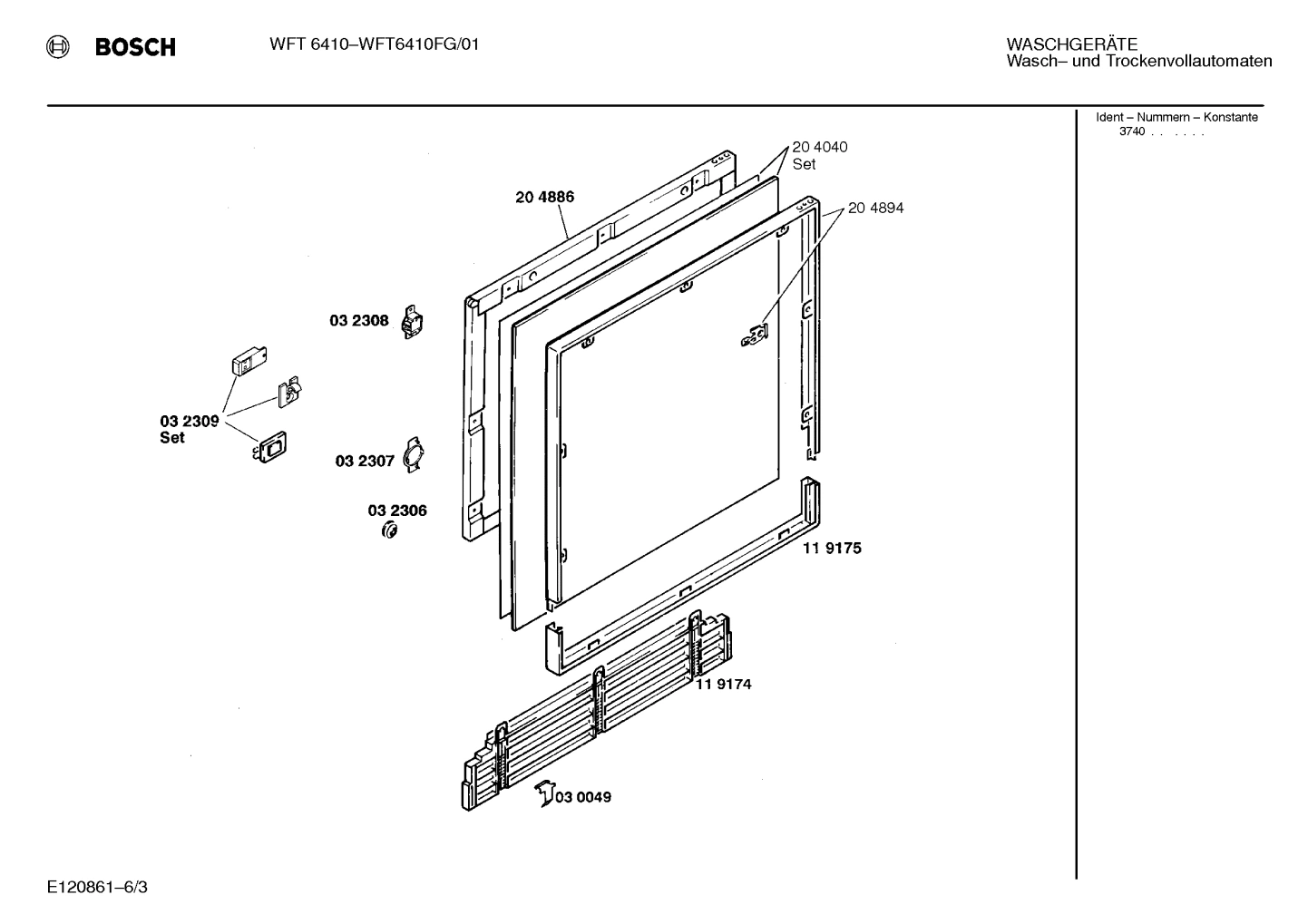

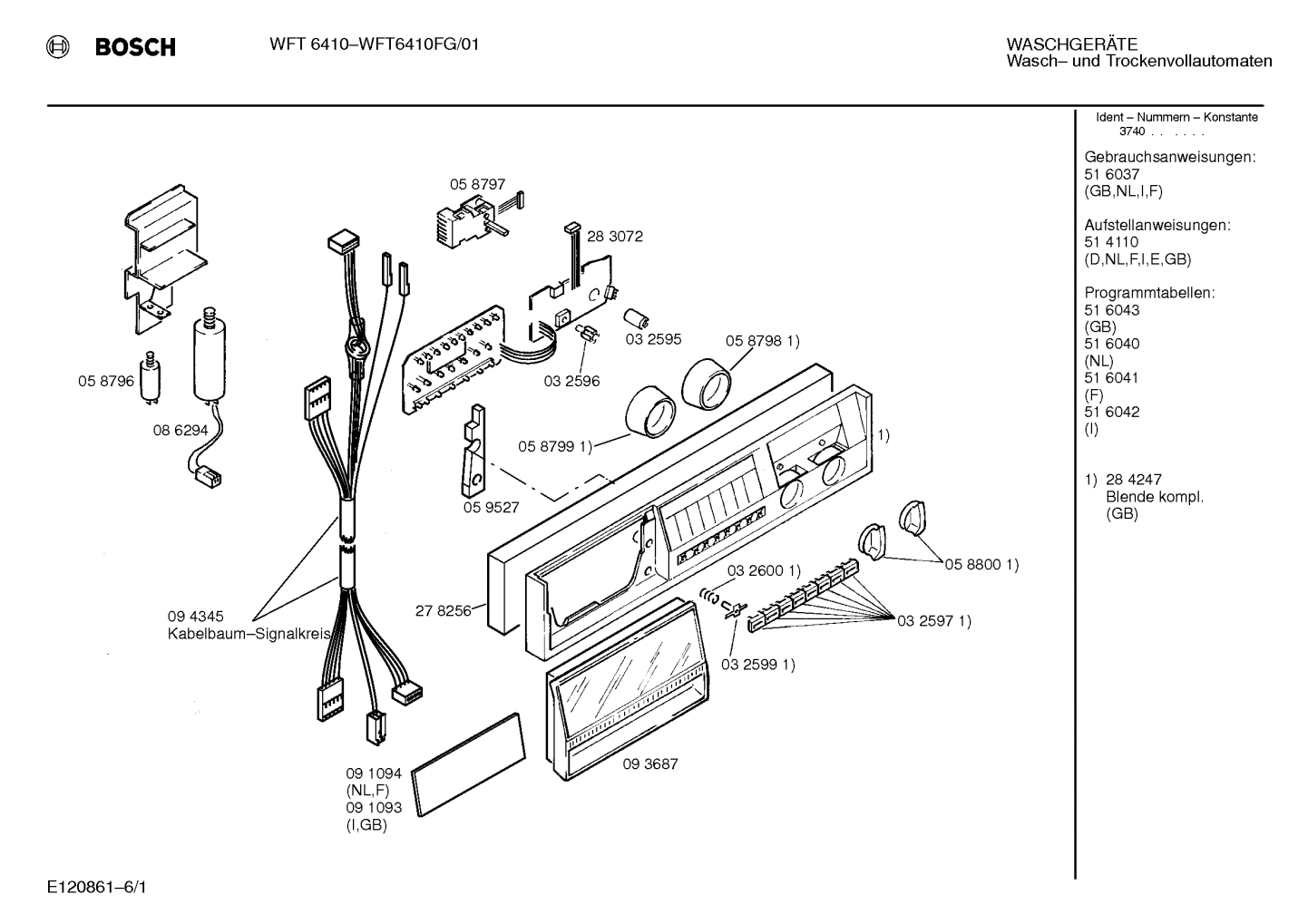

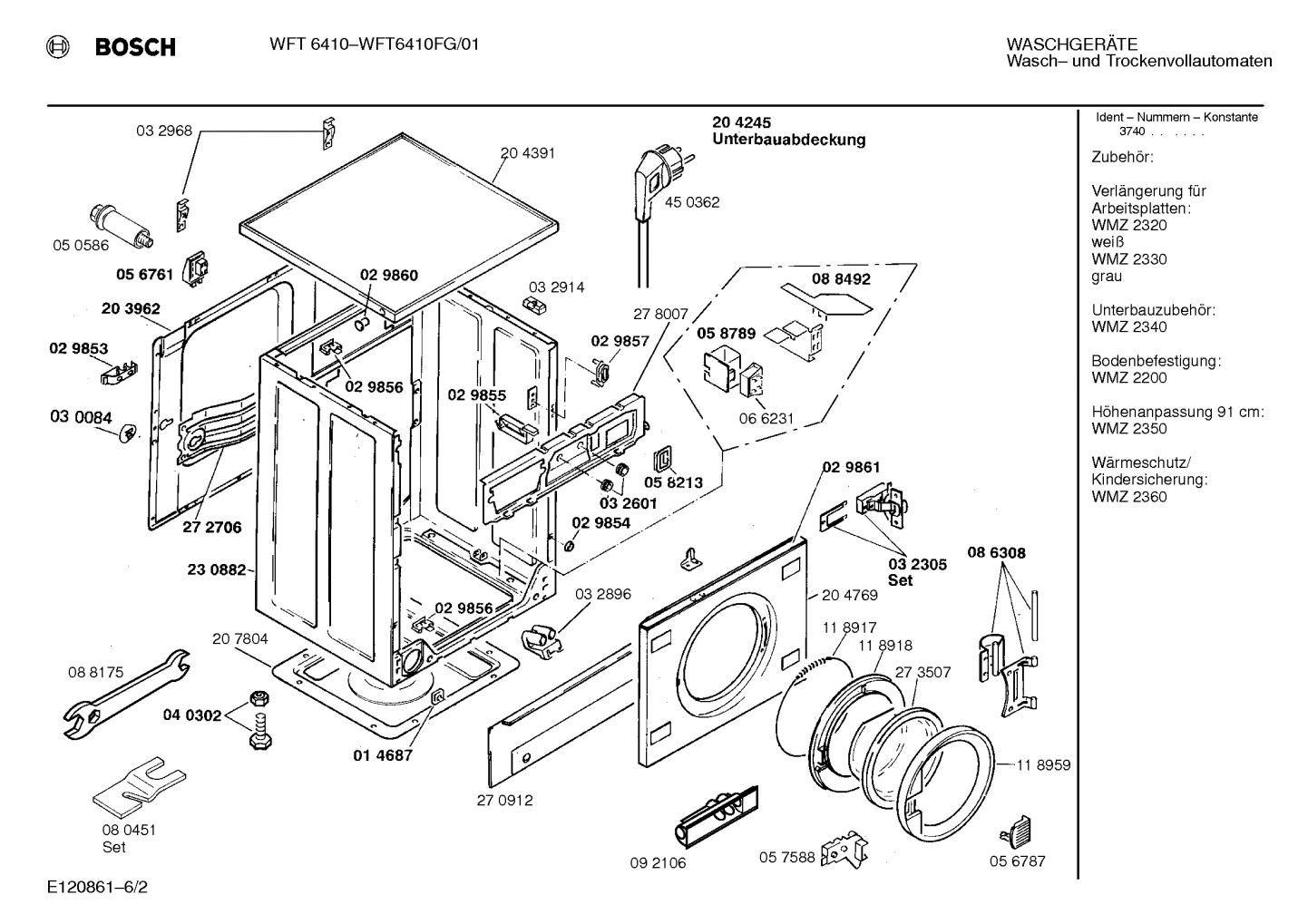

Model Bosch WFT6410FG/01 Washer – Common Parts & Diagrams

Common parts from model Bosch WFT6410FG/01 Washer

00493529 Bosch Laundry Fixing Kit

00493529 Bosch Laundry Fixing Kit Backorder BOS 00493529 $48.06

15000636 Bosch Power Cord

15000636 Bosch Power Cord Backorder BOS 15000636 $21.50

00606923 Bosch Laundry Holder

00606923 Bosch Laundry Holder Backorder BOS 00606923 $4.56

00118917 Bosch Laundry Lock Clamp

00118917 Bosch Laundry Lock Clamp Backorder BOS 00118917 $16.01

00171270 Bosch Screw

00171270 Bosch Screw Backorder BOS 00171270 $3.11

Pulley

Pulley BOS 00118921 Contact Us For Availability

Screw

Screw BOS 00059345 Contact Us For Availability

00059320 Bosch Laundry Holder

00059320 Bosch Laundry Holder Backorder BOS 00059320 $9.61

00056764 Bosch Laundry Spring Tank

00056764 Bosch Laundry Spring Tank Backorder BOS 00056764 $27.91

00056766 Bosch Laundry Shaft Seal

00056766 Bosch Laundry Shaft Seal Backorder BOS 00056766 $39.80

00086309 Bosch Laundry Bearing Set

00086309 Bosch Laundry Bearing Set Backorder BOS 00086309 $120.13

00066212 Bosch Laundry Guide Spring

00066212 Bosch Laundry Guide Spring Backorder BOS 00066212 $14.18

Spring guide

Spring guide BOS 00029863 Contact Us For Availability

00056765 Bosch Laundry Spring

00056765 Bosch Laundry Spring Backorder BOS 00056765 $20.59

00118869 Bosch Laundry Shock Absorber

00118869 Bosch Laundry Shock Absorber Backorder BOS 00118869 $65.14

00118922 Bosch Laundry Sealing Assembly

00118922 Bosch Laundry Sealing Assembly Backorder BOS 00118922 $32.01

00027780 Bosch Laundry Inlet Water Filter

00027780 Bosch Laundry Inlet Water Filter Backorder BOS 00027780 $12.79

Sealing

Sealing BOS 00051840 Contact Us For Availability

Hose connection inlet

Hose connection inlet BOS 00056769 Contact Us For Availability

00171263 Bosch Laundry Sump Ball

00171263 Bosch Laundry Sump Ball Backorder BOS 00171263 $10.52

00272654 Bosch Laundry Hose

00272654 Bosch Laundry Hose Backorder BOS 00272654 $62.43

00655300 Bosch Laundry Holder

00655300 Bosch Laundry Holder Backorder BOS 00655300 $12.79

00603523 Bosch Fastening Ring

00603523 Bosch Fastening Ring Backorder BOS 00603523 $11.44

00432060 Bosch Laundry Outlet Hose

00432060 Bosch Laundry Outlet Hose Backorder BOS 00432060 $37.06

00027696 Bosch Laundry Stud

00027696 Bosch Laundry Stud Backorder BOS 00027696 $10.96
