Model Bosch WFS9310/06 Washer – Common Parts & Diagrams

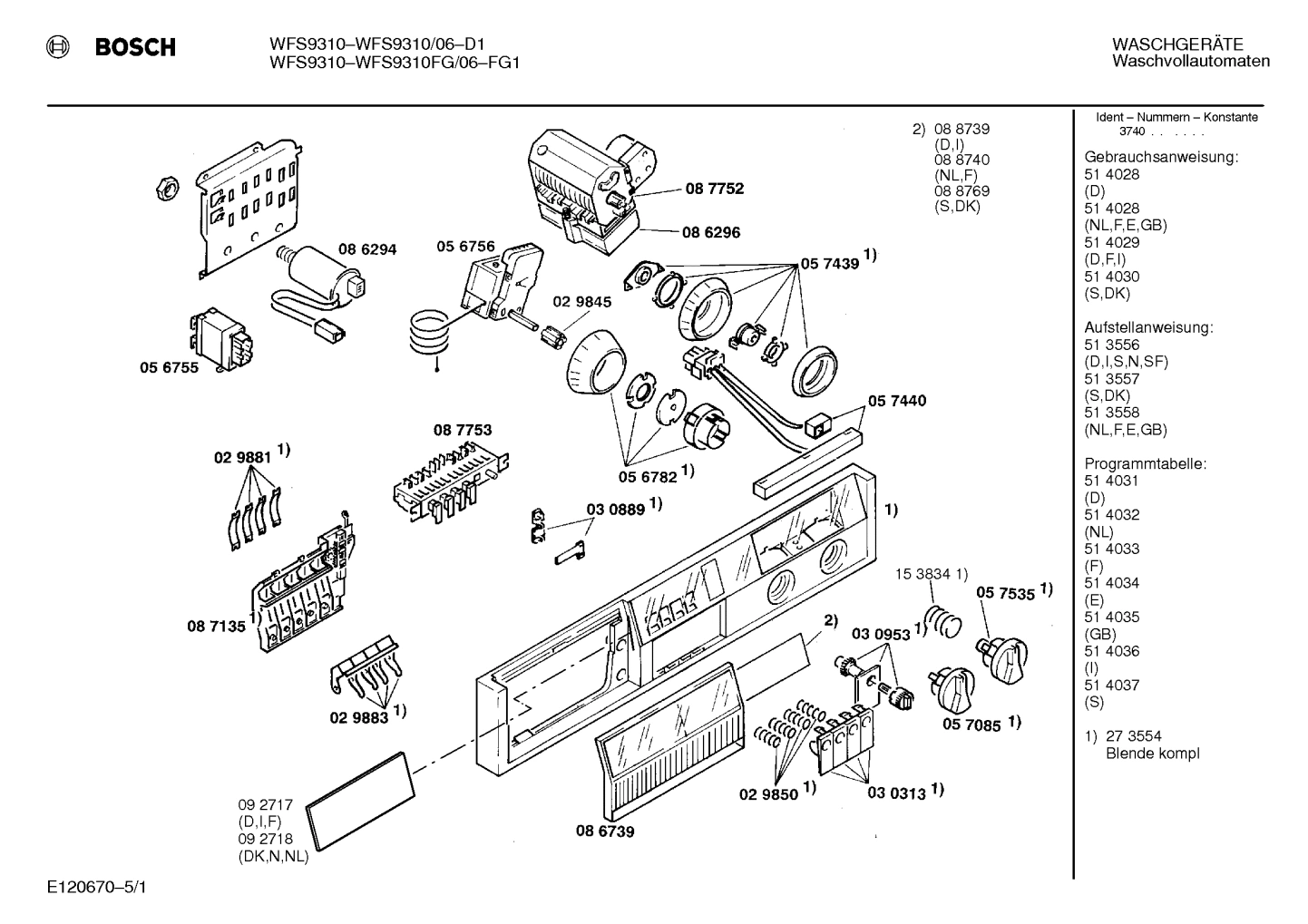

Diagram 1

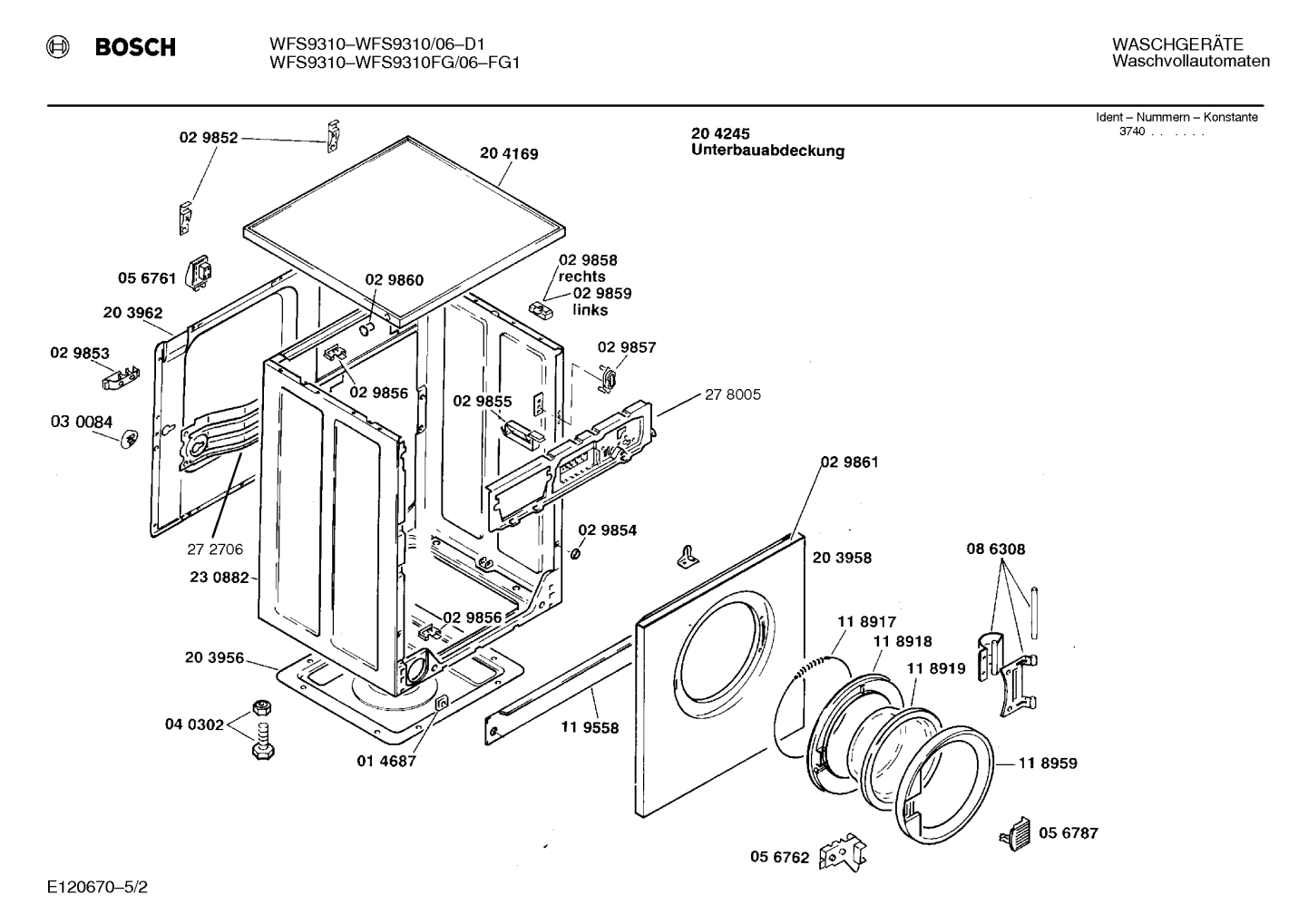

Diagram 2

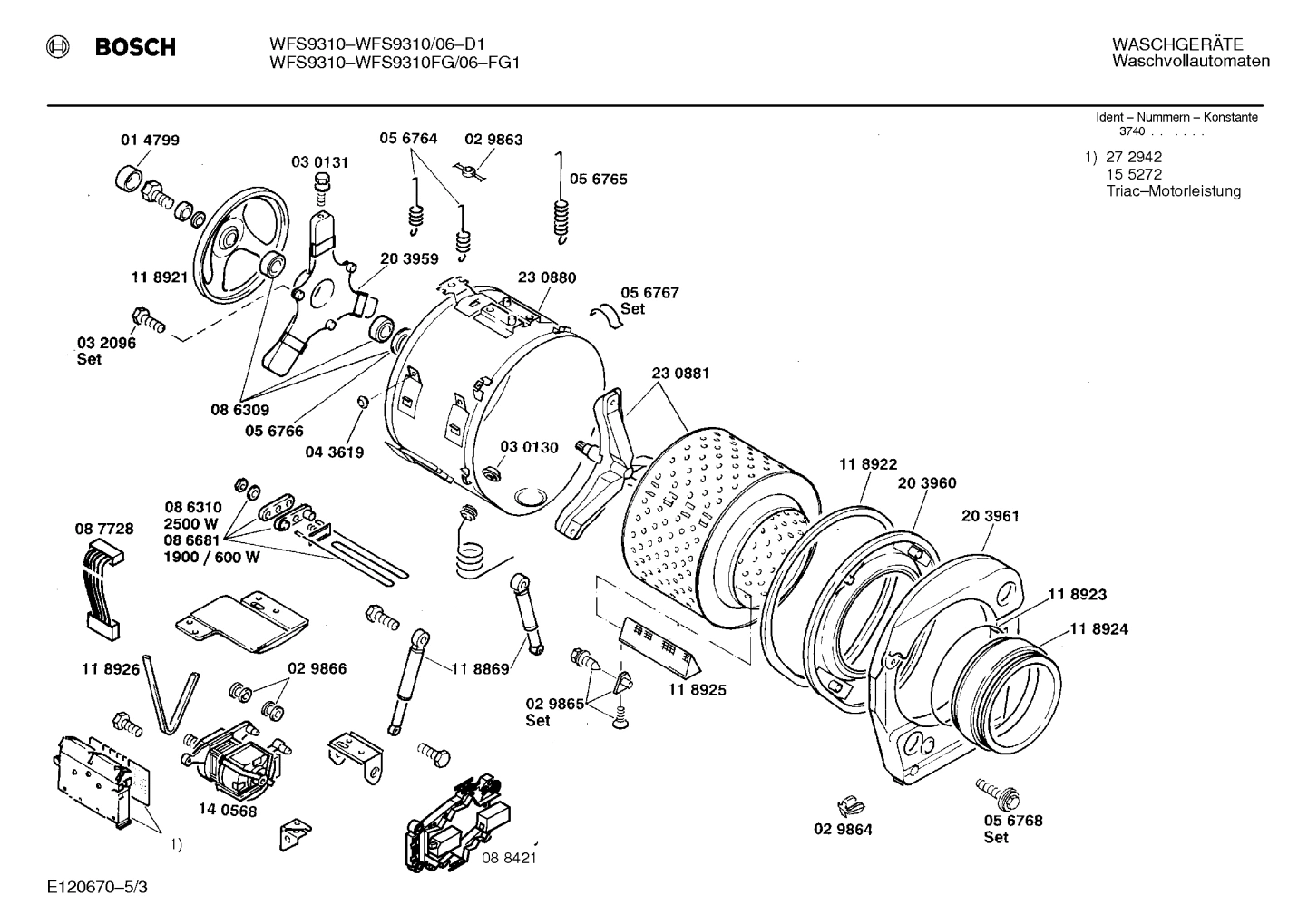

Diagram 3

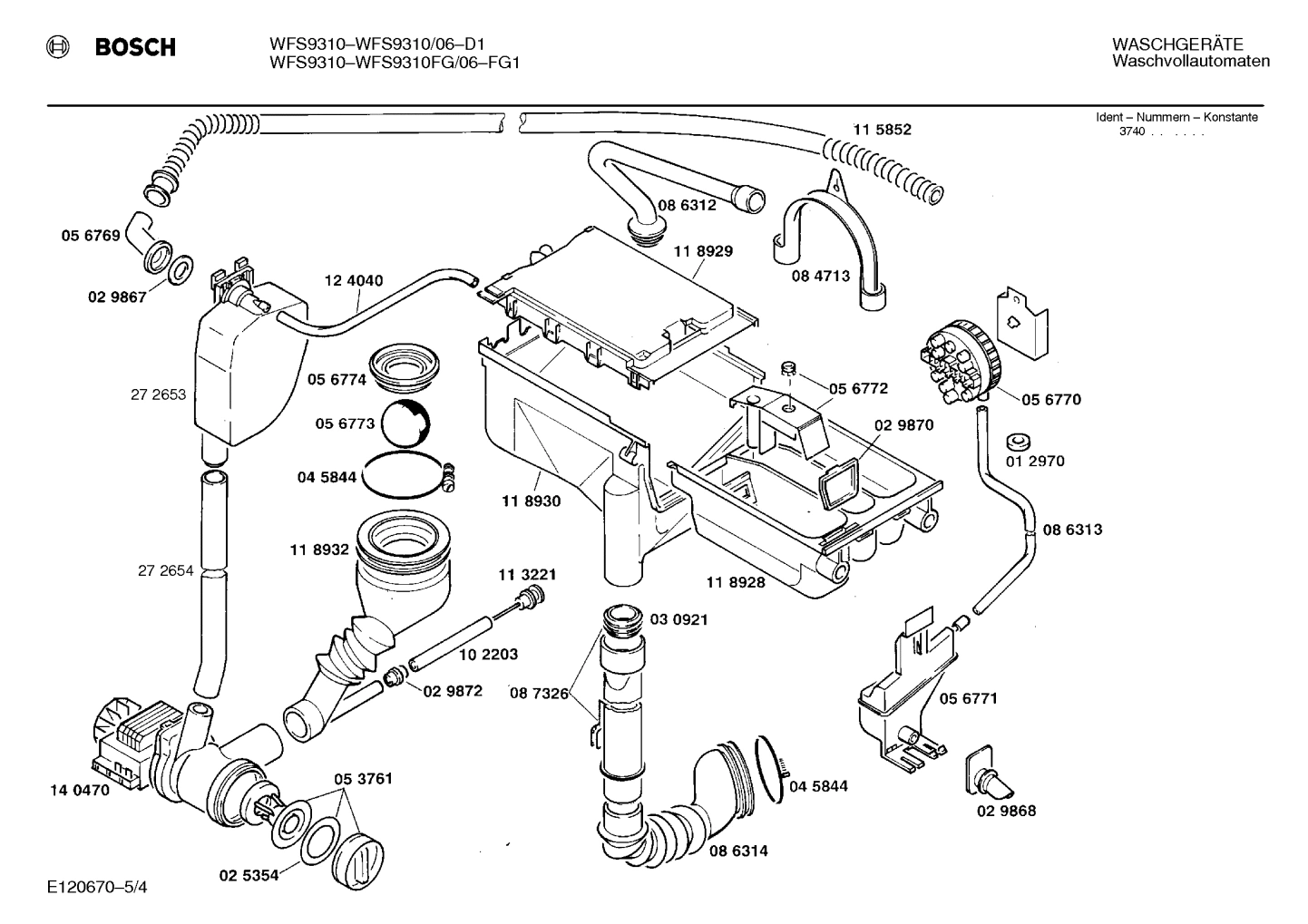

Diagram 4

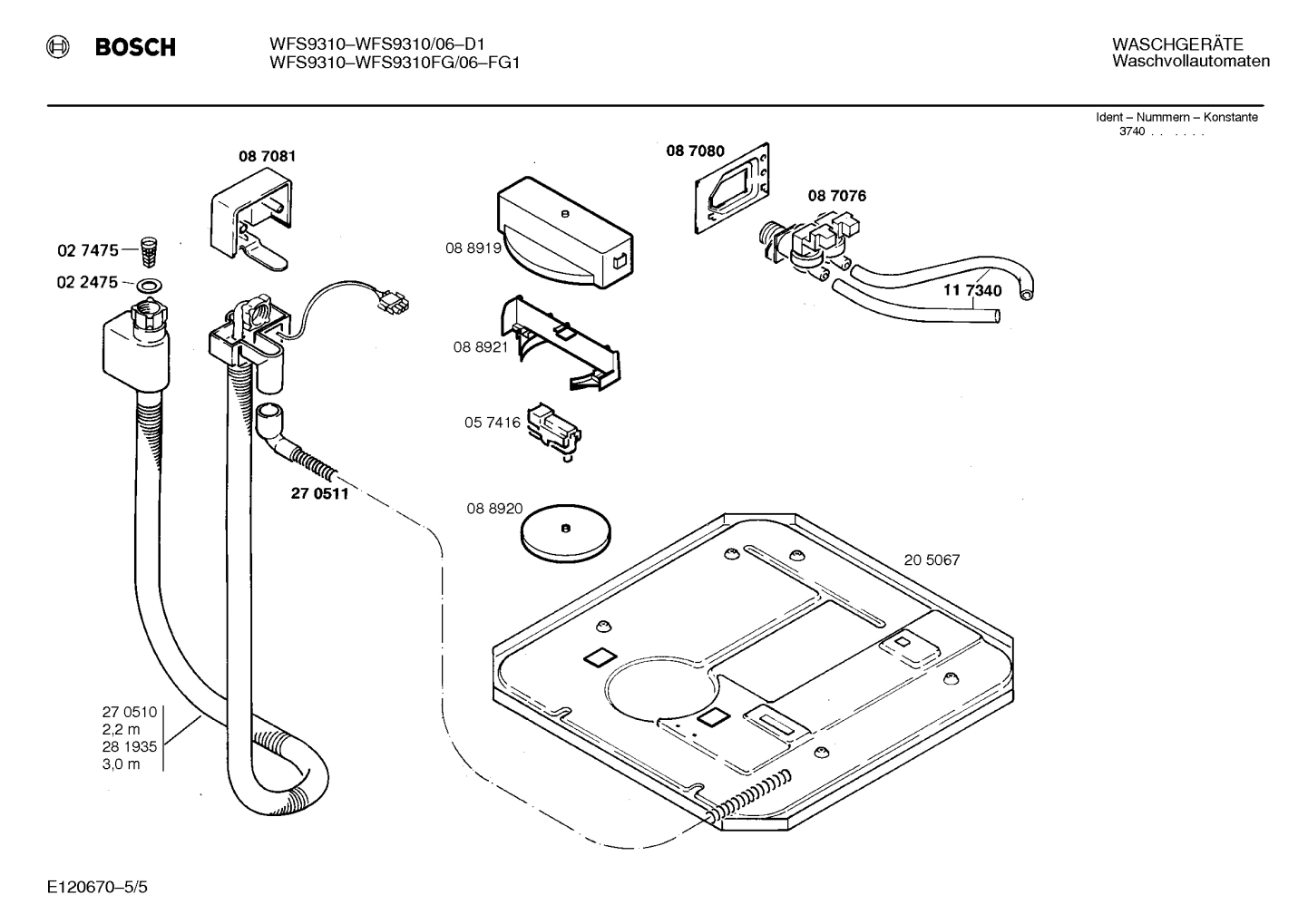

Diagram 5
Common parts from model Bosch WFS9310/06 Washer
0041
Holder BOS 00029853 Contact Us For Availability
0043
Holder BOS 00029855 Contact Us For Availability
0045
Clip-earth BOS 00029856 Contact Us For Availability
0046
Holder BOS 00029857 Contact Us For Availability
0054
Electric lock BOS 00056762 Contact Us For Availability
0060
Window BOS 00118919 Contact Us For Availability
0065
Case-rear part BOS 00474870 Contact Us For Availability
0067
Worktop BOS 00216752 Contact Us For Availability
0072
Spring guide BOS 00029863 Contact Us For Availability
0074
Holder BOS 00029865 Contact Us For Availability
0076
Screw BOS 00030131 Contact Us For Availability
0077
Screw BOS 00032096 Contact Us For Availability
0078
Spring guide BOS 00043619 Contact Us For Availability
0082
Fixing kit BOS 00056767 Contact Us For Availability
0083
Screw BOS 00056768 Contact Us For Availability
0088
Pulley BOS 00118921 Contact Us For Availability
0090
Lock-clamp BOS 00118923 Contact Us For Availability
0096
Front BOS 00203960 Contact Us For Availability
0097
Weight BOS 00203961 Contact Us For Availability
0104
Sealing BOS 00029867 Contact Us For Availability
0108
Sealing BOS 00030921 Contact Us For Availability
0112
Hose connection inlet BOS 00056769 Contact Us For Availability
0117
Sealing BOS 00056774 Contact Us For Availability
0124
Latch BOS 00113221 Contact Us For Availability
0135
Sieve BOS 00027475 Contact Us For Availability
× ![]()
