Model Bosch WFR3269GB/09 Washer – Common Parts & Diagrams
Diagram 1
Diagram 2

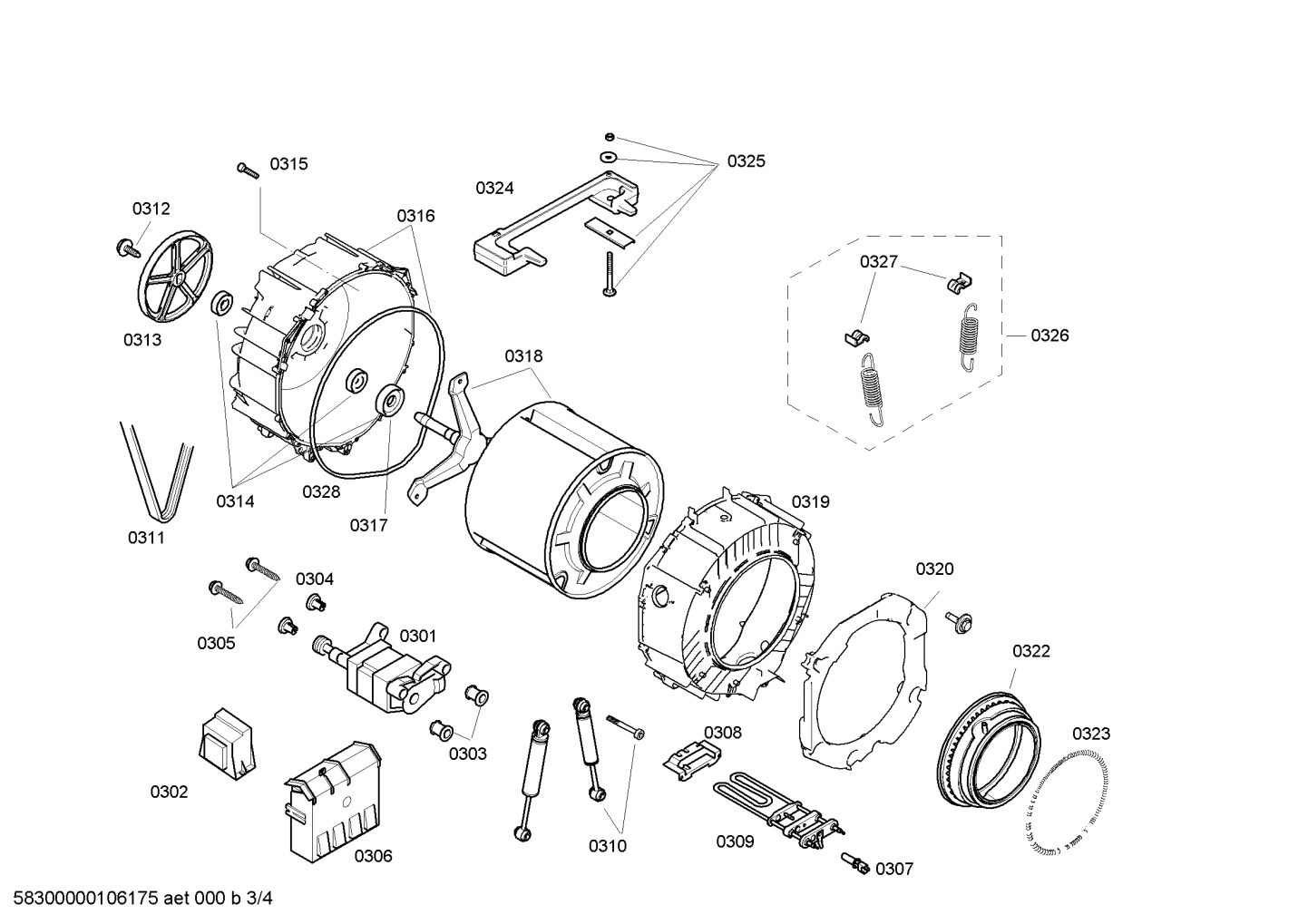

Diagram 3

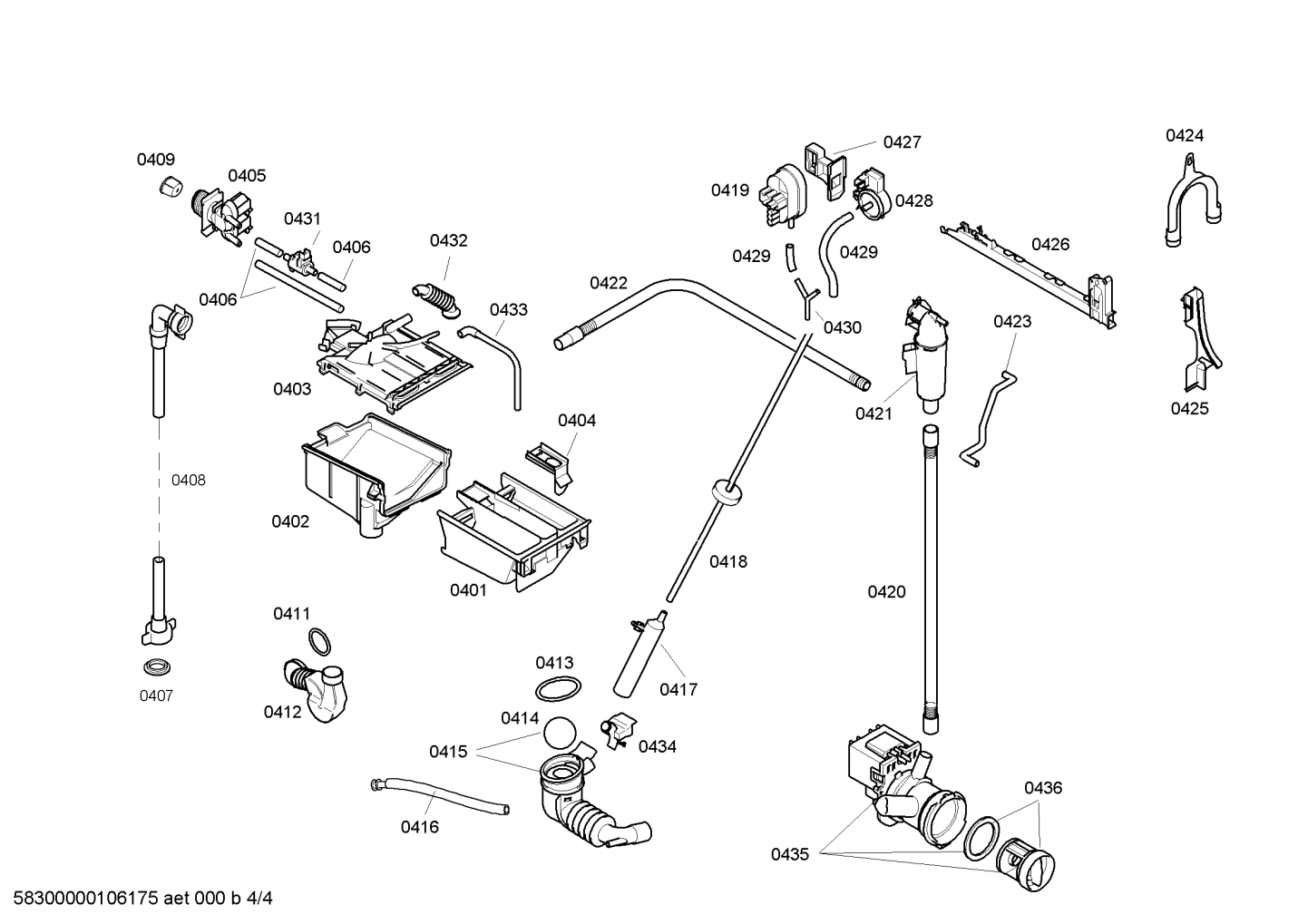

Diagram 4
Common parts from model Bosch WFR3269GB/09 Washer
0113
Knob-programme BOS 00183592 Contact Us For Availability
0126
Display module BOS 00424675 Contact Us For Availability
0136
Capacitor-interference suppre. BOS 00623842 Contact Us For Availability
0202
Cover BOS 00170933 Contact Us For Availability
0206
Auxiliary tool BOS 00416875 Contact Us For Availability
0207
Kit to Attach Washer to Floor/Pedestal BOS 00493529 Contact Us For Availability
0218
Electric lock BOS 00182173 Contact Us For Availability
0220
Front panel BOS 00235567 Contact Us For Availability
0222
Holder BOS 00606923 Contact Us For Availability
0223
Bushing BOS 00171264 Contact Us For Availability
0224
Hinge-window BOS 00171269 Contact Us For Availability
0225
fastening ring BOS 00439671 Contact Us For Availability
0230
Ring BOS 00432073 Contact Us For Availability
0231
Window BOS 11020392 Contact Us For Availability
0233
Handle BOS 00266751 Contact Us For Availability
0234
Axis BOS 00171255 Contact Us For Availability
0235
Latch BOS 00634207 Contact Us For Availability
0302
PC board BOS 00418791 Contact Us For Availability
0303
Holder BOS 00168798 Contact Us For Availability
0304
Fixture BOS 00171272 Contact Us For Availability
0307
Sensor-NTC BOS 00170961 Contact Us For Availability
0312
Screw BOS 00171270 Contact Us For Availability
0317
Shaft seal BOS 00613084 Contact Us For Availability
0322
Boot Gasket BOS 00361127 Contact Us For Availability
0323
fastening ring BOS 00354134 Contact Us For Availability
0328
Sealing BOS 00416886 Contact Us For Availability
0401
Dispenser tray BOS 00361166 Contact Us For Availability
0404
Siphon-device BOS 00182245 Contact Us For Availability
0406
Hose-valve/soap box BOS 00171262 Contact Us For Availability
0407
Filter-water inlet BOS 00027780 Contact Us For Availability
0411
fastening ring BOS 00421488 Contact Us For Availability
0412
Hose-fill BOS 00480833 Contact Us For Availability
0413
fastening ring BOS 00603523 Contact Us For Availability
0414
Ball-sump BOS 00171263 Contact Us For Availability
0416
Drain hose BOS 00421214 Contact Us For Availability
0417
Pressure chamber BOS 00424981 Contact Us For Availability
0419
Regulator-water level BOS 00427041 Contact Us For Availability
0420
Hose BOS 00358305 Contact Us For Availability
0421
Container return BOS 00358304 Contact Us For Availability
0423
Hose-vent BOS 00175789 Contact Us For Availability
0424
Holder BOS 00655300 Contact Us For Availability
0428
Analogue pressure sensor BOS 00182238 Contact Us For Availability
0429
Hose-pressure chamber BOS 00491919 Contact Us For Availability
0431
Flow-through sensor BOS 00602819 Contact Us For Availability
0436
Fluff Filter BOS 00182430 Contact Us For Availability
× ![]()
