Bosch WFP3201FF/01 Washer Parts List

0011

Sealing BOS 00154419 Contact Us For Availability

View on Model

0012

Sealing BOS 00154417 Contact Us For Availability

View on Model

0202

Transit bolt BOS 00153714 Contact Us For Availability

View on Model

0203

Transit bolt BOS 00153715 Contact Us For Availability

View on Model

0204

00153813 Bosch Laundry Auxiliary Tool Backorder BOS 00153813 $9.17

View on Model

0205

00032968 Bosch Laundry Holder Backorder BOS 00032968 $34.26

View on Model

0207

Worktop BOS 00210150 Contact Us For Availability

View on Model

0208

00154157 Bosch Laundry Cover Backorder BOS 00154157 $13.51

View on Model

0209

Nut BOS 00150685 Contact Us For Availability

View on Model

0210

Clip BOS 00150686 Contact Us For Availability

View on Model

0211

Holder BOS 00029853 Contact Us For Availability

View on Model

0212

Case-rear part BOS 00474870 Contact Us For Availability

View on Model

0214

Housing BOS 00236205 Contact Us For Availability

View on Model

0216

00040302 Bosch Laundry Foot Backorder BOS 00040302 $11.58

View on Model

0217

00493529 Bosch Laundry Fixing Kit Backorder BOS 00493529 $55.97

View on Model

0218

Guide BOS 00154361 Contact Us For Availability

View on Model

0219

Holder BOS 00029857 Contact Us For Availability

View on Model

0220

Holder BOS 00029855 Contact Us For Availability

View on Model

0222

Holder BOS 00154477 Contact Us For Availability

View on Model

0224

00606923 Bosch Laundry Holder Backorder BOS 00606923 $5.79

View on Model

0227

Front panel BOS 00217258 Contact Us For Availability

View on Model

0228

00118917 Bosch Laundry Lock Clamp Backorder BOS 00118917 $18.82

View on Model

0230

Window BOS 00118919 Contact Us For Availability

View on Model

0233

Hinge-window BOS 00096488 Contact Us For Availability

View on Model

0240

Worktop BOS 00216752 Contact Us For Availability

View on Model

0242

Case-bottom BOS 00207804 Contact Us For Availability

View on Model

0243

Clip-earth BOS 00029856 Contact Us For Availability

View on Model

0302

00171270 Bosch Screw Backorder BOS 00171270 $3.86

View on Model

0303

Pulley BOS 00118921 Contact Us For Availability

View on Model

0304

Screw BOS 00032096 Contact Us For Availability

View on Model

0305

Screw BOS 00030131 Contact Us For Availability

View on Model

0306

Bearing cross BOS 00206958 Contact Us For Availability

View on Model

0307

00086309 Bosch Laundry Bearing Set Backorder BOS 00086309 $141.00

View on Model

0308

00056766 Bosch Laundry Shaft Seal Backorder BOS 00056766 $46.80

View on Model

0309

Spring guide BOS 00043619 Contact Us For Availability

View on Model

0311

00263726 Bosch Laundry Heating Element Backorder BOS 00263726 $105.53

View on Model

0312

00278339 Bosch Washer Drive Belt Backorder BOS 00278339 $37.64

View on Model

0314

00056764 Bosch Laundry Spring Tank Backorder BOS 00056764 $32.81

View on Model

0315

Spring guide BOS 00029863 Contact Us For Availability

View on Model

0316

00056765 Bosch Laundry Spring Backorder BOS 00056765 $24.13

View on Model

0317

00066212 Bosch Laundry Guide Spring Backorder BOS 00066212 $16.41

View on Model

0318

Tub BOS 00233133 Contact Us For Availability

View on Model

0319

Fixing kit BOS 00056767 Contact Us For Availability

View on Model

0320

Drum BOS 00207803 Contact Us For Availability

View on Model

0323

00118869 Bosch Laundry Shock Absorber Backorder BOS 00118869 $77.36

View on Model

0324

Cover BOS 00096564 Contact Us For Availability

View on Model

0327

00059320 Bosch Laundry Holder Backorder BOS 00059320 $11.58

View on Model

0328

Screw BOS 00059345 Contact Us For Availability

View on Model

0329

Screw BOS 00154501 Contact Us For Availability

View on Model

0330

Holder BOS 00029865 Contact Us For Availability

View on Model

0331

00289673 Bosch Laundry Agitator Paddle Backorder BOS 00289673 $8.69

View on Model

0332

00118922 Bosch Laundry Sealing Assembly Backorder BOS 00118922 $37.64

View on Model

0333

Front BOS 00203960 Contact Us For Availability

View on Model

0334

Weight BOS 00203961 Contact Us For Availability

View on Model

0335

Lock-clamp BOS 00118923 Contact Us For Availability

View on Model

0336

00289500 Bosch Laundry Boot Gasket Backorder BOS 00289500 $75.92

View on Model

0337

Screw BOS 00056768 Contact Us For Availability

View on Model

0404

Hose connection inlet BOS 00056769 Contact Us For Availability

View on Model

0405

Sealing BOS 00029867 Contact Us For Availability

View on Model

0406

00432060 Bosch Laundry Outlet Hose Backorder BOS 00432060 $43.43

View on Model

0407

00027696 Bosch Laundry Stud Backorder BOS 00027696 $12.55

View on Model

0408

00655300 Bosch Laundry Holder Backorder BOS 00655300 $14.96

View on Model

0410

00272654 Bosch Laundry Hose Backorder BOS 00272654 $73.06

View on Model

0411

Hose-vent BOS 00094408 Contact Us For Availability

View on Model

0417

Holder BOS 00154474 Contact Us For Availability

View on Model

0421

Connection piece BOS 00154475 Contact Us For Availability

View on Model

0424

Sealing BOS 00030921 Contact Us For Availability

View on Model

0427

00603523 Bosch Fastening Ring Backorder BOS 00603523 $13.51

View on Model

0434

Latch BOS 00113221 Contact Us For Availability

View on Model

0435

00144487 Bosch Laundry Drain Pump Backorder BOS 00144487 $132.07

View on Model

0435

Sealing BOS 00151611 Contact Us For Availability

View on Model

0436

Pump-housing BOS 00096182 Contact Us For Availability

View on Model

0436

Sieve BOS 00095269 Contact Us For Availability

View on Model

0440

Hose-pressure chamber BOS 00094233 Contact Us For Availability

View on Model

0442

Sealing BOS 00069164 Contact Us For Availability

View on Model

0443

00027780 Bosch Laundry Inlet Water Filter Backorder BOS 00027780 $14.96

View on Model

0444

00700836 Bosch Laundry Inlet Hose Backorder BOS 00700836 $31.85

View on Model

0605

Key BOS 00167366 Contact Us For Availability

View on Model

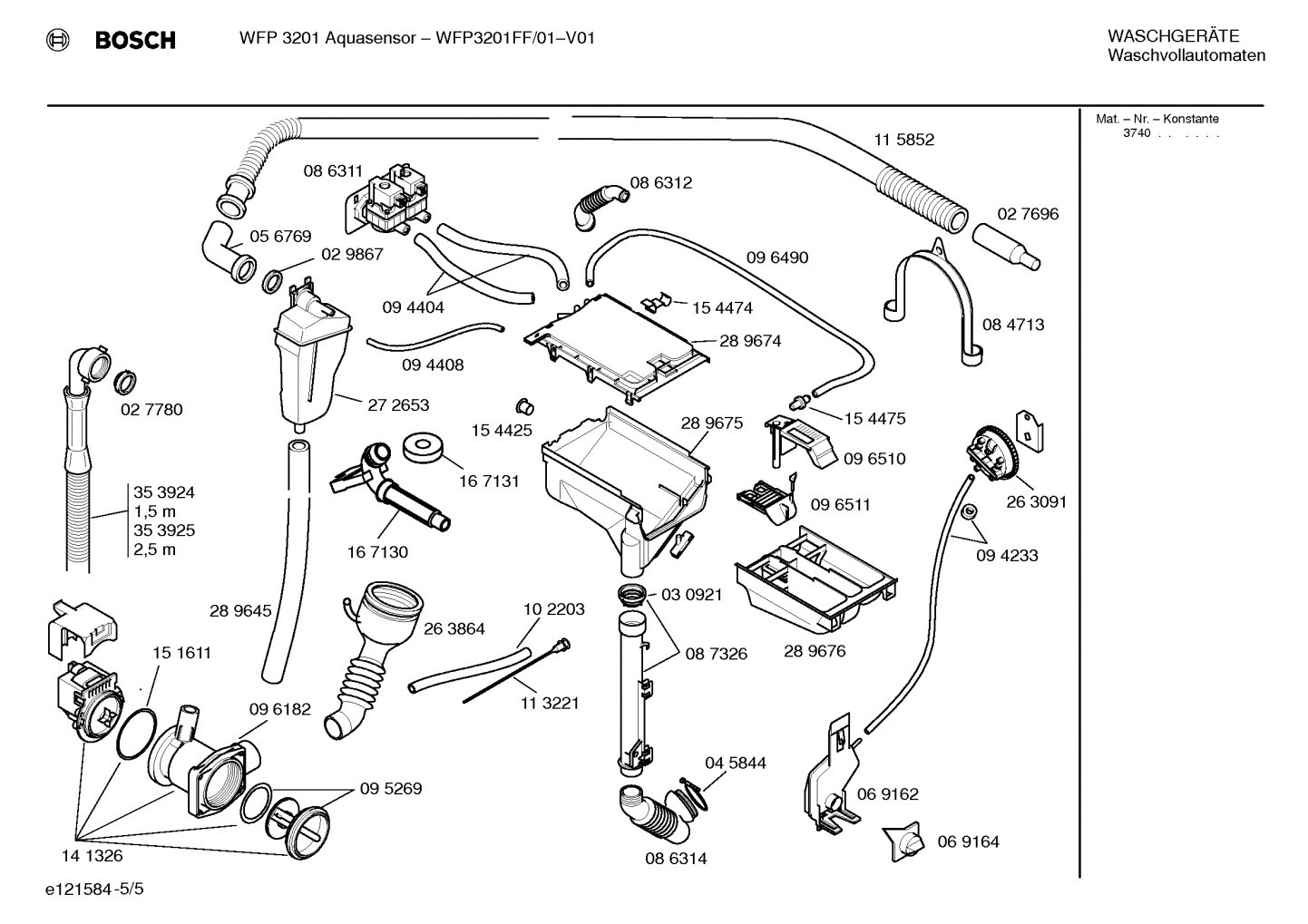

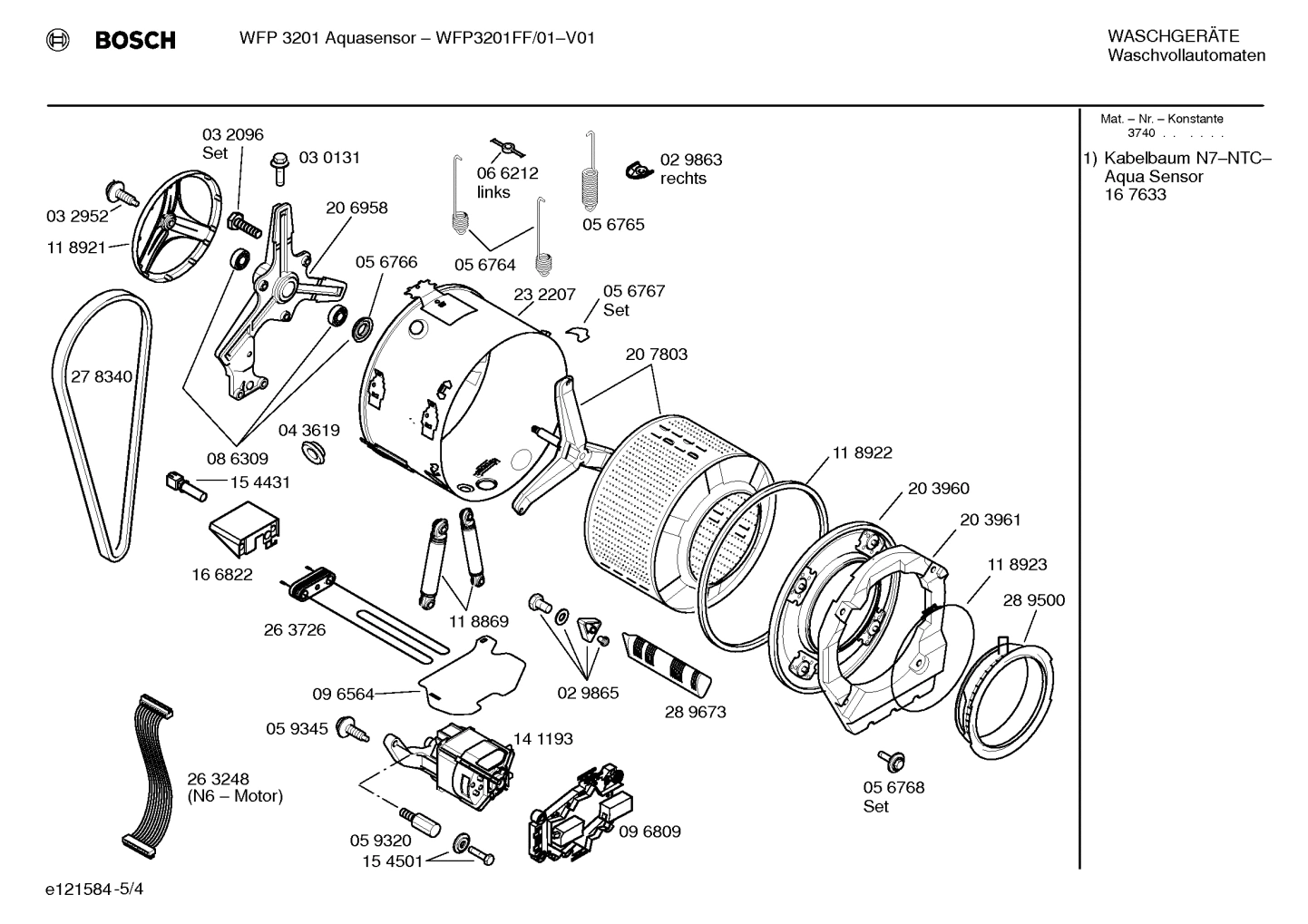

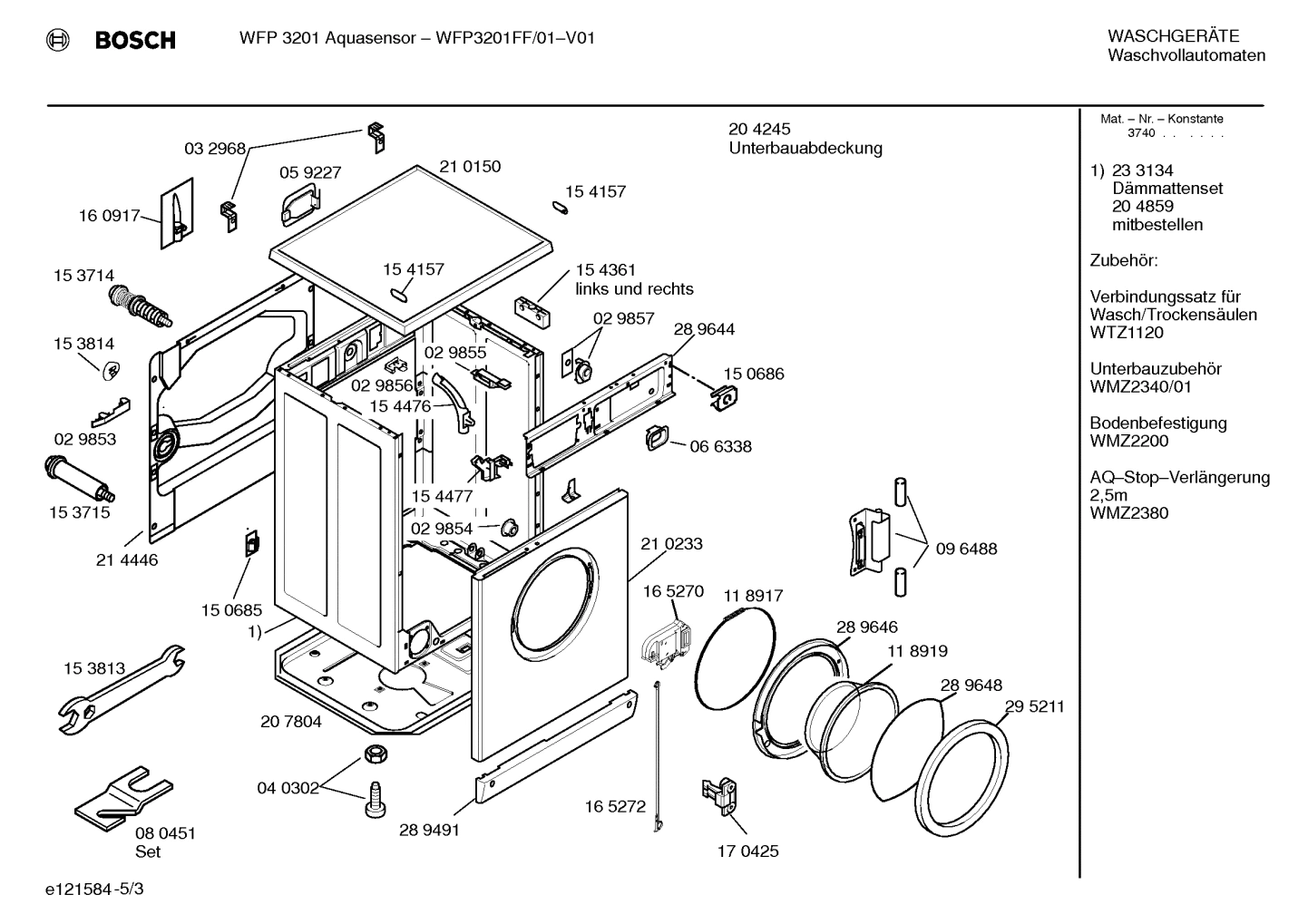

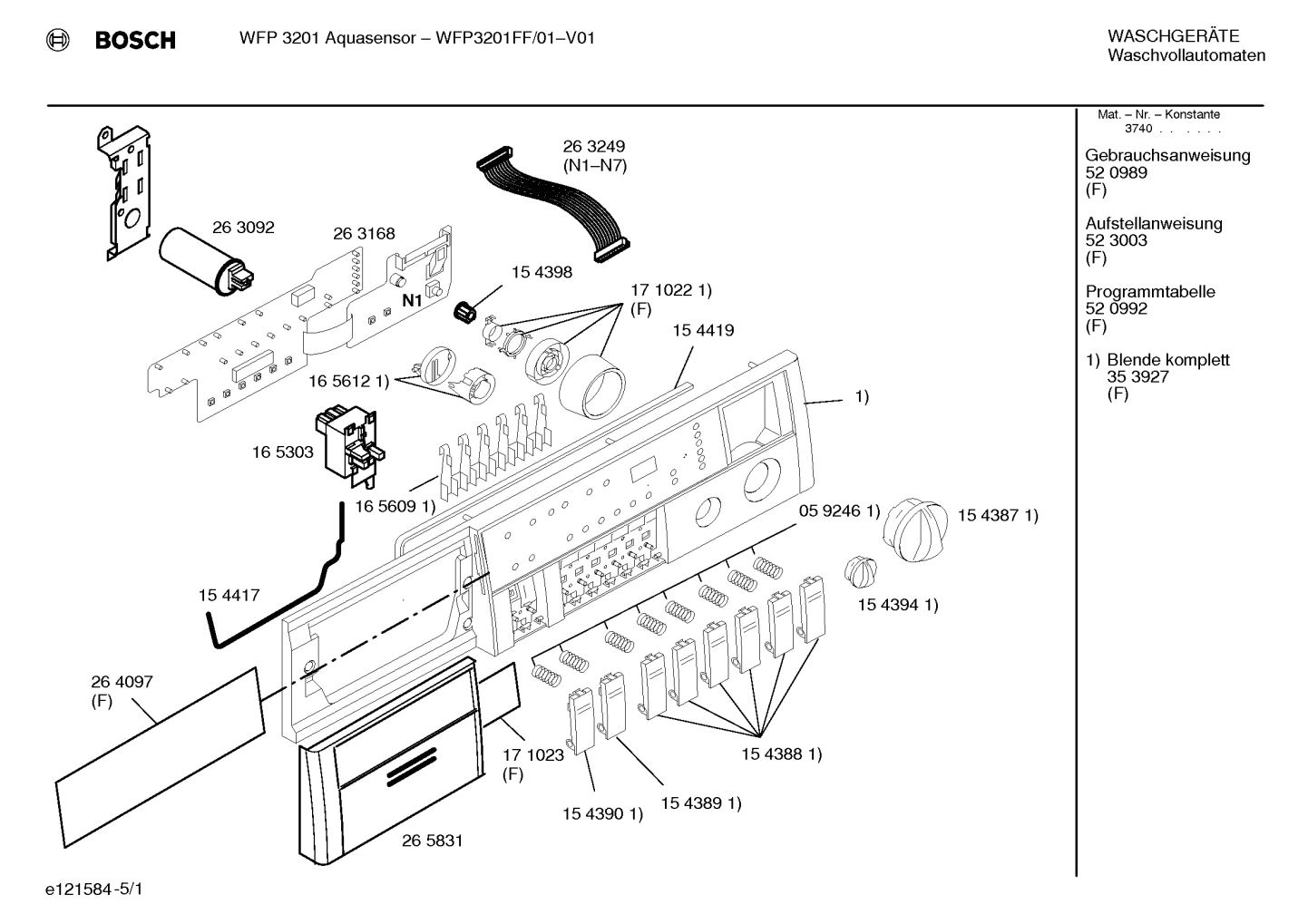

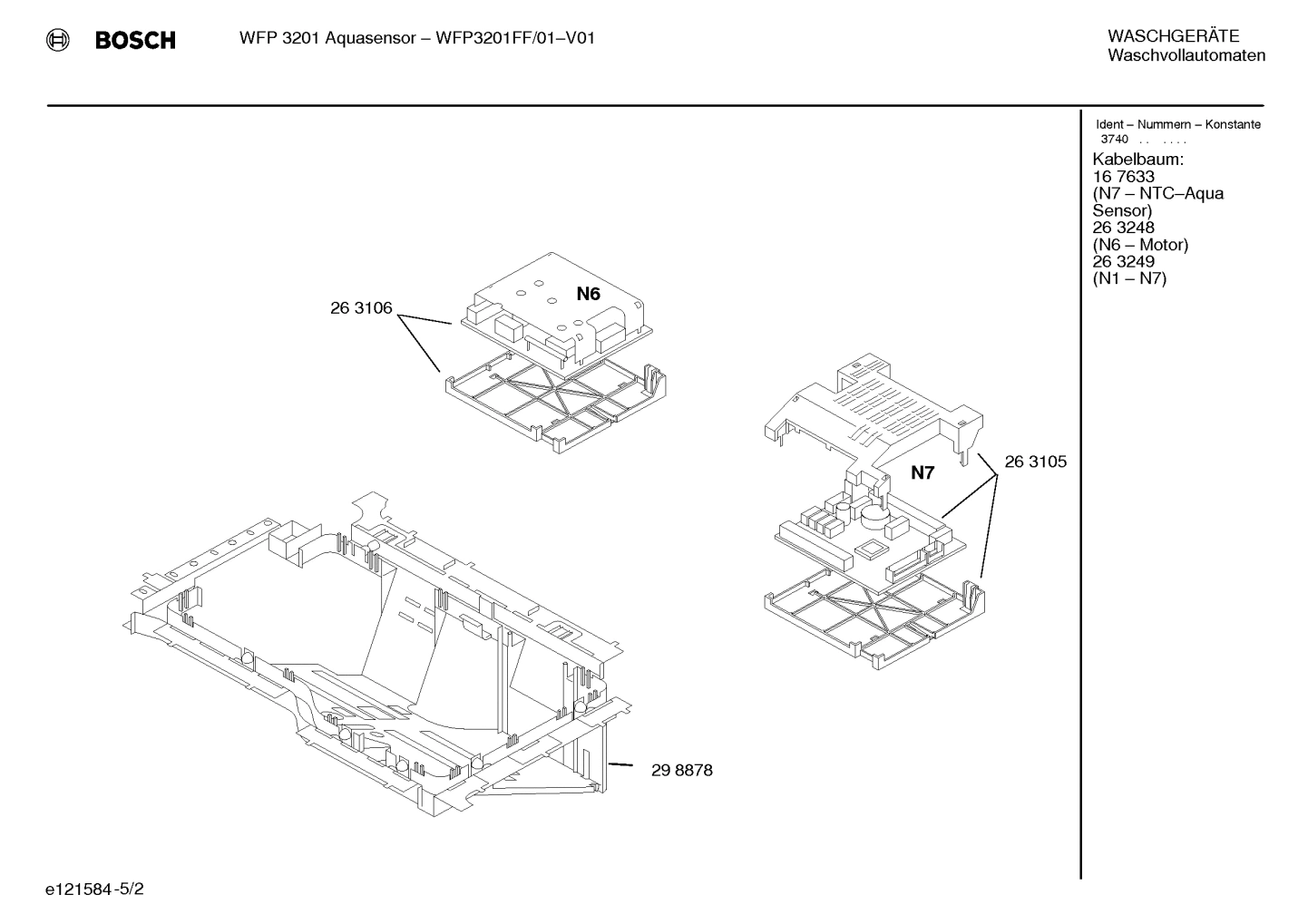

Model Bosch WFP3201FF/01 Washer – Common Parts & Diagrams

Common parts from model Bosch WFP3201FF/01 Washer
