Model Bosch WFP3200GB/11 Washer – Common Parts & Diagrams

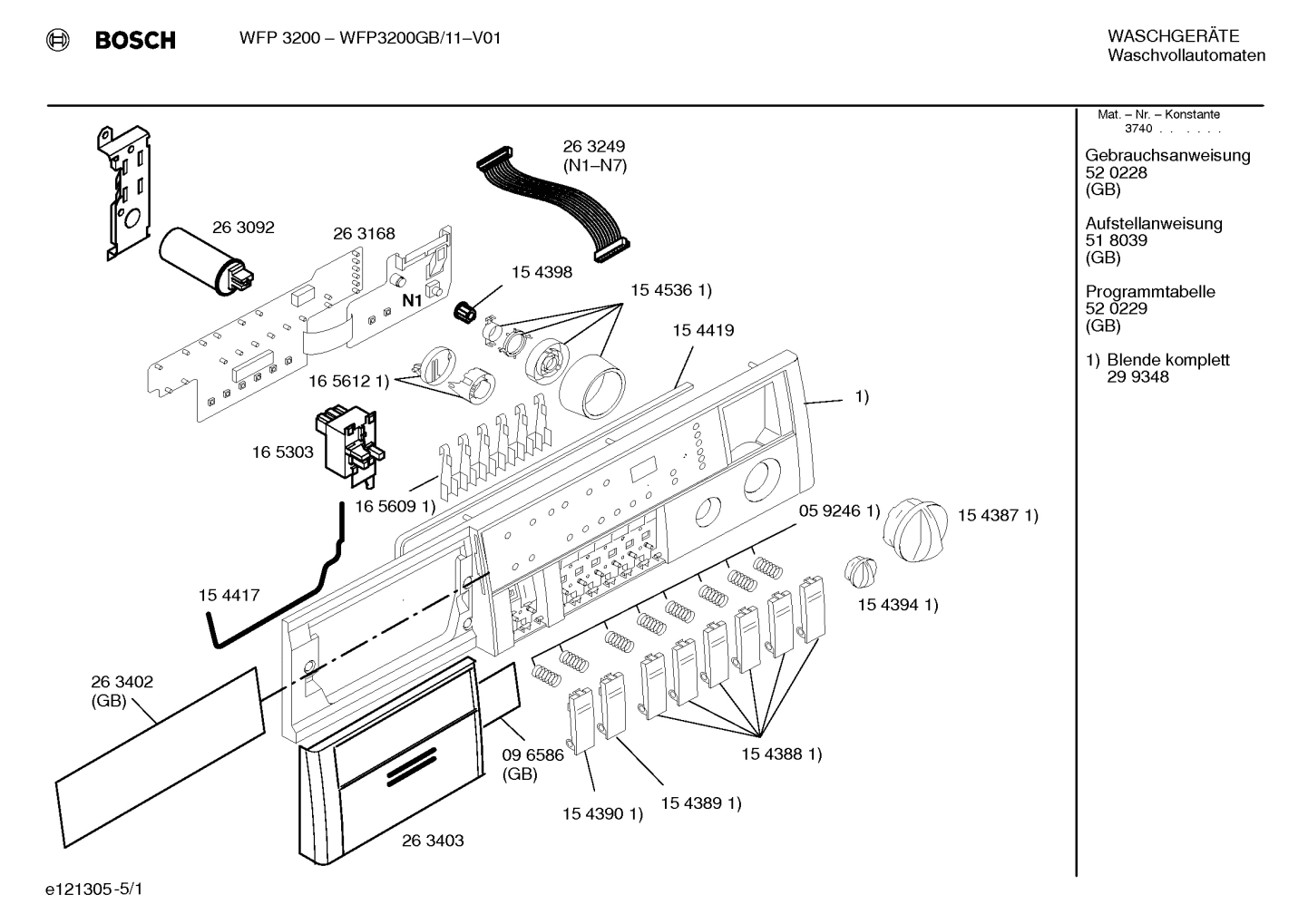

Diagram 1

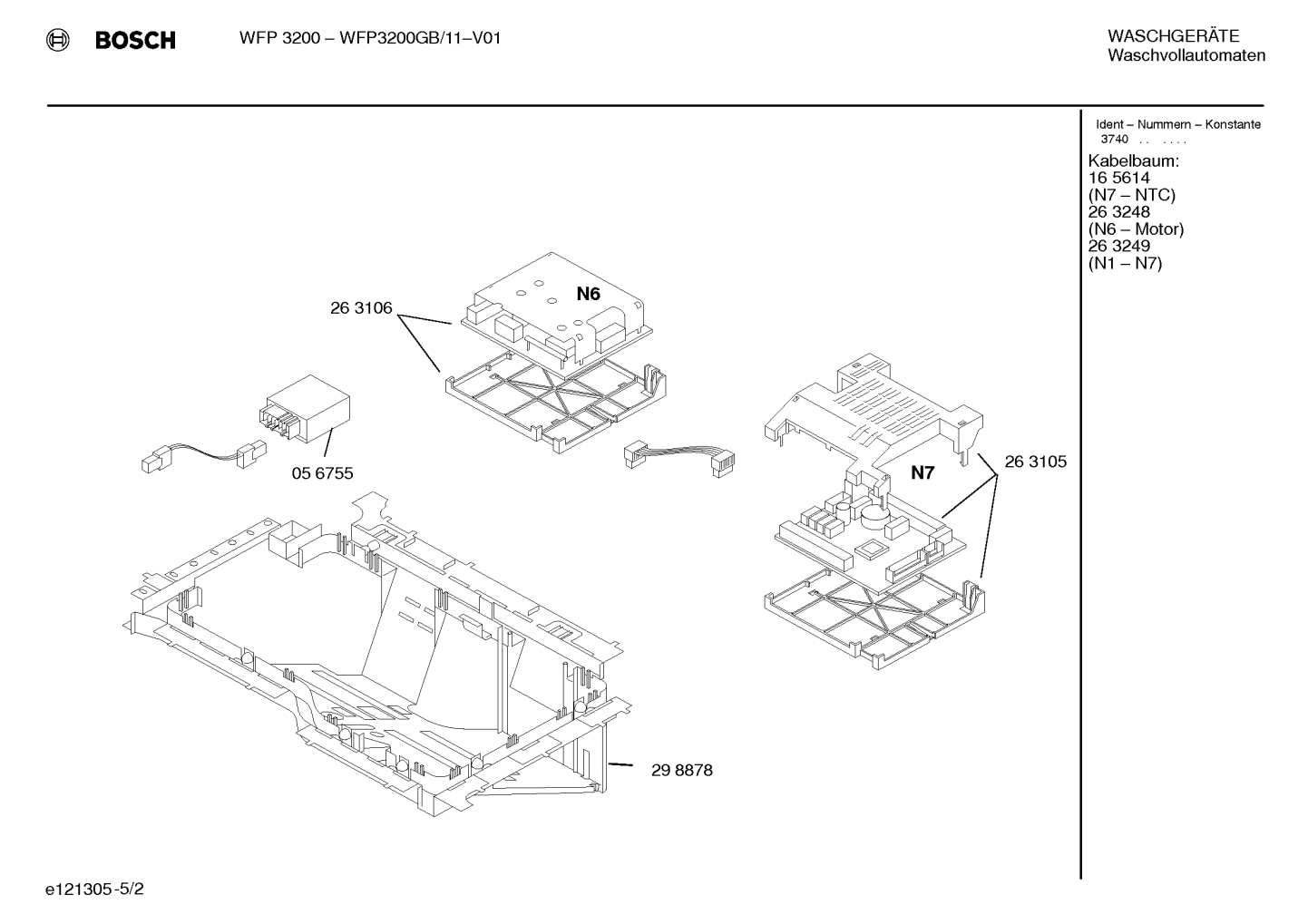

Diagram 2

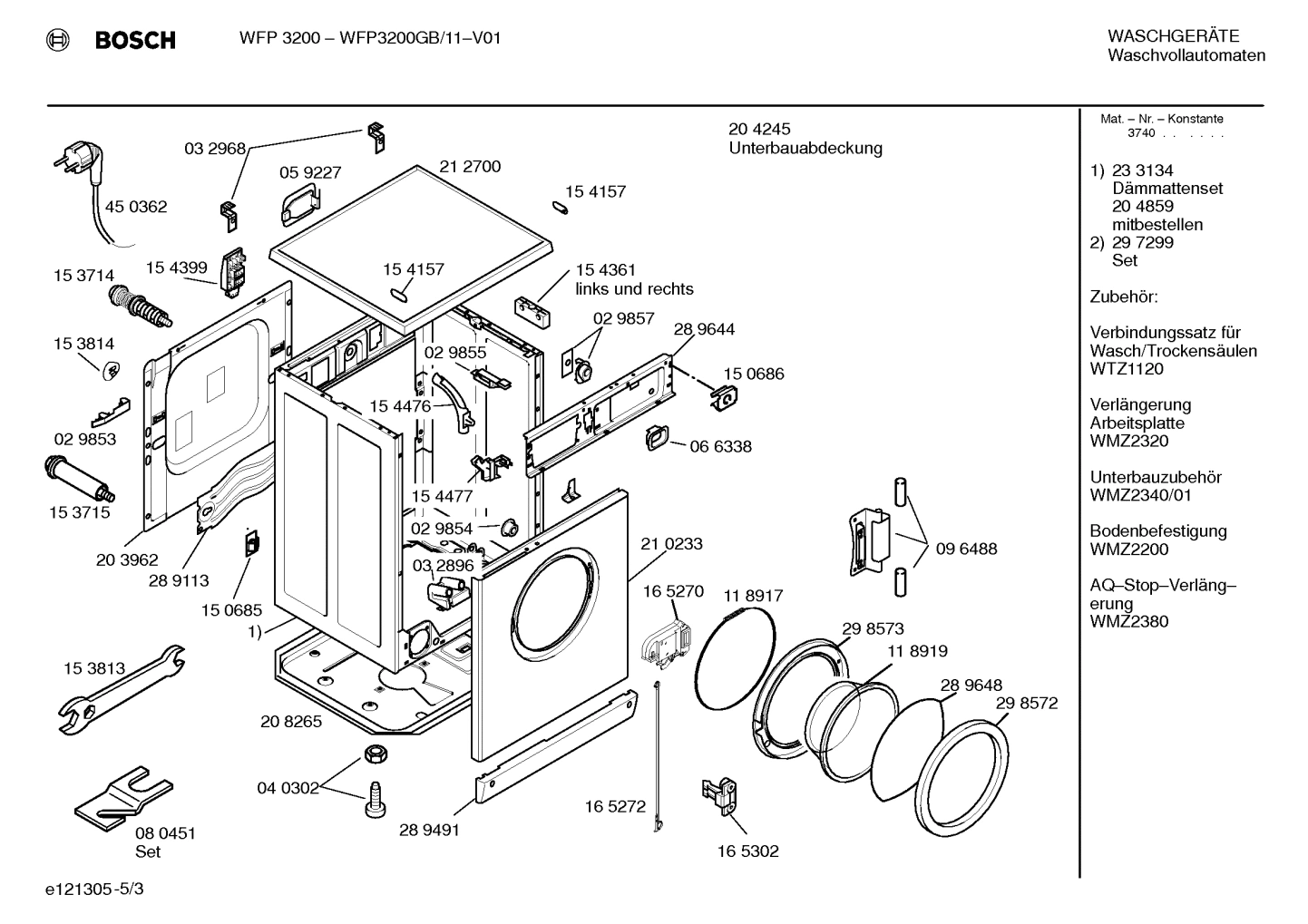

Diagram 3

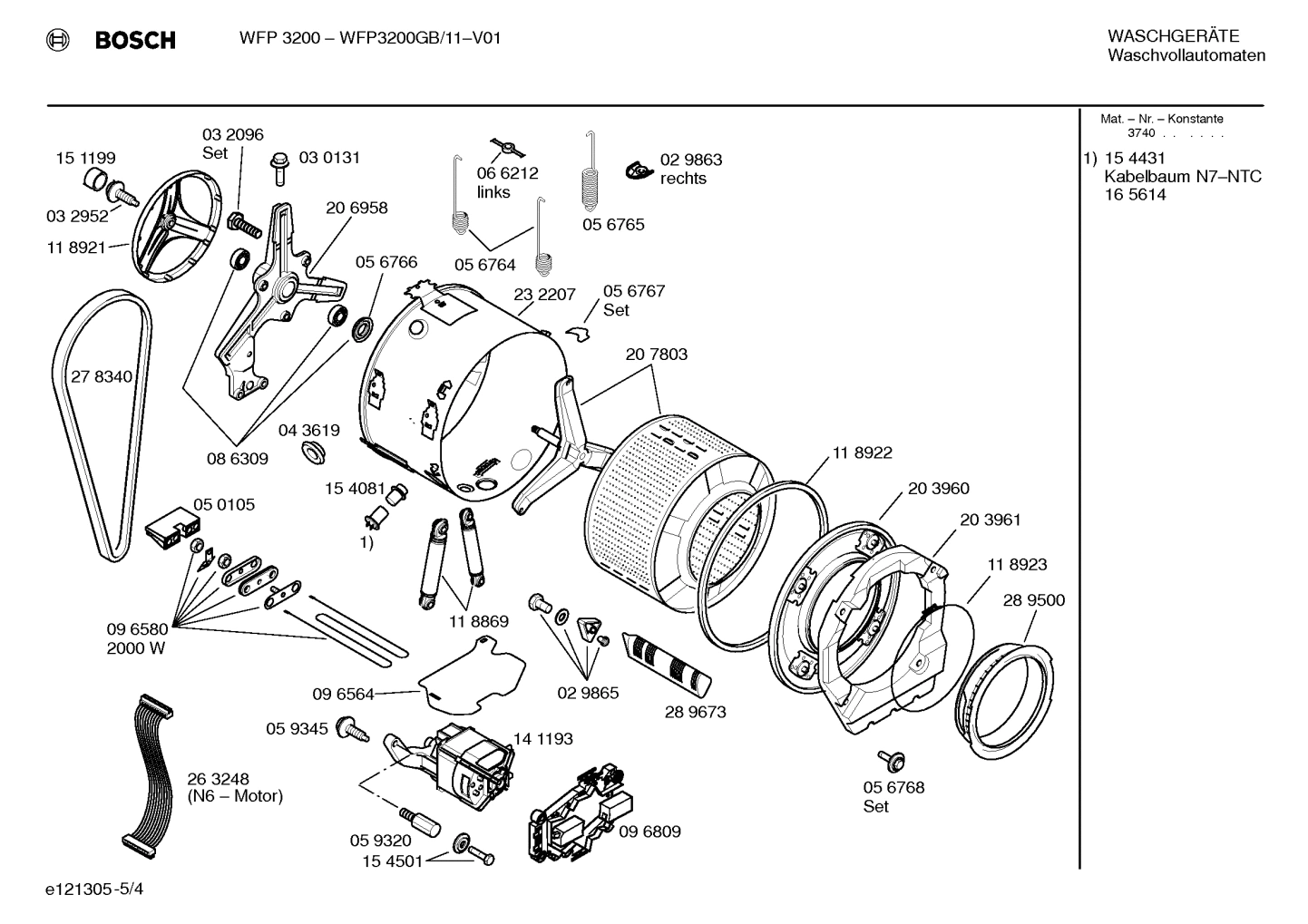

Diagram 4

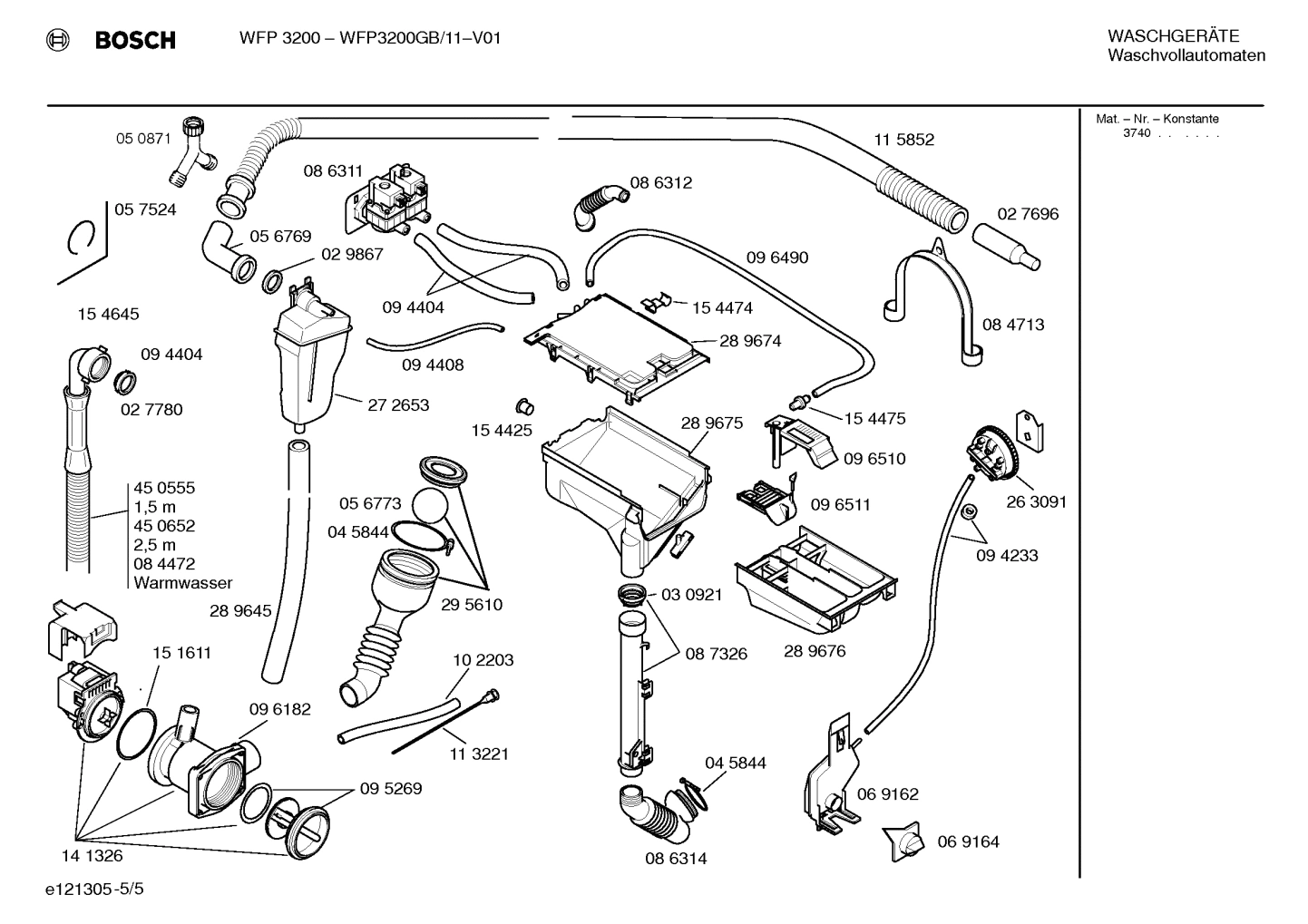

Diagram 5
Common parts from model Bosch WFP3200GB/11 Washer
0204
Auxiliary tool BOS 00153813 Contact Us For Availability
0217
Kit to Attach Washer to Floor/Pedestal BOS 00493529 Contact Us For Availability
0224
Holder BOS 00606923 Contact Us For Availability
0228
Lock-clamp BOS 00118917 Contact Us For Availability
0302
Screw BOS 00171270 Contact Us For Availability
0312
Belt-drive BOS 00278339 Contact Us For Availability
0314
Spring-tank BOS 00056764 Contact Us For Availability
0315
Spring guide BOS 00029863 Contact Us For Availability
0316
Spring-tank BOS 00056765 Contact Us For Availability
0317
Spring guide BOS 00066212 Contact Us For Availability
0323
Shock absorber BOS 00118869 Contact Us For Availability
0327
Holder BOS 00059320 Contact Us For Availability
0328
Screw BOS 00059345 Contact Us For Availability
0331
Agitator paddle laundry BOS 00289673 Contact Us For Availability
0332
Sealing BOS 00118922 Contact Us For Availability
0336
Boot gasket BOS 00289500 Contact Us For Availability
0402
Valve BOS 00154645 Contact Us For Availability
0404
Hose connection inlet BOS 00056769 Contact Us For Availability
0406
Drain Hose BOS 00432060 Contact Us For Availability
0407
Stud BOS 00027696 Contact Us For Availability
0408
Holder BOS 00655300 Contact Us For Availability
0410
Hose BOS 00272654 Contact Us For Availability
0429
Ball-sump BOS 00171263 Contact Us For Availability
0430
fastening ring BOS 00603523 Contact Us For Availability
0435
Pump-drain BOS 00144487 Contact Us For Availability
0443
Filter-water inlet BOS 00027780 Contact Us For Availability
× ![]()
