Model Bosch WFO2060AU/13 Washer – Common Parts & Diagrams
Diagram 1
Diagram 2

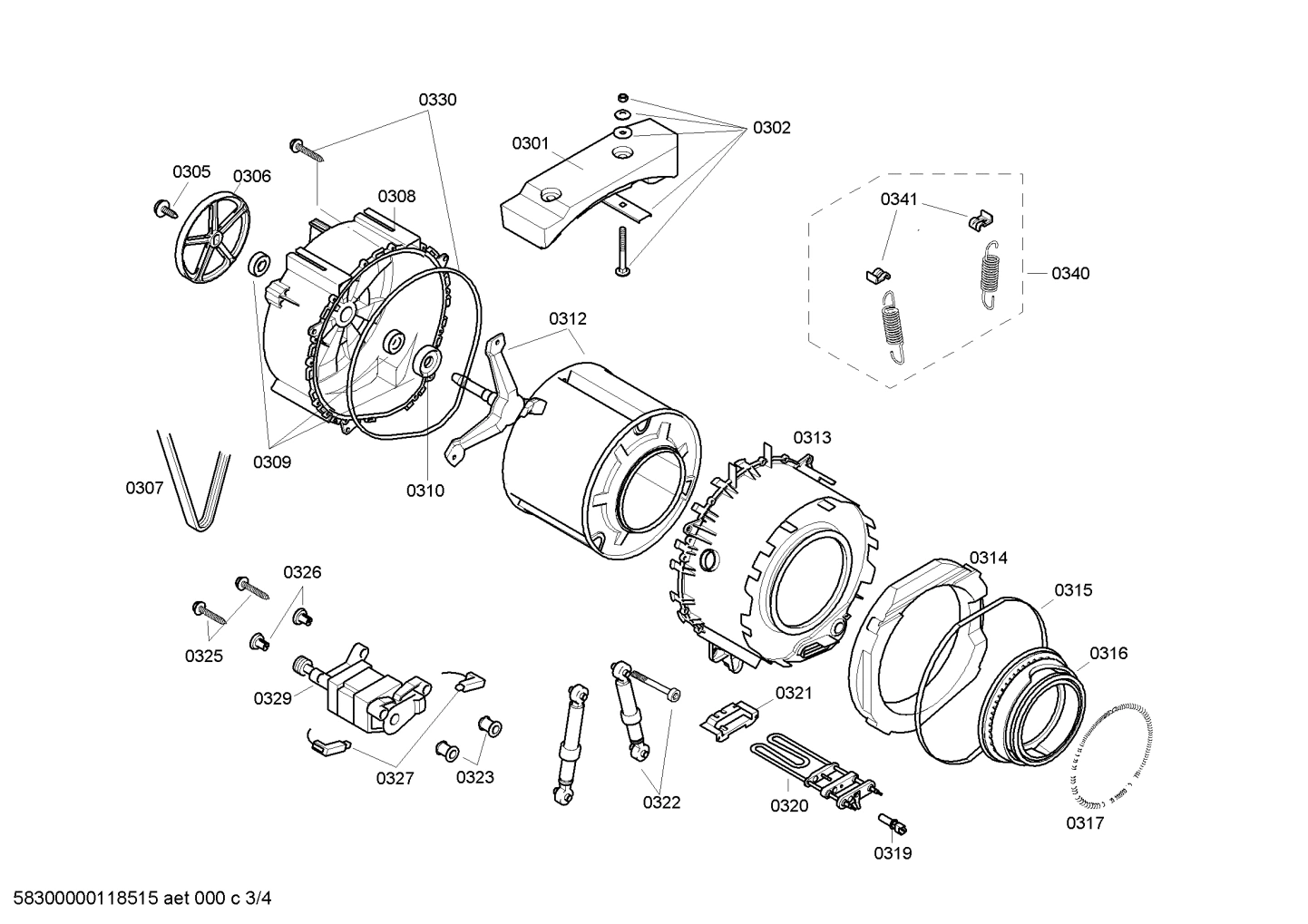

Diagram 3

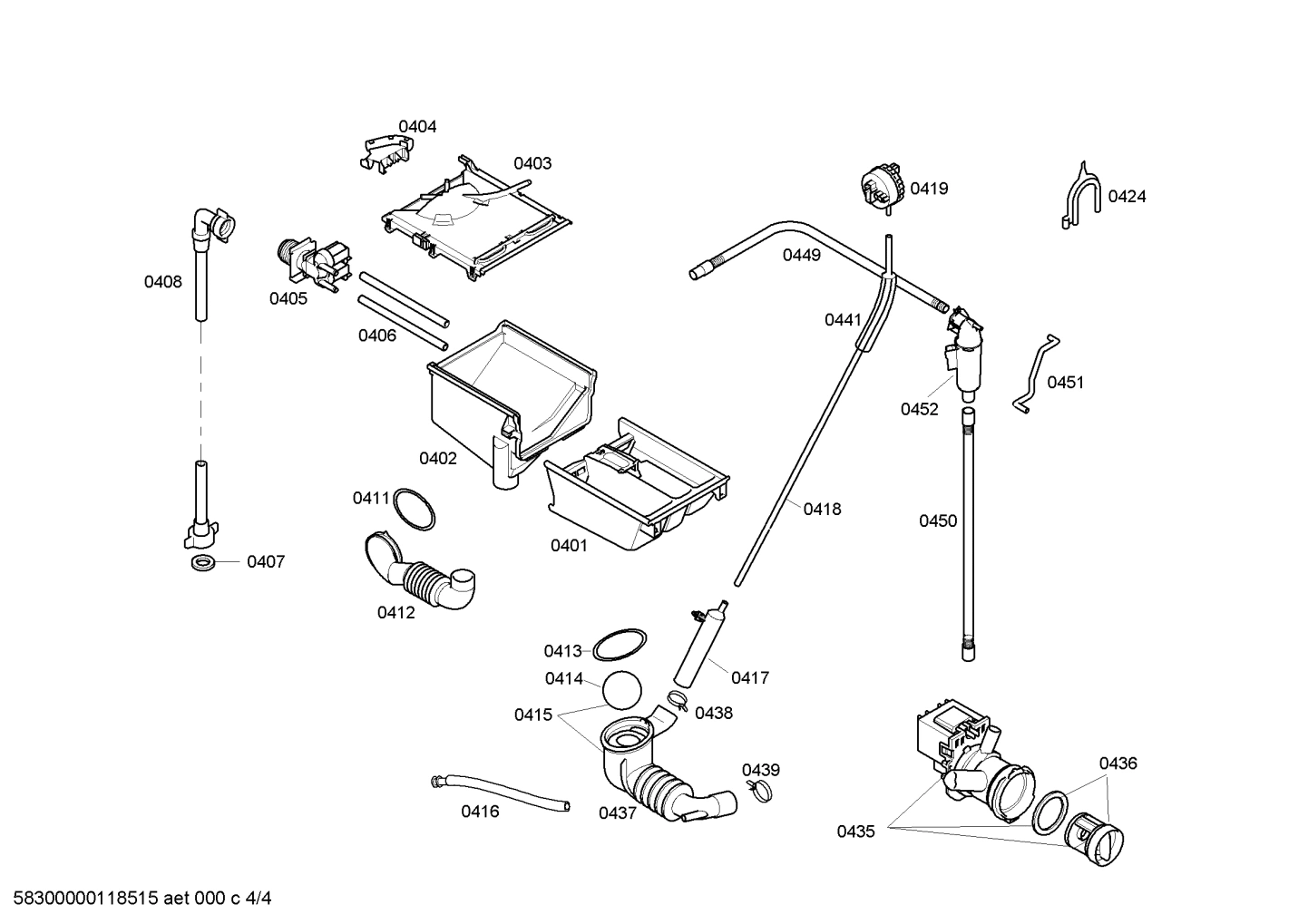

Diagram 4
Common parts from model Bosch WFO2060AU/13 Washer
0102
Capacitor-interference suppre. BOS 00623842 Contact Us For Availability
0103
Coupling BOS 00172698 Contact Us For Availability
0207
Lid BOS 00182194 Contact Us For Availability
0209
Transit bolt BOS 00186870 Contact Us For Availability
0213
Kit to Attach Washer to Floor/Pedestal BOS 00493529 Contact Us For Availability
0217
Holder BOS 00606923 Contact Us For Availability
0218
Hinge-window BOS 00171269 Contact Us For Availability
0219
Bushing BOS 00171264 Contact Us For Availability
0220
fastening ring BOS 00439671 Contact Us For Availability
0221
Ring BOS 00715042 Contact Us For Availability
0222
Window BOS 11020392 Contact Us For Availability
0223
Axis BOS 00171255 Contact Us For Availability
0224
Handle BOS 00266751 Contact Us For Availability
0226
Latch BOS 00634207 Contact Us For Availability
0227
Front panel BOS 00235567 Contact Us For Availability
0248
Auxiliary tool BOS 00416875 Contact Us For Availability
0302
Fixing kit BOS 00631639 Contact Us For Availability
0305
Screw BOS 00171270 Contact Us For Availability
0306
Pulley BOS 11002942 Contact Us For Availability
0307
Drive Belt BOS 00439490 Contact Us For Availability
0308
Tub BOS 00236013 Contact Us For Availability
0309
Bearing set BOS 00172686 Contact Us For Availability
0312
Drum BOS 00773699 Contact Us For Availability
0313
Tub BOS 00715100 Contact Us For Availability
0315
Band BOS 00265965 Contact Us For Availability
0316
Boot Gasket BOS 00361127 Contact Us For Availability
0317
fastening ring BOS 00354134 Contact Us For Availability
0319
Sensor-NTC BOS 00170961 Contact Us For Availability
0321
Holder BOS 00171273 Contact Us For Availability
0323
Holder BOS 00168798 Contact Us For Availability
0326
Fixture BOS 00171272 Contact Us For Availability
0327
Carbon Brush BOS 00154740 Contact Us For Availability
0330
Sealing BOS 00416886 Contact Us For Availability
0340
Spring-tank BOS 00642529 Contact Us For Availability
0401
Dispenser tray BOS 00703270 Contact Us For Availability
0406
Hose-valve/soap box BOS 00171262 Contact Us For Availability
0407
Filter-water inlet BOS 00027780 Contact Us For Availability
0411
fastening ring BOS 00421488 Contact Us For Availability
0412
Hose-fill BOS 00265958 Contact Us For Availability
0413
fastening ring BOS 00603523 Contact Us For Availability
0414
Ball-sump BOS 00171263 Contact Us For Availability
0415
Eco-hose-sump BOS 00480436 Contact Us For Availability
0416
Drain hose BOS 00421214 Contact Us For Availability
0417
Pressure chamber BOS 00424981 Contact Us For Availability
0418
Hose-pressure chamber BOS 00491919 Contact Us For Availability
0419
Regulator-water level BOS 00427040 Contact Us For Availability
0424
Holder BOS 00655300 Contact Us For Availability
0436
Dryer Filter BOS 00647920 Contact Us For Availability
0450
Hose BOS 00358305 Contact Us For Availability
0451
Hose-vent BOS 00175789 Contact Us For Availability
0452
Container return BOS 00358304 Contact Us For Availability
× ![]()
