Bosch WFO1852IT/01

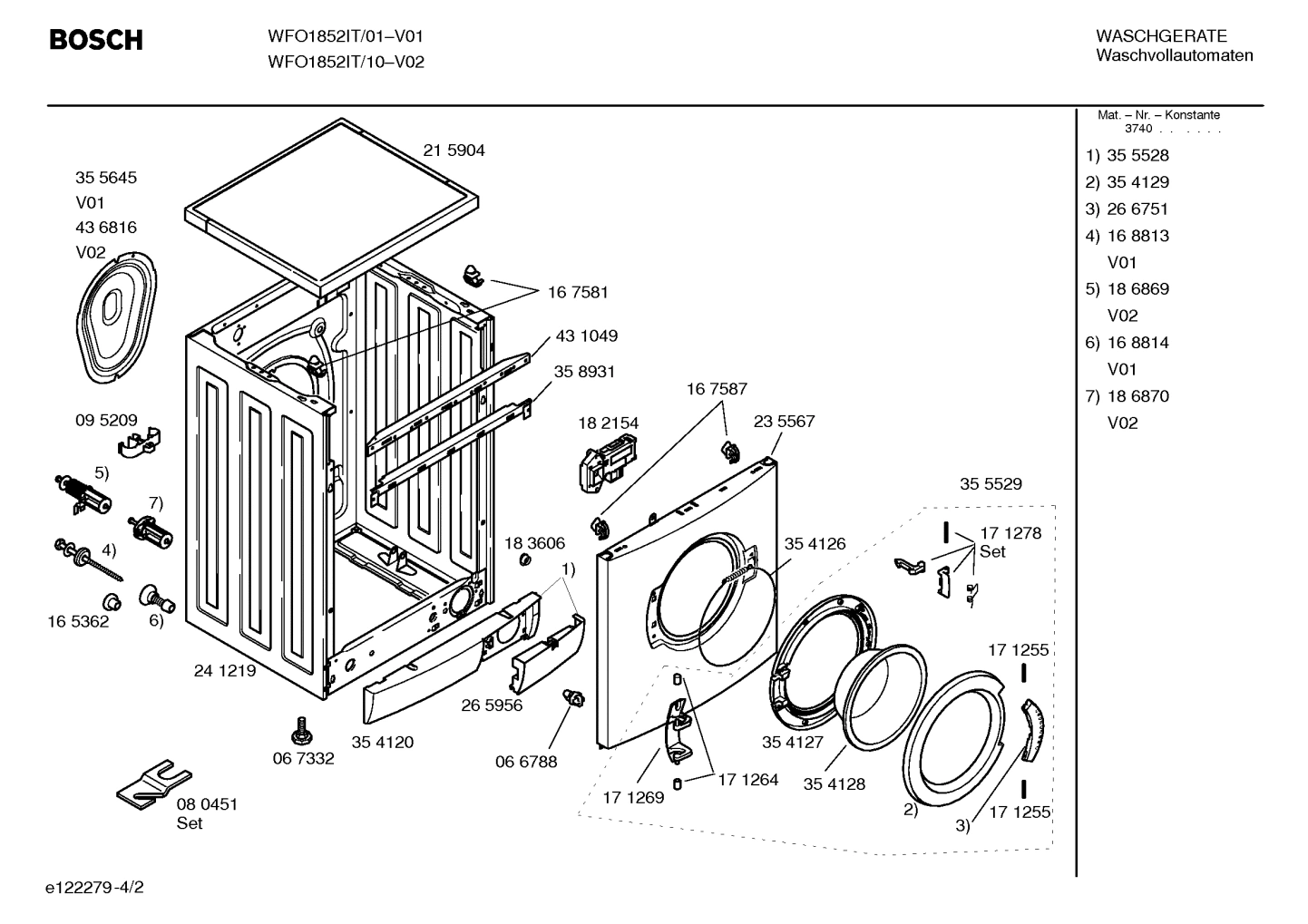

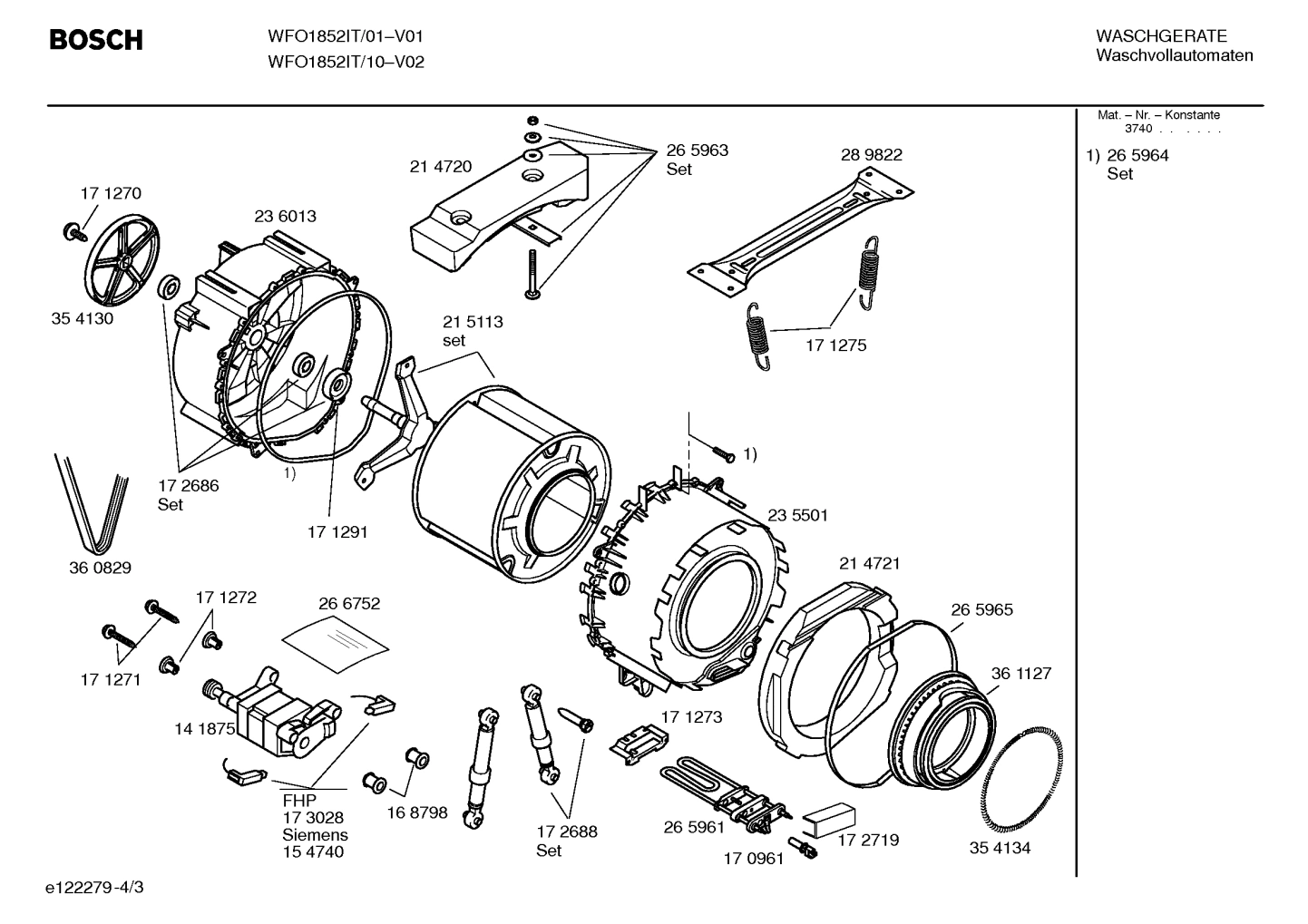

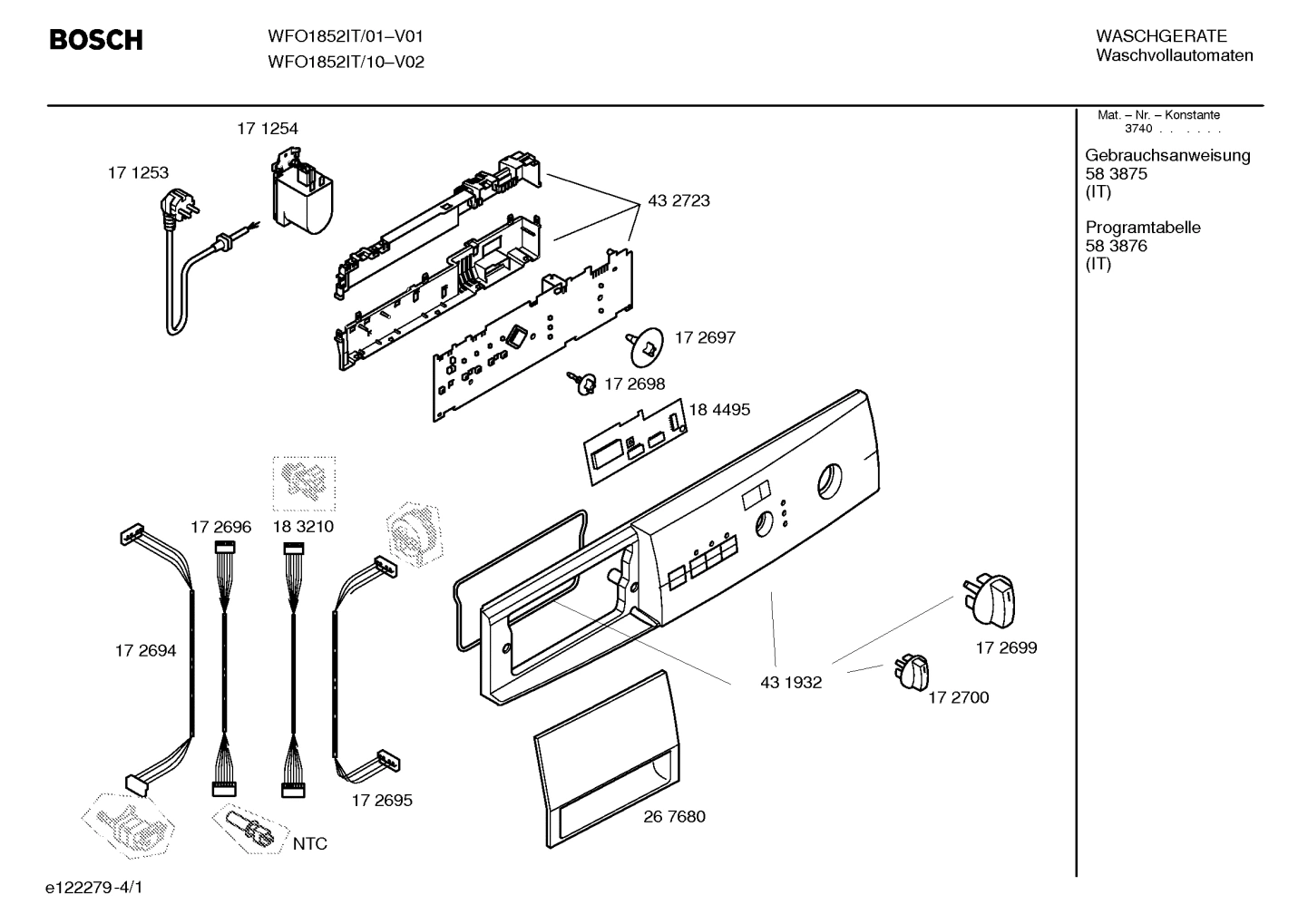

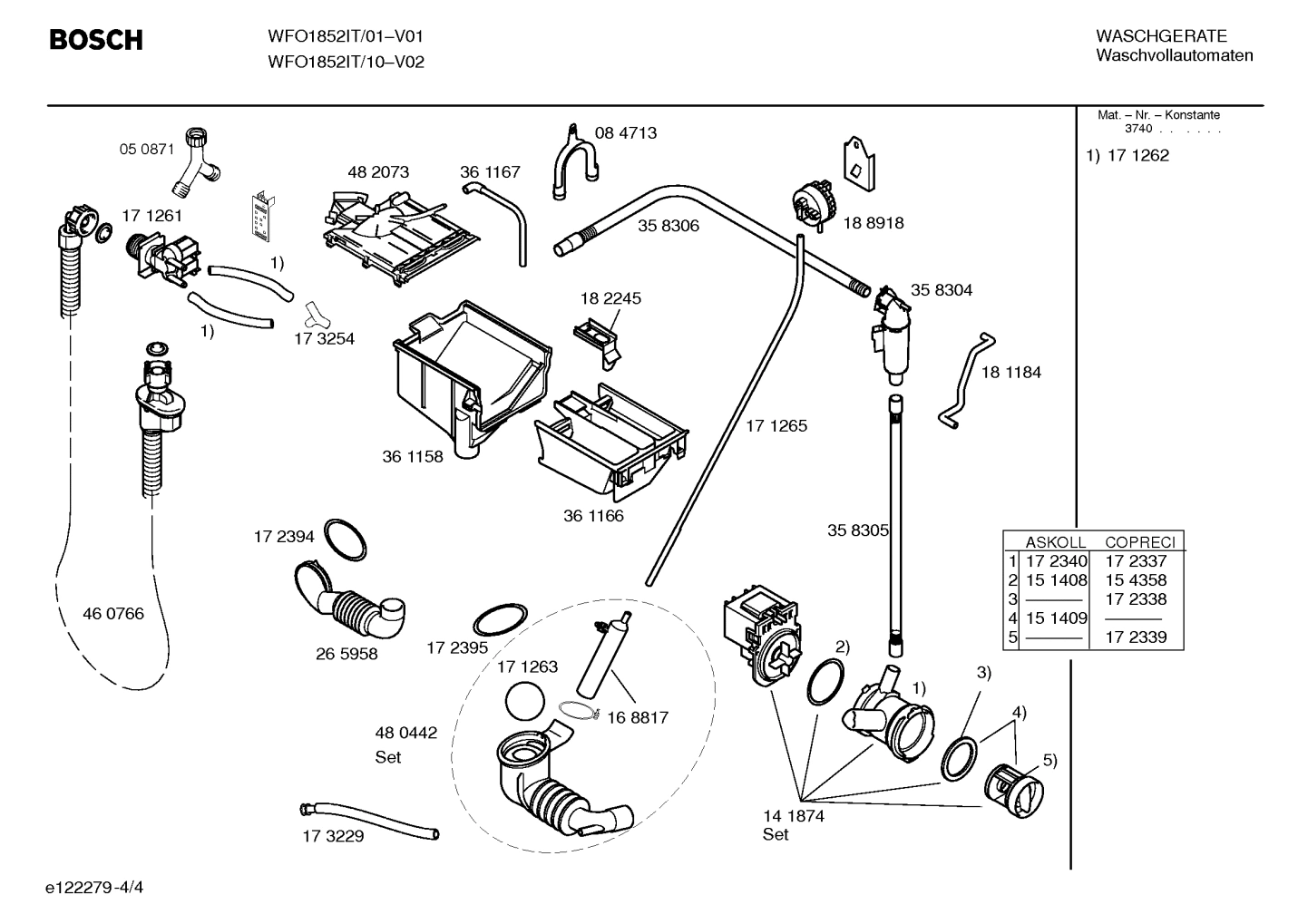

Model Bosch WFO1852IT/01 Washer – Common Parts & Diagrams

Common parts from model Bosch WFO1852IT/01 Washer

00655300 Bosch Laundry Holder

00655300 Bosch Laundry Holder Backorder BOS 00655300 $13.71

00170961 Bosch Laundry NTC Sensor

00170961 Bosch Laundry NTC Sensor Backorder BOS 00170961 $17.37

00623842 Bosch Laundry Suppression Capacitor

00623842 Bosch Laundry Suppression Capacitor Backorder BOS 00623842 $47.56

00171262 Bosch Laundry Valve Hose Soap Box

00171262 Bosch Laundry Valve Hose Soap Box Backorder BOS 00171262 $29.26

Hose-pressure chamber

Hose-pressure chamber BOS 00491919 Contact Us For Availability

00171270 Bosch Screw

00171270 Bosch Screw Backorder BOS 00171270 $3.64

10007126 Bosch Laundry Screw

10007126 Bosch Laundry Screw Backorder BOS 10007126 $3.64

00171272 Bosch Laundry Fixture

00171272 Bosch Laundry Fixture Backorder BOS 00171272 $6.39

Holder

Holder BOS 00171273 Contact Us For Availability

00606818 Bosch Laundry Tank Spring

00606818 Bosch Laundry Tank Spring Backorder BOS 00606818 $10.05

00421488 Bosch Laundry Fastening Ring

00421488 Bosch Laundry Fastening Ring Backorder BOS 00421488 $6.39

00603523 Bosch Fastening Ring

00603523 Bosch Fastening Ring Backorder BOS 00603523 $12.79

00773699 Bosch Laundry Drum

00773699 Bosch Laundry Drum Backorder BOS 00773699 $198.86

00715100 Bosch Laundry Tub

00715100 Bosch Laundry Tub Backorder BOS 00715100 $241.10

00235567 Bosch Laundry Front Panel

00235567 Bosch Laundry Front Panel Backorder BOS 00235567 $184.78

00265958 Bosch Laundry Fill Hose

00265958 Bosch Laundry Fill Hose Backorder BOS 00265958 $21.94

00265965 Bosch Laundry Band

00265965 Bosch Laundry Band Backorder BOS 00265965 $35.67

00439671 Bosch Laundry Fastening Ring

00439671 Bosch Laundry Fastening Ring In Stock BOS 00439671 $13.71

11002942 Bosch Laundry Pulley

11002942 Bosch Laundry Pulley Backorder BOS 11002942 $53.05

00354134 Bosch Laundry Fastening Ring

00354134 Bosch Laundry Fastening Ring Backorder BOS 00354134 $8.22

00358304 Bosch Laundry Return Container

00358304 Bosch Laundry Return Container Backorder BOS 00358304 $58.81

00358305 Bosch Laundry Hose

00358305 Bosch Laundry Hose In Stock BOS 00358305 $20.11

00439490 Bosch Washer Drive Belt

00439490 Bosch Washer Drive Belt Backorder BOS 00439490 $34.75

00361127 Bosch Washer Boot Gasket

00361127 Bosch Washer Boot Gasket In Stock BOS 00361127 $69.67

Tub

Tub BOS 00236013 Contact Us For Availability

11020392 Bosch Laundry Window

11020392 Bosch Laundry Window In Stock BOS 11020392 $46.65

00361166 Bosch Laundry Dispenser Tray

00361166 Bosch Laundry Dispenser Tray Backorder BOS 00361166 $40.24

00182245 Bosch Laundry Siphon Device

00182245 Bosch Laundry Siphon Device Backorder BOS 00182245 $8.22
