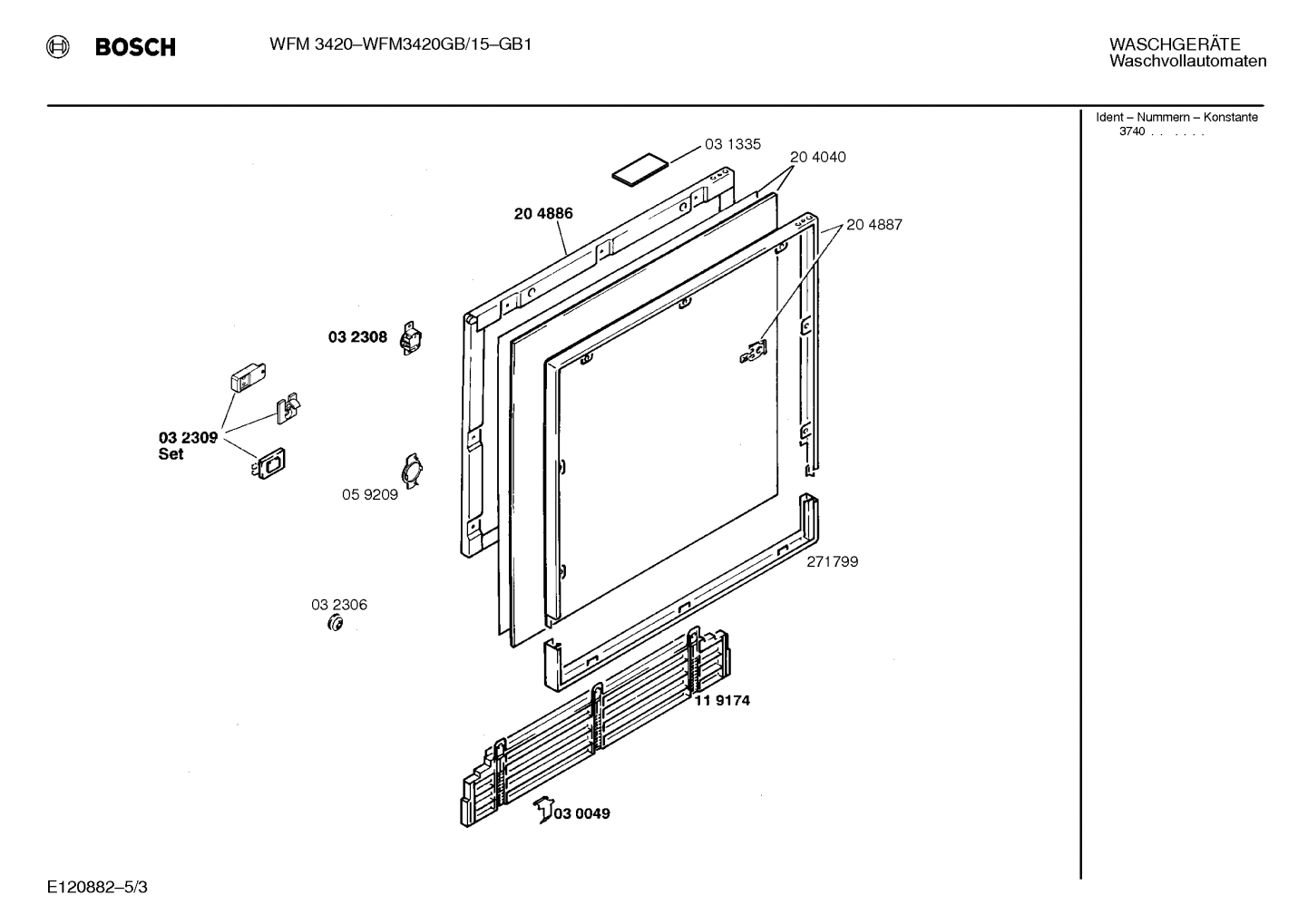

Common parts from model Bosch WFM3420GB/15 Washer

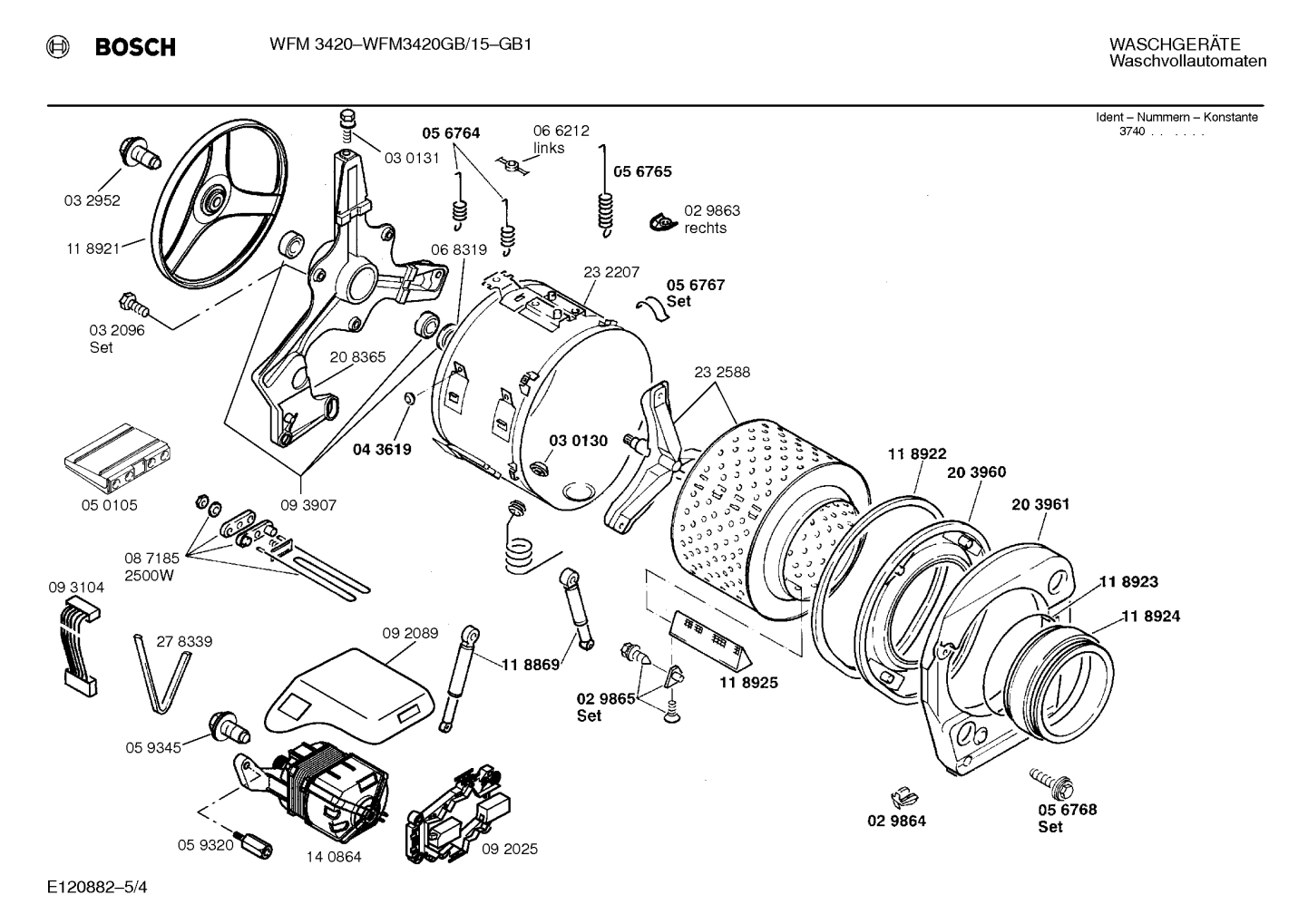

Diagram 1

Print

• This Diagram
• All Diagrams

0201

00032968 Bosch Laundry Holder Backorder BOS 00032968 View Details $33.02

View on Model

0216

00606923 Bosch Laundry Holder Backorder BOS 00606923 View Details $5.58

View on Model

0221

00040302 Bosch Laundry Foot Backorder BOS 00040302 View Details $11.16

View on Model

0222

00493529 Bosch Laundry Fixing Kit Backorder BOS 00493529 View Details $53.94

View on Model

0227

00118917 Bosch Laundry Lock Clamp Backorder BOS 00118917 View Details $18.14

View on Model

0229

Window BOS 00118919 Contact Us For Availability

View on Model

0231

Electric lock BOS 00056762 Contact Us For Availability

View on Model

0401

00171270 Bosch Screw Backorder BOS 00171270 View Details $3.72

View on Model

0402

Pulley BOS 00118921 Contact Us For Availability

View on Model

0407

Shaft seal BOS 00068319 Contact Us For Availability

View on Model

0408

00056764 Bosch Laundry Spring Tank Backorder BOS 00056764 View Details $31.62

View on Model

0409

00066212 Bosch Laundry Guide Spring Backorder BOS 00066212 View Details $15.81

View on Model

0410

00056765 Bosch Laundry Spring Backorder BOS 00056765 View Details $23.25

View on Model

0411

Spring guide BOS 00029863 Contact Us For Availability

View on Model

0419

00118922 Bosch Laundry Sealing Assembly Backorder BOS 00118922 View Details $36.27

View on Model

0426

00118869 Bosch Laundry Shock Absorber Backorder BOS 00118869 View Details $74.52

View on Model

0429

00278339 Bosch Washer Drive Belt Backorder BOS 00278339 View Details $36.27

View on Model

0430

Screw BOS 00059345 Contact Us For Availability

View on Model

0431

00059320 Bosch Laundry Holder Backorder BOS 00059320 View Details $11.16

View on Model

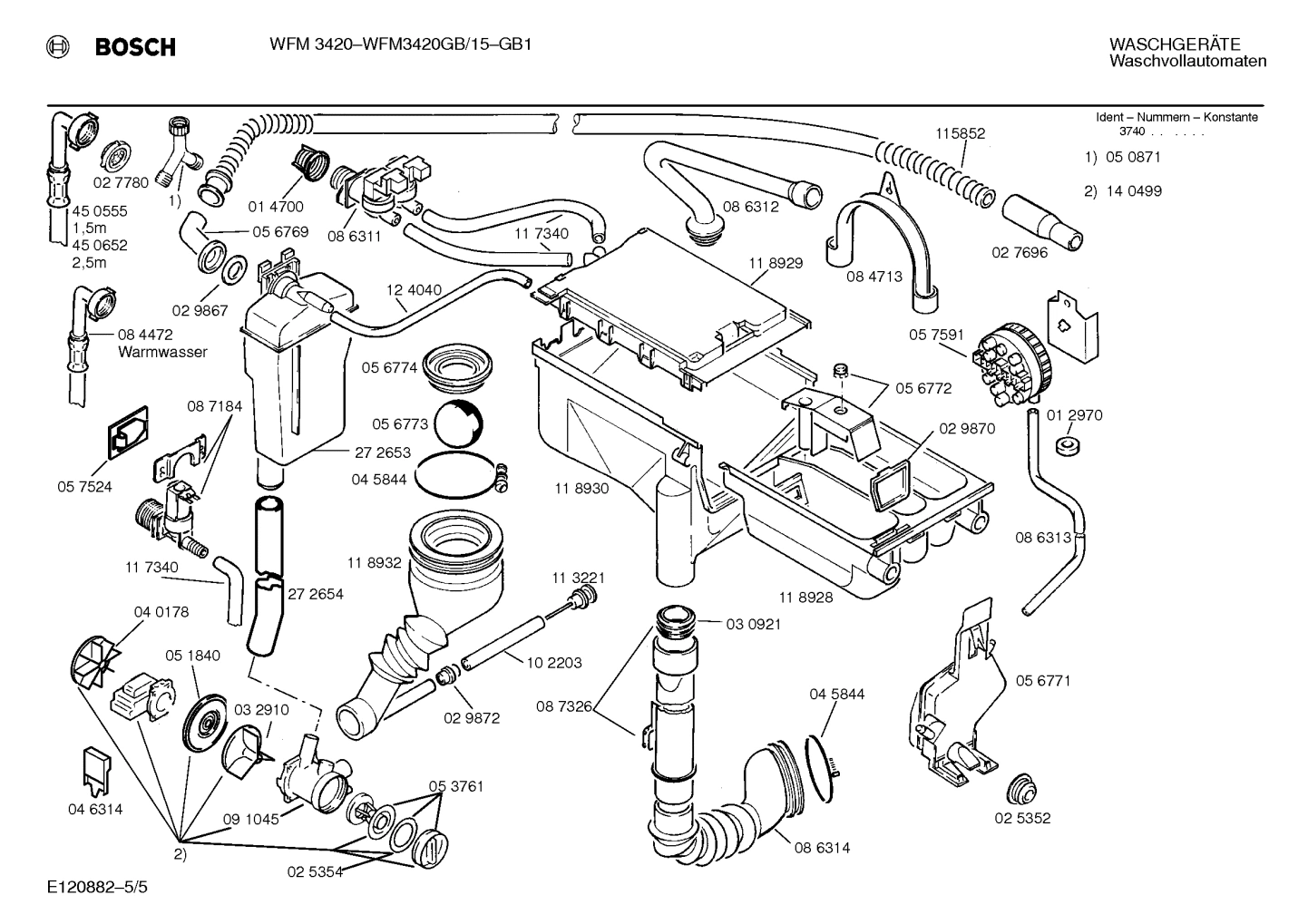

0502

00027780 Bosch Laundry Inlet Water Filter Backorder BOS 00027780 View Details $14.42

View on Model

0504

00050871 Bosch Laundry Branching Piece Backorder BOS 00050871 View Details $32.09

View on Model

0506

Hose connection inlet BOS 00056769 Contact Us For Availability

View on Model

0507

00432060 Bosch Laundry Outlet Hose Backorder BOS 00432060 View Details $41.85

View on Model

0508

00655300 Bosch Laundry Holder Backorder BOS 00655300 View Details $14.42

View on Model

0509

00027696 Bosch Laundry Stud Backorder BOS 00027696 View Details $12.09

View on Model

0515

00272654 Bosch Laundry Hose Backorder BOS 00272654 View Details $70.38

View on Model

0517

00171263 Bosch Laundry Sump Ball Backorder BOS 00171263 View Details $12.09

View on Model

0522

Latch BOS 00113221 Contact Us For Availability

View on Model

0524

Sealing BOS 00051840 Contact Us For Availability

View on Model

0543

00603523 Bosch Fastening Ring Backorder BOS 00603523 View Details $13.02
