Model Bosch WFM2040IE/04 Washer – Common Parts & Diagrams

Common parts from model Bosch WFM2040IE/04 Washer

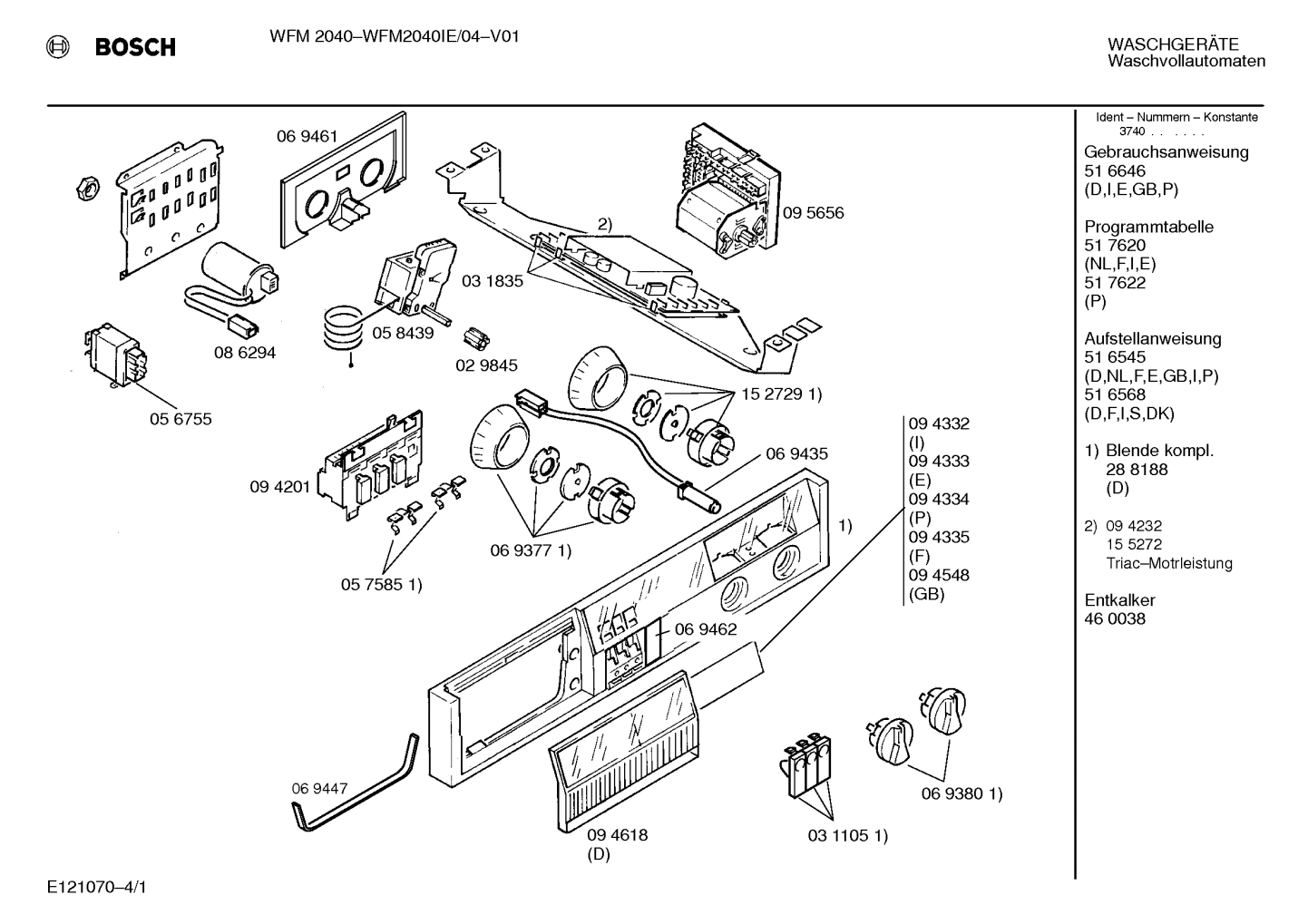

Diagram 1

Print

• This Diagram
• All Diagrams

0201

15000636 Bosch Power Cord Backorder BOS 15000636 View Details $24.18

View on Model

0202

00032968 Bosch Laundry Holder Backorder BOS 00032968 View Details $33.02

View on Model

0219

00606923 Bosch Laundry Holder Backorder BOS 00606923 View Details $5.58

View on Model

0224

00040302 Bosch Laundry Foot Backorder BOS 00040302 View Details $11.16

View on Model

0225

00493529 Bosch Laundry Fixing Kit Backorder BOS 00493529 View Details $53.94

View on Model

0230

Electric lock BOS 00056762 Contact Us For Availability

View on Model

0233

Window BOS 00118919 Contact Us For Availability

View on Model

0235

00118917 Bosch Laundry Lock Clamp Backorder BOS 00118917 View Details $18.14

View on Model

0302

00171270 Bosch Screw Backorder BOS 00171270 View Details $3.72

View on Model

0303

Pulley BOS 00118921 Contact Us For Availability

View on Model

0306

Shaft seal BOS 00068319 Contact Us For Availability

View on Model

0313

00278339 Bosch Washer Drive Belt Backorder BOS 00278339 View Details $36.27

View on Model

0314

Screw BOS 00059345 Contact Us For Availability

View on Model

0315

00059320 Bosch Laundry Holder Backorder BOS 00059320 View Details $11.16

View on Model

0318

00118869 Bosch Laundry Shock Absorber Backorder BOS 00118869 View Details $74.52

View on Model

0327

00118922 Bosch Laundry Sealing Assembly Backorder BOS 00118922 View Details $36.27

View on Model

0332

Spring guide BOS 00029863 Contact Us For Availability

View on Model

0333

00056765 Bosch Laundry Spring Backorder BOS 00056765 View Details $23.25

View on Model

0334

00066212 Bosch Laundry Guide Spring Backorder BOS 00066212 View Details $15.81

View on Model

0335

00056764 Bosch Laundry Spring Tank Backorder BOS 00056764 View Details $31.62

View on Model

0404

Hose connection inlet BOS 00056769 Contact Us For Availability

View on Model

0407

00027780 Bosch Laundry Inlet Water Filter Backorder BOS 00027780 View Details $14.42

View on Model

0410

00272654 Bosch Laundry Hose Backorder BOS 00272654 View Details $70.38

View on Model

0412

00171263 Bosch Laundry Sump Ball Backorder BOS 00171263 View Details $12.09

View on Model

0416

Latch BOS 00113221 Contact Us For Availability

View on Model

0421

00603523 Bosch Fastening Ring Backorder BOS 00603523 View Details $13.02

View on Model

0433

00655300 Bosch Laundry Holder Backorder BOS 00655300 View Details $14.42

View on Model

0434

00432060 Bosch Laundry Outlet Hose Backorder BOS 00432060 View Details $41.85

View on Model

×
