Model Bosch WFL2851NN/16 Washer – Common Parts & Diagrams
Diagram 1
Diagram 2
Diagram 3

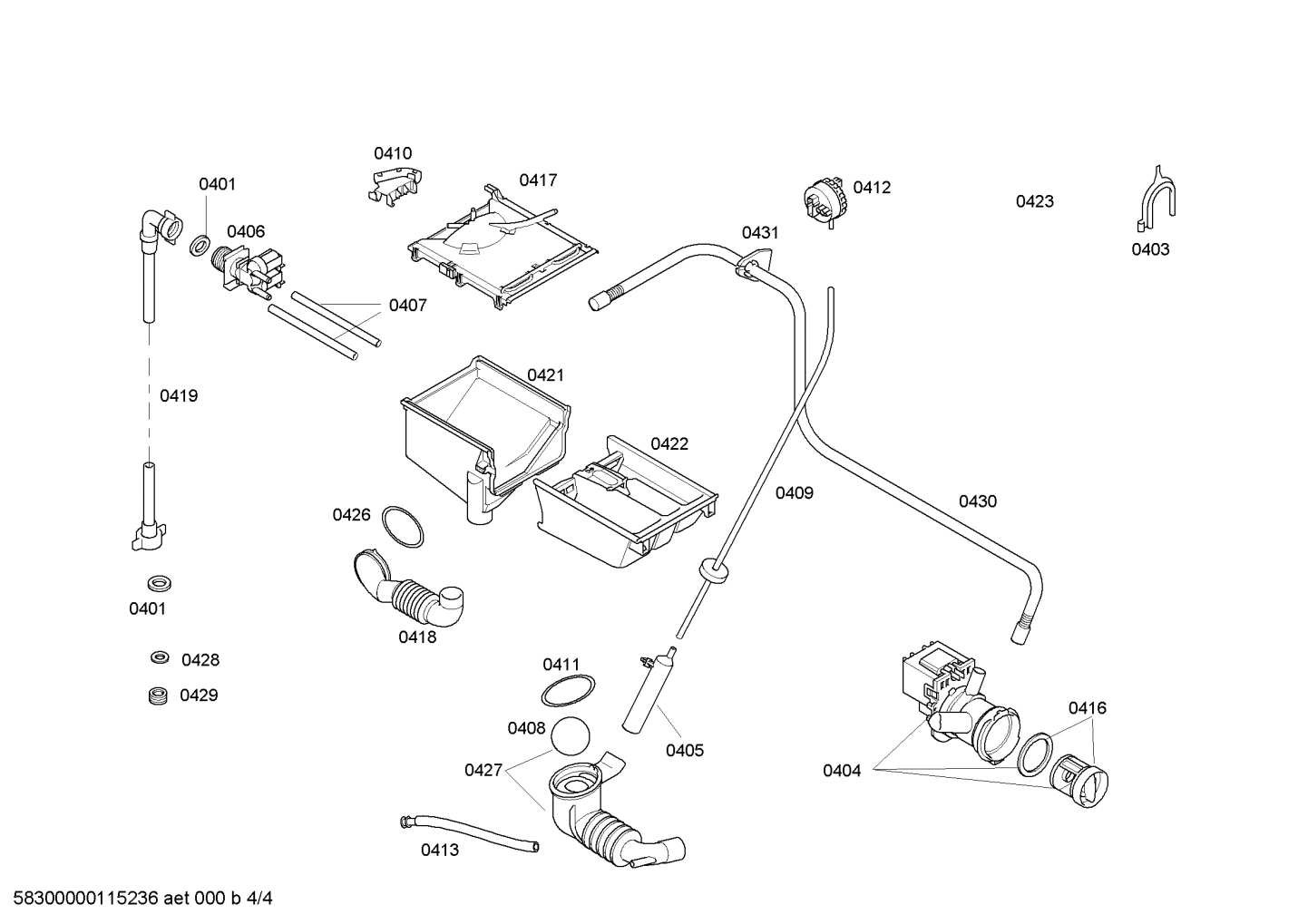

Diagram 4
Common parts from model Bosch WFL2851NN/16 Washer
0105
Coupling BOS 00172698 Contact Us For Availability
0201
Holder BOS 00606923 Contact Us For Availability
0203
Kit to Attach Washer to Floor/Pedestal BOS 00493529 Contact Us For Availability
0207
Axis BOS 00171255 Contact Us For Availability
0208
Bushing BOS 00171264 Contact Us For Availability
0209
Hinge-window BOS 00171269 Contact Us For Availability
0210
Latch BOS 00634207 Contact Us For Availability
0212
Lid BOS 00182194 Contact Us For Availability
0214
Transit bolt BOS 00186870 Contact Us For Availability
0215
Front panel BOS 00235567 Contact Us For Availability
0217
Handle BOS 00266751 Contact Us For Availability
0218
fastening ring BOS 00439671 Contact Us For Availability
0219
Window BOS 11020392 Contact Us For Availability
0224
Ring BOS 00432073 Contact Us For Availability
0301
Motor BOS 00145678 Contact Us For Availability
0302
Carbon Brush BOS 00154740 Contact Us For Availability
0303
Holder BOS 00168798 Contact Us For Availability
0304
Sensor-NTC BOS 00170961 Contact Us For Availability
0305
Screw BOS 00171270 Contact Us For Availability
0307
Fixture BOS 00171272 Contact Us For Availability
0308
Holder BOS 00171273 Contact Us For Availability
0309
Spring-tank BOS 00606818 Contact Us For Availability
0316
Tub BOS 00715100 Contact Us For Availability
0318
Fixing kit BOS 00631639 Contact Us For Availability
0320
Band BOS 00265965 Contact Us For Availability
0323
Pulley BOS 11002942 Contact Us For Availability
0324
fastening ring BOS 00354134 Contact Us For Availability
0325
Boot Gasket BOS 00354135 Contact Us For Availability
0327
Drive Belt BOS 00439490 Contact Us For Availability
0401
Filter-water inlet BOS 00027780 Contact Us For Availability
0403
Holder BOS 00655300 Contact Us For Availability
0405
Pressure chamber BOS 00424981 Contact Us For Availability
0407
Hose-valve/soap box BOS 00171262 Contact Us For Availability
0408
Ball-sump BOS 00171263 Contact Us For Availability
0409
Hose-pressure chamber BOS 00491919 Contact Us For Availability
0411
fastening ring BOS 00603523 Contact Us For Availability
0412
Regulator-water level BOS 00427040 Contact Us For Availability
0416
Dryer Filter BOS 00647920 Contact Us For Availability
0418
Hose-fill BOS 00265958 Contact Us For Availability
0421
Dispenser case BOS 11035255 Contact Us For Availability
0422
Dispenser tray BOS 00703270 Contact Us For Availability
0426
fastening ring BOS 00421488 Contact Us For Availability
0430
Outlet hose BOS 00354124 Contact Us For Availability
× ![]()
