Bosch WFL2461FN/24 Parts List

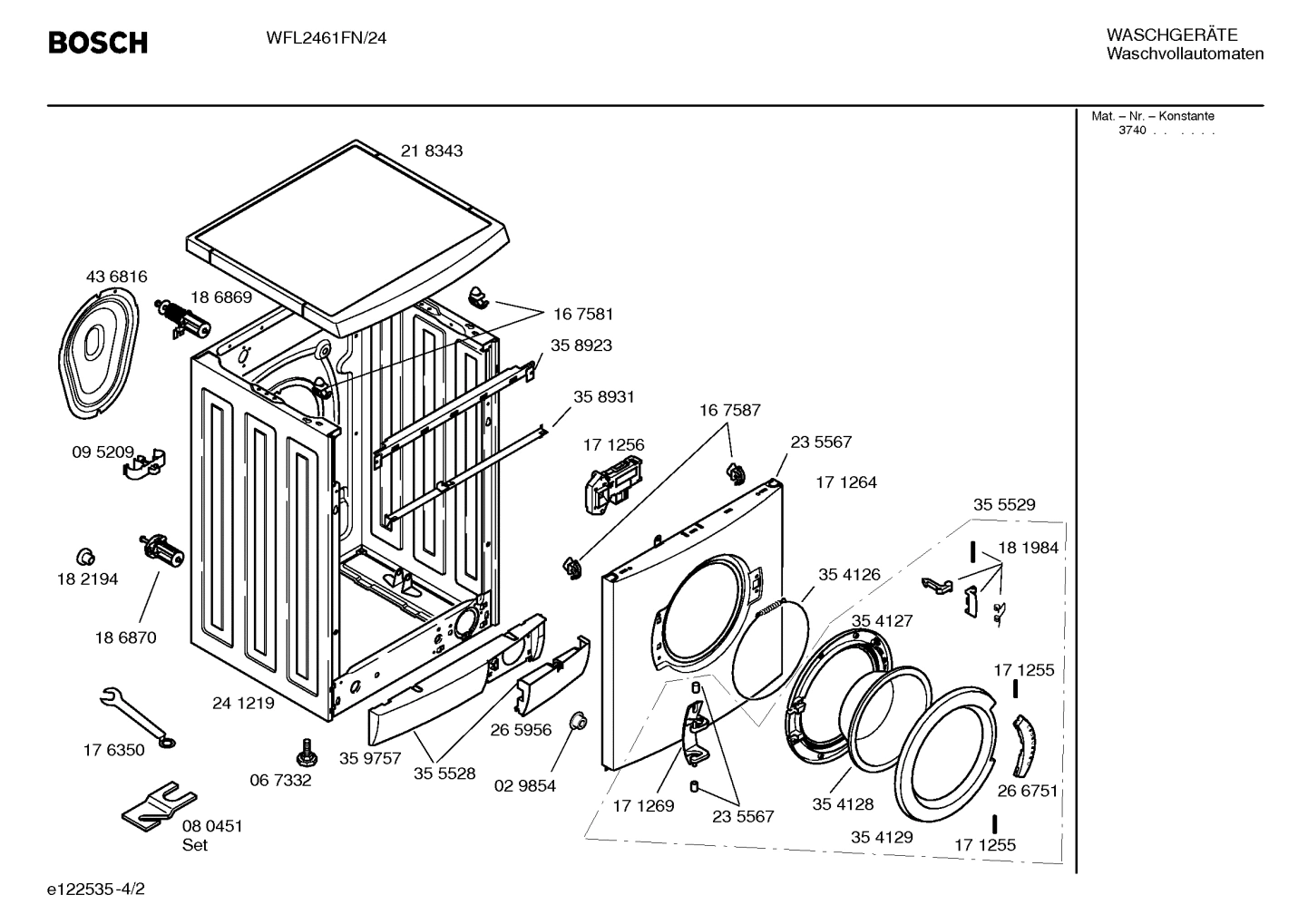

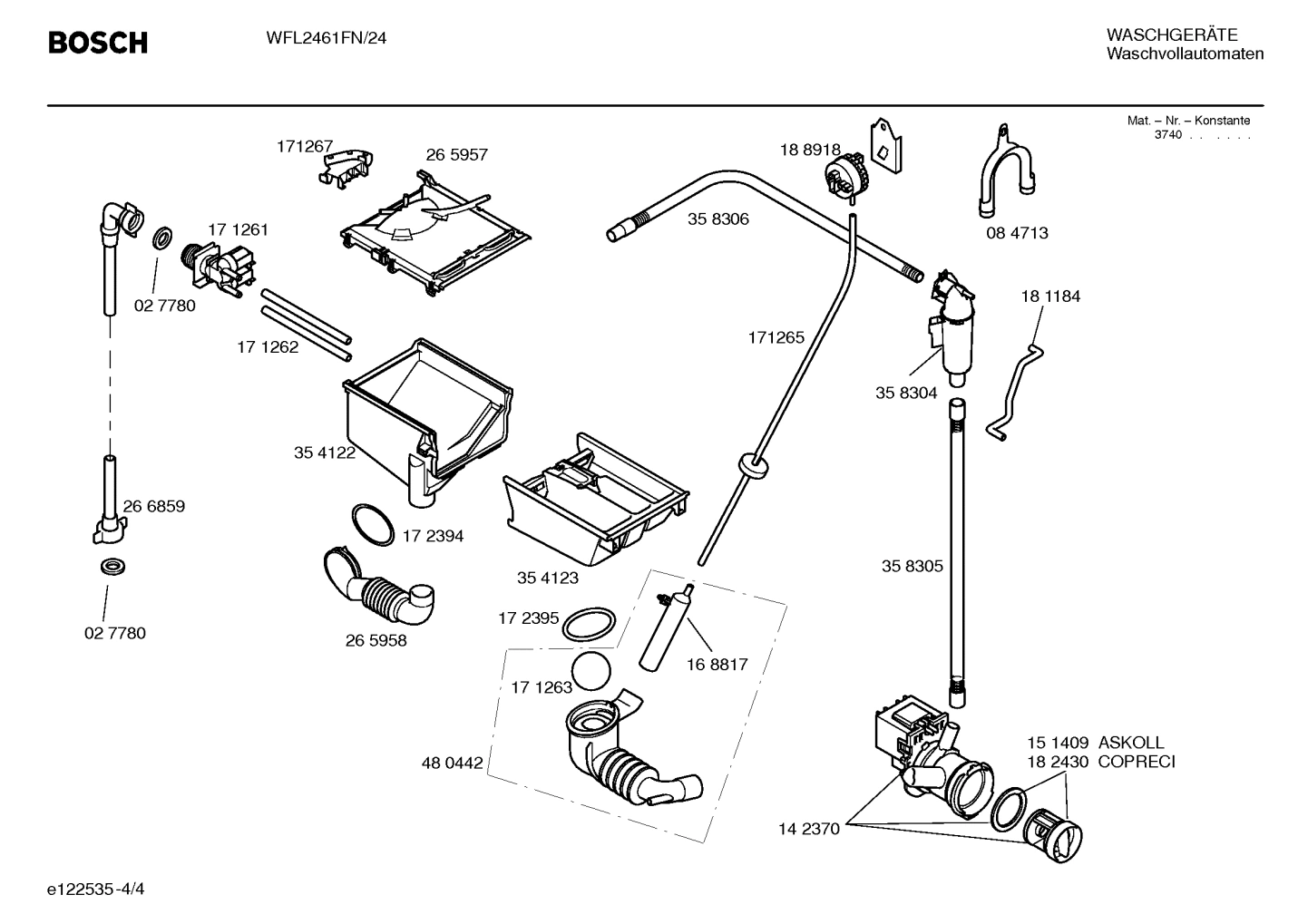

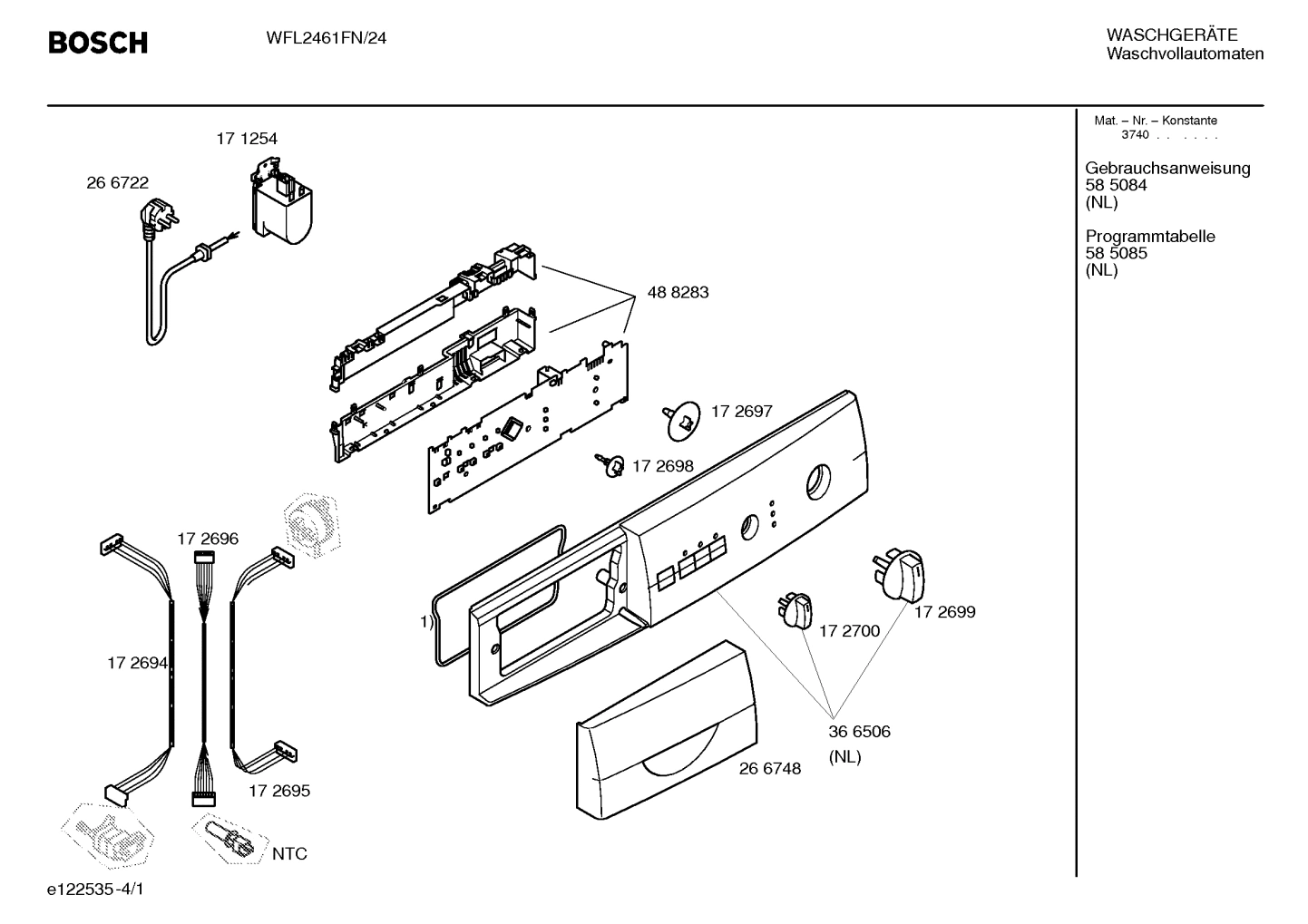

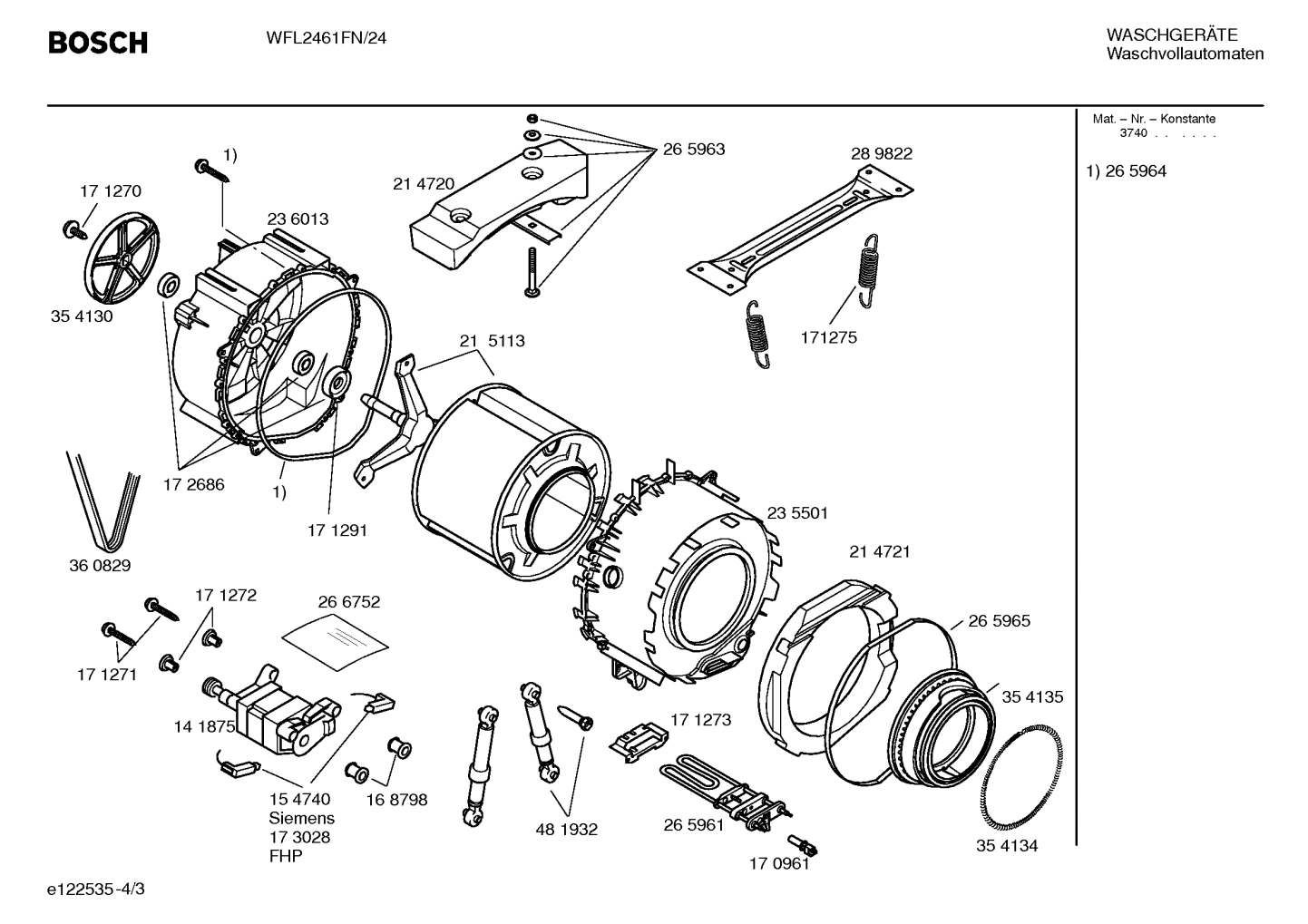

Model Bosch WFL2461FN/24 Washer – Common Parts & Diagrams

Common parts from model Bosch WFL2461FN/24 Washer

00655300 Bosch Laundry Holder

00655300 Bosch Laundry Holder Backorder BOS 00655300 $14.96

00170961 Bosch Laundry NTC Sensor

00170961 Bosch Laundry NTC Sensor Backorder BOS 00170961 $18.82

00623842 Bosch Laundry Suppression Capacitor

00623842 Bosch Laundry Suppression Capacitor Backorder BOS 00623842 $52.11

00171262 Bosch Laundry Valve Hose Soap Box

00171262 Bosch Laundry Valve Hose Soap Box Backorder BOS 00171262 $31.36

00171270 Bosch Screw

00171270 Bosch Screw Backorder BOS 00171270 $3.86

10007126 Bosch Laundry Screw

10007126 Bosch Laundry Screw Backorder BOS 10007126 $3.86

00171272 Bosch Laundry Fixture

00171272 Bosch Laundry Fixture Backorder BOS 00171272 $6.76

Holder

Holder BOS 00171273 Contact Us For Availability

00606818 Bosch Laundry Tank Spring

00606818 Bosch Laundry Tank Spring Backorder BOS 00606818 $10.62

00421488 Bosch Laundry Fastening Ring

00421488 Bosch Laundry Fastening Ring Backorder BOS 00421488 $6.76

00603523 Bosch Fastening Ring

00603523 Bosch Fastening Ring Backorder BOS 00603523 $13.51

00773699 Bosch Laundry Drum

00773699 Bosch Laundry Drum Backorder BOS 00773699 $218.55

00715100 Bosch Laundry Tub

00715100 Bosch Laundry Tub Backorder BOS 00715100 $261.80

00235567 Bosch Laundry Front Panel

00235567 Bosch Laundry Front Panel Backorder BOS 00235567 $200.88

Tub

Tub BOS 00236013 Contact Us For Availability

00265958 Bosch Laundry Fill Hose

00265958 Bosch Laundry Fill Hose Backorder BOS 00265958 $23.64

00265965 Bosch Laundry Band

00265965 Bosch Laundry Band Backorder BOS 00265965 $39.57

00439671 Bosch Laundry Fastening Ring

00439671 Bosch Laundry Fastening Ring In Stock BOS 00439671 $14.96

11002942 Bosch Laundry Pulley

11002942 Bosch Laundry Pulley Backorder BOS 11002942 $57.42

00354134 Bosch Laundry Fastening Ring

00354134 Bosch Laundry Fastening Ring Backorder BOS 00354134 $9.17

00354135 Bosch Washer Boot Gasket

00354135 Bosch Washer Boot Gasket In Stock BOS 00354135 $87.86

00715042 Bosch Laundry Ring

00715042 Bosch Laundry Ring Backorder BOS 00715042 $42.46

11020392 Bosch Laundry Window

11020392 Bosch Laundry Window Backorder BOS 11020392 $50.18

00266751 Bosch Laundry Handle

00266751 Bosch Laundry Handle Backorder BOS 00266751 $131.13

00171255 Bosch Laundry Axis

00171255 Bosch Laundry Axis Backorder BOS 00171255 $14.48

00171264 Bosch Laundry Bushing

00171264 Bosch Laundry Bushing In Stock BOS 00171264 $17.37

00171269 Bosch Laundry Hinge Window

00171269 Bosch Laundry Hinge Window Backorder BOS 00171269 $33.29

00634207 Bosch Washer Latch

00634207 Bosch Washer Latch In Stock BOS 00634207 $55.01

00358304 Bosch Laundry Return Container

00358304 Bosch Laundry Return Container Backorder BOS 00358304 $63.99

00358305 Bosch Laundry Hose

00358305 Bosch Laundry Hose In Stock BOS 00358305 $21.71

Drain Hose

Drain Hose BOS 00358306 Contact Us For Availability

00439490 Bosch Washer Drive Belt

00439490 Bosch Washer Drive Belt In Stock BOS 00439490 $37.64

00186870 Bosch Transit Bolt

00186870 Bosch Transit Bolt Backorder BOS 00186870 $21.71

00172686 Bosch Laundry Bearing Set

00172686 Bosch Laundry Bearing Set Backorder BOS 00172686 $128.31

11035255 Bosch Laundry Dispenser Case

11035255 Bosch Laundry Dispenser Case Backorder BOS 11035255 $50.66

00703270 Bosch Laundry Dispenser Tray

00703270 Bosch Laundry Dispenser Tray Backorder BOS 00703270 $197.16
