Model Bosch WFL1660AU/30 Washer – Common Parts & Diagrams

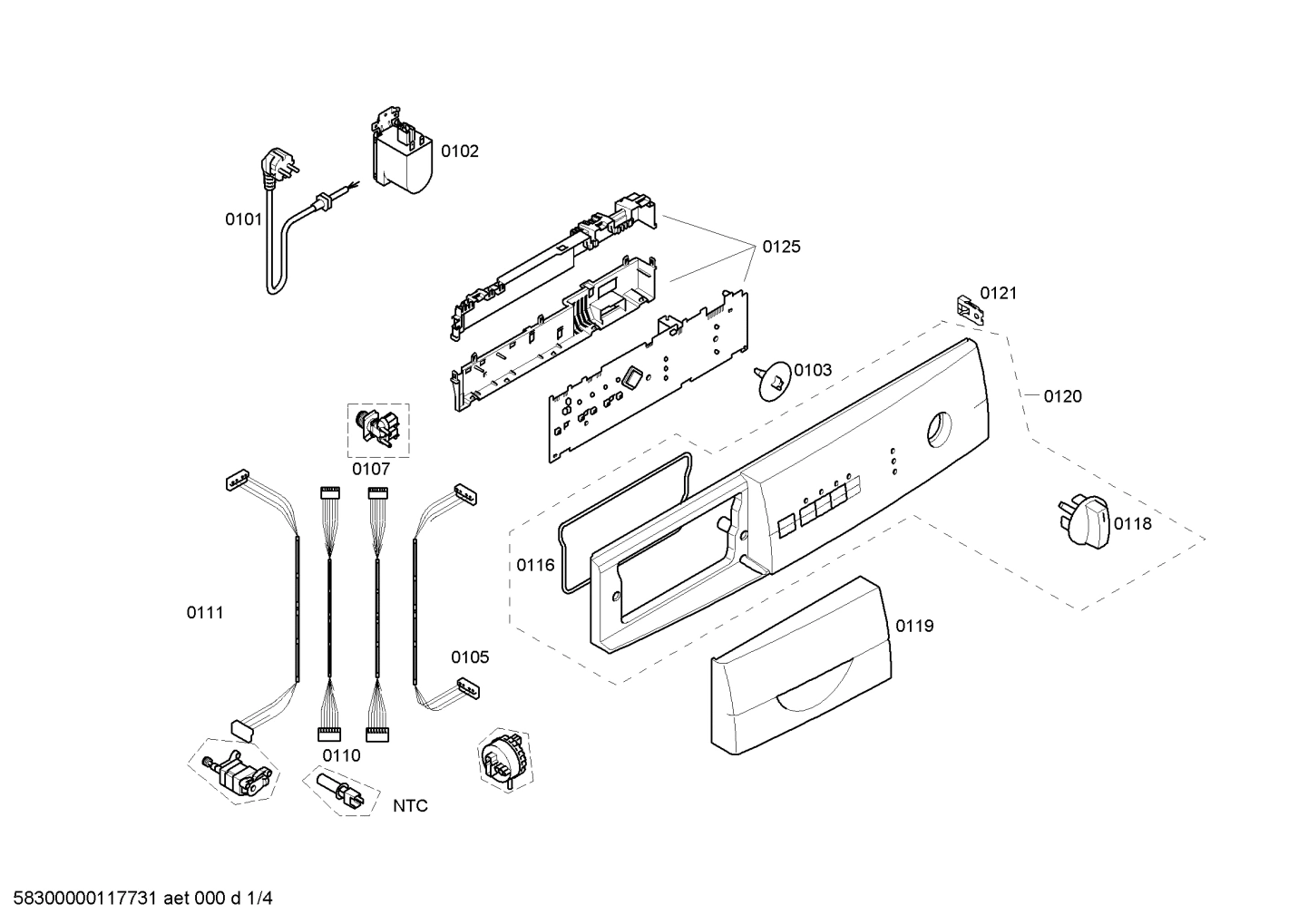

Diagram 1

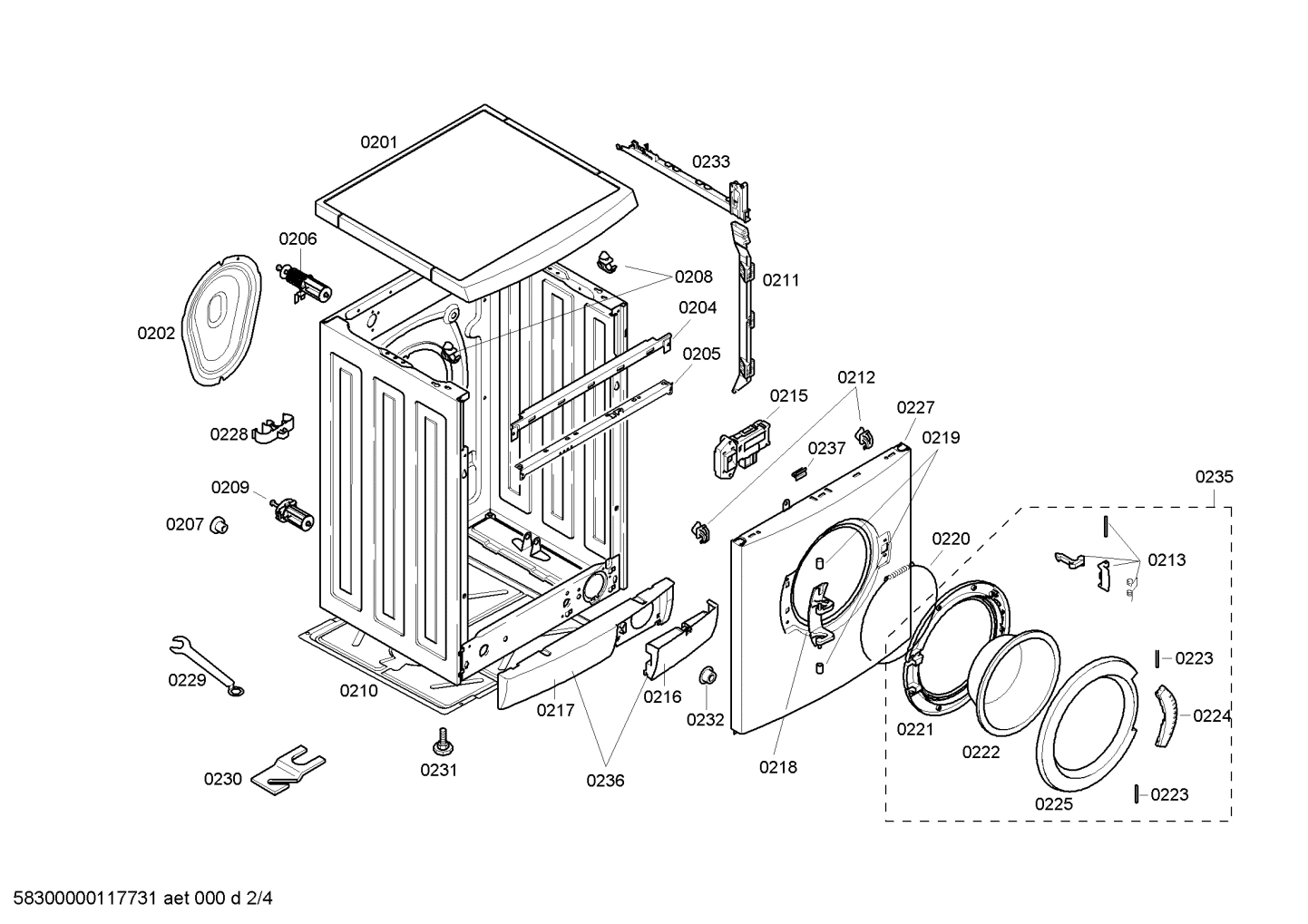

Diagram 2

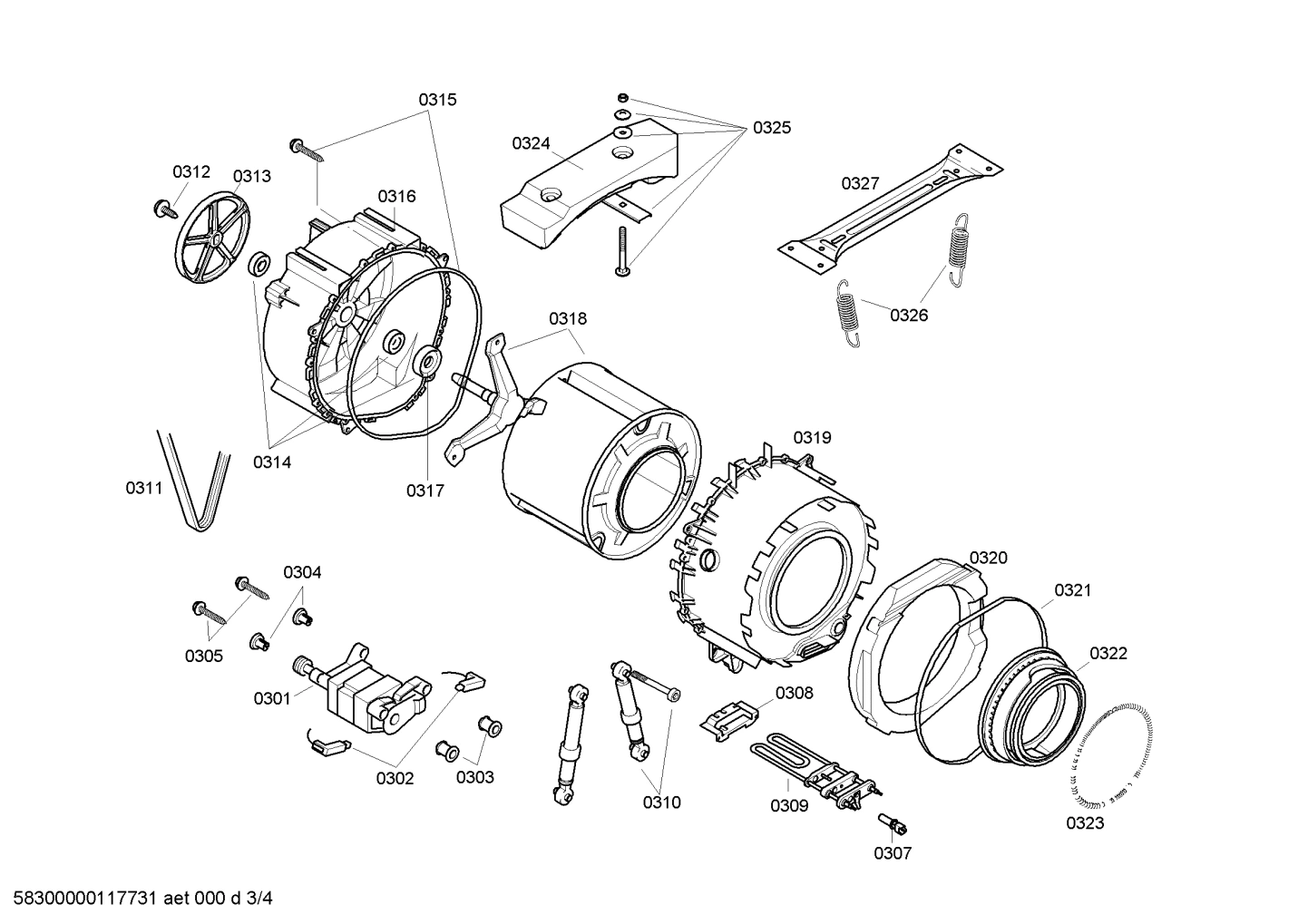

Diagram 3

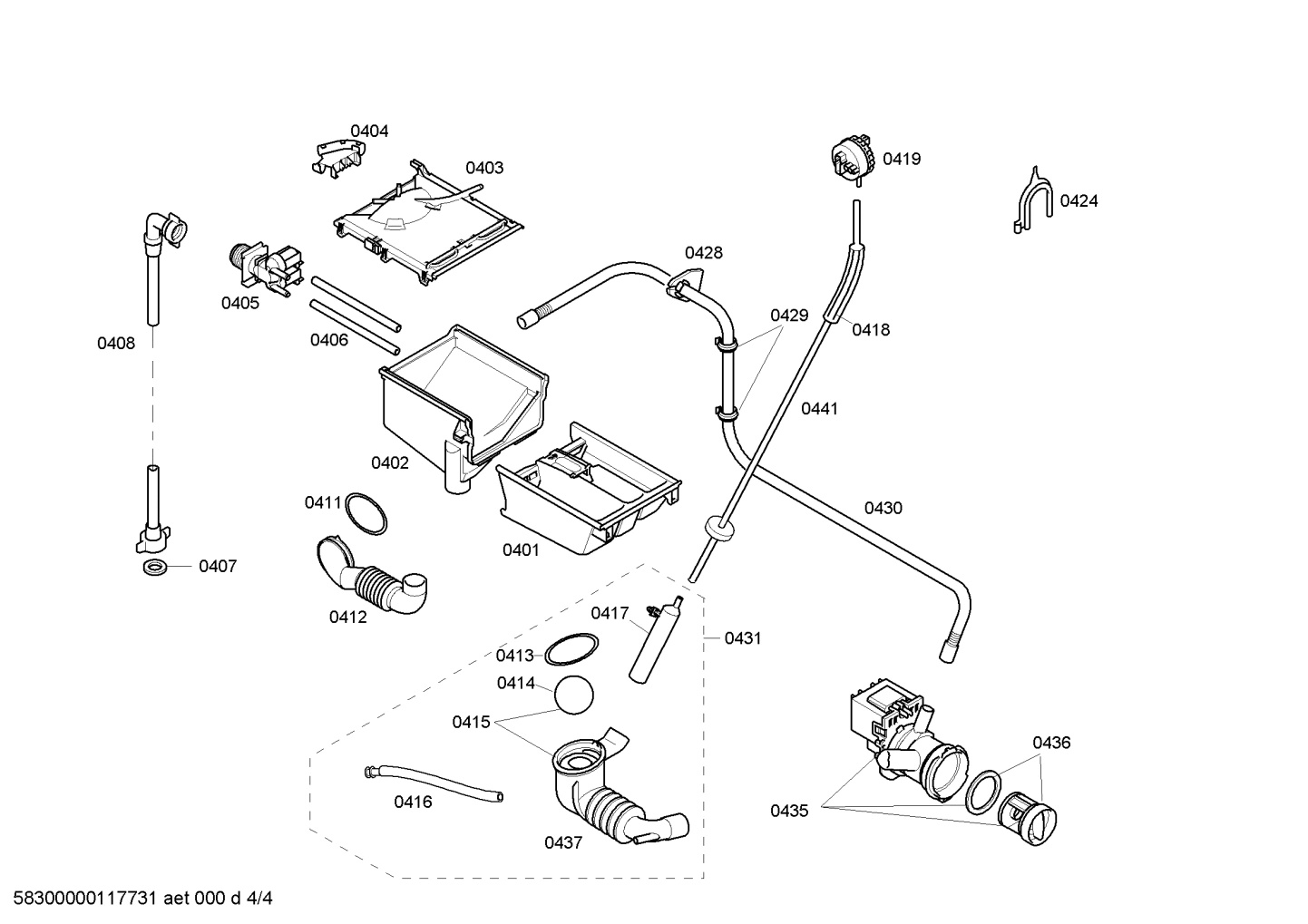

Diagram 4
Common parts from model Bosch WFL1660AU/30 Washer
0102
Capacitor-interference suppre. BOS 00623842 Contact Us For Availability
0206
Transit bolt BOS 00429205 Contact Us For Availability
0207
Lid BOS 00182194 Contact Us For Availability
0219
Bushing BOS 00171264 Contact Us For Availability
0220
fastening ring BOS 00439671 Contact Us For Availability
0221
Ring BOS 00715042 Contact Us For Availability
0222
Window BOS 11020392 Contact Us For Availability
0223
Axis BOS 00171255 Contact Us For Availability
0224
Handle BOS 00266751 Contact Us For Availability
0232
Holder BOS 00606923 Contact Us For Availability
0303
Holder BOS 00168798 Contact Us For Availability
0304
Fixture BOS 00171272 Contact Us For Availability
0307
Sensor-NTC BOS 00170961 Contact Us For Availability
0308
Holder BOS 00171273 Contact Us For Availability
0312
Screw BOS 00171270 Contact Us For Availability
0314
Bearing set BOS 00172685 Contact Us For Availability
0315
Sealing BOS 00416886 Contact Us For Availability
0401
Dispenser tray BOS 00703270 Contact Us For Availability
0403
Dispenser case BOS 11035255 Contact Us For Availability
0406
Hose-valve/soap box BOS 00171262 Contact Us For Availability
0407
Filter-water inlet BOS 00027780 Contact Us For Availability
0410
Hose clamp BOS 00187337 Contact Us For Availability
0413
fastening ring BOS 00603523 Contact Us For Availability
0414
Ball-sump BOS 00171263 Contact Us For Availability
0417
Pressure chamber BOS 00424981 Contact Us For Availability
0430
Outlet hose BOS 00354124 Contact Us For Availability
0441
Hose-pressure chamber BOS 00491919 Contact Us For Availability
× ![]()
