Bosch WFK8030DC/01

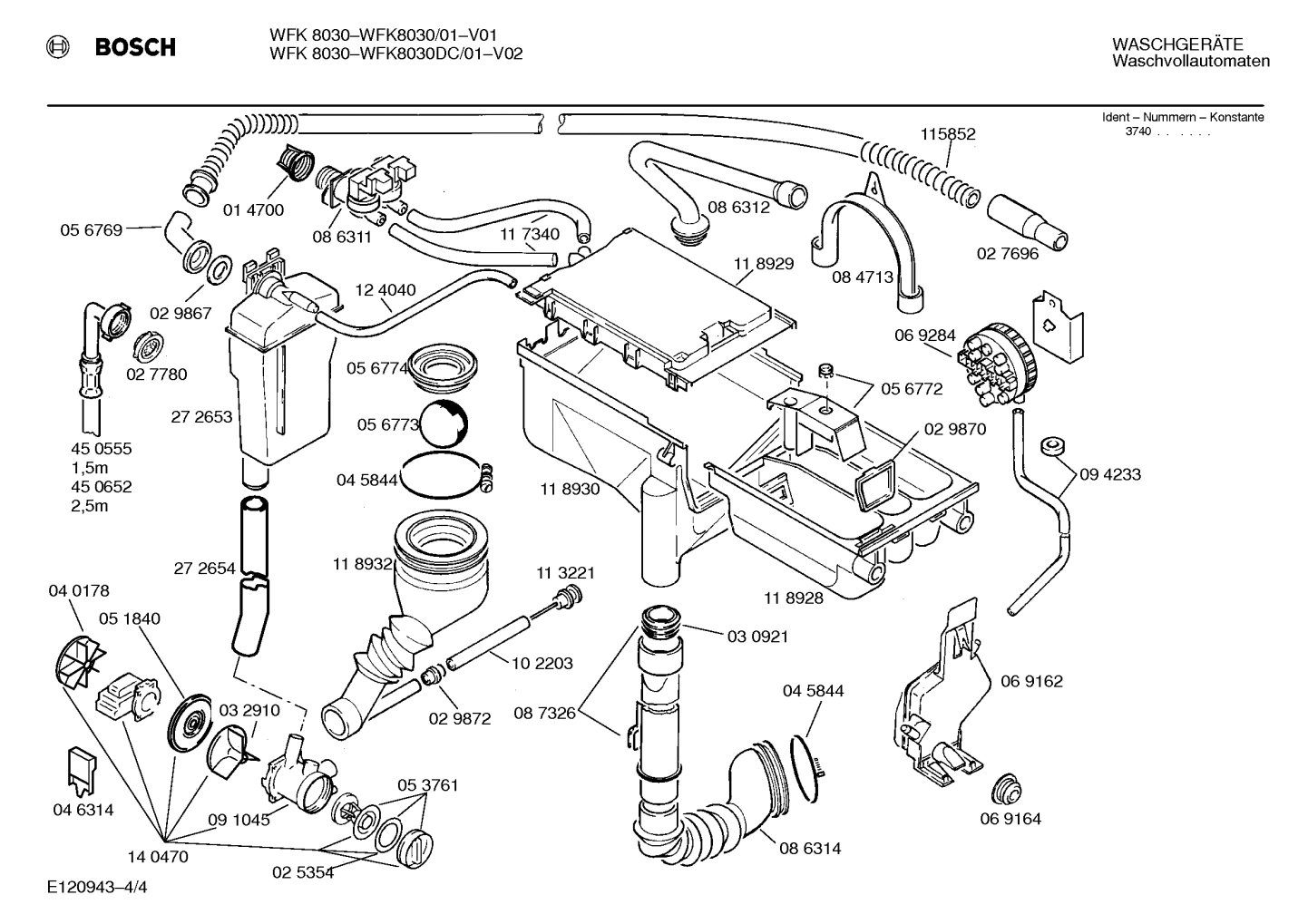

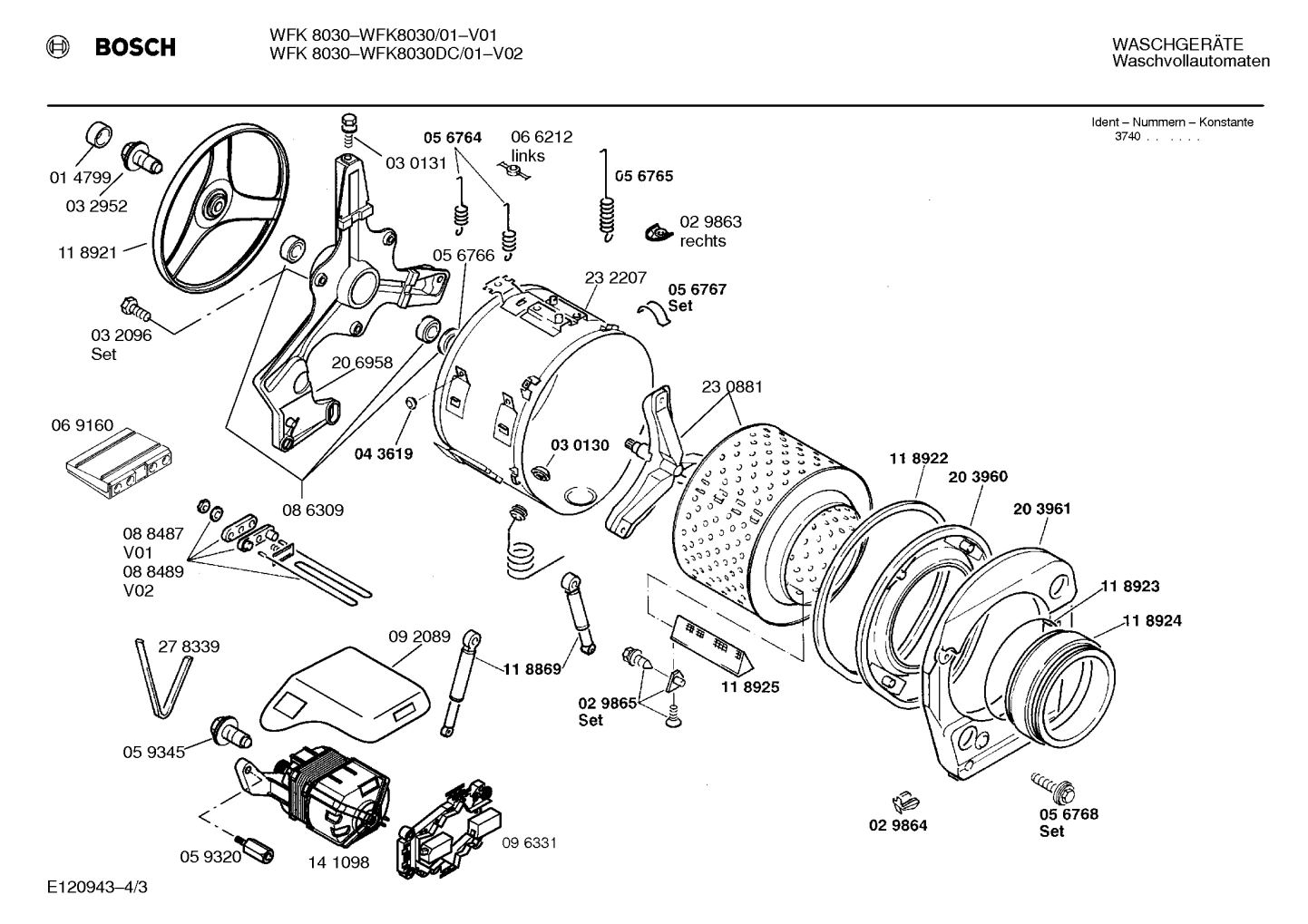

Model Bosch WFK8030DC/01 Washer – Common Parts & Diagrams

Common parts from model Bosch WFK8030DC/01 Washer

00606923 Bosch Laundry Holder

00606923 Bosch Laundry Holder Backorder BOS 00606923 $4.56

00118917 Bosch Laundry Lock Clamp

00118917 Bosch Laundry Lock Clamp Backorder BOS 00118917 $16.01

Electric lock

Electric lock BOS 00056762 Contact Us For Availability

00171270 Bosch Screw

00171270 Bosch Screw Backorder BOS 00171270 $3.11

Pulley

Pulley BOS 00118921 Contact Us For Availability

00056766 Bosch Laundry Shaft Seal

00056766 Bosch Laundry Shaft Seal Backorder BOS 00056766 $39.80

00086309 Bosch Laundry Bearing Set

00086309 Bosch Laundry Bearing Set Backorder BOS 00086309 $120.13

00056764 Bosch Laundry Spring Tank

00056764 Bosch Laundry Spring Tank Backorder BOS 00056764 $27.91

00066212 Bosch Laundry Guide Spring

00066212 Bosch Laundry Guide Spring Backorder BOS 00066212 $14.18

00056765 Bosch Laundry Spring

00056765 Bosch Laundry Spring Backorder BOS 00056765 $20.59

Spring guide

Spring guide BOS 00029863 Contact Us For Availability

00118922 Bosch Laundry Sealing Assembly

00118922 Bosch Laundry Sealing Assembly Backorder BOS 00118922 $32.01

00118869 Bosch Laundry Shock Absorber

00118869 Bosch Laundry Shock Absorber Backorder BOS 00118869 $65.14

00278339 Bosch Washer Drive Belt

00278339 Bosch Washer Drive Belt Backorder BOS 00278339 $32.01

Screw

Screw BOS 00059345 Contact Us For Availability

00059320 Bosch Laundry Holder

00059320 Bosch Laundry Holder Backorder BOS 00059320 $9.61

Hose connection inlet

Hose connection inlet BOS 00056769 Contact Us For Availability

00432060 Bosch Laundry Outlet Hose

00432060 Bosch Laundry Outlet Hose Backorder BOS 00432060 $37.06

00655300 Bosch Laundry Holder

00655300 Bosch Laundry Holder Backorder BOS 00655300 $12.79

00027696 Bosch Laundry Stud

00027696 Bosch Laundry Stud Backorder BOS 00027696 $10.96

00027780 Bosch Laundry Inlet Water Filter

00027780 Bosch Laundry Inlet Water Filter Backorder BOS 00027780 $12.79

00272654 Bosch Laundry Hose

00272654 Bosch Laundry Hose Backorder BOS 00272654 $62.43

Sealing

Sealing BOS 00051840 Contact Us For Availability

00171263 Bosch Laundry Sump Ball

00171263 Bosch Laundry Sump Ball Backorder BOS 00171263 $10.52

00603523 Bosch Fastening Ring

00603523 Bosch Fastening Ring Backorder BOS 00603523 $11.44
