Bosch WFK7310/08

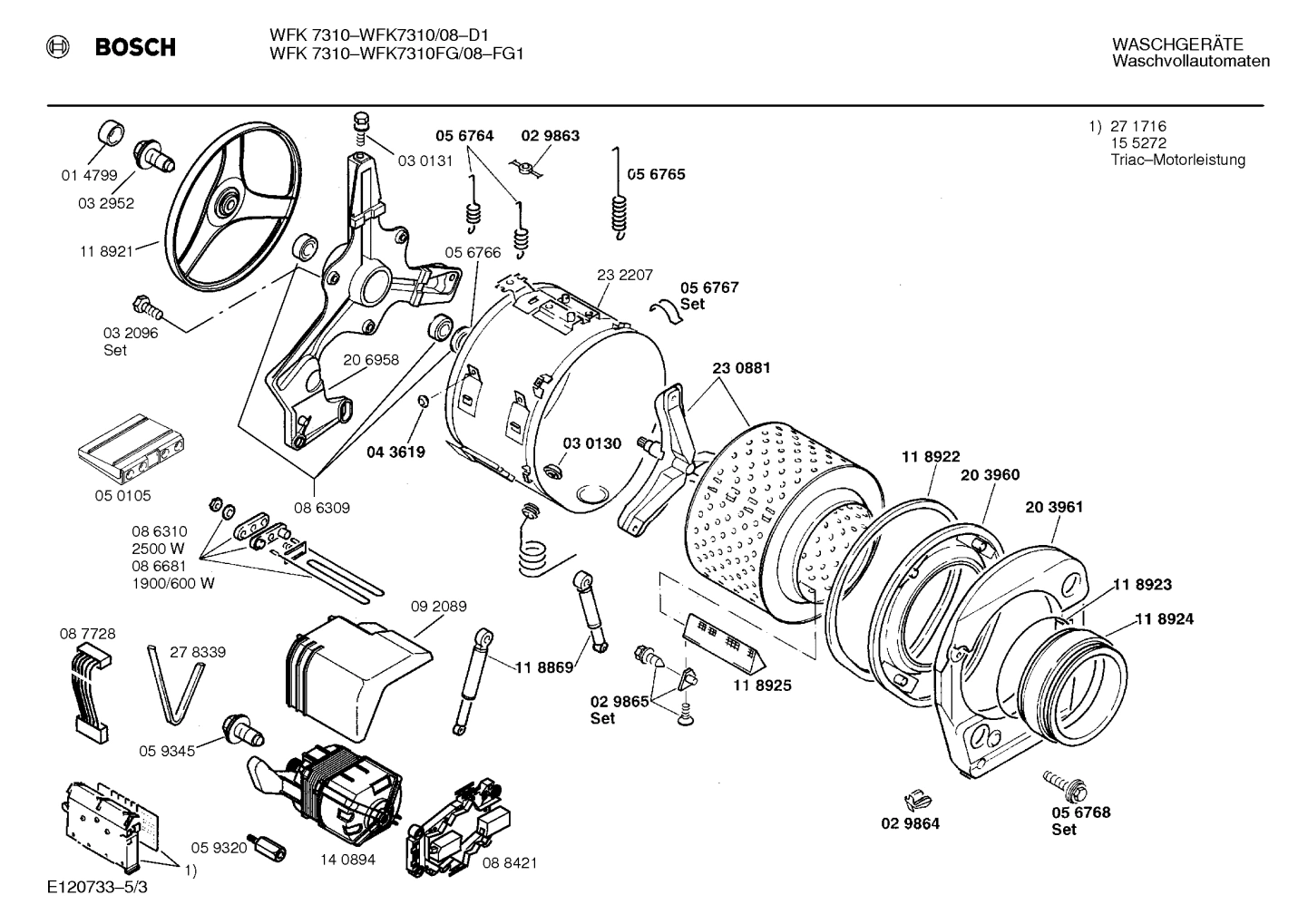

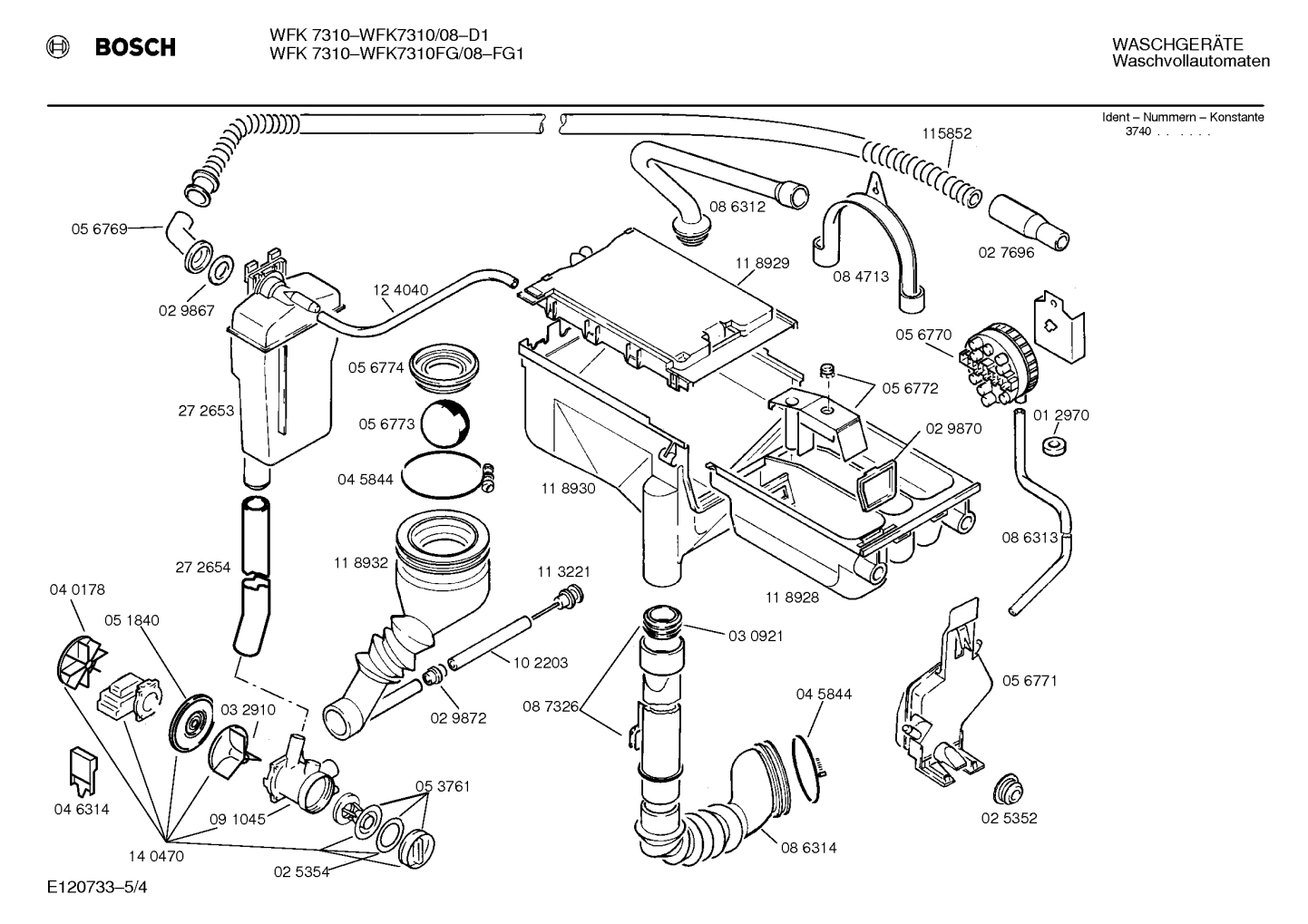

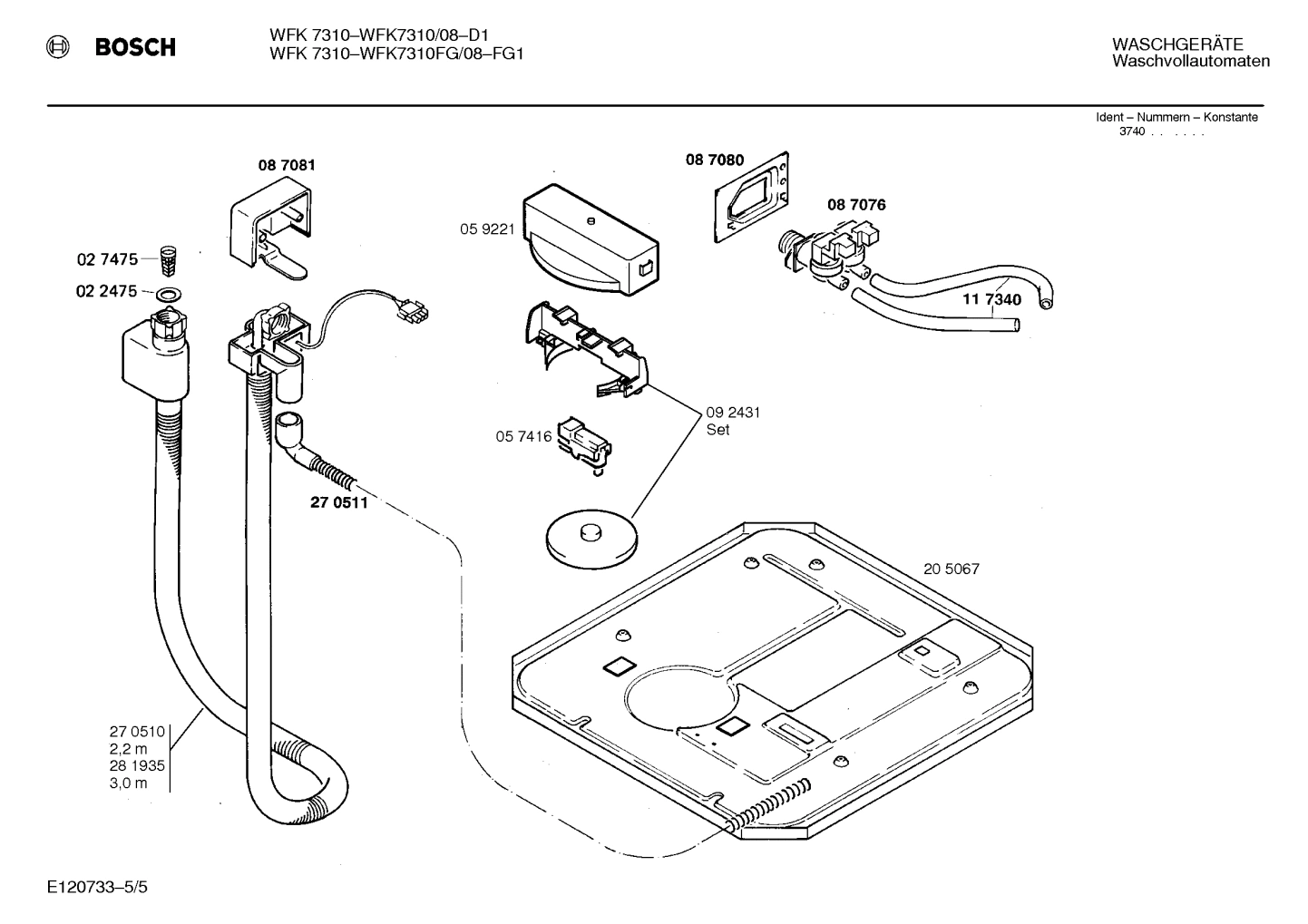

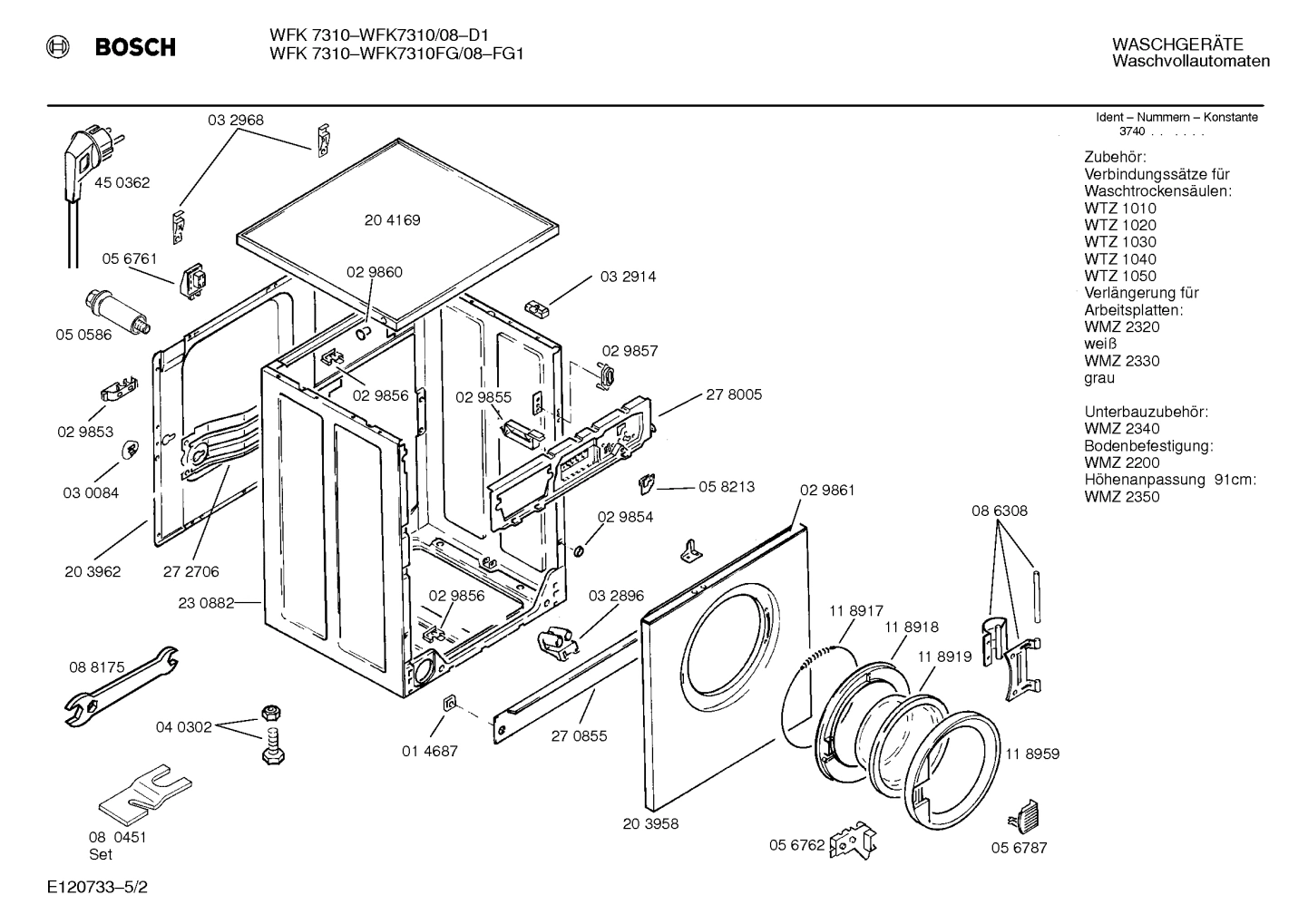

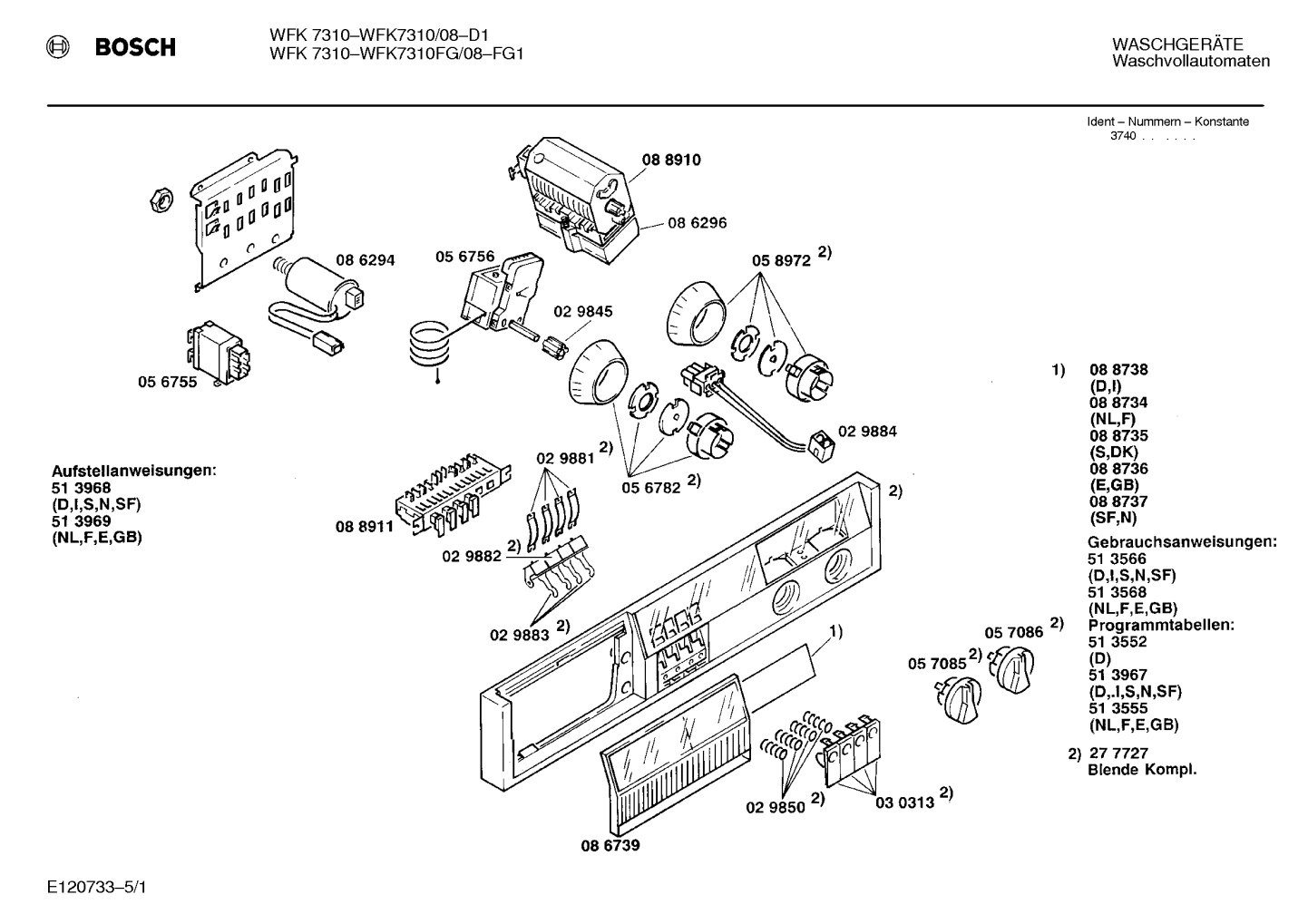

Model Bosch WFK7310/08 Washer – Common Parts & Diagrams

Common parts from model Bosch WFK7310/08 Washer

00606923 Bosch Laundry Holder

00606923 Bosch Laundry Holder Backorder BOS 00606923 $5.47

00032968 Bosch Laundry Holder

00032968 Bosch Laundry Holder Backorder BOS 00032968 $32.01

00040302 Bosch Laundry Foot

00040302 Bosch Laundry Foot Backorder BOS 00040302 $10.96

Electric lock

Electric lock BOS 00056762 Contact Us For Availability

00493529 Bosch Laundry Fixing Kit

00493529 Bosch Laundry Fixing Kit Backorder BOS 00493529 $52.14

00118917 Bosch Laundry Lock Clamp

00118917 Bosch Laundry Lock Clamp Backorder BOS 00118917 $17.37

Window

Window BOS 00118919 Contact Us For Availability

15000636 Bosch Power Cord

15000636 Bosch Power Cord Backorder BOS 15000636 $23.77

Spring guide

Spring guide BOS 00029863 Contact Us For Availability

00171270 Bosch Screw

00171270 Bosch Screw Backorder BOS 00171270 $3.64

00056764 Bosch Laundry Spring Tank

00056764 Bosch Laundry Spring Tank Backorder BOS 00056764 $30.18

00056765 Bosch Laundry Spring

00056765 Bosch Laundry Spring Backorder BOS 00056765 $21.94

00056766 Bosch Laundry Shaft Seal

00056766 Bosch Laundry Shaft Seal Backorder BOS 00056766 $42.99

Hose connection inlet

Hose connection inlet BOS 00056769 Contact Us For Availability

00059320 Bosch Laundry Holder

00059320 Bosch Laundry Holder Backorder BOS 00059320 $10.96

SCREW

SCREW Backorder BOS 00059345 $7.30

00086309 Bosch Laundry Bearing Set

00086309 Bosch Laundry Bearing Set Backorder BOS 00086309 $129.92

00118869 Bosch Laundry Shock Absorber

00118869 Bosch Laundry Shock Absorber Backorder BOS 00118869 $70.57

Pulley

Pulley BOS 00118921 Contact Us For Availability

00118922 Bosch Laundry Sealing Assembly

00118922 Bosch Laundry Sealing Assembly Backorder BOS 00118922 $34.75

00278339 Bosch Washer Drive Belt

00278339 Bosch Washer Drive Belt Backorder BOS 00278339 $34.75

00027696 Bosch Laundry Stud

00027696 Bosch Laundry Stud Backorder BOS 00027696 $11.88

00603523 Bosch Fastening Ring

00603523 Bosch Fastening Ring Backorder BOS 00603523 $12.79

Sealing

Sealing BOS 00051840 Contact Us For Availability

00171263 Bosch Laundry Sump Ball

00171263 Bosch Laundry Sump Ball Backorder BOS 00171263 $11.88

00655300 Bosch Laundry Holder

00655300 Bosch Laundry Holder Backorder BOS 00655300 $13.71

00432060 Bosch Laundry Outlet Hose

00432060 Bosch Laundry Outlet Hose Backorder BOS 00432060 $40.24

00272654 Bosch Laundry Hose

00272654 Bosch Laundry Hose Backorder BOS 00272654 $66.95

10009555 Bosch Dishwasher Sealing Strip

10009555 Bosch Dishwasher Sealing Strip Backorder BOS 10009555 $11.88

11049560 Bosch Laundry Float

11049560 Bosch Laundry Float In Stock BOS 11049560 $63.33
