Bosch WFK7310/06

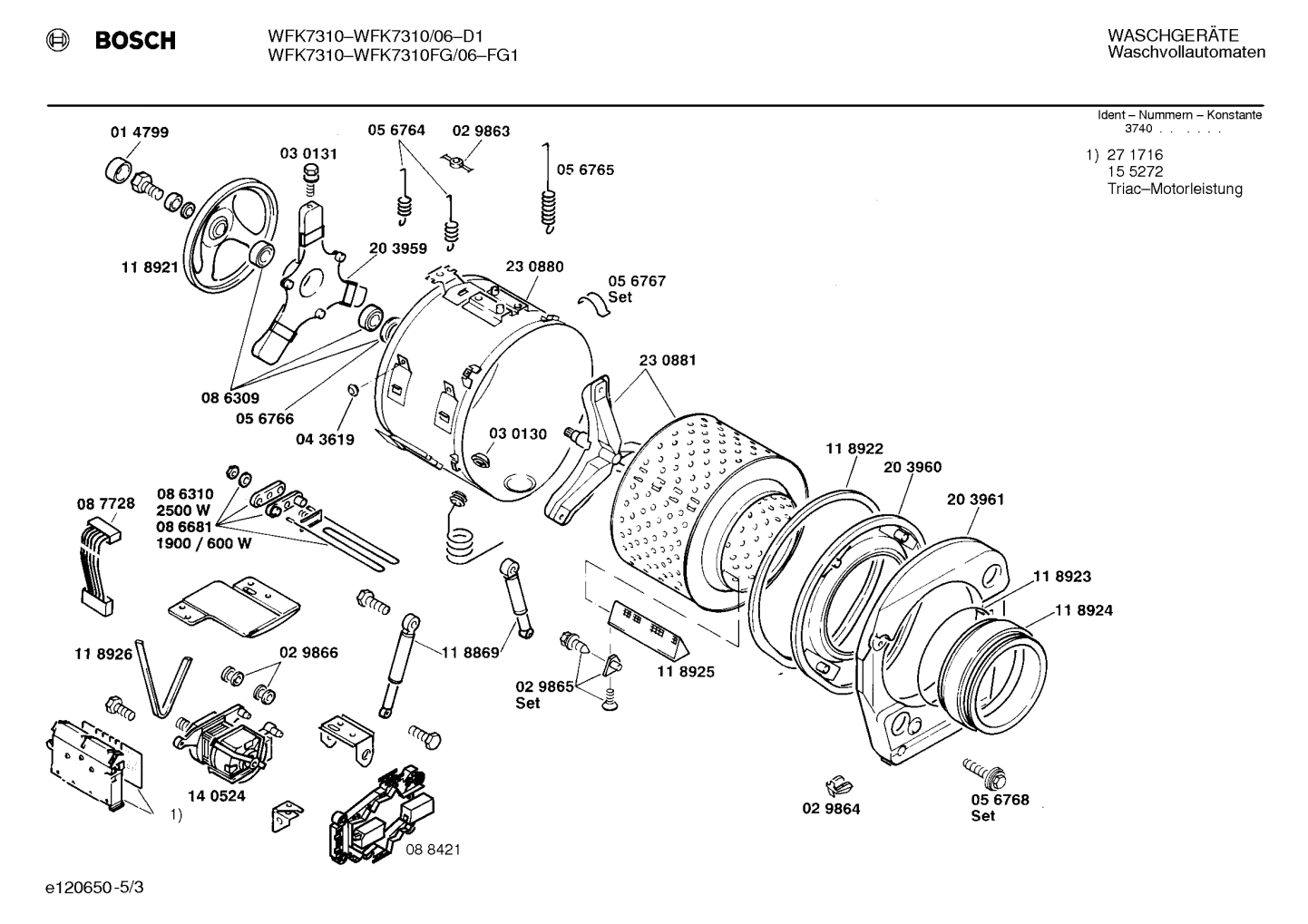

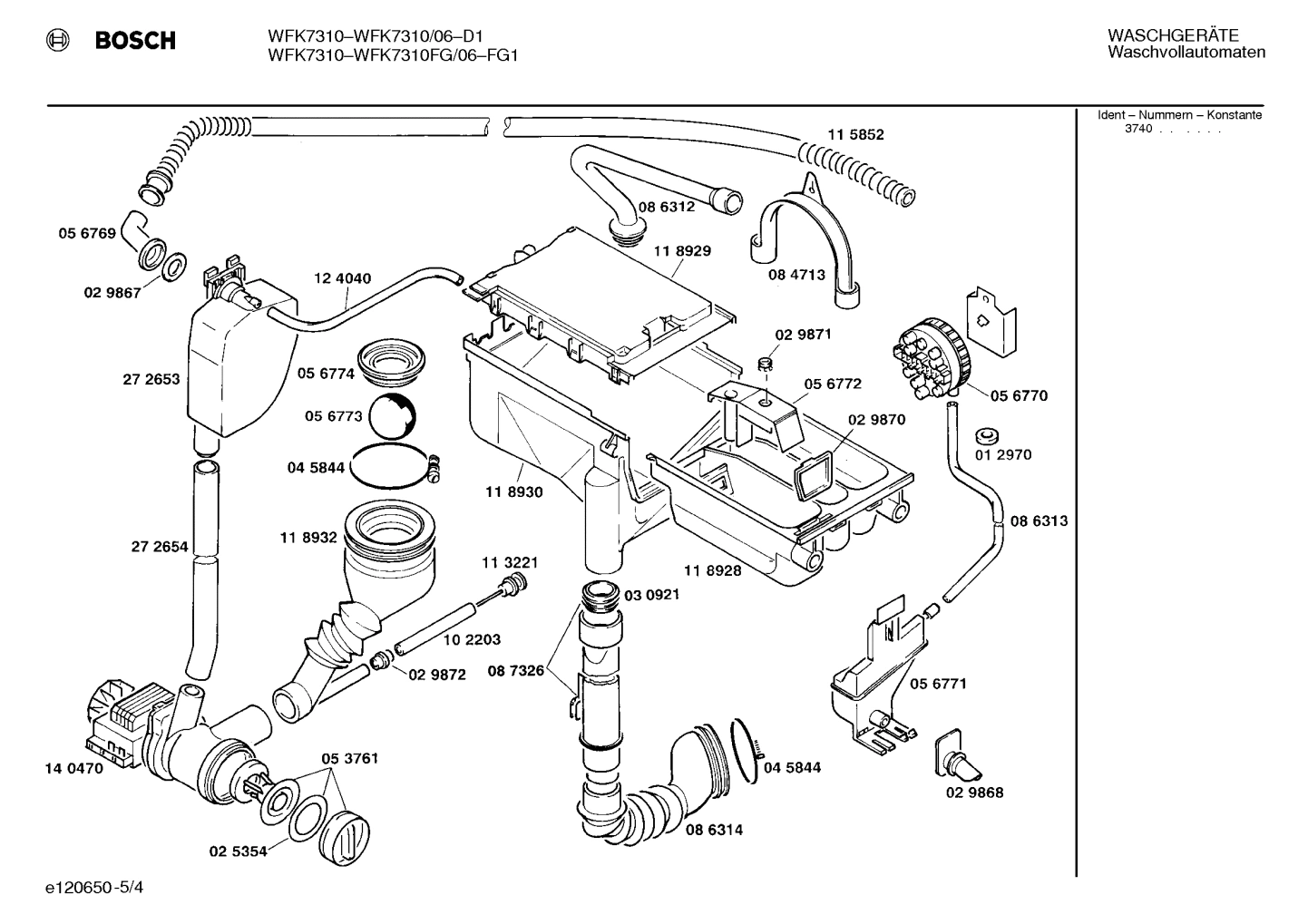

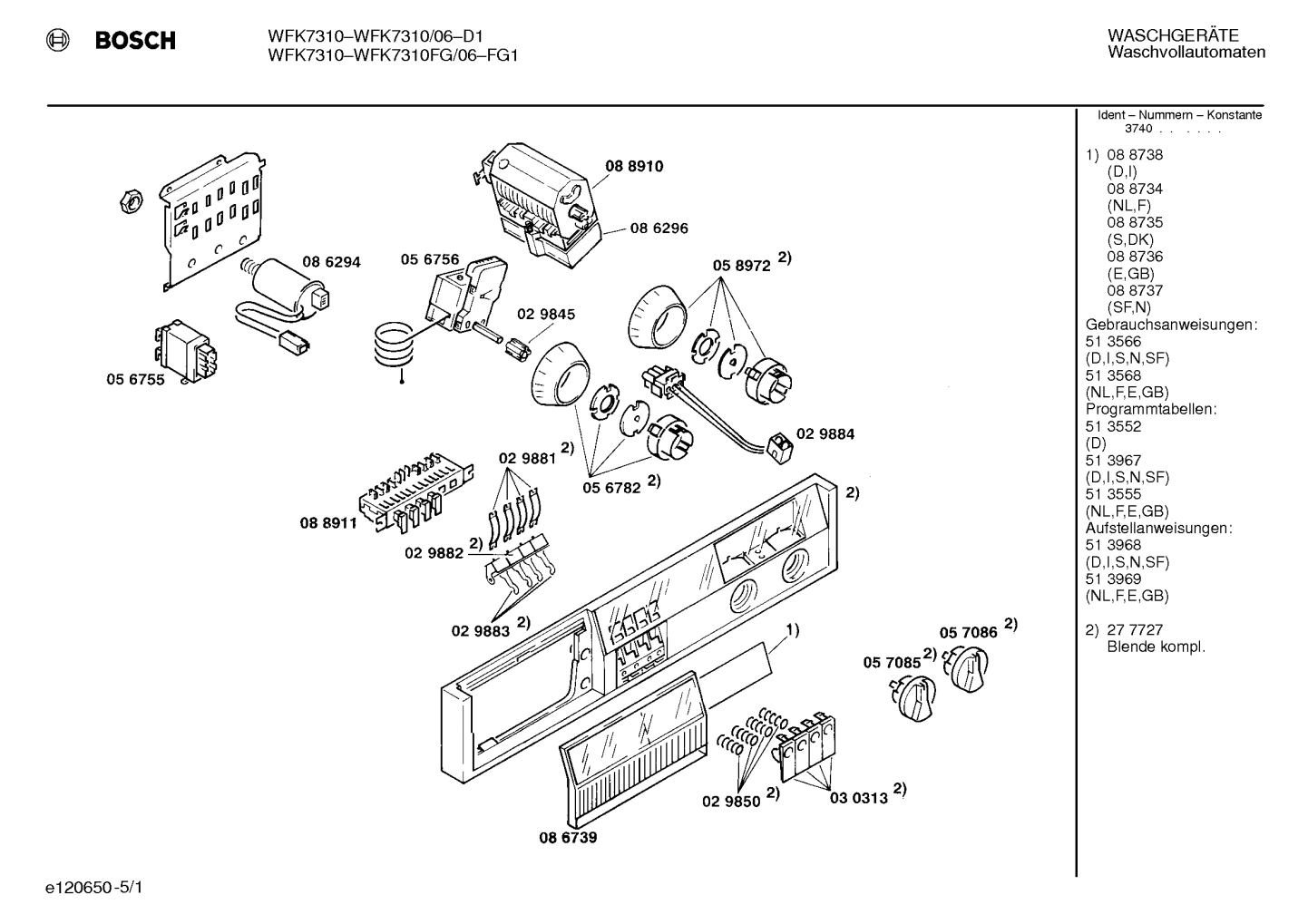

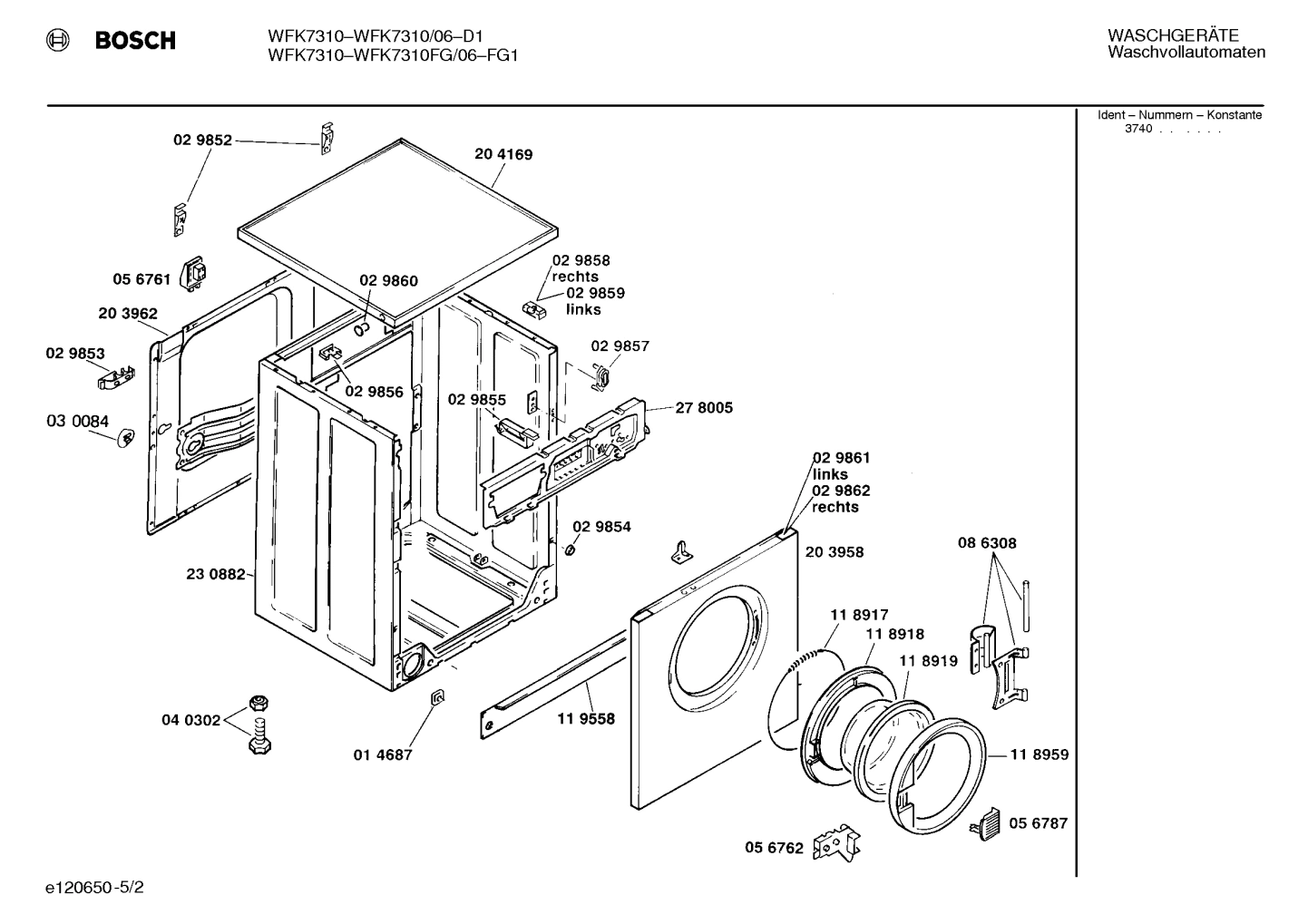

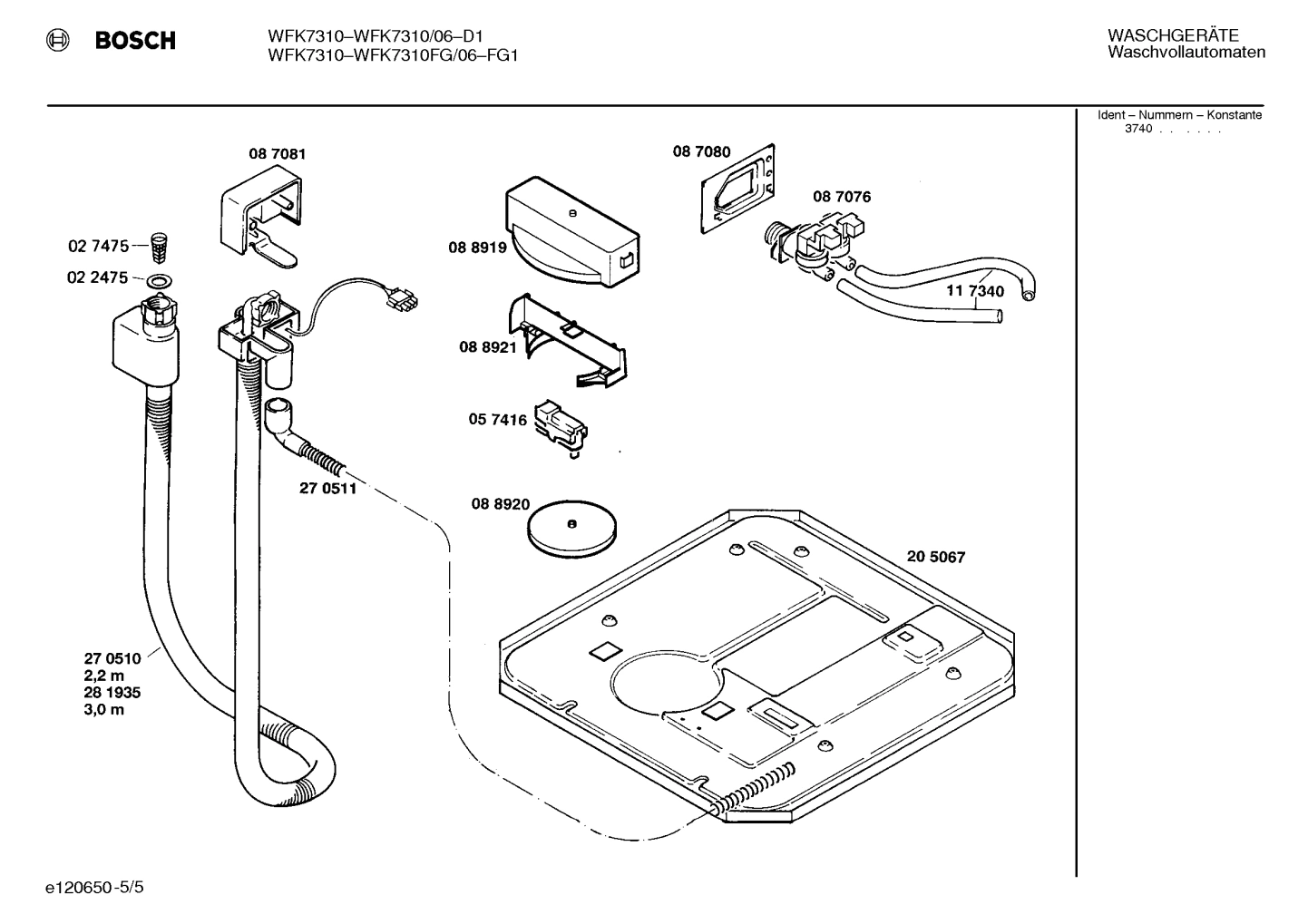

Model Bosch WFK7310/06 Washer – Common Parts & Diagrams

Common parts from model Bosch WFK7310/06 Washer

00606923 Bosch Laundry Holder

00606923 Bosch Laundry Holder Backorder BOS 00606923 $4.56

00040302 Bosch Laundry Foot

00040302 Bosch Laundry Foot Backorder BOS 00040302 $10.05

Electric lock

Electric lock BOS 00056762 Contact Us For Availability

00118917 Bosch Laundry Lock Clamp

00118917 Bosch Laundry Lock Clamp Backorder BOS 00118917 $16.01

Window

Window BOS 00118919 Contact Us For Availability

Spring guide

Spring guide BOS 00029863 Contact Us For Availability

00056764 Bosch Laundry Spring Tank

00056764 Bosch Laundry Spring Tank Backorder BOS 00056764 $27.91

00056765 Bosch Laundry Spring

00056765 Bosch Laundry Spring Backorder BOS 00056765 $20.59

00056766 Bosch Laundry Shaft Seal

00056766 Bosch Laundry Shaft Seal Backorder BOS 00056766 $39.80

00086309 Bosch Laundry Bearing Set

00086309 Bosch Laundry Bearing Set Backorder BOS 00086309 $120.13

00118869 Bosch Laundry Shock Absorber

00118869 Bosch Laundry Shock Absorber Backorder BOS 00118869 $65.14

Pulley

Pulley BOS 00118921 Contact Us For Availability

00118922 Bosch Laundry Sealing Assembly

00118922 Bosch Laundry Sealing Assembly Backorder BOS 00118922 $32.01

00603523 Bosch Fastening Ring

00603523 Bosch Fastening Ring Backorder BOS 00603523 $11.44

Hose connection inlet

Hose connection inlet BOS 00056769 Contact Us For Availability

00171263 Bosch Laundry Sump Ball

00171263 Bosch Laundry Sump Ball Backorder BOS 00171263 $10.52

00655300 Bosch Laundry Holder

00655300 Bosch Laundry Holder Backorder BOS 00655300 $12.79

00432060 Bosch Laundry Outlet Hose

00432060 Bosch Laundry Outlet Hose Backorder BOS 00432060 $37.06

00272654 Bosch Laundry Hose

00272654 Bosch Laundry Hose Backorder BOS 00272654 $62.43

10009555 Bosch Dishwasher Sealing Strip

10009555 Bosch Dishwasher Sealing Strip Backorder BOS 10009555 $10.96

11049560 Bosch Laundry Float

11049560 Bosch Laundry Float In Stock BOS 11049560 $58.81
