Bosch WFK2690/11

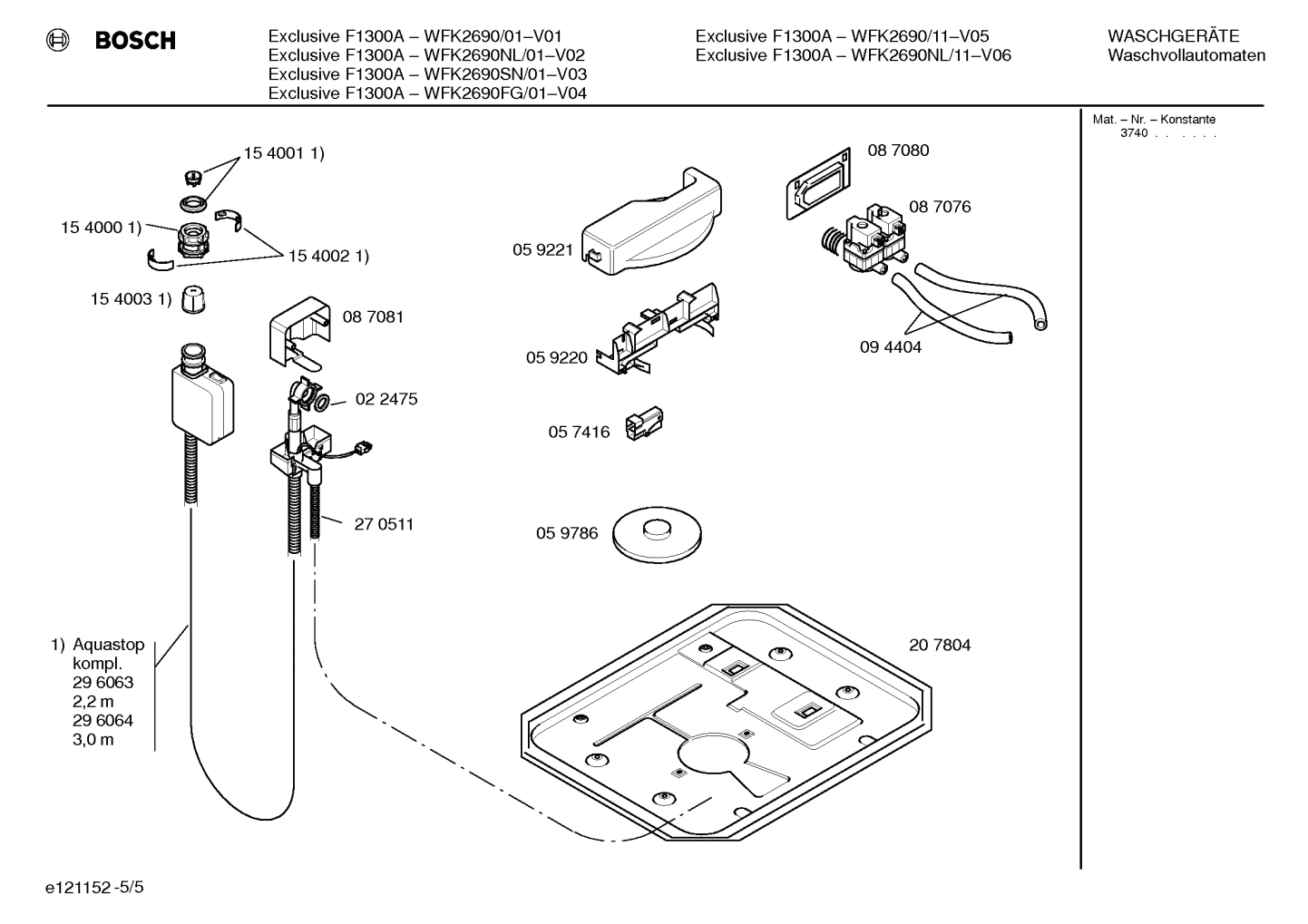

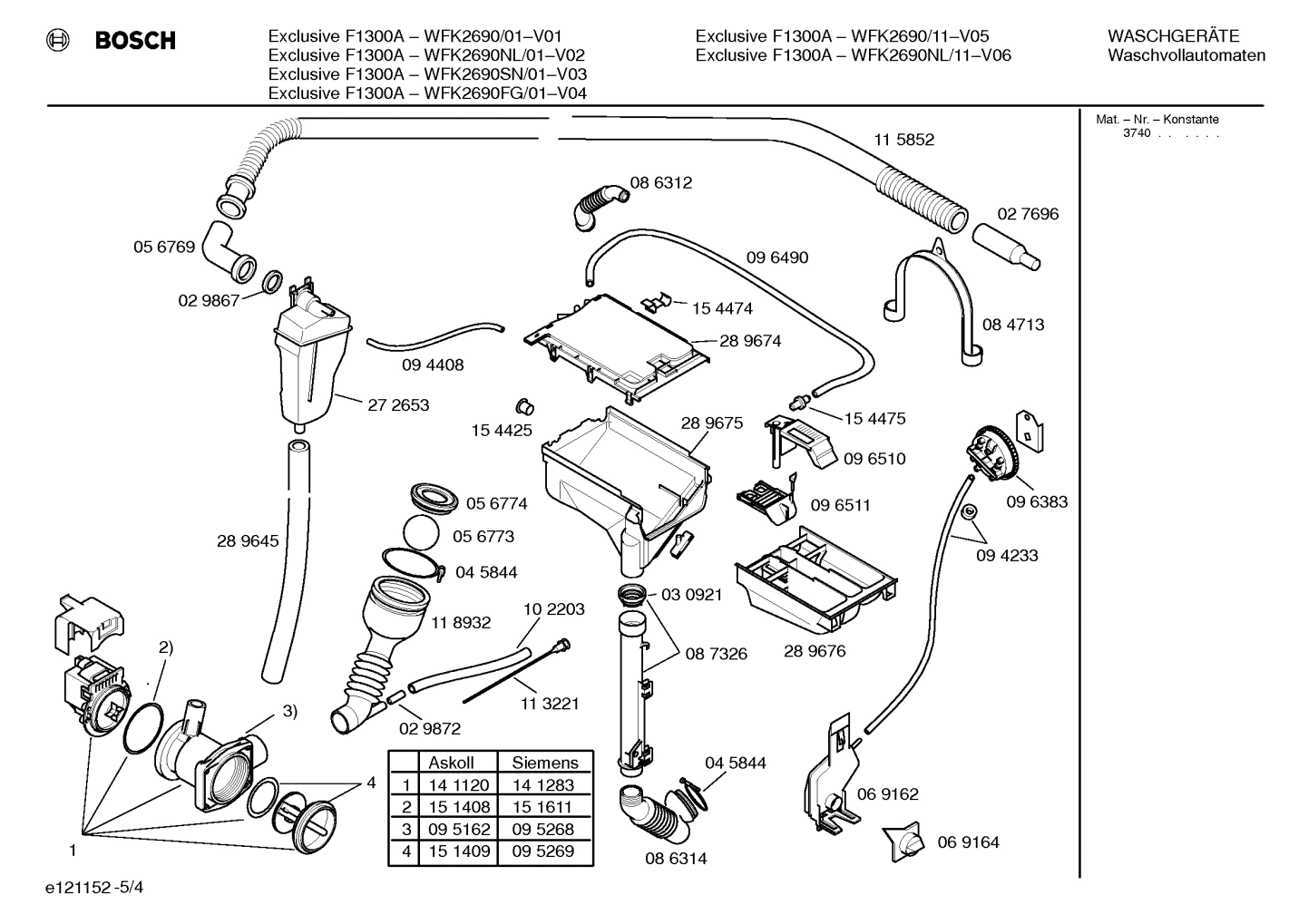

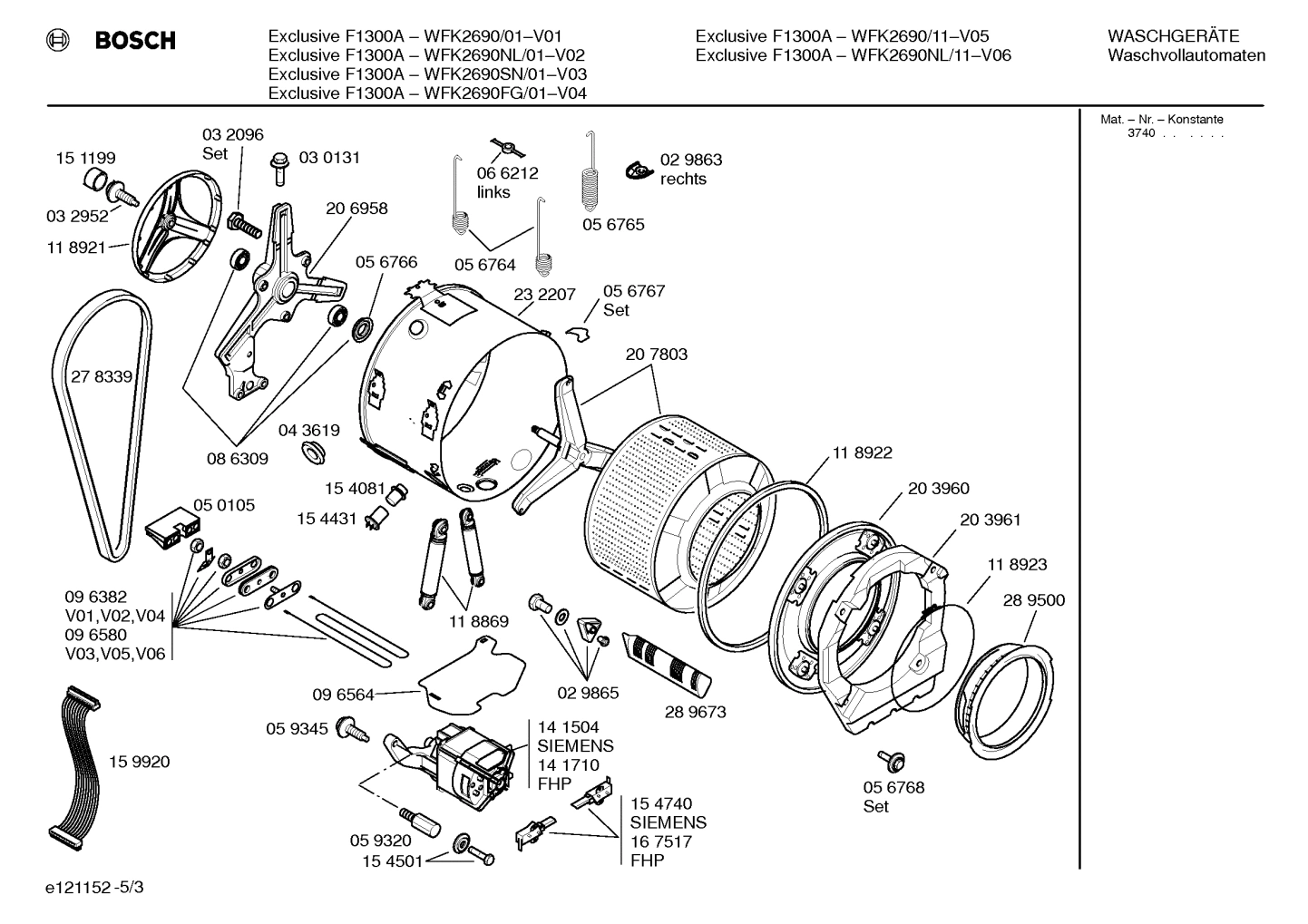

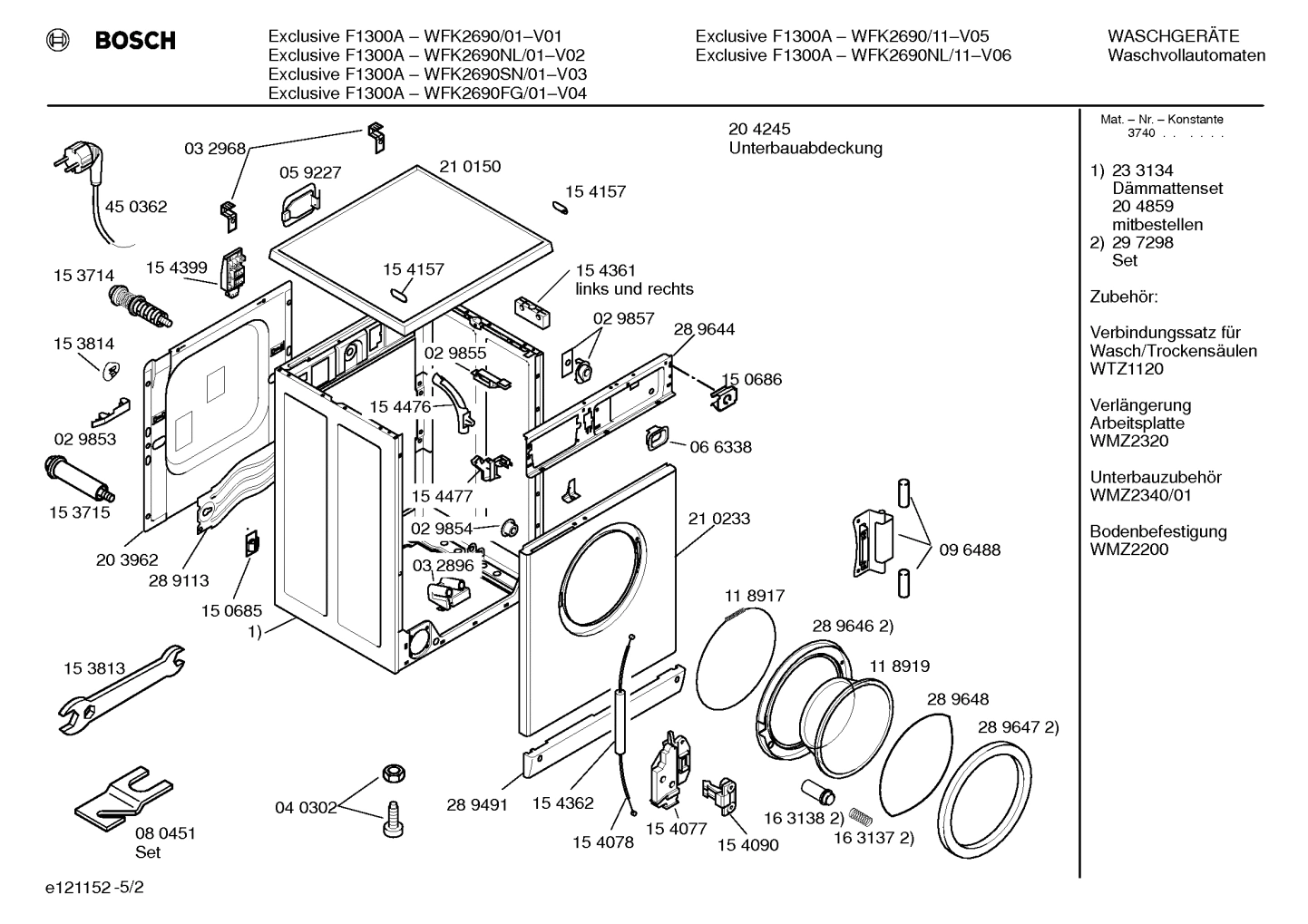

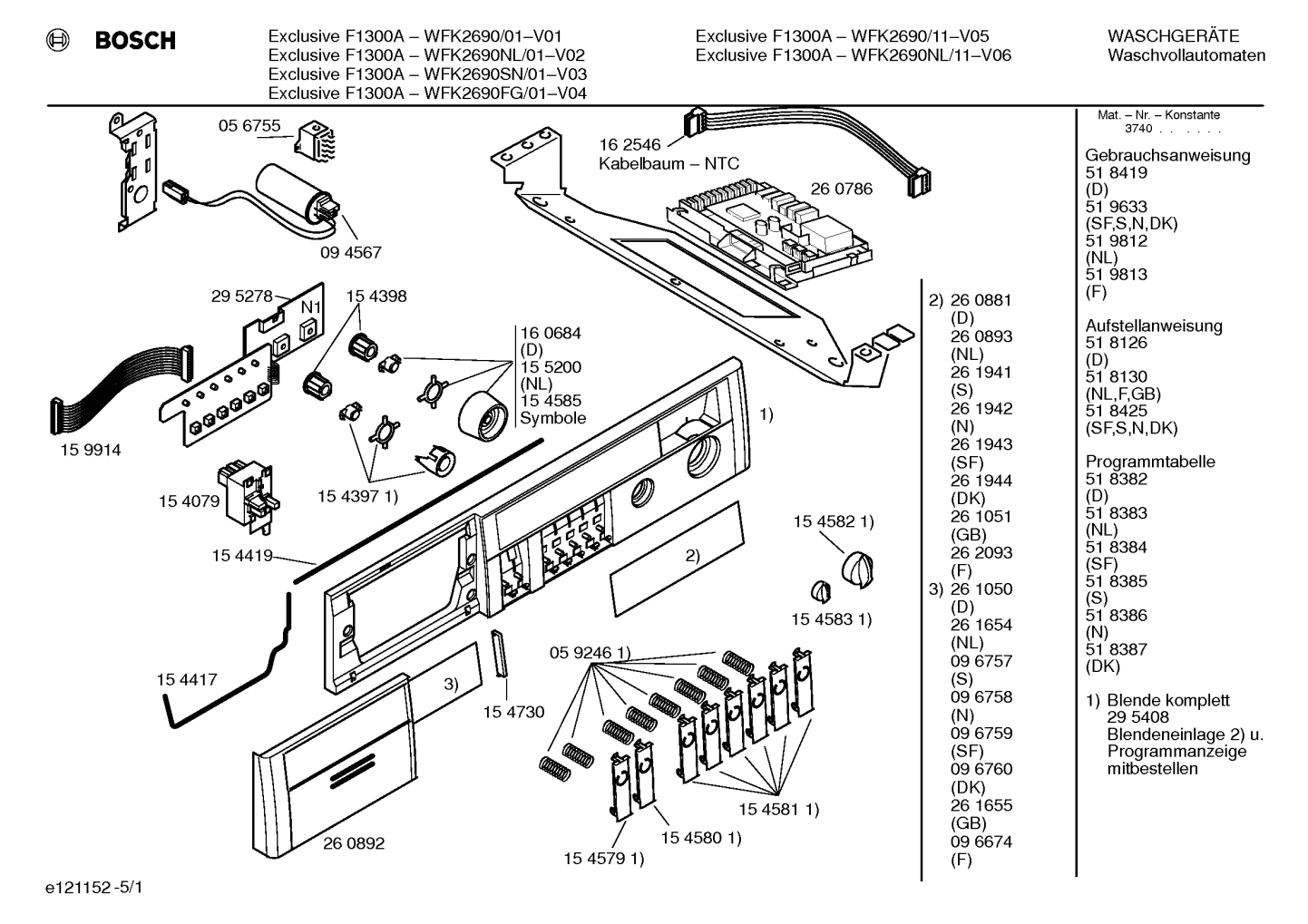

Model Bosch WFK2690/11 Washer – Common Parts & Diagrams

Common parts from model Bosch WFK2690/11 Washer

Sealing

Sealing BOS 00154417 Contact Us For Availability

00059246 Bosch Laundry Spring

00059246 Bosch Laundry Spring Backorder BOS 00059246 $4.12

15000636 Bosch Power Cord

15000636 Bosch Power Cord Backorder BOS 15000636 $21.50

00032968 Bosch Laundry Holder

00032968 Bosch Laundry Holder Backorder BOS 00032968 $29.26

00154157 Bosch Laundry Cover

00154157 Bosch Laundry Cover Backorder BOS 00154157 $11.44

00040302 Bosch Laundry Foot

00040302 Bosch Laundry Foot Backorder BOS 00040302 $10.05

00153813 Bosch Laundry Auxiliary Tool

00153813 Bosch Laundry Auxiliary Tool Backorder BOS 00153813 $7.78

00493529 Bosch Laundry Fixing Kit

00493529 Bosch Laundry Fixing Kit Backorder BOS 00493529 $48.06

00606923 Bosch Laundry Holder

00606923 Bosch Laundry Holder Backorder BOS 00606923 $4.56

00118917 Bosch Laundry Lock Clamp

00118917 Bosch Laundry Lock Clamp Backorder BOS 00118917 $16.01

Window

Window BOS 00118919 Contact Us For Availability

00171270 Bosch Screw

00171270 Bosch Screw Backorder BOS 00171270 $3.11

Pulley

Pulley BOS 00118921 Contact Us For Availability

00056766 Bosch Laundry Shaft Seal

00056766 Bosch Laundry Shaft Seal Backorder BOS 00056766 $39.80

00086309 Bosch Laundry Bearing Set

00086309 Bosch Laundry Bearing Set Backorder BOS 00086309 $120.13

00278339 Bosch Washer Drive Belt

00278339 Bosch Washer Drive Belt Backorder BOS 00278339 $32.01

00066212 Bosch Laundry Guide Spring

00066212 Bosch Laundry Guide Spring Backorder BOS 00066212 $14.18

00056764 Bosch Laundry Spring Tank

00056764 Bosch Laundry Spring Tank Backorder BOS 00056764 $27.91

Spring guide

Spring guide BOS 00029863 Contact Us For Availability

00056765 Bosch Laundry Spring

00056765 Bosch Laundry Spring Backorder BOS 00056765 $20.59

00118869 Bosch Laundry Shock Absorber

00118869 Bosch Laundry Shock Absorber Backorder BOS 00118869 $65.14

Screw

Screw BOS 00059345 Contact Us For Availability

00059320 Bosch Laundry Holder

00059320 Bosch Laundry Holder Backorder BOS 00059320 $9.61

00154740 Bosch Washer Carbon Brush

00154740 Bosch Washer Carbon Brush In Stock BOS 00154740 $55.19

00167517 Bosch Laundry Carbon Brush

00167517 Bosch Laundry Carbon Brush Backorder BOS 00167517 $76.00

00289673 Bosch Laundry Agitator Paddle

00289673 Bosch Laundry Agitator Paddle Backorder BOS 00289673 $6.86

00118922 Bosch Laundry Sealing Assembly

00118922 Bosch Laundry Sealing Assembly Backorder BOS 00118922 $32.01

00289500 Bosch Laundry Boot Gasket

00289500 Bosch Laundry Boot Gasket Backorder BOS 00289500 $64.71

Hose connection inlet

Hose connection inlet BOS 00056769 Contact Us For Availability

00272654 Bosch Laundry Hose

00272654 Bosch Laundry Hose Backorder BOS 00272654 $62.43

00171263 Bosch Laundry Sump Ball

00171263 Bosch Laundry Sump Ball Backorder BOS 00171263 $10.52

00603523 Bosch Fastening Ring

00603523 Bosch Fastening Ring Backorder BOS 00603523 $11.44

00432060 Bosch Laundry Outlet Hose

00432060 Bosch Laundry Outlet Hose Backorder BOS 00432060 $37.06

00027696 Bosch Laundry Stud

00027696 Bosch Laundry Stud Backorder BOS 00027696 $10.96

00655300 Bosch Laundry Holder

00655300 Bosch Laundry Holder Backorder BOS 00655300 $12.79

00166671 Bosch Dishwasher Seal

00166671 Bosch Dishwasher Seal Backorder BOS 00166671 $20.59

10009555 Bosch Dishwasher Sealing Strip

10009555 Bosch Dishwasher Sealing Strip Backorder BOS 10009555 $10.96

11049560 Bosch Laundry Float

11049560 Bosch Laundry Float In Stock BOS 11049560 $58.81

Case-bottom

Case-bottom BOS 00207804 Contact Us For Availability
