Model Bosch WFK2290/11 Washer – Common Parts & Diagrams

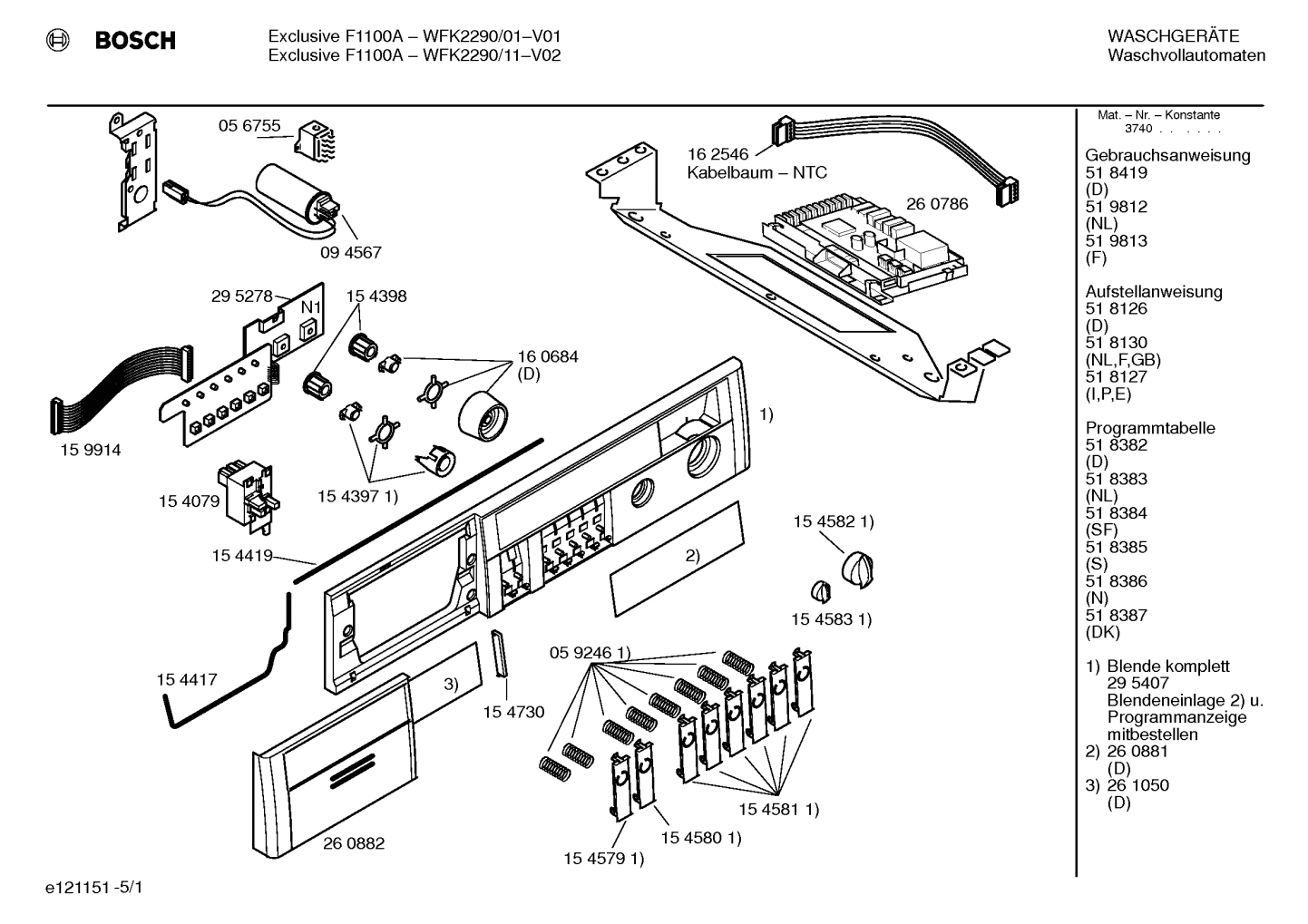

Diagram 1

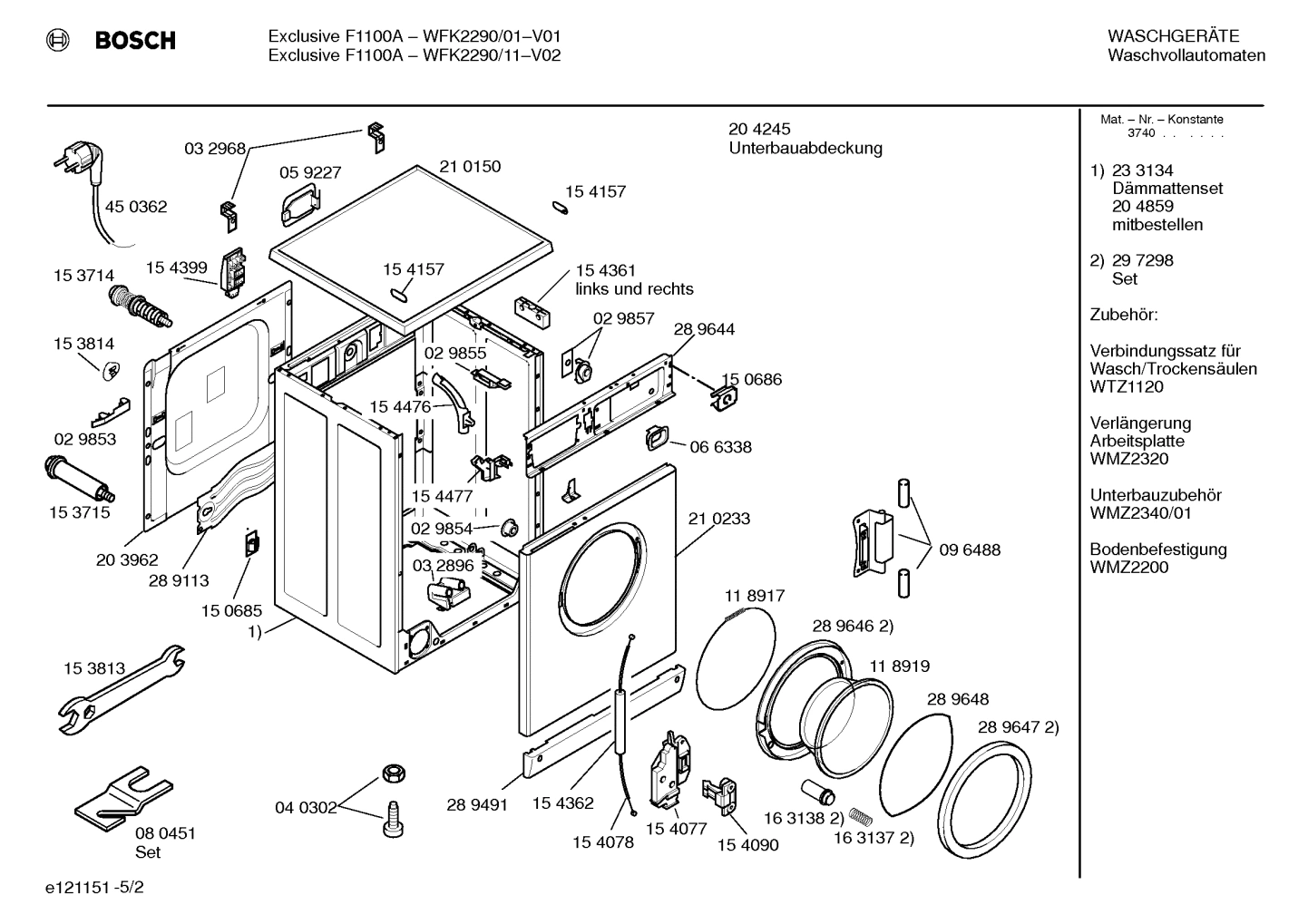

Diagram 2

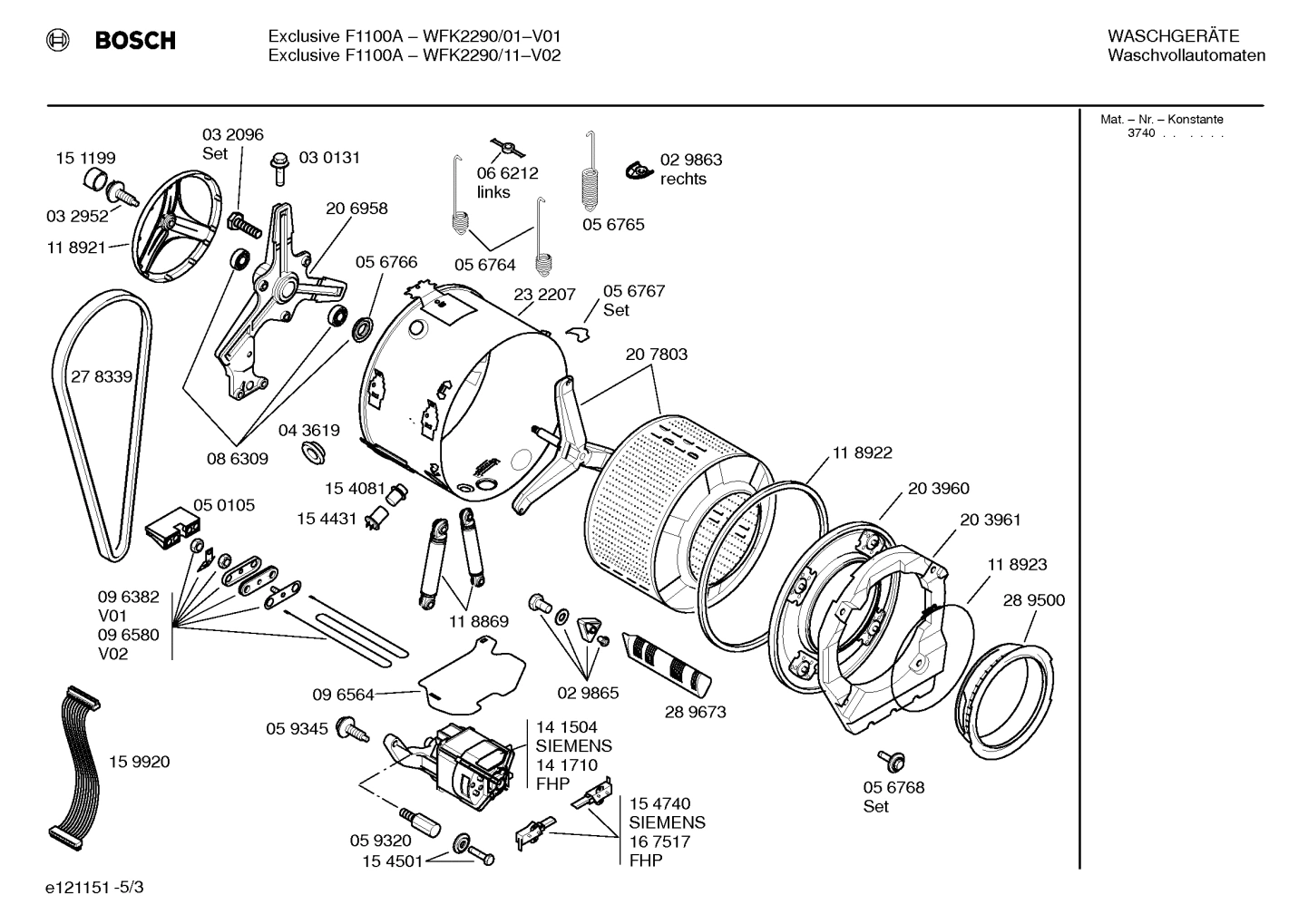

Diagram 3

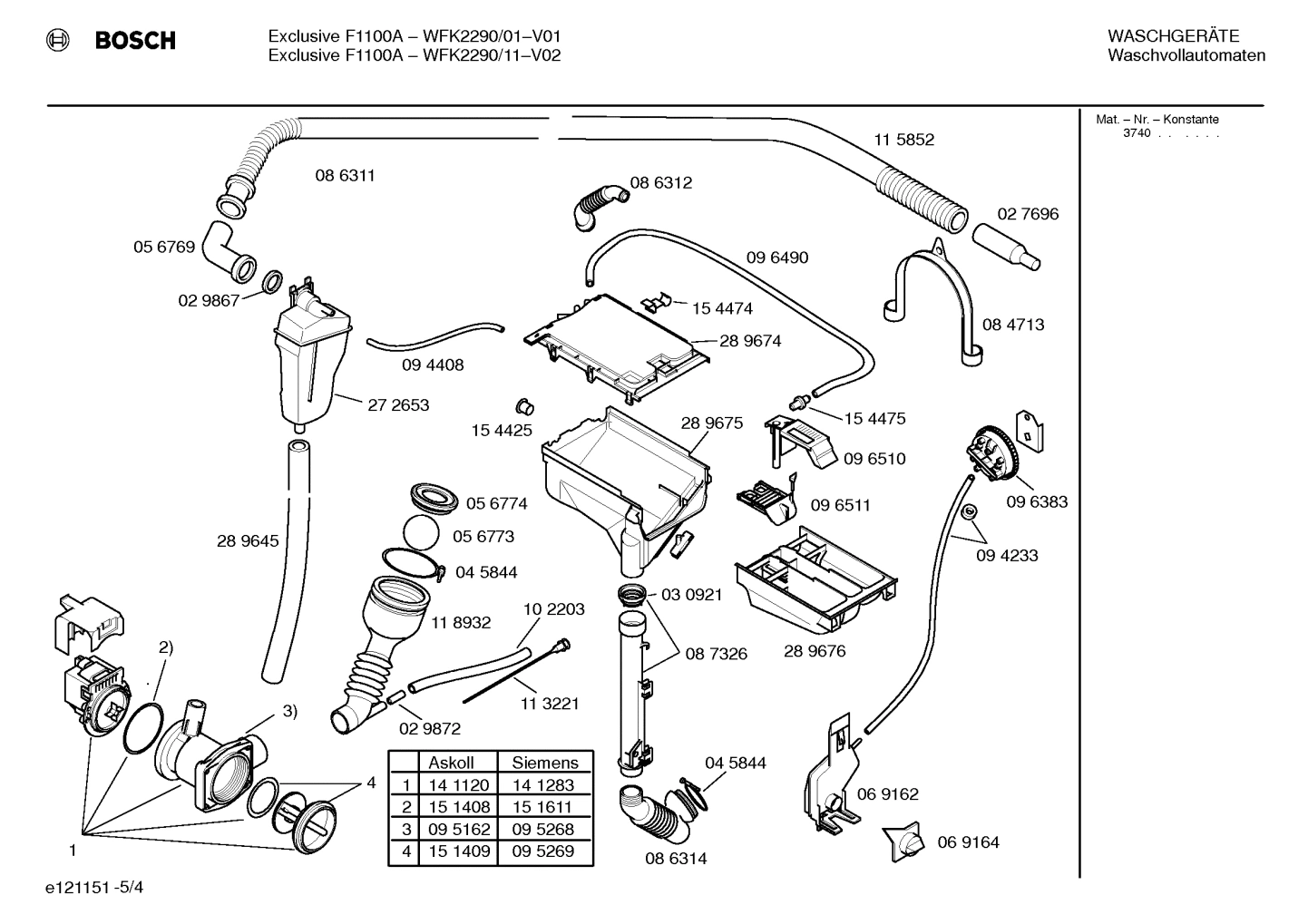

Diagram 4

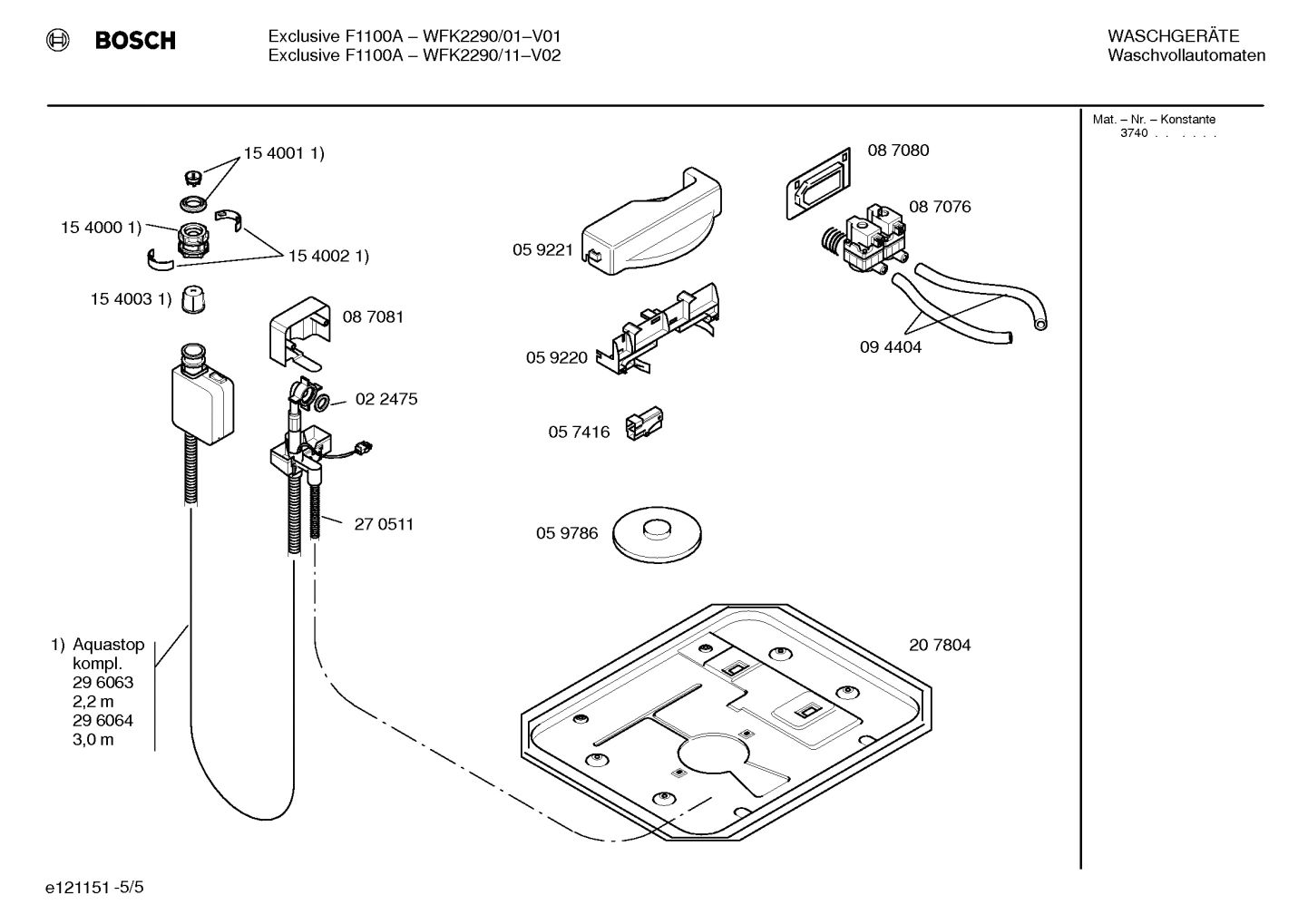

Diagram 5
Common parts from model Bosch WFK2290/11 Washer
0007
Sealing BOS 00154417 Contact Us For Availability
0017
Spring BOS 00059246 Contact Us For Availability
0201
Power cord BOS 15000636 Contact Us For Availability
0202
Holder BOS 00032968 Contact Us For Availability
0205
Cover BOS 00154157 Contact Us For Availability
0216
Foot BOS 00040302 Contact Us For Availability
0217
Auxiliary tool BOS 00153813 Contact Us For Availability
0218
Kit to Attach Washer to Floor/Pedestal BOS 00493529 Contact Us For Availability
0223
Holder BOS 00606923 Contact Us For Availability
0235
Lock-clamp BOS 00118917 Contact Us For Availability
0238
Window BOS 00118919 Contact Us For Availability
0302
Screw BOS 00171270 Contact Us For Availability
0303
Pulley BOS 00118921 Contact Us For Availability
0307
Shaft seal BOS 00056766 Contact Us For Availability
0308
Bearing set BOS 00086309 Contact Us For Availability
0309
Belt-drive BOS 00278339 Contact Us For Availability
0314
Spring guide BOS 00066212 Contact Us For Availability
0315
Spring-tank BOS 00056764 Contact Us For Availability
0316
Spring guide BOS 00029863 Contact Us For Availability
0317
Spring-tank BOS 00056765 Contact Us For Availability
0323
Shock absorber BOS 00118869 Contact Us For Availability
0325
Screw BOS 00059345 Contact Us For Availability
0326
Holder BOS 00059320 Contact Us For Availability
0329
Carbon Brush BOS 00154740 Contact Us For Availability
0329
Carbon-brush BOS 00167517 Contact Us For Availability
0333
Agitator paddle laundry BOS 00289673 Contact Us For Availability
0334
Sealing BOS 00118922 Contact Us For Availability
0338
Boot gasket BOS 00289500 Contact Us For Availability
0401
Hose connection inlet BOS 00056769 Contact Us For Availability
0406
Hose BOS 00272654 Contact Us For Availability
0410
Ball-sump BOS 00171263 Contact Us For Availability
0430
fastening ring BOS 00603523 Contact Us For Availability
0432
Drain Hose BOS 00432060 Contact Us For Availability
0433
Stud BOS 00027696 Contact Us For Availability
0434
Holder BOS 00655300 Contact Us For Availability
0502
Sealing BOS 00166671 Contact Us For Availability
0506
Sealing BOS 10009555 Contact Us For Availability
0512
Float BOS 11049560 Contact Us For Availability
0517
Case-bottom BOS 00207804 Contact Us For Availability
× ![]()
