Bosch WFG2870NL/01 Parts List

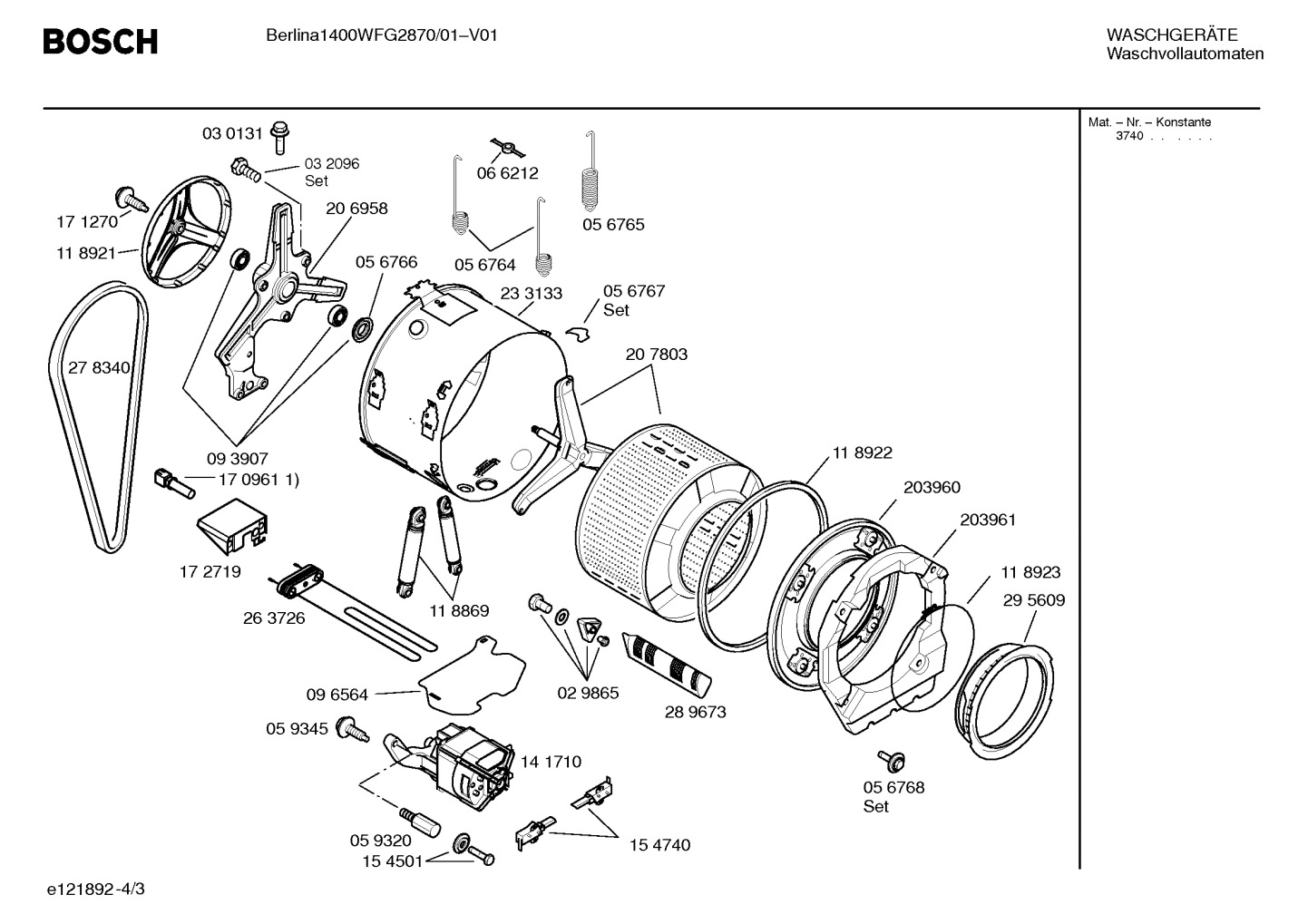

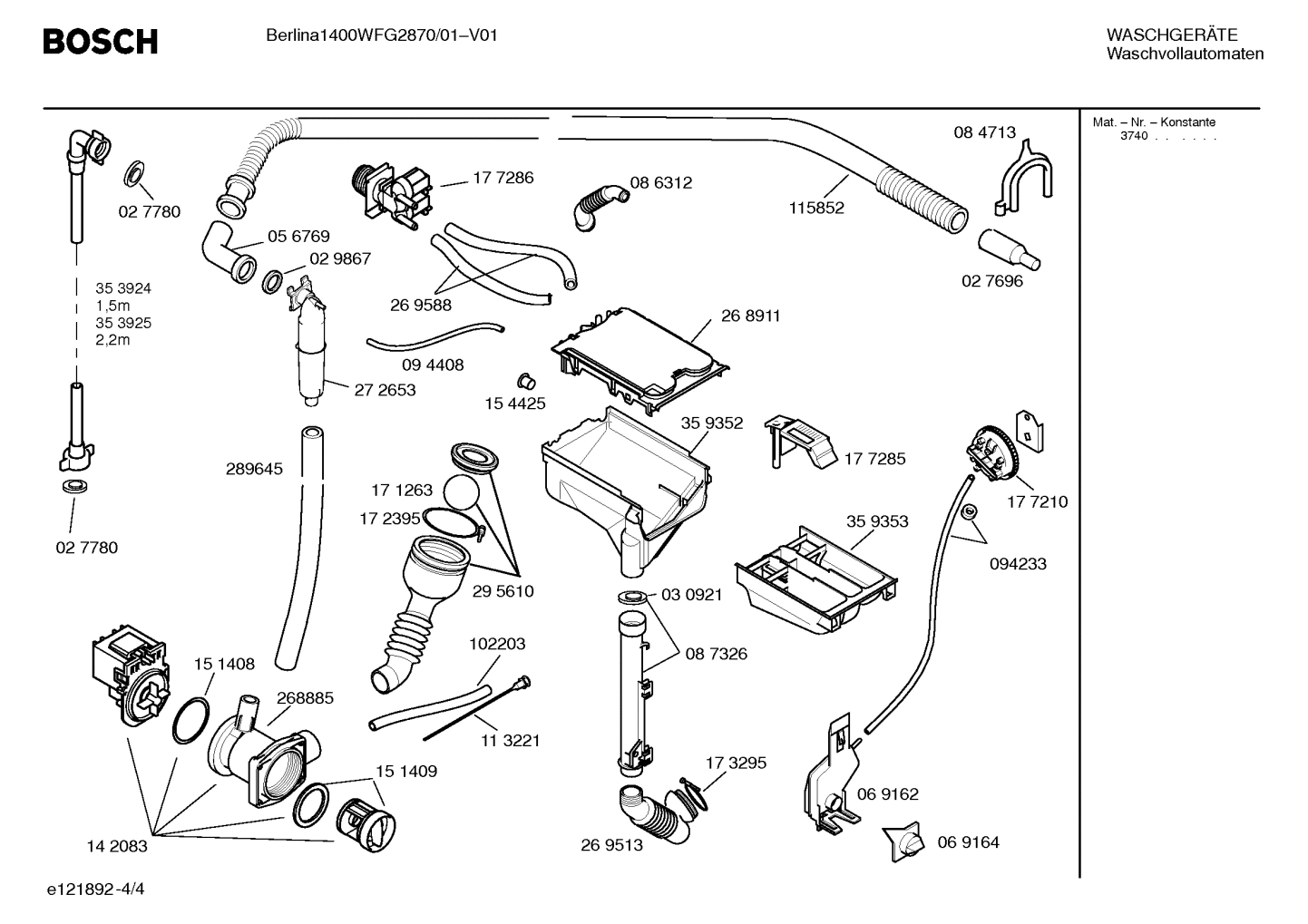

Model Bosch WFG2870NL/01 Washer – Common Parts & Diagrams

Common parts from model Bosch WFG2870NL/01 Washer

00172698 Bosch Laundry Coupling

00172698 Bosch Laundry Coupling Backorder BOS 00172698 $9.15

Cover

Cover BOS 00170933 Contact Us For Availability

00606923 Bosch Laundry Holder

00606923 Bosch Laundry Holder Backorder BOS 00606923 $5.49

00153813 Bosch Laundry Auxiliary Tool

00153813 Bosch Laundry Auxiliary Tool Backorder BOS 00153813 $8.24

00493529 Bosch Laundry Fixing Kit

00493529 Bosch Laundry Fixing Kit Backorder BOS 00493529 $52.16

00118917 Bosch Laundry Lock Clamp

00118917 Bosch Laundry Lock Clamp Backorder BOS 00118917 $17.39

00171270 Bosch Screw

00171270 Bosch Screw Backorder BOS 00171270 $3.66

00056764 Bosch Laundry Spring Tank

00056764 Bosch Laundry Spring Tank Backorder BOS 00056764 $30.20

00056765 Bosch Laundry Spring

00056765 Bosch Laundry Spring Backorder BOS 00056765 $21.96

00170961 Bosch Laundry NTC Sensor

00170961 Bosch Laundry NTC Sensor Backorder BOS 00170961 $17.39

00289673 Bosch Laundry Agitator Paddle

00289673 Bosch Laundry Agitator Paddle Backorder BOS 00289673 $8.24

Screw

Screw BOS 00059345 Contact Us For Availability

Motor

Motor BOS 00141344 Contact Us For Availability

00059320 Bosch Laundry Holder

00059320 Bosch Laundry Holder Backorder BOS 00059320 $10.98

00154740 Bosch Washer Carbon Brush

00154740 Bosch Washer Carbon Brush In Stock BOS 00154740 $59.73

00118869 Bosch Laundry Shock Absorber

00118869 Bosch Laundry Shock Absorber Backorder BOS 00118869 $70.59

00263726 Bosch Laundry Heating Element

00263726 Bosch Laundry Heating Element Backorder BOS 00263726 $95.93

00700836 Bosch Laundry Inlet Hose

00700836 Bosch Laundry Inlet Hose Backorder BOS 00700836 $29.28

00027780 Bosch Laundry Inlet Water Filter

00027780 Bosch Laundry Inlet Water Filter Backorder BOS 00027780 $13.73

Hose connection inlet

Hose connection inlet BOS 00056769 Contact Us For Availability

00027696 Bosch Laundry Stud

00027696 Bosch Laundry Stud Backorder BOS 00027696 $11.90

00655300 Bosch Laundry Holder

00655300 Bosch Laundry Holder Backorder BOS 00655300 $13.73

00171263 Bosch Laundry Sump Ball

00171263 Bosch Laundry Sump Ball Backorder BOS 00171263 $11.90

00603523 Bosch Fastening Ring

00603523 Bosch Fastening Ring Backorder BOS 00603523 $12.81

00272654 Bosch Laundry Hose

00272654 Bosch Laundry Hose Backorder BOS 00272654 $66.97
