Bosch WFF2080SN/12 Washer Parts List

0011

Sealing BOS 00154417 Contact Us For Availability

View on Model

0030

00059246 Bosch Laundry Spring Backorder BOS 00059246 $4.65

View on Model

0304

00153813 Bosch Laundry Auxiliary Tool Backorder BOS 00153813 $8.84

View on Model

0305

00032968 Bosch Laundry Holder Backorder BOS 00032968 $33.02

View on Model

0308

00154157 Bosch Laundry Cover Backorder BOS 00154157 $13.02

View on Model

0316

00040302 Bosch Laundry Foot Backorder BOS 00040302 $11.16

View on Model

0317

00493529 Bosch Laundry Fixing Kit Backorder BOS 00493529 $53.94

View on Model

0324

00606923 Bosch Laundry Holder Backorder BOS 00606923 $5.58

View on Model

0328

00118917 Bosch Laundry Lock Clamp Backorder BOS 00118917 $18.14

View on Model

0330

Window BOS 00118919 Contact Us For Availability

View on Model

0335

Electric lock BOS 00170935 Contact Us For Availability

View on Model

0402

00171270 Bosch Screw Backorder BOS 00171270 $3.72

View on Model

0403

Pulley BOS 00118921 Contact Us For Availability

View on Model

0408

Shaft seal BOS 00068319 Contact Us For Availability

View on Model

0411

00263726 Bosch Laundry Heating Element Backorder BOS 00263726 $101.66

View on Model

0412

00278339 Bosch Washer Drive Belt Backorder BOS 00278339 $36.27

View on Model

0414

00056764 Bosch Laundry Spring Tank Backorder BOS 00056764 $31.62

View on Model

0415

00066212 Bosch Laundry Guide Spring Backorder BOS 00066212 $15.81

View on Model

0416

00056765 Bosch Laundry Spring Backorder BOS 00056765 $23.25

View on Model

0417

Spring guide BOS 00029863 Contact Us For Availability

View on Model

0423

00118869 Bosch Laundry Shock Absorber Backorder BOS 00118869 $74.52

View on Model

0425

Motor BOS 00141344 Contact Us For Availability

View on Model

0427

00059320 Bosch Laundry Holder Backorder BOS 00059320 $11.16

View on Model

0428

Screw BOS 00059345 Contact Us For Availability

View on Model

0431

00289673 Bosch Laundry Agitator Paddle Backorder BOS 00289673 $8.37

View on Model

0432

00118922 Bosch Laundry Sealing Assembly Backorder BOS 00118922 $36.27

View on Model

0436

00289500 Bosch Laundry Boot Gasket Backorder BOS 00289500 $73.14

View on Model

0503

00027780 Bosch Laundry Inlet Water Filter Backorder BOS 00027780 $14.42

View on Model

0504

Hose connection inlet BOS 00056769 Contact Us For Availability

View on Model

0506

00432060 Bosch Laundry Outlet Hose Backorder BOS 00432060 $41.85

View on Model

0507

00027696 Bosch Laundry Stud Backorder BOS 00027696 $12.09

View on Model

0508

00655300 Bosch Laundry Holder Backorder BOS 00655300 $14.42

View on Model

0510

00272654 Bosch Laundry Hose Backorder BOS 00272654 $70.38

View on Model

0529

00171263 Bosch Laundry Sump Ball Backorder BOS 00171263 $12.09

View on Model

0530

00603523 Bosch Fastening Ring Backorder BOS 00603523 $13.02

View on Model

0531

Outlet hose BOS 00295610 Contact Us For Availability

View on Model

0534

Latch BOS 00113221 Contact Us For Availability

View on Model

0535

00144487 Bosch Laundry Drain Pump Backorder BOS 00144487 $127.15

View on Model

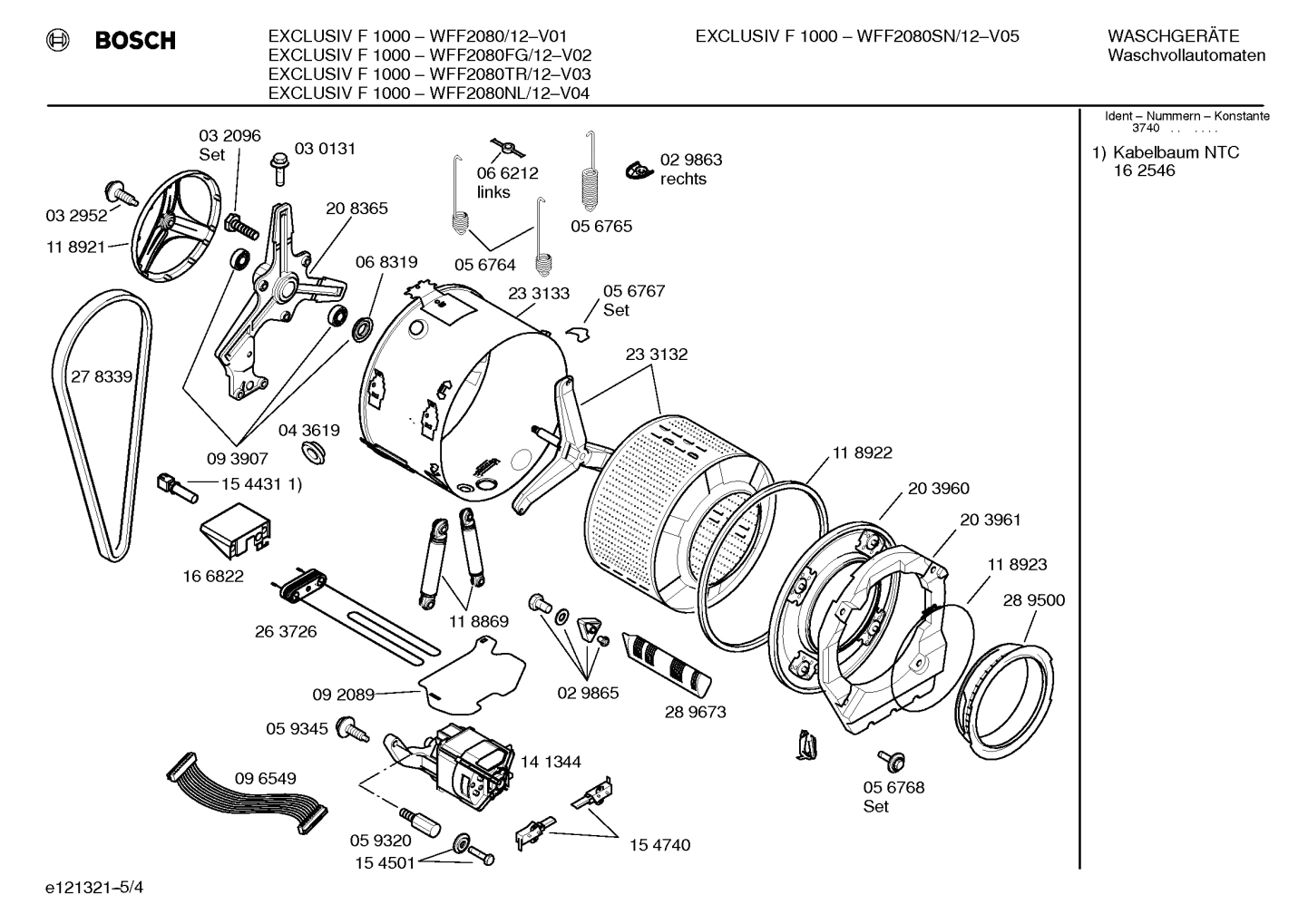

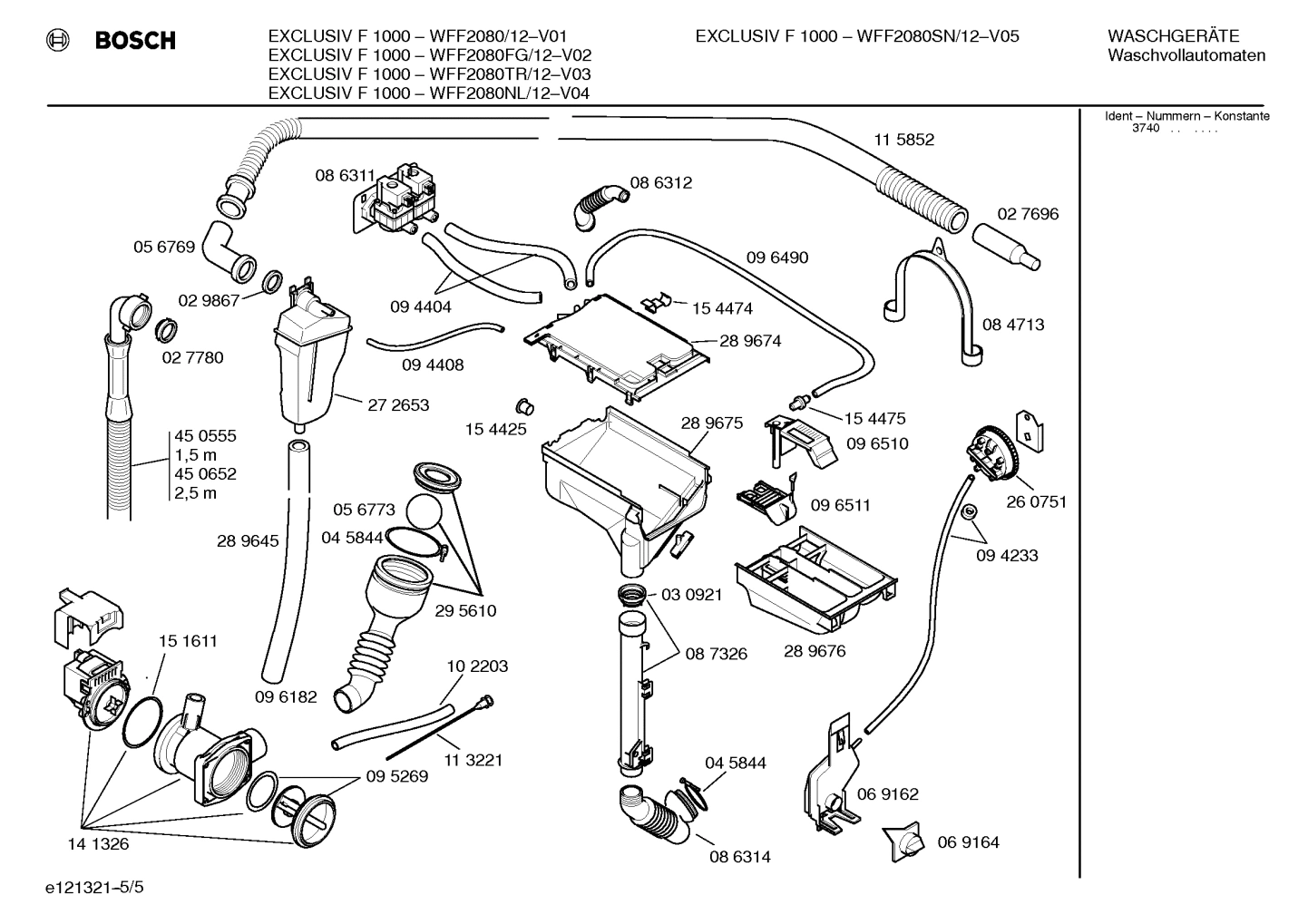

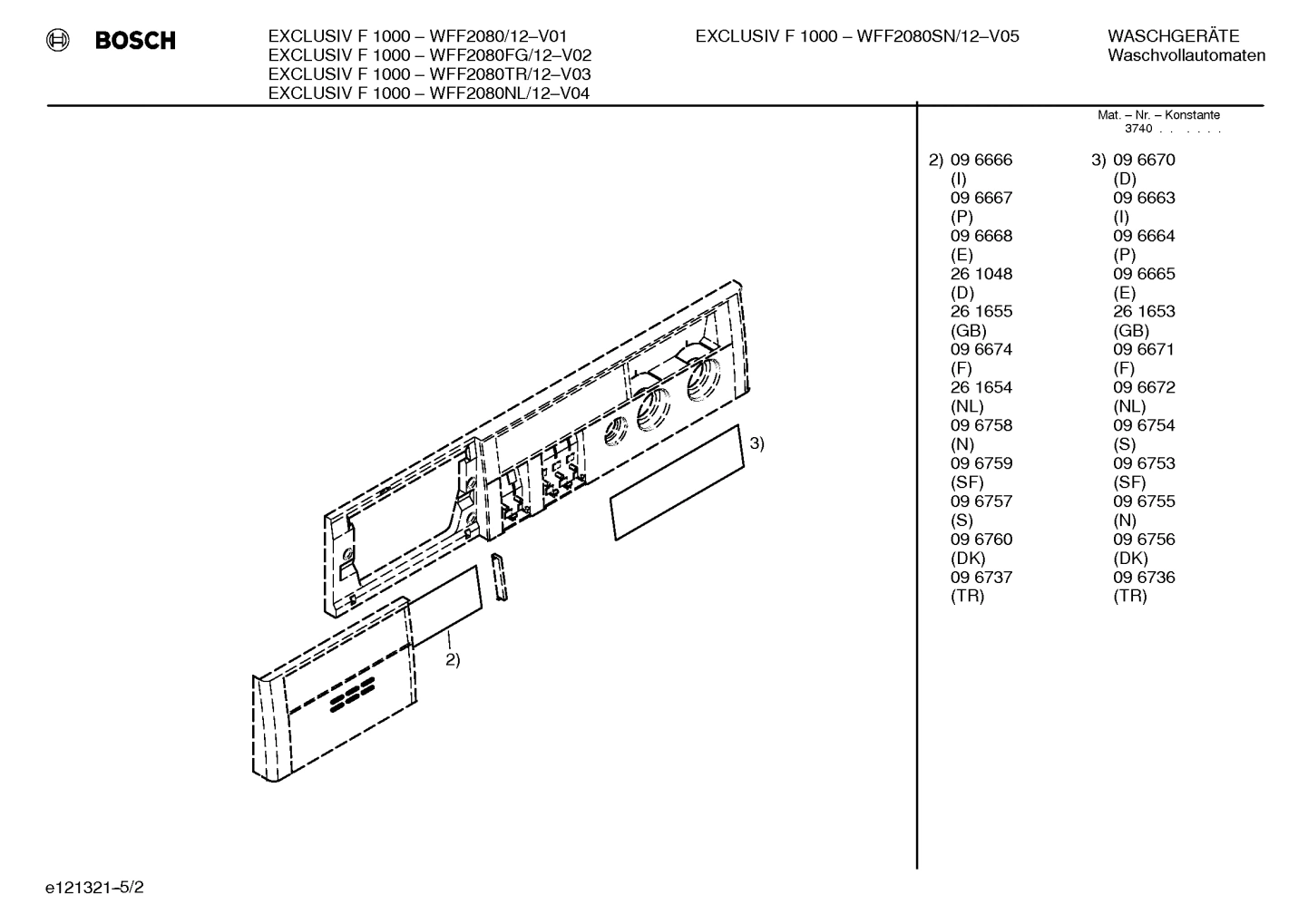

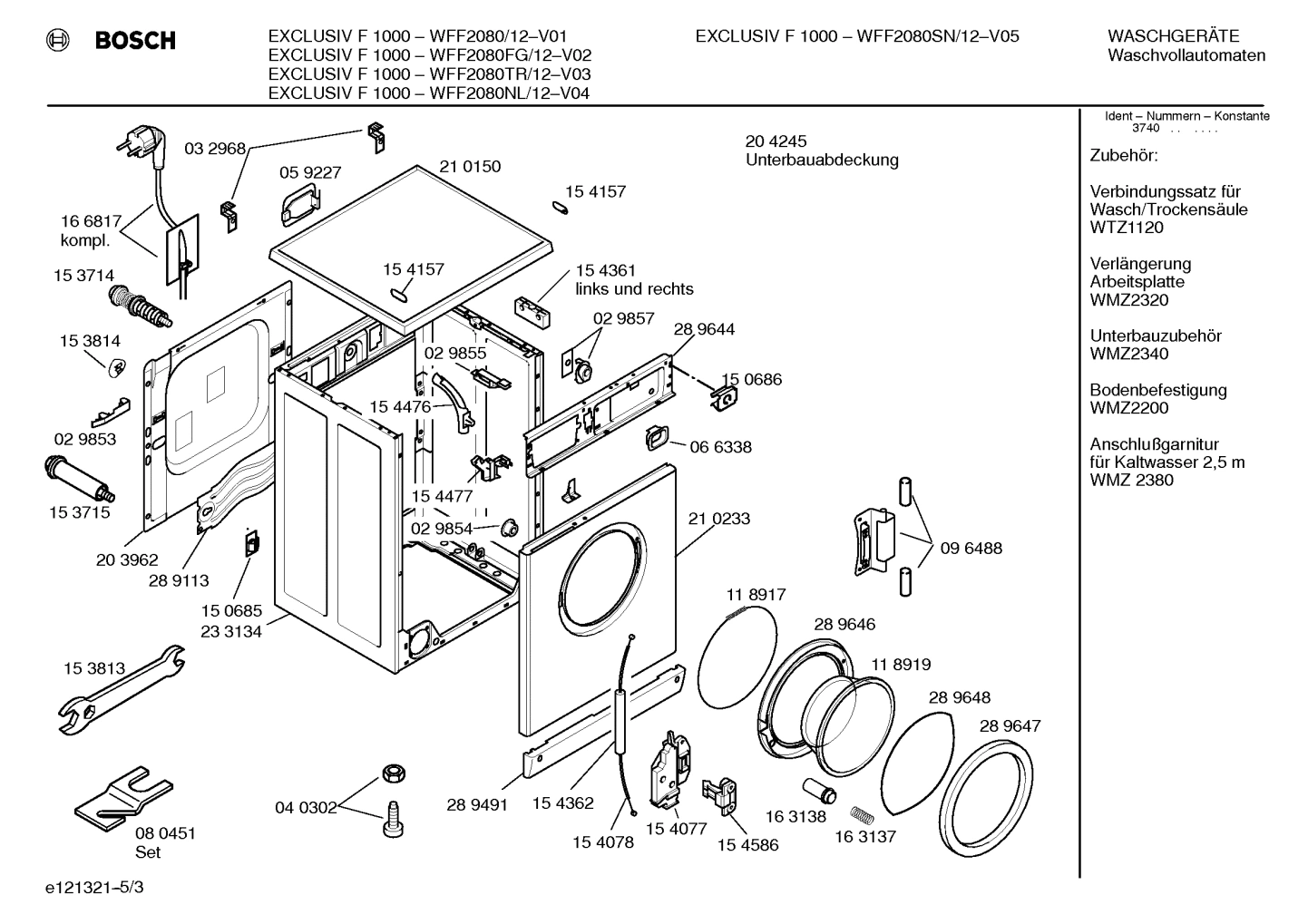

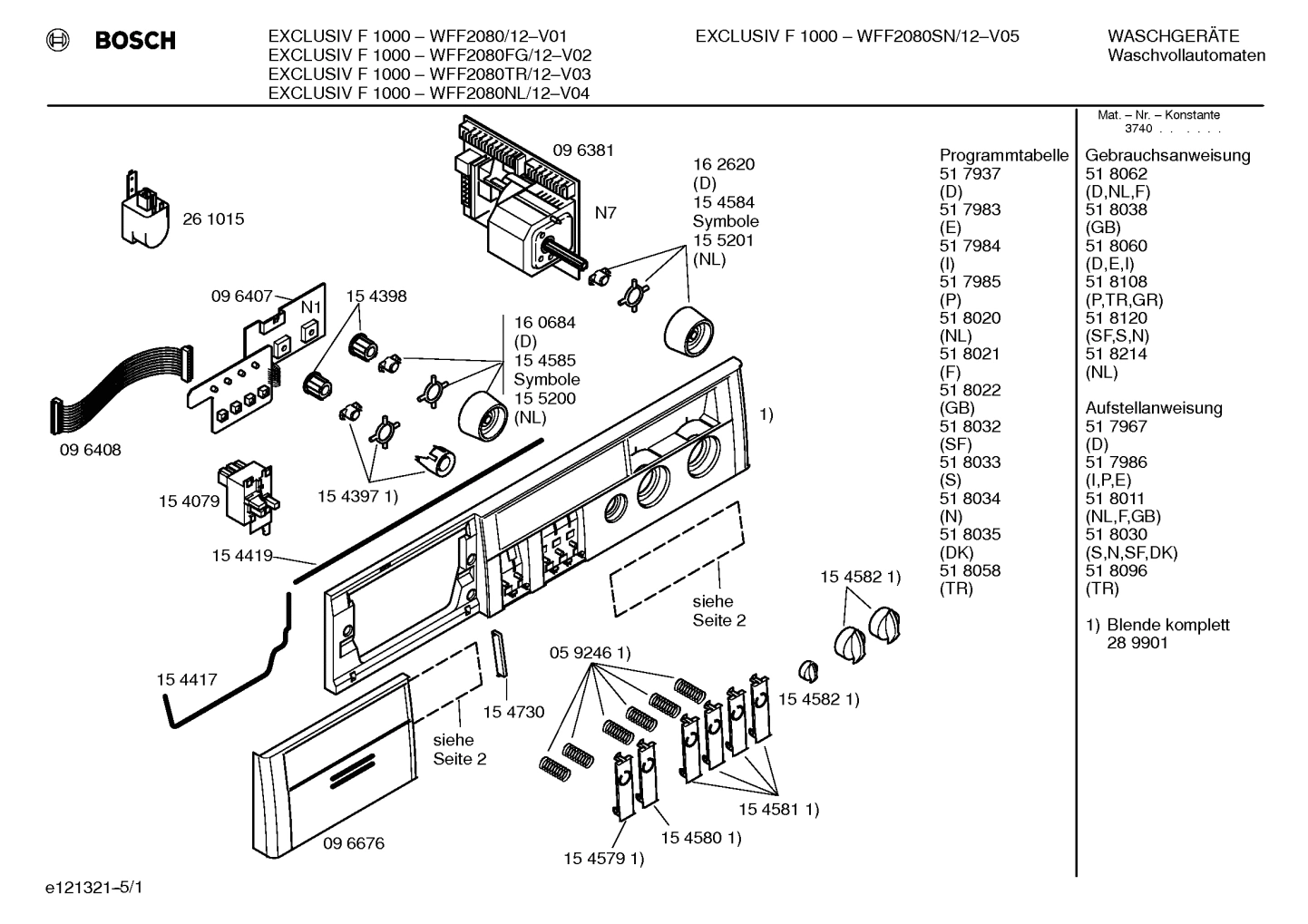

Model Bosch WFF2080SN/12 Washer – Common Parts & Diagrams

Common parts from model Bosch WFF2080SN/12 Washer
