Bosch WFF1400/12

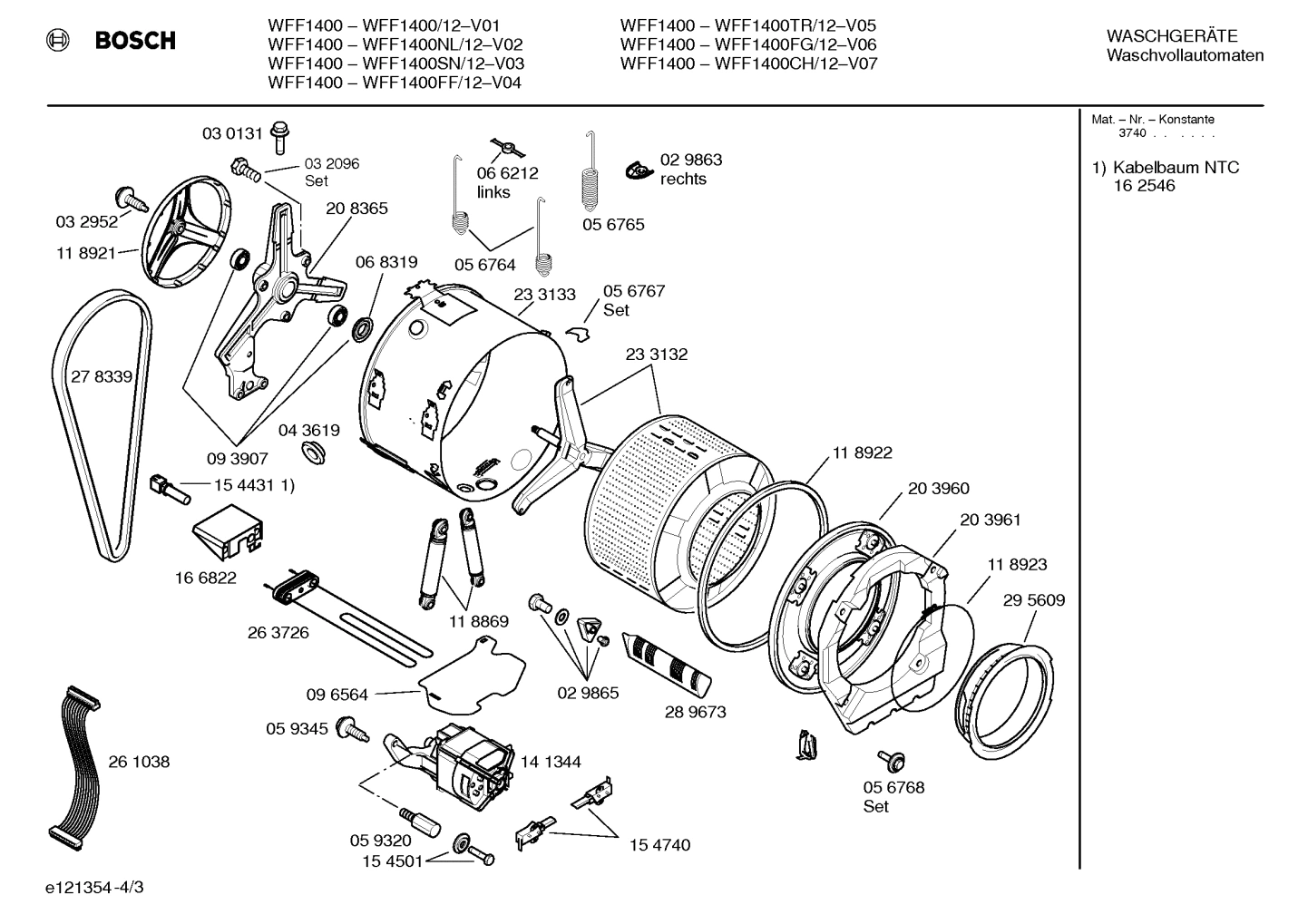

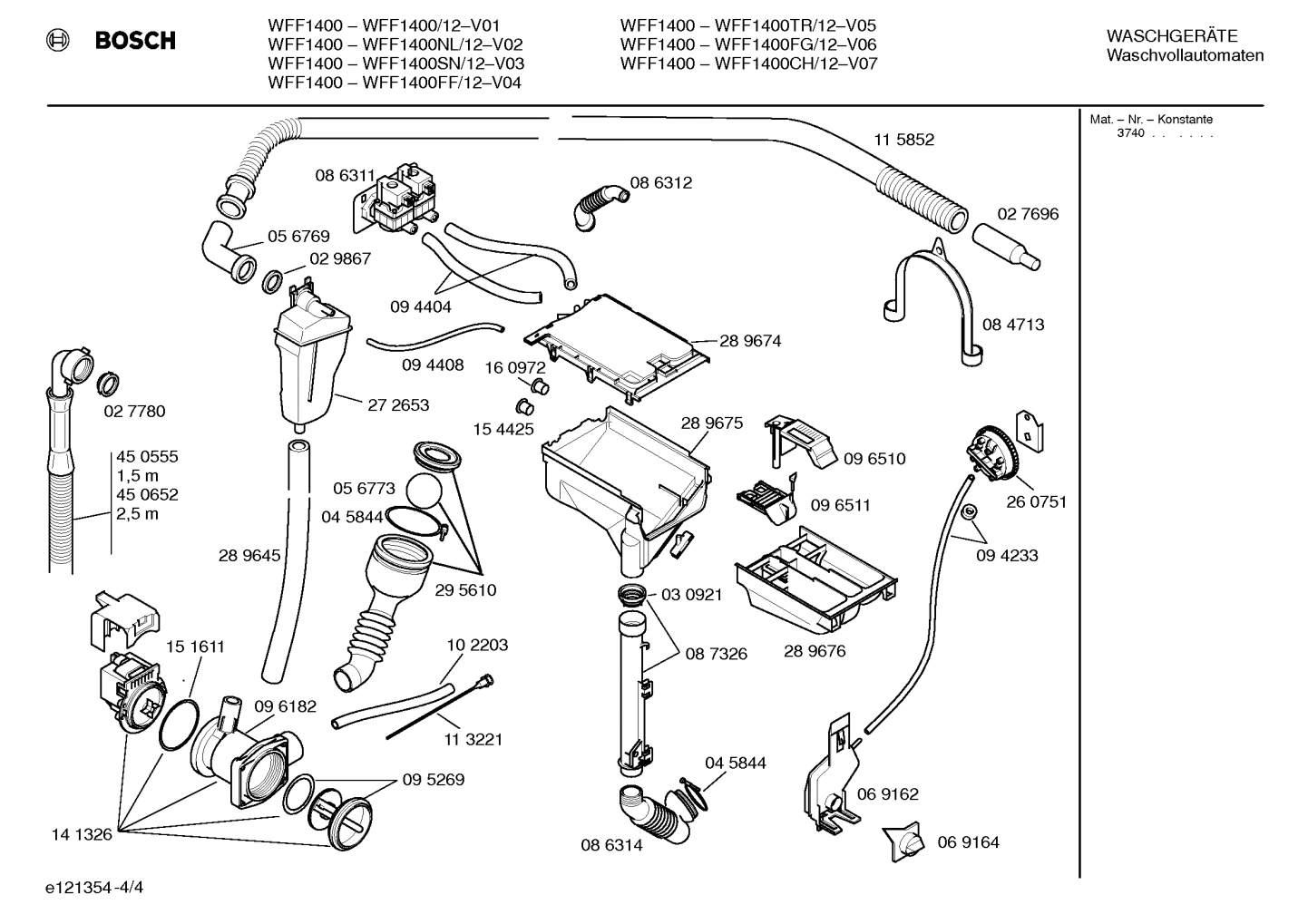

Model Bosch WFF1400/12 Washer – Common Parts & Diagrams

Common parts from model Bosch WFF1400/12 Washer

00493529 Bosch Laundry Fixing Kit

00493529 Bosch Laundry Fixing Kit Backorder BOS 00493529 $52.14

00606923 Bosch Laundry Holder

00606923 Bosch Laundry Holder Backorder BOS 00606923 $5.47

00118917 Bosch Laundry Lock Clamp

00118917 Bosch Laundry Lock Clamp Backorder BOS 00118917 $17.37

00171270 Bosch Screw

00171270 Bosch Screw Backorder BOS 00171270 $3.64

Shaft seal

Shaft seal BOS 00068319 Contact Us For Availability

00263726 Bosch Laundry Heating Element

00263726 Bosch Laundry Heating Element Backorder BOS 00263726 $95.91

00278339 Bosch Washer Drive Belt

00278339 Bosch Washer Drive Belt Backorder BOS 00278339 $34.75

00056764 Bosch Laundry Spring Tank

00056764 Bosch Laundry Spring Tank Backorder BOS 00056764 $30.18

00066212 Bosch Laundry Guide Spring

00066212 Bosch Laundry Guide Spring Backorder BOS 00066212 $15.54

00056765 Bosch Laundry Spring

00056765 Bosch Laundry Spring Backorder BOS 00056765 $21.94

Spring guide

Spring guide BOS 00029863 Contact Us For Availability

00118869 Bosch Laundry Shock Absorber

00118869 Bosch Laundry Shock Absorber Backorder BOS 00118869 $70.57

Motor

Motor BOS 00141344 Contact Us For Availability

00059320 Bosch Laundry Holder

00059320 Bosch Laundry Holder Backorder BOS 00059320 $10.96

SCREW

SCREW Backorder BOS 00059345 $7.30

00289673 Bosch Laundry Agitator Paddle

00289673 Bosch Laundry Agitator Paddle Backorder BOS 00289673 $8.22

00118922 Bosch Laundry Sealing Assembly

00118922 Bosch Laundry Sealing Assembly Backorder BOS 00118922 $34.75

00027780 Bosch Laundry Inlet Water Filter

00027780 Bosch Laundry Inlet Water Filter Backorder BOS 00027780 $13.71

Hose connection inlet

Hose connection inlet BOS 00056769 Contact Us For Availability

00432060 Bosch Laundry Outlet Hose

00432060 Bosch Laundry Outlet Hose Backorder BOS 00432060 $40.24

00027696 Bosch Laundry Stud

00027696 Bosch Laundry Stud Backorder BOS 00027696 $11.88

00655300 Bosch Laundry Holder

00655300 Bosch Laundry Holder Backorder BOS 00655300 $13.71

00272654 Bosch Laundry Hose

00272654 Bosch Laundry Hose Backorder BOS 00272654 $66.95

00171263 Bosch Laundry Sump Ball

00171263 Bosch Laundry Sump Ball Backorder BOS 00171263 $11.88

00603523 Bosch Fastening Ring

00603523 Bosch Fastening Ring Backorder BOS 00603523 $12.79

00144487 Bosch Laundry Drain Pump

00144487 Bosch Laundry Drain Pump Backorder BOS 00144487 $121.91
