Model Samsung WB09H7300GW/A1-00 Washer – Common Parts & Diagrams
Cover Top
Frame

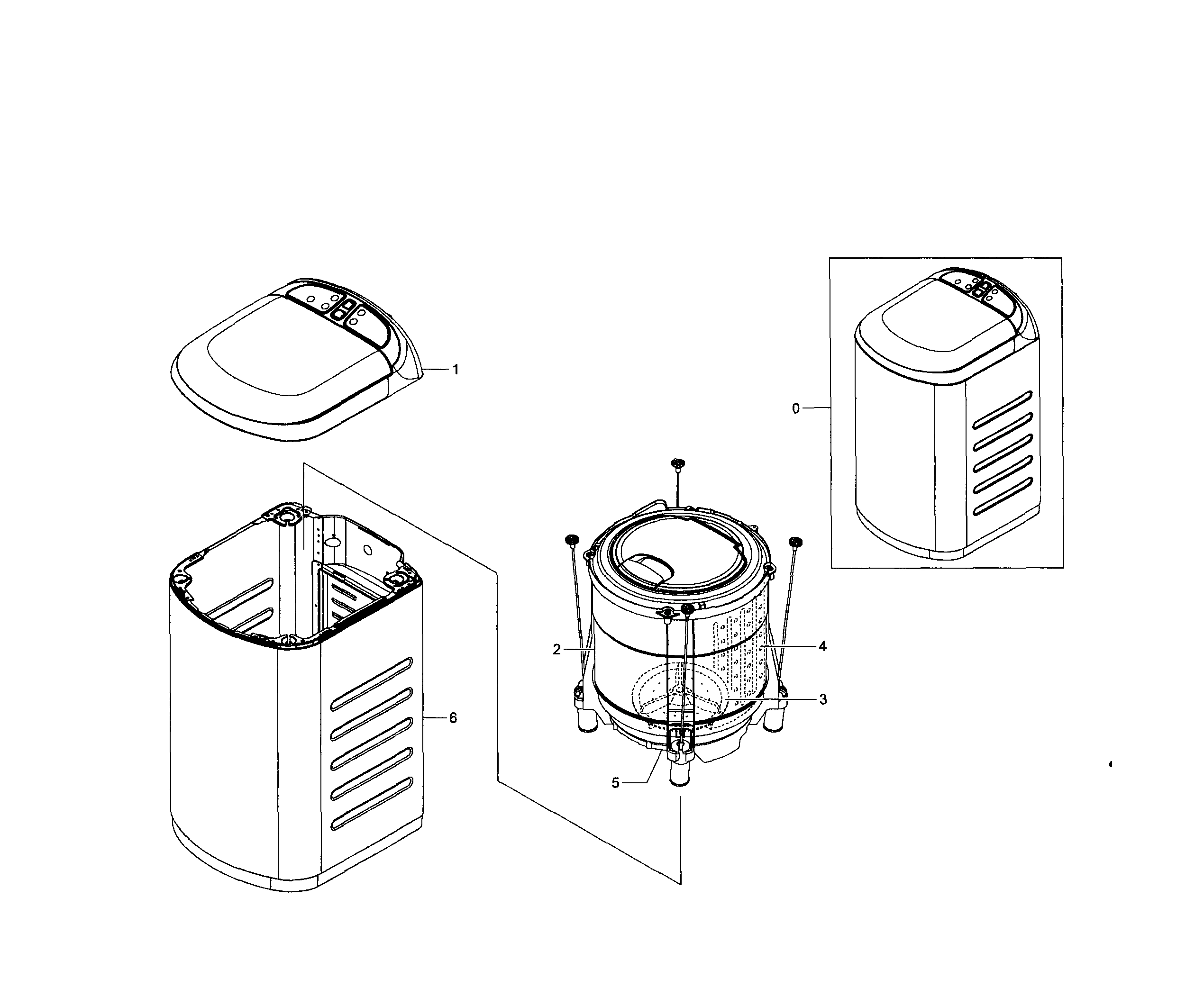

Main Assembly

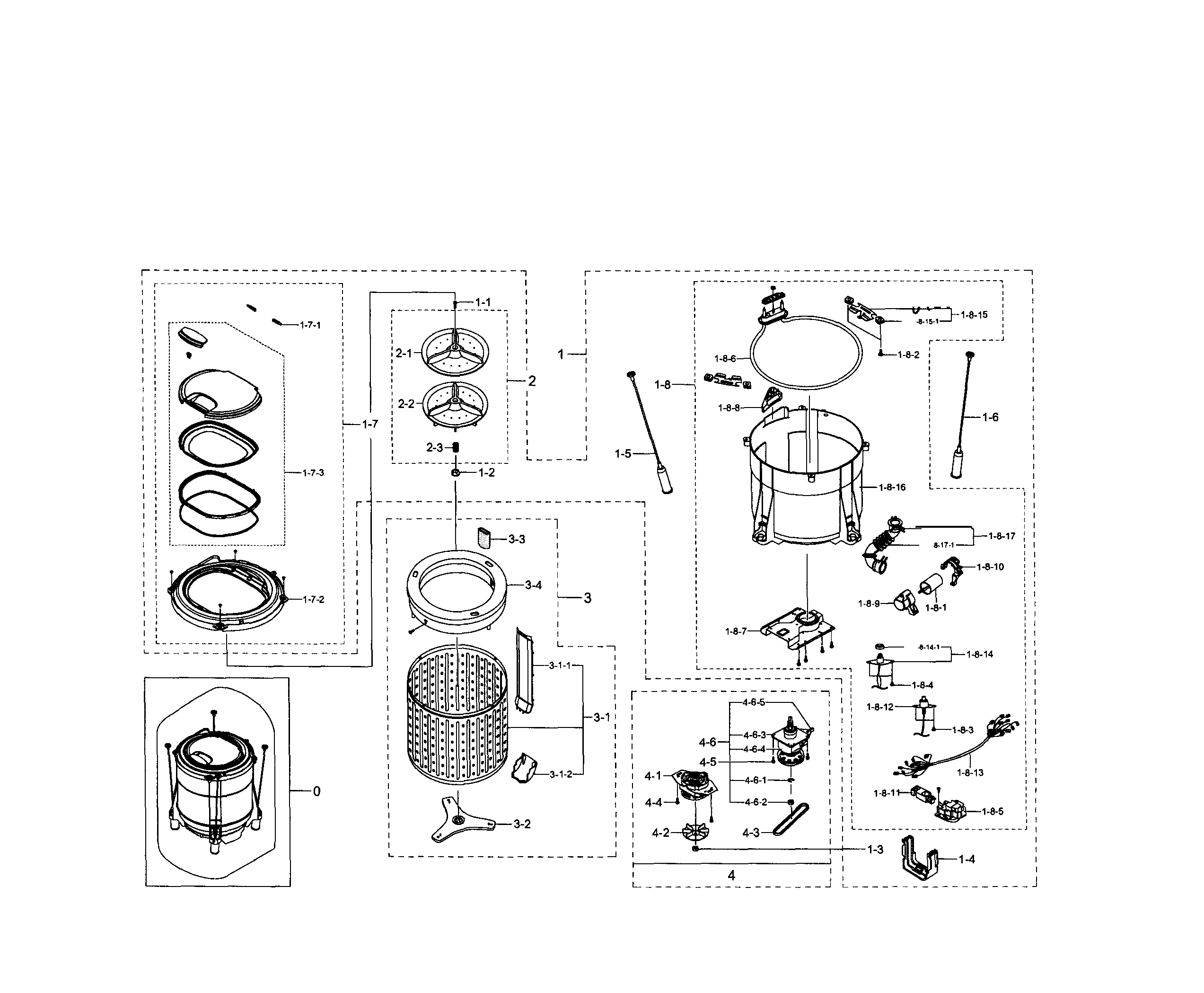

Tub Parts
Common parts from model Samsung WB09H7300GW/A1-00 Washer
1
Cover SMG DC90-16567A Contact Us For Availability
1
Tub SMG DC90-16568A Contact Us For Availability
1-1
Frame plate SMG DC61-00545D Contact Us For Availability
1-1
Bolt pulsator SMG DC60-00004A Contact Us For Availability
1-2
Frame plate SMG DC61-00678E Contact Us For Availability
1-2
Nut SMG DC60-50004B Contact Us For Availability
1-3
Corner frame SMG DC61-03719A Contact Us For Availability
1-4
Corner frame SMG DC61-03720A Contact Us For Availability
1-4
Cradle SMG DC61-40053B Contact Us For Availability
1-5
Corner frame SMG DC61-03721A Contact Us For Availability
1-6
Corner frame SMG DC61-03722A Contact Us For Availability
1-7
Frame SMG DC61-03724A Contact Us For Availability
1-7
Cover SMG DC97-17952B Contact Us For Availability
1-8
Assy base ub SMG DC97-03058E Contact Us For Availability
1-8
Semi tub SMG DC97-17953C Contact Us For Availability
1-9
Drain pump assembly SMG DC97-18372A Contact Us For Availability
1-81
Base pp,ebon SMG DC61-00539B Contact Us For Availability
1-81
Motor SMG 2504-000002 Contact Us For Availability
1-85
Drain motor SMG DC31-20014T Contact Us For Availability
1-86
Heater SMG DC47-00029E Contact Us For Availability
1-87
Die-motor ub SMG DC61-00547A Contact Us For Availability
1-88
Seal SMG DC62-00431A Contact Us For Availability
1-93
Case SMG DC61-03898A Contact Us For Availability
1-95
Pump cover SMG DC63-01780A Contact Us For Availability
2
Pulsator assembly SMG DC97-03061E Contact Us For Availability
2-1
Pulsator SMG DC66-00228D Contact Us For Availability
2-2
Pulsator SMG DC66-00229A Contact Us For Availability
2-3
Bushing SMG DC66-20004A Contact Us For Availability
3
Semi cover SMG DC97-17964P Contact Us For Availability
3
Shutter SMG DC64-00282A Contact Us For Availability
3-1
Basket SMG DC97-03074A Contact Us For Availability
3-3
Spring etc q SMG DC61-00146G Contact Us For Availability
3-3
Filter assembly SMG DC91-10404X Contact Us For Availability
3-4
Assy balance SMG DC97-02872A Contact Us For Availability
3-6
Samsung lid assembly SMG DC97-17947A Contact Us For Availability
3-7
Damper SMG DC97-18004A Contact Us For Availability
3-11
Guide SMG DC61-00549A Contact Us For Availability
3-12
Duct SMG DC67-00023A Contact Us For Availability
4
Guide panel SMG DC61-03718A Contact Us For Availability
4
Assy cover b SMG DC97-18017B Contact Us For Availability
4
Drive module SMG DC90-16297A Contact Us For Availability
4-1
Cover SMG DC63-00266A Contact Us For Availability
4-3
Belt v rubbe SMG DC66-10045D Contact Us For Availability
4-5
Assy screw s SMG DC97-04458C Contact Us For Availability
4-6
Clutch assembly SMG DC97-14818C Contact Us For Availability
4-61
Ring SMG 6044-001029 Contact Us For Availability
5
Wire SMG DC66-10003B Contact Us For Availability
5
Accessory SMG DC90-16300A Contact Us For Availability
5-2
Connector SMG DC67-00783A Contact Us For Availability
5-3
Accessory SMG DC90-16471A Contact Us For Availability
5-33
Assy hose dr SMG DC97-17996C Contact Us For Availability
6
Frame SMG DC97-18380A Contact Us For Availability
1822
Leg SMG DC61-50009B Contact Us For Availability
NI
Dryer screw SMG 6002-000524 Contact Us For Availability
NI
Owner's manual SMG DC68-00815J Contact Us For Availability
× ![]()
