Bosch WAP24202UC/14 Washer Parts List

0111

00748338 Bosch Laundry Power Module Backorder BOS 00748338 $286.00

View on Model

0112

00746881 Bosch Laundry Operating Module Backorder BOS 00746881 $181.28

View on Model

0113

00630306 Bosch Laundry Light Guide Backorder BOS 00630306 $42.09

View on Model

0115

00632362 Bosch Laundry Coupling Backorder BOS 00632362 $10.07

View on Model

0117

00629167 Bosch Laundry Program Knob Backorder BOS 00629167 $91.41

View on Model

0120

00746857 Bosch Laundry Facia Panel Backorder BOS 00746857 $147.74

View on Model

0201

10012244 Bosch Laundry Fixing Kit Backorder BOS 10012244 $21.05

View on Model

0202

00683880 Bosch Laundry Back Panel Backorder BOS 00683880 $173.55

View on Model

0206

00610643 Bosch Laundry Foot Assembly In Stock BOS 00610643 $10.07

View on Model

0207

00416875 Bosch Auxiliary Tool Backorder BOS 00416875 $2.75

View on Model

0209

00655850 Bosch Laundry Flap Backorder BOS 00655850 $18.30

View on Model

0224

00618779 Bosch Laundry Holder Backorder BOS 00618779 $7.32

View on Model

0227

00493529 Bosch Laundry Fixing Kit Backorder BOS 00493529 $52.16

View on Model

0229

00705651 Bosch Laundry Band Backorder BOS 00705651 $15.56

View on Model

0240

00658090 Bosch Laundry Support Backorder BOS 00658090 $18.30

View on Model

0250

11035545 Bosch Laundry Assembly Window Backorder BOS 11035545 $324.72

View on Model

0301

00145500 Bosch Laundry Motor Backorder BOS 00145500 $259.60

View on Model

0302

00605694 Bosch Laundry Carbon Brush In Stock BOS 00605694 $43.01

View on Model

0303

00605216 Bosch Laundry Bushing Backorder BOS 00605216 $4.58

View on Model

0304

00171272 Bosch Laundry Fixture Backorder BOS 00171272 $6.41

View on Model

0305

10007126 Bosch Laundry Screw Backorder BOS 10007126 $3.66

View on Model

0306

00649360 Bosch Laundry Heating Element Backorder BOS 00649360 $62.45

View on Model

0307

Sensor-NTC BOS 00609240 No Longer Available

View on Model

0312

00605140 Bosch Laundry Spring Tank Backorder BOS 00605140 $76.02

View on Model

0315

00617804 Bosch Laundry Sensor Backorder BOS 00617804 $83.26

View on Model

0316

00615697 Bosch Laundry Holder Backorder BOS 00615697 $29.28

View on Model

0317

00605147 Bosch Laundry Nut In Stock BOS 00605147 $10.98

View on Model

0318

00668431 Bosch Laundry Pulley Assembly Backorder BOS 00668431 $101.36

View on Model

0319

00416886 Bosch Laundry Sealing Backorder BOS 00416886 $43.01

View on Model

0320

00249533 Bosch Laundry Tub Rear Backorder BOS 00249533 $378.40

View on Model

0321

Drum BOS 00744283 Contact Us For Availability

View on Model

0322

00248667 Bosch Laundry Tub Front Backorder BOS 00248667 $383.68

View on Model

0323

11042475 Bosch Laundry Fastening Ring Backorder BOS 11042475 $6.41

View on Model

0325

00619808 Bosch Laundry Bearing Set Backorder BOS 00619808 $106.79

View on Model

0326

00670743 Bosch Laundry Fastening Ring Backorder BOS 00670743 $22.88

View on Model

0327

00621467 Bosch Laundry Screw In Stock BOS 00621467 $3.66

View on Model

0401

11051387 Bosch Washer Dispenser Tray Backorder BOS 11051387 $137.95

View on Model

0402

00605148 Bosch Laundry Siphon Device Backorder BOS 00605148 $9.15

View on Model

0403

00605740 Bosch Laundry Insert Backorder BOS 00605740 $9.15

View on Model

0404

00667824 Bosch Laundry Lower Dispenser Tray Backorder BOS 00667824 $55.21

View on Model

0405

00746858 Bosch Laundry Upper Dispenser Tray Backorder BOS 00746858 $21.05

View on Model

0406

00661785 Bosch Laundry Hose Backorder BOS 00661785 $12.81

View on Model

0407

00611703 Bosch Washer Magnet Valve In Stock BOS 00611703 $57.02

View on Model

0409

00027780 Bosch Laundry Inlet Water Filter Backorder BOS 00027780 $13.73

View on Model

0410

Aquastop Hose (Cold Water) BOS 00646221 Contact Us For Availability

View on Model

0413

00630622 Bosch Laundry Hose Chamber Pressure Backorder BOS 00630622 $10.07

View on Model

0414

00678974 Bosch Laundry Outlet Hose Backorder BOS 00678974 $136.17

View on Model

0415

00605215 Bosch Laundry Hose Backorder BOS 00605215 $31.11

View on Model

0416

00655300 Bosch Laundry Holder Backorder BOS 00655300 $13.73

View on Model

0417

00611633 Bosch Laundry Pressure Chamber Backorder BOS 00611633 $10.07

View on Model

0419

00656689 Bosch Laundry Sump Hose Backorder BOS 00656689 $25.62

View on Model

0420

00707751 Bosch Laundry Latch In Stock BOS 00707751 $16.47

View on Model

0421

00647920 Bosch Laundry Fluff Filter In Stock BOS 00647920 $25.62

View on Model

0422

00145753 Bosch Washer Drain Pump In Stock BOS 00145753 $122.82

View on Model

0423

00646220 Bosch Laundry Inlet Hose In Stock BOS 00646220 $84.17

View on Model

0424

00611702 Bosch Laundry Magnet Valve In Stock BOS 00611702 $46.67

View on Model

0430

00629766 Bosch Laundry Cover Backorder BOS 00629766 $18.30

View on Model

0433

00749142 Bosch Laundry Hose In Stock BOS 00749142 $14.64

View on Model

0460

Hose clamp BOS 00422207 Contact Us For Availability

View on Model

0470

00746864 Bosch Laundry Aquastop Backorder BOS 00746864 $31.11

View on Model

0505

00630324 Bosch Laundry Cable Harness Backorder BOS 00630324 $28.37

View on Model

0508

00630316 Bosch Laundry Cable Harness Backorder BOS 00630316 $31.11

View on Model

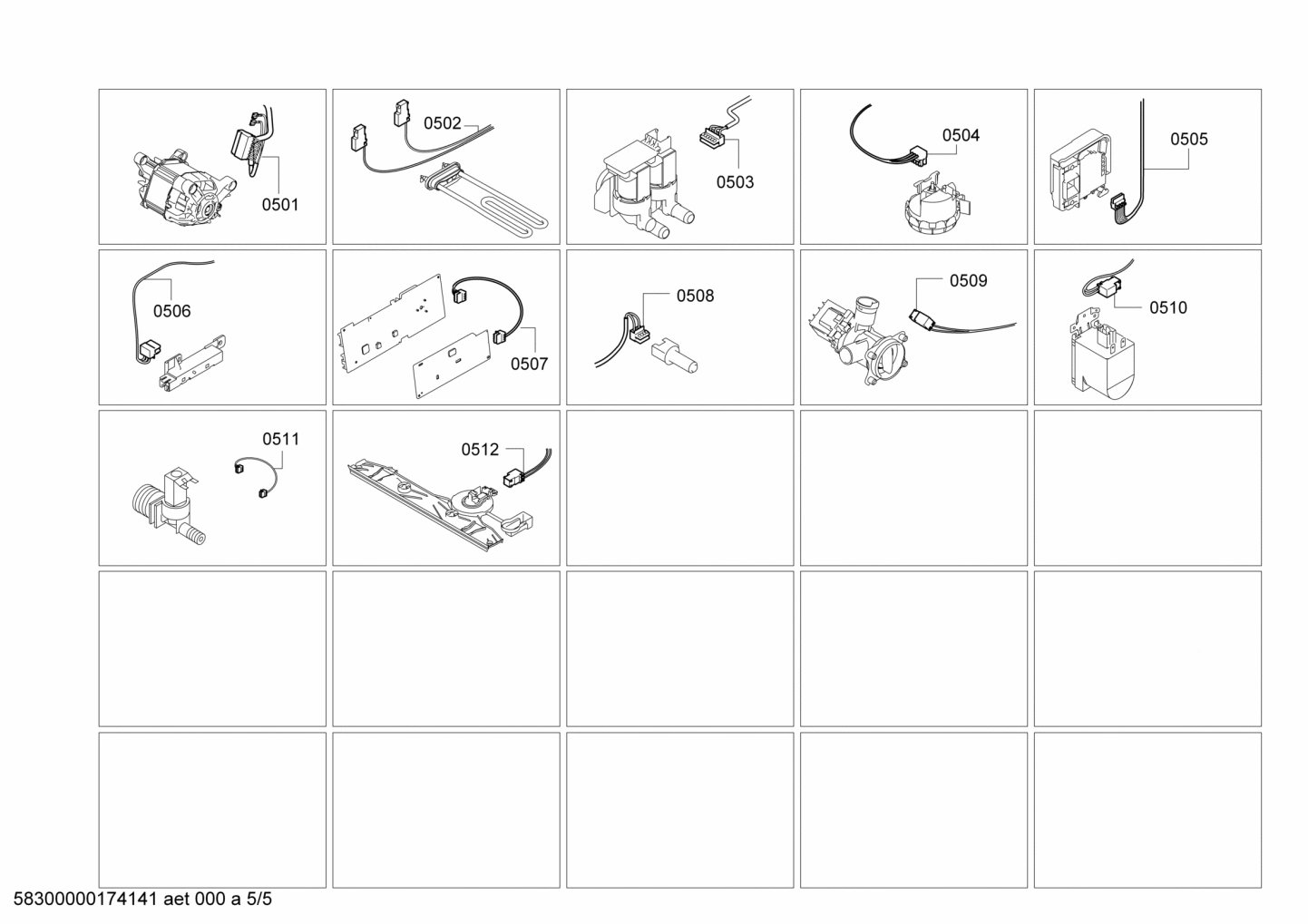

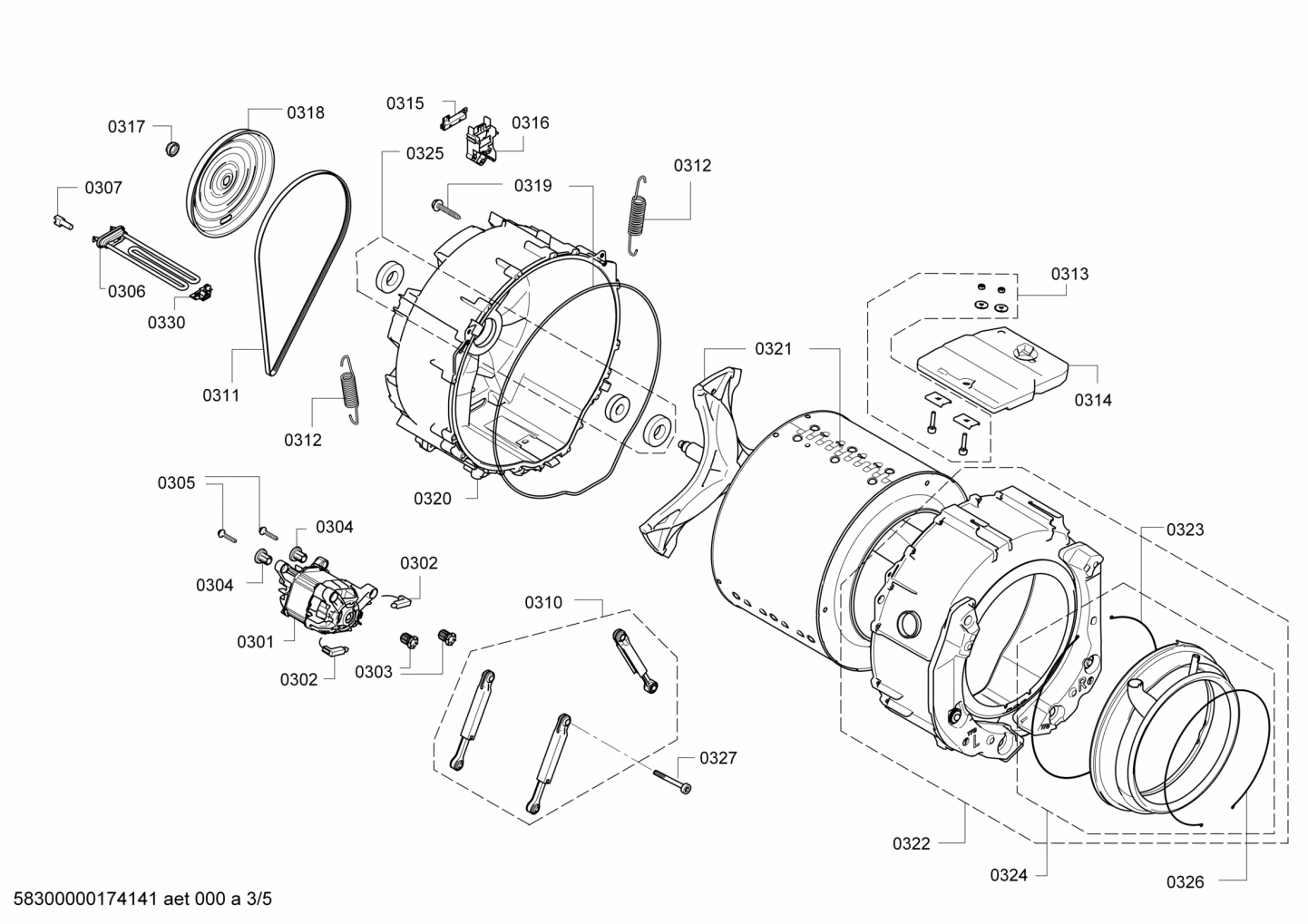

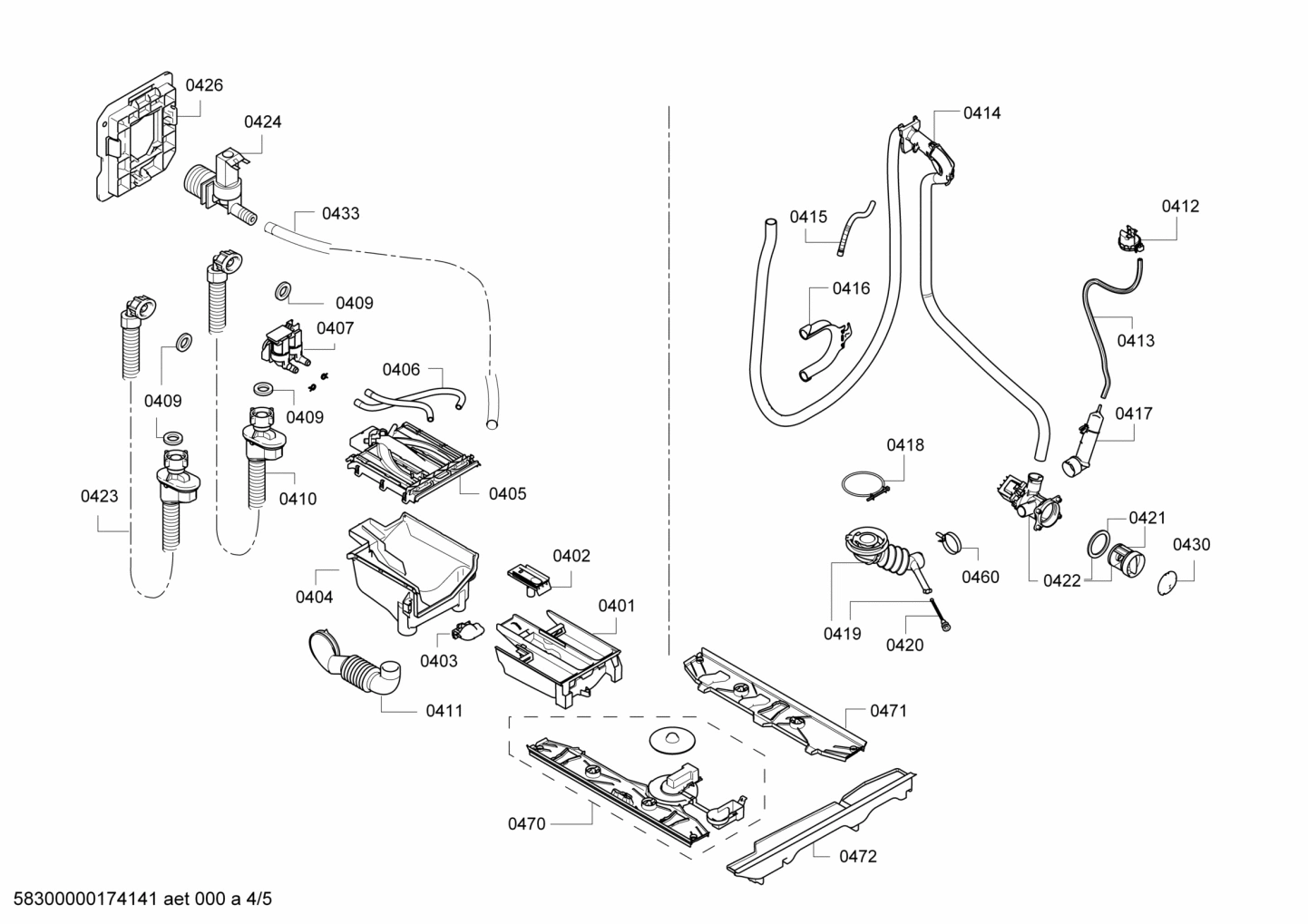

Model Bosch WAP24202UC/14 Washer – Common Parts & Diagrams

Common parts from model Bosch WAP24202UC/14 Washer
