Model Bosch WAE284A0/19 Washer – Common Parts & Diagrams

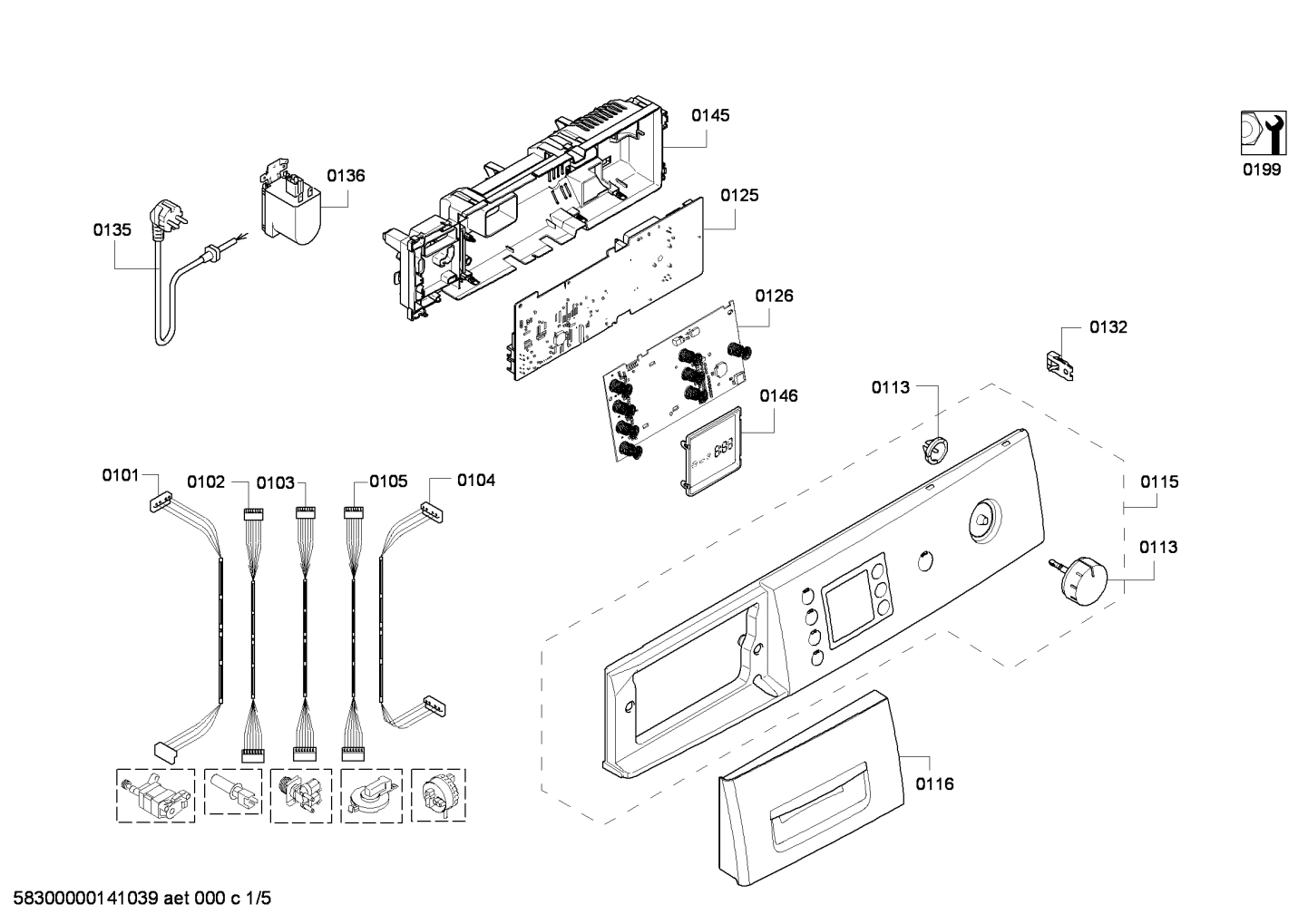

Diagram 1

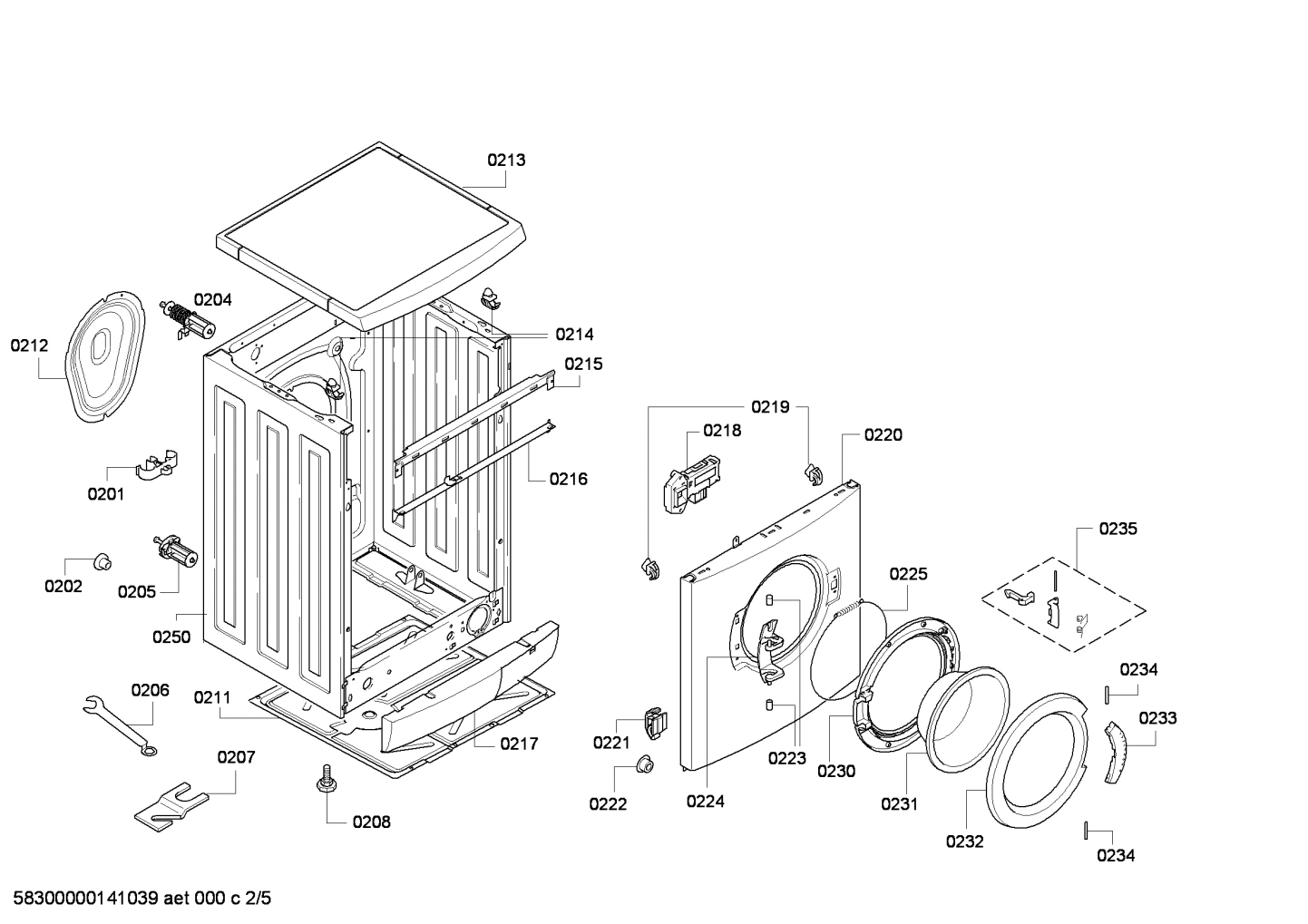

Diagram 2

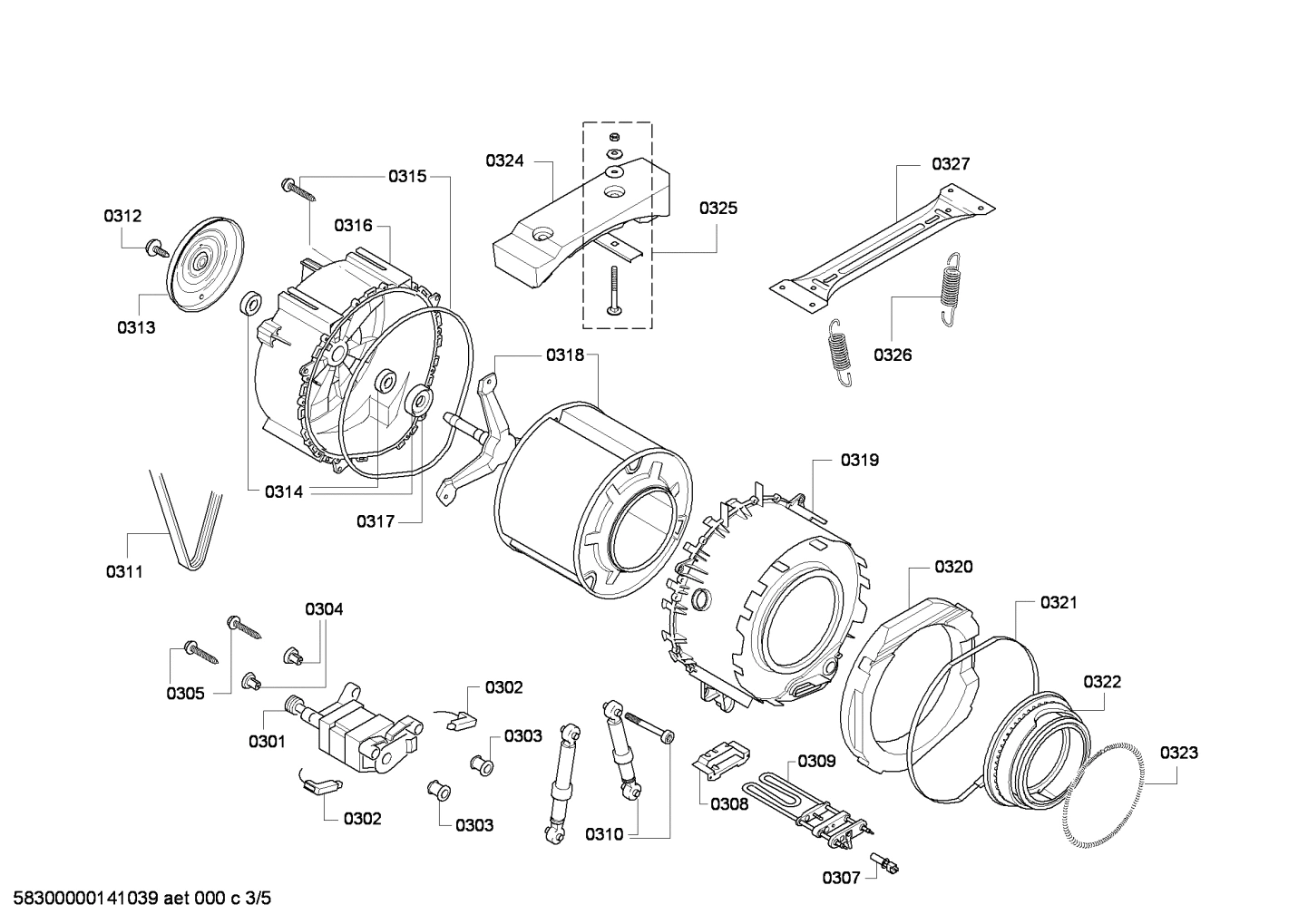

Diagram 3

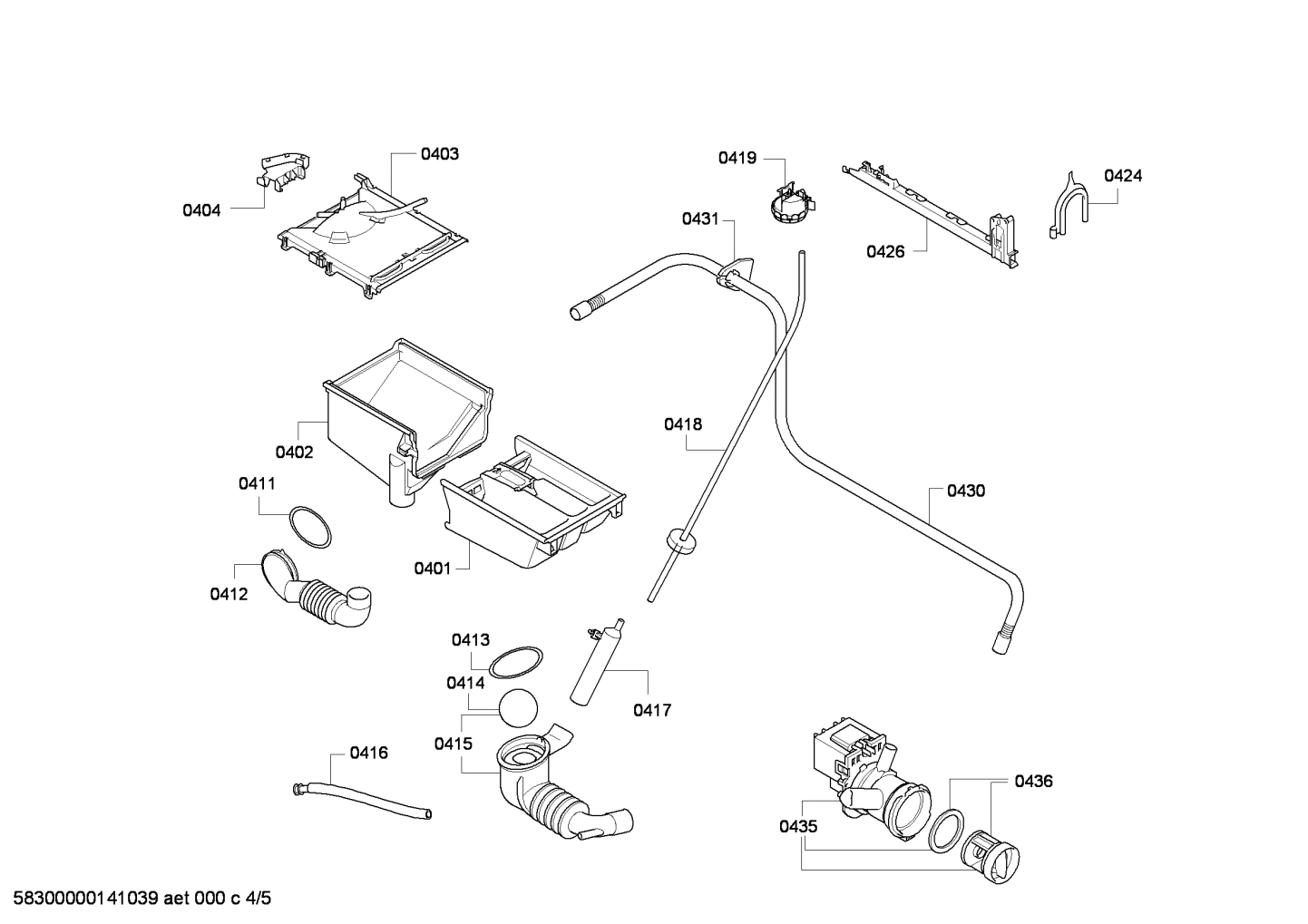

Diagram 4

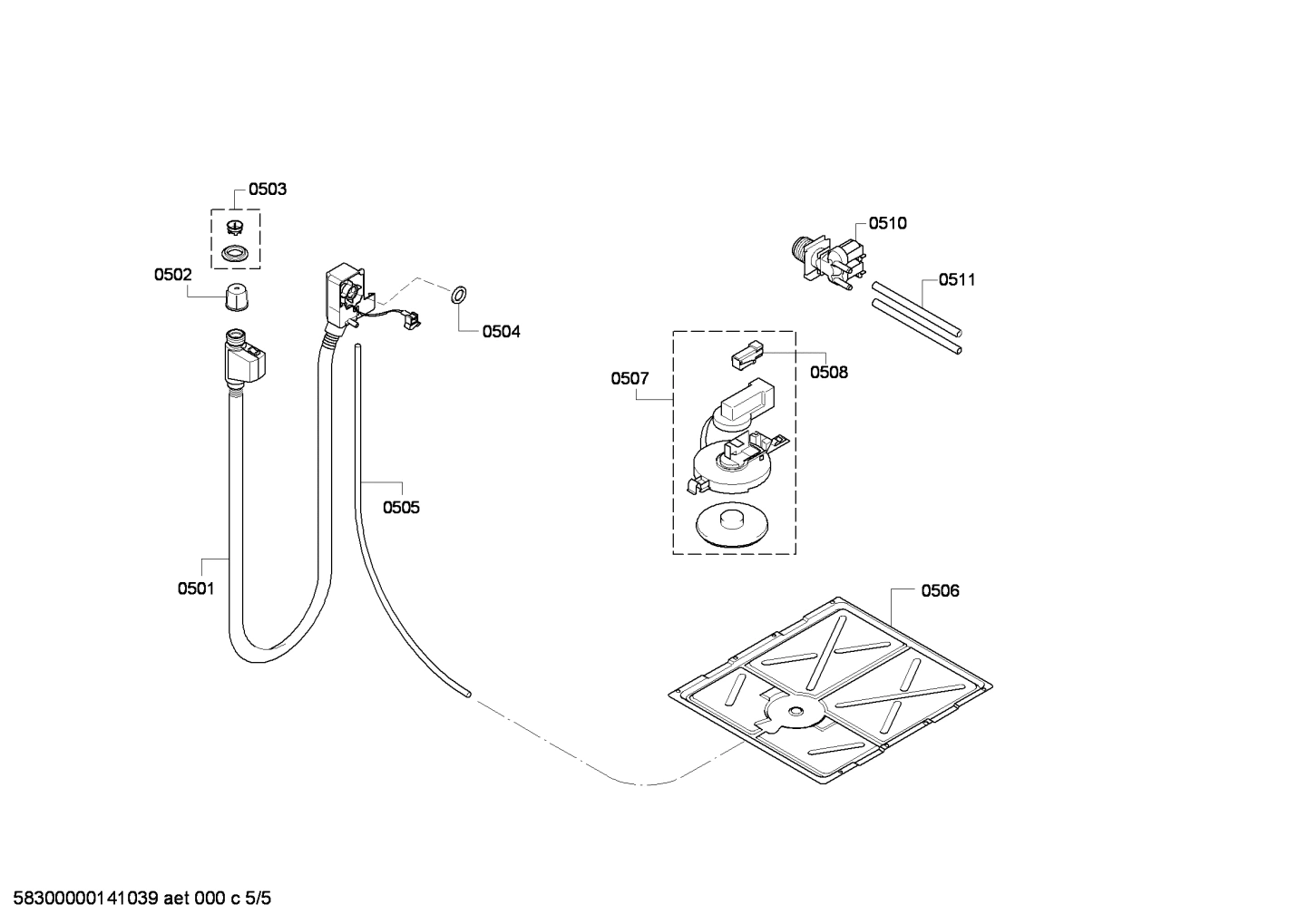

Diagram 5
Common parts from model Bosch WAE284A0/19 Washer
0136
Capacitor-interference suppre. BOS 00623842 Contact Us For Availability
0207
Kit to Attach Washer to Floor/Pedestal BOS 00493529 Contact Us For Availability
0208
Washer Foot BOS 00610643 Contact Us For Availability
0220
Front panel BOS 00235567 Contact Us For Availability
0222
Holder BOS 00606923 Contact Us For Availability
0223
Bushing BOS 00171264 Contact Us For Availability
0224
Hinge-window BOS 00171269 Contact Us For Availability
0225
fastening ring BOS 00439671 Contact Us For Availability
0230
Ring BOS 00432073 Contact Us For Availability
0231
Window BOS 11020392 Contact Us For Availability
0233
Handle BOS 00266751 Contact Us For Availability
0234
Axis BOS 00171255 Contact Us For Availability
0235
Latch BOS 00634207 Contact Us For Availability
0301
Motor BOS 00145678 Contact Us For Availability
0302
Carbon Brush BOS 00154740 Contact Us For Availability
0303
Holder BOS 00168798 Contact Us For Availability
0304
Fixture BOS 00171272 Contact Us For Availability
0307
Sensor-NTC BOS 00170961 Contact Us For Availability
0308
Holder BOS 00171273 Contact Us For Availability
0311
Drive Belt BOS 00439490 Contact Us For Availability
0314
Bearing set BOS 00172686 Contact Us For Availability
0322
Boot Gasket BOS 00354135 Contact Us For Availability
0323
fastening ring BOS 00354134 Contact Us For Availability
0326
Spring-tank BOS 00606818 Contact Us For Availability
0401
Dispenser tray BOS 00703270 Contact Us For Availability
0403
Dispenser case BOS 11035255 Contact Us For Availability
0411
fastening ring BOS 00421488 Contact Us For Availability
0412
Hose-fill BOS 00265958 Contact Us For Availability
0413
fastening ring BOS 00603523 Contact Us For Availability
0414
Ball-sump BOS 00171263 Contact Us For Availability
0417
Pressure chamber BOS 00424981 Contact Us For Availability
0418
Hose-pressure chamber BOS 00491919 Contact Us For Availability
0419
Regulator-water level BOS 00428683 Contact Us For Availability
0424
Holder BOS 00655300 Contact Us For Availability
0430
Outlet hose BOS 00354124 Contact Us For Availability
0436
Dryer Filter BOS 00647920 Contact Us For Availability
0503
Sealing BOS 00166671 Contact Us For Availability
0504
Filter-water inlet BOS 00027780 Contact Us For Availability
0511
Hose-valve/soap box BOS 00171262 Contact Us For Availability
× ![]()
