Bosch WAE28492/16 Washer Parts List

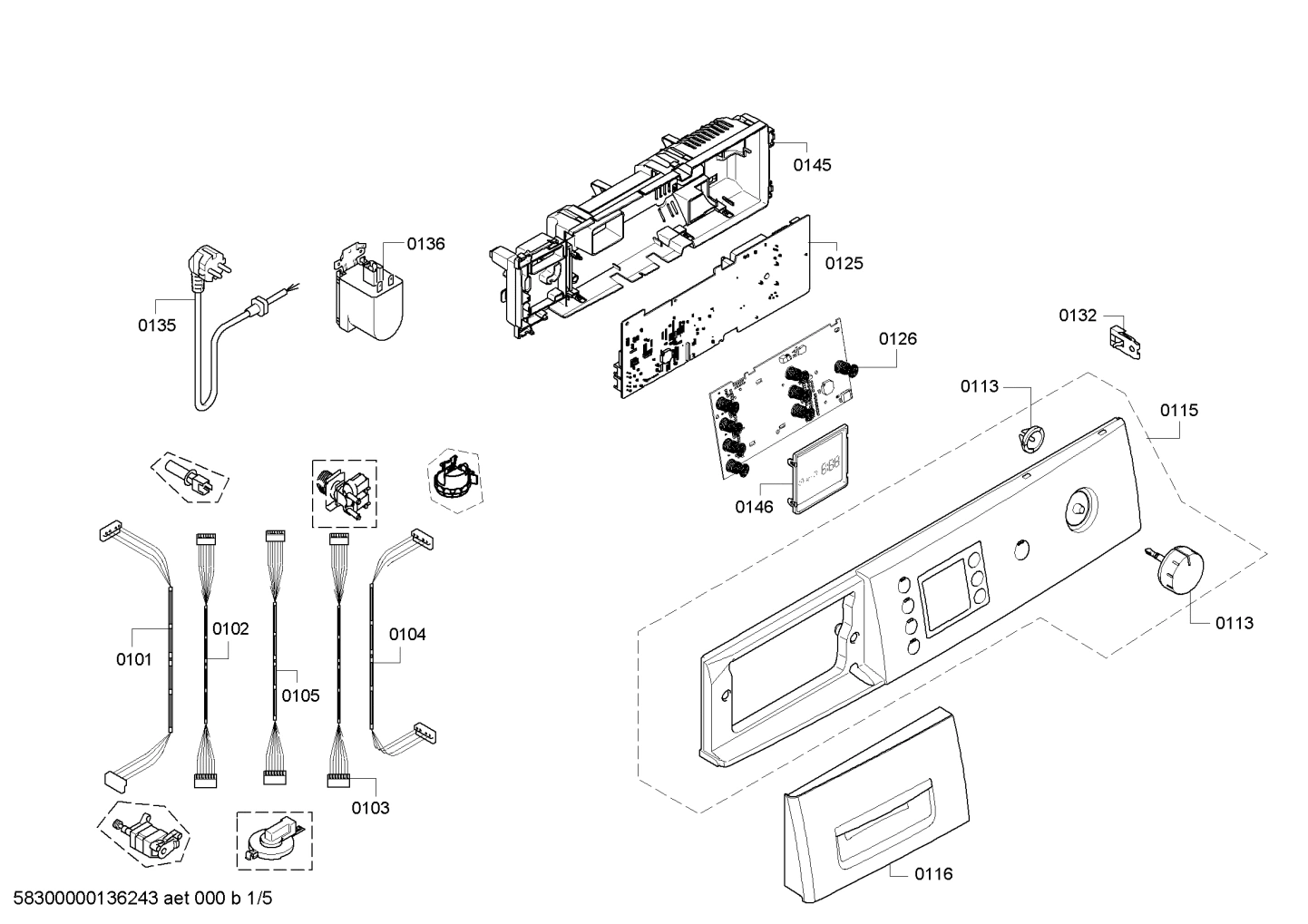

0136

00623842 Bosch Laundry Suppression Capacitor Backorder BOS 00623842 $52.11

View on Model

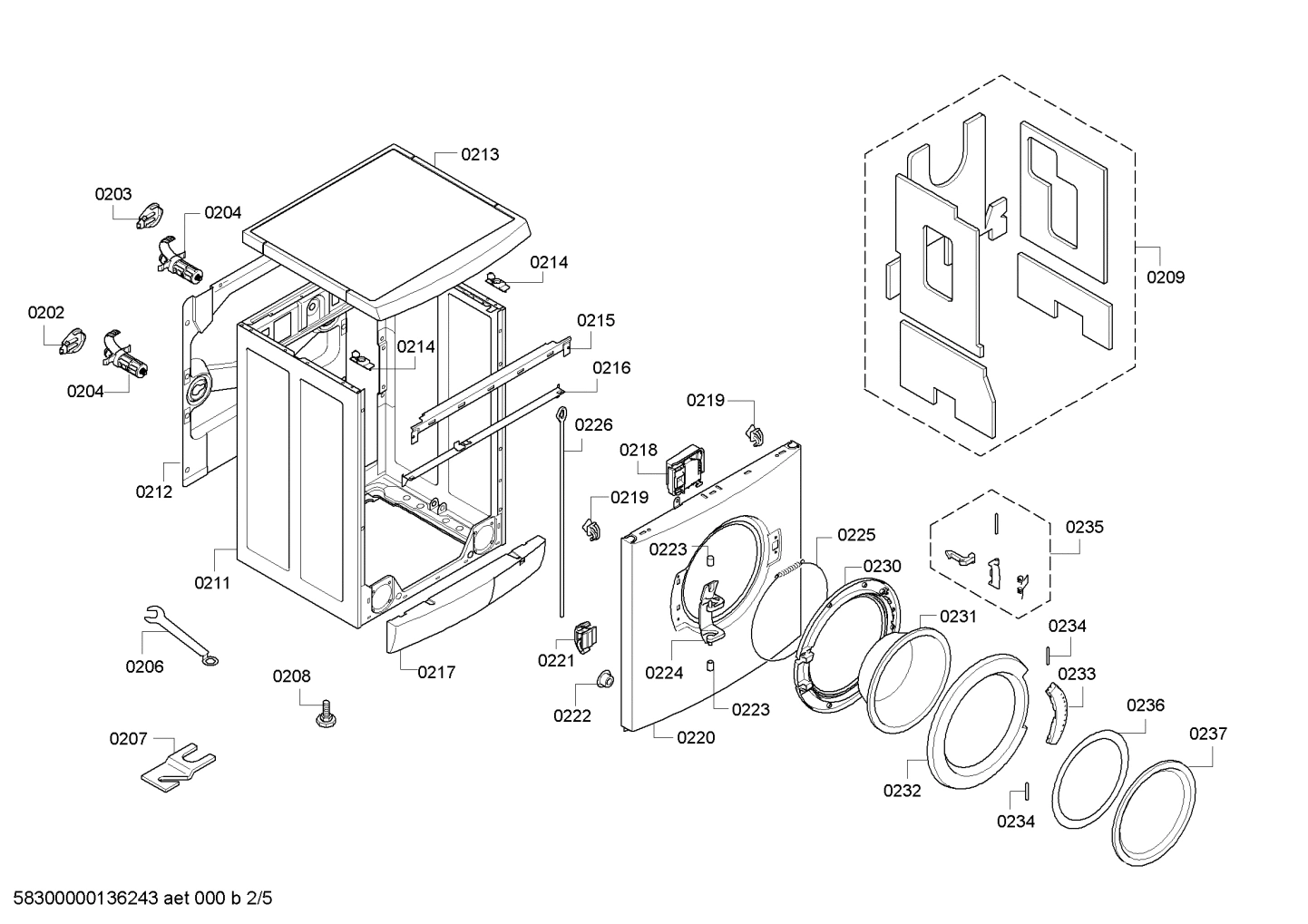

0206

00416875 Bosch Auxiliary Tool Backorder BOS 00416875 $2.90

View on Model

0207

00493529 Bosch Laundry Fixing Kit Backorder BOS 00493529 $55.97

View on Model

0208

00610643 Bosch Laundry Foot Assembly In Stock BOS 00610643 $10.62

View on Model

0217

00669408 Bosch Laundry Base Panel Backorder BOS 00669408 $73.54

View on Model

0220

00235567 Bosch Laundry Front Panel Backorder BOS 00235567 $200.88

View on Model

0222

00606923 Bosch Laundry Holder Backorder BOS 00606923 $5.79

View on Model

0223

00171264 Bosch Laundry Bushing In Stock BOS 00171264 $17.37

View on Model

0224

00171269 Bosch Laundry Hinge Window Backorder BOS 00171269 $33.29

View on Model

0225

00439671 Bosch Laundry Fastening Ring In Stock BOS 00439671 $14.96

View on Model

0232

Frame-window BOS 00672818 Contact Us For Availability

View on Model

0233

00647449 Bosch Laundry Handle Backorder BOS 00647449 $50.66

View on Model

0234

00171255 Bosch Laundry Axis Backorder BOS 00171255 $14.48

View on Model

0235

00634207 Bosch Washer Latch In Stock BOS 00634207 $55.01

View on Model

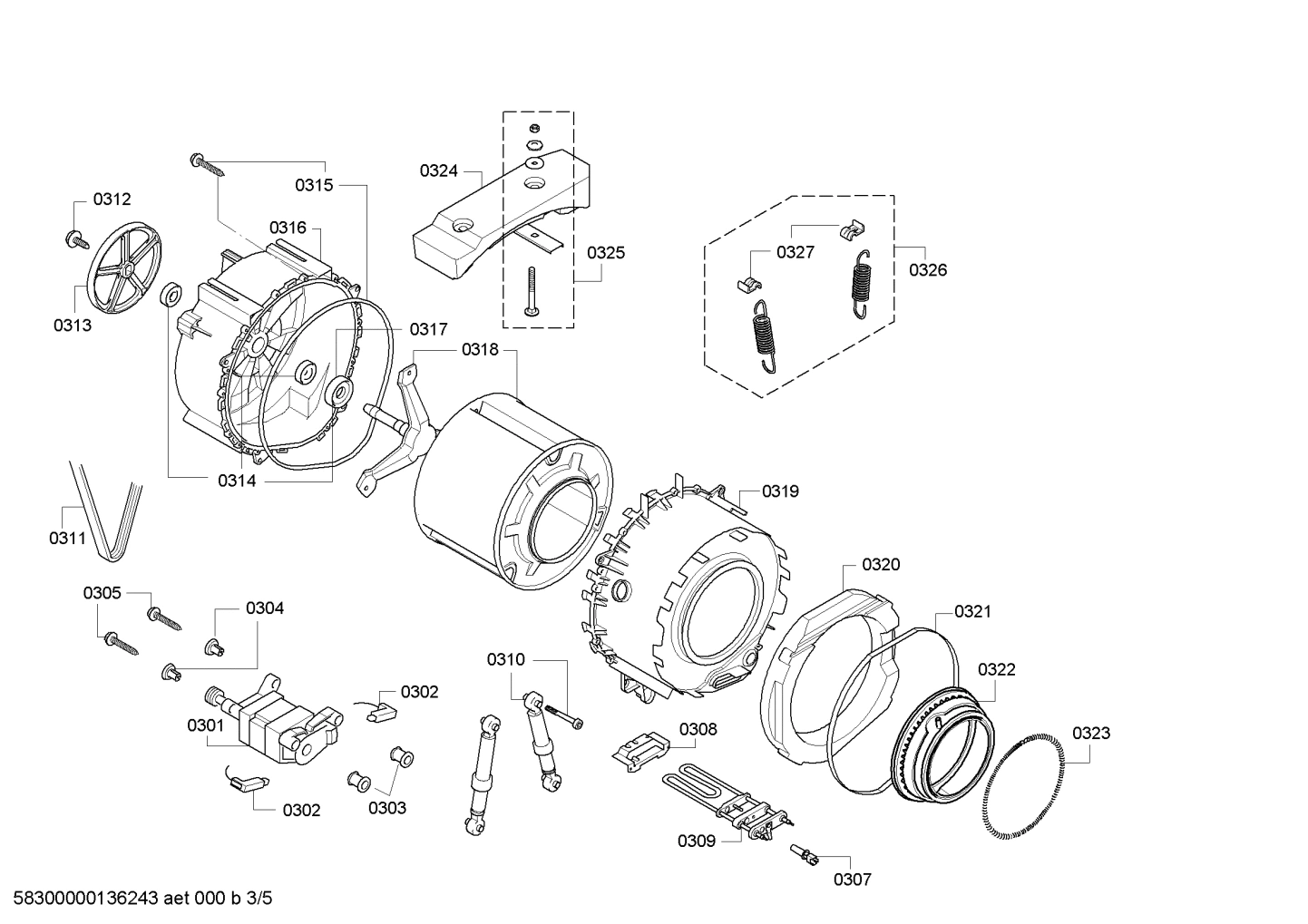

0302

00605694 Bosch Laundry Carbon Brush In Stock BOS 00605694 $46.32

View on Model

0303

00168798 Bosch Laundry Holder Backorder BOS 00168798 $4.34

View on Model

0304

00171272 Bosch Laundry Fixture Backorder BOS 00171272 $6.76

View on Model

0305

10007126 Bosch Laundry Screw Backorder BOS 10007126 $3.86

View on Model

0308

Holder BOS 00171273 Contact Us For Availability

View on Model

0311

00439490 Bosch Washer Drive Belt In Stock BOS 00439490 $37.64

View on Model

0312

00171270 Bosch Screw Backorder BOS 00171270 $3.86

View on Model

0313

11002942 Bosch Laundry Pulley Backorder BOS 11002942 $57.42

View on Model

0319

00715100 Bosch Laundry Tub Backorder BOS 00715100 $261.80

View on Model

0321

00265965 Bosch Laundry Band Backorder BOS 00265965 $39.57

View on Model

0322

00361127 Bosch Washer Boot Gasket In Stock BOS 00361127 $75.92

View on Model

0323

00354134 Bosch Laundry Fastening Ring Backorder BOS 00354134 $9.17

View on Model

0325

00631639 Bosch Laundry Fixing Kit Backorder BOS 00631639 $28.47

View on Model

0326

00642529 Bosch Laundry Spring Tank Backorder BOS 00642529 $42.46

View on Model

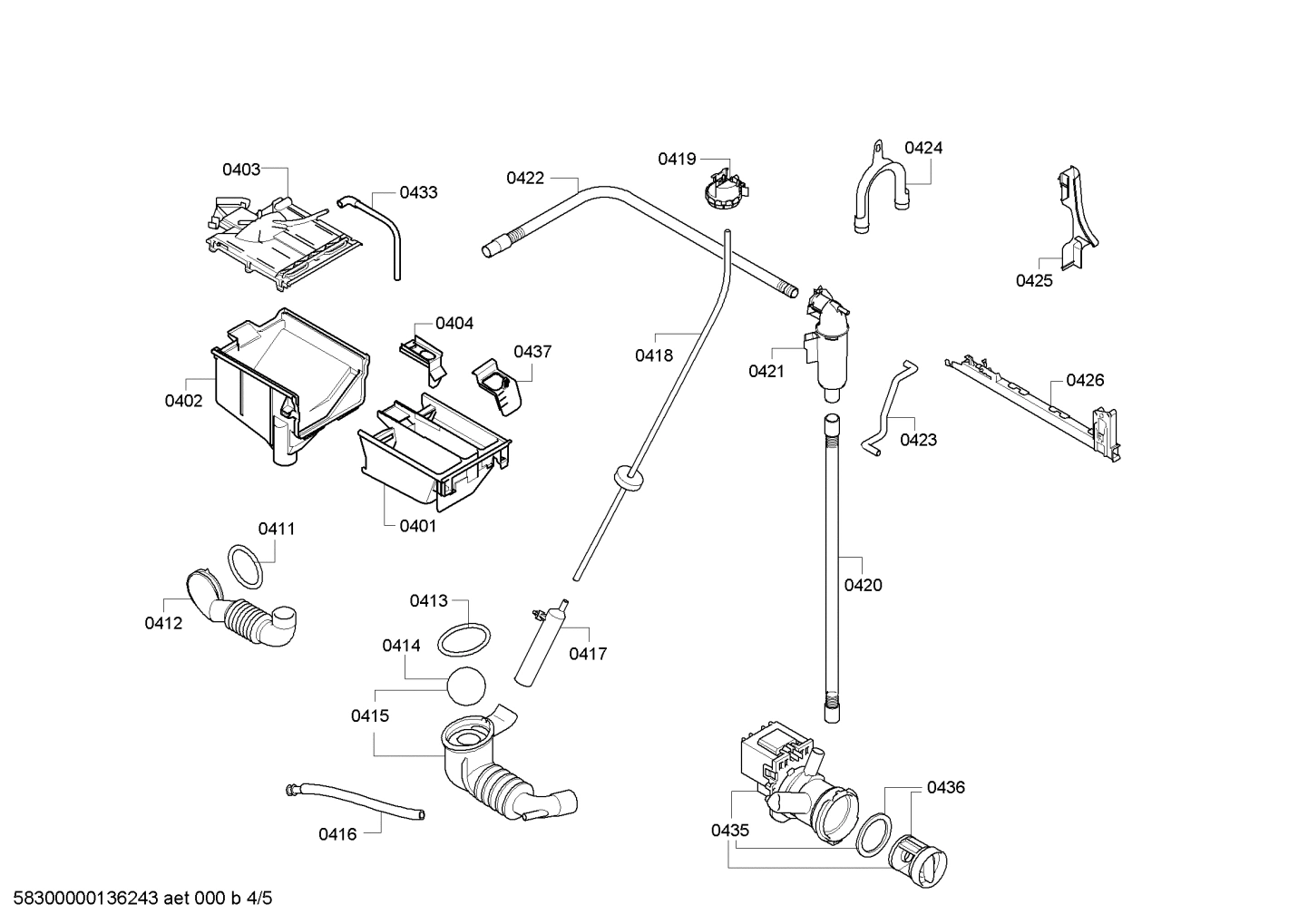

0401

00361166 Bosch Laundry Dispenser Tray Backorder BOS 00361166 $43.91

View on Model

0404

00182245 Bosch Laundry Siphon Device Backorder BOS 00182245 $9.17

View on Model

0411

00421488 Bosch Laundry Fastening Ring Backorder BOS 00421488 $6.76

View on Model

0412

00265958 Bosch Laundry Fill Hose Backorder BOS 00265958 $23.64

View on Model

0413

00603523 Bosch Fastening Ring Backorder BOS 00603523 $13.51

View on Model

0414

00171263 Bosch Laundry Sump Ball Backorder BOS 00171263 $12.55

View on Model

0415

00480436 Bosch Laundry Eco Hose Backorder BOS 00480436 $26.54

View on Model

0416

00421214 Bosch Laundry Drain Hose Backorder BOS 00421214 $13.03

View on Model

0417

Pressure chamber BOS 00424981 Contact Us For Availability

View on Model

0419

00637136 Bosch Washer Analog Pressure Sensor Backorder BOS 00637136 $38.60

View on Model

0420

00358305 Bosch Laundry Hose In Stock BOS 00358305 $21.71

View on Model

0421

00358304 Bosch Laundry Return Container Backorder BOS 00358304 $63.99

View on Model

0422

Drain Hose BOS 00358306 Contact Us For Availability

View on Model

0423

00175789 Bosch Laundry Vent Hose Backorder BOS 00175789 $31.85

View on Model

0424

00655300 Bosch Laundry Holder Backorder BOS 00655300 $14.96

View on Model

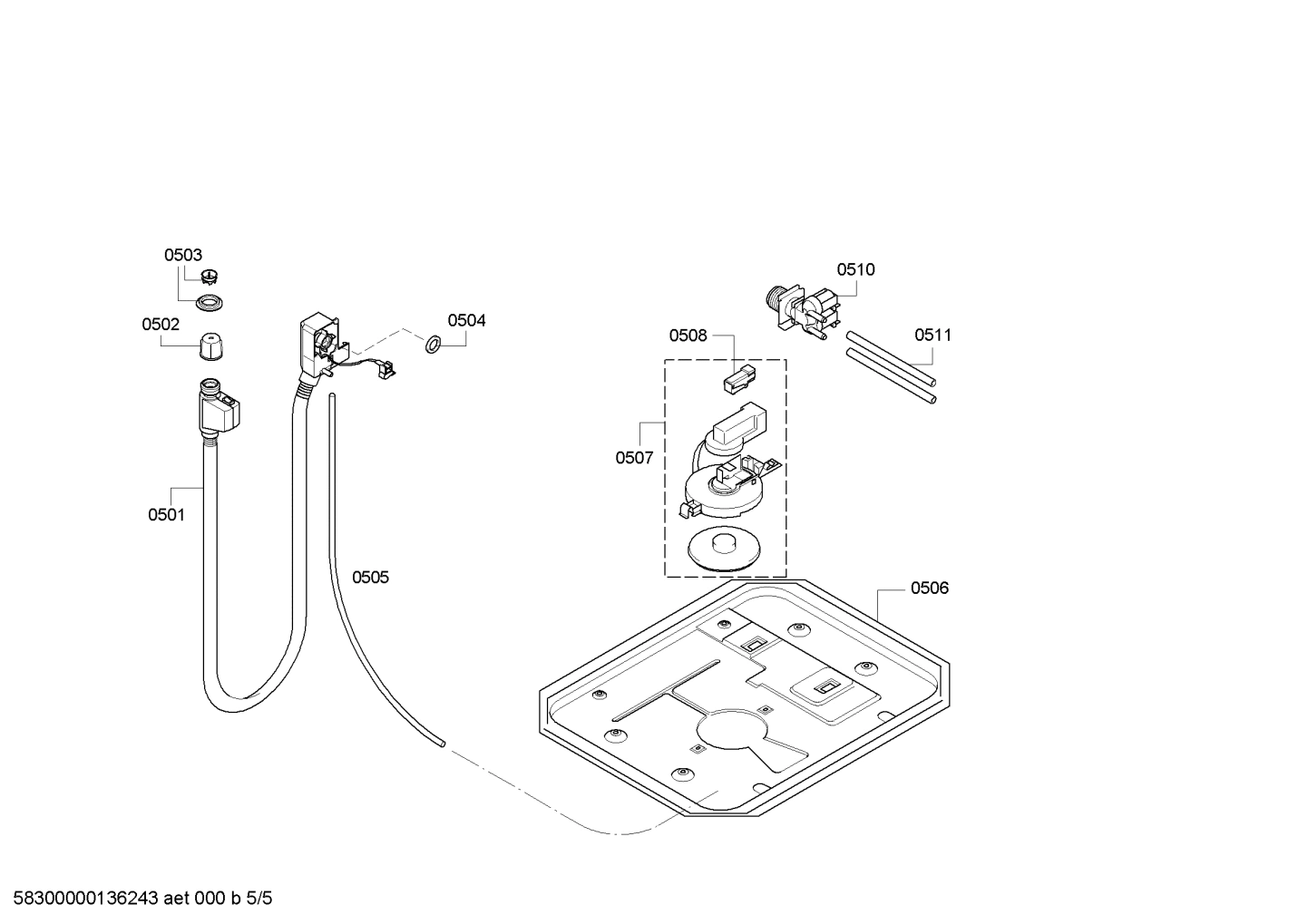

0503

00166671 Bosch Dishwasher Seal Backorder BOS 00166671 $24.13

View on Model

0504

00027780 Bosch Laundry Inlet Water Filter Backorder BOS 00027780 $14.96

View on Model

0511

00171262 Bosch Laundry Valve Hose Soap Box Backorder BOS 00171262 $31.36

View on Model

Model Bosch WAE28492/16 Washer – Common Parts & Diagrams

Common parts from model Bosch WAE28492/16 Washer
