Model Bosch WAE24492/15 Washer – Common Parts & Diagrams

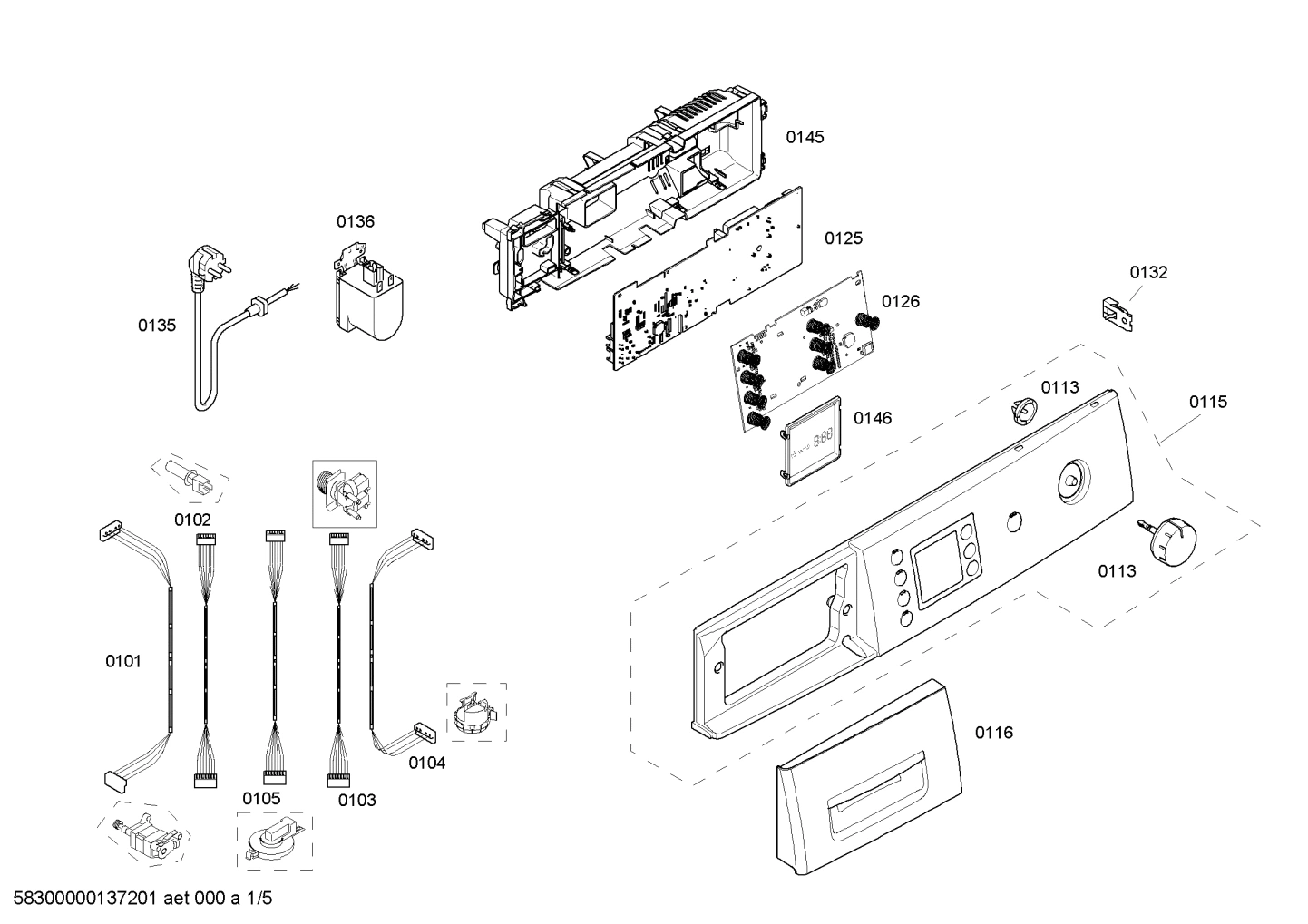

Diagram 1

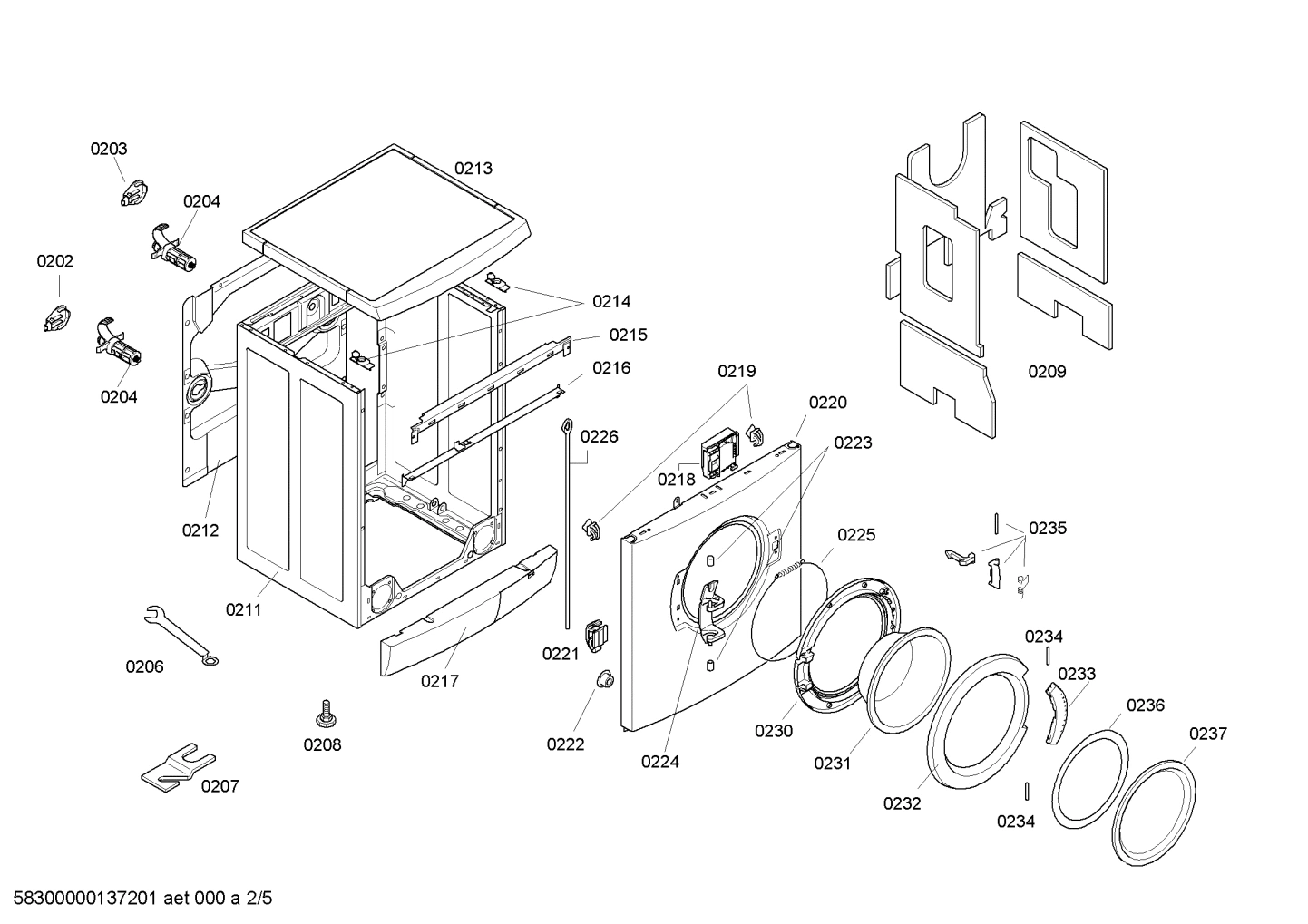

Diagram 2

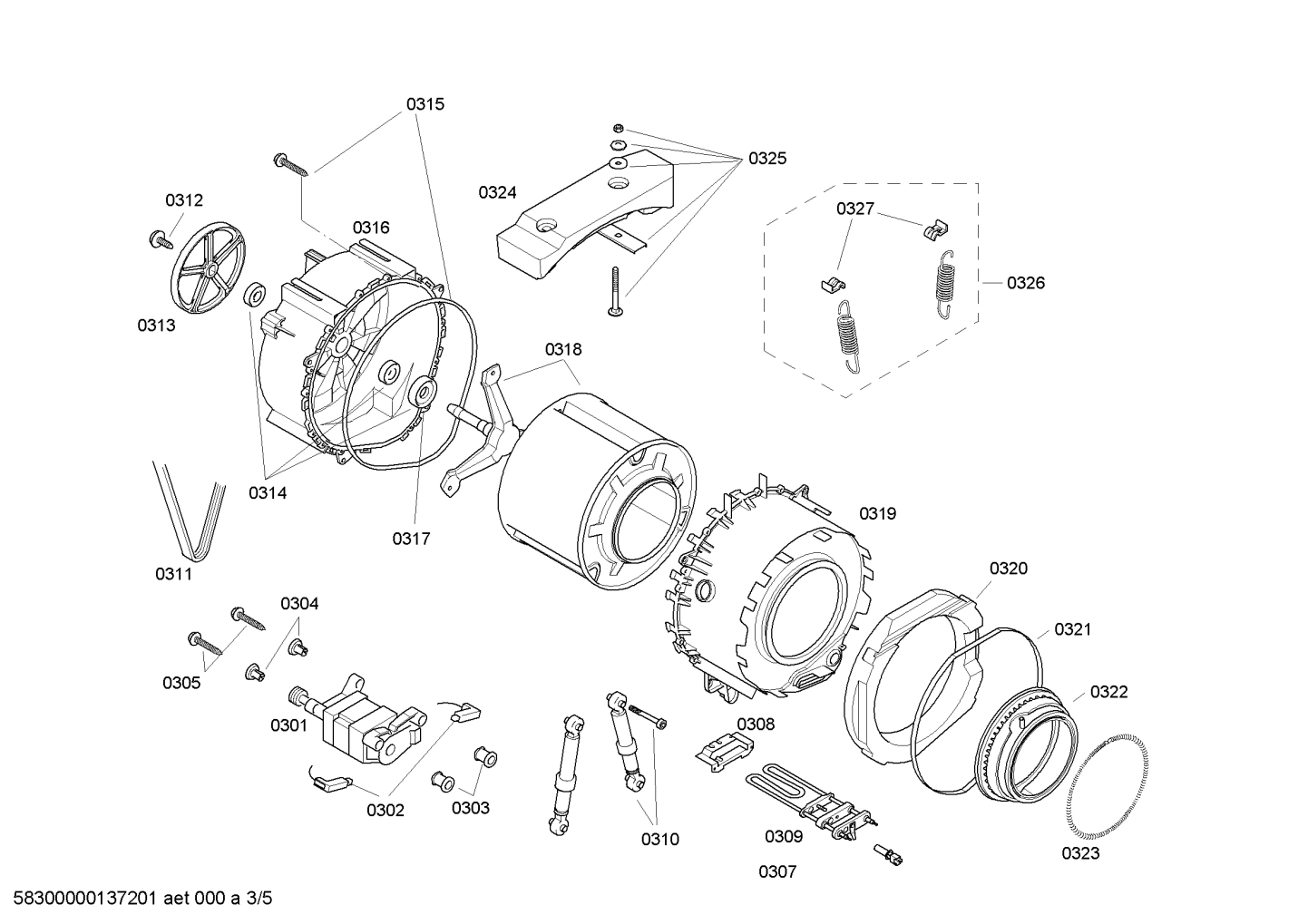

Diagram 3
Diagram 4

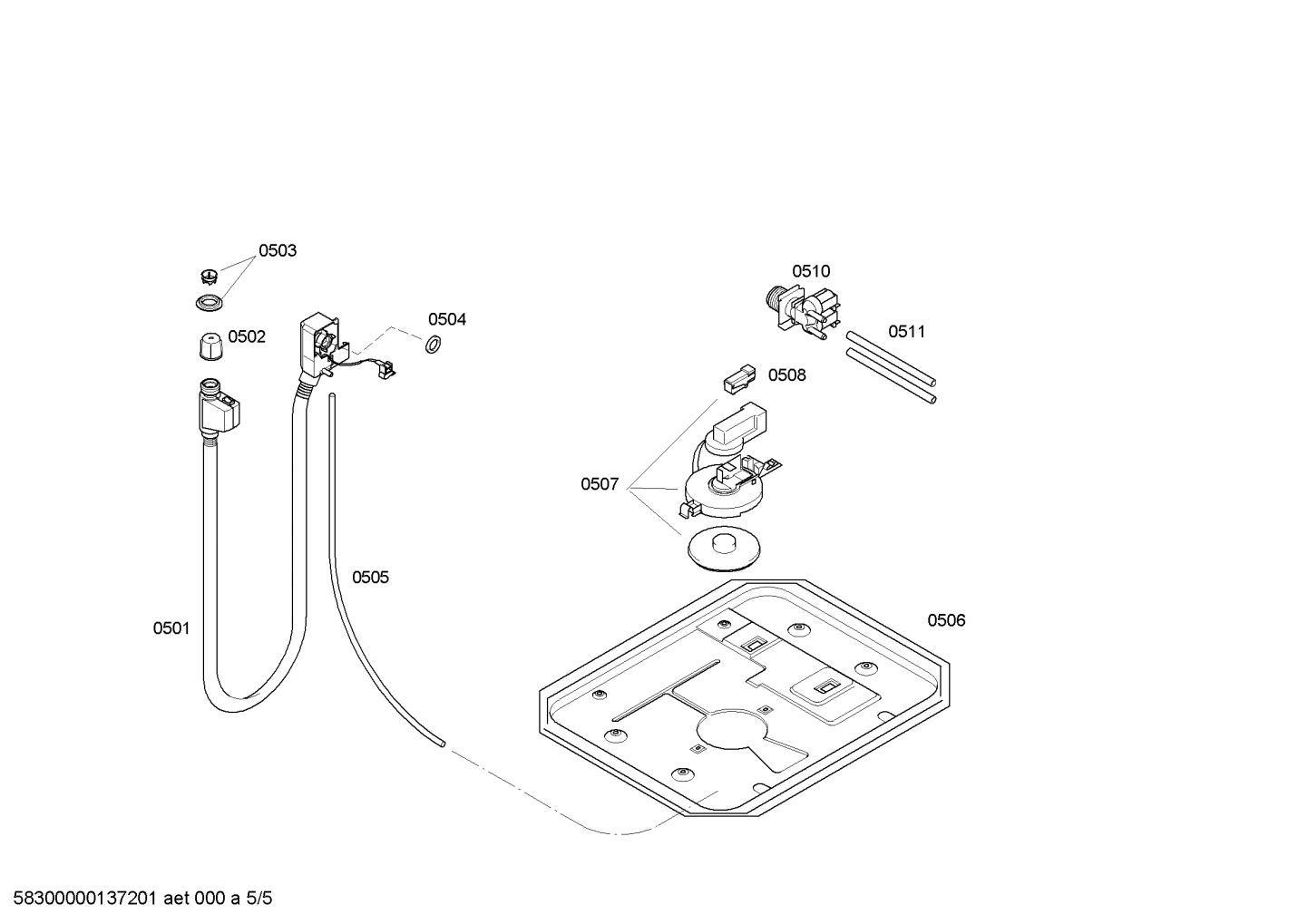

Diagram 5
Common parts from model Bosch WAE24492/15 Washer
0136
Capacitor-interference suppre. BOS 00623842 Contact Us For Availability
0206
Auxiliary tool BOS 00416875 Contact Us For Availability
0207
Kit to Attach Washer to Floor/Pedestal BOS 00493529 Contact Us For Availability
0208
Washer Foot BOS 00610643 Contact Us For Availability
0217
Panel-base BOS 00669408 Contact Us For Availability
0220
Front panel BOS 00235567 Contact Us For Availability
0222
Holder BOS 00606923 Contact Us For Availability
0223
Bushing BOS 00171264 Contact Us For Availability
0224
Hinge-window BOS 00171269 Contact Us For Availability
0225
fastening ring BOS 00439671 Contact Us For Availability
0234
Axis BOS 00171255 Contact Us For Availability
0235
Latch BOS 00634207 Contact Us For Availability
0302
Carbon Brush BOS 00154740 Contact Us For Availability
0303
Holder BOS 00168798 Contact Us For Availability
0304
Fixture BOS 00171272 Contact Us For Availability
0307
Sensor-NTC BOS 00170961 Contact Us For Availability
0308
Holder BOS 00171273 Contact Us For Availability
0311
Drive Belt BOS 00439490 Contact Us For Availability
0312
Screw BOS 00171270 Contact Us For Availability
0313
Pulley BOS 11002942 Contact Us For Availability
0314
Bearing set BOS 00172686 Contact Us For Availability
0316
Tub BOS 00236013 Contact Us For Availability
0318
Drum BOS 00773699 Contact Us For Availability
0319
Tub BOS 00715100 Contact Us For Availability
0321
Band BOS 00265965 Contact Us For Availability
0322
Boot Gasket BOS 00361127 Contact Us For Availability
0323
fastening ring BOS 00354134 Contact Us For Availability
0325
Fixing kit BOS 00631639 Contact Us For Availability
0326
Spring-tank BOS 00642529 Contact Us For Availability
0401
Dispenser tray BOS 00361166 Contact Us For Availability
0404
Siphon-device BOS 00182245 Contact Us For Availability
0411
fastening ring BOS 00421488 Contact Us For Availability
0412
Hose-fill BOS 00265958 Contact Us For Availability
0413
fastening ring BOS 00603523 Contact Us For Availability
0414
Ball-sump BOS 00171263 Contact Us For Availability
0415
Eco-hose-sump BOS 00480436 Contact Us For Availability
0416
Drain hose BOS 00421214 Contact Us For Availability
0417
Pressure chamber BOS 00424981 Contact Us For Availability
0419
Analogue pressure sensor BOS 00637136 Contact Us For Availability
0420
Hose BOS 00358305 Contact Us For Availability
0421
Container return BOS 00358304 Contact Us For Availability
0423
Hose-vent BOS 00175789 Contact Us For Availability
0424
Holder BOS 00655300 Contact Us For Availability
0436
Dryer Filter BOS 00647920 Contact Us For Availability
0503
Sealing BOS 00166671 Contact Us For Availability
0504
Filter-water inlet BOS 00027780 Contact Us For Availability
0511
Hose-valve/soap box BOS 00171262 Contact Us For Availability
× ![]()
