Samsung WA56H9000AP/A2-00 Washer Parts List

1

DC29-00021A Samsung Washer Noise Filter Assem Backorder SMG DC29-00021A $119.44

View on Model

1

DC61-03174A Samsung Fixer Cover Top Backorder SMG DC61-03174A $5.75

View on Model

1

DC65-00019A Samsung Washer Hose Clamper Backorder SMG DC65-00019A $5.89

View on Model

1

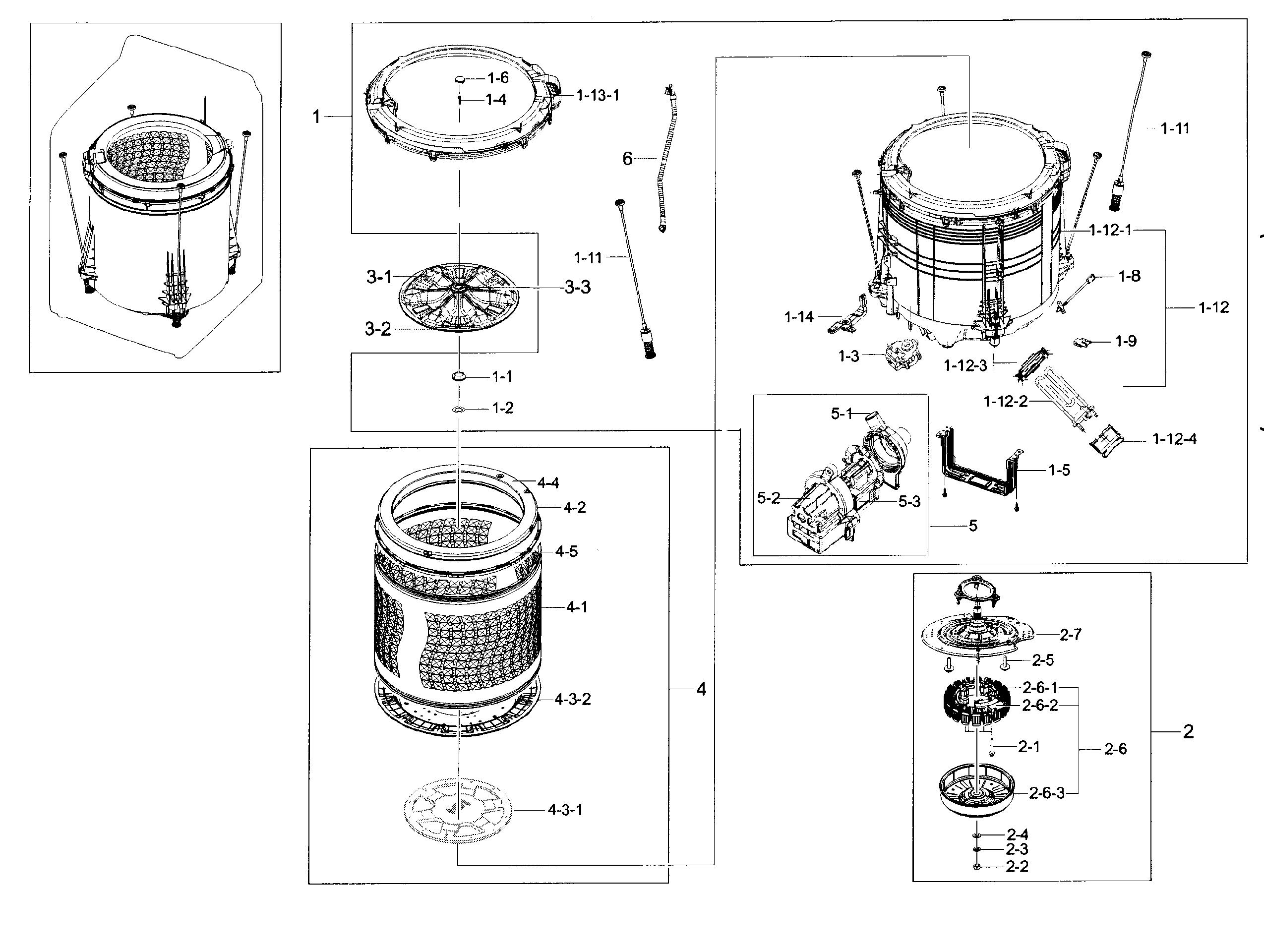

Outer Tub SMG DC90-15172A Contact Us For Availability

View on Model

1-1

6021-001588 Samsung Washer Hexagon Nut Backorder SMG 6021-001588 $4.07

View on Model

1-2

DC60-60011B Samsung Washer Wave Assembly Backorder SMG DC60-60011B $4.07

View on Model

1-3

DC31-00090B Samsung Washer Drain Clutch Motor In Stock SMG DC31-00090B $73.39

View on Model

1-4

DC60-40133A Samsung Washer Pulsator Bolt Backorder SMG DC60-40133A $5.42

View on Model

1-5

DC61-02329A Samsung Cushion Support Backorder SMG DC61-02329A $26.15

View on Model

1-6

DC66-00032E Samsung Cap Pulsator Backorder SMG DC66-00032E $16.29

View on Model

1-8

DC90-10128N Samsung Washer Water Temperature In Stock SMG DC90-10128N $28.18

View on Model

1-9

DC93-00278B Samsung Washer Vibration MEMS Sen In Stock SMG DC93-00278B $80.53

View on Model

1-11

DC97-05280V Samsung Damper Assembly In Stock SMG DC97-05280V $74.41

View on Model

1-12

Semi Tub SMG DC97-18153A Contact Us For Availability

View on Model

1-14

DC97-15606A Samsung Clutch Lever Assembly Backorder SMG DC97-15606A $61.46

View on Model

2

DC65-00039A Samsung Clamper Hose Assembly for Backorder SMG DC65-00039A $2.26

View on Model

2

Washer Door Lock Assembly SMG DC34-00025A Contact Us For Availability

View on Model

2

Drive Motor SMG DC90-12930A Contact Us For Availability

View on Model

2-1

6011-001627 Samsung Appliance Bolt, Etc In Stock SMG 6011-001627 $4.52

View on Model

2-3

DC60-60046A Samsung Washer Spring Backorder SMG DC60-60046A $0.97

View on Model

2-4

6031-001531 Samsung WASHER-PLAIN;CR-SPCC,ZPC, Backorder SMG 6031-001531 $0.97

View on Model

2-5

DC97-14006C Samsung Assembly Screw Backorder SMG DC97-14006C $2.05

View on Model

2-6

Washer Drive Motor SMG DC93-00236B Contact Us For Availability

View on Model

2-7

DC97-15494F Samsung Clutch Assembly WA9000HA Backorder SMG DC97-15494F $332.33

View on Model

2-8

DC63-01069A Samsung Cushion Clutch Assembly Backorder SMG DC63-01069A $14.03

View on Model

2-61

DC31-00098A Samsung Washer Motor Rotor Positi In Stock SMG DC31-00098A $66.11

View on Model

2-62

DC31-00124B Samsung Motor Backorder SMG DC31-00124B $257.15

View on Model

2-63

DC31-00125B Samsung Motor Brushless Direct Cu Backorder SMG DC31-00125B $206.98

View on Model

3

DC61-03400A Samsung Clip Backorder SMG DC61-03400A $1.81

View on Model

3

DC61-03876A Samsung Hose Holder Backorder SMG DC61-03876A $2.72

View on Model

3-1

Pulsator SMG DC66-00809A Contact Us For Availability

View on Model

3-2

Pulsator SMG DC66-00808A Contact Us For Availability

View on Model

3-3

Bushing Pulsator SMG DC61-03748A Contact Us For Availability

View on Model

4

DC92-01588A Samsung Assembly Main Printed Cir Backorder SMG DC92-01588A $266.46

View on Model

4

DC97-18034A Samsung Assembly Spin Basket WA90 Backorder SMG DC97-18034A $344.10

View on Model

4

Hose Holder SMG DC61-03268A Contact Us For Availability

View on Model

4-1

6011-004242 Samsung Washer Hex Bolt M6.0 L40. Backorder SMG 6011-004242 $9.50

View on Model

4-1

Basket SMG DC61-03734A Contact Us For Availability

View on Model

4-2

DC61-01722B Samsung Washer Adjustable Levelin In Stock SMG DC61-01722B $5.42

View on Model

4-2

DC97-17962A Samsung Balance Assembly Backorder SMG DC97-17962A $160.97

View on Model

4-3

DC61-03191B Samsung Washer Rubber Leveling Le In Stock SMG DC61-03191B $22.18

View on Model

4-4

Balancer-u SMG DC63-01679A Contact Us For Availability

View on Model

4-5

Balancer-l SMG DC63-01678A Contact Us For Availability

View on Model

4-6

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $0.97

View on Model

4-31

Flange Shaft SMG DC60-00109A Contact Us For Availability

View on Model

4-32

Bow Basket SMG DC61-03729A Contact Us For Availability

View on Model

4-71

DC98-01438A Samsung F900 Pump Cushion Assembl Backorder SMG DC98-01438A $43.75

View on Model

4-74

DC61-03550A Samsung Washer Pump Bracket Assem Backorder SMG DC61-03550A $12.66

View on Model

4-76

DC62-00328A Samsung Washer Drain Check Valve Backorder SMG DC62-00328A $79.82

View on Model

4-77

DC31-00054D Samsung Washer Water Drain Pump In Stock SMG DC31-00054D $49.14

View on Model

5

DC92-01590A Samsung Washer Control Assembly K Backorder SMG DC92-01590A $274.37

View on Model

5

DC97-16778A Samsung Assembly Pump Drain Circu Backorder SMG DC97-16778A $141.93

View on Model

5

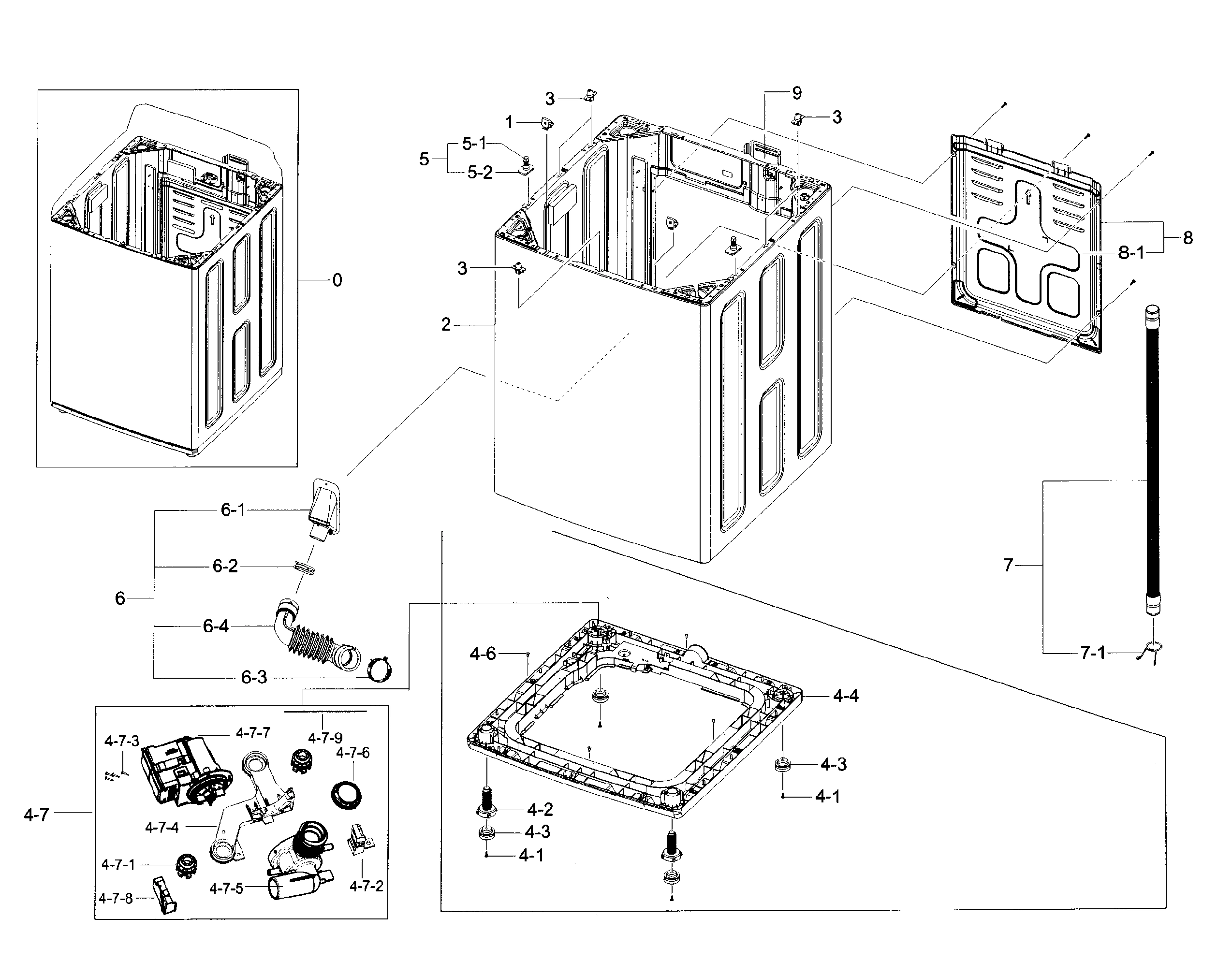

DC97-17955B Samsung Assembly Frame Backorder SMG DC97-17955B $344.10

View on Model

5-1

DC61-00201A Samsung Bracket Nut Assembly In Stock SMG DC61-00201A $1.35

View on Model

5-1

DC61-03385A Samsung Washer Pump Case Backorder SMG DC61-03385A $30.59

View on Model

5-2

DC63-01377A Samsung Pump Cover Assembly Backorder SMG DC63-01377A $23.99

View on Model

5-3

DC31-00030E Samsung Washer Drain Pump Assembl Backorder SMG DC31-00030E $124.21

View on Model

6

6501-000121 Samsung Cable Tie DA-368 T1.5 W7. Backorder SMG 6501-000121 $6.54

View on Model

6

DC92-01589A Samsung PCB Assembly Backorder SMG DC92-01589A $268.23

View on Model

6

DC97-17353A Samsung Hose Guide Assembly Backorder SMG DC97-17353A $68.11

View on Model

6

DC97-18049A Samsung Assembly Circulation Hose Backorder SMG DC97-18049A $101.65

View on Model

6-4

DC67-00601A Samsung Washer Drain Hose Backorder SMG DC67-00601A $26.25

View on Model

7

DC90-14569A Samsung Assembly Guide Pin Left Backorder SMG DC90-14569A $49.85

View on Model

7

DC97-16979A Samsung Hose Assembly (O) Backorder SMG DC97-16979A $76.06

View on Model

7

DC97-18051A Samsung Washer Drain Hose Assembl Backorder SMG DC97-18051A $93.59

View on Model

7-1

DC61-70184A Samsung Spring Clip Assembly Backorder SMG DC61-70184A $1.35

View on Model

8

DC97-15648A Samsung Assembly Water Hose Backorder SMG DC97-15648A $93.97

View on Model

8A

DC97-15648B Samsung Water Hose Assembly Backorder SMG DC97-15648B $61.12

View on Model

9

DC96-01703H Samsung Washer Pressure Sensor In Stock SMG DC96-01703H $61.77

View on Model

10

DC97-15459G Samsung Washer Inlet Valve Water In Stock SMG DC97-15459G $105.89

View on Model

11-2

DC97-16923F Samsung Hinge Assembly Backorder SMG DC97-16923F $140.21

View on Model

12

Washer Lid Assembly SMG DC97-17951A Contact Us For Availability

View on Model

12-1

DC64-02886A Samsung Assembly Door Glass Backorder SMG DC64-02886A $231.25

View on Model

12-7

DC61-03184A Samsung Washer/Dishwasher R.S. Ma Backorder SMG DC61-03184A $5.89

View on Model

13

DC93-00376A Samsung Dryer Touch Sensor Assemb Backorder SMG DC93-00376A $143.39

View on Model

13

DC97-18118A Samsung Detergent Body Assembly H Backorder SMG DC97-18118A $79.82

View on Model

14

DC97-18120A Samsung Assembly Case Detergent W Backorder SMG DC97-18120A $130.47

View on Model

15-4

DC67-00051B Samsung Drawer Hose Assembly Backorder SMG DC67-00051B $28.97

View on Model

16

DC97-18048A Samsung Bleach Drawer Assembly Backorder SMG DC97-18048A $80.45

View on Model

18

DC96-00757A Samsung Washer Power Cord Backorder SMG DC96-00757A $78.25

View on Model

19

DC47-00027A Samsung Lamp Assembly Backorder SMG DC47-00027A $74.41

View on Model

20

DC61-02281A Samsung Fixer Lamp Backorder SMG DC61-02281A $9.05

View on Model

1121

Outer Tub SMG DC61-03728A Contact Us For Availability

View on Model

1122

DC47-00036A Samsung AC120V 1200W Wash Heater Backorder SMG DC47-00036A $118.14

View on Model

1123

DC61-01447B Samsung Bracket HEATER;WA5471ABP, Backorder SMG DC61-01447B $4.07

View on Model

1124

DC63-01351A Samsung Heater Cover Assembly Backorder SMG DC63-01351A $9.50

View on Model

1131

DC63-01674A Samsung Cover Tub Backorder SMG DC63-01674A $153.24

View on Model

NI

6001-002674 Samsung Machine Screw M4 × 10 Backorder SMG 6001-002674 $0.97

View on Model

NI

6001-002750 Samsung Machine Screw In Stock SMG 6001-002750 $0.97

View on Model

NI

6002-000239 Samsung Air Conditioner Tapping S Backorder SMG 6002-000239 $0.97

View on Model

NI

6002-000241 Samsung Self Tapping Screw Backorder SMG 6002-000241 $0.97

View on Model

NI

6002-001160 Samsung Tapping Screw Backorder SMG 6002-001160 $1.35

View on Model

NI

6002-001286 Samsung Tapping Screw Backorder SMG 6002-001286 $0.97

View on Model

NI

6002-001313 Samsung Washer Hex Head Screw Backorder SMG 6002-001313 $1.35

View on Model

NI

6002-001438 Samsung Tapping Screw Backorder SMG 6002-001438 $0.97

View on Model

NI

6003-001768 Samsung Screw Tap Type Backorder SMG 6003-001768 $0.97

View on Model

NI

DC60-20057A Samsung Tapping Screw TH + No 1 M Backorder SMG DC60-20057A $0.97

View on Model

NI

DC93-00487A Samsung Wire Harness Assembly - S Backorder SMG DC93-00487A $114.42

View on Model

NI

Screw SMG 6001-000115 Contact Us For Availability

View on Model

NI

Scrw M4x14 SMG 6001-001306 Contact Us For Availability

View on Model

NI

Screw SMG 6002-000440 Contact Us For Availability

View on Model

NI

Tapping Screw SMG 6002-000494 Contact Us For Availability

View on Model

NI

Dryer Screw SMG 6002-000524 Contact Us For Availability

View on Model

NI

Washer Owner's Manual SMG DC68-03133R Contact Us For Availability

View on Model

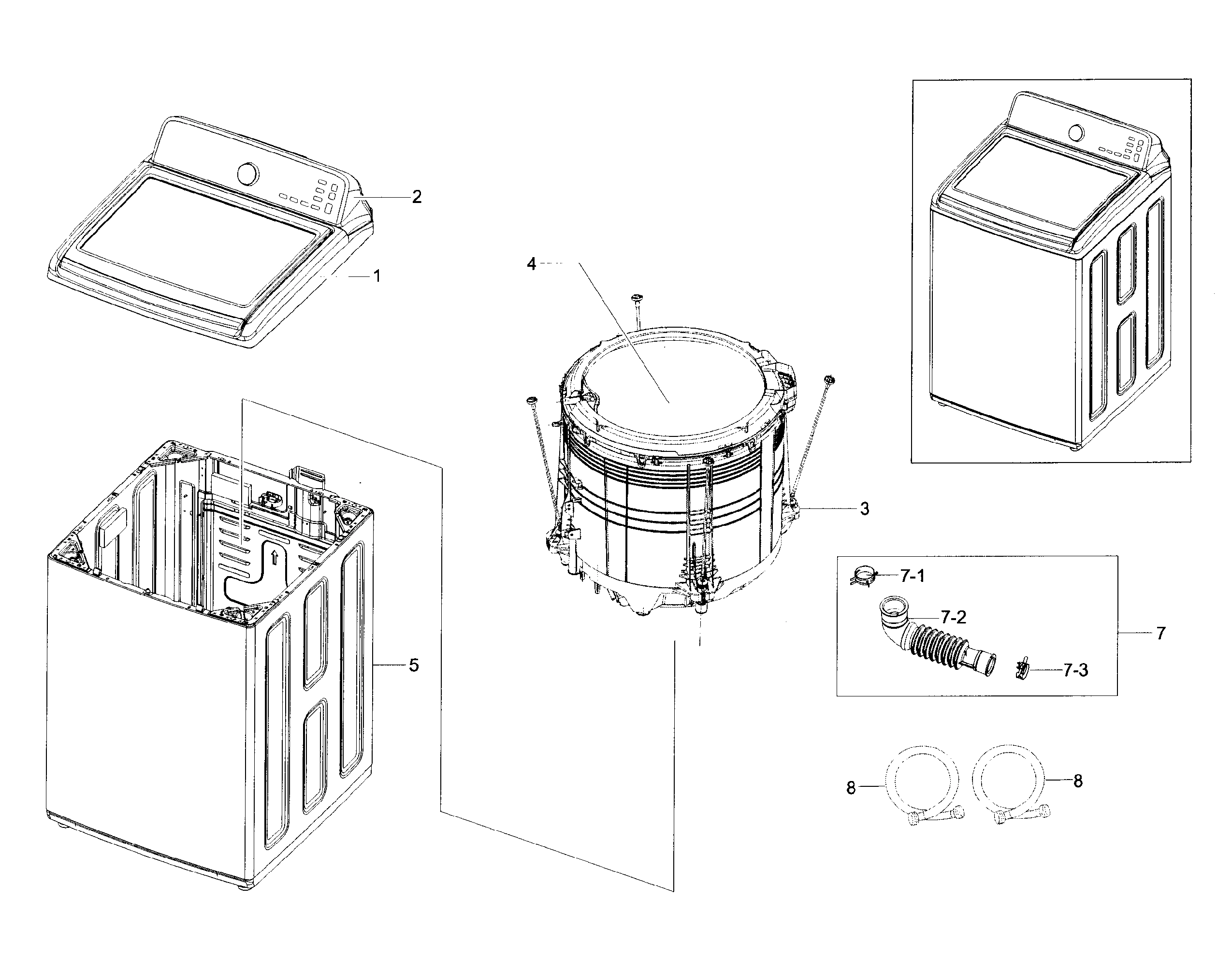

Model Samsung WA56H9000AP/A2-00 Washer – Common Parts & Diagrams

Common parts from model Samsung WA56H9000AP/A2-00 Washer
