Model Samsung WA52A5500AW/US-00 Washer – Common Parts & Diagrams
Case Frame Assembly
Control Panel Assembly

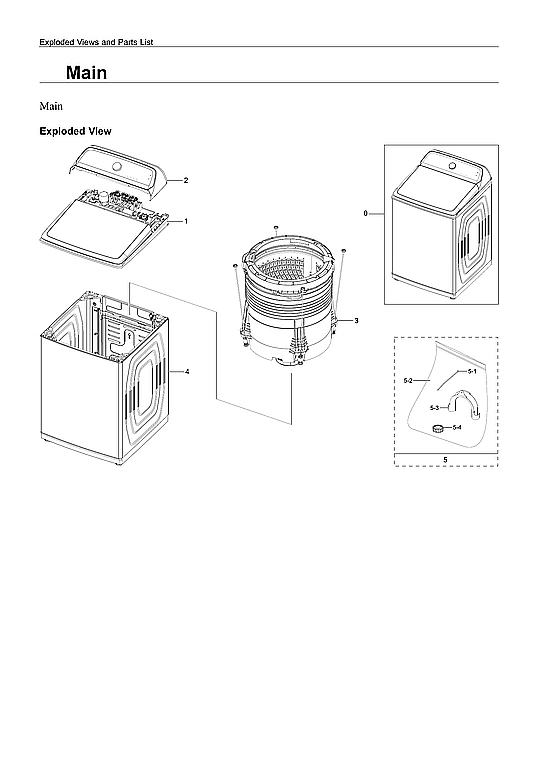

Main Assembly

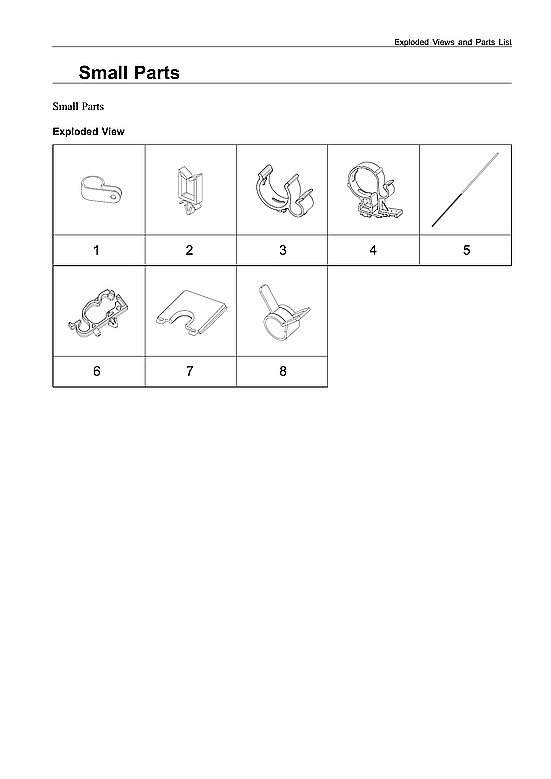

Small Parts

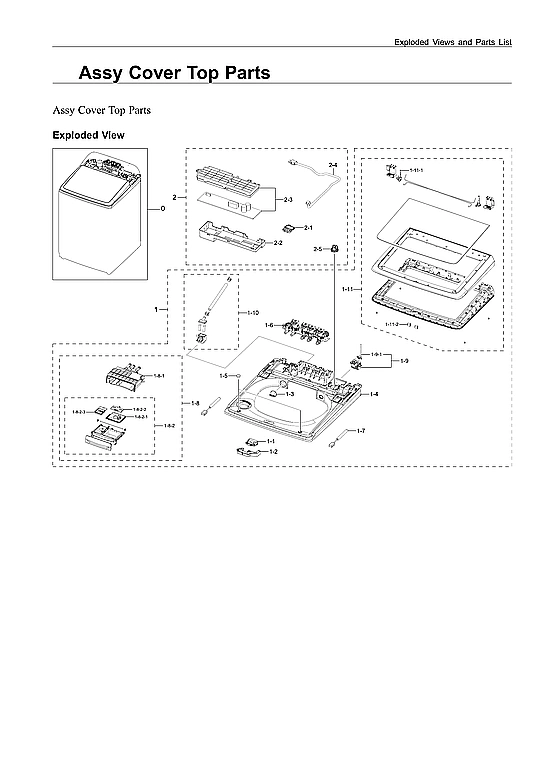

Top Cover Assembly
Tub Assembly
Common parts from model Samsung WA52A5500AW/US-00 Washer
1-7
Assy hinge (2) SMG DC97-19221C Contact Us For Availability
1-8-2-1
Guide detergent SMG DC61-05396A Contact Us For Availability
1-8-2-2
Cap detergent SMG DC67-01156A Contact Us For Availability
1-8-2-3
Cap rinse SMG DC67-01157A Contact Us For Availability
1-9
Assy button tact SMG DC97-20596D Contact Us For Availability
2
Assy panel control parts SMG DC90-29464F Contact Us For Availability
2
Assy electrical parts SMG DC90-29469B Contact Us For Availability
2-3
Washer electronic control board SMG DC92-02965B Contact Us For Availability
3
Assy tub outer parts SMG DC90-29466C Contact Us For Availability
3-2
Knob encoder SMG DC64-03824D Contact Us For Availability
3-4
Washer display board SMG DC92-02394K Contact Us For Availability
5
Support saddle (2) SMG DC61-04843A Contact Us For Availability
5-2
Bag pe SMG 6902-000286 Contact Us For Availability
5-3
Hanger clamper SMG DC61-00224B Contact Us For Availability
6
Hose holder SMG DC61-03268A Contact Us For Availability
7
Assy driving module parts SMG DC90-00115S Contact Us For Availability
7-1-2
Assy stator SMG DC97-20946A Contact Us For Availability
× ![]()
