Model Samsung WA50R5400AV/US-51 Washer – Common Parts & Diagrams

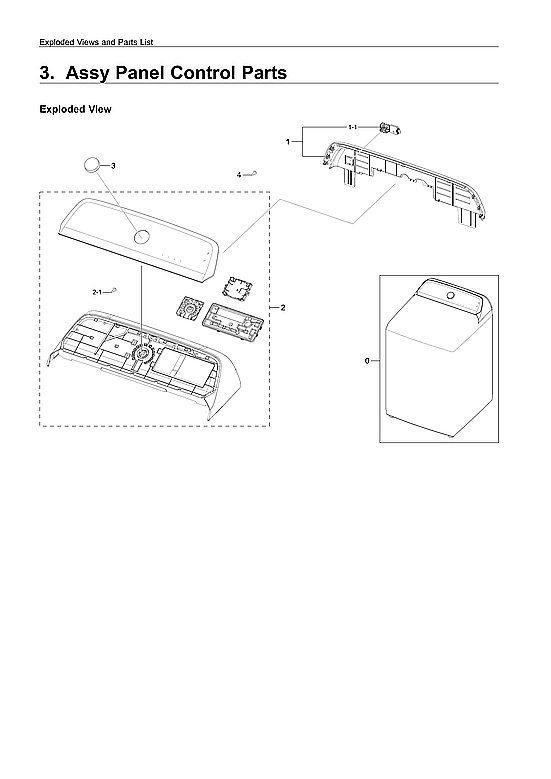

CONTROL PANEL ASSY

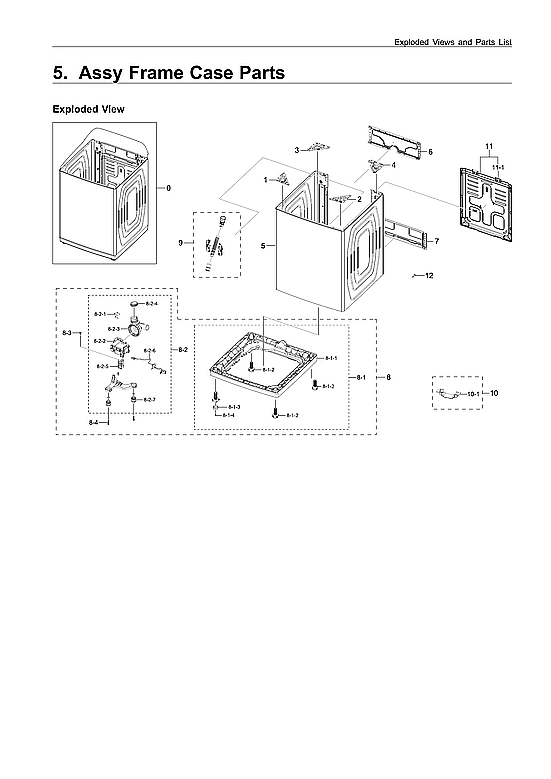

Frame Case Assembly

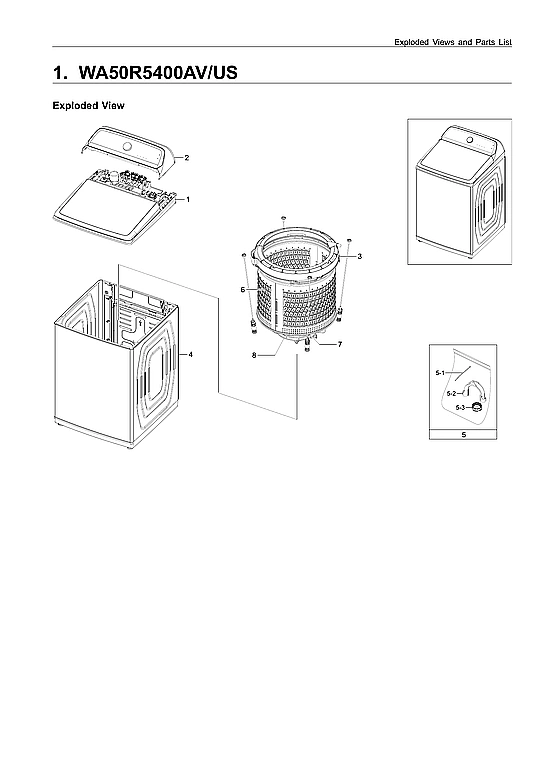

MAIN UNIT PARTS

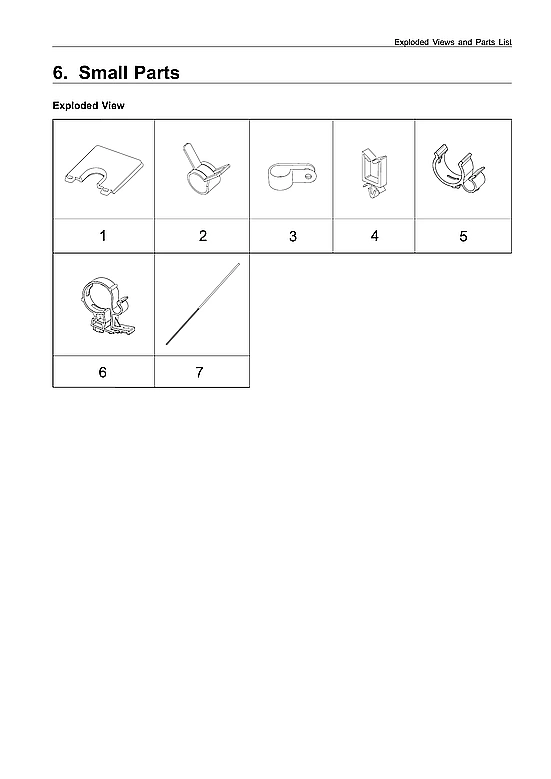

Small Parts

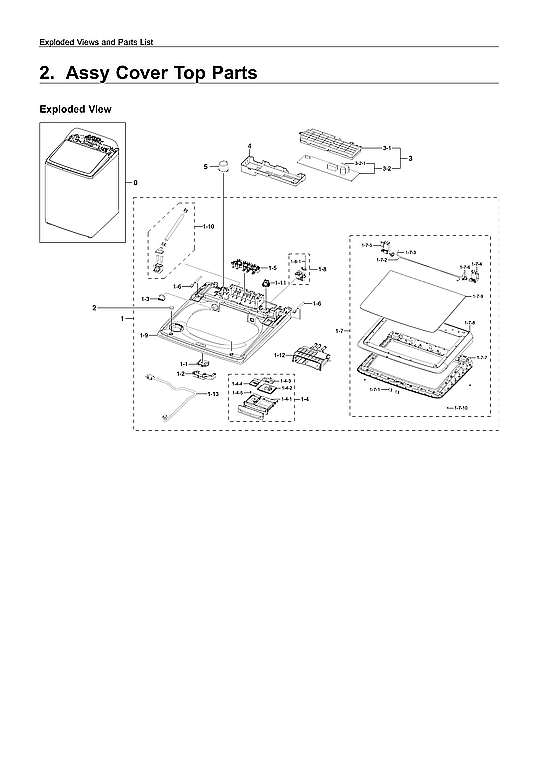

TOP COVER ASSY

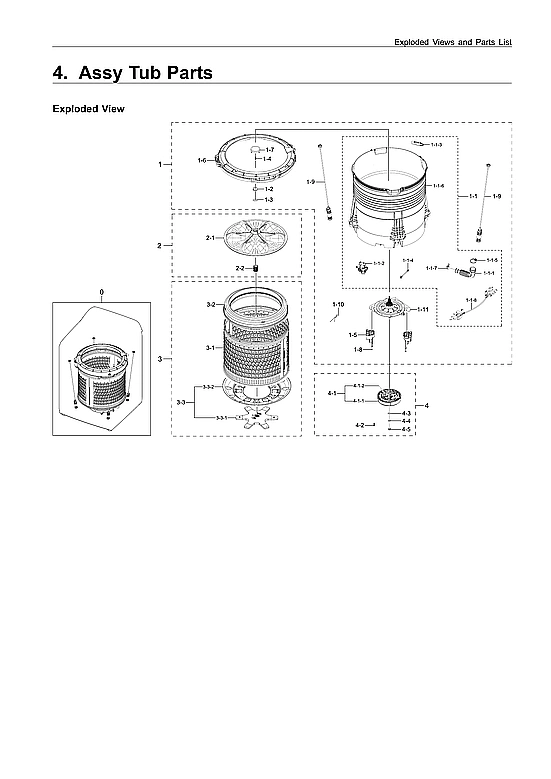

Tub Assembly
Common parts from model Samsung WA50R5400AV/US-51 Washer
1
Assy tub parts SMG DC90-27206D Contact Us For Availability
1-1
Assy semi tub outer SMG DC97-21111Z Contact Us For Availability
1-1-1
Hose drain-in SMG DC67-01057A Contact Us For Availability
1-1-7
Clamper hose SMG DC61-00219P Contact Us For Availability
1-4
ASSY CASE DETERGENT SMG DC97-21515A Contact Us For Availability
1-4-2
Detergent Guide SMG DC61-03267C Contact Us For Availability
1-4-3
Cap SMG DC67-00634B Contact Us For Availability
1-7-2
SPRING HINGE SMG DC61-04129E Contact Us For Availability
1-7-3
SPRING HINGE SMG DC61-04129F Contact Us For Availability
1-7-4
HINGE-RIGHT SMG DC61-04872A Contact Us For Availability
1-7-5
HINGE-LEFT SMG DC61-04876A Contact Us For Availability
1-7-6
HINGE DOOR (2) SMG DC61-04873A Contact Us For Availability
1-7-7
DOOR LID COVER SMG DC64-03819A Contact Us For Availability
1-7-8
DOOR LID T.C SMG DC64-03821A Contact Us For Availability
1-7-9
DOOR GLASS SMG DC64-03823B Contact Us For Availability
1-9
Washer Top Panel SMG DC63-02343A Contact Us For Availability
2-1
Pulsator SMG DC66-01013A Contact Us For Availability
2-2
Bushing SMG DC66-20042A Contact Us For Availability
3-1
GUIDE COVER PCB SMG DC61-04874A Contact Us For Availability
3-1
Basket wrapper SMG DC61-05059B Contact Us For Availability
3-2
ASSY PCB MANUAL SMG DC94-10073A Contact Us For Availability
3-3
Assy bowl SMG DC97-21438B Contact Us For Availability
3-3-1
Flange shaft SMG DC60-00067D Contact Us For Availability
3-3-2
Basket bowl SMG DC61-04728B Contact Us For Availability
4
Assy driving module parts SMG DC90-22716B Contact Us For Availability
4-1-2
Assy stator SMG DC97-20946A Contact Us For Availability
5-2
CABLE TIE SMG DC61-00224C Contact Us For Availability
× ![]()
