Model Bosch TCA6801/01 Hot Water Dispenser – Common Parts & Diagrams
Diagram 1
Diagram 2

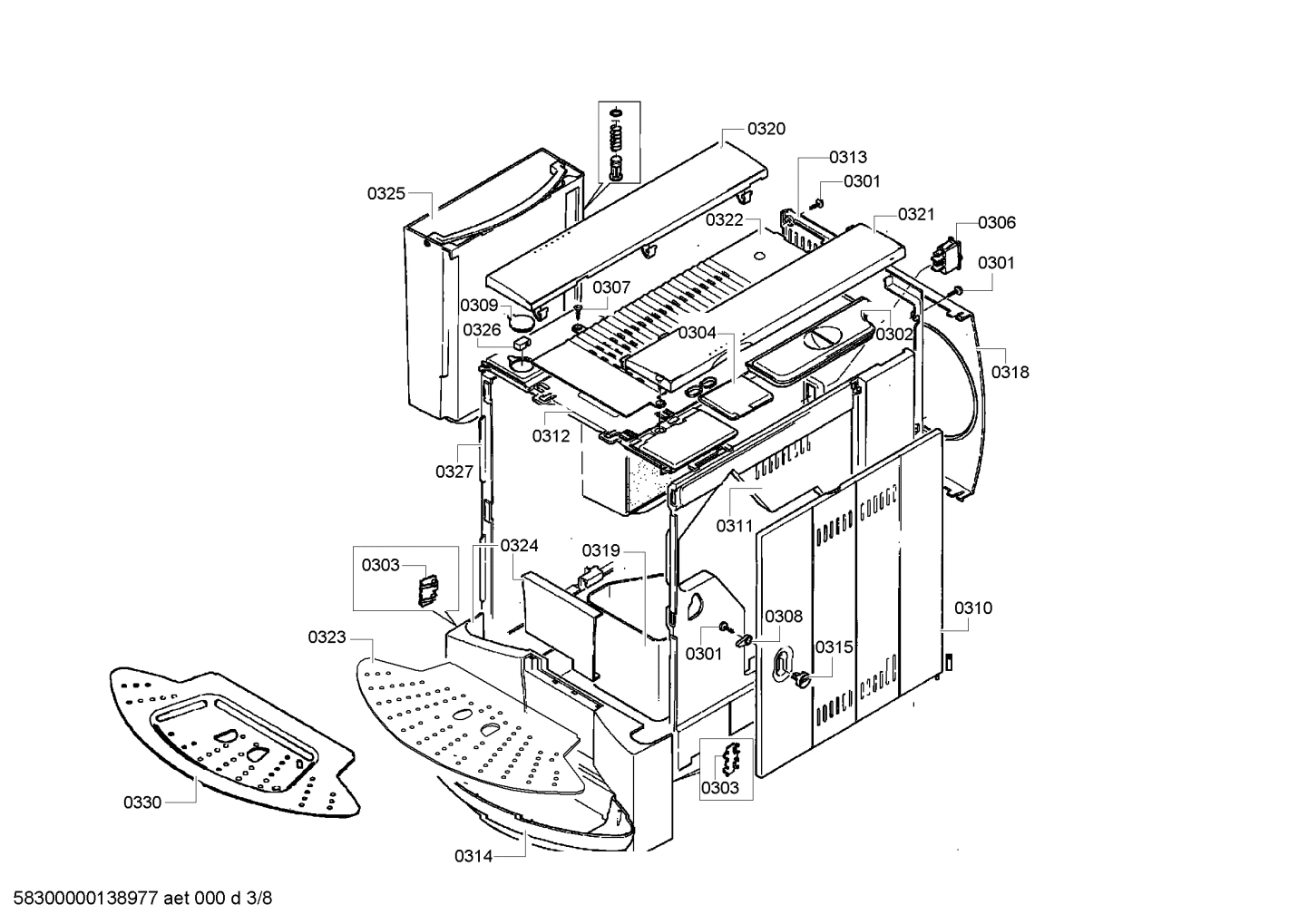

Diagram 3

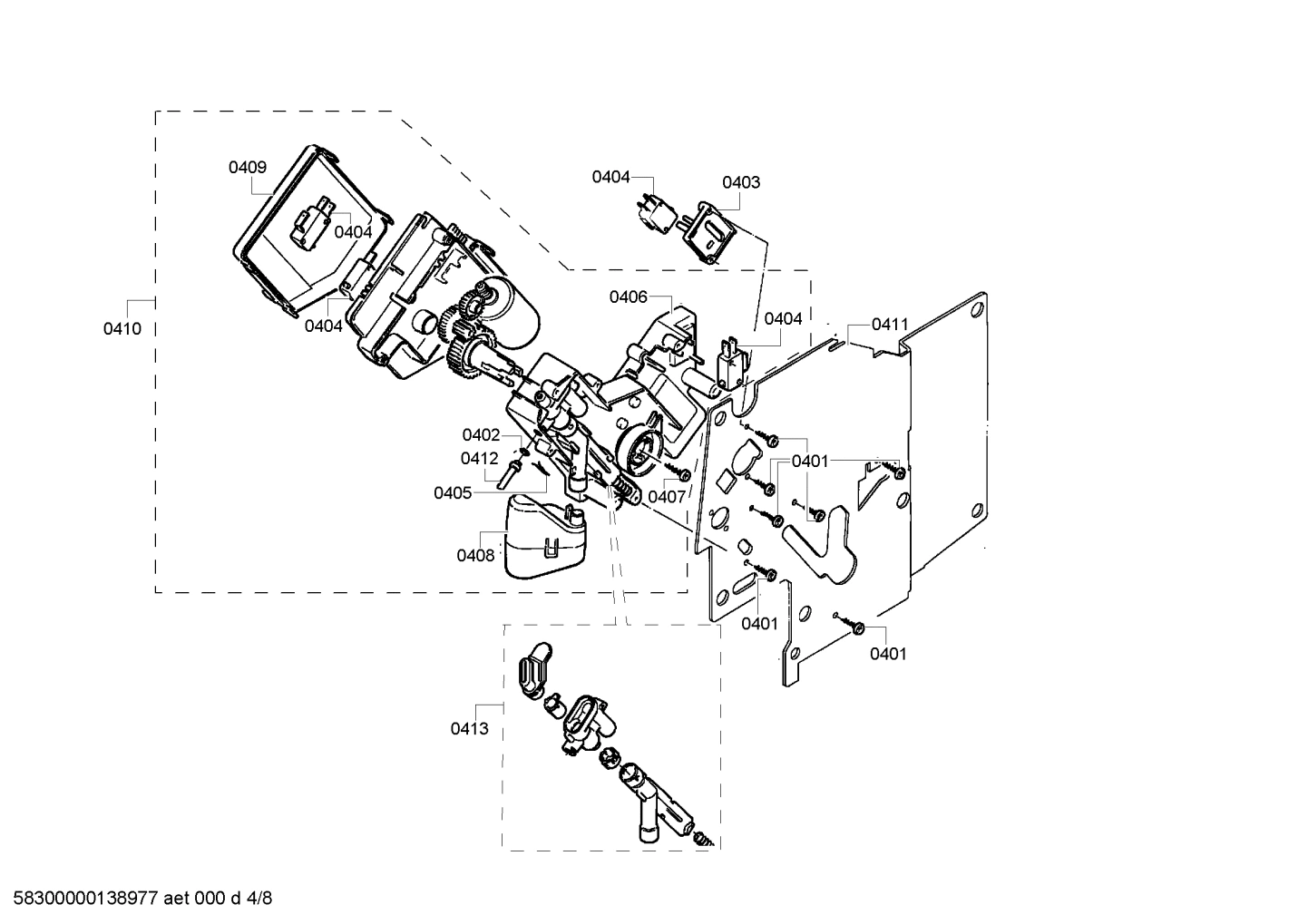

Diagram 4

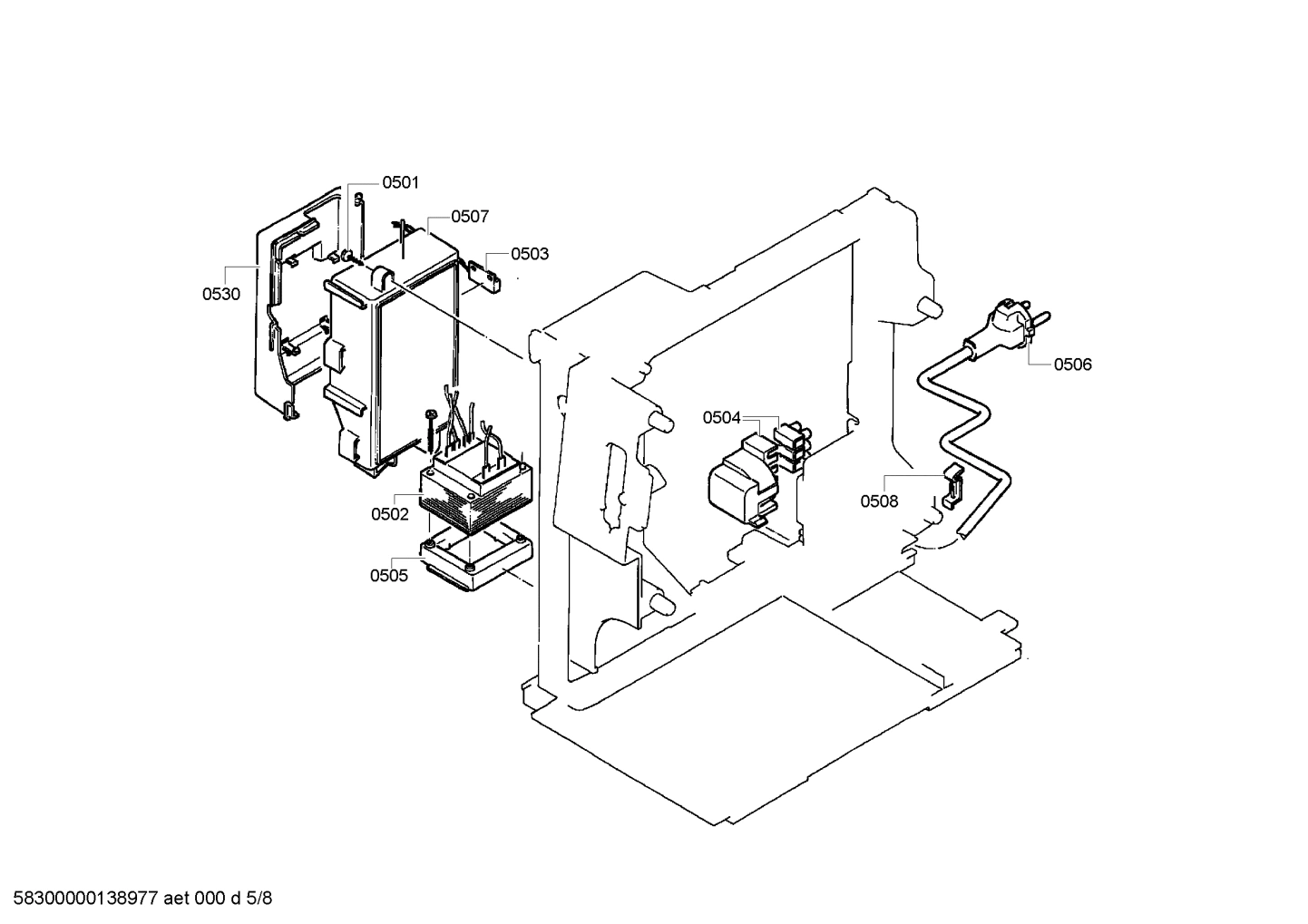

Diagram 5

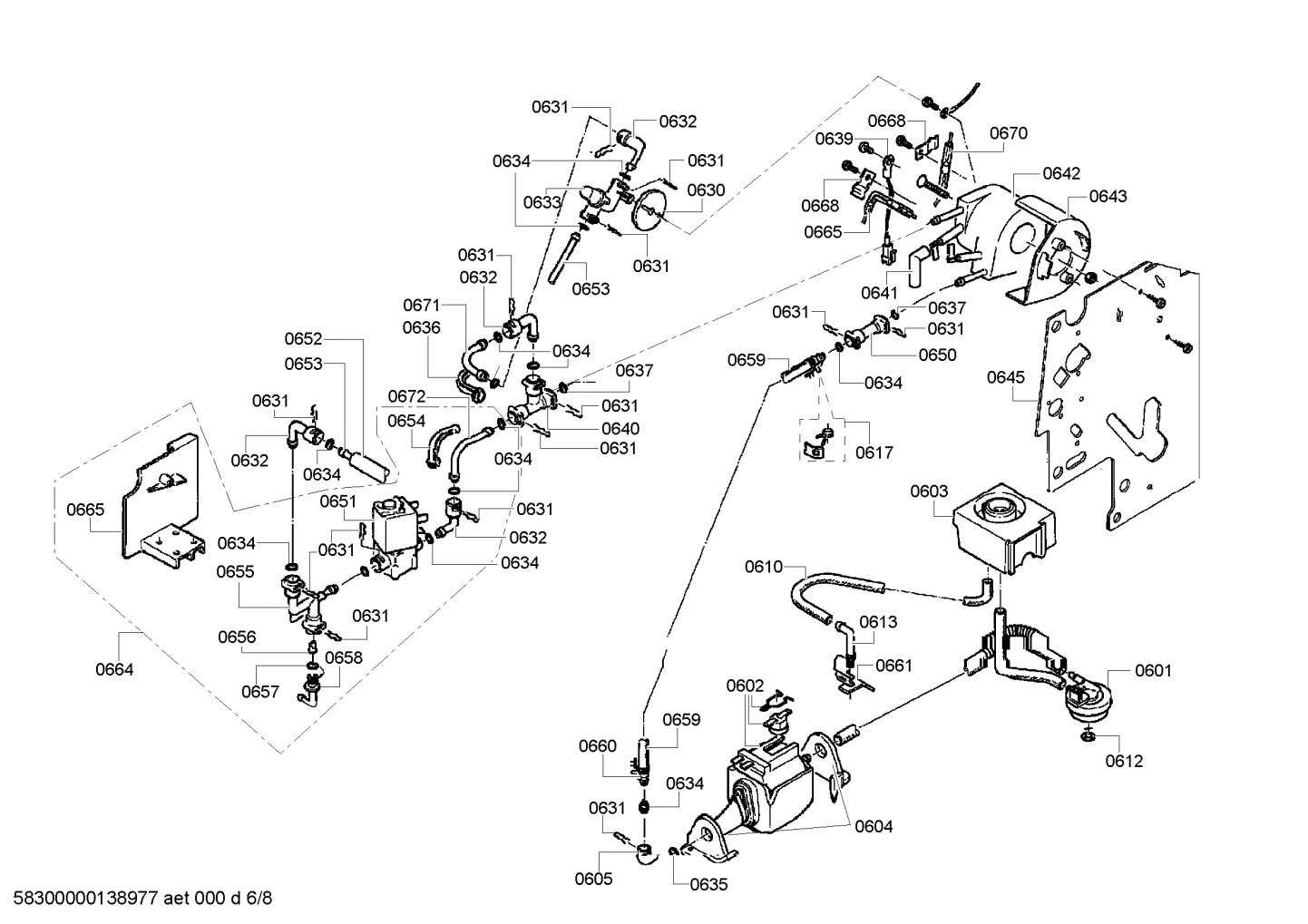

Diagram 6

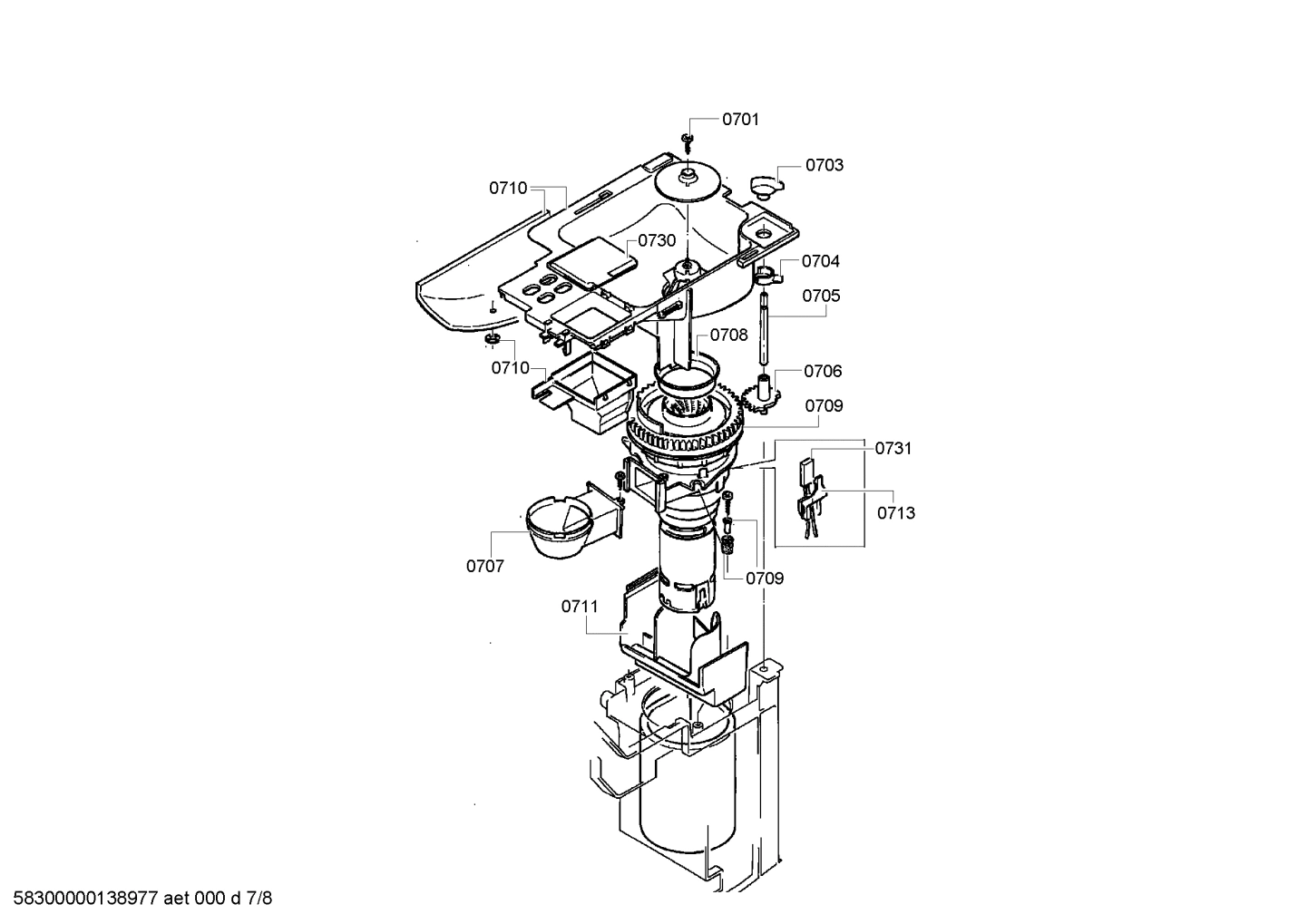

Diagram 7

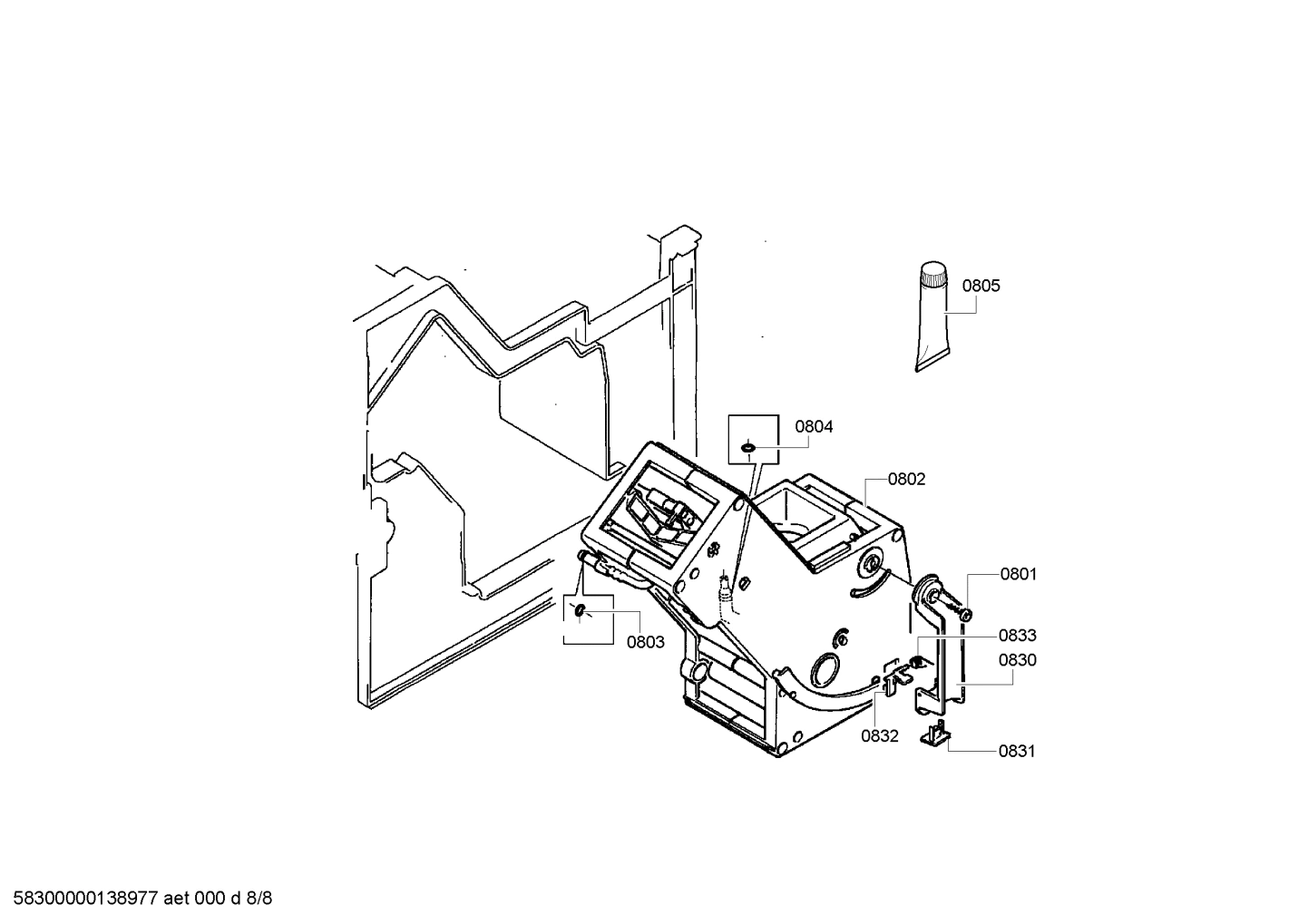

Diagram 8
Common parts from model Bosch TCA6801/01 Hot Water Dispenser
0103
Rail BOS 00419900 Contact Us For Availability
0108
Spacer BOS 00419977 Contact Us For Availability
0109
Coffee Scoop BOS 00420005 No Longer Available
0203
Spring BOS 00419950 Contact Us For Availability
0204
Support BOS 00614378 Contact Us For Availability
0306
Switch BOS 00607589 Contact Us For Availability
0325
Tank BOS 00490218 Contact Us For Availability
0401
Screw BOS 00419948 Contact Us For Availability
0405
Spring BOS 00420936 Contact Us For Availability
0407
Drive coupling BOS 00421800 Contact Us For Availability
0503
Switch-element BOS 00419964 Contact Us For Availability
0505
Support BOS 00421798 Contact Us For Availability
0506
Power cord BOS 00641189 Contact Us For Availability
0508
Stress-relief BOS 00425983 Contact Us For Availability
0530
Cover BOS 00641674 Contact Us For Availability
0604
Bearing BOS 00419987 Contact Us For Availability
0610
Hose BOS 00423236 Contact Us For Availability
0612
Ring BOS 00423401 Contact Us For Availability
0613
Stud BOS 00423405 Contact Us For Availability
0617
Clamp BOS 00425967 Contact Us For Availability
0639
NTC resistor BOS 00425938 Contact Us For Availability
0640
Coupling BOS 00427444 Contact Us For Availability
0645
Sheet BOS 00499058 Contact Us For Availability
0650
Coupling BOS 00427447 Contact Us For Availability
0652
Sealing BOS 00419991 Contact Us For Availability
0668
Clip BOS 00426826 Contact Us For Availability
0703
Button BOS 00419971 Contact Us For Availability
0704
Retaining washer BOS 00419972 Contact Us For Availability
0705
Axis BOS 00419974 Contact Us For Availability
0706
Toothed rim BOS 00419976 Contact Us For Availability
0707
Funnel BOS 00428092 Contact Us For Availability
0708
Sleeve BOS 00419999 Contact Us For Availability
0710
Container BOS 00641809 Contact Us For Availability
0711
Guide BOS 00428084 Contact Us For Availability
0713
Holder BOS 00602388 Contact Us For Availability
0730
Lid BOS 00606862 Contact Us For Availability
0731
Temperature sensor BOS 00602387 Contact Us For Availability
0803
Sealing BOS 00601046 Contact Us For Availability
0804
Sealing BOS 00601047 Contact Us For Availability
0805
Lubricant BOS 00310574 Contact Us For Availability
× ![]()
