Model Bosch TCA6701CH/01 Hot Water Dispenser – Common Parts & Diagrams
Diagram 1
Diagram 2

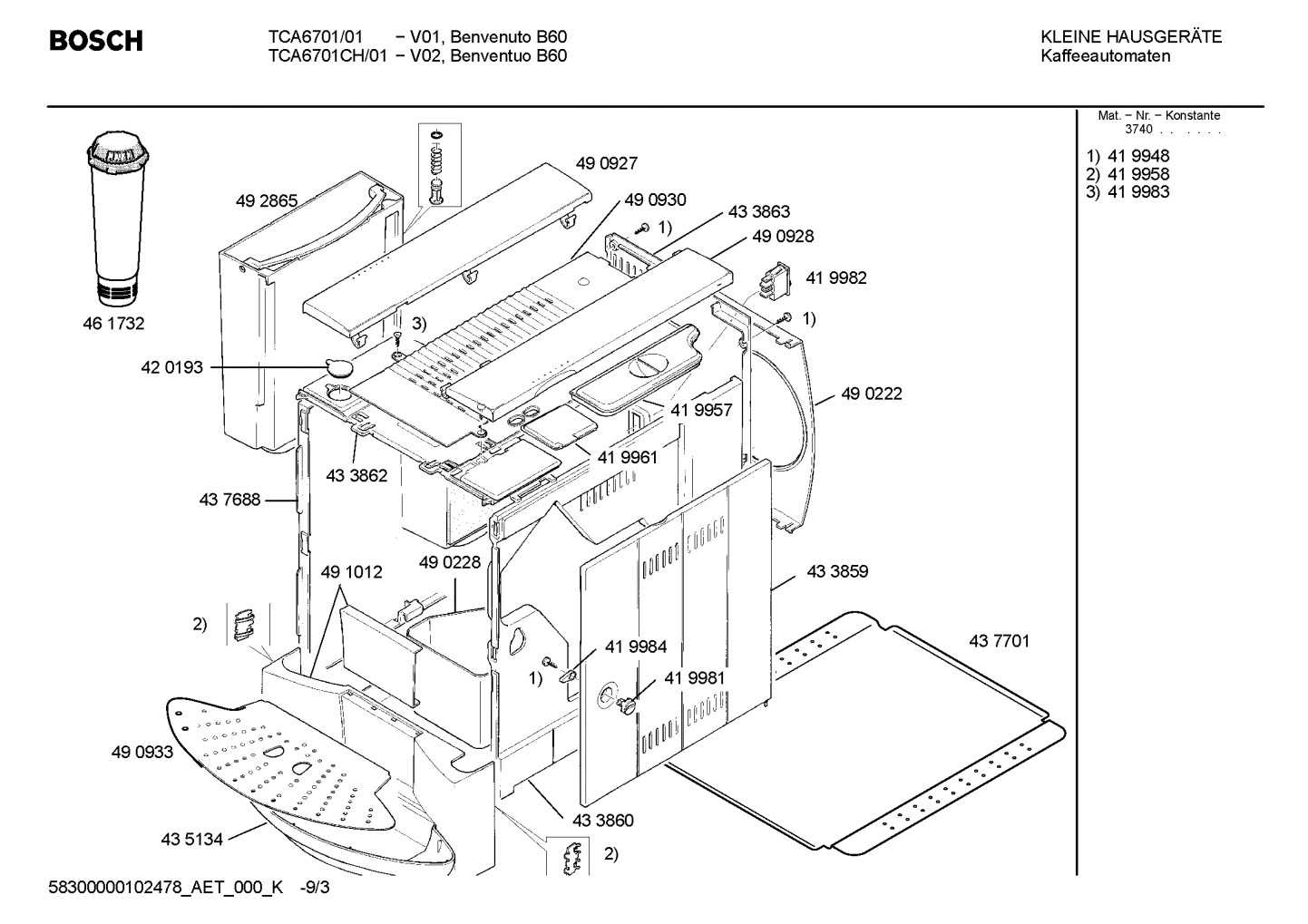

Diagram 3

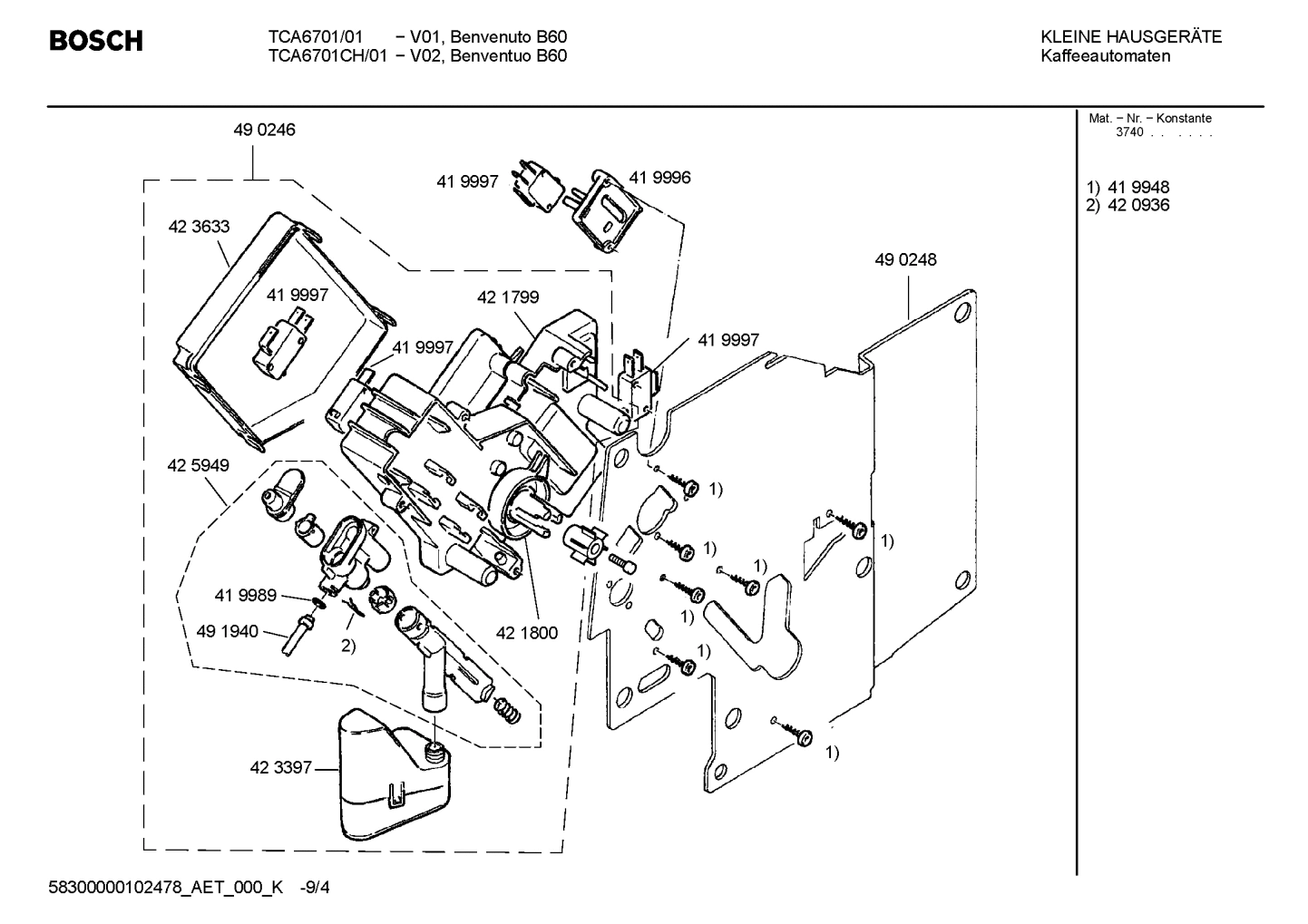

Diagram 4

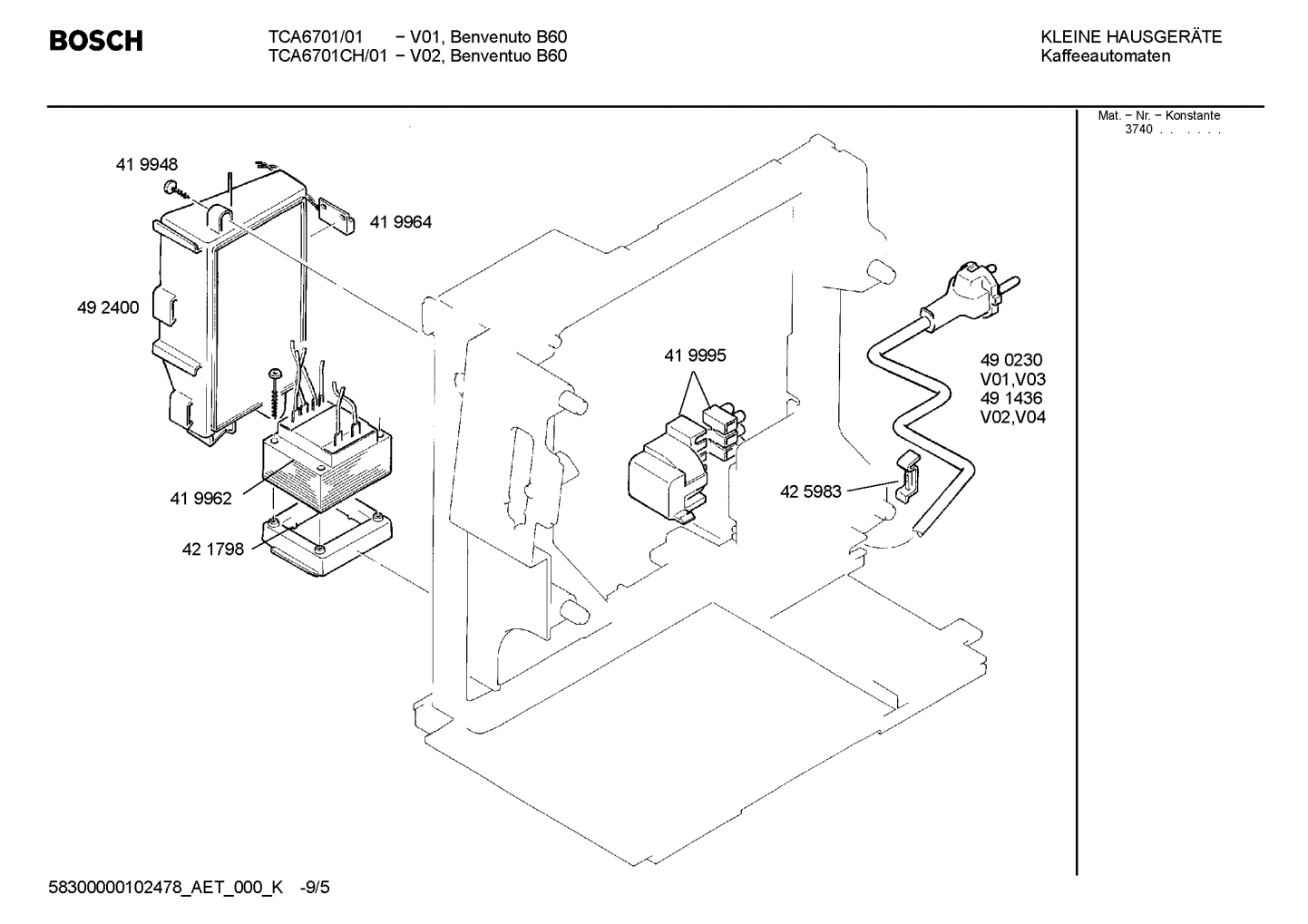

Diagram 5

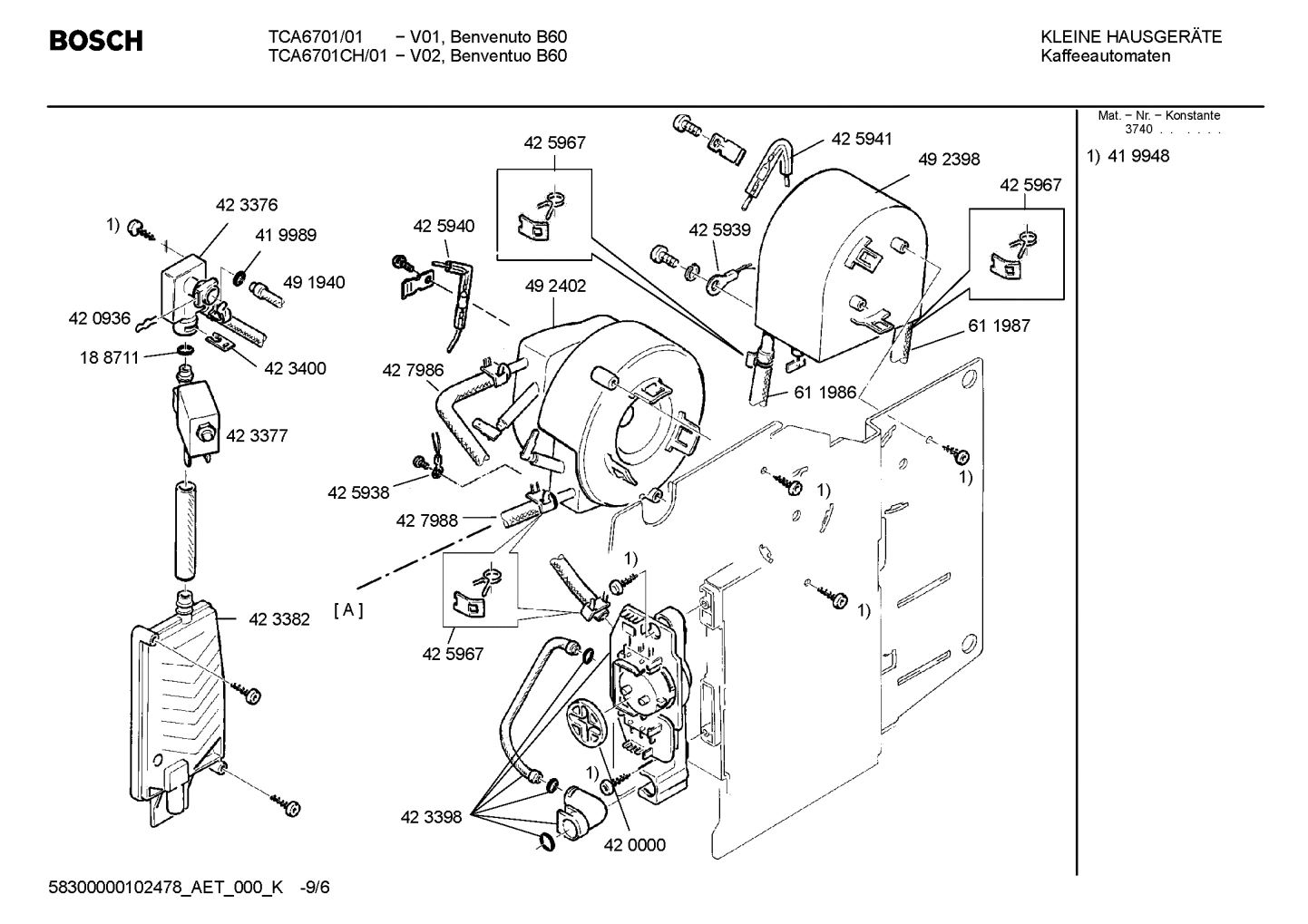

Diagram 6

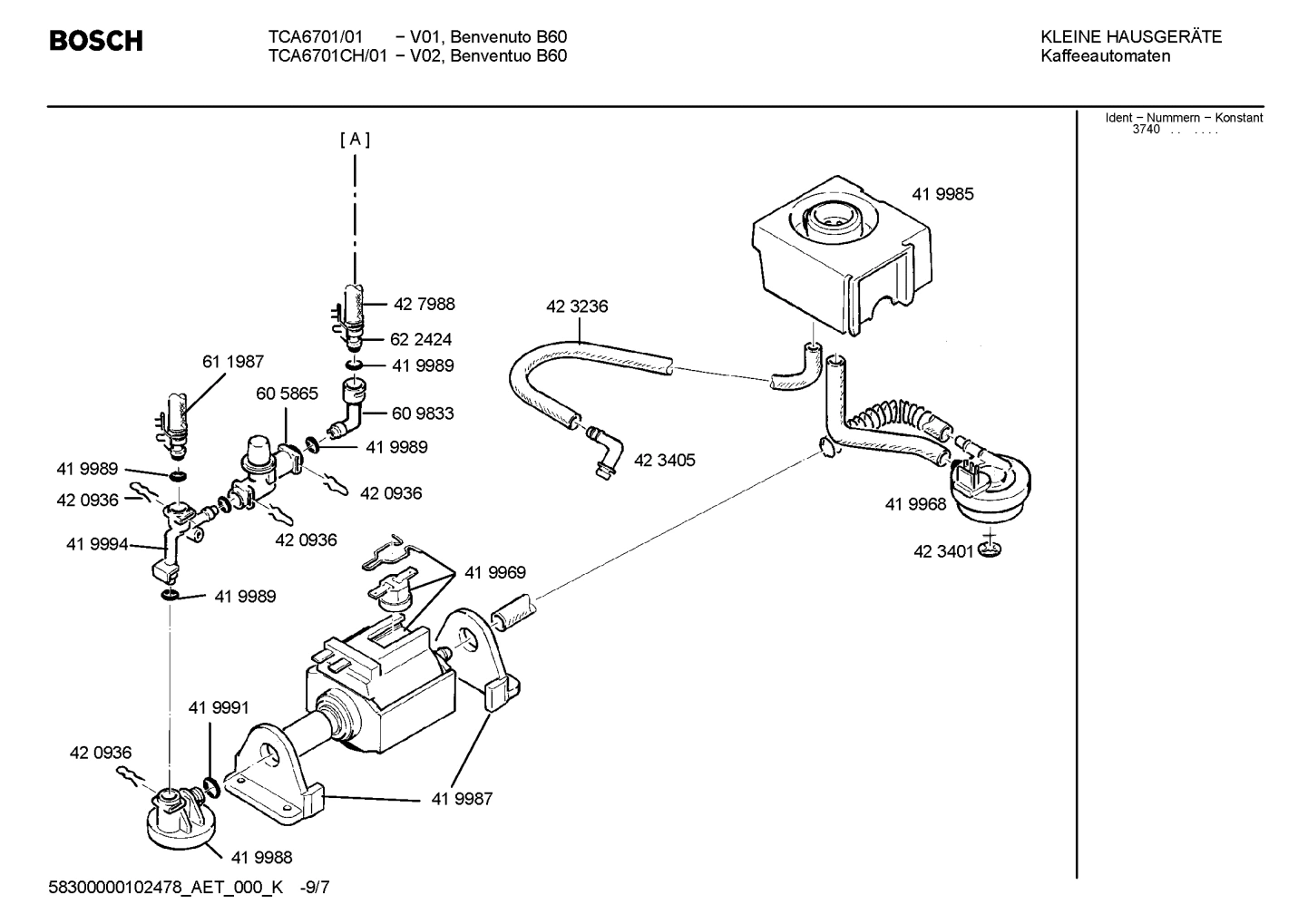

Diagram 7

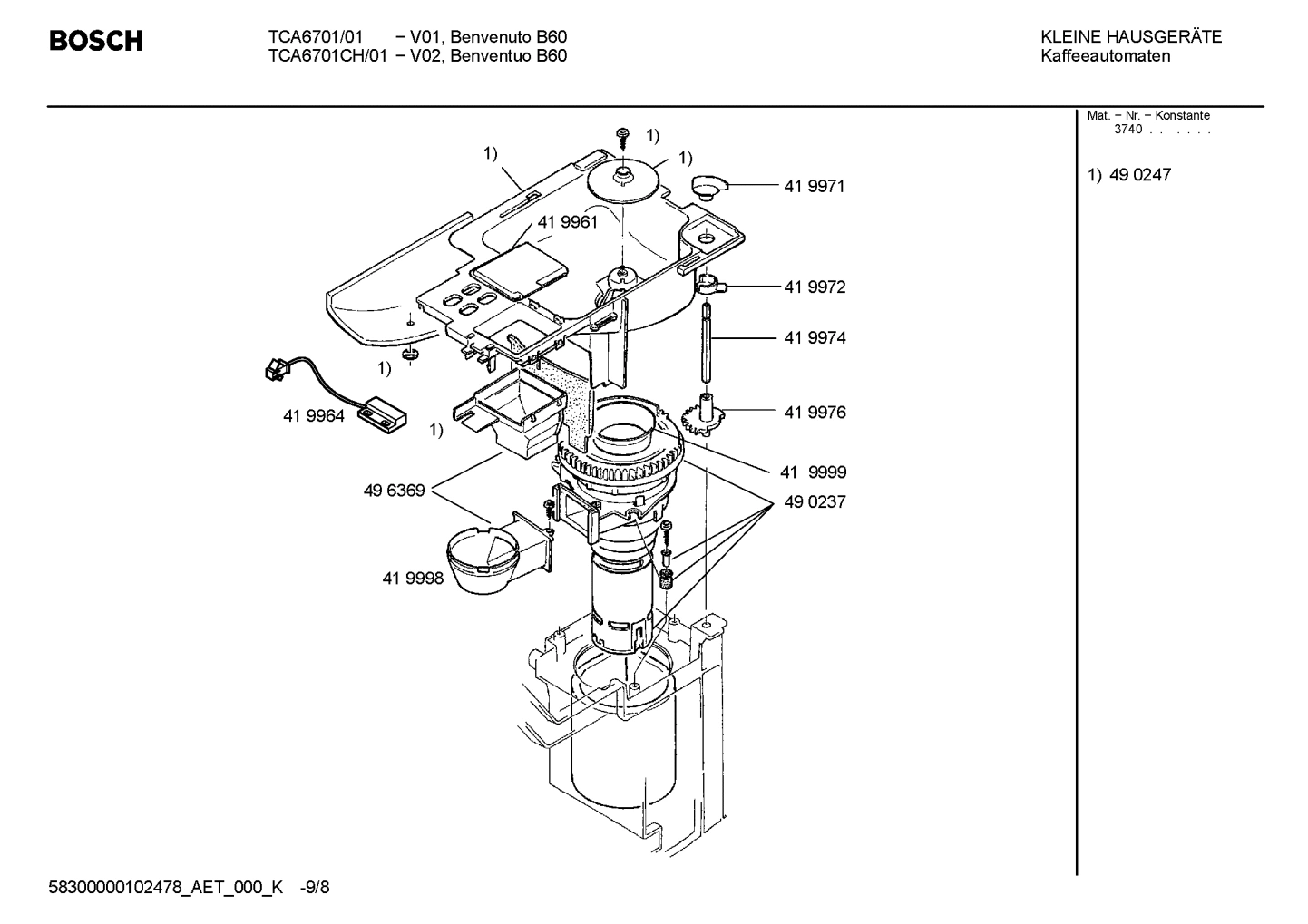

Diagram 8

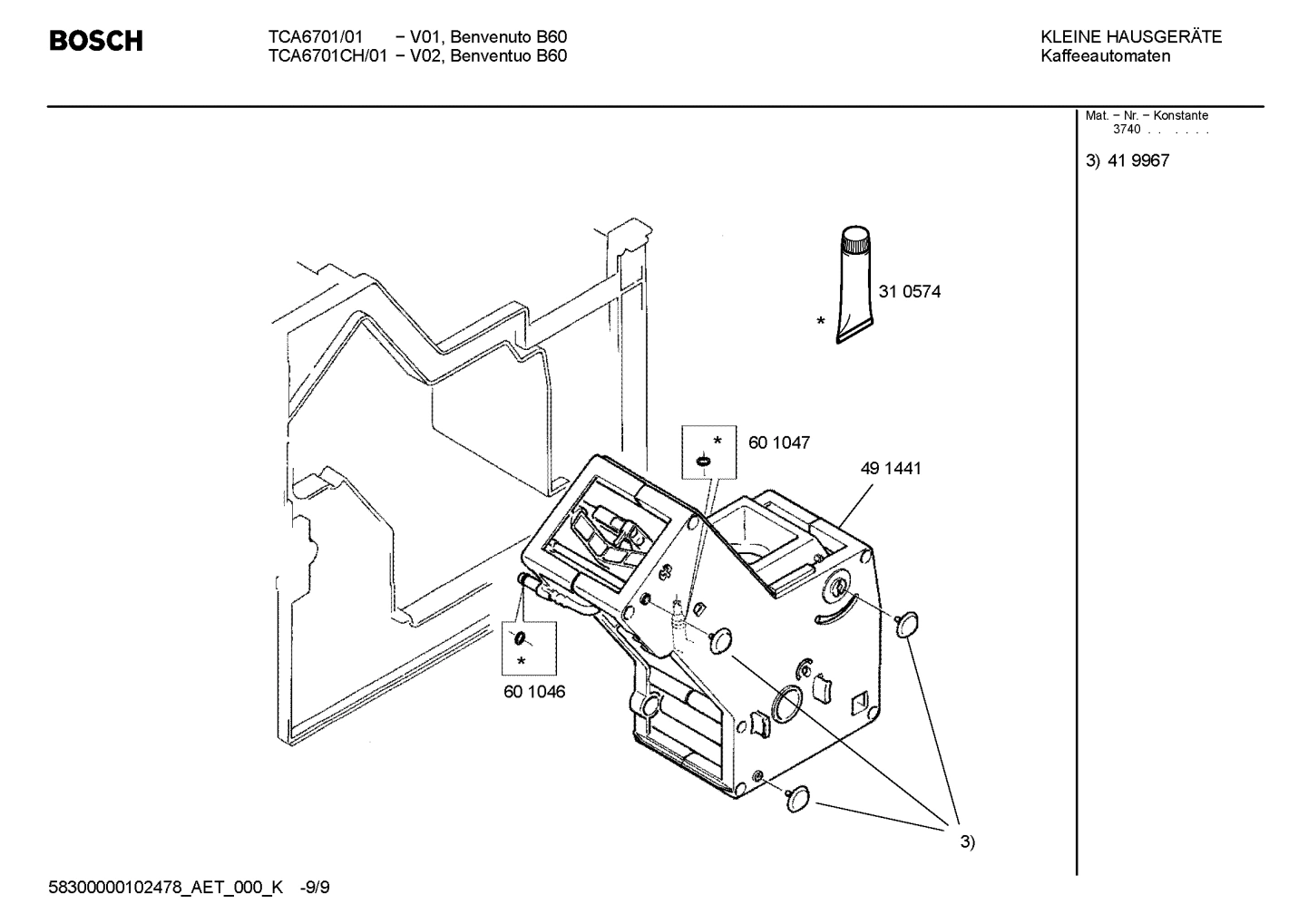

Diagram 9
Common parts from model Bosch TCA6701CH/01 Hot Water Dispenser
0001
Cover BOS 00490915 Contact Us For Availability
0003
Case-rear part BOS 00490918 Contact Us For Availability
0004
Rail BOS 00419900 Contact Us For Availability
0005
Permanent magnet BOS 00419901 Contact Us For Availability
0006
Button BOS 00420954 Contact Us For Availability
0010
Guide BOS 00419907 Contact Us For Availability
0014
Spacer BOS 00419977 Contact Us For Availability
0016
Holder BOS 00420956 Contact Us For Availability
0017
Screw BOS 00419948 Contact Us For Availability
0030
Support BOS 00433857 Contact Us For Availability
0031
Sheet BOS 00490248 Contact Us For Availability
0033
Support BOS 00614378 Contact Us For Availability
0034
Case-bottom BOS 00433856 Contact Us For Availability
0035
Holder BOS 00420004 Contact Us For Availability
0036
Spring BOS 00419950 Contact Us For Availability
0037
Guide BOS 00490249 Contact Us For Availability
0038
Support BOS 00420001 Contact Us For Availability
0039
Switch BOS 00419952 Contact Us For Availability
0040
Clip BOS 00420418 Contact Us For Availability
0042
Coupling BOS 00419979 Contact Us For Availability
0044
Foot BOS 00604017 Contact Us For Availability
0051
Lid BOS 00490927 Contact Us For Availability
0052
Lid BOS 00490928 Contact Us For Availability
0053
Warming plate BOS 00490930 Contact Us For Availability
0054
Support BOS 00490222 Contact Us For Availability
0055
Case-rear part BOS 00433863 Contact Us For Availability
0056
Case-upper part BOS 00433862 Contact Us For Availability
0060
Door BOS 00433859 Contact Us For Availability
0063
Sheet BOS 00490933 Contact Us For Availability
0064
Clip BOS 00419958 Contact Us For Availability
0065
Button BOS 00419981 Contact Us For Availability
0067
Screw BOS 00419983 Contact Us For Availability
0069
Lid BOS 00419961 Contact Us For Availability
0071
Slide BOS 00419984 Contact Us For Availability
0080
Coupling BOS 00419985 Contact Us For Availability
0085
Bearing BOS 00419987 Contact Us For Availability
0088
Spring BOS 00420936 Contact Us For Availability
0089
Ring BOS 00423401 Contact Us For Availability
0090
Disc BOS 00420000 Contact Us For Availability
0092
Sealing BOS 00419991 Contact Us For Availability
0095
Case-rear part BOS 00606455 Contact Us For Availability
0096
Hose BOS 00423236 Contact Us For Availability
0097
Stud BOS 00423405 Contact Us For Availability
0101
Transformer-mains BOS 00419962 Contact Us For Availability
0103
Switch-element BOS 00419964 Contact Us For Availability
0108
Support BOS 00421798 Contact Us For Availability
0113
Support BOS 00602650 Contact Us For Availability
0114
Switch BOS 00419997 Contact Us For Availability
0116
Drive coupling BOS 00421800 Contact Us For Availability
0120
Container BOS 00641809 Contact Us For Availability
0121
Funnel BOS 00428092 Contact Us For Availability
0123
Button BOS 00419971 Contact Us For Availability
0124
Retaining washer BOS 00419972 Contact Us For Availability
0125
Axis BOS 00419974 Contact Us For Availability
0126
Toothed rim BOS 00419976 Contact Us For Availability
0127
Sleeve BOS 00419999 Contact Us For Availability
0131
Plug BOS 00419967 Contact Us For Availability
0146
Coffee Scoop BOS 00420005 No Longer Available
0147
Outlet BOS 00423397 Contact Us For Availability
0153
Stress-relief BOS 00425983 Contact Us For Availability
0158
NTC resistor BOS 00425938 Contact Us For Availability
0160
Clamp BOS 00425967 Contact Us For Availability
3005
Descaler BOS 00311968 Contact Us For Availability
3006
Lubricant BOS 00310574 Contact Us For Availability
3011
Coffee BOS 00461643 Contact Us For Availability
× ![]()
