Model Bosch TCA6701/04 Hot Water Dispenser – Common Parts & Diagrams

0103
Rail
Rail BOS 00419900 Contact Us For Availability
View on Model
0108
Spacer
Spacer BOS 00419977 Contact Us For Availability
View on Model
0109
Coffee Scoop
Coffee Scoop BOS 00420005 No Longer Available
View on Model
0203
Spring
Spring BOS 00419950 Contact Us For Availability
View on Model
0204
Support
Support BOS 00614378 Contact Us For Availability
View on Model
0207
Hose
Hose BOS 00419980 Contact Us For Availability
View on Model

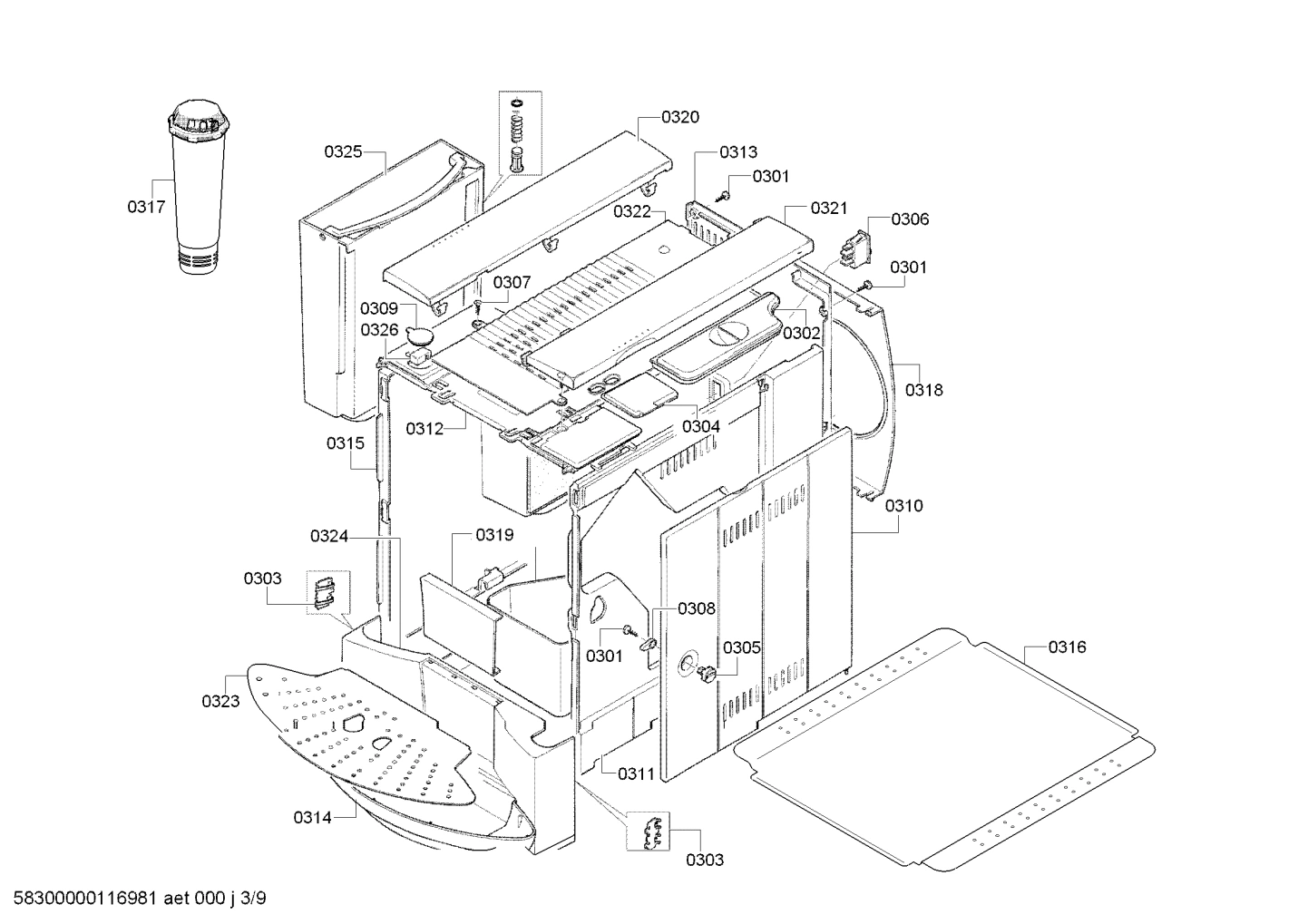

0304
Lid
Lid BOS 00419961 Contact Us For Availability
View on Model
0321
Lid
Lid BOS 00490928 Contact Us For Availability
View on Model

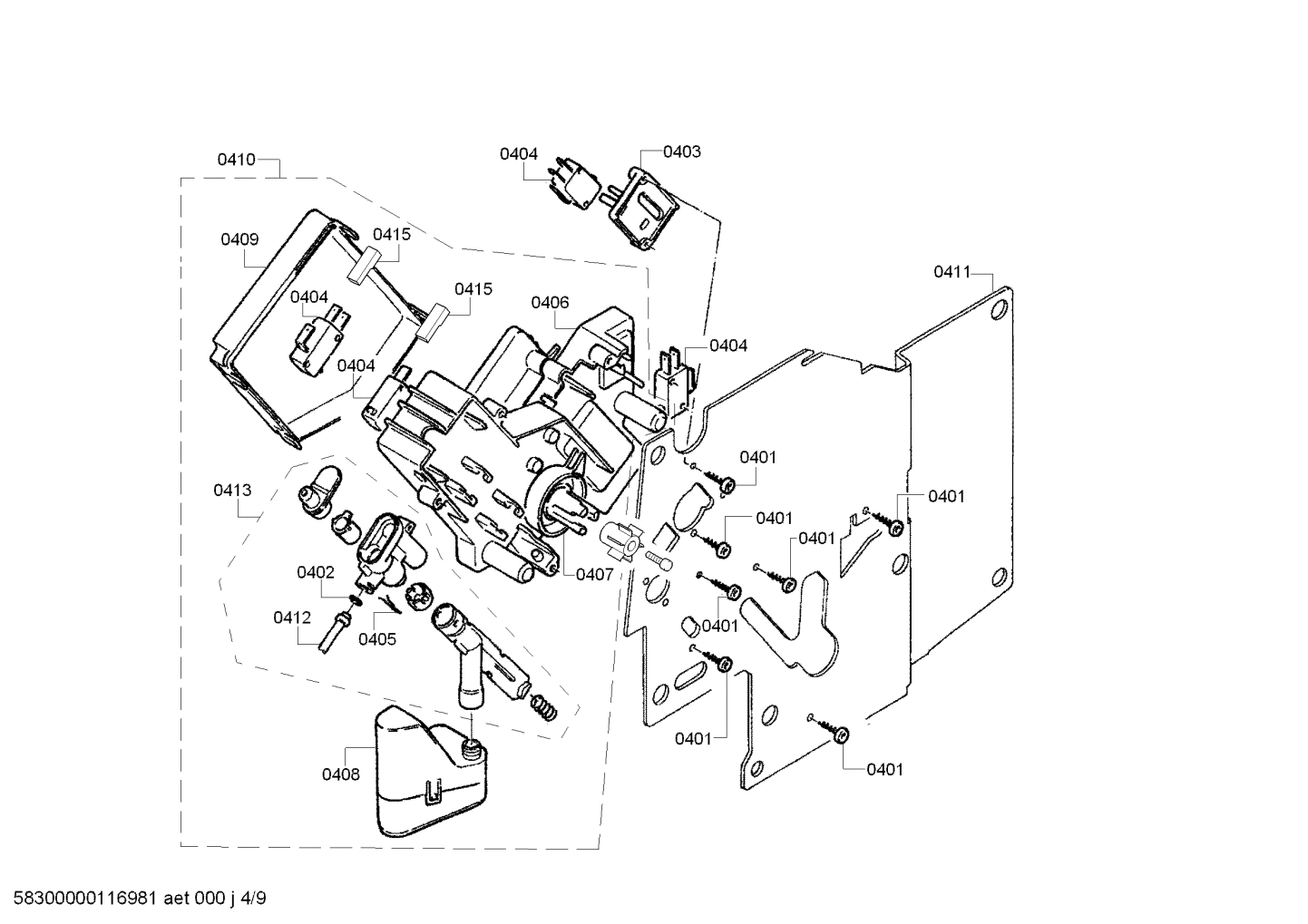

0407
Drive coupling
Drive coupling BOS 00421800 Contact Us For Availability
View on Model

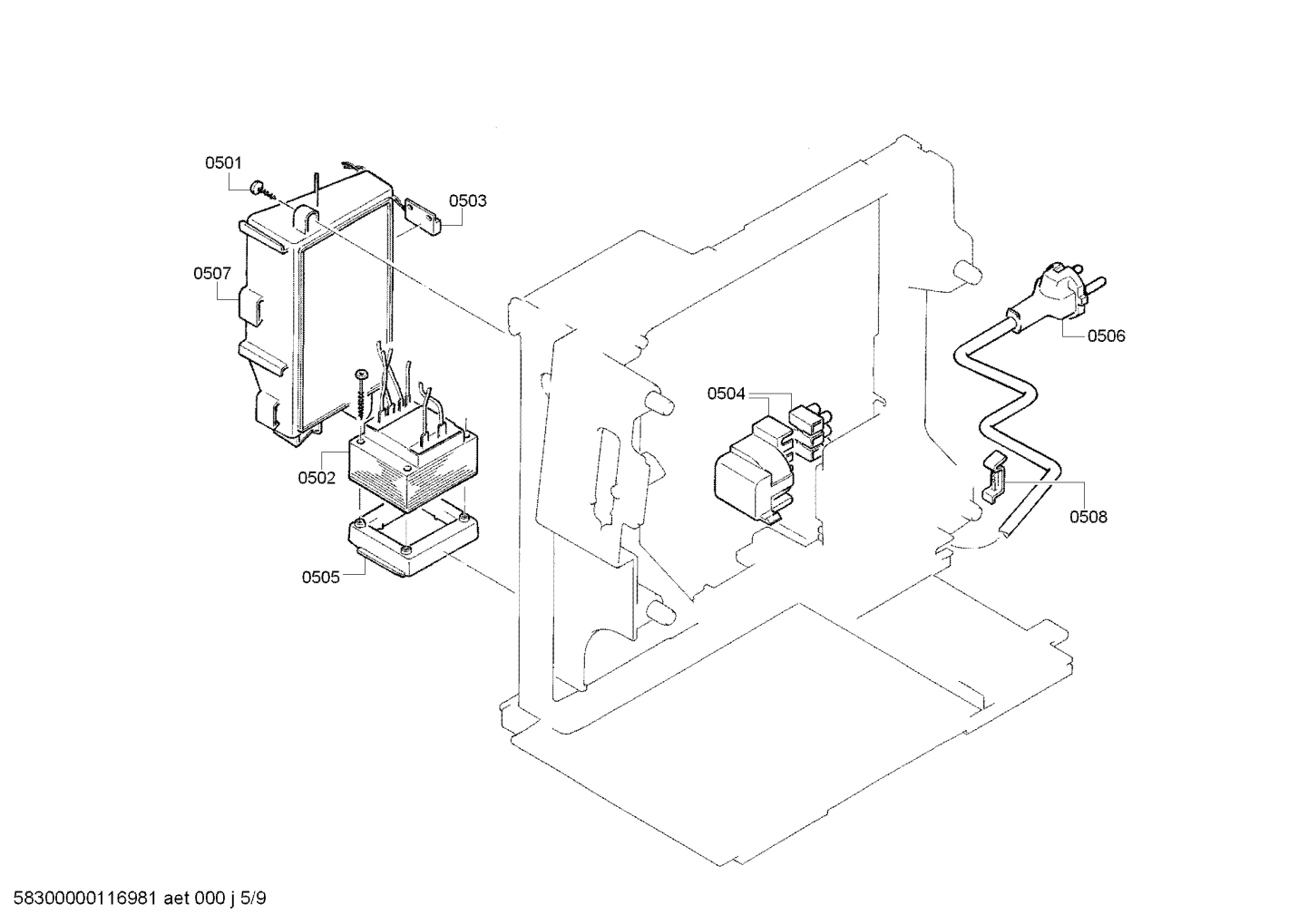

0503
Switch-element
Switch-element BOS 00419964 Contact Us For Availability
View on Model

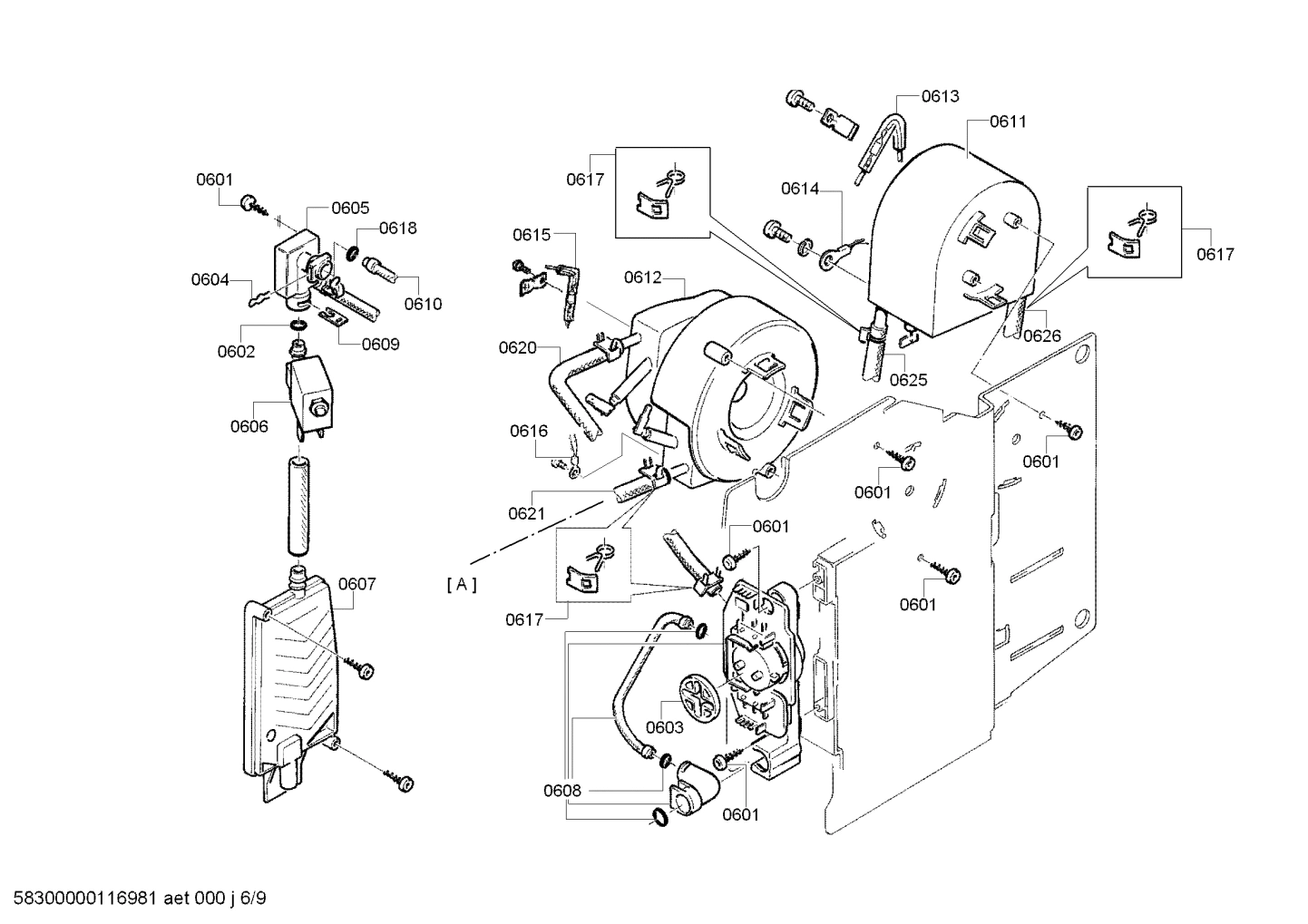

0601
Screw
Screw BOS 00419948 Contact Us For Availability
View on Model
0603
Disc
Disc BOS 00420000 Contact Us For Availability
View on Model
0604
Spring
Spring BOS 00420936 Contact Us For Availability
View on Model
0616
NTC resistor
NTC resistor BOS 00425938 Contact Us For Availability
View on Model
0617
Clamp
Clamp BOS 00425967 Contact Us For Availability
View on Model

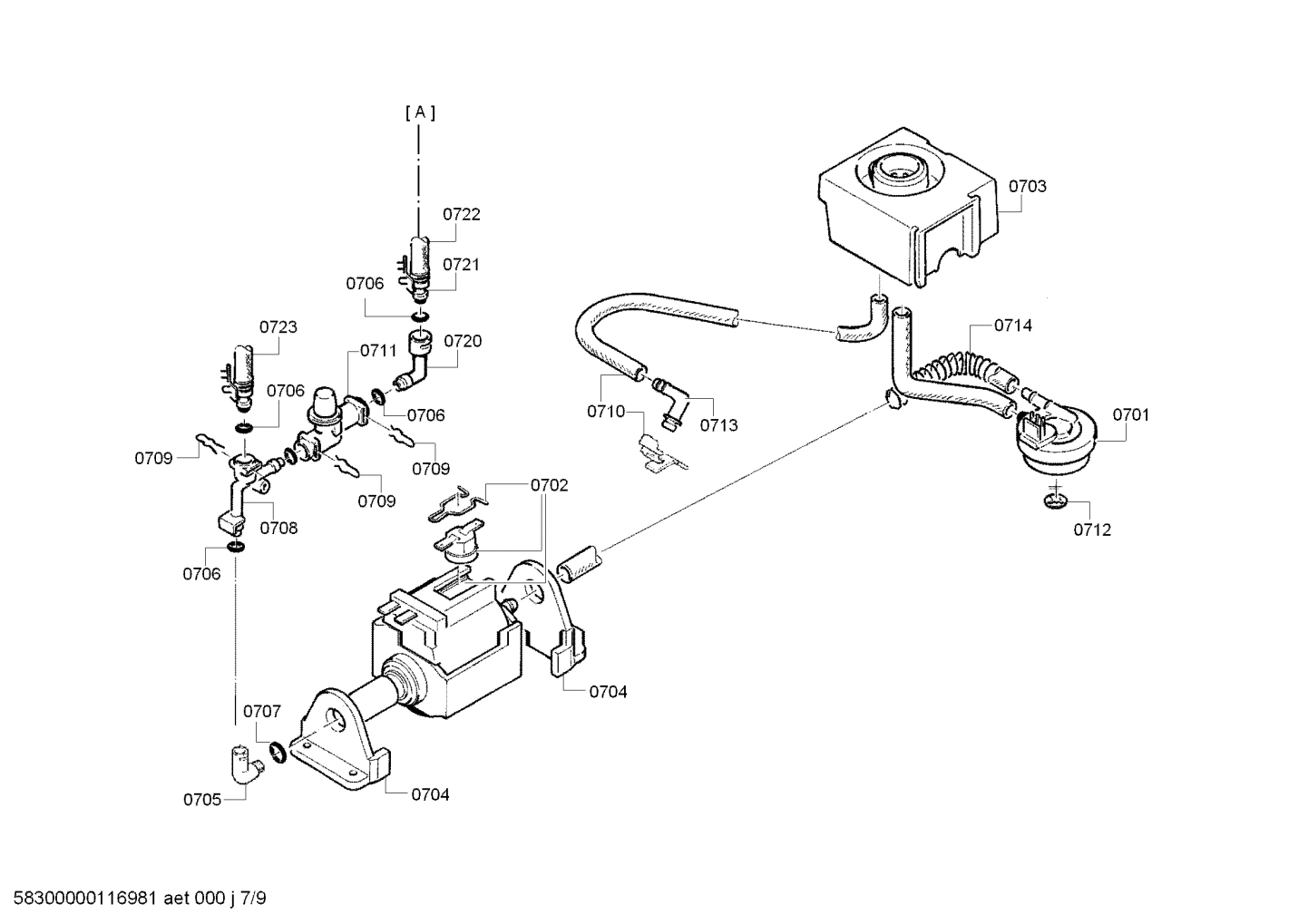

0703
Coupling
Coupling BOS 00419985 Contact Us For Availability
View on Model
0704
Bearing
Bearing BOS 00419987 Contact Us For Availability
View on Model
0707
Sealing
Sealing BOS 00419991 Contact Us For Availability
View on Model
0710
Outlet set
Outlet set BOS 00425993 Contact Us For Availability
View on Model
0712
Ring
Ring BOS 00423401 Contact Us For Availability
View on Model
0713
Stud
Stud BOS 00423405 Contact Us For Availability
View on Model
0714
Installation set
Installation set BOS 00493828 Contact Us For Availability
View on Model

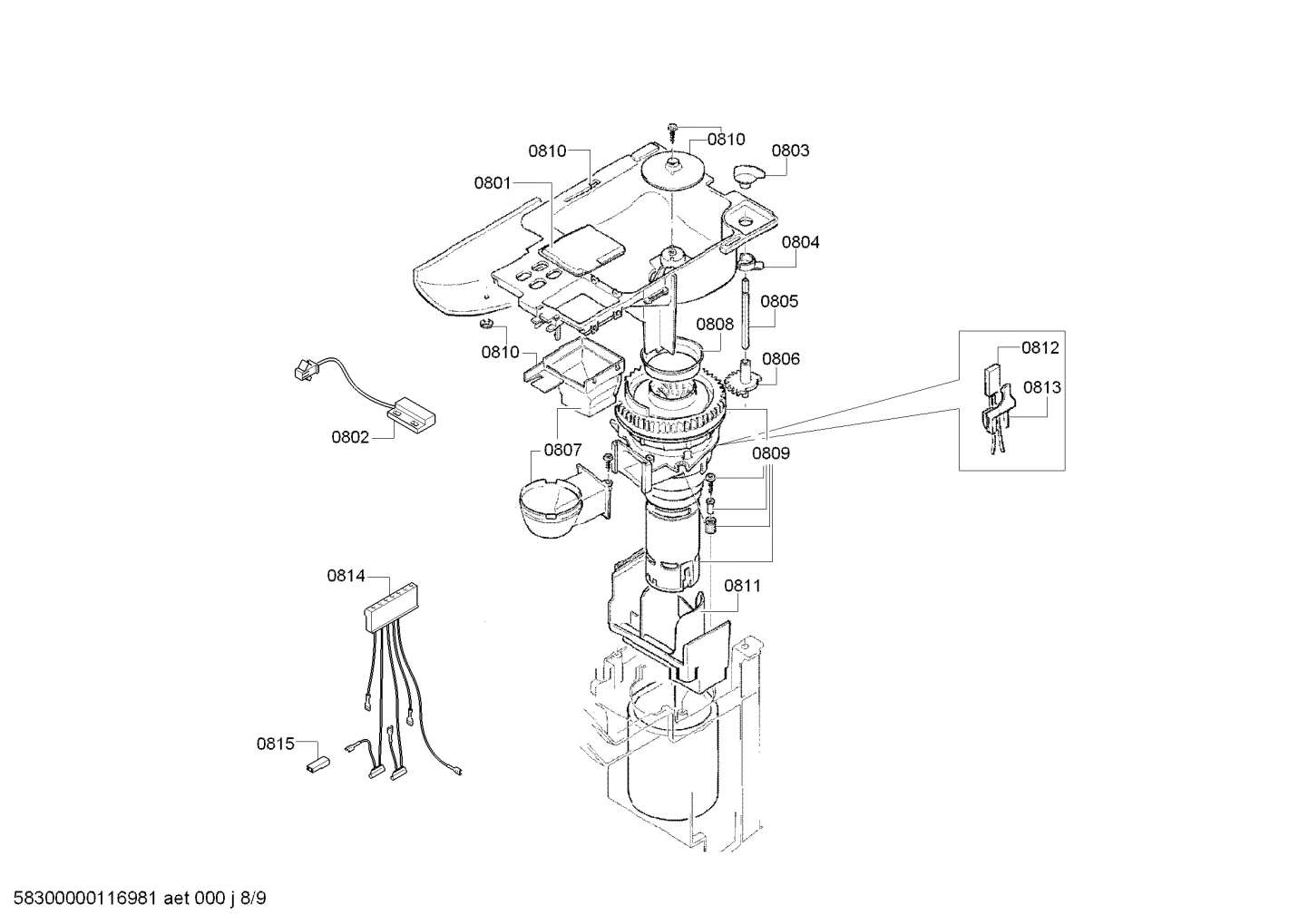

0803
Button
Button BOS 00419971 Contact Us For Availability
View on Model
0804
Retaining washer
Retaining washer BOS 00419972 Contact Us For Availability
View on Model
0805
Axis
Axis BOS 00419974 Contact Us For Availability
View on Model
0806
Toothed rim
Toothed rim BOS 00419976 Contact Us For Availability
View on Model
0807
Funnel
Funnel BOS 00496369 Contact Us For Availability
View on Model
0808
Sleeve
Sleeve BOS 00419999 Contact Us For Availability
View on Model
0810
Container
Container BOS 00641809 Contact Us For Availability
View on Model
0811
Guide
Guide BOS 00428084 Contact Us For Availability
View on Model
0812
Temperature sensor
Temperature sensor BOS 00602387 Contact Us For Availability
View on Model
0813
Holder
Holder BOS 00602388 Contact Us For Availability
View on Model
0815
Insulating part
Insulating part BOS 00428267 Contact Us For Availability
View on Model

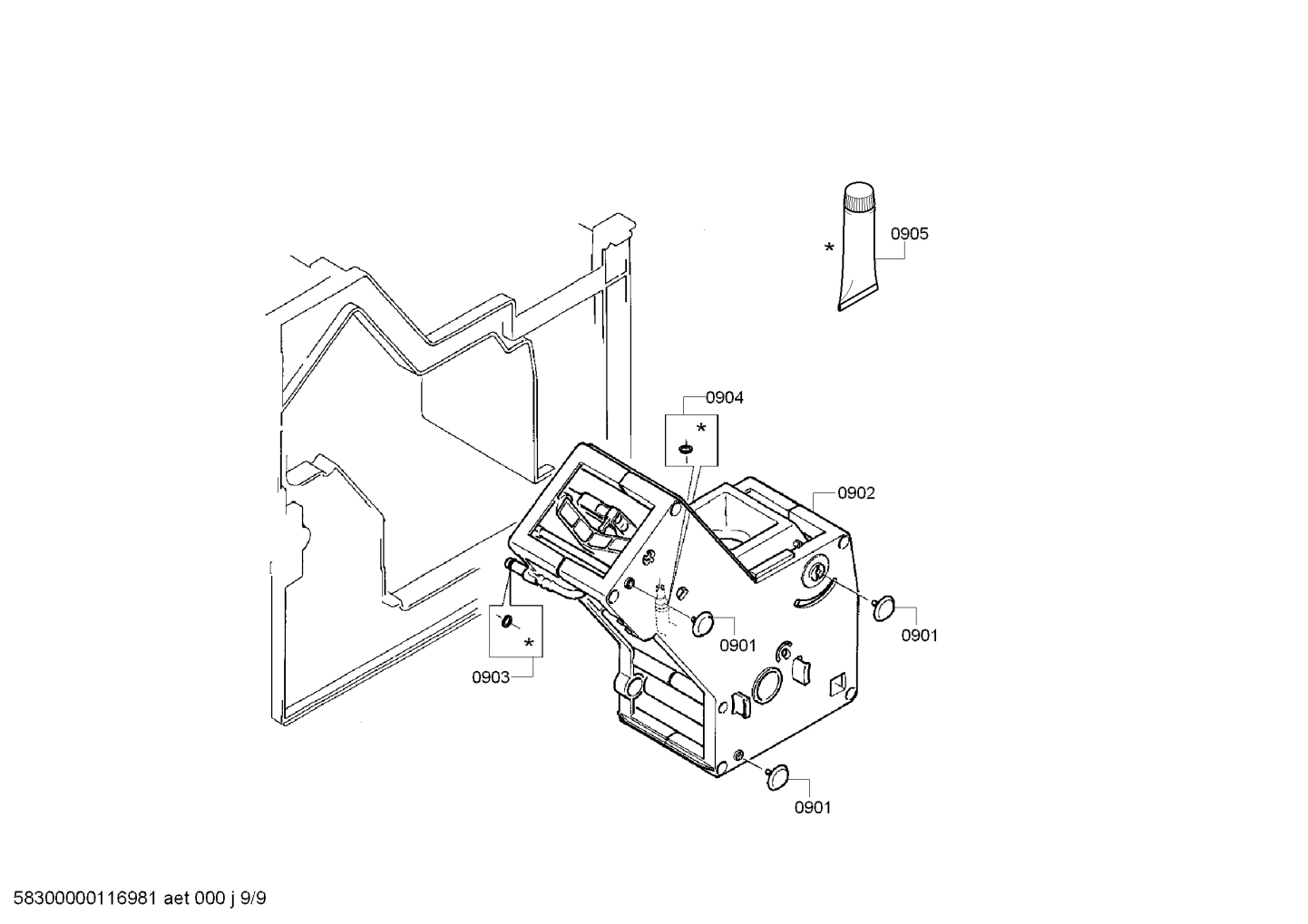

0901
Plug
Plug BOS 00419967 Contact Us For Availability
View on Model
0903
Sealing
Sealing BOS 00601046 Contact Us For Availability
View on Model
0904
Sealing
Sealing BOS 00601047 Contact Us For Availability
View on Model
0905
Lubricant
Lubricant BOS 00310574 Contact Us For Availability
View on Model
