Model Bosch TCA6401/02 Hot Water Dispenser – Common Parts & Diagrams
Diagram 1
Diagram 2

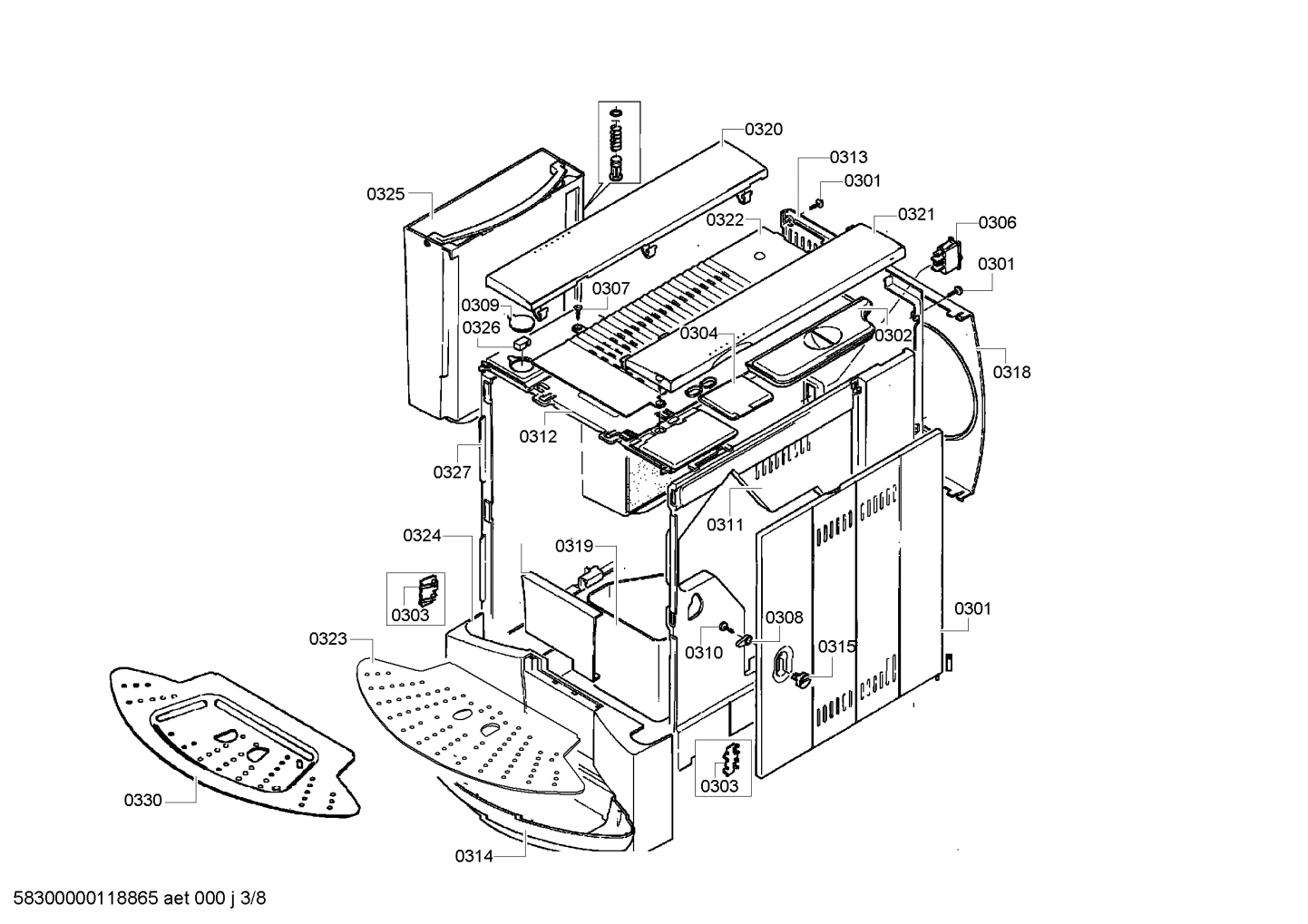

Diagram 3

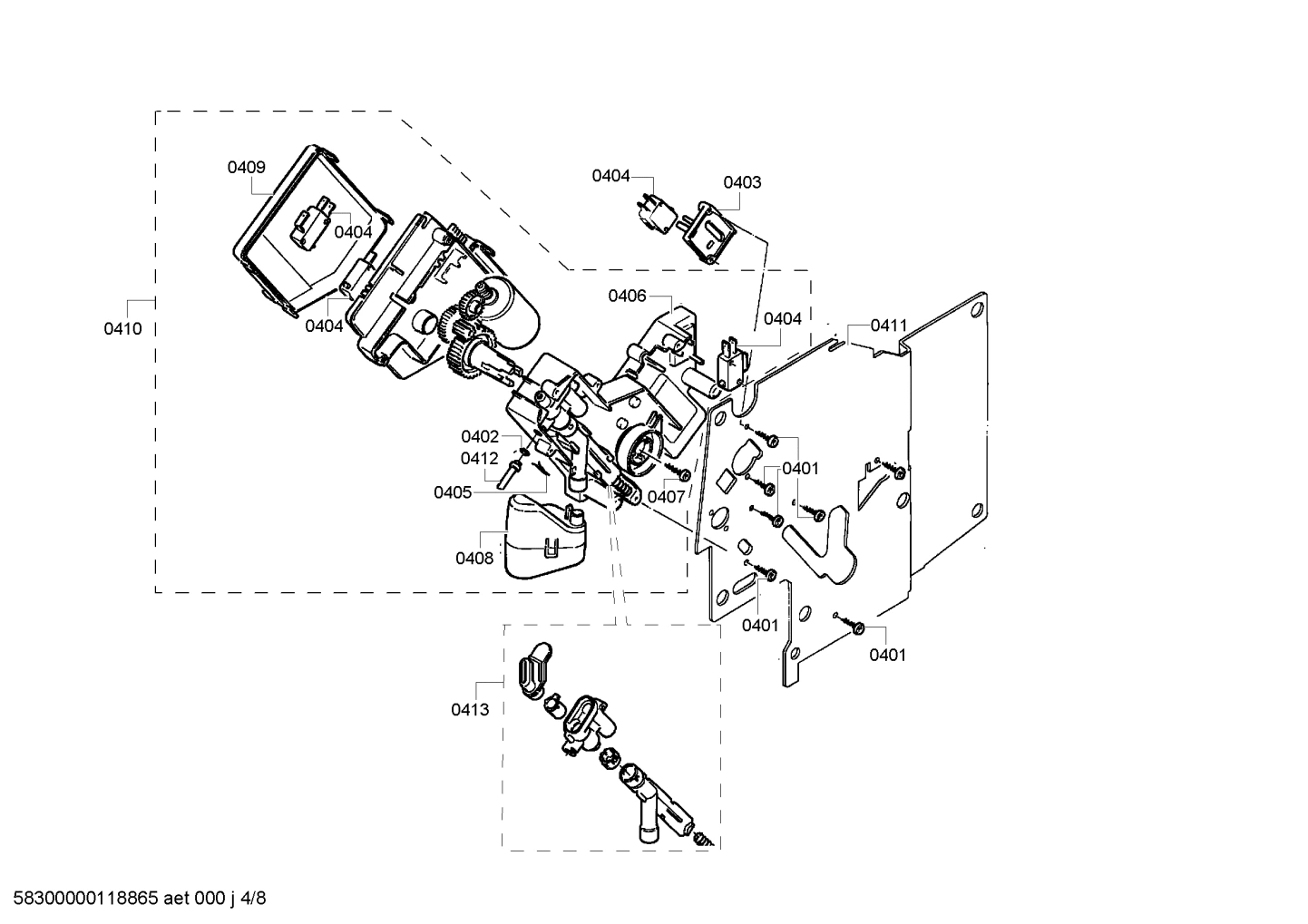

Diagram 4

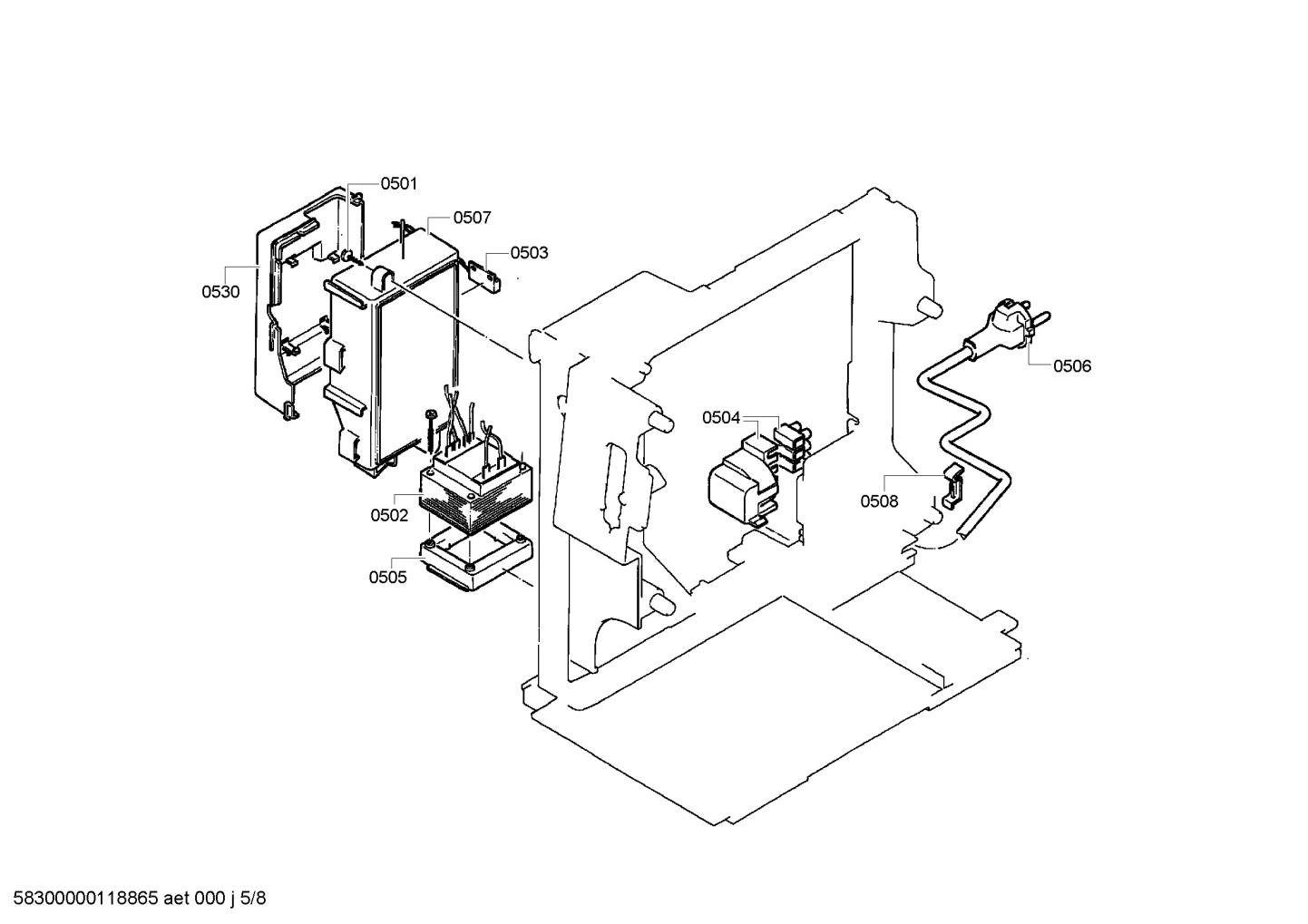

Diagram 5

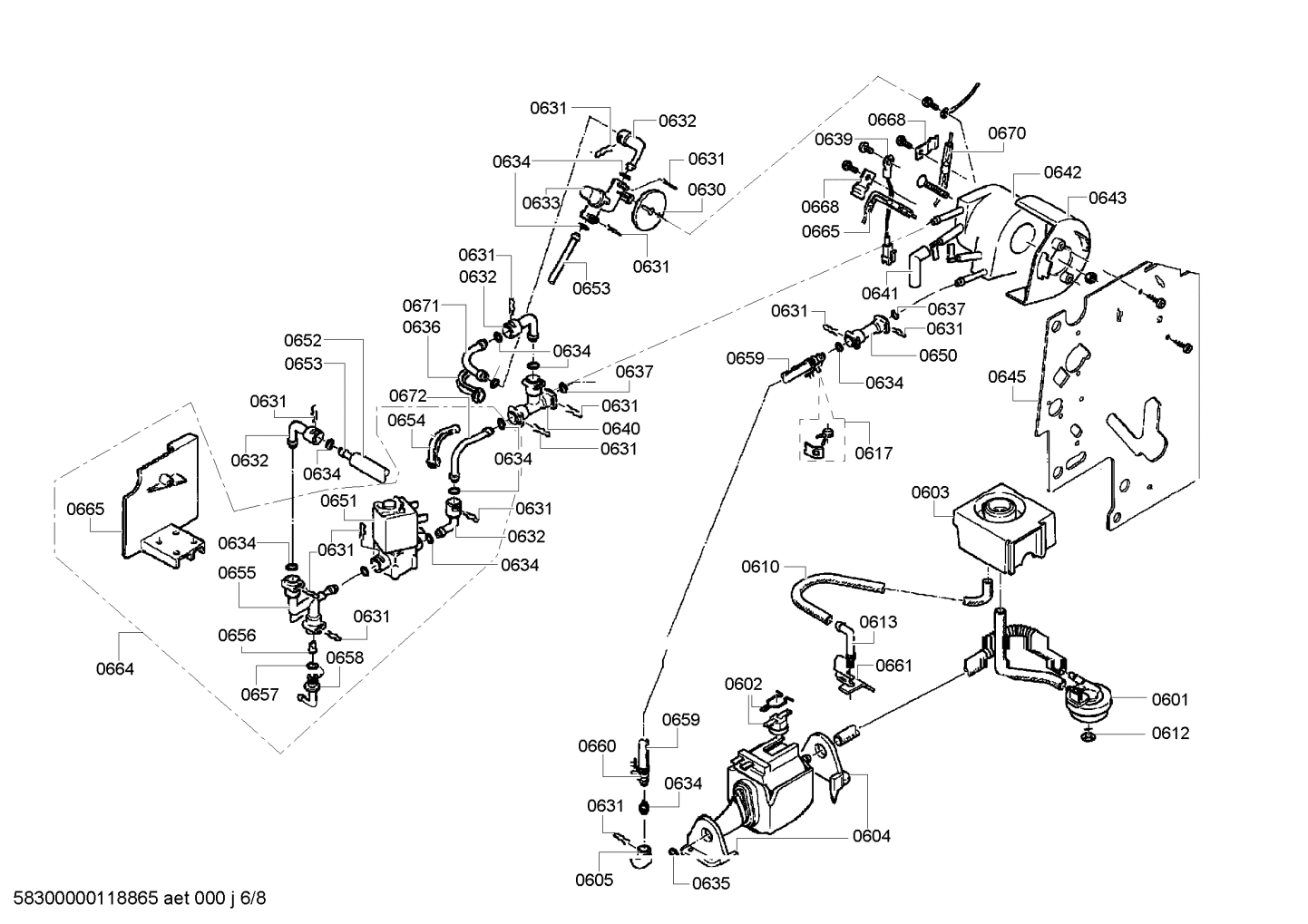

Diagram 6

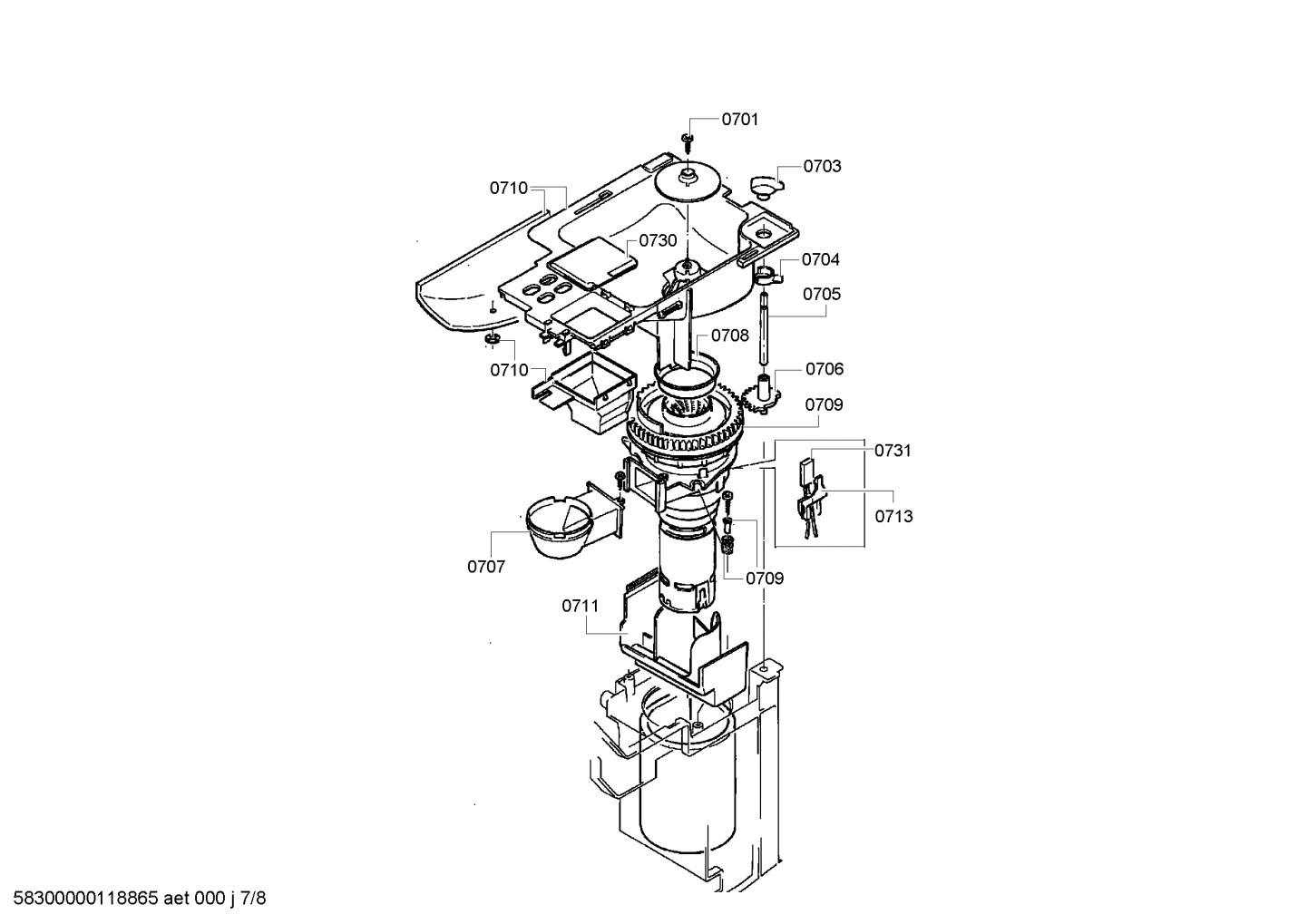

Diagram 7

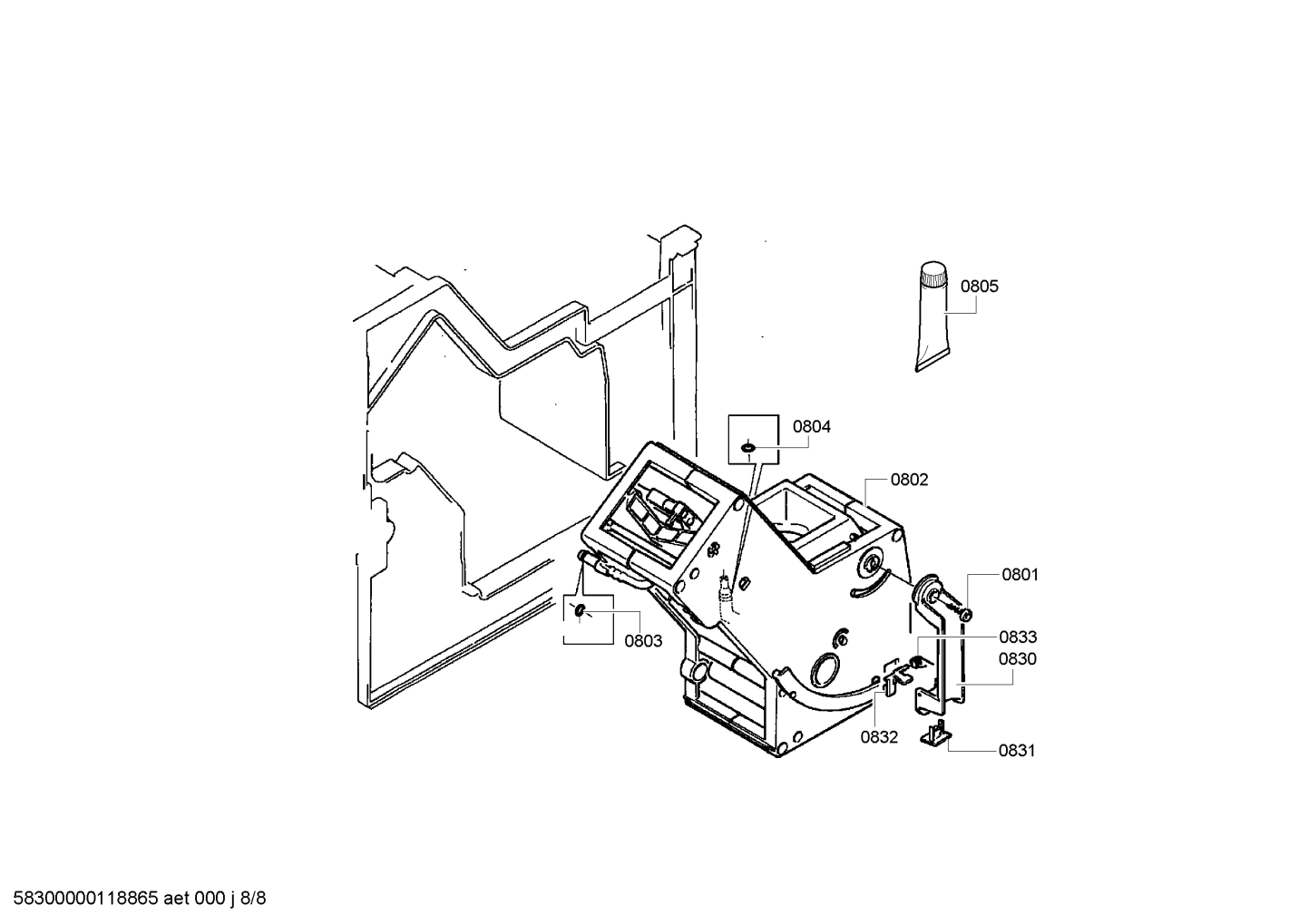

Diagram 8
Common parts from model Bosch TCA6401/02 Hot Water Dispenser
0109
Coffee Scoop BOS 00420005 Contact Us For Availability
0321
Lid BOS 00490928 Contact Us For Availability
0325
Tank BOS 00490218 Contact Us For Availability
0408
Outlet BOS 00423397 Contact Us For Availability
0409
Case-rear part BOS 00606455 Contact Us For Availability
0505
Support BOS 00421798 Contact Us For Availability
0506
Power cord BOS 00641189 Contact Us For Availability
0508
Stress-relief BOS 00425983 Contact Us For Availability
0530
Cover BOS 00641674 Contact Us For Availability
0604
Bearing BOS 00419987 Contact Us For Availability
0610
Hose BOS 00423236 Contact Us For Availability
0612
Ring BOS 00423401 Contact Us For Availability
0640
Coupling BOS 00427444 Contact Us For Availability
0645
Sheet BOS 00499058 Contact Us For Availability
0650
Coupling BOS 00427447 Contact Us For Availability
0668
Clip BOS 00426826 Contact Us For Availability
0705
Axis BOS 00419974 Contact Us For Availability
0707
Funnel BOS 00428092 Contact Us For Availability
0710
Container BOS 00641809 Contact Us For Availability
0713
Holder BOS 00602388 Contact Us For Availability
0730
Lid BOS 00606862 Contact Us For Availability
0731
Temperature sensor BOS 00602387 Contact Us For Availability
× ![]()
