Model Bosch SM272BW/01 Range Oven – Common Parts & Diagrams
Diagram 1
Diagram 2

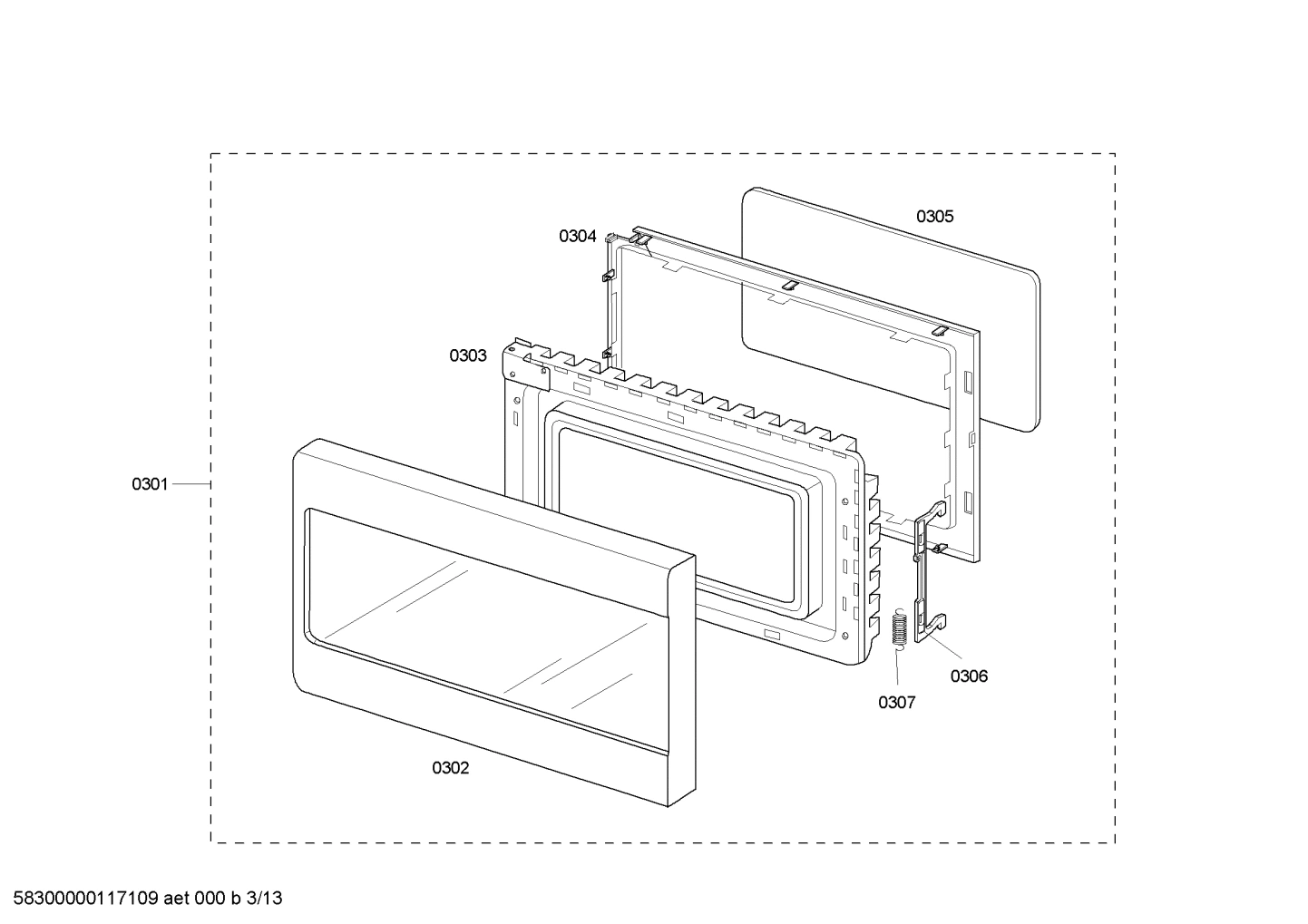

Diagram 3

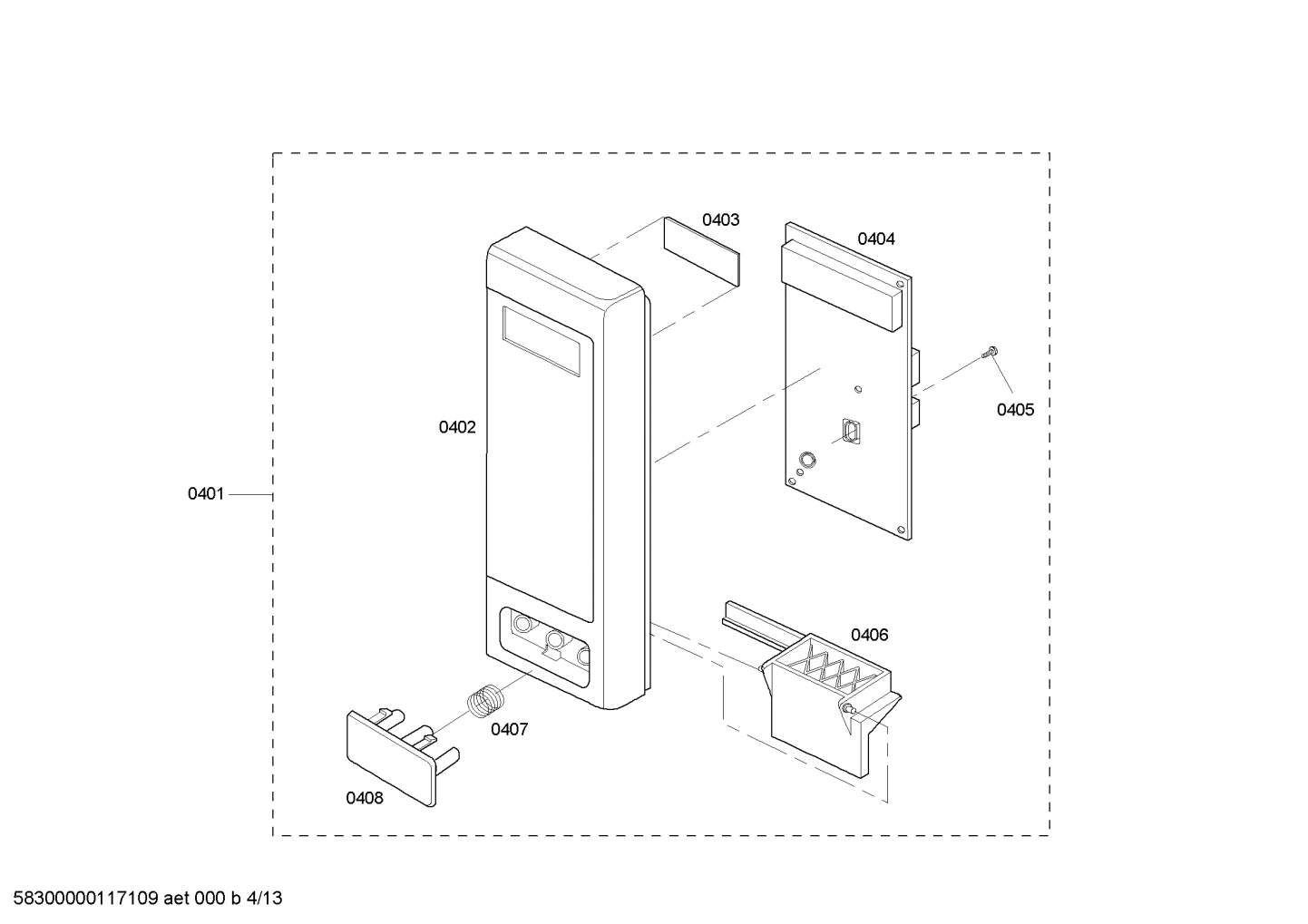

Diagram 4

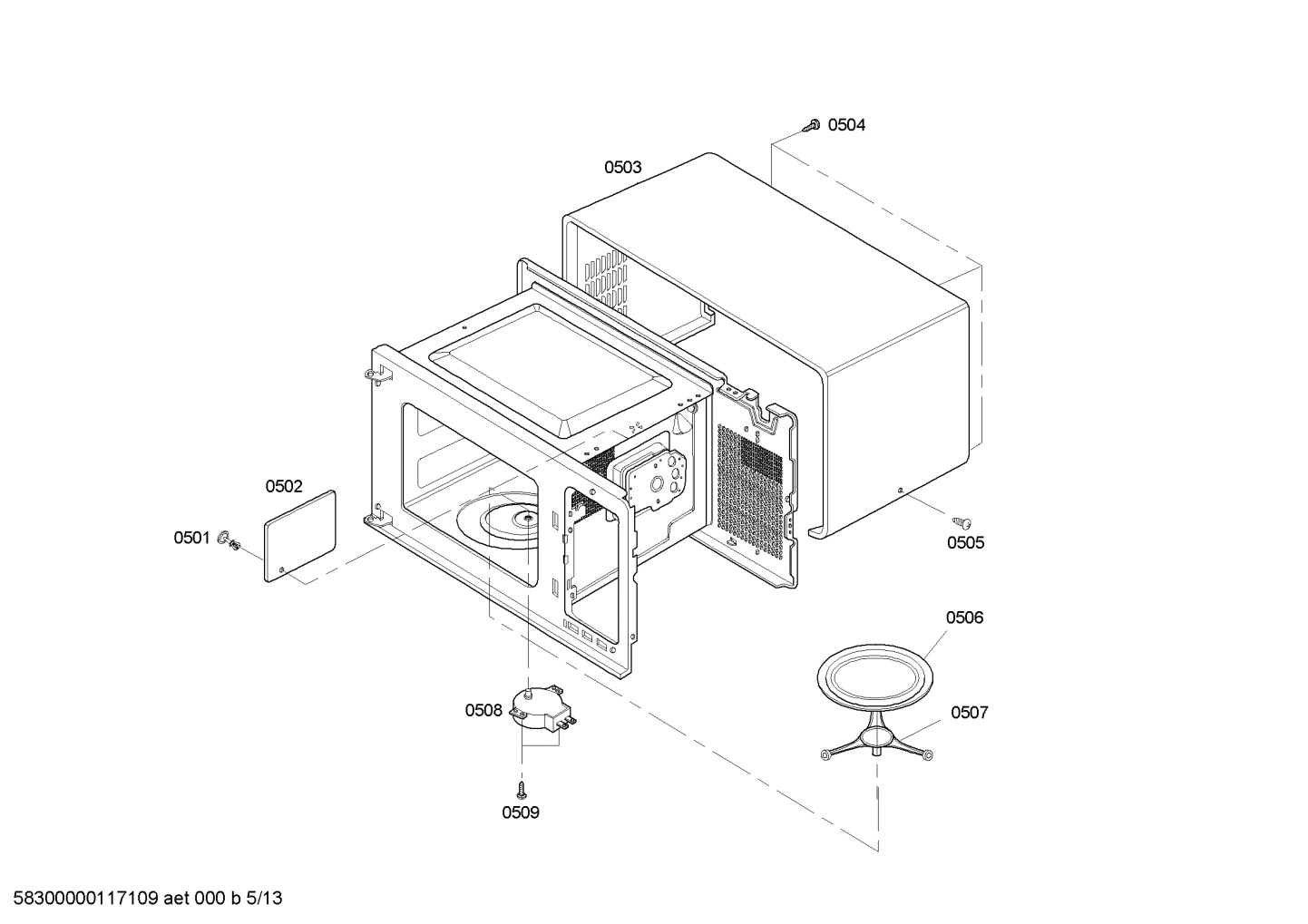

Diagram 5

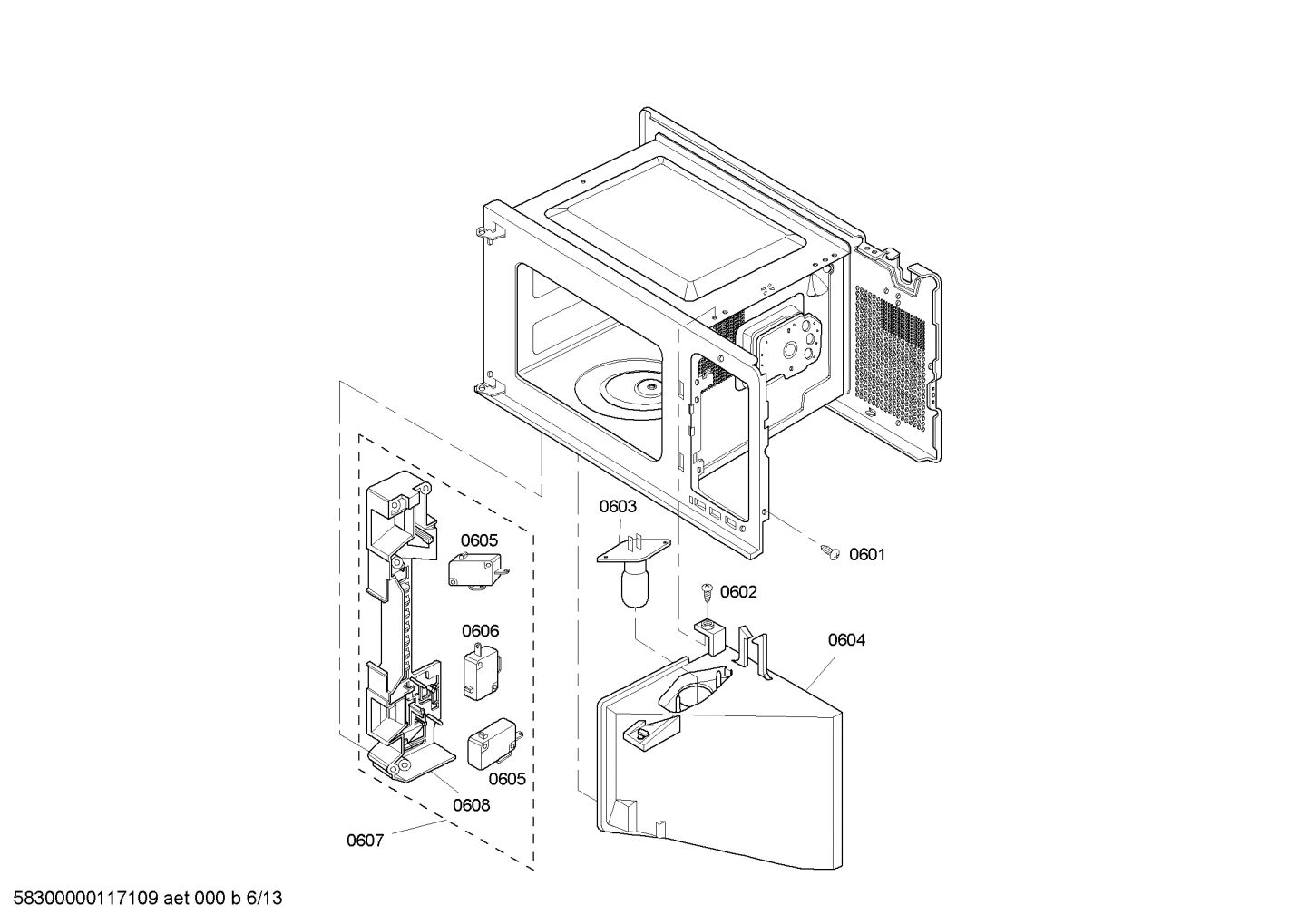

Diagram 6

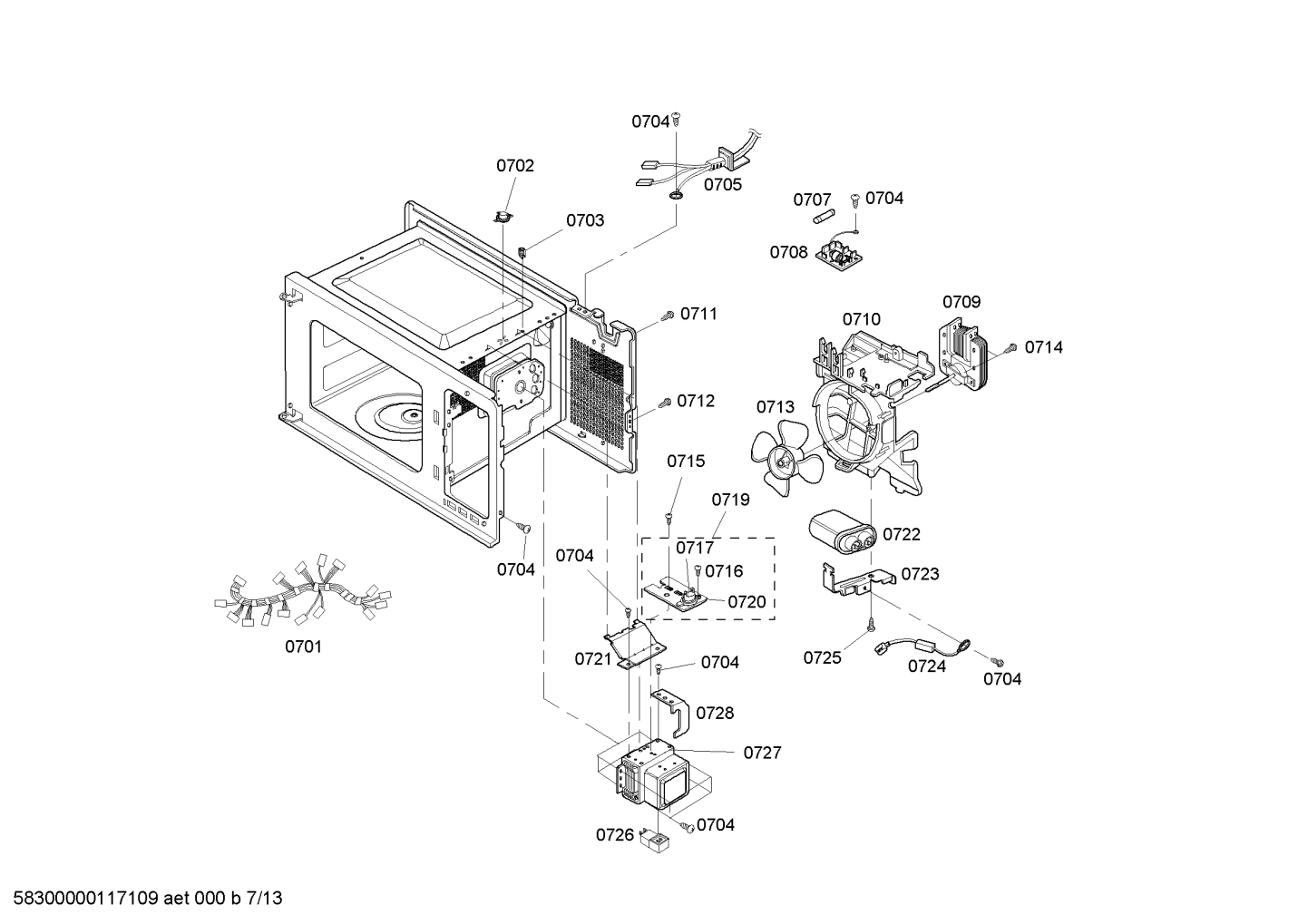

Diagram 7

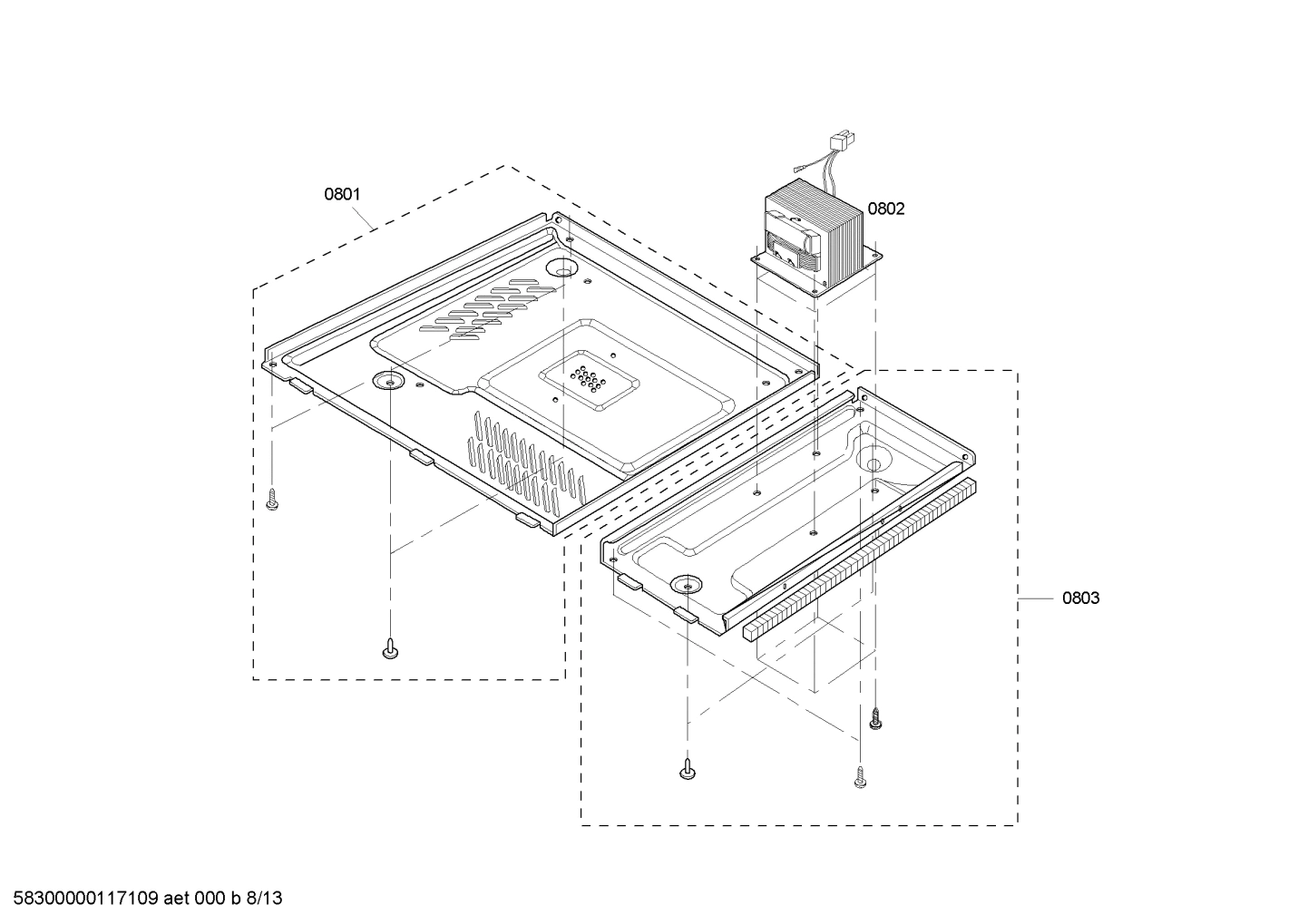

Diagram 8

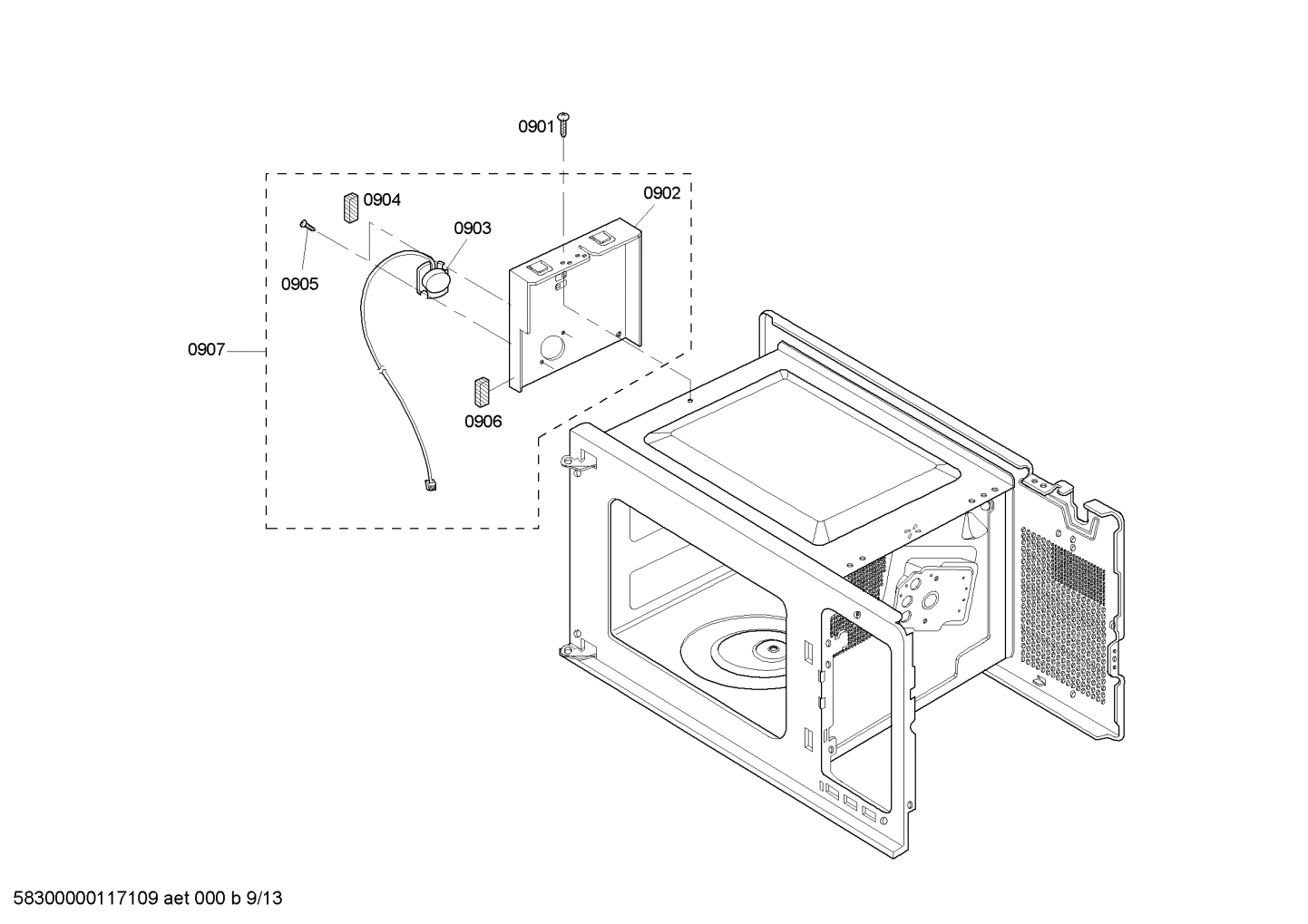

Diagram 9

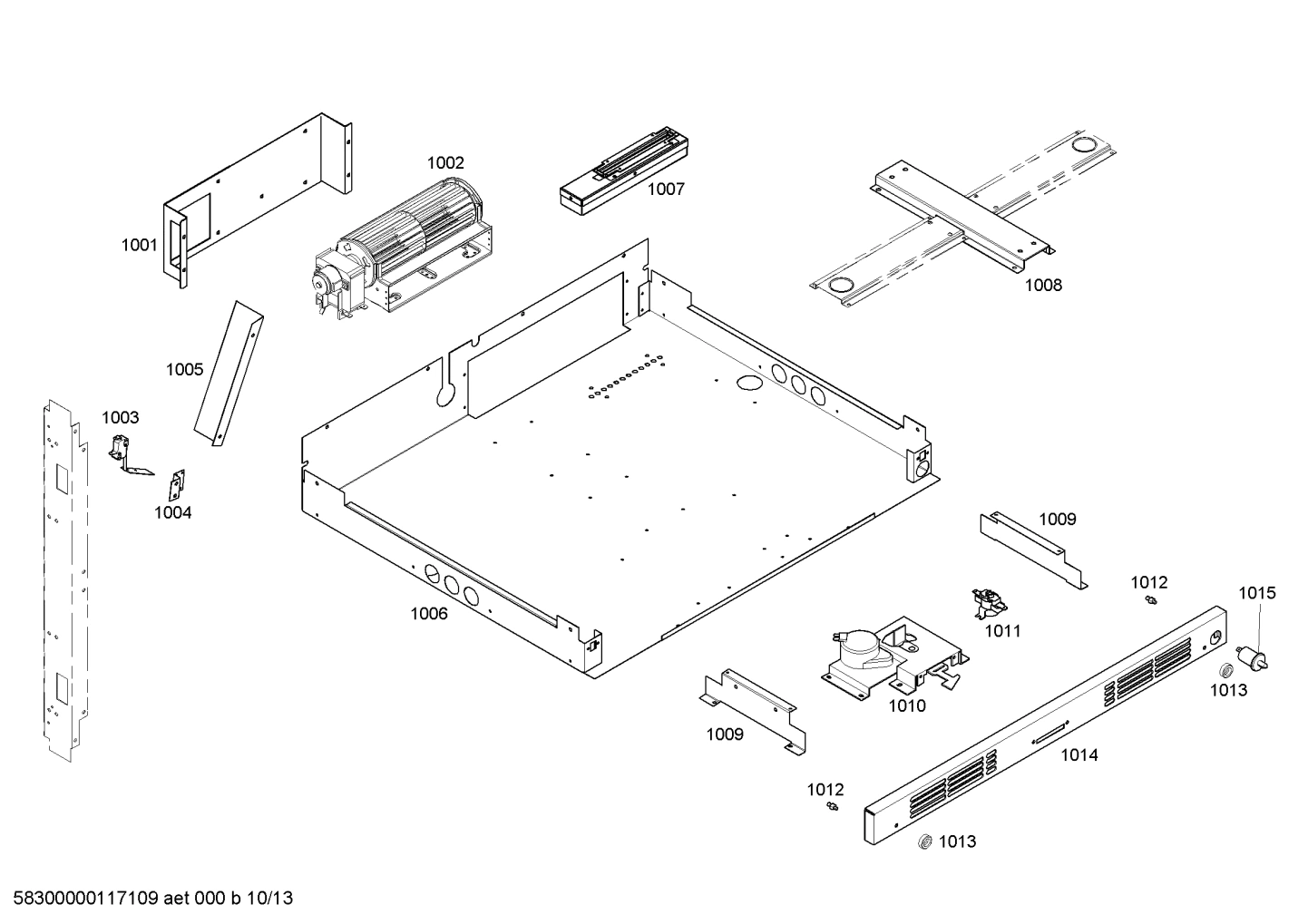

Diagram 10

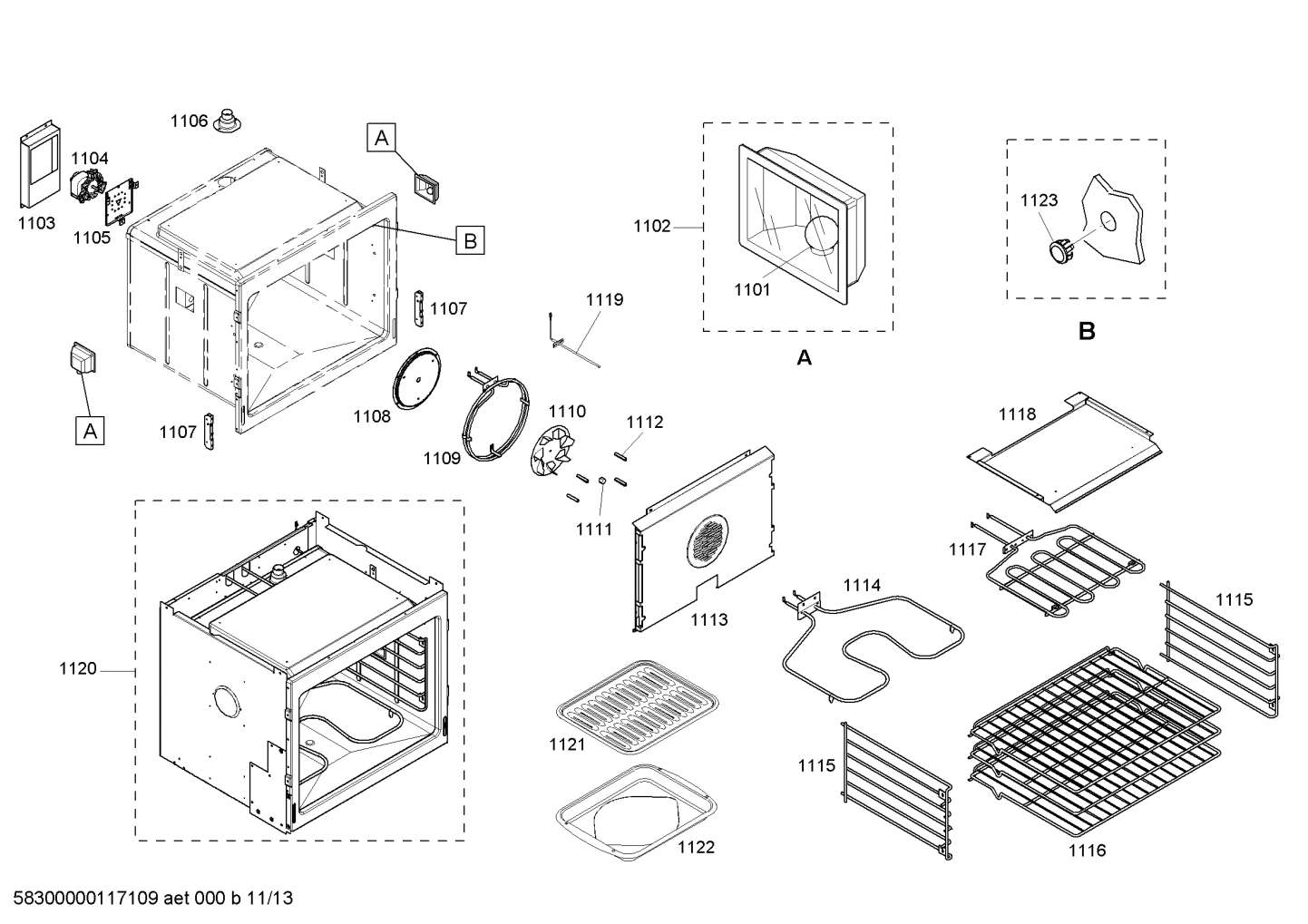

Diagram 11

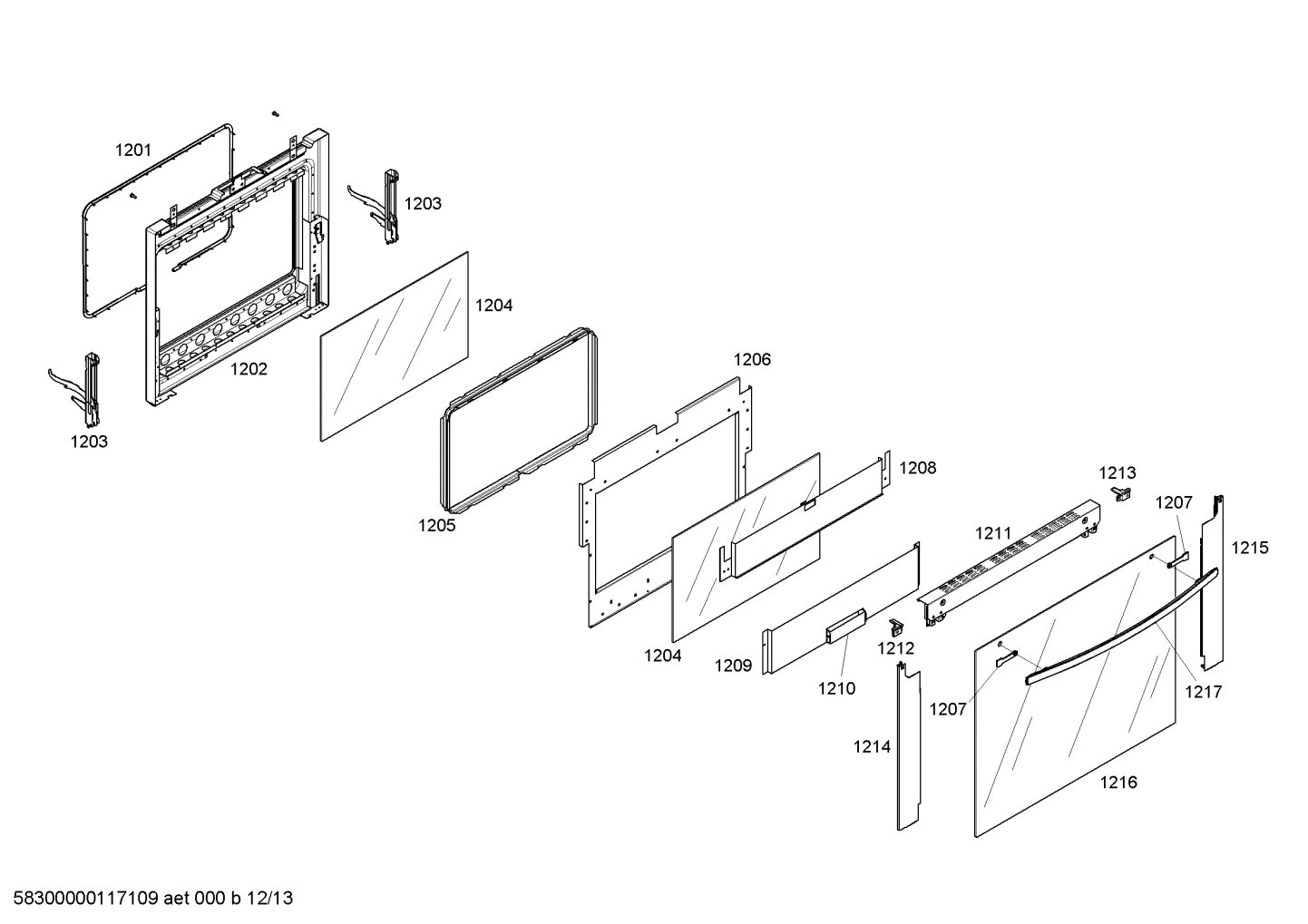

Diagram 12

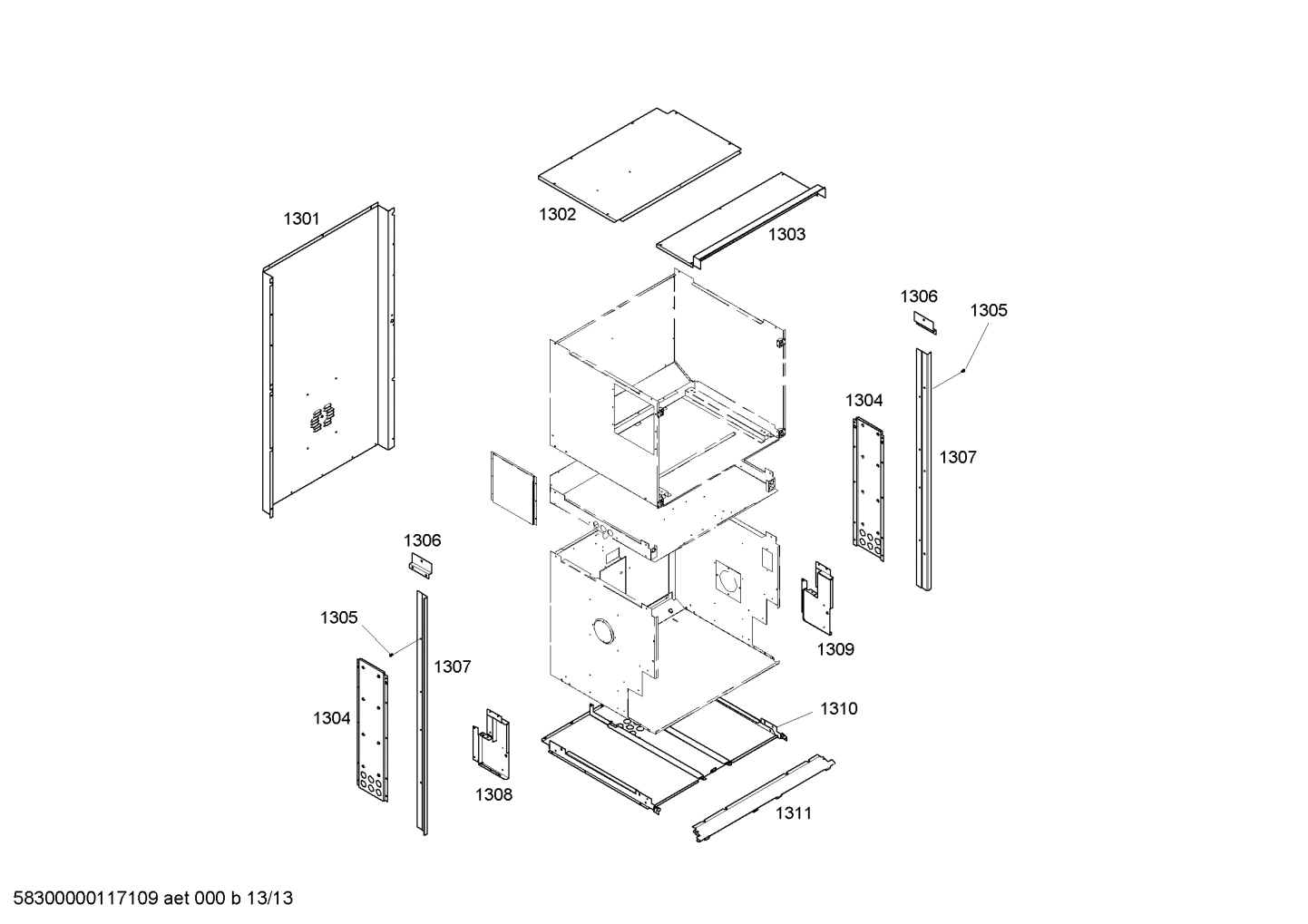

Diagram 13
Common parts from model Bosch SM272BW/01 Range Oven
0101
Relay BOS 00415761 Contact Us For Availability
0110
Repair-set BOS 00702450 Contact Us For Availability
0111
Terminal BOS 00484615 Contact Us For Availability
0157
Cable harness BOS 00189936 Contact Us For Availability
0303
Frame BOS 00144395 Contact Us For Availability
0305
Insulating tape BOS 00491129 Contact Us For Availability
0307
Spring BOS 00421266 Contact Us For Availability
0501
Rivet BOS 00421304 Contact Us For Availability
0502
Cover BOS 00491133 Contact Us For Availability
0506
Glass tray BOS 00491157 Contact Us For Availability
0507
Rotating Ring Assembly BOS 00499551 Contact Us For Availability
0508
Motor BOS 00183579 Contact Us For Availability
0603
Lamp BOS 00421309 Contact Us For Availability
0608
Support BOS 00482135 Contact Us For Availability
0708
Filter BOS 00421347 Contact Us For Availability
0717
Temperature sensor BOS 00417862 Contact Us For Availability
0719
Limiter-temperature BOS 00421431 Contact Us For Availability
0720
Plate BOS 00417860 Contact Us For Availability
0721
Bracket BOS 00421342 Contact Us For Availability
0722
Capacitor BOS 00421344 No Longer Available
0723
Holder BOS 00152969 Contact Us For Availability
0724
Diode BOS 00417726 No Longer Available
0725
Screw BOS 00421362 Contact Us For Availability
0726
Filter module BOS 00171387 Contact Us For Availability
0728
Spacer BOS 00421581 Contact Us For Availability
0801
Base BOS 00435380 Contact Us For Availability
0802
Transformer-high voltage BOS 00491161 Contact Us For Availability
0803
Base BOS 00435381 Contact Us For Availability
0901
Screw BOS 00421361 Contact Us For Availability
0902
Bracket BOS 00421350 Contact Us For Availability
0904
Filter foam BOS 00421352 Contact Us For Availability
0905
Screw BOS 00421353 Contact Us For Availability
0907
Sensor BOS 00491231 Contact Us For Availability
1001
Bracket BOS 00485978 Contact Us For Availability
1002
Installation set BOS 00431492 Contact Us For Availability
1003
Switch BOS 00488400 Contact Us For Availability
1004
Bracket BOS 00416807 Contact Us For Availability
1005
Heat shield BOS 00432354 Contact Us For Availability
1006
Frame BOS 00368495 Contact Us For Availability
1007
Duct BOS 00413567 Contact Us For Availability
1008
Covering BOS 00368285 Contact Us For Availability
1009
Sign BOS 00368496 Contact Us For Availability
1010
Electric lock BOS 00489102 Contact Us For Availability
1012
Damper BOS 00411059 Contact Us For Availability
1013
Spacer BOS 00425279 Contact Us For Availability
1014
Plate BOS 00486330 Contact Us For Availability
1102
Lamp housing BOS 00414512 Contact Us For Availability
1103
Cover BOS 00485982 Contact Us For Availability
1104
Motor BOS 00494266 Contact Us For Availability
1106
Catalyzer BOS 00411220 Contact Us For Availability
1107
Holder BOS 00414510 Contact Us For Availability
1108
Plate BOS 00412840 Contact Us For Availability
1110
Fan blade BOS 00487019 Contact Us For Availability
1112
Spacer BOS 00413128 Contact Us For Availability
1113
Ventilation duct BOS 00368282 Contact Us For Availability
1116
Grill grid BOS 00368827 Contact Us For Availability
1117
Heating element BOS 00367647 Contact Us For Availability
1118
Reflector BOS 00368265 Contact Us For Availability
1119
Temperature sensor BOS 00414152 Contact Us For Availability
1120
Oven cavity BOS 00238831 Contact Us For Availability
1121
Grid BOS 00484627 Contact Us For Availability
1122
Universal pan BOS 00449757 Contact Us For Availability
1151
Screw BOS 00413466 Contact Us For Availability
1152
Insulating part BOS 00486004 Contact Us For Availability
1202
Door-inner BOS 00470537 Contact Us For Availability
1203
Hinge BOS 00487747 Contact Us For Availability
1205
Spacer BOS 00369152 Contact Us For Availability
1206
Insulating part BOS 00368287 Contact Us For Availability
1207
Spacer BOS 00414817 Contact Us For Availability
1208
Ventilation duct BOS 00485992 Contact Us For Availability
1209
Ventilation duct BOS 00486000 Contact Us For Availability
1210
Bracket BOS 00413120 Contact Us For Availability
1211
Seating BOS 00369984 Contact Us For Availability
1212
Handle-cap shaped BOS 00414391 Contact Us For Availability
1213
Handle-cap shaped BOS 00414390 Contact Us For Availability
1214
Bracket BOS 00434159 Contact Us For Availability
1215
Bracket BOS 00434160 Contact Us For Availability
1216
Glass panel BOS 00142737 Contact Us For Availability
1217
Handle BOS 00641345 Contact Us For Availability
1301
Covering BOS 00368492 Contact Us For Availability
1302
Cover BOS 00485975 Contact Us For Availability
1303
Covering BOS 00142733 Contact Us For Availability
1304
Duct BOS 00368450 Contact Us For Availability
1306
Bracket BOS 00413600 Contact Us For Availability
1307
Frame BOS 00432581 Contact Us For Availability
1308
Bracket BOS 00416432 Contact Us For Availability
1309
Bracket BOS 00416431 Contact Us For Availability
1310
Base BOS 00219354 Contact Us For Availability
1311
Frame BOS 00368502 Contact Us For Availability
× ![]()
