Model Bosch SHV09A13/21 Dishwasher – Common Parts & Diagrams
Diagram 1
Diagram 2

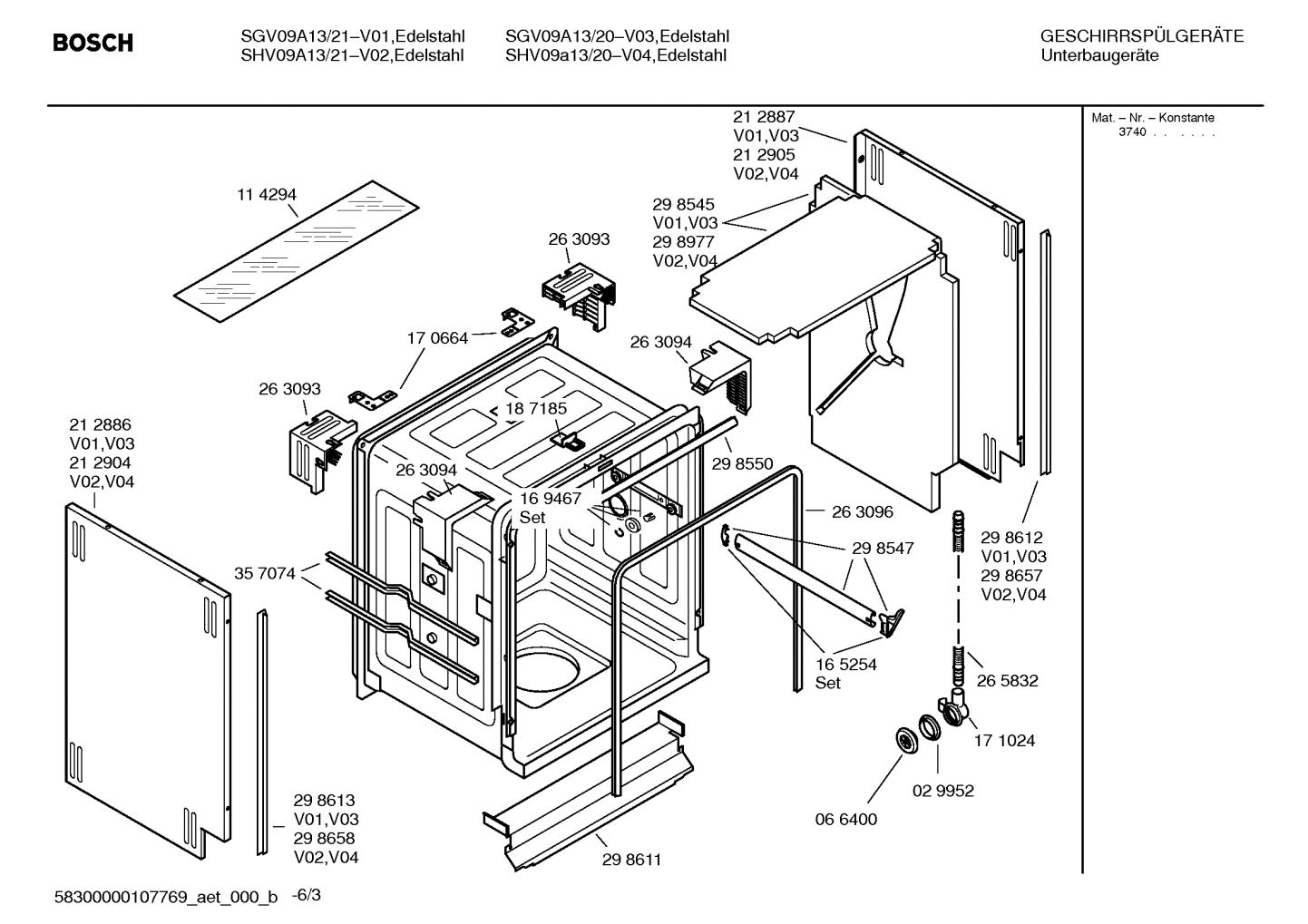

Diagram 3

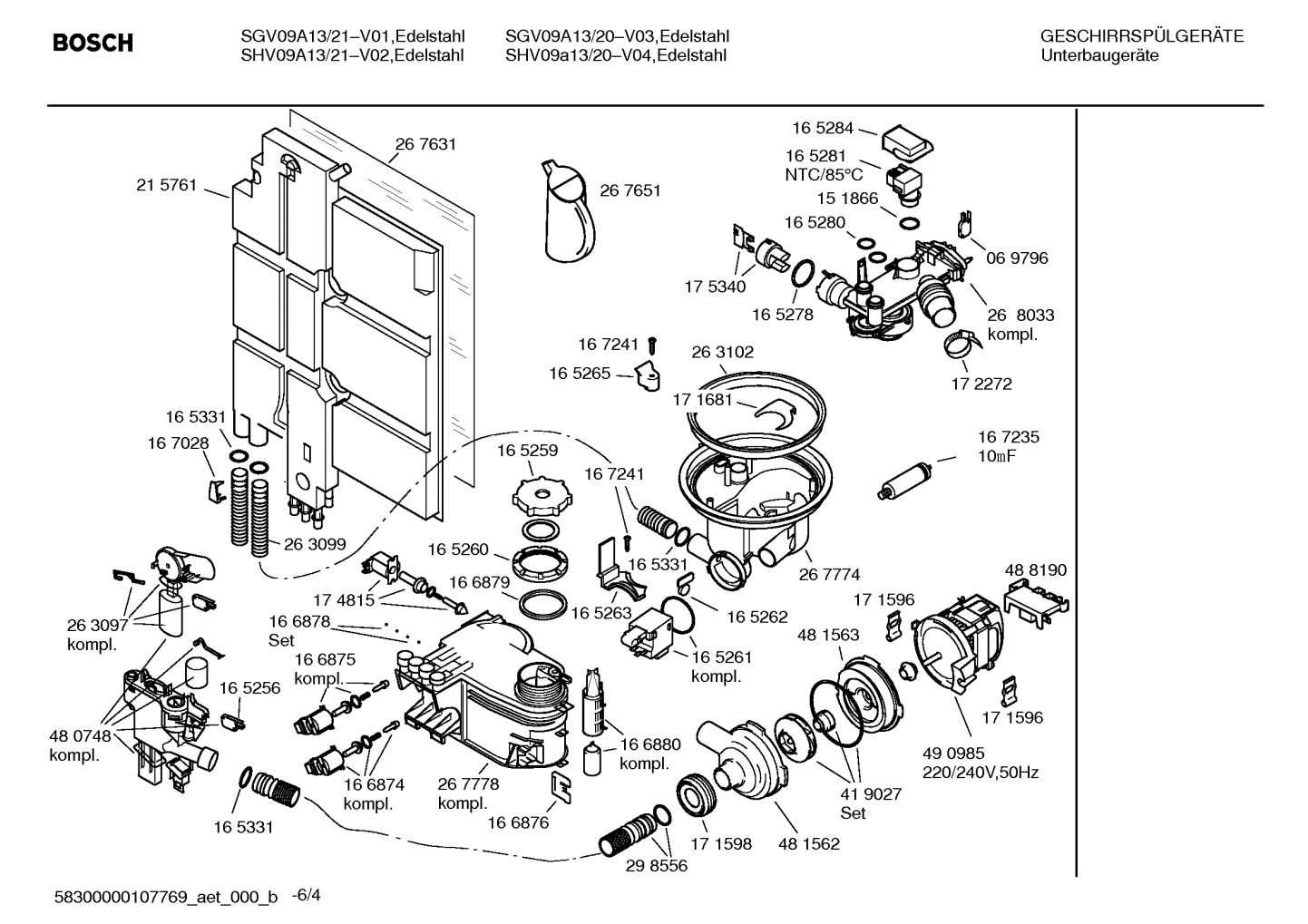

Diagram 4

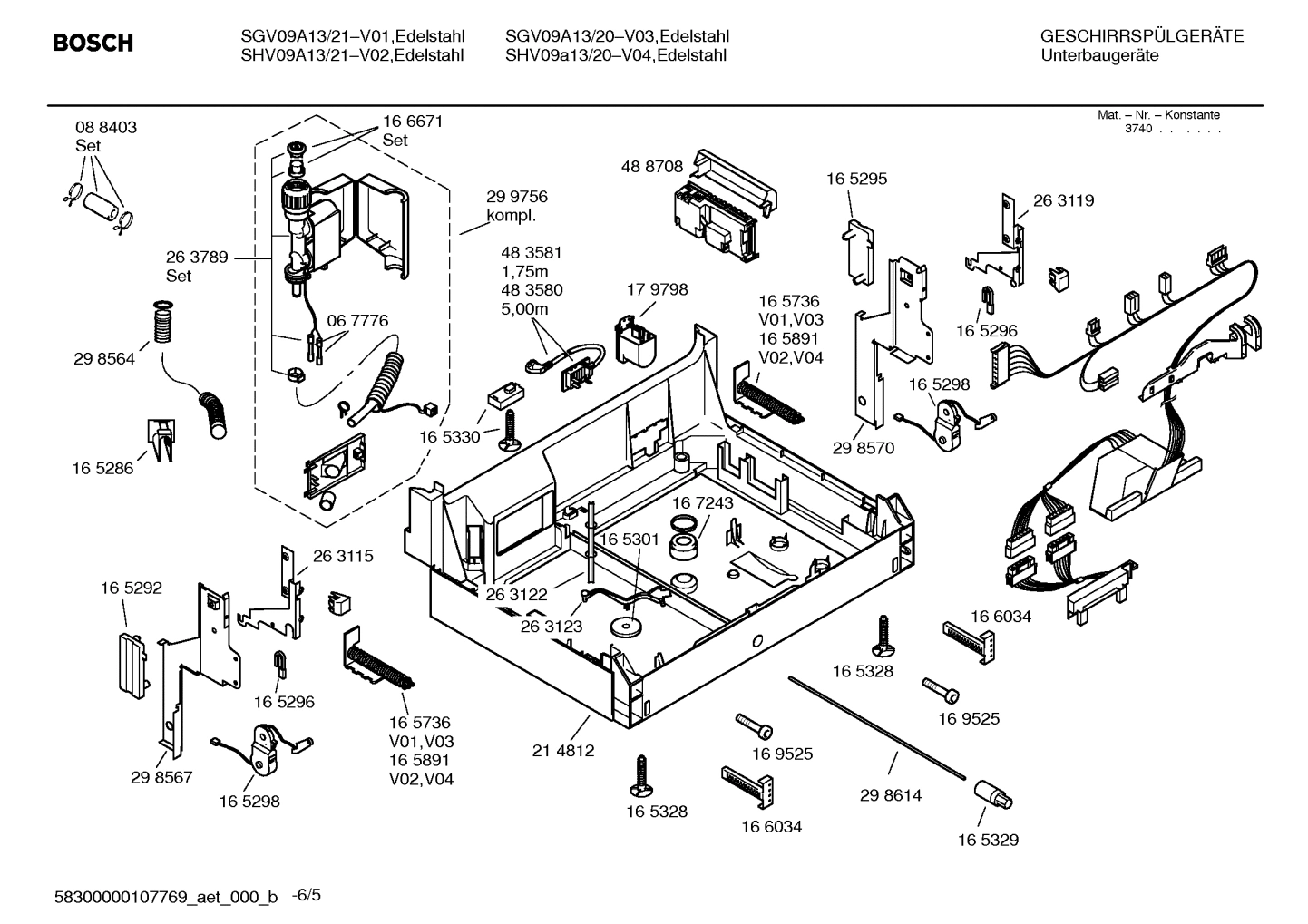

Diagram 5

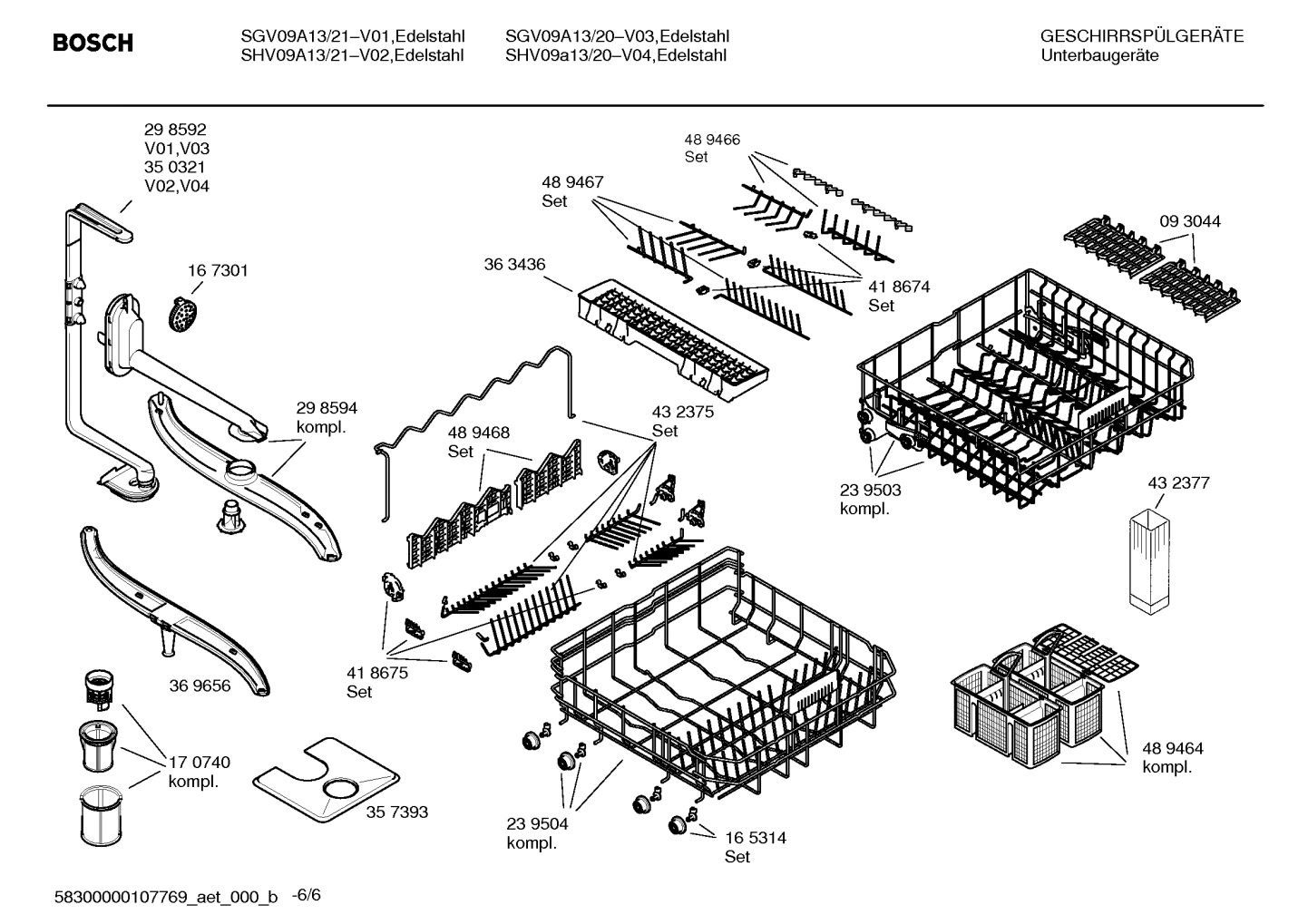

Diagram 6
Common parts from model Bosch SHV09A13/21 Dishwasher
0003
Switch BOS 00187205 Contact Us For Availability
0006
Ball Bearing Door Latch BOS 00438026 Contact Us For Availability
0021
Sealing BOS 00166637 Contact Us For Availability
0030
Rectifier BOS 00182135 Contact Us For Availability
0032
Switch BOS 00182134 Contact Us For Availability
0035
Door Seal BOS 00298534 Contact Us For Availability
0039
Screw BOS 00151703 Contact Us For Availability
0041
Holder BOS 00165325 Contact Us For Availability
0044
Mounting Set for Dishwashers BOS 00165737 Contact Us For Availability
0045
Wood Screw BOS 00612562 Contact Us For Availability
0047
Attachment Brackets BOS 00170664 Contact Us For Availability
0048
Steam Safety Sheet BOS 00114294 Contact Us For Availability
0057
Latch BOS 00187185 Contact Us For Availability
0058
Seal BOS 00263096 Contact Us For Availability
0059
Rack guide rail BOS 00298547 Contact Us For Availability
0060
Front/Rear End Cap Set BOS 00165254 Contact Us For Availability
0064
Strip BOS 00298550 Contact Us For Availability
0066
Bushing BOS 00165329 Contact Us For Availability
0068
Foot BOS 00165330 Contact Us For Availability
0069
Repair set-role BOS 00622193 Contact Us For Availability
0073
Switch BOS 00165256 Contact Us For Availability
0076
Hose BOS 00298556 Contact Us For Availability
0079
Fixture BOS 00167028 Contact Us For Availability
0080
Sump Drain Hose BOS 00263099 Contact Us For Availability
0087
Pump-drain BOS 00165261 Contact Us For Availability
0088
Valve-non return BOS 00165262 Contact Us For Availability
0089
Cover BOS 00165263 Contact Us For Availability
0090
Screw BOS 00167241 Contact Us For Availability
0091
O-Ring BOS 00165331 Contact Us For Availability
0092
Holder BOS 00165265 Contact Us For Availability
0093
Sealing BOS 00263102 Contact Us For Availability
0094
Cover BOS 00171681 Contact Us For Availability
0095
Sump BOS 00267619 Contact Us For Availability
0096
Hose clamp BOS 00172272 Contact Us For Availability
0098
Sealing BOS 00171598 Contact Us For Availability
0102
Suspension BOS 00171596 Contact Us For Availability
0107
Sealing BOS 00165278 Contact Us For Availability
0108
Sensor BOS 00175340 Contact Us For Availability
0109
Sealing BOS 00165280 Contact Us For Availability
0110
Sensor-NTC BOS 00165281 Contact Us For Availability
0111
Sealing BOS 00151866 Contact Us For Availability
0112
Switch BOS 00069796 Contact Us For Availability
0115
Cover BOS 00165284 Contact Us For Availability
0120
Adapter BOS 00088403 Contact Us For Availability
0125
Cable connector BOS 00067776 Contact Us For Availability
0126
Sealing BOS 00166671 Contact Us For Availability
0129
Drain Hose BOS 00298564 Contact Us For Availability
0131
Stress-relief BOS 00165286 Contact Us For Availability
0136
Hinge BOS 00263115 Contact Us For Availability
0137
Hinge BOS 00298567 Contact Us For Availability
0139
Hinge Bushing BOS 00165296 Contact Us For Availability
0143
Tube BOS 00263122 Contact Us For Availability
0144
Hood BOS 00167243 Contact Us For Availability
0145
Lever BOS 00263123 Contact Us For Availability
0146
Float BOS 00165301 Contact Us For Availability
0149
Plate BOS 00165295 Contact Us For Availability
0150
Hinge BOS 00298570 Contact Us For Availability
0151
Hinge BOS 00263119 Contact Us For Availability
0156
Fixing kit BOS 00166034 Contact Us For Availability
0157
Screw-adjust BOS 00169525 Contact Us For Availability
0170
Tube BOS 00350321 Contact Us For Availability
0171
Spray arm BOS 00369656 Contact Us For Availability
0172
Upper Spray Arm Assembly BOS 00298594 Contact Us For Availability
0174
Filter-fine BOS 00357393 Contact Us For Availability
0176
Cutlery Basket BOS 00481957 Contact Us For Availability
0177
Upper crockery basket BOS 00770441 Contact Us For Availability
0180
Dishwasher Rack Wheel BOS 00165314 Contact Us For Availability
0181
Anti-Tarnish Silverware Holder BOS 00432377 Contact Us For Availability
0182
Tall/Large It BOS 00167301 Contact Us For Availability
0183
BOS 00363436 BOS 00363436 Contact Us For Availability
0184
BOS 00432375 BOS 00432375 Contact Us For Availability
0185
BOS 00418675 BOS 00418675 Contact Us For Availability
0187
BOS 00093044 BOS 00093044 Contact Us For Availability
0189
BOS 00418674 BOS 00418674 Contact Us For Availability
0200
BOS 00265832 BOS 00265832 Contact Us For Availability
0201
BOS 00171024 BOS 00171024 Contact Us For Availability
0203
BOS 00066400 BOS 00066400 Contact Us For Availability
3020
BOS 00428216 BOS 00428216 Contact Us For Availability
× ![]()
