Model Bosch SGV57T03CZ/07 Dishwasher – Common Parts & Diagrams
Diagram 1
Diagram 2

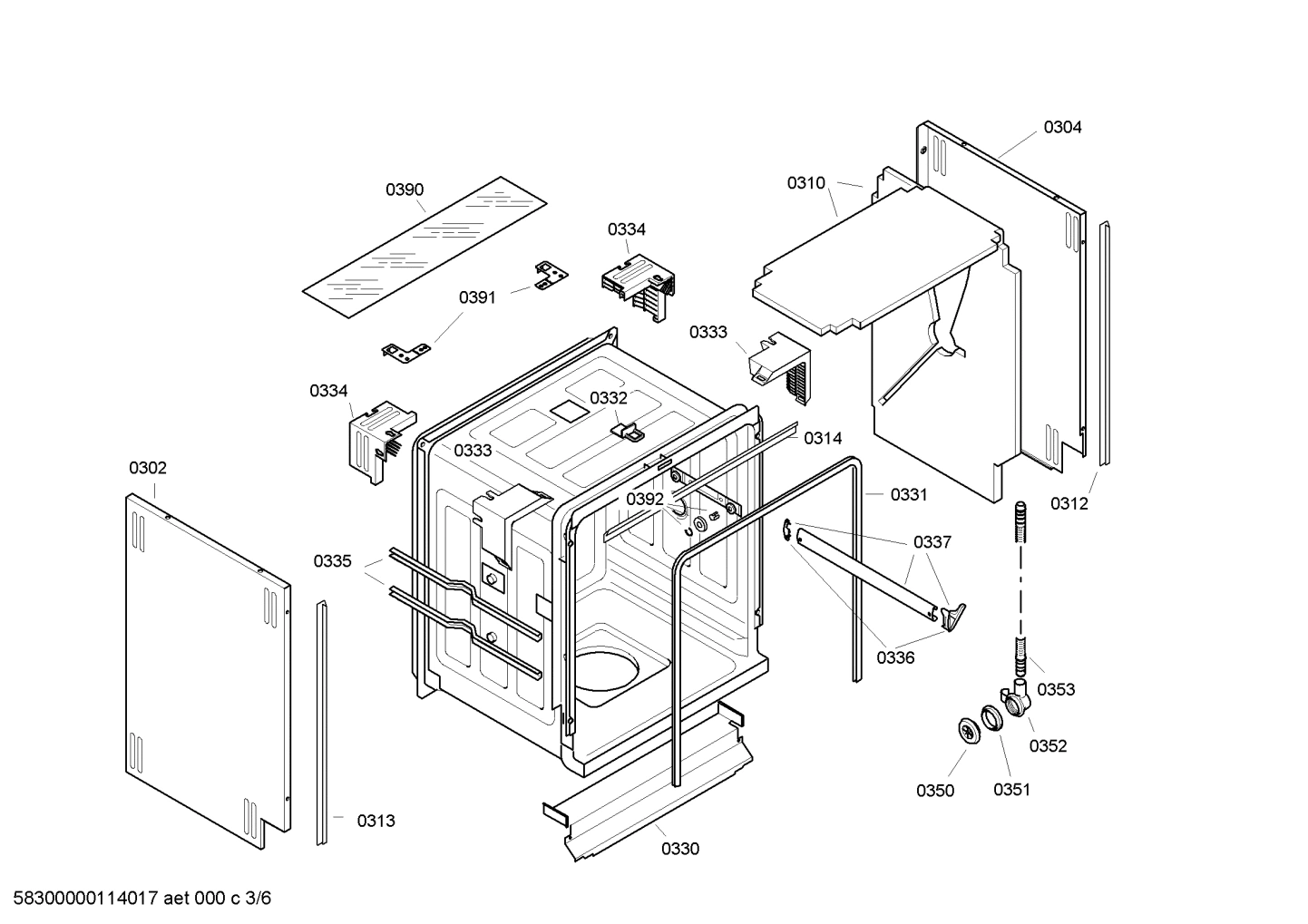

Diagram 3

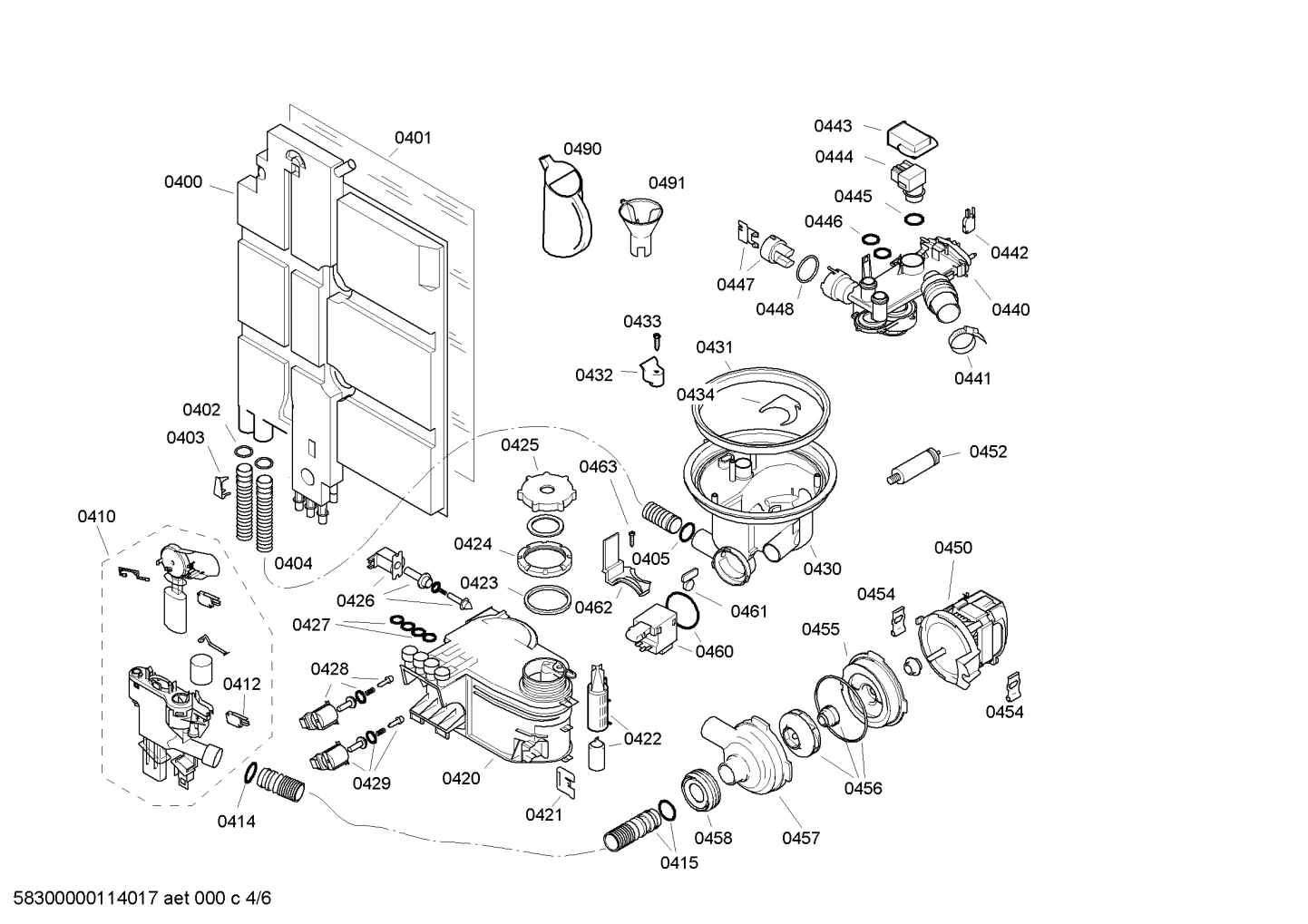

Diagram 4

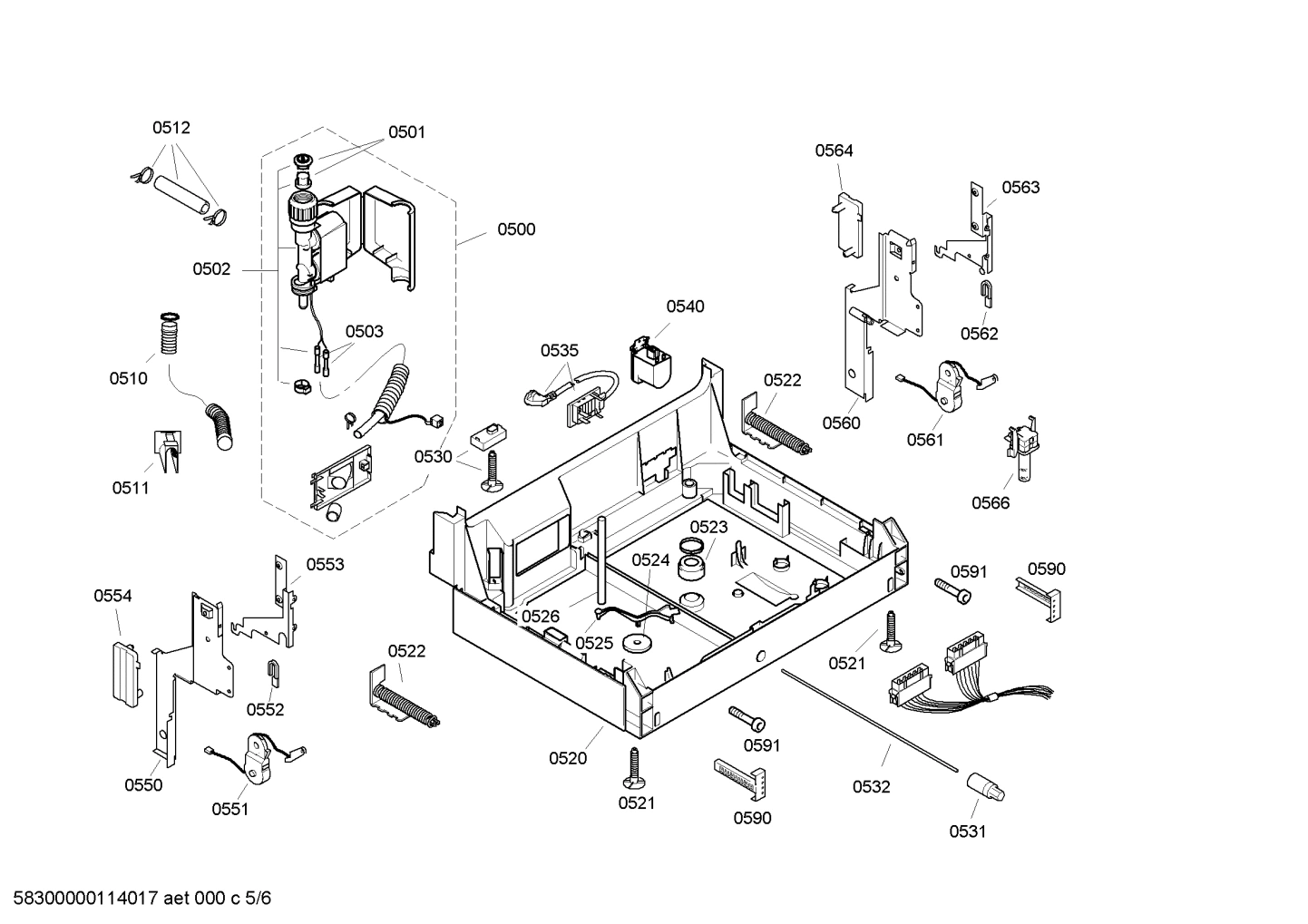

Diagram 5

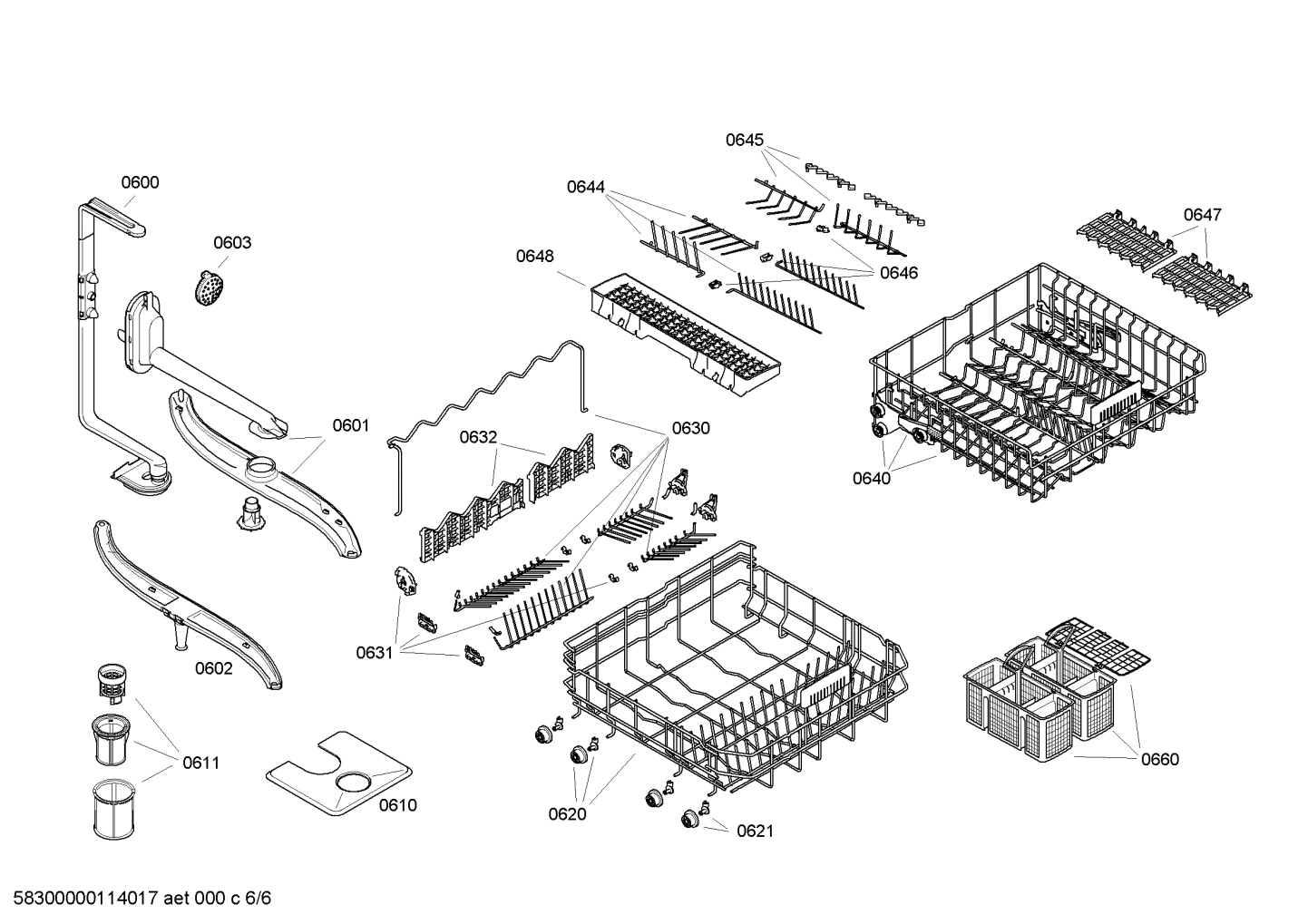

Diagram 6
Common parts from model Bosch SGV57T03CZ/07 Dishwasher
0110
Frame BOS 00439645 Contact Us For Availability
0111
Ball Bearing Door Latch BOS 00438026 Contact Us For Availability
0112
Switch BOS 00187205 Contact Us For Availability
0113
On/Off Main Switch BOS 00424410 Contact Us For Availability
0201
Sealing BOS 00166637 Contact Us For Availability
0203
Rectifier BOS 00182135 Contact Us For Availability
0204
Switch BOS 00182134 Contact Us For Availability
0241
Screw BOS 00151703 Contact Us For Availability
0242
Door Seal BOS 00298534 Contact Us For Availability
0290
Mounting Set for Dishwashers BOS 00165737 Contact Us For Availability
0291
Holder BOS 00165325 Contact Us For Availability
0314
Strip BOS 00298550 Contact Us For Availability
0331
Seal BOS 00263096 Contact Us For Availability
0332
Latch BOS 00187185 Contact Us For Availability
0336
Front/Rear End Cap Set BOS 00165254 Contact Us For Availability
0337
Rack guide rail BOS 00298547 Contact Us For Availability
0350
Cover BOS 00066400 Contact Us For Availability
0352
Cover BOS 00171024 Contact Us For Availability
0353
Hose-vent BOS 00265832 Contact Us For Availability
0390
Steam Safety Sheet BOS 00114294 Contact Us For Availability
0391
Attachment Brackets BOS 00170664 Contact Us For Availability
0392
Repair set-role BOS 00622193 Contact Us For Availability
0403
Fixture BOS 00167028 Contact Us For Availability
0404
Sump Drain Hose BOS 00263099 Contact Us For Availability
0412
Switch BOS 00165256 Contact Us For Availability
0414
O-Ring BOS 00165331 Contact Us For Availability
0415
Hose BOS 00298556 Contact Us For Availability
0430
Sump BOS 00267619 Contact Us For Availability
0431
Sealing BOS 00263102 Contact Us For Availability
0432
Holder BOS 00165265 Contact Us For Availability
0434
Cover BOS 00171681 Contact Us For Availability
0441
Hose clamp BOS 00172272 Contact Us For Availability
0442
Switch BOS 00069796 Contact Us For Availability
0443
Cover BOS 00165284 Contact Us For Availability
0444
Sensor-NTC BOS 00165281 Contact Us For Availability
0445
Sealing BOS 00151866 Contact Us For Availability
0446
Sealing BOS 00165280 Contact Us For Availability
0447
Sensor BOS 00165279 Contact Us For Availability
0448
Sealing BOS 00165278 Contact Us For Availability
0454
Suspension BOS 00171596 Contact Us For Availability
0458
Sealing BOS 00171598 Contact Us For Availability
0460
Pump-drain BOS 00165261 Contact Us For Availability
0461
Valve-non return BOS 00165262 Contact Us For Availability
0462
Cover BOS 00165263 Contact Us For Availability
0463
Screw BOS 00167241 Contact Us For Availability
0501
Sealing BOS 00166671 Contact Us For Availability
0503
Cable connector BOS 00067776 Contact Us For Availability
0510
Drain Hose BOS 00298564 Contact Us For Availability
0511
Stress-relief BOS 00165286 Contact Us For Availability
0512
Adapter BOS 00088403 Contact Us For Availability
0523
Hood BOS 00167243 Contact Us For Availability
0524
Float BOS 00165301 Contact Us For Availability
0525
Lever BOS 00263123 Contact Us For Availability
0526
Tube BOS 00263122 Contact Us For Availability
0530
Foot BOS 00165330 Contact Us For Availability
0531
Bushing BOS 00165329 Contact Us For Availability
0550
Hinge BOS 00298567 Contact Us For Availability
0553
Hinge BOS 00263115 Contact Us For Availability
0560
Hinge BOS 00298570 Contact Us For Availability
0562
Hinge Bushing BOS 00165296 Contact Us For Availability
0563
Hinge BOS 00263119 Contact Us For Availability
0564
Plate BOS 00165295 Contact Us For Availability
0566
LED-announcement BOS 00424819 Contact Us For Availability
0590
Fixing kit BOS 00166034 Contact Us For Availability
0591
Screw-adjust BOS 00169525 Contact Us For Availability
0601
Upper Spray Arm Assembly BOS 00298594 Contact Us For Availability
0602
Spray arm BOS 00369656 Contact Us For Availability
0603
Tall/Large Item Sprinkler Head BOS 00167301 Contact Us For Availability
0610
Filter-fine BOS 00357393 Contact Us For Availability
0621
Dishwasher Rack Wheel BOS 00165314 Contact Us For Availability
0630
Insert BOS 00432375 Contact Us For Availability
0631
Bearing BOS 00418675 Contact Us For Availability
0640
Rack Height Adjustment Set BOS 00648570 Contact Us For Availability
0640
Upper crockery basket BOS 00770441 Contact Us For Availability
0646
Bearing BOS 00418674 Contact Us For Availability
0647
Cup rack BOS 00093044 Contact Us For Availability
0648
Knife Rack BOS 00363436 Contact Us For Availability
0660
Cutlery Basket BOS 00481957 Contact Us For Availability
8100
Micro-Filter BOS 00428216 Contact Us For Availability
× ![]()
