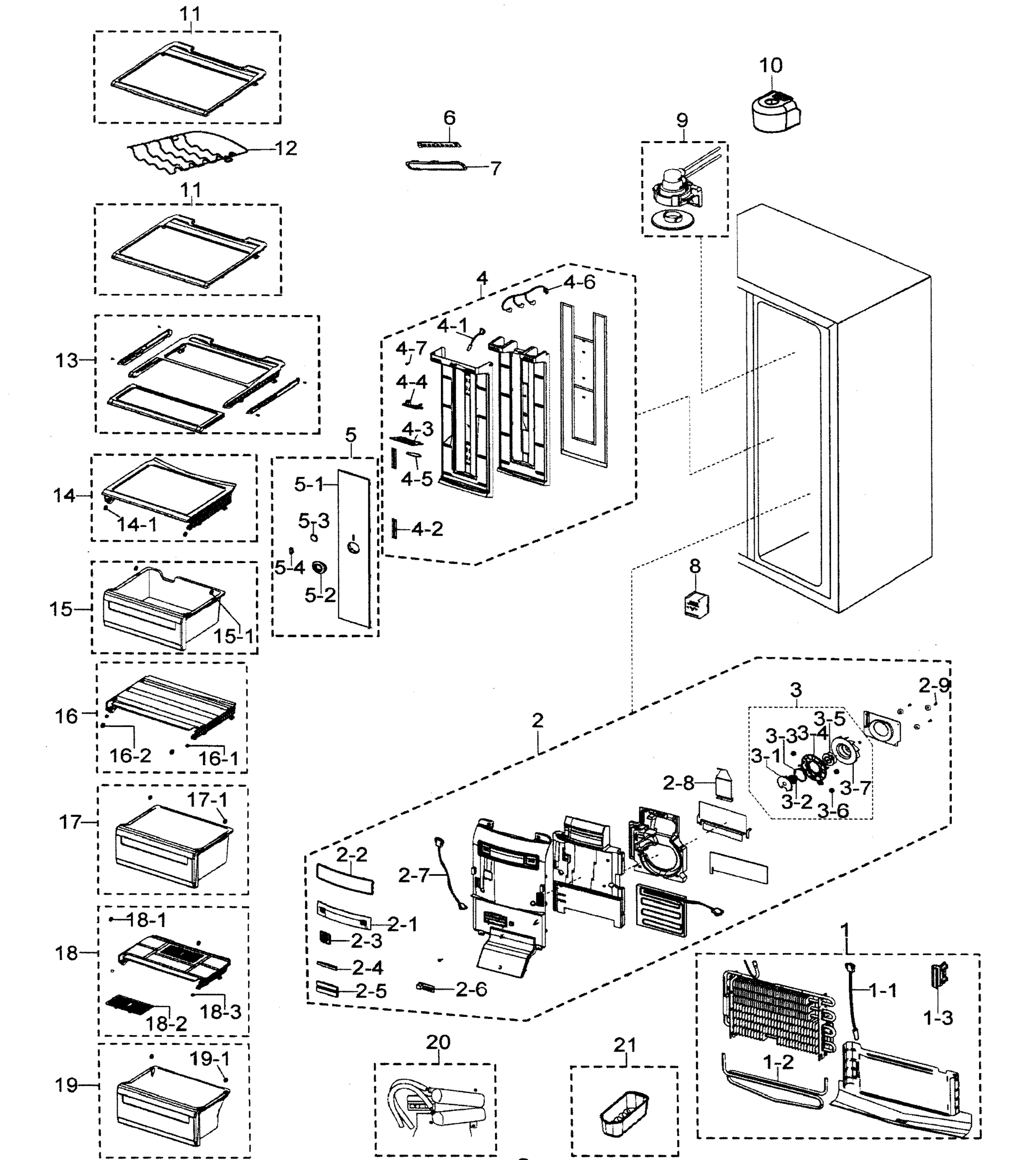

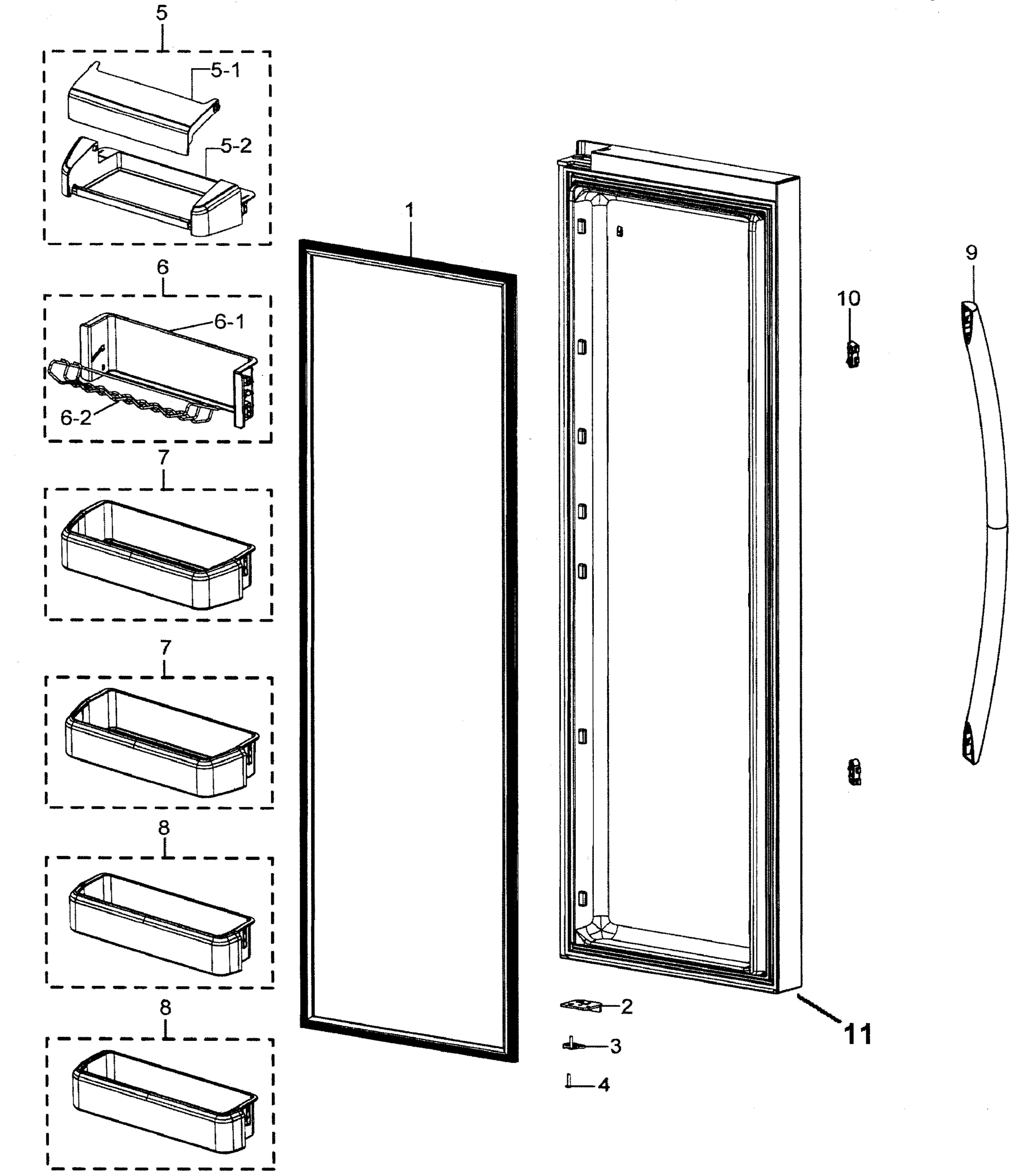

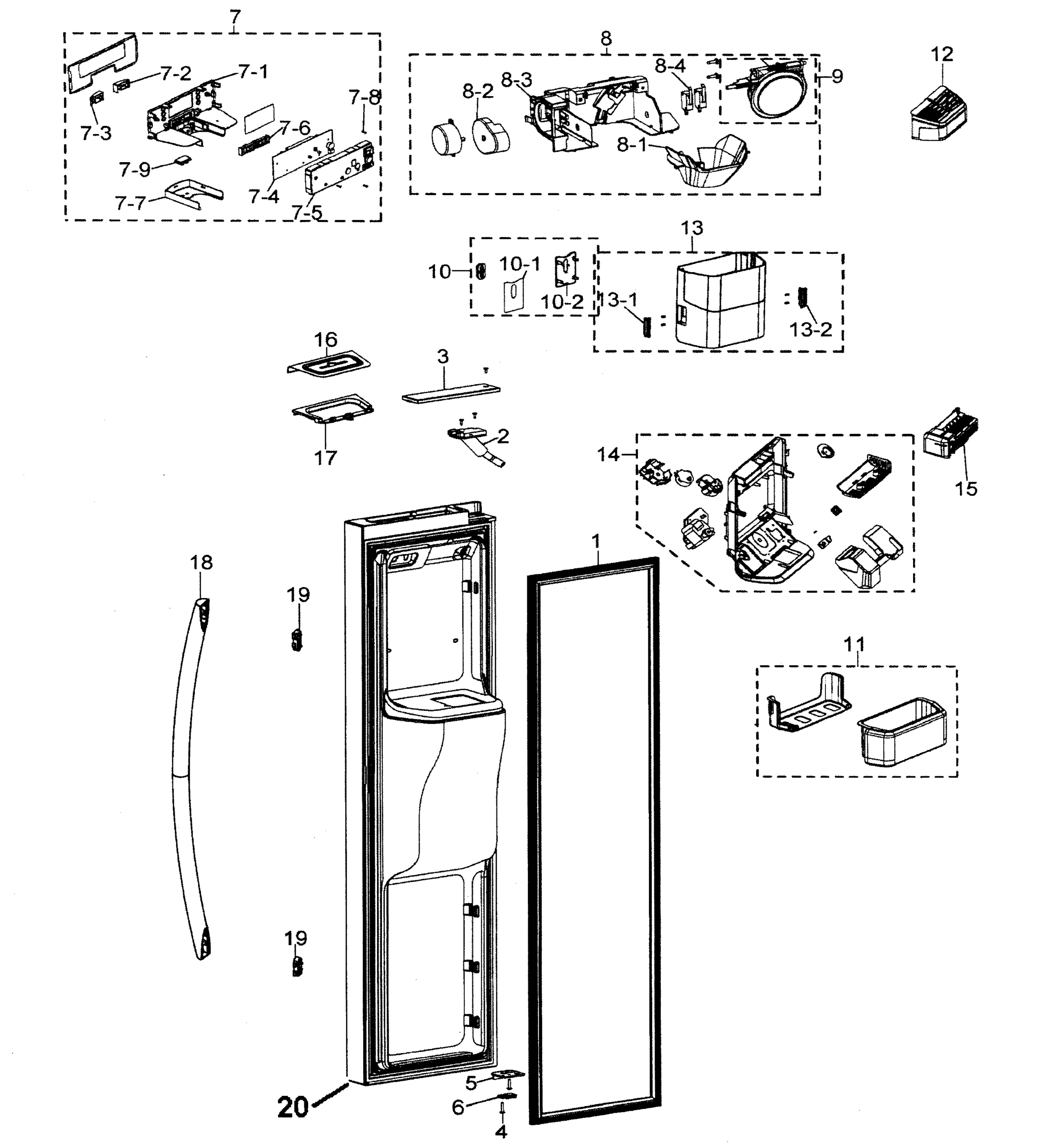

Model Samsung RSG257AABP/XAA Refrigerator – Common Parts &amp; Diagrams

1

DA96-00673K Samsung Refrigerator Evaporator A Backorder SMG DA96-00673K $156.36

1

DA97-04568T Samsung Refrigerator Door Gasket Backorder SMG DA97-04568T $174.44

1-2

DA47-00320A Samsung Refrigerator Metal Sheath Backorder SMG DA47-00320A $116.84

1-2

DA47-00321A Samsung Refrigerator Metal Sheath Backorder SMG DA47-00321A $107.32

1-3

DA61-03683A Samsung Refrigerator Sensor Fixer In Stock SMG DA61-03683A $1.17

1-4

DA61-02901A Samsung Refrigerator Evaporator S In Stock SMG DA61-02901A $1.17

2

DA61-04196A Samsung Refrigerator Door Stopper Backorder SMG DA61-04196A $14.73

2

DA97-06098G Samsung Refrigerator Evaporator C Backorder SMG DA97-06098G $177.89

2

DA97-08551E Samsung Refrigerator Evaporator C Backorder SMG DA97-08551E $259.76

2-1

Low cover SMG DA63-04129B Contact Us For Availability

2-2

DA64-02468A Samsung Low Purifier Trim Backorder SMG DA64-02468A $44.84

2-3

DA61-04393A Samsung Air Guide Backorder SMG DA61-04393A $1.94

2-4

Led trim SMG DA64-02599A Contact Us For Availability

2-5

Refrigerator led cover SMG DA63-04128A Contact Us For Availability

2-6

DA96-00392C Samsung Refrigerator LED Lamp Ass Backorder SMG DA96-00392C $22.75

2-7

DA96-00424C Samsung Refrigerator Assembly wit Backorder SMG DA96-00424C $9.30

2-8

DA61-05702A Samsung Evaporator Drain Plate Backorder SMG DA61-05702A $40.85

2-9

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $0.92

3

DA66-00557A Samsung Refrigerator Cam Hinge Ri In Stock SMG DA66-00557A $2.32

3

DA97-06096A Samsung Refrigerator Fan Motor As Backorder SMG DA97-06096A $143.82

3

Refrigerator fan motor SMG DA97-06095A Contact Us For Availability

3-1

Refrigerator bracket SMG DA61-04129A Contact Us For Availability

3-2

Refrigerator grommet SMG DA63-04130A Contact Us For Availability

3-3

Refrigerator grommet SMG DA63-04131A Contact Us For Availability

3-4

DA61-04128A Samsung Motor Bracket Assembly Backorder SMG DA61-04128A $7.74

3-5

DA31-00211A Samsung Refrigerator Compact BLDC Backorder SMG DA31-00211A $128.55

3-5

DA31-00211B Samsung Refrigerator Compact BLDC Backorder SMG DA31-00211B $147.49

3-6

DA63-04118A Samsung Motor Grommet Backorder SMG DA63-04118A $3.09

3-7

DA31-00213A Samsung Refrigerator Backward Fan Backorder SMG DA31-00213A $15.12

4

6001-001377 Samsung Refrigerator Machine Scre Backorder SMG 6001-001377 $0.92

4

DA97-06101D Samsung Refrigerator Multicolor C Backorder SMG DA97-06101D $93.00

4-3

DA63-04126A Samsung Purifier Cover Assembly Backorder SMG DA63-04126A $3.09

4-4

Purifier cover SMG DA63-04127A Contact Us For Availability

4-5

DA64-02465A Samsung Trim Purifier Upper Backorder SMG DA64-02465A $9.30

4-6

DA96-00424A Samsung Assembly LED Wire Harness Backorder SMG DA96-00424A $12.39

4-7

Refrigerator screw SMG 6003-000333 Contact Us For Availability

5

DA61-04195A Samsung Refrigerator Door Stopper Backorder SMG DA61-04195A $21.70

5

DA97-06092A Samsung Lamp Cover Assembly Backorder SMG DA97-06092A $35.15

5

DA97-06178A Samsung Refrigerator Assembly Gua Backorder SMG DA97-06178A $52.59

5-1

DA32-10105U Samsung Refrigerator Temperature Backorder SMG DA32-10105U $14.33

5-1

DA63-04120A Samsung Cover Lamp Backorder SMG DA63-04120A $15.50

5-1

Refrigerator dairy bin cover SMG DA63-04197A Contact Us For Availability

5-2

DA63-04121A Samsung Sensor Cover Mid Assembly Backorder SMG DA63-04121A $13.56

5-2

DA63-04198A Samsung Refrigerator Dairy Cover Backorder SMG DA63-04198A $26.88

5-3

DA63-04122A Samsung Mid Sensor Cover Assembly Backorder SMG DA63-04122A $0.92

5-4

DA63-04123A Samsung Mid Sensor Cover Backorder SMG DA63-04123A $6.59

6

DA97-06549A Samsung Refrigerator Carry Can As Backorder SMG DA97-06549A $104.13

6-1

DA61-04399A Samsung Refrigerator Can Carry Su Backorder SMG DA61-04399A $24.47

6-2

DA75-00209A Samsung Refrigerator Can Carry Ra Backorder SMG DA75-00209A $84.96

7

DA61-04215A Samsung Refrigerator Low Hinge Br Backorder SMG DA61-04215A $32.74

7

DA63-04119A Samsung LED Front Lamp Cover Backorder SMG DA63-04119A $7.74

7

DA97-06177C Samsung Refrigerator Upper Door B Backorder SMG DA97-06177C $59.98

7

Refrigerator dispenser cover SMG DA97-06476G Contact Us For Availability

7-3

DA64-02567A Samsung Refrigerator Water Dispen Backorder SMG DA64-02567A $46.37

7-4

DA41-00522A Samsung Refrigerator LED Printed Backorder SMG DA41-00522A $190.29

7-5

DA63-04361A Samsung Refrigerator Rear PCB Cov Backorder SMG DA63-04361A $6.97

7-6

DA63-04482A Samsung Grommet Button Control Backorder SMG DA63-04482A $10.47

7-7

DA64-02596A Samsung Faucet Decoration Backorder SMG DA64-02596A $61.68

7-9

DA97-02847A Samsung Refrigerator Lamp Door As Backorder SMG DA97-02847A $38.08

8

DA63-02902B Samsung Refrigerator Housing Fixe In Stock SMG DA63-02902B $5.82

8

DA97-06158A Samsung Refrigerator Low L Hinge Backorder SMG DA97-06158A $47.91

8

DA97-06175F Samsung Refrigerator Lower Door G Backorder SMG DA97-06175F $39.83

8

Refrigerator dispenser ice door assembly SMG DA97-06473F Contact Us For Availability

8-1

DA61-04377A Samsung Refrigerator Ice Dispense Backorder SMG DA61-04377A $10.47

8-2

DA66-00309A Samsung Refrigerator Gear Motor C Backorder SMG DA66-00309A $4.26

8-3

DA61-04373A Samsung Refrigerator Ice Route Ca Backorder SMG DA61-04373A $22.75

8-4

DA34-00011A Samsung Refrigerator Micro Switch Backorder SMG DA34-00011A $8.14

9

DA97-00883E Samsung Refrigerator Ice Route Co In Stock SMG DA97-00883E $40.85

9

DA97-06157A Samsung Refrigerator Right Hand L In Stock SMG DA97-06157A $36.53

9

DA97-06317A Samsung Refrigerator Replacement In Stock SMG DA97-06317A $90.01

9

DA97-06633B Samsung Refrigerator Handle Assem Backorder SMG DA97-06633B $122.46

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.09

DA61-04395A Samsung Refrigerator Upper Suppor Backorder SMG DA61-04395A $3.09

DA63-04150B Samsung Refrigerator Filter Cover Backorder SMG DA63-04150B $15.88

DA97-06438B Samsung Refrigerator Top Shelf As Backorder SMG DA97-06438B $42.69

DA97-06479B Samsung Refrigerator Microswitch Backorder SMG DA97-06479B $52.03

10-1

DA63-04366A Samsung Refrigerator Cover Micros Backorder SMG DA63-04366A $14.73

10-2

DA66-00600A Samsung Refrigerator Push Lever A Backorder SMG DA66-00600A $10.85

10A

Refrigerator water filter SMG DA29-00003B Contact Us For Availability

11

DA67-01929B Samsung Refrigerator Top Shelf Backorder SMG DA67-01929B $39.62

11

DA91-02737C Samsung Refrigerator Door Foam As Backorder SMG DA91-02737C $248.16

11

DA97-06180D Samsung Refrigerator Freezer Door Backorder SMG DA97-06180D $67.95

12

DA75-00208A Samsung Wine Rack Assembly Backorder SMG DA75-00208A $116.55

12

DA97-06568A Samsung Assy Cover-Ice Maker Backorder SMG DA97-06568A $43.61

13

DA97-06102B Samsung Refrigerator Shelf Assemb Backorder SMG DA97-06102B $107.92

13

DA97-06569J Samsung Refrigerator Ice Tray Buc Backorder SMG DA97-06569J $141.17

13

DA97-06756G Samsung Refrigerator Front Leg Co Backorder SMG DA97-06756G $32.39

13-1

DA66-00587A Samsung Refrigerator Lever Bucket Backorder SMG DA66-00587A $8.53

13-2

DA66-00588A Samsung Lever Bucket Assembly Rig Backorder SMG DA66-00588A $2.71

14

DA97-06135A Samsung Refrigerator Low Basket C Backorder SMG DA97-06135A $49.14

14

DA97-11095B Samsung Refrigerator Auger Motor Backorder SMG DA97-11095B $249.67

14

Refrigerator lower shelf SMG DA97-06440A Contact Us For Availability

14-1

6006-001170 Samsung Appliance Tapping Screw T Backorder SMG 6006-001170 $0.92

15

DA97-06441E Samsung Refrigerator Upper Veg Ca Backorder SMG DA97-06441E $117.28

15

DA97-07549B Samsung Refrigerator Ice Maker As In Stock SMG DA97-07549B $214.60

15-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $5.42

16

DA63-04372B Samsung Refrigerator Dispenser Tr Backorder SMG DA63-04372B $25.49

16

DA97-06136A Samsung Refrigerator Vegetable Up Backorder SMG DA97-06136A $89.88

16-5

DA97-03870C Samsung Refrigerator Motor Circui Backorder SMG DA97-03870C $123.59

17

DA61-04386B Samsung Dispenser Tray Case Backorder SMG DA61-04386B $8.53

17

DA97-06132E Samsung Refrigerator Mid Vegetabl Backorder SMG DA97-06132E $117.52

18

DA97-07070A Samsung Refrigerator Step Motor A Backorder SMG DA97-07070A $120.84

18

DA97-07839A Samsung Refrigerator Low Vegetabl Backorder SMG DA97-07839A $66.81

18-2

DA63-04135A Samsung Refrigerator Guggenheim L Backorder SMG DA63-04135A $54.57

19

DA97-06131E Samsung Refrigerator Low Vegetabl Backorder SMG DA97-06131E $115.97

20

DA91-02749Z Samsung Refrigerator Foam Door As Backorder SMG DA91-02749Z $325.60

20

DA97-08536B Samsung Refrigerator Water Tank A Backorder SMG DA97-08536B $98.03

20

Refrigerator compressor SMG BK190CL2C/E02 Contact Us For Availability

21

Refrigerator egg bin SMG DA97-02806A Contact Us For Availability

22

DA34-00004D Samsung Refrigerator Compressor O In Stock SMG DA34-00004D $22.05

23

DA39-00154D Samsung Refrigerator Wire Harness In Stock SMG DA39-00154D $41.01

24

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $10.85

28

Refrigerator electronic control board SMG DA41-00524A Contact Us For Availability

29

DA97-08587A Samsung Refrigerator Valve Backorder SMG DA97-08587A $142.20

34-1

DA27-00019H Samsung Refrigerator EMI Coil Fil Backorder SMG DA27-00019H $108.83

34-2

Refrigerator power control board SMG DA41-00404B Contact Us For Availability

DA32-10109W Samsung Refrigerator Temperature In Stock SMG DA32-10109W $17.06

DA34-00043C Samsung Refrigerator Reed Switch Backorder SMG DA34-00043C $24.47

DA41-00519B Samsung Refrigerator LED Lamp Ass In Stock SMG DA41-00519B $33.76

DA63-04402A Samsung Cover Grommet Assembly Backorder SMG DA63-04402A $1.17

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.17

DA66-10104C Samsung Refrigerator Freezer Door Backorder SMG DA66-10104C $1.56
