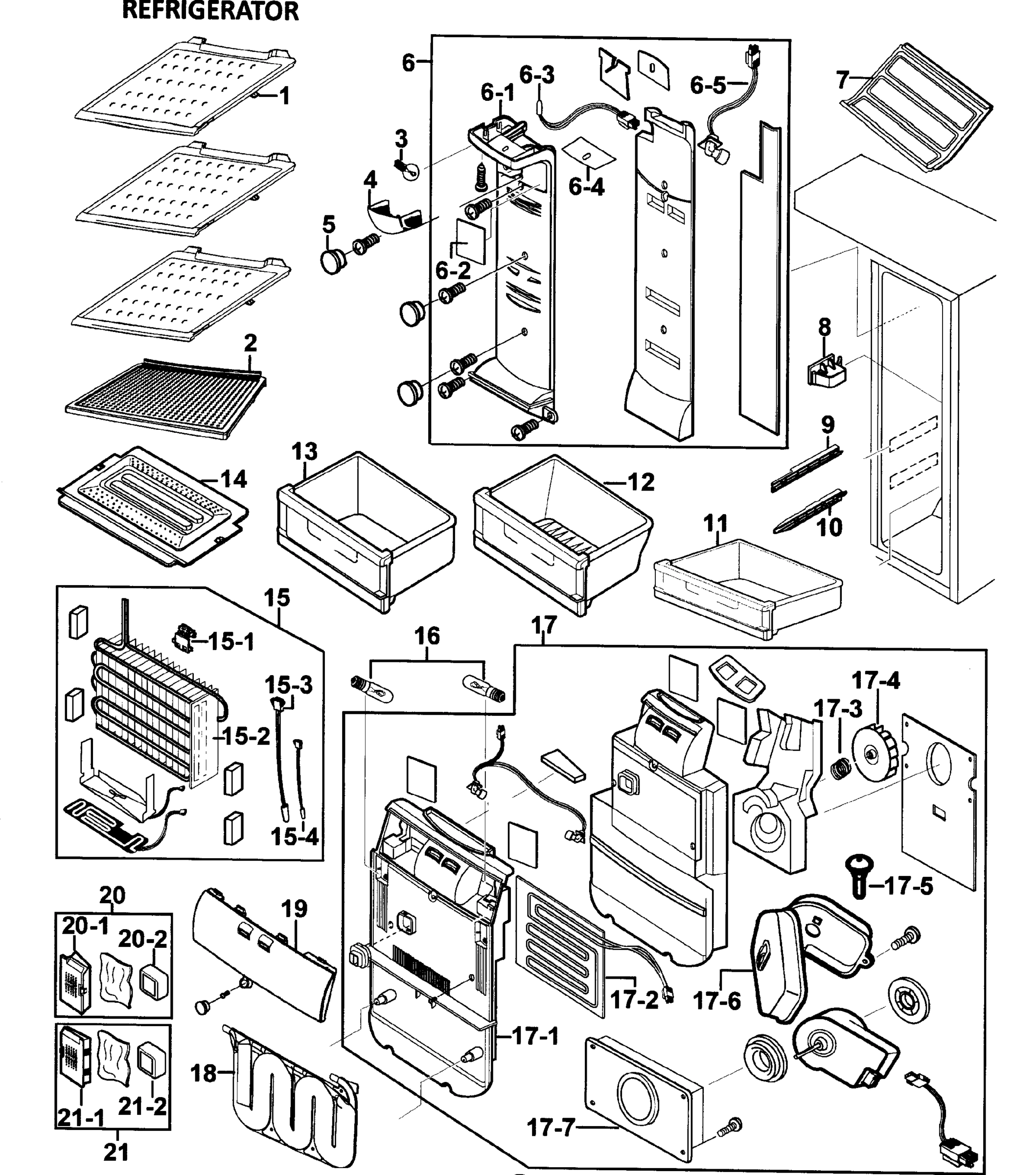

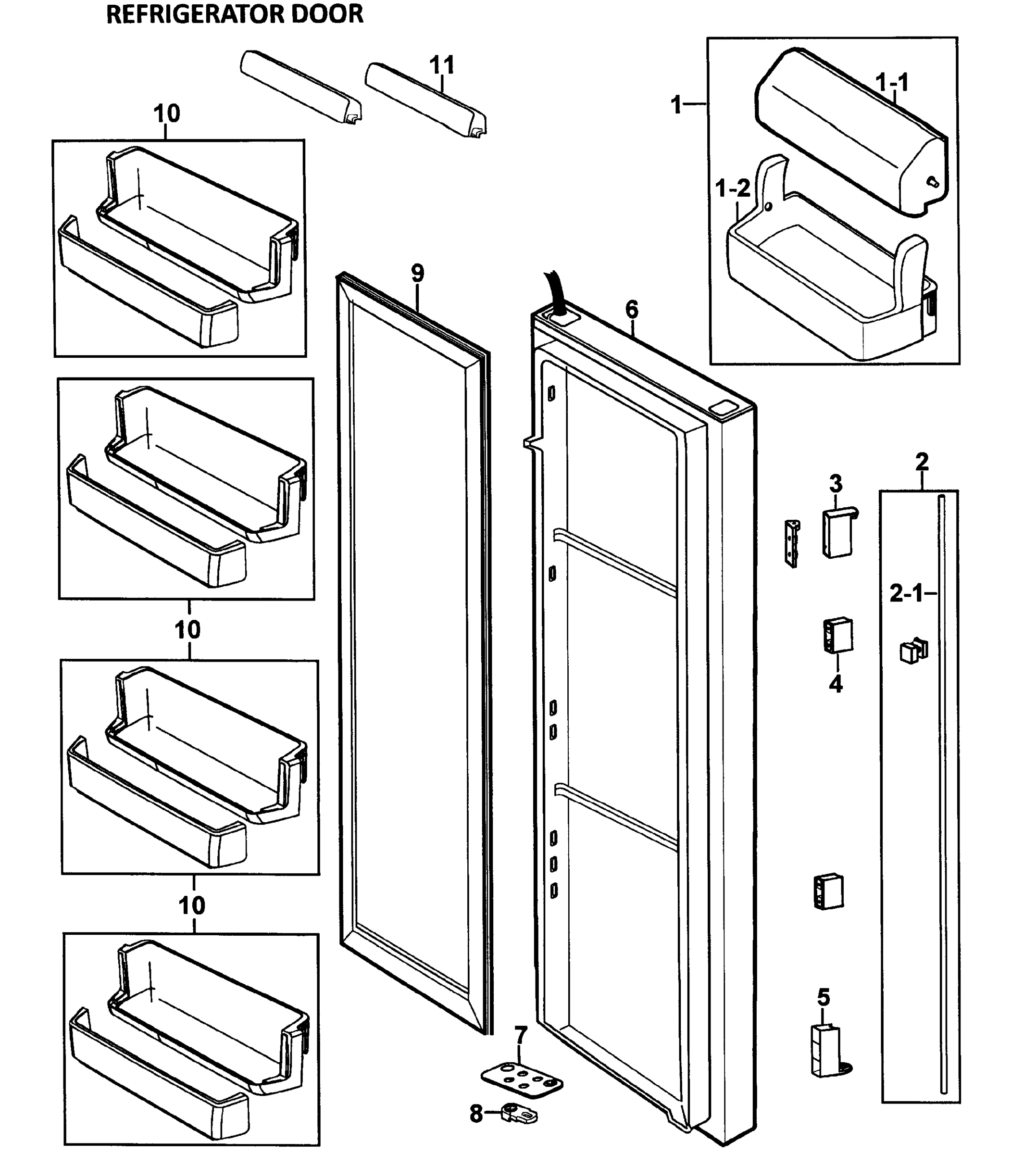

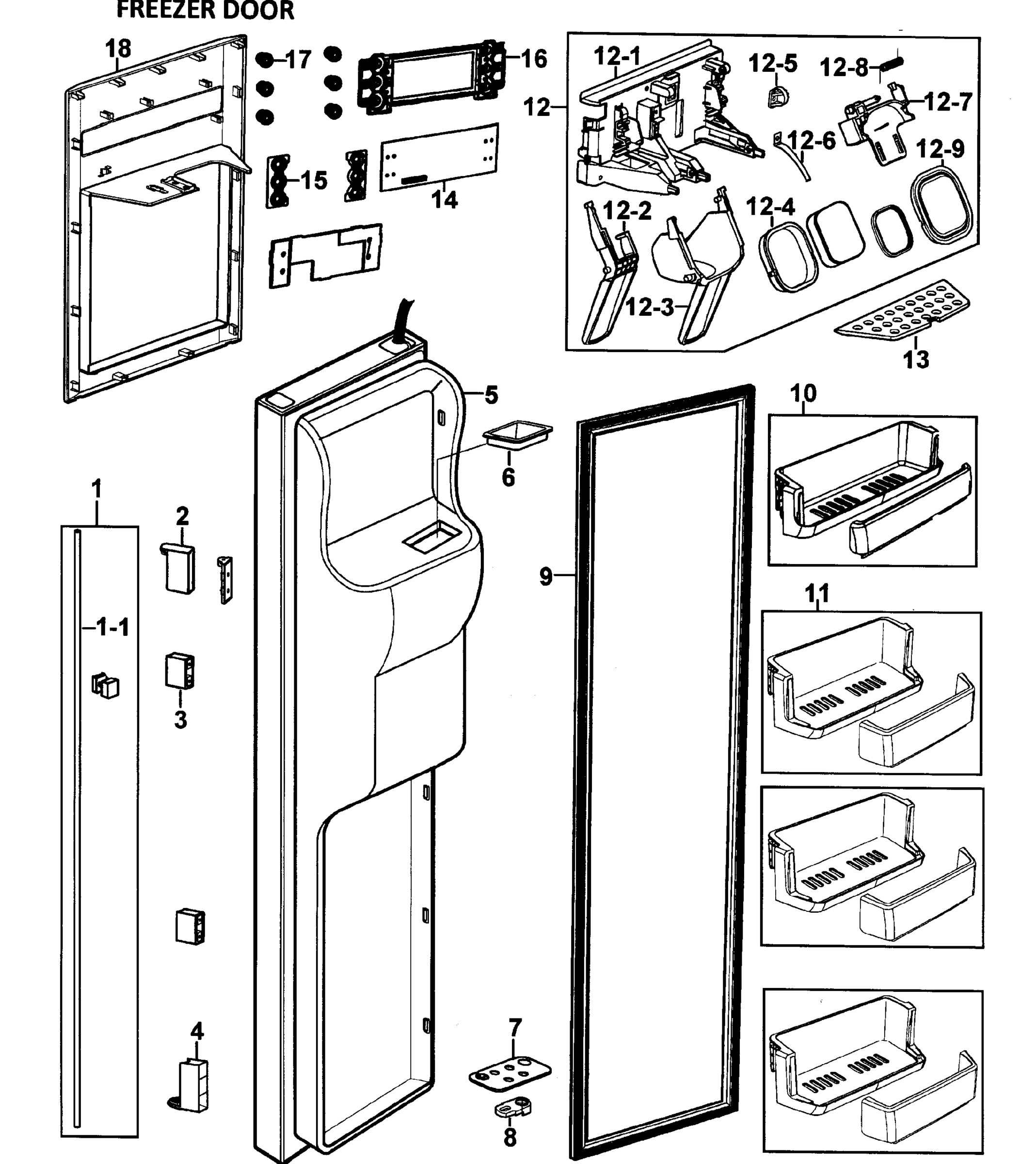

Model Samsung RS265LASH/XAA-00 Refrigerator – Common Parts &amp; Diagrams

1

DA97-00160E Samsung Refrigerator Dairy Guard Backorder SMG DA97-00160E $54.04

1

Refrigerator ice maker water fill tube assemb SMG DA97-04501R Contact Us For Availability

1-1

DA63-00848B Samsung Refrigerator Cover Guard Backorder SMG DA63-00848B $19.76

1-2

Refrigerator dairy bin SMG DA63-00852D Contact Us For Availability

2

DA97-00727M Samsung Refrigerator Handle Bar A Backorder SMG DA97-00727M $174.44

2

Refrigerator shelf SMG DA67-00517G Contact Us For Availability

2-1

Refrigerator handle bar SMG DA64-00575W Contact Us For Availability

3

Refrigerator handle cap SMG DA67-00773G Contact Us For Availability

3

Refrigerator incandescent lamp SMG 4713-001206 Contact Us For Availability

3-2

DA63-02452B Samsung Refrigerator Ice Bucket C Backorder SMG DA63-02452B $33.93

4

DA61-00264R Samsung Refrigerator Mid Support Backorder SMG DA61-00264R $10.85

4

Refrigerator lamp cover SMG DA63-02819A Contact Us For Availability

5

DA67-30266K Samsung Refrigerator Cap Screw Backorder SMG DA67-30266K $0.92

5

Refrigerator door handle end cap, lower SMG DA67-00796H Contact Us For Availability

5

Refrigerator door assembly SMG DA91-02180B Contact Us For Availability

5-1

Refrigerator ice dispenser auger drive plate SMG DA61-01659B Contact Us For Availability

5-2

DA31-00105A Samsung Refrigerator Auger Motor Backorder SMG DA31-00105A $150.18

5-4

DA74-40151G Samsung Refrigerator Ice Dispense In Stock SMG DA74-40151G $96.04

5-10

DA66-90003A Samsung Refrigerator Solenoid Gea Backorder SMG DA66-90003A $0.92

5-12

DA61-60001A Samsung Refrigerator Dispenser So Backorder SMG DA61-60001A $0.92

6

DA34-10120E Samsung Refrigerator Door Switch Backorder SMG DA34-10120E $28.02

6

Chute cap SMG DA67-00537B Contact Us For Availability

6

Refrigerator cover assembly SMG DA97-03310A Contact Us For Availability

6

Refrigerator door assembly SMG DA91-02181B Contact Us For Availability

6-1

DA63-02818A Samsung COVER-MULTI REF;LOWES,PP, Backorder SMG DA63-02818A $29.63

6-2

Refrigerator lamp plate SMG DA61-02538A Contact Us For Availability

6-3

DA32-10105U Samsung Refrigerator Temperature In Stock SMG DA32-10105U $15.34

6-4

DA63-02561A Samsung Air Guide Cover Backorder SMG DA63-02561A $4.26

6-5

DA47-40001C Samsung Lamp Holder-Assy Backorder SMG DA47-40001C $12.39

7

DA61-00564A Samsung Stopper Door Backorder SMG DA61-00564A $10.85

7

Cvr-veg-up SMG DA63-00810D Contact Us For Availability

8

DA34-10110E Samsung Refrigerator Door Light S Backorder SMG DA34-10110E $34.11

8

CAM RISER-UP;RR7000,PA66+GF15% Backorder SMG DA66-01666A $4.15

9

DA97-04567C Samsung Refrigerator Freezer Door Backorder SMG DA97-04567C $106.43

9

DA97-04567D Samsung Refrigerator Door Gasket Backorder SMG DA97-04567D $104.64

9

Refrigerator ice maker support SMG DA61-02205A Contact Us For Availability

9

Refrigerator crisper drawer slide rail SMG DA97-00731M Contact Us For Availability

DA97-00258J Samsung Refrigerator Icemaker Ass Backorder SMG DA97-00258J $160.24

DA97-03269A Samsung Refrigerator Guard Assemb Backorder SMG DA97-03269A $25.49

DA97-03290A Samsung Refrigerator Lower Door B Backorder SMG DA97-03290A $60.22

Refrigerator crisper drawer slide rail SMG DA97-00730M Contact Us For Availability

10-1

DA63-01453B Samsung Refrigerator Ice Tray Ass In Stock SMG DA63-01453B $7.05

10-4

DA63-02183A Samsung Refrigerator Sensor Cover In Stock SMG DA63-02183A $2.07

DA60-00259B Samsung Refrigerator Tube Fitting Backorder SMG DA60-00259B $29.13

DA71-00090A Samsung Refrigerator Bottle Guide Backorder SMG DA71-00090A $5.80

Refrigerator guard assembly SMG DA97-03270A Contact Us For Availability

Refrigerator drawer SMG DA97-00174K Contact Us For Availability

12

DA97-04950H Samsung Refrigerator Rear PCB Cov Backorder SMG DA97-04950H $59.69

12

Refrigerator crisper drawer SMG DA97-00148N Contact Us For Availability

12-1

DA63-02460A Samsung Refrigerator Rear PCB Cov Backorder SMG DA63-02460A $19.38

12-2

DA66-00267A Samsung Lever Dispenser-Water Backorder SMG DA66-00267A $8.14

12-3

Refrigerator dispenser lever SMG DA66-00294A Contact Us For Availability

12-4

DA63-01971B Samsung Ice Route Cover Assembly Backorder SMG DA63-01971B $3.31

12-5

DA61-01869A Samsung Refrigerator Oil Damper Backorder SMG DA61-01869A $12.44

12-6

DA61-01616A Samsung SPRING ETC-LEVER DISP WAT Backorder SMG DA61-01616A $1.67

12-7

DA63-01970A Samsung Refrigerator Ice Route Co Backorder SMG DA63-01970A $4.56

12-8

DA61-01651A Samsung Refrigerator Ice Route Co Backorder SMG DA61-01651A $3.73

12-9

DA63-01972A Samsung Refrigerator Gasket Cover Backorder SMG DA63-01972A $13.69

13

DA63-02990E Samsung Tray Dispenser Backorder SMG DA63-02990E $5.42

13

Refrigerator crisper drawer SMG DA97-00144N Contact Us For Availability

13-1

DA32-10109W Samsung Refrigerator Temperature In Stock SMG DA32-10109W $18.25

14

Refrigerator dispenser display assembly SMG DA41-00204J Contact Us For Availability

14

Refrigerator crisper drawer cover SMG DA63-00811D Contact Us For Availability

14-5

DA31-00053A Samsung Refrigerator Backward Fan Backorder SMG DA31-00053A $18.65

14-8

DA39-00060K Samsung Refrigerator Motor with H Backorder SMG DA39-00060K $119.35

14-9

DA31-00020E Samsung Refrigerator Freezer Evap In Stock SMG DA31-00020E $125.22

15

DA96-00626H Samsung Refrigerator Evaporator A Backorder SMG DA96-00626H $200.89

15

DA96-00627G Samsung Refrigerator Evaporator A Backorder SMG DA96-00627G $211.41

15

Support knob SMG DA61-00877A Contact Us For Availability

15-1

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.24

15-2

DA47-00322H Samsung Heater Sheath-Metal Refri In Stock SMG DA47-00322H $106.87

15-3

DA31-00146B Samsung Refrigerator Condenser Fa In Stock SMG DA31-00146B $89.38

15-3

DA47-00301F Samsung Refrigerator Thermal Fuse In Stock SMG DA47-00301F $21.98

15-4

DA32-00029N Samsung Refrigerator Temperature In Stock SMG DA32-00029N $19.89

15-4

DA96-00042A Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042A $11.60

4713-001172 Samsung Refrigerator Incandescent Backorder SMG 4713-001172 $10.07

DA97-01285R Samsung Refrigerator Drain Water Backorder SMG DA97-01285R $120.68

Refrigerator evaporator drip pan heater SMG DA97-00111C Contact Us For Availability

Refrigerator dispenser display window SMG DA63-02751A Contact Us For Availability

16-1

Refrigerator defrost drain trough heater SMG DA47-00090C Contact Us For Availability

16-2

DA61-00477A Samsung Refrigerator Drain Plate Backorder SMG DA61-00477A $24.47

17

Refrigerator fresh food evaporator cover asse SMG DA97-05250L Contact Us For Availability

17

Refrigerator dispenser control touch knob SMG DA64-00741A Contact Us For Availability

17-1

DA63-00951C Samsung Refrigerator Drain Hose G Backorder SMG DA63-00951C $7.87

17-1

Refrigerator freezer evaporator cover SMG DA63-00812B Contact Us For Availability

17-2

DA47-00200C Samsung Refrigerator Water Tank H Backorder SMG DA47-00200C $43.70

17-3

DA61-20128A Samsung Refrigerator Spring and F Backorder SMG DA61-20128A $0.92

17-4

DA31-00016A Samsung Evaporator Circuit Fan Bl Backorder SMG DA31-00016A $9.96

17-5

DA63-40167A Samsung Refrigerator Grommet Cove Backorder SMG DA63-40167A $1.24

17-6

DA63-01809A Samsung Refrigerator BLDC Motor C Backorder SMG DA63-01809A $10.78

17-7

DA61-00417A Samsung Refrigerator Motor Case Backorder SMG DA61-00417A $21.56

18

DA63-02017A Samsung Refrigerator Compressor G Backorder SMG DA63-02017A $3.31

18

Refrigerator dispenser cover SMG DA63-02752B Contact Us For Availability

18

Refrigerator tank assembly SMG DA97-02432B Contact Us For Availability

19

MK183CL2U/E07 Samsung Refrigerator Compressor Backorder SMG MK183CL2U/E07 $233.08

19

Refrigerator lamp cover SMG DA63-00814G Contact Us For Availability

20

DA97-01484F Samsung Refrigerator Cover Purifi Backorder SMG DA97-01484F $15.50

20-1

Refrigerator cover SMG DA63-00855G Contact Us For Availability

21

DA97-01485F Samsung Refrigerator Purifier Cov Backorder SMG DA97-01485F $15.88

21-1

Refrigerator air filter cover SMG DA63-00856F Contact Us For Availability

22

DA34-10003S Samsung Refrigerator Compressor O Backorder SMG DA34-10003S $34.66

23

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $11.60

25

Refrigerator power control board SMG DA41-00104X Contact Us For Availability

27

Refrigerator run capacitor SMG 2501-001045 Contact Us For Availability

28

Refrigerator power cord SMG DA39-10165E Contact Us For Availability

31

DA97-06085A Samsung Refrigerator Suction Conn Backorder SMG DA97-06085A $85.69

DA02-90106R Samsung Refrigerator Catalyst LTC Backorder SMG DA02-90106R $22.38

DA63-02079A Samsung Refrigerator Top Rail Gro Backorder SMG DA63-02079A $0.92

DA66-00401A Samsung Refrigerator Riser Cam As Backorder SMG DA66-00401A $2.07

Samsung refrigerator water filter SMG DA29-00003G Contact Us For Availability

Refrigerator freezer basket trim SMG DA63-01290C Contact Us For Availability
