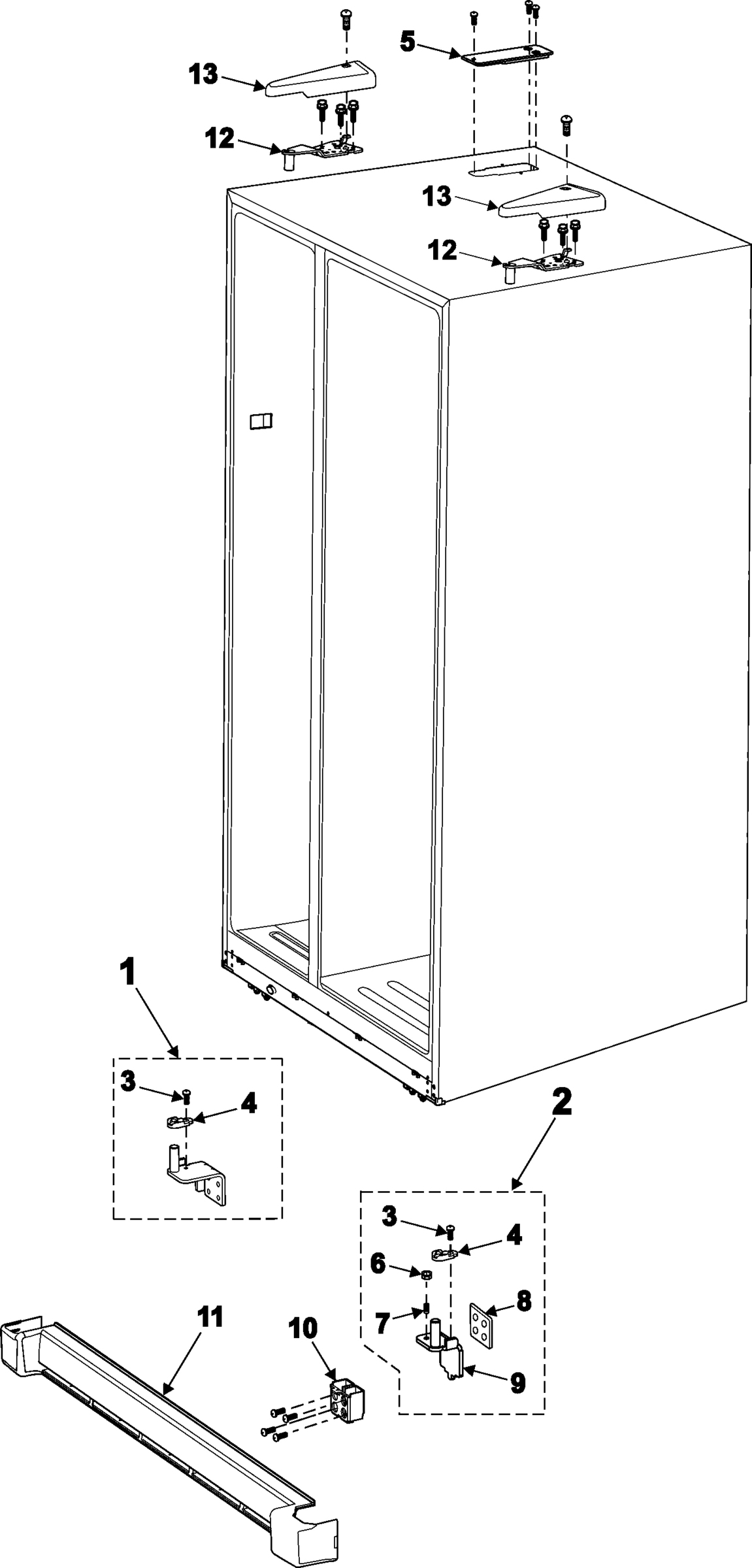

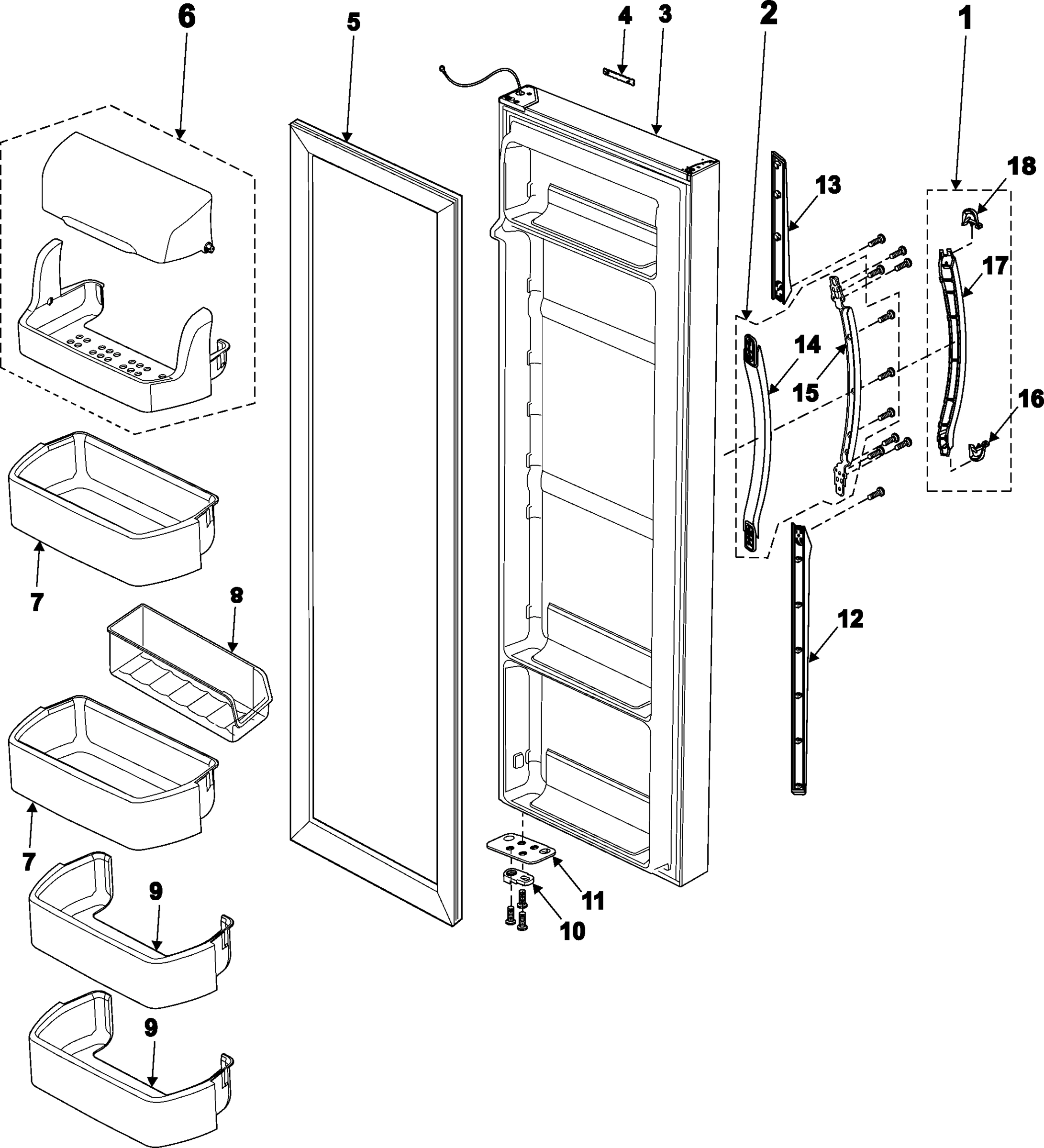

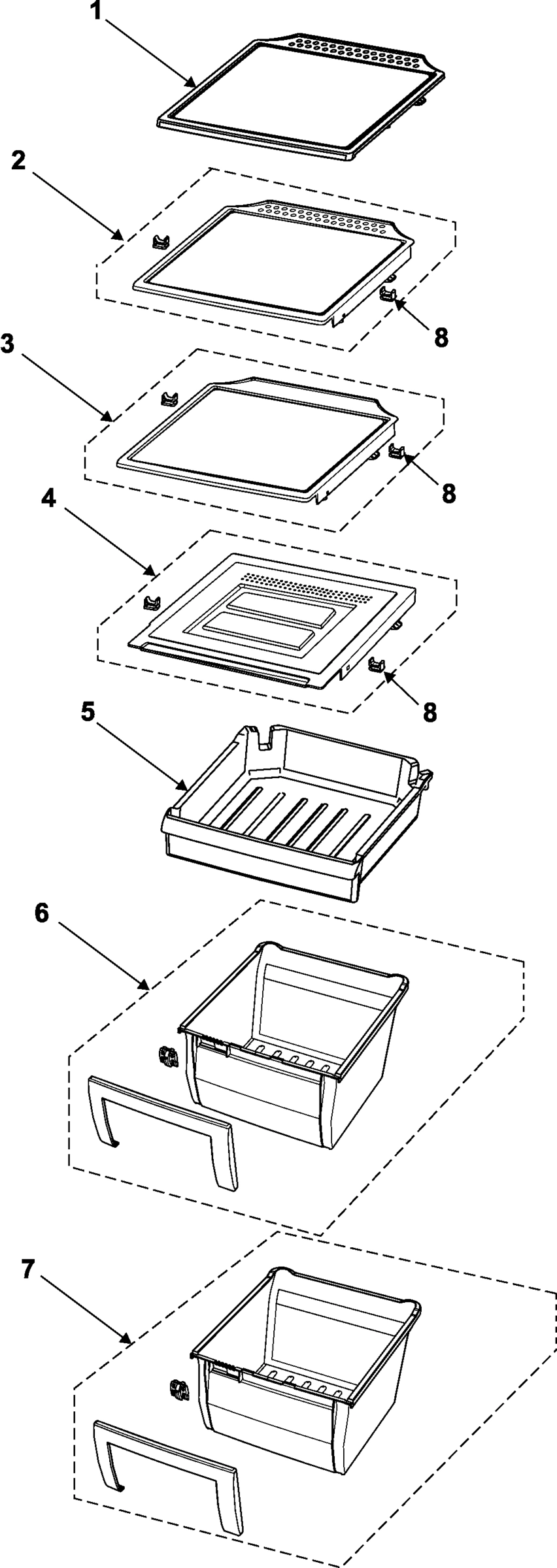

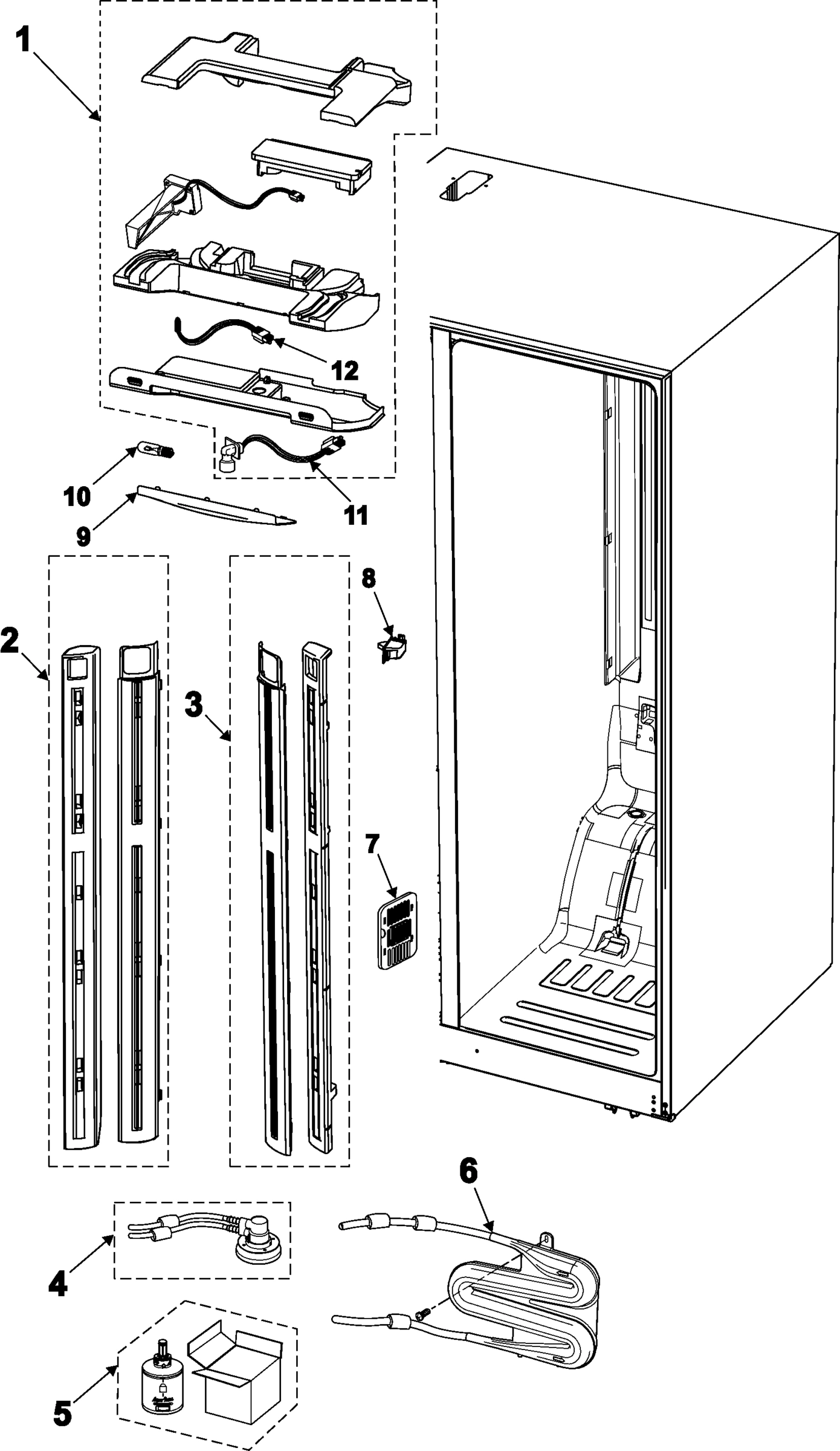

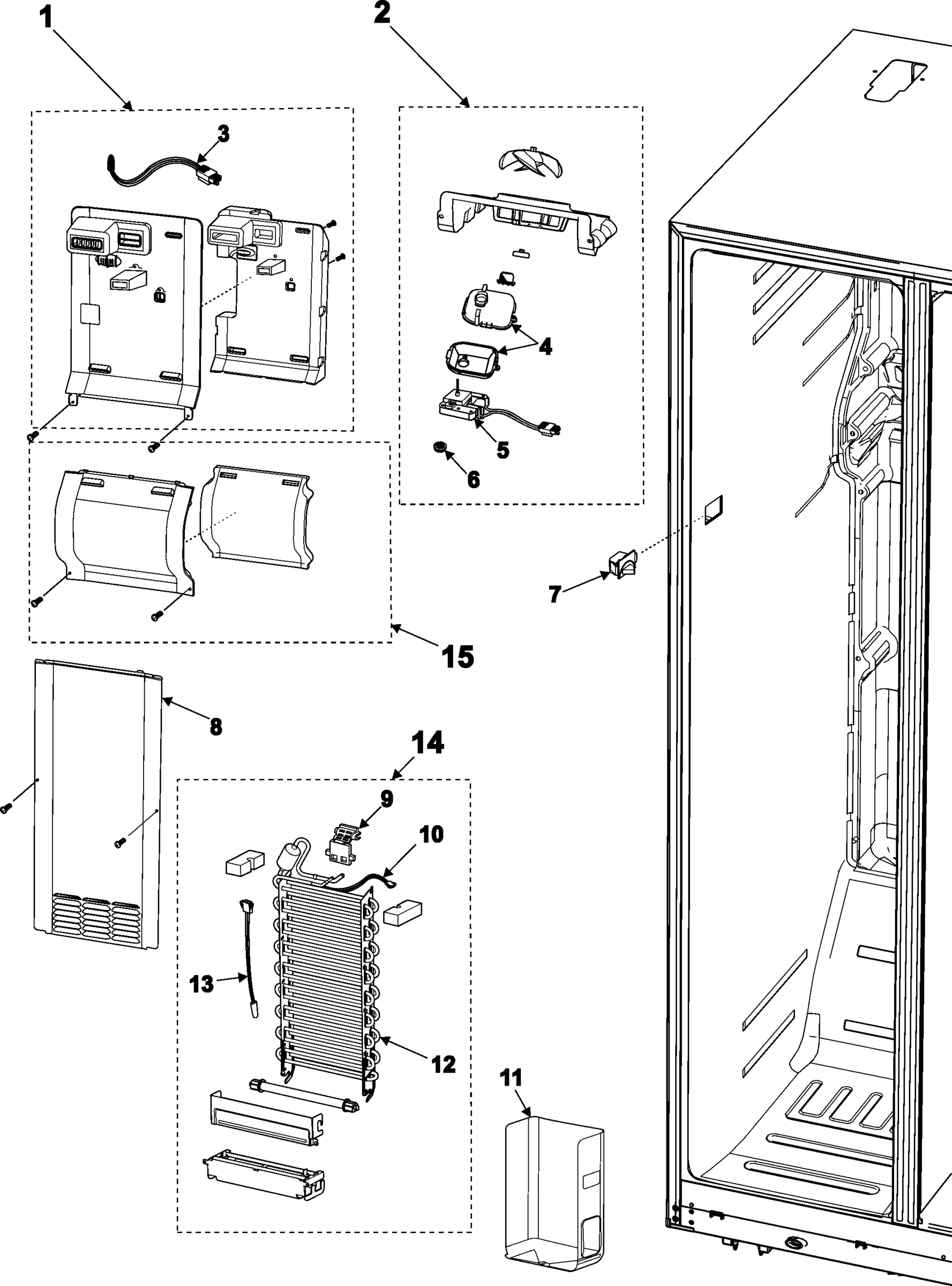

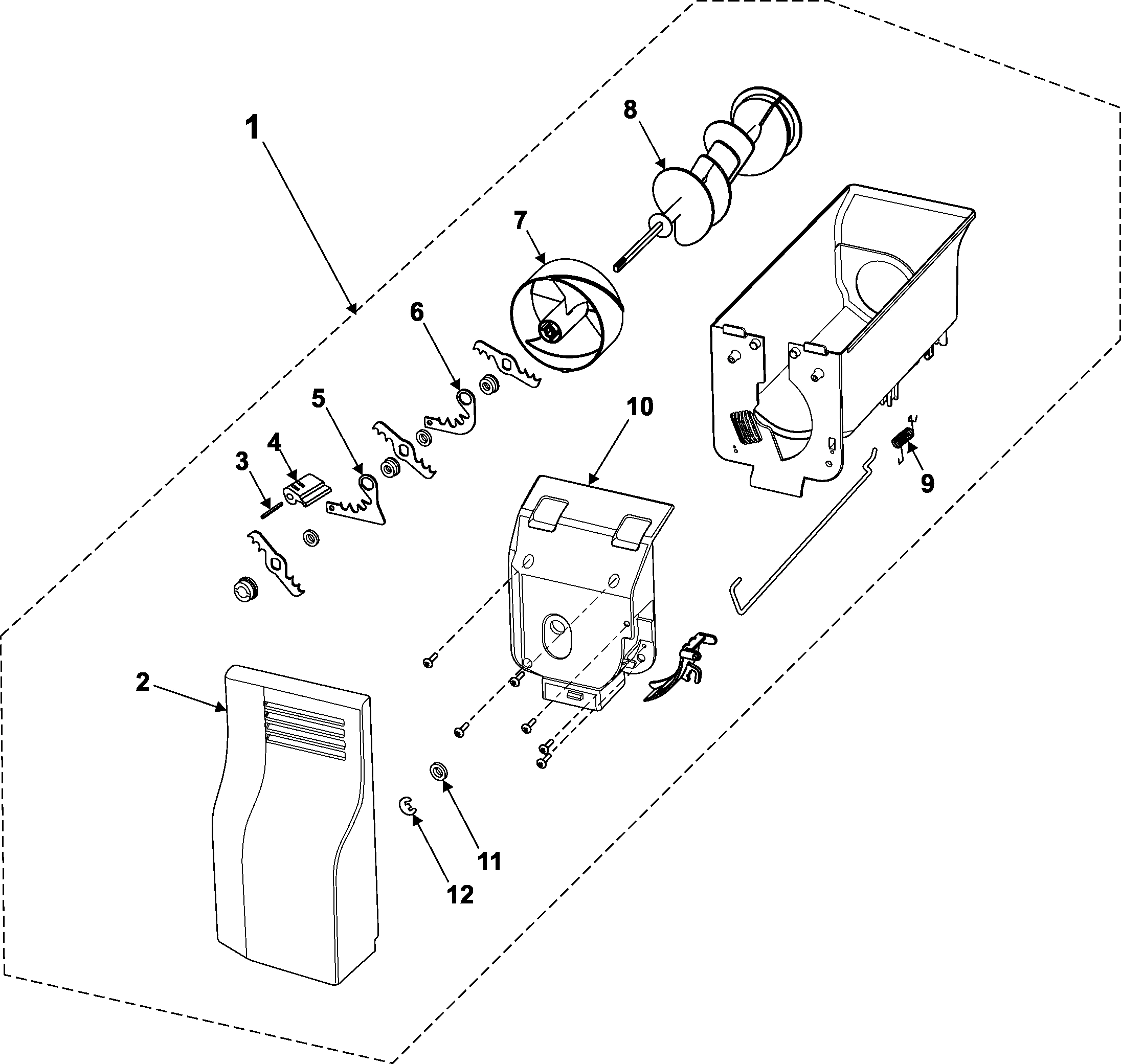

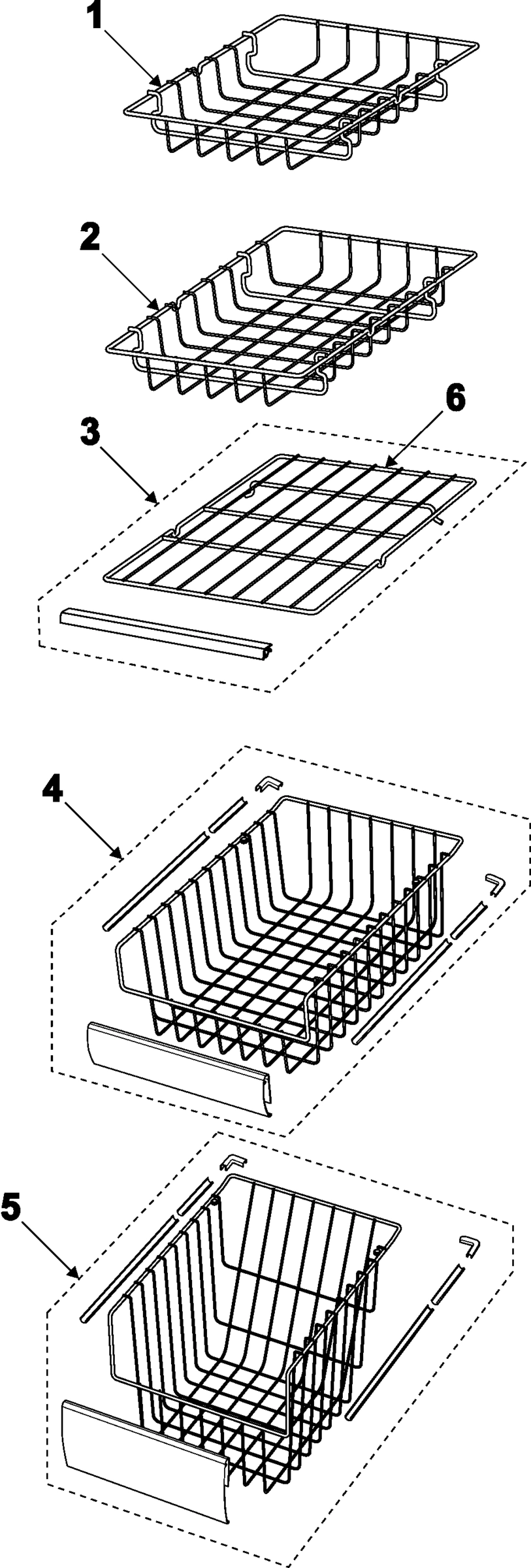

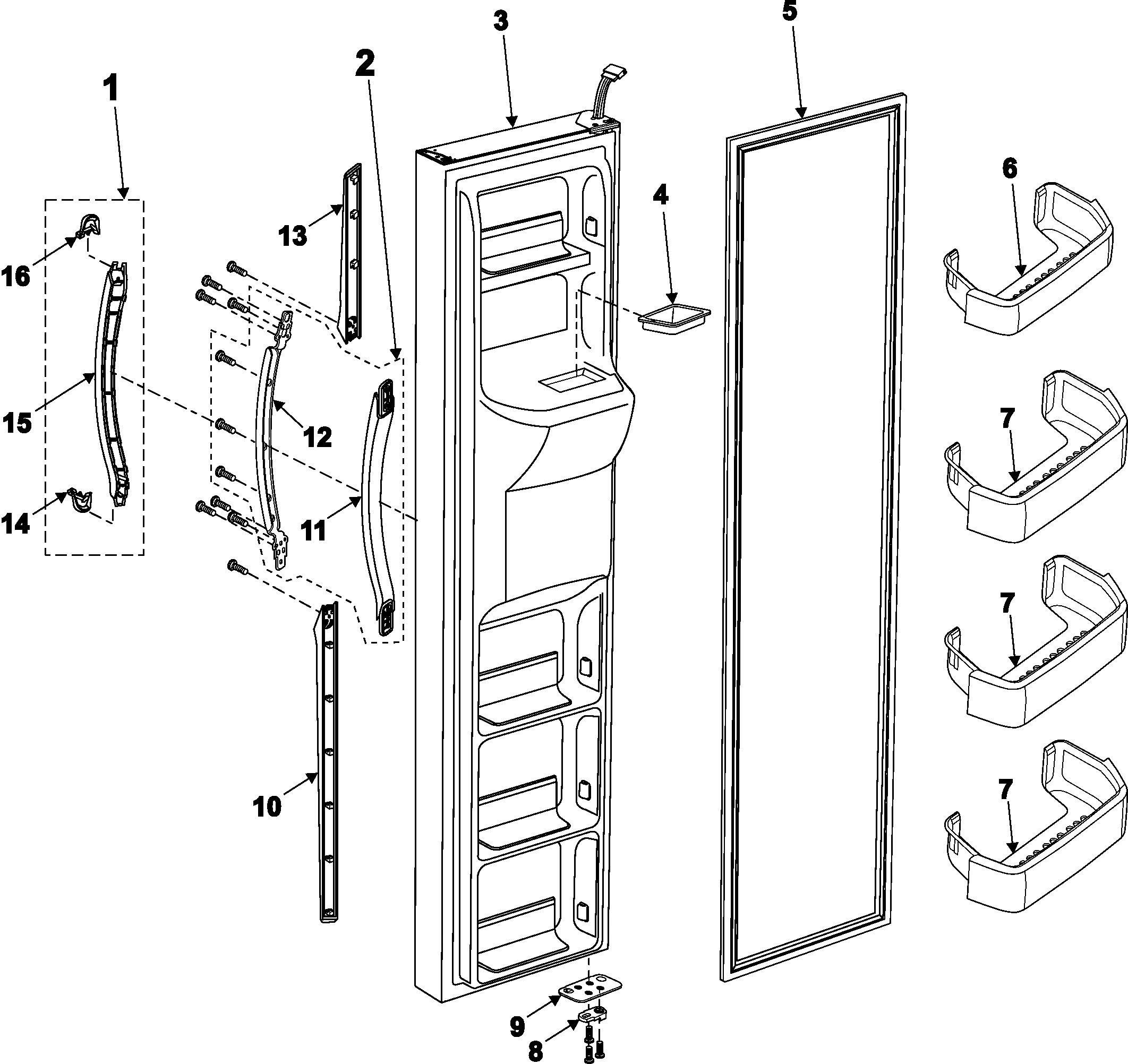

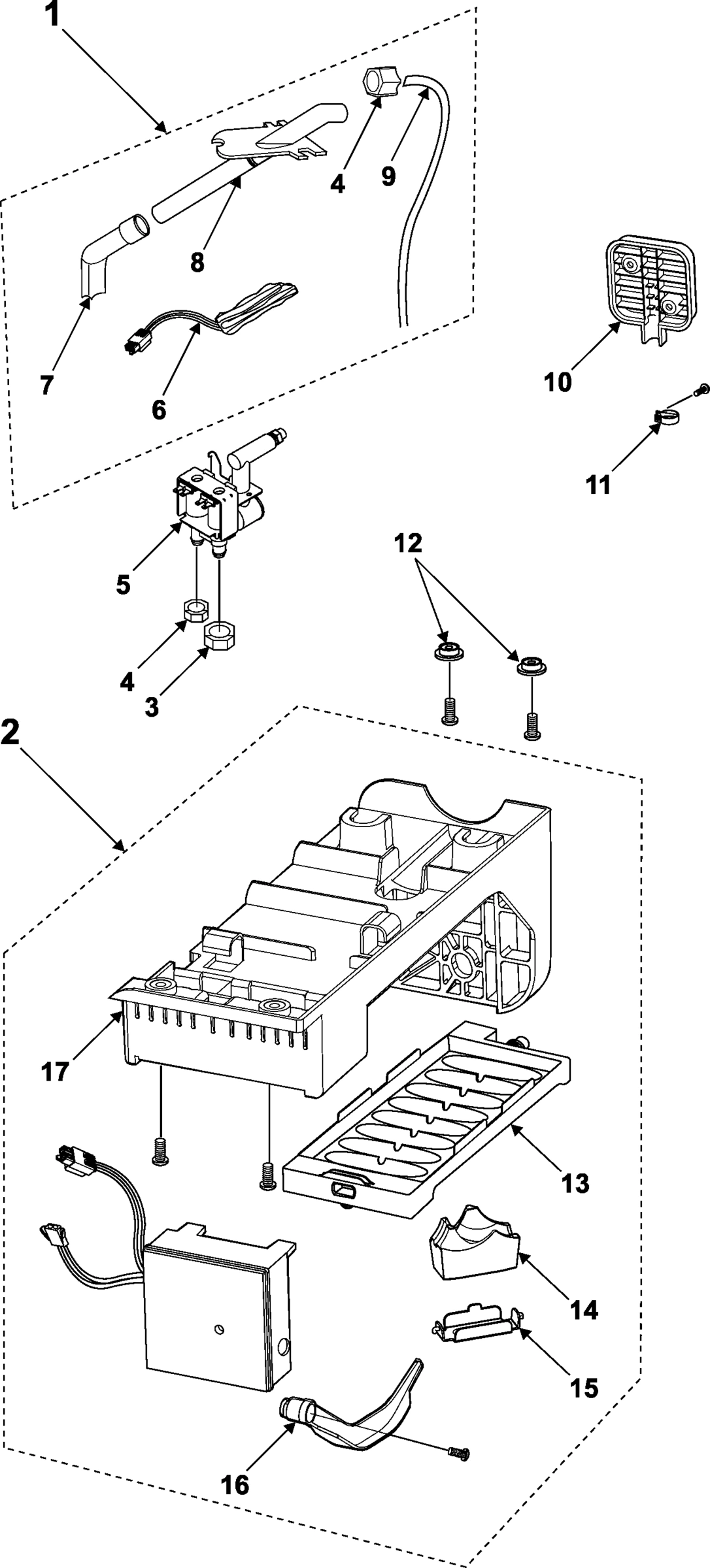

Model Samsung RS2623WW/XAA Refrigerator – Common Parts &amp; Diagrams

1

DA97-00704B Samsung Refrigerator Handle Assem Backorder SMG DA97-00704B $64.54

1

DA97-00708B Samsung Water Pipe Assembly Backorder SMG DA97-00708B $61.97

1

DA97-02058C Samsung Refrigerator Ice Tray Buc Backorder SMG DA97-02058C $143.31

1

DA97-02097B Samsung Refrigerator Low Left Hin Backorder SMG DA97-02097B $31.02

1

Refrigerator cover assembly SMG DA97-02015C Contact Us For Availability

1

Refrigerator shelf wire SMG DA67-01022B Contact Us For Availability

1

Refrigerator defrost drain pan assembly SMG DA97-02018A Contact Us For Availability

1

Samsung, refrigerator, sxs SMG SAM0096 Contact Us For Availability

1A

Handle assembly SMG DA97-00704H Contact Us For Availability

1B

Assy-handl SMG DA97-00704L Contact Us For Availability

1C

DA97-00704M Samsung Assembly Handle Mid Front Backorder SMG DA97-00704M $54.57

1D

Assy-handl SMG DA97-00704Q Contact Us For Availability

2

DA63-02008A Samsung Cover-Ice Bucket Ad Hips Backorder SMG DA63-02008A $33.43

2

DA97-00703A Samsung Refrigerator Rear Handle Backorder SMG DA97-00703A $37.22

2

DA97-02101B Samsung Refrigerator Chilled Inse Backorder SMG DA97-02101B $76.35

2

Refrigerator ice maker assembly SMG DA97-00258E Contact Us For Availability

2

Refrigerator condenser fan motor assembly SMG DA97-01948A Contact Us For Availability

2

Refrigerator shelf wire SMG DA67-01025A Contact Us For Availability

2

Refrigerator hinge SMG DA97-01763A Contact Us For Availability

2

Refrigerator condenser coils assembly SMG DA97-02091A Contact Us For Availability

2

Refrigerator cover assembly SMG DA97-02013A Contact Us For Availability

2A

Refrigerator handle SMG DA97-00703B Contact Us For Availability

2B

Handle assembly SMG DA97-00703F Contact Us For Availability

2C

DA97-00703G Samsung Refrigerator Rear Handle Backorder SMG DA97-00703G $54.30

2D

DA97-00703H Samsung Refrigerator Rear Handle Backorder SMG DA97-00703H $65.88

3

6003-001435 Samsung Refrigerator Screw, Tap T Backorder SMG 6003-001435 $0.92

3

DA60-30105A Samsung Refrigerator Water Line N Backorder SMG DA60-30105A $1.17

3

DA97-01949A Samsung Refrigerator Condenser Fa In Stock SMG DA97-01949A $129.87

3

DA97-02052B Samsung Refrigerator Door Upper C Backorder SMG DA97-02052B $78.14

3

Refrigerator door assembly SMG DA91-01960A Contact Us For Availability

3

Refrigerator shelf assembly SMG DA97-02037B Contact Us For Availability

3

Refrigerator cover assembly SMG DA97-02013B Contact Us For Availability

3

Refrigerator door assembly SMG DA91-01961A Contact Us For Availability

3A

Refrigerator door assembly SMG DA91-01960B Contact Us For Availability

3A

Refrigerator door assembly SMG DA91-01961B Contact Us For Availability

3B

Refrigerator door assembly SMG DA91-01960C Contact Us For Availability

3B

Refrigerator door assembly SMG DA91-01961C Contact Us For Availability

3C

Refrigerator door assembly SMG DA91-01960D Contact Us For Availability

3C

Refrigerator door assembly SMG DA91-01961D Contact Us For Availability

3D

Refrigerator door assembly SMG DA91-01960Q Contact Us For Availability

3D

Refrigerator door assembly SMG DA91-01961L Contact Us For Availability

4

DA60-30104A Samsung Refrigerator Water Line N Backorder SMG DA60-30104A $1.56

4

DA61-01651A Samsung Refrigerator Ice Route Co Backorder SMG DA61-01651A $3.50

4

DA71-20231A Samsung Refrigerator Fixer Guard Backorder SMG DA71-20231A $2.71

4

Chute cap SMG DA67-00513B Contact Us For Availability

4

Assy chass SMG DA97-02064A Contact Us For Availability

4

Refrigerator case assembly SMG DA97-01666E Contact Us For Availability

4

Mascot,-,a SMG DA64-00990A Contact Us For Availability

4

Refrigerator crisper drawer cover SMG DA97-02053B Contact Us For Availability

5

DA63-01970A Samsung Refrigerator Ice Route Co In Stock SMG DA63-01970A $4.26

5

DA74-40149D Samsung Refrigerator Water Inlet Backorder SMG DA74-40149D $89.40

5

DA97-01800J Samsung Refrigerator Door Assembl Backorder SMG DA97-01800J $102.70

5

DA97-01800K Samsung Refrigerator Door Gasket Backorder SMG DA97-01800K $174.44

5

Refrigerator water supply tube cover SMG DA63-01275A Contact Us For Availability

5

Thermostat blade SMG DA31-20121B Contact Us For Availability

5

Caster, front SMG DA61-40115A Contact Us For Availability

5

Refrigerator water filter SMG DA29-00003B Contact Us For Availability

5

Refrigerator chiller tray SMG DA63-01978B Contact Us For Availability

5A

DA97-01800N Samsung Refrigerator Gasket Door Backorder SMG DA97-01800N $104.53

5A

Refrigerator freezer door gasket SMG DA97-01800M Contact Us For Availability

5A

Refrigerator cover tube SMG DA63-01275B Contact Us For Availability

5B

Refrigerator cover tube SMG DA63-01275C Contact Us For Availability

6

6021-001125 Samsung Refrigerator Hexagon Nut Backorder SMG 6021-001125 $2.71

6

DA47-00110C Samsung Refrigerator Water Pipe H Backorder SMG DA47-00110C $18.59

6

DA60-90124A Samsung Rivet Backorder SMG DA60-90124A $0.92

6

DA97-02094A Samsung Refrigerator Water Tank A Backorder SMG DA97-02094A $79.13

6

Refrigerator freezer guard SMG DA63-02002A Contact Us For Availability

6

Refrigerator shelf wire SMG DA67-01023B Contact Us For Availability

6

See note (qty 12) screw-tapping currently SMG 00000000 Contact Us For Availability

6

Refrigerator blade SMG DA31-20122B Contact Us For Availability

6

Refrigerator guard assembly SMG DA97-02041A Contact Us For Availability

7

6011-001442 Samsung Refrigerator Socket Bolt Backorder SMG 6011-001442 $1.17

7

DA34-00011B Samsung Refrigerator Micro Switch Backorder SMG DA34-00011B $11.24

7

DA34-10120E Samsung Refrigerator Door Switch Backorder SMG DA34-10120E $26.19

7

DA61-30102A Samsung Refrigerator Front Foot Backorder SMG DA61-30102A $10.47

7

DA61-60001A Samsung Refrigerator Dispenser So Backorder SMG DA61-60001A $0.92

7

DA63-01291A Samsung Refrigerator Water Fill P Backorder SMG DA63-01291A $15.12

7

DA63-02001A Samsung Refrigerator Mid Guard Backorder SMG DA63-02001A $39.97

7

DA97-02323B Samsung Case Vegetable Drawer Ass Backorder SMG DA97-02323B $89.50

7

Refrigerator freezer guard SMG DA63-01996A Contact Us For Availability

7

Refrigerator ice blade SMG DA61-01658C Contact Us For Availability

7

Purifier cover SMG DA63-01077A Contact Us For Availability

8

DA34-10110E Samsung Refrigerator Door Light S Backorder SMG DA34-10110E $34.11

8

DA63-50207C Samsung Hinge Shim - Lower Backorder SMG DA63-50207C $1.56

8

DA67-40250E Samsung Refrigerator Utility Tray Backorder SMG DA67-40250E $29.98

8

DA71-20207A Samsung Refrigerator Water Valve Backorder SMG DA71-20207A $0.92

8

DA97-00707A Samsung Refrigerator Water Pipe A Backorder SMG DA97-00707A $22.05

8

Complete clamper SMG DA65-00037A Contact Us For Availability

8

Grommet SMG DA63-00202B Contact Us For Availability

9

DA61-01608A Samsung Refrigerator Low Hinge Backorder SMG DA61-01608A $42.69

9

DA61-03683A Samsung Refrigerator Sensor Fixer In Stock SMG DA61-03683A $1.17

9

DA61-20124C Samsung Dispenser Spring Backorder SMG DA61-20124C $3.09

9

DA62-20111C Samsung Refrigerator Tube Fitting Backorder SMG DA62-20111C $12.00

9

DA63-02014A Samsung Refrigerator Guard Low Ad Backorder SMG DA63-02014A $39.62

9

DA73-00070K Samsung Refrigerator Water Line P Backorder SMG DA73-00070K $17.44

9

Refrigerator lamp cover SMG DA63-01980A Contact Us For Availability

DA47-10160F Samsung Refrigerator Bimetal Ther Backorder SMG DA47-10160F $60.83

DA63-01972A Samsung Refrigerator Gasket Cover Backorder SMG DA63-01972A $12.79

DA66-00268A Samsung Refrigerator Cam Riser As Backorder SMG DA66-00268A $1.94

DA66-90003A Samsung Refrigerator Solenoid Gea Backorder SMG DA66-90003A $0.92

DA71-20208A Samsung Refrigerator Water Valve Backorder SMG DA71-20208A $0.92

Refrigerator high bracket SMG DA61-00419D Contact Us For Availability

Refrigerator cube dispenser crusher cover SMG DA63-02007A Contact Us For Availability

Fixer cap SMG DA67-00772A Contact Us For Availability

DA47-00112G Samsung Refrigerator Lamp Holder Backorder SMG DA47-00112G $23.24

DA63-02004A Samsung Refrigerator Front Leg Co Backorder SMG DA63-02004A $29.63

DA65-20110B Samsung Refrigerator Cable Clamp Backorder SMG DA65-20110B $3.50

Refrigerator door stopper SMG DA61-00430A Contact Us For Availability

Plate washer SMG DA60-40116A Contact Us For Availability

11A

DA63-02004B Samsung Refrigerator Front Leg Co Backorder SMG DA63-02004B $26.88

11B

Refrigerator leg cover SMG DA63-02004C Contact Us For Availability

11C

Refrigerator leg cover SMG DA63-02004D Contact Us For Availability

DA32-10105R Samsung Refrigerator Defrost Temp In Stock SMG DA32-10105R $20.15

DA60-90125A Samsung Fastener Ring Backorder SMG DA60-90125A $0.92

DA61-01650A Samsung Refrigerator Upper Hinge Backorder SMG DA61-01650A $28.26

Handle-tri SMG DA64-00417B Contact Us For Availability

Fixer grommet SMG DA71-20252A Contact Us For Availability

Trim blade SMG DA64-01173A Contact Us For Availability

12A

Handle-tri SMG DA64-00417C Contact Us For Availability

12B

Handle-tri SMG DA64-00417G Contact Us For Availability

12C

Handle-tri SMG DA64-00417H Contact Us For Availability

12D

DA64-00417J Samsung Refrigerator Low Trim Han Backorder SMG DA64-00417J $38.08

DA61-40126B Samsung Refrigerator Rear Caster Backorder SMG DA61-40126B $2.32

Handle-tri SMG DA64-00418B Contact Us For Availability

Refrigerator hinge cover SMG DA63-01997A Contact Us For Availability

Refrigerator ice bin SMG DA63-02284A Contact Us For Availability

13A

Handle-tri SMG DA64-00418C Contact Us For Availability

13A

Refrigerator hinge cover SMG DA63-01997B Contact Us For Availability

13B

Handle-tri SMG DA64-00418G Contact Us For Availability

13B

Refrigerator hinge cover SMG DA63-01997C Contact Us For Availability

13C

Handle-tri SMG DA64-00418H Contact Us For Availability

13C

Refrigerator hinge cover SMG DA63-01997D Contact Us For Availability

13D

Refrigerator handle trim SMG DA64-00418J Contact Us For Availability

14

DA60-90146A Samsung Refrigerator Caster Pin M Backorder SMG DA60-90146A $1.56

14

DA61-01800A Samsung Refrigerator Ice Maker Fi In Stock SMG DA61-01800A $25.84

14

Refrigerator handle SMG DA64-00414B Contact Us For Availability

14A

Refrigerator handle SMG DA64-00414C Contact Us For Availability

14B

Handle-mid rear SMG DA64-00414G Contact Us For Availability

14C

DA64-00414H Samsung Rear Mid Refrigerator Han Backorder SMG DA64-00414H $46.37

14D

Refrigerator handle SMG DA64-00414J Contact Us For Availability

DA39-20389E Samsung Refrigerator Earth Wire H Backorder SMG DA39-20389E $0.92

DA61-00309A Samsung Reinforcement Handle Mid Backorder SMG DA61-00309A $19.76

DA63-02183A Samsung Refrigerator Sensor Cover In Stock SMG DA63-02183A $1.94

DA74-40151G Samsung Refrigerator Ice Dispense Backorder SMG DA74-40151G $89.76

15A

Refrigerator handle SMG DA64-00413F Contact Us For Availability

4713-001172 Samsung Refrigerator Incandescent Backorder SMG 4713-001172 $10.07

DA63-02017A Samsung Refrigerator Compressor G Backorder SMG DA63-02017A $3.09

Handle-tri SMG DA64-00415B Contact Us For Availability

Refrigerator ice guide SMG DA61-01805A Contact Us For Availability

16A

DA64-00415C Samsung Handle-TRIM CONNECT,LOW;A Backorder SMG DA64-00415C $14.33

16B

Handle-tri SMG DA64-00415D Contact Us For Availability

16C

Handle-trim connect,low SMG DA64-00415E Contact Us For Availability

16D

Handle-tri SMG DA64-00415F Contact Us For Availability

17

DA39-00084D Samsung Refrigerator Relay Wire H Backorder SMG DA39-00084D $12.39

17

DA61-01801A Samsung Refrigerator Support Im F Backorder SMG DA61-01801A $23.24

17

Refrigerator handle SMG DA64-00413C Contact Us For Availability

17A

Refrigerator handle SMG DA64-00413J Contact Us For Availability

17B

Refrigerator handle SMG DA64-00413K Contact Us For Availability

17C

Handle SMG DA64-00413L Contact Us For Availability

18

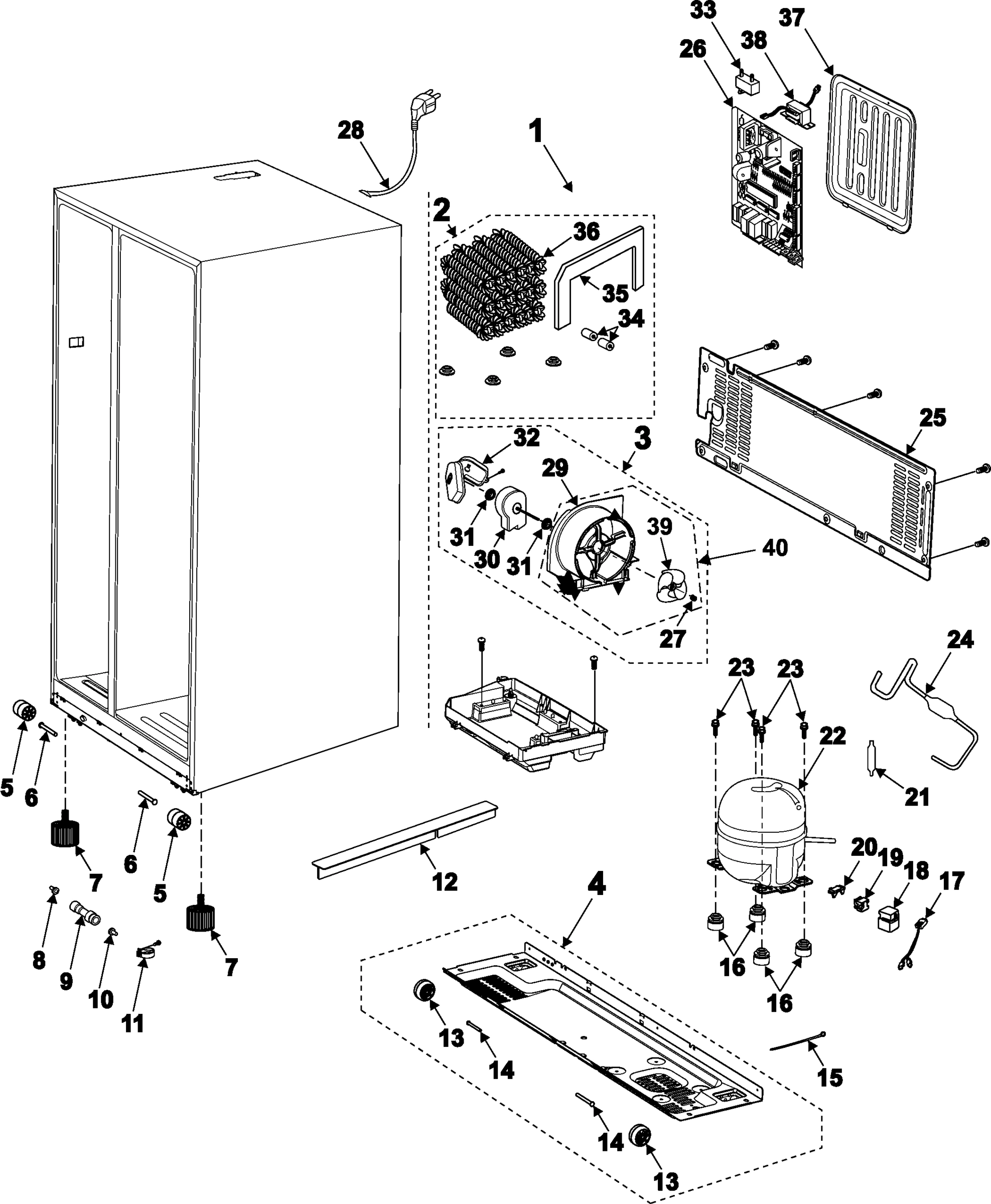

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $10.85

18

Handle-tri SMG DA64-00416B Contact Us For Availability

18A

DA64-00416C Samsung Handle Upper Trim Connect Backorder SMG DA64-00416C $18.21

18B

Handle-tri SMG DA64-00416D Contact Us For Availability

18C

Handle-trim connect up SMG DA64-00416E Contact Us For Availability

18D

Handle-tri SMG DA64-00416F Contact Us For Availability

19

DA34-10003S Samsung Refrigerator Compressor O In Stock SMG DA34-10003S $19.82

20

Refrigerator compressor start relay SMG DA35-10013Q Contact Us For Availability

21

DA31-00105A Samsung Refrigerator Auger Motor Backorder SMG DA31-00105A $140.35

21

Backorder SMG DA73-30102B $17.44

22

MK183CL2U/E07 Samsung Refrigerator Compressor Backorder SMG MK183CL2U/E07 $233.08

23

DA60-20008A Samsung Hex Bolt Backorder SMG DA60-20008A $3.09

24

DA97-00918A Samsung Refrigerator Pipe Connect Backorder SMG DA97-00918A $48.51

25

DA97-01947B Samsung Assembly Cover Component Backorder SMG DA97-01947B $51.90

26

DA41-00219B Samsung Assembly Printed Circuit Backorder SMG DA41-00219B $148.51

27

DA61-20128A Samsung Refrigerator Spring and F Backorder SMG DA61-20128A $0.92

28

Refrigerator power cord SMG DA39-10165E Contact Us For Availability

29

DA61-01634B Samsung Refrigerator Fan Motor Su Backorder SMG DA61-01634B $18.59

30

DA31-00103A Samsung Refrigerator Fan Motor IS In Stock SMG DA31-00103A $95.24

31

DA63-40119A Samsung Refrigerator Grommet for In Stock SMG DA63-40119A $1.56

32

DA63-01283C Samsung Refrigerator Motor Cover Backorder SMG DA63-01283C $4.26

33

Refrigerator run capacitor SMG 2501-001045 Contact Us For Availability

34

DA63-40171B Samsung Refrigerator Suction Pipe Backorder SMG DA63-40171B $2.32

35

DA72-60040D Samsung Seal Cut Rubber Backorder SMG DA72-60040D $3.09

36

DA60-90136A Samsung Refrigerator Spiral Pin Backorder SMG DA60-90136A $3.88

37

Refrigerator pcb cover SMG DA63-01990A Contact Us For Availability

38

Refrigerator transformer SMG DA26-00022B Contact Us For Availability

39

Refrigerator condenser fan blade SMG DA31-00095A Contact Us For Availability
