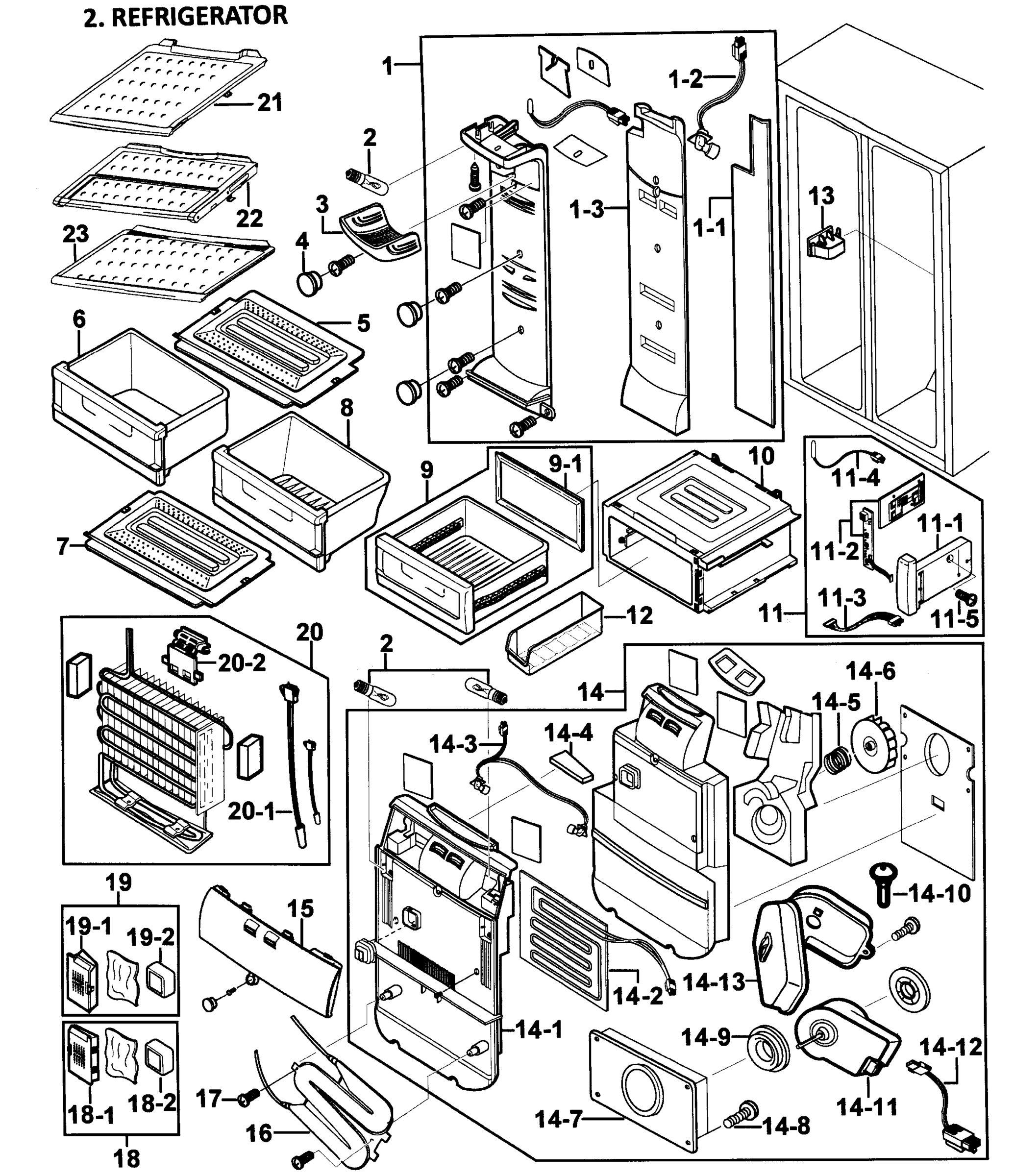

Model Samsung RS2578SH/XAA-00 Refrigerator – Common Parts &amp; Diagrams

1

Refrigerator ice maker support SMG DA61-02205A Contact Us For Availability

1

Refrigerator water dispenser water tube brack SMG DA61-00319A Contact Us For Availability

1

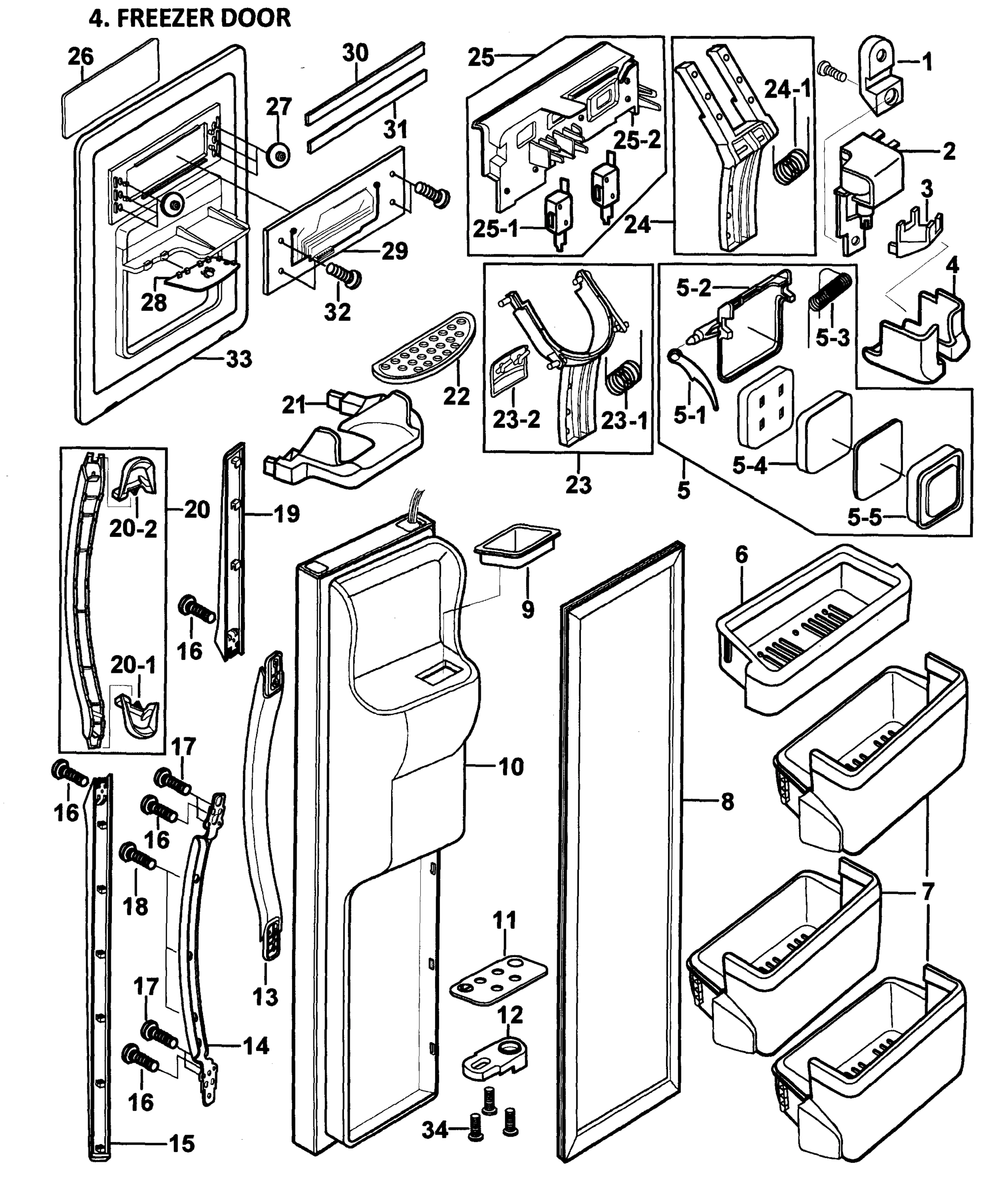

Refrigerator door assembly SMG DA91-01606Q Contact Us For Availability

1-1

DA62-00565A Samsung Refrigerator Multi Seal Backorder SMG DA62-00565A $2.71

1-2

Refrigerator lamp holder SMG DA47-00112A Contact Us For Availability

1-3

DA62-00517A Samsung Refrigerator Multi Insula Backorder SMG DA62-00517A $9.68

2

4713-001172 Samsung Refrigerator Incandescent Backorder SMG 4713-001172 $10.07

2

DA74-40154F Samsung Refrigerator Solenoid Val Backorder SMG DA74-40154F $61.40

2

DA97-04567D Samsung Refrigerator Door Gasket Backorder SMG DA97-04567D $97.79

2

Refrigerator ice maker water fill tube assemb SMG DA97-04501R Contact Us For Availability

3

DA61-00316A Samsung Refrigerator Time Delay S Backorder SMG DA61-00316A $1.94

3

DA63-00813B Samsung Refrigerator Lamp Cover U Backorder SMG DA63-00813B $7.74

3

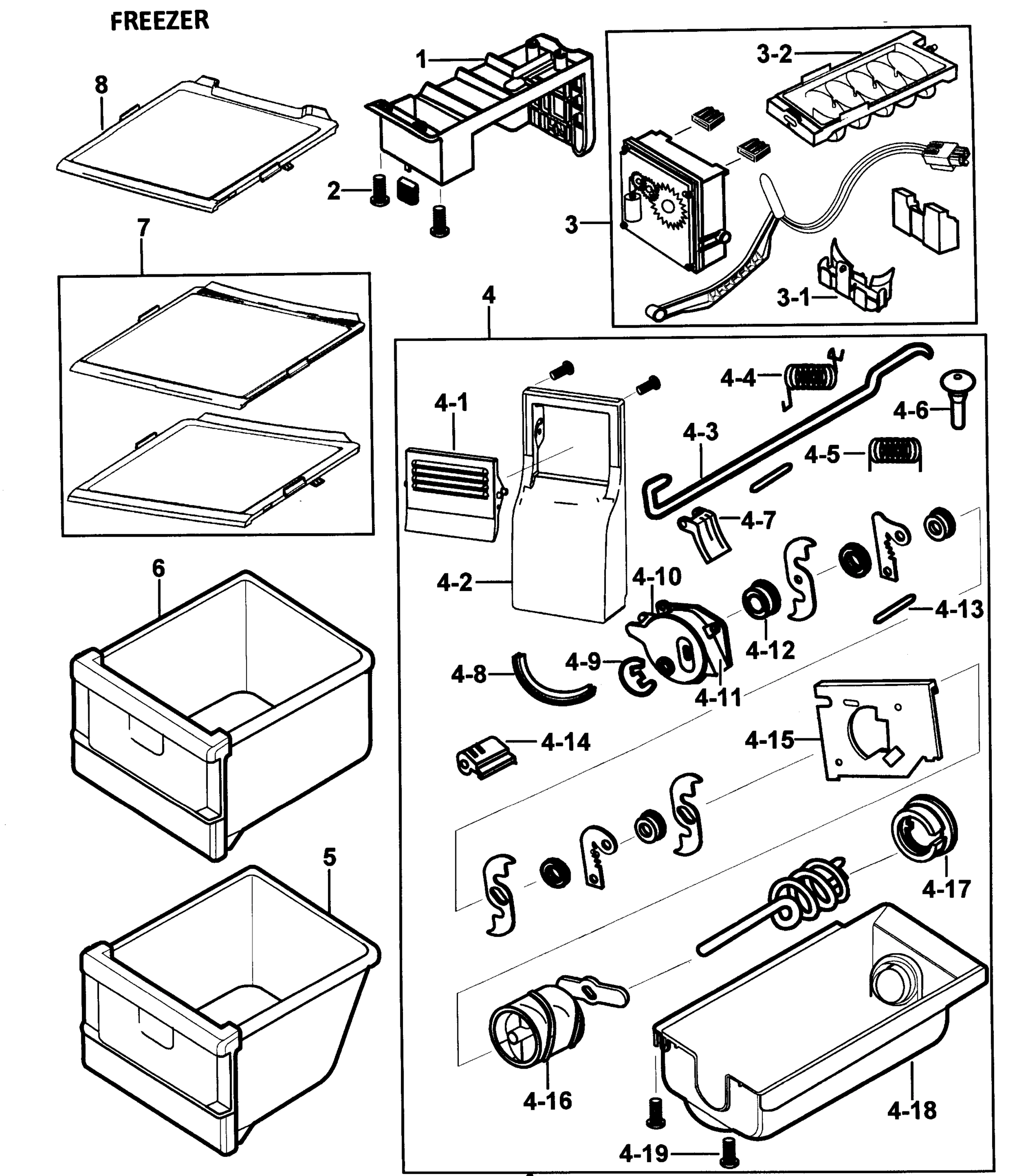

DA97-00258J Samsung Refrigerator Icemaker Ass Backorder SMG DA97-00258J $149.75

3

Refrigerator guard assembly SMG DA97-00697E Contact Us For Availability

3-1

DA63-02183A Samsung Refrigerator Sensor Cover In Stock SMG DA63-02183A $1.94

3-1

Refrigerator cover SMG DA63-00825B Contact Us For Availability

3-2

DA63-00836D Samsung Refrigerator Dairy Guard Backorder SMG DA63-00836D $41.16

3-2

DA63-01453B Samsung Refrigerator Ice Tray Ass In Stock SMG DA63-01453B $6.59

4

DA67-30266K Samsung Refrigerator Cap Screw Backorder SMG DA67-30266K $0.92

4

Refrigerator door bin SMG DA97-01824A Contact Us For Availability

4

Refrigerator power cord SMG DA39-10165E Contact Us For Availability

4

Refrigerator dispenser switch cover SMG DA63-01047A Contact Us For Availability

4-12

DA60-30108A Samsung Refrigerator Hex Nut Backorder SMG DA60-30108A $3.09

4-17

DA66-30138A Samsung Refrigerator Dispenser Le Backorder SMG DA66-30138A $7.74

4-19

6002-000471 Samsung Refrigerator Screw Backorder SMG 6002-000471 $0.92

5

Refrigerator ice route cover assembly SMG DA97-01437C Contact Us For Availability

5

Refrigerator lower basket SMG DA97-05840B Contact Us For Availability

5

Refrigerator door stopper SMG DA61-00430A Contact Us For Availability

5

Refrigerator crisper drawer cover SMG DA63-03057A Contact Us For Availability

5-1

DA61-00775A Samsung Refrigerator Dispenser St Backorder SMG DA61-00775A $0.92

5-2

DA63-00844A Samsung Refrigerator Ice Route Co Backorder SMG DA63-00844A $3.88

5-3

DA61-00565A Samsung Refrigerator Ice Route Co Backorder SMG DA61-00565A $1.94

5-4

Refrigerator ice cover SMG DA63-00846A Contact Us For Availability

5-5

Refrigerator dispenser door gasket SMG DA63-01823A Contact Us For Availability

6

Refrigerator run capacitor SMG 2501-001045 Contact Us For Availability

6

Refrigerator crisper drawer assembly SMG DA97-00144P Contact Us For Availability

6

Refrigerator freezer drawer, upper SMG DA97-00142P Contact Us For Availability

6

Refrigerator guard assembly SMG DA97-01825A Contact Us For Availability

7

6001-000716 Samsung Refrigerator Machine Scre Backorder SMG 6001-000716 $0.92

7

DA63-00865C Samsung Refrigerator Low Veg Cove Backorder SMG DA63-00865C $29.63

7

Low shelf SMG DA97-03231B Contact Us For Availability

7

Refrigerator guard assembly SMG DA97-01823A Contact Us For Availability

8

DA97-04567C Samsung Refrigerator Freezer Door Backorder SMG DA97-04567C $99.46

8

DA97-05837C Samsung Refrigerator Low Vegetabl Backorder SMG DA97-05837C $78.48

8

Refrigerator shelf SMG DA97-03230B Contact Us For Availability

8

Refrigerator handle SMG DA64-00414J Contact Us For Availability

9

DA64-00417J Samsung Refrigerator Low Trim Han Backorder SMG DA64-00417J $38.08

9

DA97-04117C Samsung Refrigerator Convertible Backorder SMG DA97-04117C $84.45

9

Chute cap SMG DA67-00513B Contact Us For Availability

9-1

DA63-01783C Samsung Convertible Gasket Backorder SMG DA63-01783C $33.43

9-1

Refrigerator ice maker auger motor assembly SMG DA61-00262E Contact Us For Availability

9-8

DA31-00105A Samsung Refrigerator Auger Motor Backorder SMG DA31-00105A $140.35

9-13

DA74-40151G Samsung Refrigerator Ice Dispense Backorder SMG DA74-40151G $89.76

9-18

DA66-90003A Samsung Refrigerator Solenoid Gea Backorder SMG DA66-90003A $0.92

9-21

DA61-60001A Samsung Refrigerator Dispenser So Backorder SMG DA61-60001A $0.92

10

DA97-04519P Samsung Refrigerator Convertible Backorder SMG DA97-04519P $178.59

10

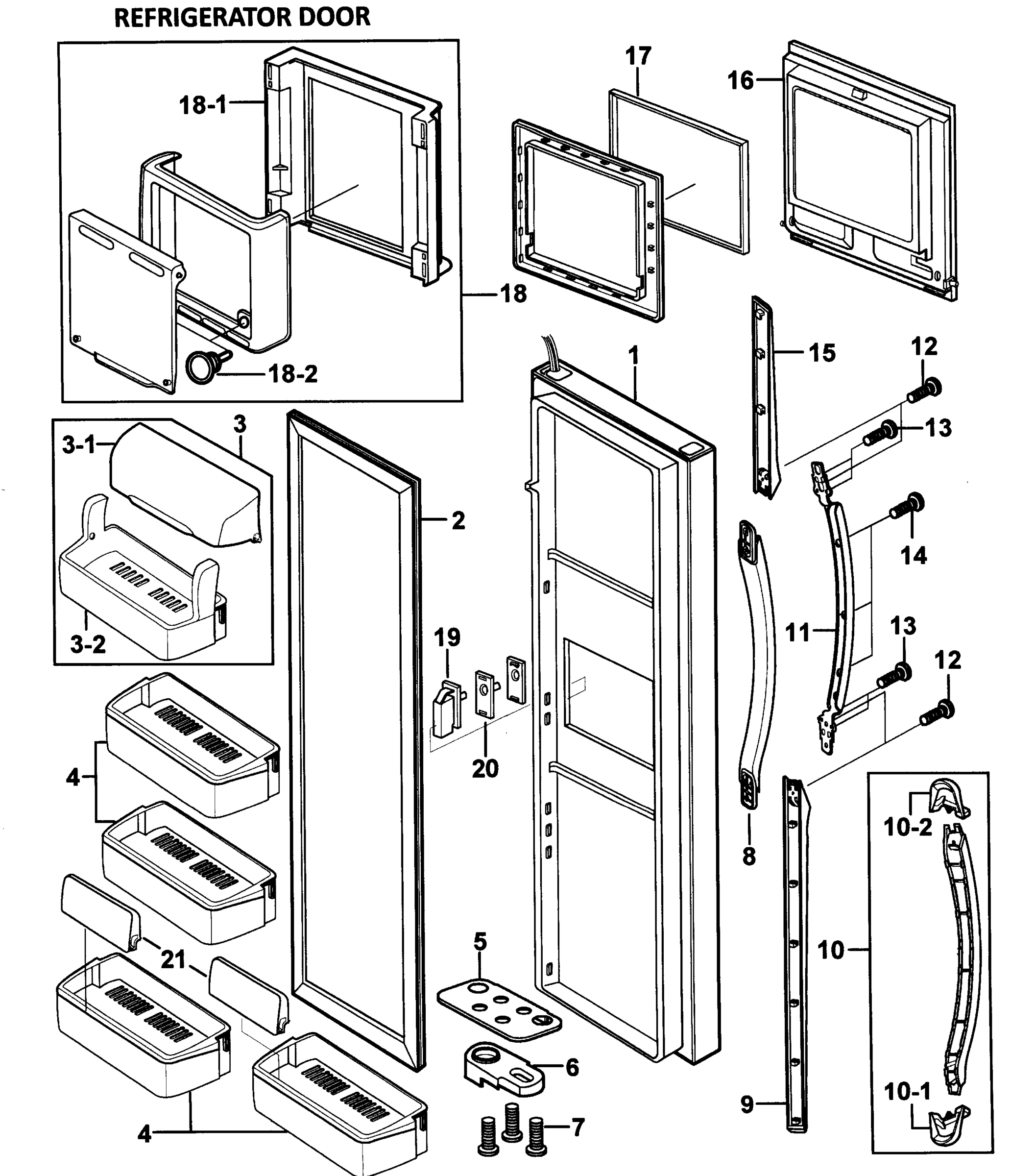

Refrigerator door assembly SMG DA91-01605H Contact Us For Availability

10

Assy-handl SMG DA97-00704Q Contact Us For Availability

10-1

Handle-tri SMG DA64-00415D Contact Us For Availability

10-2

Handle-tri SMG DA64-00416D Contact Us For Availability

11

DA61-00309A Samsung Reinforcement Handle Mid Backorder SMG DA61-00309A $19.76

11

DA97-00370K Samsung Refrigerator Convertible Backorder SMG DA97-00370K $123.19

11-1

Refrigerator control cover SMG DA63-00800F Contact Us For Availability

11-2

Refrigerator pantry power control board SMG DA41-00108A Contact Us For Availability

11-3

Refrigerator wire harness SMG DA39-00215A Contact Us For Availability

11-4

DA32-10109X Samsung Refrigerator Temperature In Stock SMG DA32-10109X $20.53

6002-000613 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000613 $0.92

DA66-00344A Samsung Refrigerator Low Cam Hing In Stock SMG DA66-00344A $1.94

DA67-40250E Samsung Refrigerator Utility Tray Backorder SMG DA67-40250E $29.98

MK183CL2U/E07 Samsung Refrigerator Compressor Backorder SMG MK183CL2U/E07 $233.08

12-2

DA32-10109W Samsung Refrigerator Temperature In Stock SMG DA32-10109W $17.06

13

DA34-10110E Samsung Refrigerator Door Light S Backorder SMG DA34-10110E $34.11

13

DA63-02017A Samsung Refrigerator Compressor G Backorder SMG DA63-02017A $3.09

14

6002-000227 Samsung Tapping Screw Backorder SMG 6002-000227 $0.92

14

DA39-00084D Samsung Refrigerator Relay Wire H Backorder SMG DA39-00084D $12.39

14

Refrigerator fresh food evaporator cover asse SMG DA97-05369E Contact Us For Availability

14-1

Refrigerator freezer evaporator cover SMG DA63-00812B Contact Us For Availability

14-2

DA47-00200C Samsung Refrigerator Water Tank H Backorder SMG DA47-00200C $40.85

14-3

Refrigerator lamp holder SMG DA47-00112C Contact Us For Availability

14-4

DA62-00158A Samsung Evaporator Cover Seal Backorder SMG DA62-00158A $0.92

14-5

DA61-20128A Samsung Refrigerator Spring and F Backorder SMG DA61-20128A $0.92

14-6

DA31-00016A Samsung Evaporator Circuit Fan Bl Backorder SMG DA31-00016A $9.30

DA34-10120E Samsung Refrigerator Door Switch Backorder SMG DA34-10120E $26.19

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $10.85

Refrigerator handle trim SMG DA64-00418J Contact Us For Availability

Refrigerator lamp cover SMG DA63-00814G Contact Us For Availability

16

DA35-00099G Samsung Refrigerator PTC Relay In Stock SMG DA35-00099G $16.62

16

DA97-00670F Samsung Water Tank Assembly Refri Backorder SMG DA97-00670F $84.71

16

Home bar SMG DA97-00547K Contact Us For Availability

16-5

DA31-00053A Samsung Refrigerator Backward Fan Backorder SMG DA31-00053A $17.44

16-6

DA61-00417A Samsung Refrigerator Motor Case Backorder SMG DA61-00417A $20.15

16-8

DA31-00020E Samsung Refrigerator Freezer Evap In Stock SMG DA31-00020E $117.04

17

DA34-10003S Samsung Refrigerator Compressor O In Stock SMG DA34-10003S $19.82

17

DA63-00850C Samsung Refrigerator Home Bar Gas Backorder SMG DA63-00850C $39.31

17

DA96-00627G Samsung Refrigerator Evaporator A Backorder SMG DA96-00627G $197.58

18

DA97-01484F Samsung Refrigerator Cover Purifi Backorder SMG DA97-01484F $15.50

18

Refrigerator evaporator drip pan heater SMG DA97-00111C Contact Us For Availability

18

Refrigerator case assembly SMG DA97-00801H Contact Us For Availability

18-1

Refrigerator cover SMG DA63-00855G Contact Us For Availability

18-1

Refrigerator door case SMG DA61-00306B Contact Us For Availability

18-2

DA63-00991A Samsung Refrigerator Door Recess Backorder SMG DA63-00991A $0.92

19

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $0.92

19

DA34-10121A Samsung Refrigerator Home Bar Doo Backorder SMG DA34-10121A $15.50

19

DA63-00996A Samsung Refrigerator Purifier Cov Backorder SMG DA63-00996A $41.16

19-1

DA63-00856A Samsung Refrigerator Purifier Cov Backorder SMG DA63-00856A $5.03

20

DA96-00626H Samsung Refrigerator Evaporator A Backorder SMG DA96-00626H $187.74

20

Gasket SMG DA63-01100C Contact Us For Availability

20-1

DA47-00301F Samsung Refrigerator Thermal Fuse Backorder SMG DA47-00301F $20.53

20-2

DA61-03683A Samsung Refrigerator Sensor Fixer In Stock SMG DA61-03683A $1.17

DA61-01587A Samsung Refrigerator Dispenser Gu Backorder SMG DA61-01587A $6.97

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.17

DA67-01311B Samsung Refrigerator Shelf GlassU Backorder SMG DA67-01311B $78.90

Refrigerator bottle guide SMG DA61-01588A Contact Us For Availability

22

DA63-00843K Samsung Refrigerator Dispenser Tr In Stock SMG DA63-00843K $5.23

22

DA97-01396F Samsung Fold Shelf Assembly Backorder SMG DA97-01396F $104.98

22

DA97-03811B Samsung Refrigerator Upper Right Backorder SMG DA97-03811B $22.05

23

DA67-00687B Samsung Refrigerator Low Shelf Backorder SMG DA67-00687B $54.61

23

Refrigerator ice dispenser lever SMG DA97-00545J Contact Us For Availability

23-1

Ice spring SMG DA61-00337A Contact Us For Availability

23-2

DA66-00156B Samsung Refrigerator Dispensing L Backorder SMG DA66-00156B $12.79

24

DA97-00546J Samsung Refrigerator Water Dispen Backorder SMG DA97-00546J $7.74

24-1

DA61-00338A Samsung Refrigerator Water Dispen Backorder SMG DA61-00338A $1.56

25

DA97-00409D Samsung Refrigerator Rear PCB Pan Backorder SMG DA97-00409D $36.18

25

DA97-03808B Samsung Refrigerator Upper Left H Backorder SMG DA97-03808B $21.36

25-1

DA34-00011A Samsung Refrigerator Micro Switch Backorder SMG DA34-00011A $8.14

25-2

DA63-00816C Samsung Refrigerator Rear PCB Pan Backorder SMG DA63-00816C $12.00

27

DA64-40144A Samsung Touch Knob Backorder SMG DA64-40144A $1.56

27

Refrigerator water inlet valve SMG DA74-40150H Contact Us For Availability

28

Refrigerator lamp cover SMG DA63-00994A Contact Us For Availability

29

Refrigerator dispenser display control board SMG DA41-00204B Contact Us For Availability

30

Seal cutt SMG DA62-01132U Contact Us For Availability

31

Tape foil SMG DA02-10016A Contact Us For Availability

31-4

DA61-01608B Samsung Refrigerator Low Right Hi Backorder SMG DA61-01608B $25.16

32

6002-000466 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000466 $0.92

33

DA61-00805F Samsung Refrigerator Black Front Backorder SMG DA61-00805F $5.42

34

Refrigerator leveling leg cover SMG DA63-01968G Contact Us For Availability

36

DA97-01285R Samsung Refrigerator Drain Water Backorder SMG DA97-01285R $120.68

36-4

DA96-00042A Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042A $10.85

36-5

DA31-00146B Samsung Refrigerator Condenser Fa In Stock SMG DA31-00146B $109.58

36-6

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $3.50

40

DA62-01628A Samsung Refrigerator Check Valve Backorder SMG DA62-01628A $48.82

1410

DA63-40167A Samsung Refrigerator Grommet Cove Backorder SMG DA63-40167A $1.17

1610

DA39-00060K Samsung Refrigerator Motor with H Backorder SMG DA39-00060K $111.53

1611

DA63-01809A Samsung Refrigerator BLDC Motor C Backorder SMG DA63-01809A $10.07

6002-000215 Samsung Air Conditioner Tapping S In Stock SMG 6002-000215 $0.92

6003-001435 Samsung Refrigerator Screw, Tap T Backorder SMG 6003-001435 $0.92

6011-001442 Samsung Refrigerator Socket Bolt Backorder SMG 6011-001442 $1.17

Samsung refrigerator water filter SMG DA29-00003G Contact Us For Availability

Refrigerator dispenser control overlay SMG DA63-01169T Contact Us For Availability

Refrigerator air freshener filter SMG DA02-90106K Contact Us For Availability
