Model Samsung RS2556BB/XAA-00 Refrigerator – Common Parts &amp; Diagrams

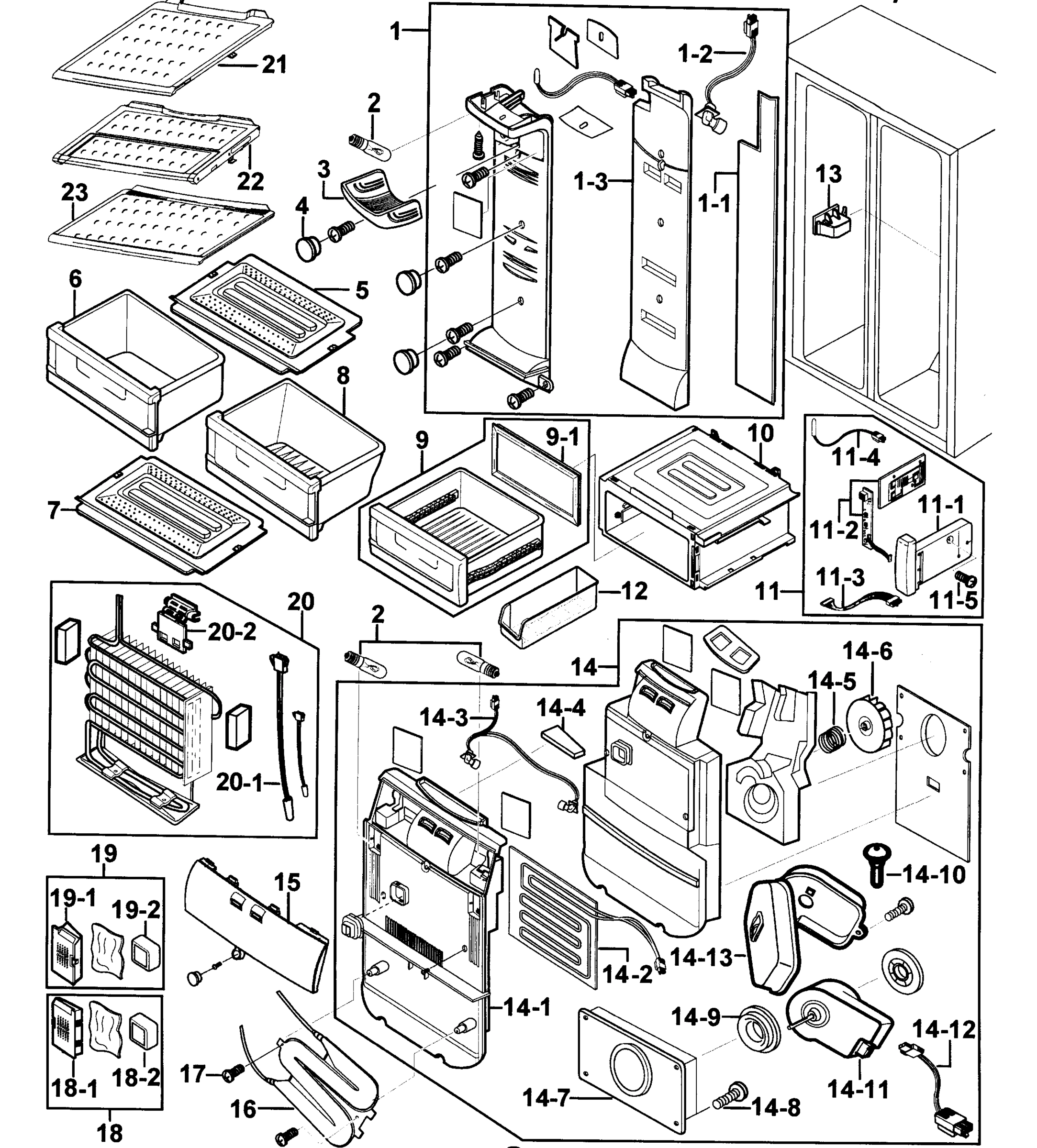

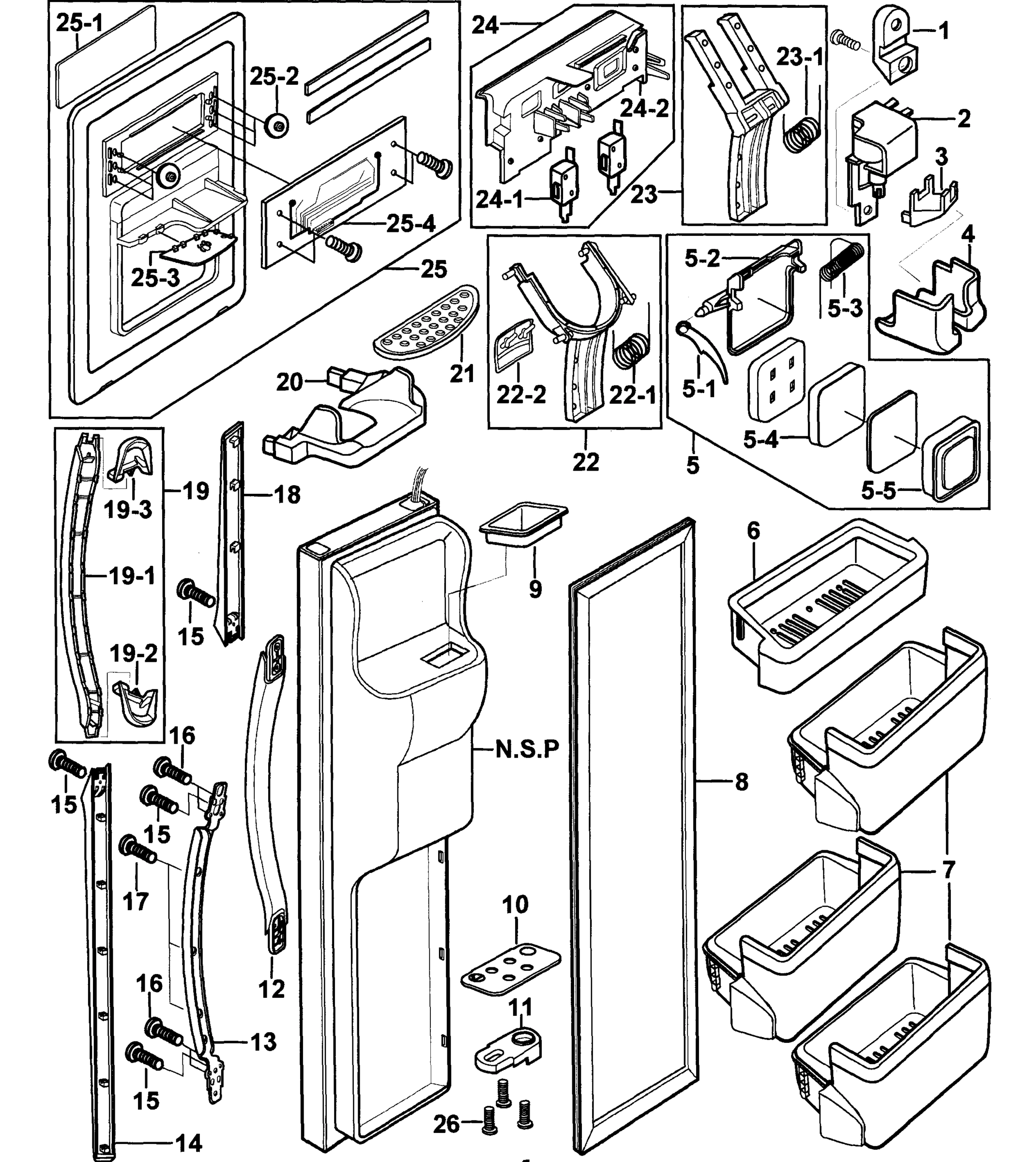

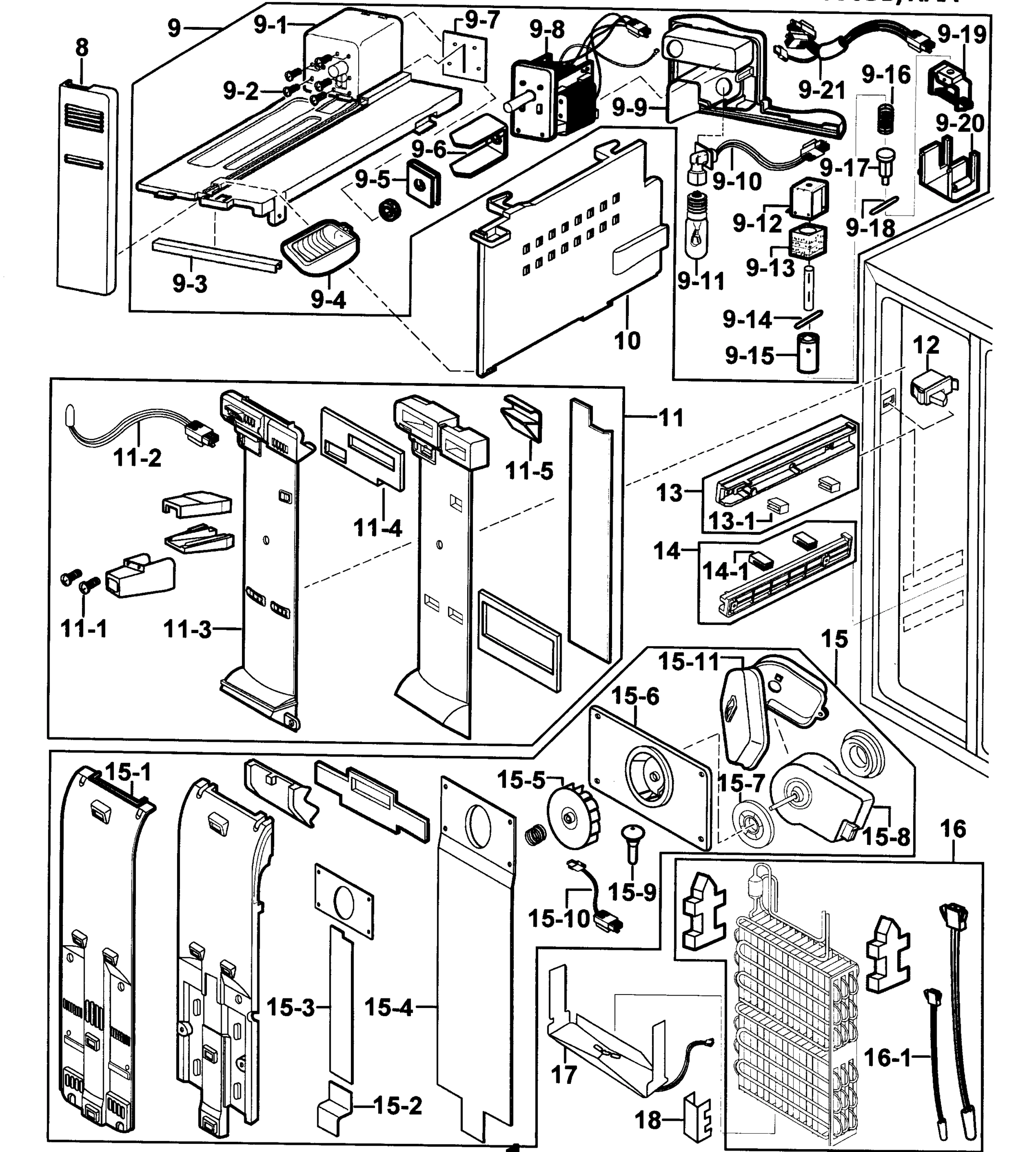

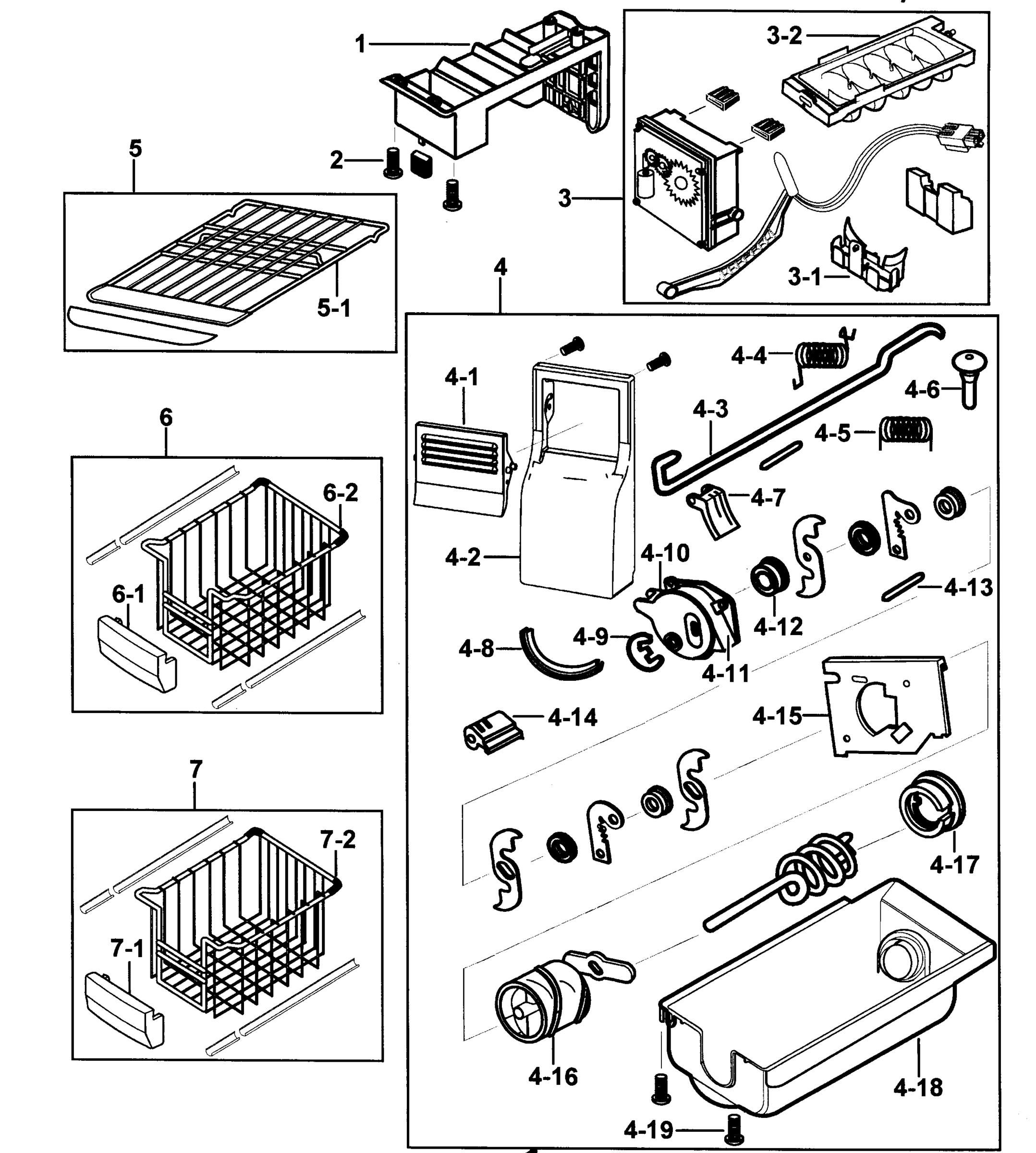

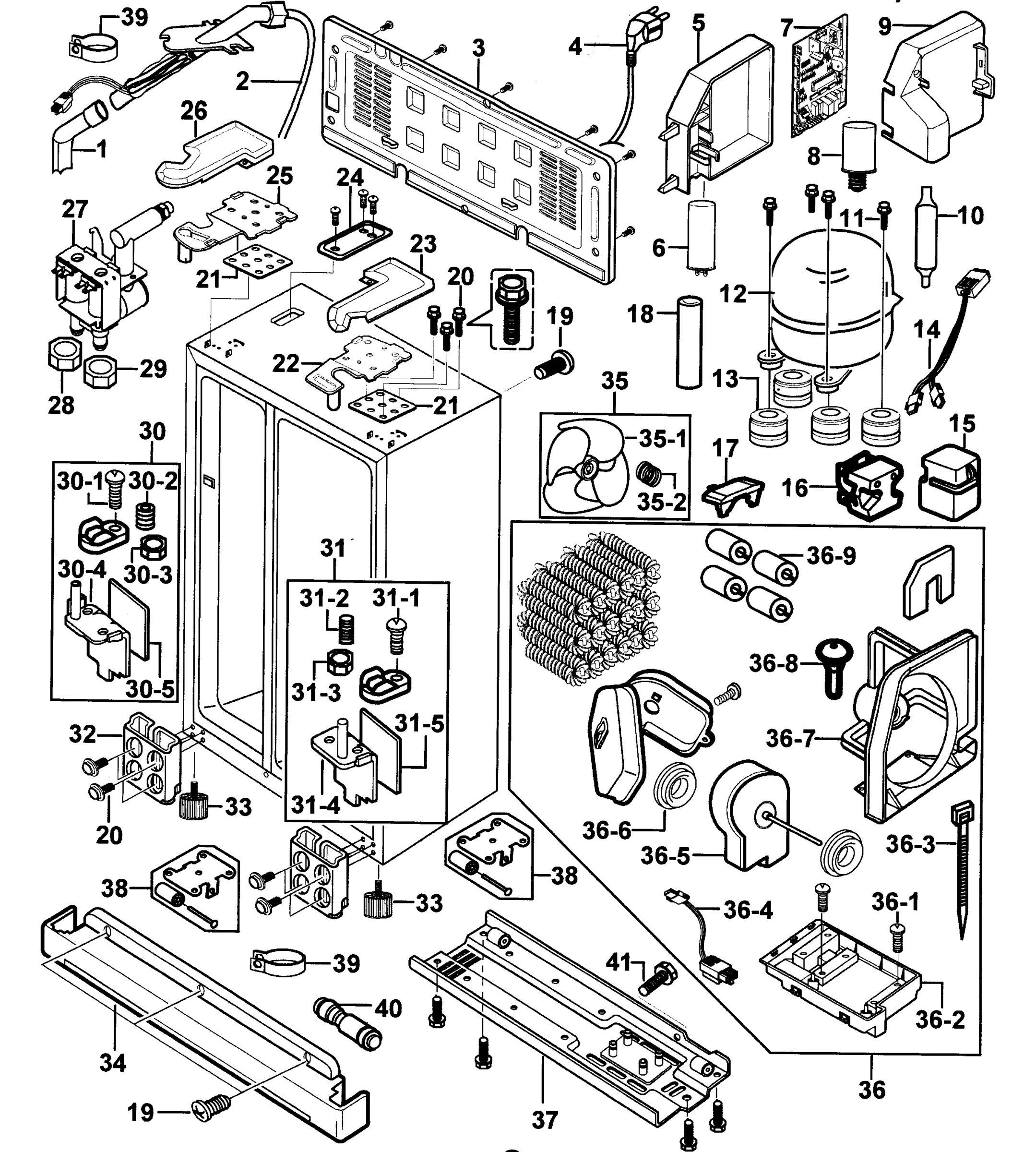

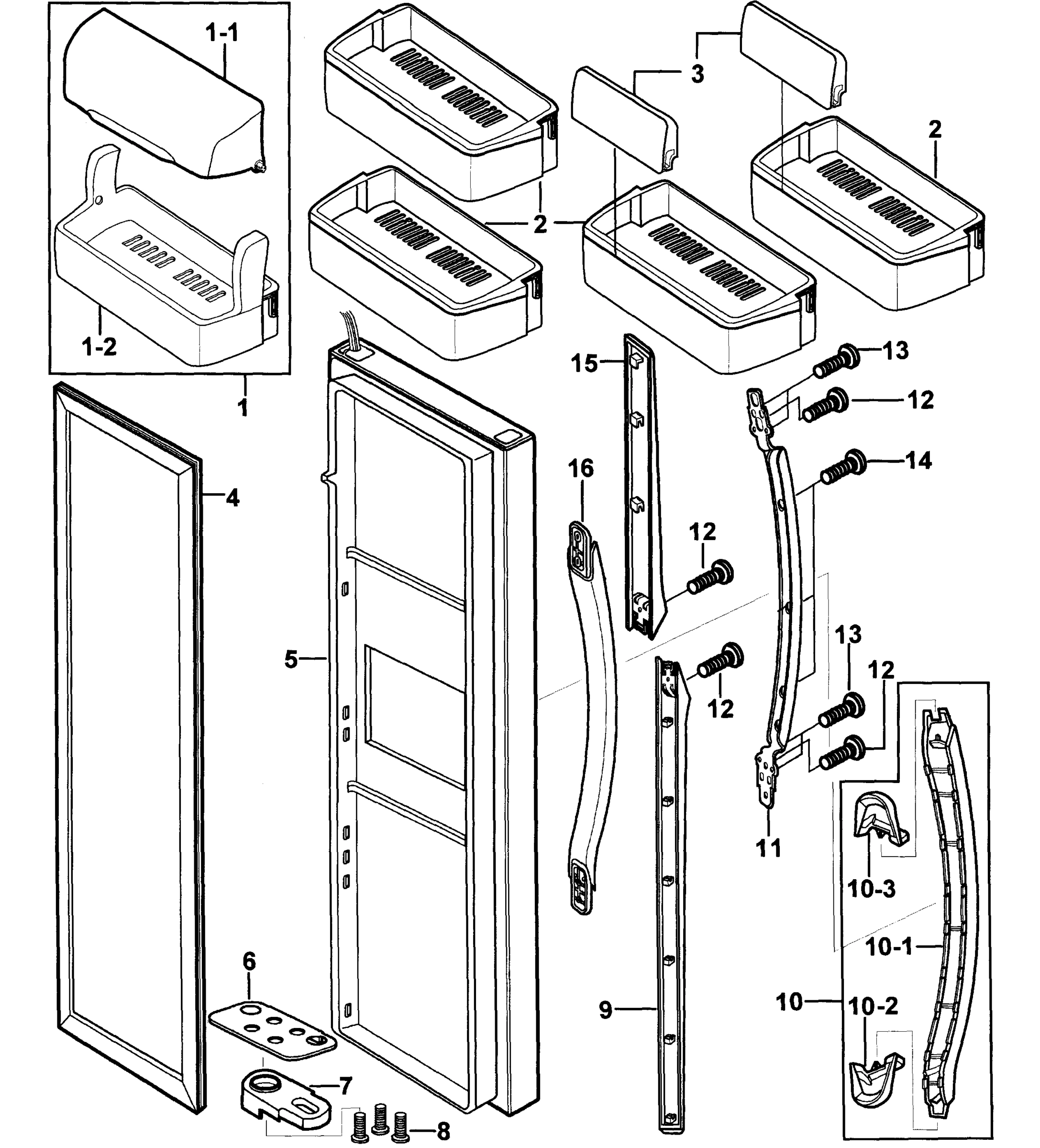

1

Refrigerator Ice Maker Support SMG DA61-02205A Contact Us For Availability

1

Refrigerator water dispenser water tube brack SMG DA61-00319A Contact Us For Availability

1

Refrigerator guard assembly SMG DA97-00697E Contact Us For Availability

1-1

DA62-00565A Samsung Refrigerator Multi Seal Backorder SMG DA62-00565A $3.17

1-1

Refrigerator cover SMG DA63-00825B Contact Us For Availability

1-2

DA63-00836D Samsung Refrigerator Dairy Guard Backorder SMG DA63-00836D $48.06

1-2

Refrigerator Lamp Holder SMG DA47-00112A Contact Us For Availability

1-3

DA62-00517A Samsung Refrigerator Multi Insula Backorder SMG DA62-00517A $10.21

2

DA74-40154F Samsung Refrigerator Solenoid Val Backorder SMG DA74-40154F $71.76

2

Refrigerator door bin SMG DA97-01824A Contact Us For Availability

2

Refrigerator Ice Maker Water Fill Tube Assemb SMG DA97-04501R Contact Us For Availability

2

Refrigerator Incandescent Lamp SMG 4713-001197 Contact Us For Availability

3

DA61-00316A Samsung Refrigerator Time Delay S Backorder SMG DA61-00316A $2.26

3

DA63-00813B Samsung Refrigerator Lamp Cover U Backorder SMG DA63-00813B $8.16

3

DA97-00258J Samsung Refrigerator Icemaker Ass Backorder SMG DA97-00258J $175.16

3

Refrigerator bottle guide SMG DA61-01588A Contact Us For Availability

3-1

DA63-02183A Samsung Refrigerator Sensor Cover In Stock SMG DA63-02183A $2.26

3-2

DA63-01453B Samsung Refrigerator Ice Tray Ass In Stock SMG DA63-01453B $7.70

4

DA67-30266K Samsung Refrigerator Cap Screw Backorder SMG DA67-30266K $0.97

4

DA97-04567P Samsung Refrigerator Black Gasket Backorder SMG DA97-04567P $112.04

4

Refrigerator Power Cord SMG DA39-10165E Contact Us For Availability

4

Refrigerator dispenser switch cover SMG DA63-01047A Contact Us For Availability

4-12

DA60-30108A Samsung Refrigerator Hex Nut Backorder SMG DA60-30108A $3.63

4-17

DA66-30138A Samsung Refrigerator Dispenser Le Backorder SMG DA66-30138A $9.05

5

Refrigerator ice route cover assembly SMG DA97-01437C Contact Us For Availability

5

Refrigerator Crisper Drawer Cover SMG DA63-03057A Contact Us For Availability

5

Refrigerator door assembly SMG DA91-01606N Contact Us For Availability

5-1

DA61-00775A Samsung Refrigerator Dispenser St Backorder SMG DA61-00775A $0.97

5-2

DA63-00844A Samsung Refrigerator Ice Route Co Backorder SMG DA63-00844A $4.52

5-3

DA61-00565A Samsung Refrigerator Ice Route Co Backorder SMG DA61-00565A $2.26

5-4

Refrigerator ice cover SMG DA63-00846A Contact Us For Availability

5-5

Refrigerator dispenser door gasket SMG DA63-01823A Contact Us For Availability

6

Refrigerator Run Capacitor SMG 2501-001045 Contact Us For Availability

6

Refrigerator Crisper Drawer Assembly SMG DA97-00144P Contact Us For Availability

6

Refrigerator guard assembly SMG DA97-01825A Contact Us For Availability

6

Refrigerator door stopper SMG DA61-00430A Contact Us For Availability

7

DA63-00865C Samsung Refrigerator Low Veg Cove Backorder SMG DA63-00865C $34.60

7

Refrigerator guard assembly SMG DA97-01823A Contact Us For Availability

8

6001-000716 Samsung Refrigerator Machine Scre Backorder SMG 6001-000716 $0.97

8

DA97-04567N Samsung Refrigerator Door Gasket Backorder SMG DA97-04567N $130.47

8

DA97-05837C Samsung Refrigerator Low Vegetabl Backorder SMG DA97-05837C $82.82

9

DA97-04117C Samsung Refrigerator Convertible Backorder SMG DA97-04117C $98.69

9

Chute cap SMG DA67-00513B Contact Us For Availability

9

Handle-tri SMG DA64-00417H Contact Us For Availability

9-1

DA63-01783C Samsung Convertible Gasket Backorder SMG DA63-01783C $39.04

9-1

Refrigerator Ice Maker Auger Motor Assembly SMG DA61-00262E Contact Us For Availability

9-8

DA31-00105A Samsung Refrigerator Auger Motor Backorder SMG DA31-00105A $164.18

9-12

DA74-40151G Samsung Refrigerator Ice Dispense Backorder SMG DA74-40151G $91.30

9-17

DA66-90003A Samsung Refrigerator Solenoid Gea Backorder SMG DA66-90003A $0.97

9-20

DA61-60001A Samsung Refrigerator Dispenser So Backorder SMG DA61-60001A $0.97

10

DA97-04519P Samsung Refrigerator Convertible Backorder SMG DA97-04519P $188.73

10

Handle assembly SMG DA97-00704P Contact Us For Availability

10-1

Refrigerator handle SMG DA64-00413K Contact Us For Availability

10-2

Handle-tri SMG DA64-00415D Contact Us For Availability

10-3

Handle-tri SMG DA64-00416D Contact Us For Availability

11

DA61-00309A Samsung Reinforcement Handle Mid Backorder SMG DA61-00309A $23.08

11

DA66-01666A Samsung Cam Riser-Up;rr7000, Pa66 In Stock SMG DA66-01666A $4.52

11

DA97-00370K Samsung Refrigerator Convertible Backorder SMG DA97-00370K $130.11

11-1

Refrigerator Control Cover SMG DA63-00800F Contact Us For Availability

11-2

DA32-10109W Samsung Refrigerator Temperature In Stock SMG DA32-10109W $18.10

11-2

Refrigerator Pantry Power Control Board SMG DA41-00108A Contact Us For Availability

11-3

DA63-02181A Samsung Refrigerator Multi-Fre Di Backorder SMG DA63-02181A $33.43

11-3

Refrigerator Wire Harness SMG DA39-00215A Contact Us For Availability

11-4

DA32-10109X Samsung Refrigerator Temperature Backorder SMG DA32-10109X $23.99

11-4

DA62-00168A Samsung Sensor Seal - Dispenser Backorder SMG DA62-00168A $1.64

11-5

Refrigerator Guide SMG DA61-00495D Contact Us For Availability

6002-000613 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000613 $1.00

DA34-10120E Samsung Refrigerator Door Switch Backorder SMG DA34-10120E $28.18

DA67-40250E Samsung Refrigerator Utility Tray Backorder SMG DA67-40250E $35.01

MK183CL2U/E07 Samsung Refrigerator Compressor Backorder SMG MK183CL2U/E07 $246.32

13

DA34-10110E Samsung Refrigerator Door Light S Backorder SMG DA34-10110E $35.98

13

DA63-02017A Samsung Refrigerator Compressor G Backorder SMG DA63-02017A $3.63

13

Refrigerator Crisper Drawer Slide Rail SMG DA97-00731K Contact Us For Availability

13-1

DA63-02079A Samsung Refrigerator Top Rail Gro Backorder SMG DA63-02079A $0.97

6002-000227 Samsung Tapping Screw Backorder SMG 6002-000227 $0.97

DA39-00084D Samsung Refrigerator Relay Wire H Backorder SMG DA39-00084D $14.48

DA97-00730K Samsung Refrigerator Top Basket R Backorder SMG DA97-00730K $25.77

Refrigerator Fresh Food Evaporator Cover Asse SMG DA97-05369E Contact Us For Availability

14-1

Refrigerator Freezer Evaporator Cover SMG DA63-00812B Contact Us For Availability

14-2

DA47-00200C Samsung Refrigerator Water Tank H Backorder SMG DA47-00200C $47.71

14-3

Refrigerator Lamp Holder SMG DA47-00112C Contact Us For Availability

14-4

DA62-00158A Samsung Evaporator Cover Seal Backorder SMG DA62-00158A $0.97

14-5

DA61-20128A Samsung Refrigerator Spring and F Backorder SMG DA61-20128A $0.97

14-6

DA31-00016A Samsung Evaporator Circuit Fan Bl Backorder SMG DA31-00016A $10.87

14-8

6002-000215 Samsung Air Conditioner Tapping S In Stock SMG 6002-000215 $0.97

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $9.50

Refrigerator Evaporator Cover SMG DA97-05040D Contact Us For Availability

Handle-tri SMG DA64-00418H Contact Us For Availability

Refrigerator Lamp Cover SMG DA63-00814G Contact Us For Availability

15-1

DA63-00797D Samsung Refrigerator Evaporator C Backorder SMG DA63-00797D $43.75

15-2

DA61-00412B Samsung Guide Air Filter Assembly Backorder SMG DA61-00412B $3.17

15-3

Air Plate SMG DA61-00410A Contact Us For Availability

15-4

DA62-00077C Samsung Refrigerator Duct Seal Backorder SMG DA62-00077C $25.78

15-5

DA31-00053A Samsung Refrigerator Backward Fan Backorder SMG DA31-00053A $20.36

15-6

DA61-00417A Samsung Refrigerator Motor Case Backorder SMG DA61-00417A $23.53

15-8

DA31-00020E Samsung Refrigerator Freezer Evap In Stock SMG DA31-00020E $136.88

DA35-00099G Samsung Refrigerator PTC Relay In Stock SMG DA35-00099G $18.14

DA64-00414H Samsung Rear Mid Refrigerator Han Backorder SMG DA64-00414H $48.91

DA96-00627G Samsung Refrigerator Evaporator A Backorder SMG DA96-00627G $231.25

DA97-00670F Samsung Water Tank Assembly Refri Backorder SMG DA97-00670F $104.02

17

DA34-10003S Samsung Refrigerator Compressor O Backorder SMG DA34-10003S $37.83

17

Refrigerator Evaporator Drip Pan Heater SMG DA97-00111C Contact Us For Availability

18

DA97-01484F Samsung Refrigerator Cover Purifi Backorder SMG DA97-01484F $18.10

18

Plate Evaporator SMG DA61-00827A Contact Us For Availability

18-1

Refrigerator Cover SMG DA63-00855G Contact Us For Availability

18-2

DA02-90106R Samsung Refrigerator Catalyst LTC Backorder SMG DA02-90106R $24.43

19

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $0.97

19

DA97-01485F Samsung Refrigerator Purifier Cov Backorder SMG DA97-01485F $18.55

19-1

Refrigerator Air Filter Cover SMG DA63-00856F Contact Us For Availability

20

DA61-01587A Samsung Refrigerator Dispenser Gu Backorder SMG DA61-01587A $8.14

20

DA96-00626H Samsung Refrigerator Evaporator A Backorder SMG DA96-00626H $219.72

20-1

DA47-00301F Samsung Refrigerator Thermal Fuse In Stock SMG DA47-00301F $21.71

20-2

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.35

21

DA63-00843K Samsung Refrigerator Dispenser Tr In Stock SMG DA63-00843K $8.59

21

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.35

21

DA67-01311B Samsung Refrigerator Shelf GlassU Backorder SMG DA67-01311B $92.20

22

DA97-01396F Samsung Fold Shelf Assembly Backorder SMG DA97-01396F $120.75

22

DA97-03811B Samsung Refrigerator Upper Right Backorder SMG DA97-03811B $25.77

22

Refrigerator ice dispenser lever SMG DA97-00545J Contact Us For Availability

22-1

Ice spring SMG DA61-00337A Contact Us For Availability

22-2

DA66-00156B Samsung Refrigerator Dispensing L Backorder SMG DA66-00156B $14.94

23

DA67-00687B Samsung Refrigerator Low Shelf Backorder SMG DA67-00687B $63.13

23

DA97-00546J Samsung Refrigerator Water Dispen Backorder SMG DA97-00546J $8.16

23-1

DA61-00338A Samsung Refrigerator Water Dispen Backorder SMG DA61-00338A $1.81

24

DA97-00409D Samsung Refrigerator Rear PCB Pan Backorder SMG DA97-00409D $38.16

24-1

DA34-00011A Samsung Refrigerator Micro Switch Backorder SMG DA34-00011A $8.59

24-2

DA63-00816C Samsung Refrigerator Rear PCB Pan Backorder SMG DA63-00816C $14.03

25

DA97-01533W Samsung Refrigerator Dispenser Co Backorder SMG DA97-01533W $155.23

25

DA97-03808B Samsung Refrigerator Upper Left H Backorder SMG DA97-03808B $24.95

25-1

Refrigerator dispenser control overlay SMG DA63-01169T Contact Us For Availability

25-2

DA64-40144A Samsung Touch Knob Backorder SMG DA64-40144A $1.81

25-3

Refrigerator lamp cover SMG DA63-00994A Contact Us For Availability

25-4

Refrigerator dispenser display control board SMG DA41-00204B Contact Us For Availability

27

Refrigerator Water Inlet Valve SMG DA74-40150H Contact Us For Availability

30-1

6003-001435 Samsung Refrigerator Screw, Tap T Backorder SMG 6003-001435 $0.97

30-2

6011-001442 Samsung Refrigerator Socket Bolt Backorder SMG 6011-001442 $1.35

33

DA61-00805F Samsung Refrigerator Black Front Backorder SMG DA61-00805F $6.33

34

Refrigerator Leveling Leg Cover SMG DA63-01968G Contact Us For Availability

36

DA97-01285R Samsung Refrigerator Drain Water Backorder SMG DA97-01285R $127.46

36-4

DA96-00042A Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042A $12.66

36-5

DA31-00146B Samsung Refrigerator Condenser Fa In Stock SMG DA31-00146B $92.22

36-6

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $4.07

40

DA62-01628A Samsung Refrigerator Check Valve Backorder SMG DA62-01628A $57.03

1410

DA63-40167A Samsung Refrigerator Grommet Cove Backorder SMG DA63-40167A $1.35

1510

DA39-00060K Samsung Refrigerator Motor with H Backorder SMG DA39-00060K $130.23

1511

DA63-01809A Samsung Refrigerator BLDC Motor C Backorder SMG DA63-01809A $11.77
