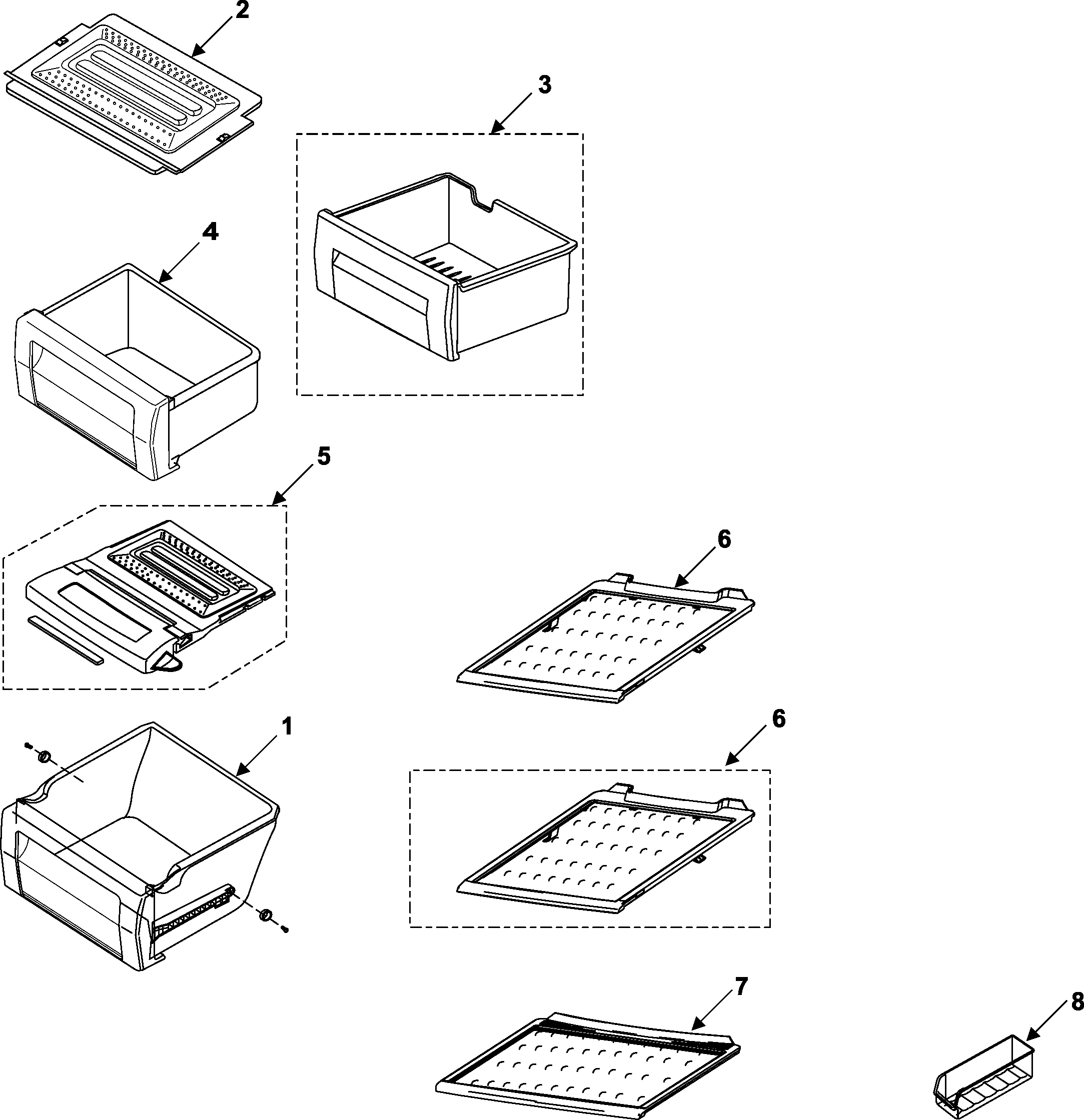

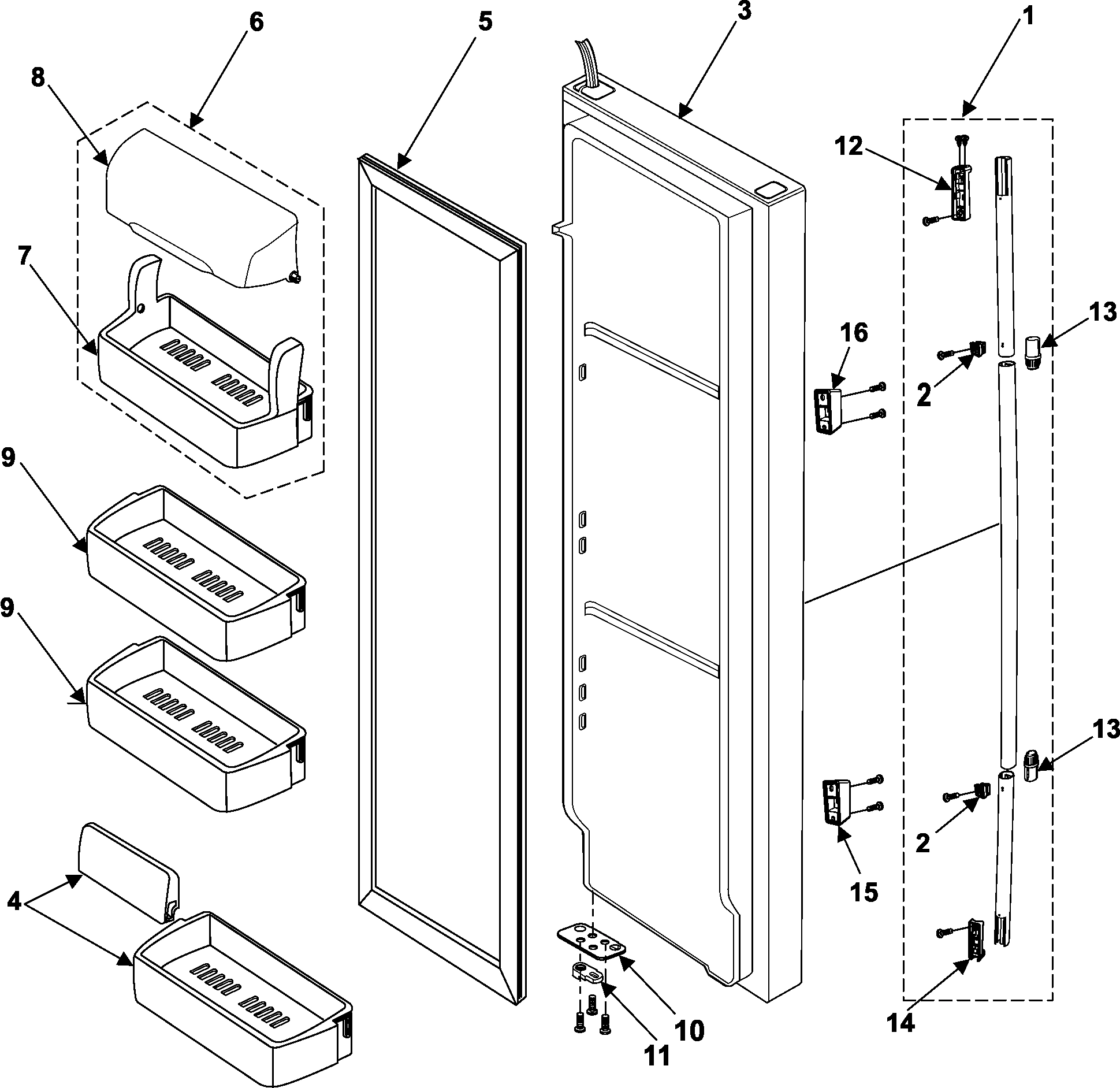

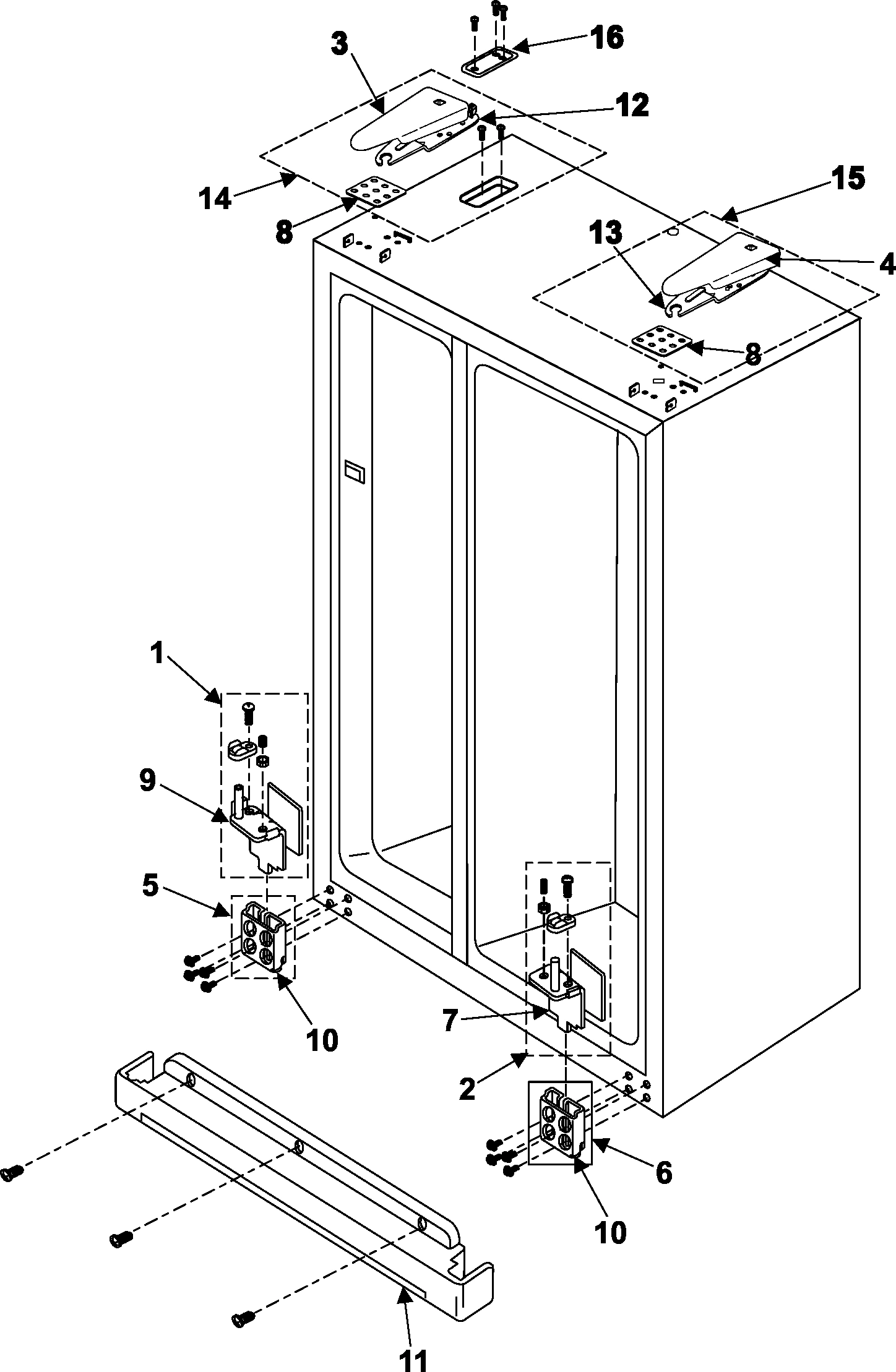

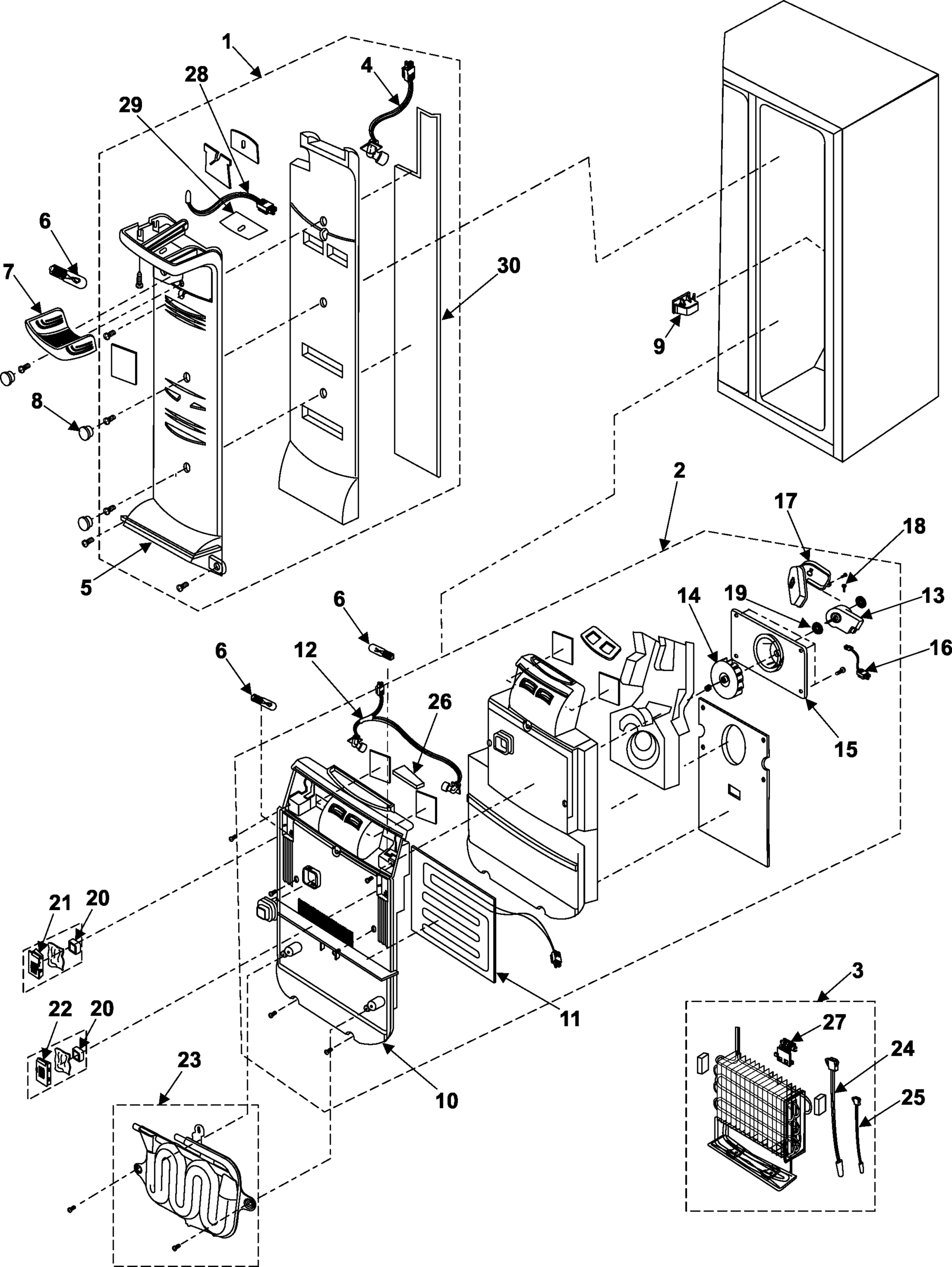

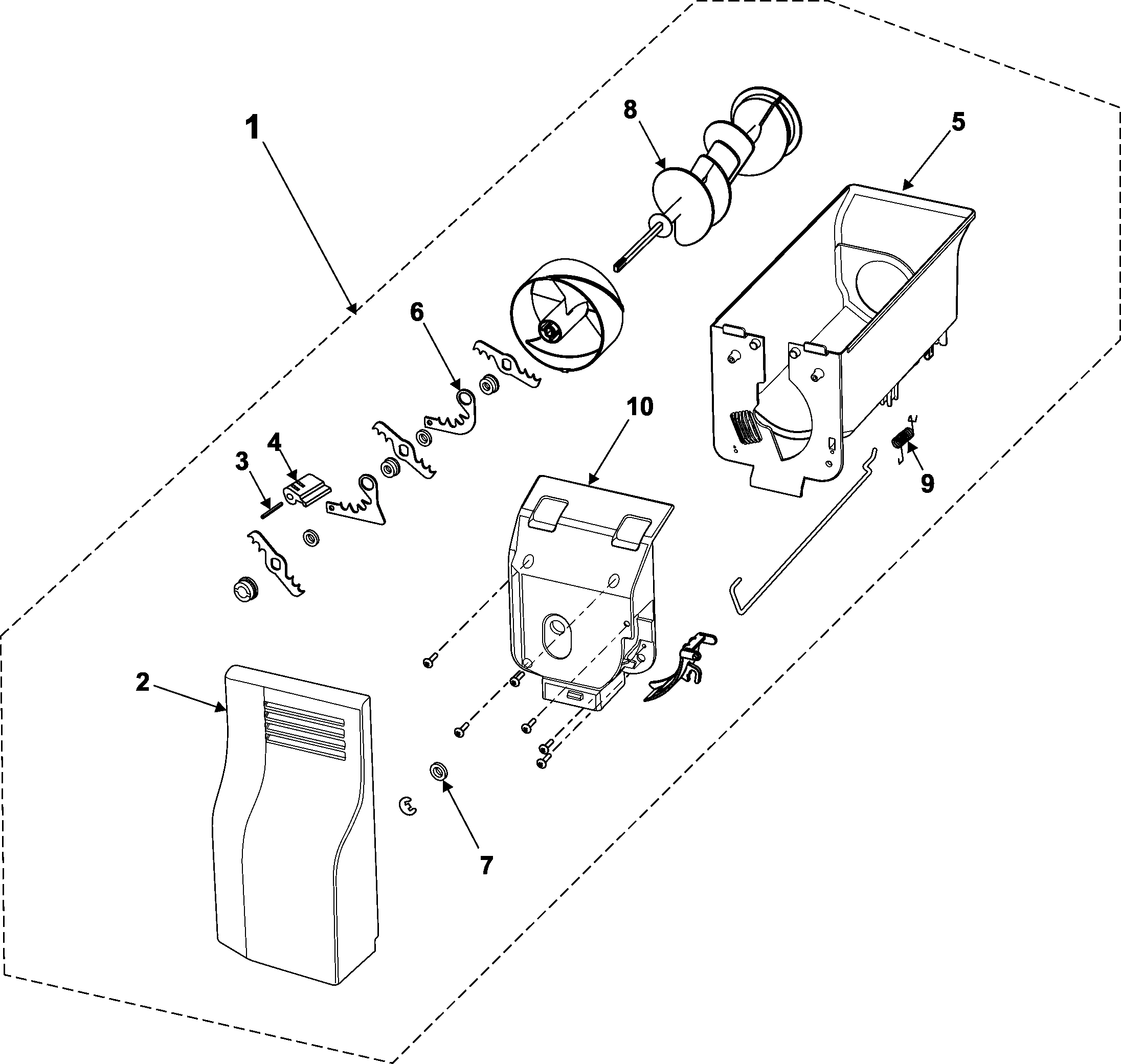

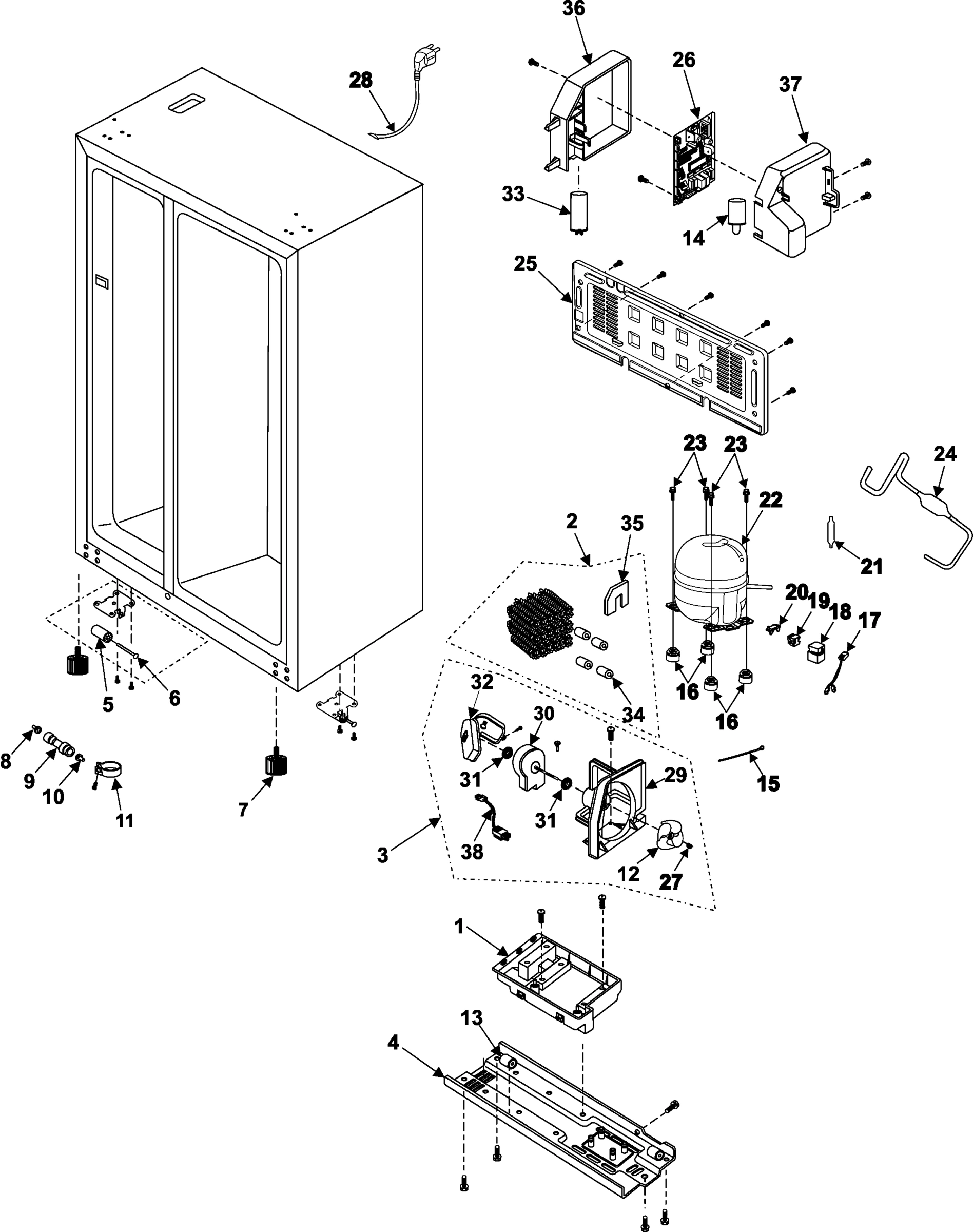

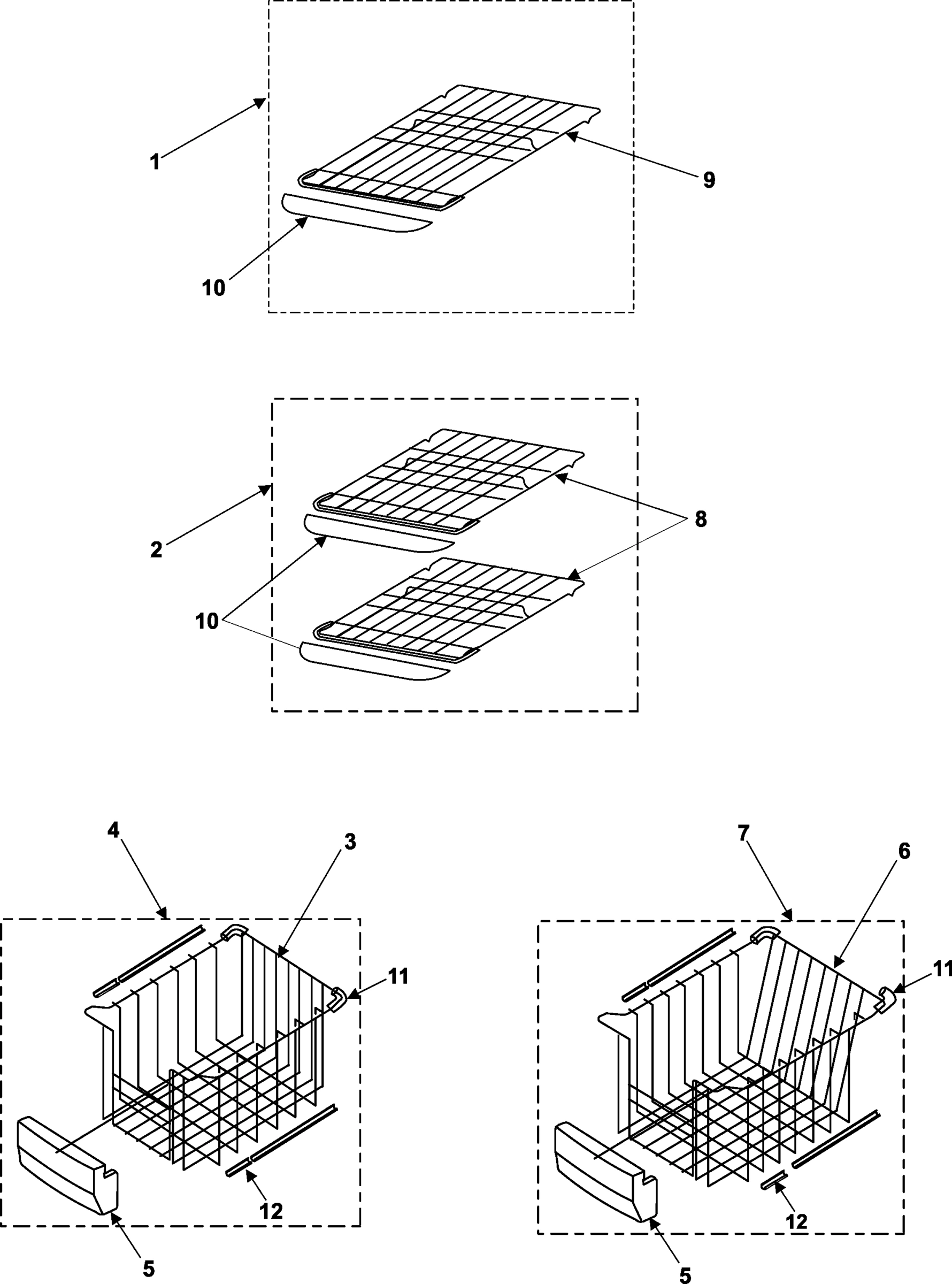

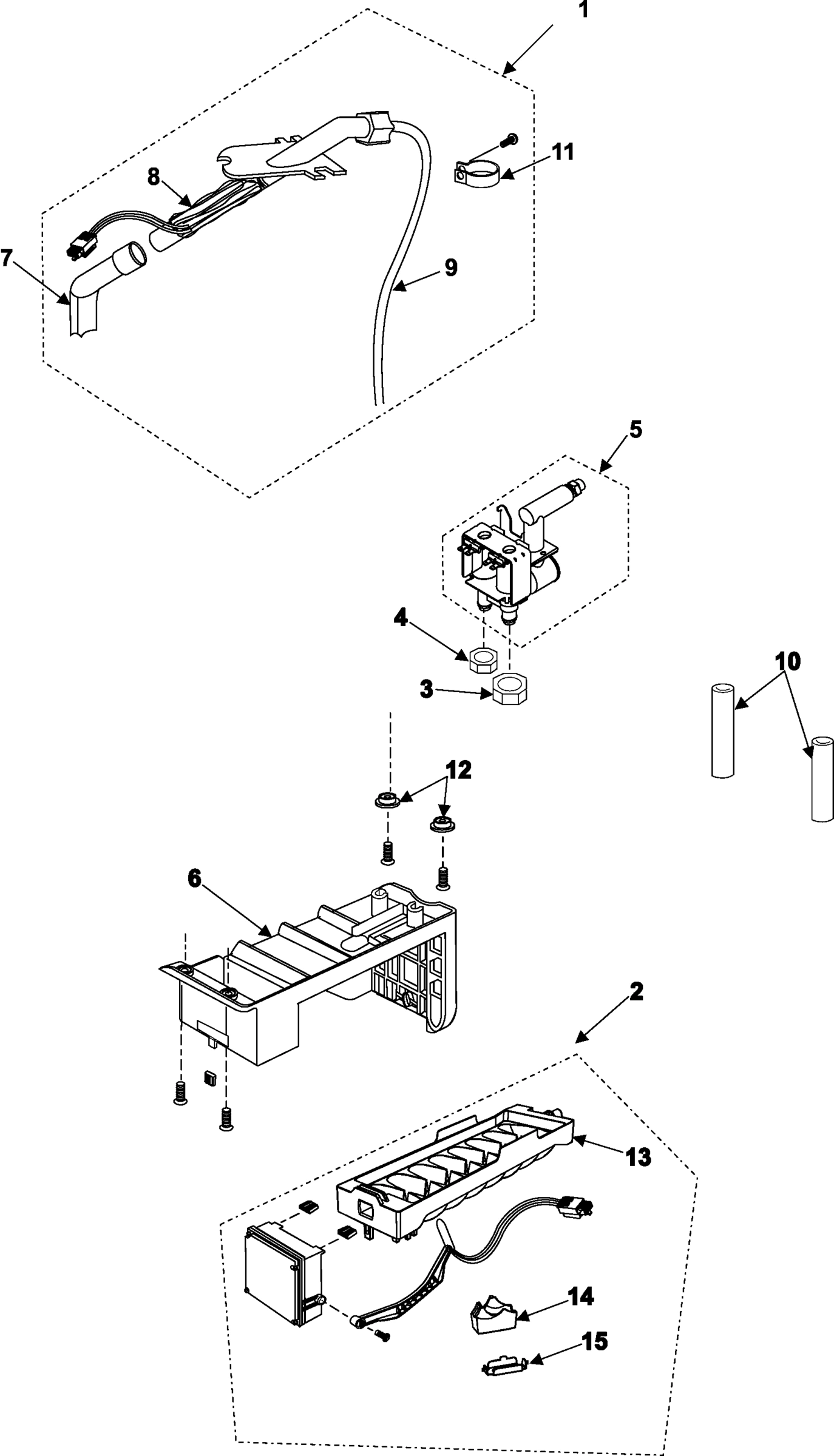

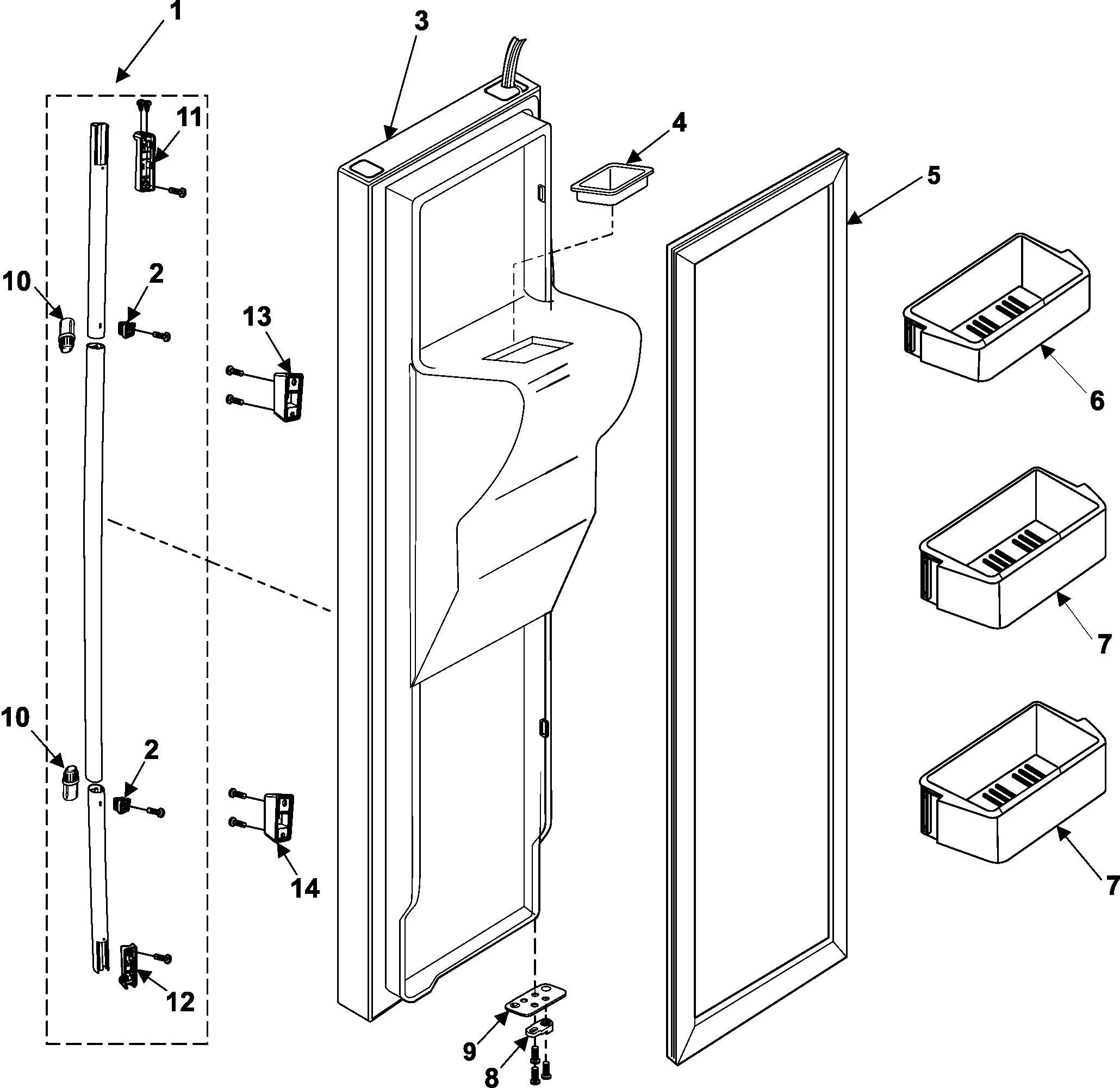

Model Samsung RS253BASB/XAA Refrigerator – Common Parts &amp; Diagrams

1

DA97-01760G Samsung Refrigerator Low Hinge As Backorder SMG DA97-01760G $55.24

1

DA97-01899C Samsung Refrigerator Low Veg Case Backorder SMG DA97-01899C $136.66

1

DA97-02700A Samsung Refrigerator Ice Tray Buc Backorder SMG DA97-02700A $148.95

1

SEE NOTE (Qty 12) SCREW-TAPPING CURRENTLY SMG 00000000 Contact Us For Availability

1

Refrigerator Tray Assembly SMG DA97-01285C Contact Us For Availability

1

Refrigerator Cover Assembly SMG DA97-02830A Contact Us For Availability

1

Handle assembly SMG DA97-02829A Contact Us For Availability

1A

DA66-00034A Samsung Refrigerator Drain Water Backorder SMG DA66-00034A $23.08

1A

DA97-02829B Samsung Refrigerator Front Handle Backorder SMG DA97-02829B $140.49

1A

Refrigerator tray assembly SMG DA97-02700B Contact Us For Availability

1B

Assy-handl SMG DA97-02829D Contact Us For Availability

2

DA63-02452A Samsung Refrigerator Ice Bucket C Backorder SMG DA63-02452A $35.01

2

DA63-02552A Samsung Grommet-Fixer Refrigerato Backorder SMG DA63-02552A $0.97

2

DA97-00259G Samsung Refrigerator Spiral Conde Backorder SMG DA97-00259G $123.31

2

DA97-01763D Samsung Refrigerator Low Hinge As Backorder SMG DA97-01763D $25.07

2

Refrigerator Ice Maker Assembly SMG DA97-00258E Contact Us For Availability

2

Refrigerator Evaporator Blower Assembly SMG DA97-02810F Contact Us For Availability

2

Refrigerator crisper drawer cover SMG DA63-00864C Contact Us For Availability

2A

DA63-40128A Samsung Refrigerator Condenser Gr Backorder SMG DA63-40128A $0.97

2A

DA97-02886B Samsung Refrigerator Evaporator C Backorder SMG DA97-02886B $168.13

2A

Refrigerator Evaporator Blower Assembly SMG DA97-02810H Contact Us For Availability

3

DA60-30105A Samsung Refrigerator Water Line N Backorder SMG DA60-30105A $1.35

3

DA60-90136A Samsung Refrigerator Spiral Pin Backorder SMG DA60-90136A $4.09

3

DA97-01283A Samsung Refrigerator Motor Suppor Backorder SMG DA97-01283A $127.09

3

Refrigerator Freezer Wire Basket, Upper SMG DA61-00777D Contact Us For Availability

3

Refrigerator hinge cover SMG DA63-02261E Contact Us For Availability

3

Refrigerator Evaporator Assembly SMG DA96-00020G Contact Us For Availability

3

Refrigerator door assembly SMG DA91-02060B Contact Us For Availability

3

Refrigerator chilled room tray assembly SMG DA97-02827A Contact Us For Availability

3A

Refrigerator Evaporator SMG DA96-00020Q Contact Us For Availability

3A

Refrigerator door hinge cover SMG DA63-02261M Contact Us For Availability

3A

Refrigerator door assembly SMG DA91-02060C Contact Us For Availability

3B

Refrigerator hinge cover SMG DA63-02261P Contact Us For Availability

3B

Refrigerator door assembly SMG DA91-02060D Contact Us For Availability

3C

Refrigerator door assembly SMG DA91-02060E Contact Us For Availability

4

DA47-00112G Samsung Refrigerator Lamp Holder Backorder SMG DA47-00112G $24.51

4

DA60-30104A Samsung Refrigerator Water Line N Backorder SMG DA60-30104A $1.35

4

DA61-01651A Samsung Refrigerator Ice Route Co Backorder SMG DA61-01651A $4.07

4

DA63-02262E Samsung Refrigerator Right Hinge Backorder SMG DA63-02262E $19.20

4

DA71-00090A Samsung Refrigerator Bottle Guide Backorder SMG DA71-00090A $6.33

4

DA71-20231A Samsung Refrigerator Fixer Guard Backorder SMG DA71-20231A $3.17

4

DA97-00555D Samsung Refrigerator Compressor C Backorder SMG DA97-00555D $102.93

4

Refrigerator Freezer Wire Basket, Upper SMG DA97-00701F Contact Us For Availability

4

Refrigerator case assembly SMG DA97-01900C Contact Us For Availability

4A

DA63-02262M Samsung Refrigerator Hinge Cover Backorder SMG DA63-02262M $19.20

4B

Refrigerator hinge cover SMG DA63-02262P Contact Us For Availability

5

DA31-00020E Samsung Refrigerator Freezer Evap In Stock SMG DA31-00020E $136.88

5

DA63-01290B Samsung Refrigerator Wire Cover B Backorder SMG DA63-01290B $26.25

5

DA63-01970A Samsung Refrigerator Ice Route Co Backorder SMG DA63-01970A $4.98

5

DA63-02553A Samsung Cover Multi Backorder SMG DA63-02553A $32.60

5

DA63-03507B Samsung Refrigerator Ice Bucket T Backorder SMG DA63-03507B $64.79

5

DA97-02243B Samsung Hinge Low Bracket Assembl Backorder SMG DA97-02243B $27.77

5

Refrigerator door gasket SMG DA97-01800D Contact Us For Availability

5

Thermostat blade SMG DA31-20121B Contact Us For Availability

5

Refrigerator Water Inlet Valve SMG DA74-40149D Contact Us For Availability

5

Caster SMG DA61-01871A Contact Us For Availability

5

Refrigerator vegetable slide cover SMG DA97-01901C Contact Us For Availability

5A

DA97-01800K Samsung Refrigerator Door Gasket Backorder SMG DA97-01800K $184.24

6

DA61-01801A Samsung Refrigerator Support Im F Backorder SMG DA61-01801A $27.16

6

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $2.26

6

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $4.07

6

DA67-00533F Samsung Refrigerator Shelf Assemb Backorder SMG DA67-00533F $67.10

6

DA97-02244B Samsung Refrigerator Low Hinge Br Backorder SMG DA97-02244B $16.75

6

Refrigerator Freezer Shelf SMG DA61-02178A Contact Us For Availability

6

Refrigerator blade SMG DA31-20122B Contact Us For Availability

6

Refrigerator Incandescent Lamp SMG 4713-001197 Contact Us For Availability

6

Refrigerator guard assembly SMG DA97-00697E Contact Us For Availability

7

DA34-00011B Samsung Refrigerator Micro Switch Backorder SMG DA34-00011B $14.48

7

DA34-10120E Samsung Refrigerator Door Switch Backorder SMG DA34-10120E $28.18

7

DA61-01608B Samsung Refrigerator Low Right Hi Backorder SMG DA61-01608B $29.37

7

DA61-30102A Samsung Refrigerator Front Foot Backorder SMG DA61-30102A $12.22

7

DA61-60001A Samsung Refrigerator Dispenser So Backorder SMG DA61-60001A $0.97

7

DA63-00813B Samsung Refrigerator Lamp Cover U Backorder SMG DA63-00813B $8.16

7

DA63-00827E Samsung Refrigerator Top Low Guar Backorder SMG DA63-00827E $28.18

7

DA63-00836D Samsung Refrigerator Dairy Guard Backorder SMG DA63-00836D $48.06

7

DA63-01291A Samsung Refrigerator Water Fill P Backorder SMG DA63-01291A $15.94

7

DA67-00534G Samsung SHELF REF-LOW;(650)BEST-B Backorder SMG DA67-00534G $63.13

7

Refrigerator Case Assembly SMG DA97-02817A Contact Us For Availability

7

Refrigerator ice blade SMG DA61-01658C Contact Us For Availability

8

DA63-00588A Samsung Refrigerator Tube Filter Backorder SMG DA63-00588A $11.04

8

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.35

8

DA67-30266K Samsung Refrigerator Cap Screw Backorder SMG DA67-30266K $0.97

8

DA67-40250E Samsung Refrigerator Utility Tray Backorder SMG DA67-40250E $35.01

8

DA71-20207A Samsung Refrigerator Water Valve Backorder SMG DA71-20207A $0.97

8

Refrigerator Shelf Wire SMG DA67-00765D Contact Us For Availability

8

Complete clamper SMG DA65-00037A Contact Us For Availability

8

Refrigerator cover SMG DA63-00825B Contact Us For Availability

9

DA34-10110E Samsung Refrigerator Door Light S Backorder SMG DA34-10110E $35.98

9

DA61-20124C Samsung Dispenser Spring Backorder SMG DA61-20124C $3.26

9

DA62-20111B Samsung Refrigerator Tube Fitting Backorder SMG DA62-20111B $24.11

9

DA63-00828D Samsung Refrigerator Door Bin Backorder SMG DA63-00828D $35.98

9

DA67-00766D Samsung Refrigerator Mid Wire She Backorder SMG DA67-00766D $42.15

9

DA73-00070K Samsung Refrigerator Water Line P Backorder SMG DA73-00070K $20.36

9

Refrigerator low hinge SMG DA61-01607C Contact Us For Availability

DA62-20001P Samsung Refrigerator PVC Zipel Tu Backorder SMG DA62-20001P $3.63

DA63-01972A Samsung Refrigerator Gasket Cover Backorder SMG DA63-01972A $14.94

DA66-90003A Samsung Refrigerator Solenoid Gea Backorder SMG DA66-90003A $0.97

DA71-20208A Samsung Refrigerator Water Valve Backorder SMG DA71-20208A $1.35

Refrigerator Freezer Evaporator Cover SMG DA63-00812B Contact Us For Availability

Refrigerator Shelf Trim SMG DA64-00670B Contact Us For Availability

Refrigerator high bracket SMG DA61-00419D Contact Us For Availability

Refrigerator cube dispenser crusher cover SMG DA63-02007A Contact Us For Availability

Refrigerator door stopper SMG DA61-00430A Contact Us For Availability

DA47-00200C Samsung Refrigerator Water Tank H Backorder SMG DA47-00200C $47.71

DA65-20110B Samsung Refrigerator Cable Clamp Backorder SMG DA65-20110B $4.07

DA66-01666A Samsung Cam Riser-Up;rr7000, Pa66 In Stock SMG DA66-01666A $4.52

Refrigerator Freezer Evaporator Assembly SMG DA96-00021N Contact Us For Availability

Trim Wire SMG DA64-00675A Contact Us For Availability

Refrigerator leg cover SMG DA63-00822R Contact Us For Availability

Plate washer SMG DA60-40116A Contact Us For Availability

11A

Refrigerator leg cover SMG DA63-00822S Contact Us For Availability

11B

Refrigerator leg cover SMG DA63-01968Q Contact Us For Availability

DA61-01797A Samsung Fixer Grommet Door Assemb Backorder SMG DA61-01797A $0.97

DA61-01911D Samsung Refrigerator Top Hinge As Backorder SMG DA61-01911D $26.96

Refrigerator Defrost Bi-Metal Thermostat SMG DA47-10160H Contact Us For Availability

Refrigerator dispenser lever SMG DA66-00294A Contact Us For Availability

Trim Wire SMG DA64-00676E Contact Us For Availability

Refrigerator ice bin SMG DA63-02010A Contact Us For Availability

Refrigerator Lamp Holder SMG DA47-00112A Contact Us For Availability

Refrigerator door handle end cap, upper SMG DA67-01238A Contact Us For Availability

DA61-01912D Samsung Refrigerator Top Hinge Up Backorder SMG DA61-01912D $28.58

DA61-40126B Samsung Refrigerator Rear Caster Backorder SMG DA61-40126B $2.72

Refrigerator Ice Bin SMG DA63-02284A Contact Us For Availability

Refrigerator Fan Motor SMG DA31-00002S Contact Us For Availability

Refrigerator handle trim, center SMG DA64-01533A Contact Us For Availability

13A

DA60-90146A Samsung Refrigerator Caster Pin M Backorder SMG DA60-90146A $1.81

DA27-00002A Samsung Refrigerator Coil Assembl Backorder SMG DA27-00002A $83.26

DA31-00010D Samsung Refrigerator Fan Blade In Stock SMG DA31-00010D $14.48

DA61-01800A Samsung Refrigerator Ice Maker Fi In Stock SMG DA61-01800A $26.25

Refrigerator Defrost Drain Trough Heater SMG DA47-00090C Contact Us For Availability

Refrigerator hinge assembly SMG DA97-02337D Contact Us For Availability

Refrigerator handle cap SMG DA67-01239A Contact Us For Availability

14A

Refrigerator Turbo Fan SMG DA31-00015C Contact Us For Availability

14B

DA61-20128A Samsung Refrigerator Spring and F Backorder SMG DA61-20128A $0.97

DA39-20389E Samsung Refrigerator Earth Wire H Backorder SMG DA39-20389E $0.97

DA61-00774A Samsung Refrigerator Case Motor Backorder SMG DA61-00774A $12.22

DA63-02183A Samsung Refrigerator Sensor Cover In Stock SMG DA63-02183A $2.26

DA74-40151G Samsung Refrigerator Ice Dispense Backorder SMG DA74-40151G $91.30

Handle support SMG DA61-02177A Contact Us For Availability

Refrigerator hinge assembly SMG DA97-02338D Contact Us For Availability

15A

DA61-02177C Samsung Support Low Handle Backorder SMG DA61-02177C $3.17

15B

Handle support SMG DA61-02177E Contact Us For Availability

DA39-00060K Samsung Refrigerator Motor with H Backorder SMG DA39-00060K $130.23

DA63-02017A Samsung Refrigerator Compressor G Backorder SMG DA63-02017A $3.63

Refrigerator water supply tube cover SMG DA63-01275A Contact Us For Availability

Handle support SMG DA61-02176A Contact Us For Availability

16A

Handle support SMG DA61-02176C Contact Us For Availability

16B

Handle support SMG DA61-02176E Contact Us For Availability

17

DA39-00084D Samsung Refrigerator Relay Wire H Backorder SMG DA39-00084D $14.48

17

DA63-00713A Samsung Refrigerator Motor Cover Backorder SMG DA63-00713A $4.98

18

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $9.50

18

DA63-40167A Samsung Refrigerator Grommet Cove Backorder SMG DA63-40167A $1.35

19

DA34-10003S Samsung Refrigerator Compressor O Backorder SMG DA34-10003S $37.83

20

Refrigerator Compressor Overload Protector SMG DA35-10013Q Contact Us For Availability

20

Refrigerator Air Freshener Filter SMG DA02-00111A Contact Us For Availability

20A

Refrigerator Air Freshener Filter SMG DA02-90106K Contact Us For Availability

21

DA31-00105A Samsung Refrigerator Auger Motor Backorder SMG DA31-00105A $164.18

21

DA73-30102B Samsung Da73-30102b Backorder SMG DA73-30102B $18.39

21

Refrigerator Air Filter Cover SMG DA63-00856C Contact Us For Availability

22

DA63-00855D Samsung Purifier Cover Assembly Backorder SMG DA63-00855D $6.33

22

MK183CL2U/E07 Samsung Refrigerator Compressor Backorder SMG MK183CL2U/E07 $246.32

23

DA60-20008A Samsung Hex Bolt Backorder SMG DA60-20008A $3.63

23

Refrigerator Tank Assembly SMG DA97-02432B Contact Us For Availability

24

DA97-00918A Samsung Refrigerator Pipe Connect Backorder SMG DA97-00918A $56.66

24

Refrigerator Temperature Sensor SMG DA47-10148J Contact Us For Availability

25

DA32-10105R Samsung Refrigerator Defrost Temp In Stock SMG DA32-10105R $21.71

25

Refrigerator Condenser Pipe Tubing SMG DA63-01135A Contact Us For Availability

26

DA41-00295C Samsung Refrigerator Main PCB Ass Backorder SMG DA41-00295C $217.30

26

DA62-00158A Samsung Evaporator Cover Seal Backorder SMG DA62-00158A $0.97

26A

DA41-00295E Samsung Refrigerator Main PBA Backorder SMG DA41-00295E $267.00

27

DA61-00453A Samsung Refrigerator Ice Maker Se Backorder SMG DA61-00453A $0.97

28

DA32-10105U Samsung Refrigerator Temperature In Stock SMG DA32-10105U $15.38

28

Kenmore Pro Refrigerator Fan Spring SMG DA39-10165E Contact Us For Availability

29

DA63-02561A Samsung Air Guide Cover Backorder SMG DA63-02561A $4.50

29

Refrigerator Power Cord SMG DA61-00415A Contact Us For Availability

30

DA31-00020H Samsung Refrigerator BLDC Compres Backorder SMG DA31-00020H $123.37

30

DA62-00565A Samsung Refrigerator Multi Seal Backorder SMG DA62-00565A $3.17

31

DA63-40119A Samsung Refrigerator Grommet for Backorder SMG DA63-40119A $1.81

32

DA63-01283A Samsung Refrigerator Motor Cover Backorder SMG DA63-01283A $7.70

33

Refrigerator Motor Cover SMG 2501-001045 Contact Us For Availability

34

DA63-40171B Samsung Refrigerator Suction Pipe Backorder SMG DA63-40171B $2.26

35

DA72-60040D Samsung Seal Cut Rubber Backorder SMG DA72-60040D $3.63

36

Seal Cutt- SMG DA61-00261C Contact Us For Availability

37

DA63-00783A Samsung Refrigerator Cover PCB Pa Backorder SMG DA63-00783A $89.83

38

DA96-00042A Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042A $12.66

NI

Refrigerator Water Filter SMG DA29-00003B Contact Us For Availability
