Model Samsung RS2530BBP/XAA-00 Refrigerator – Common Parts & Diagrams

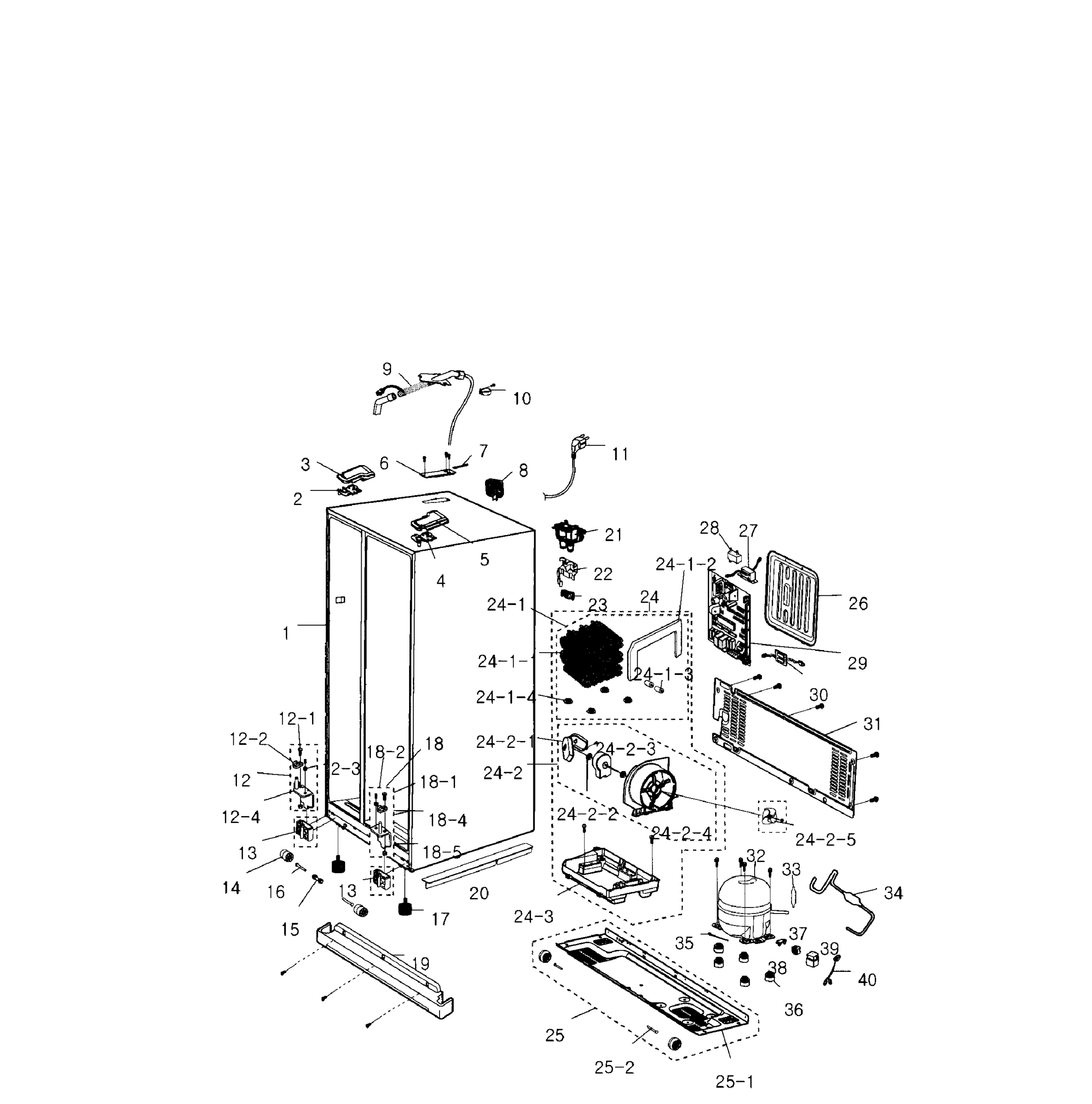

CABINET

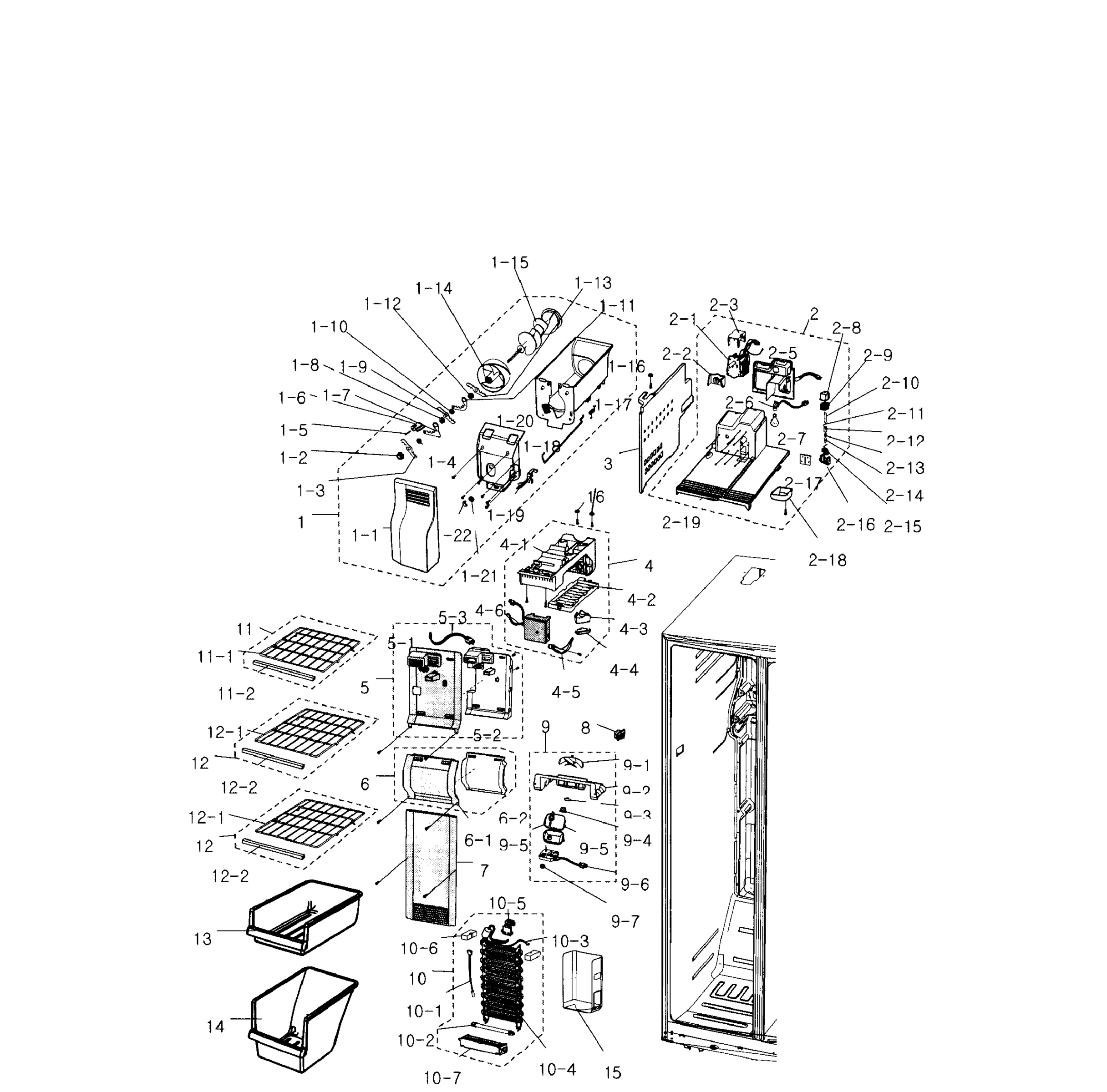

FREEZER

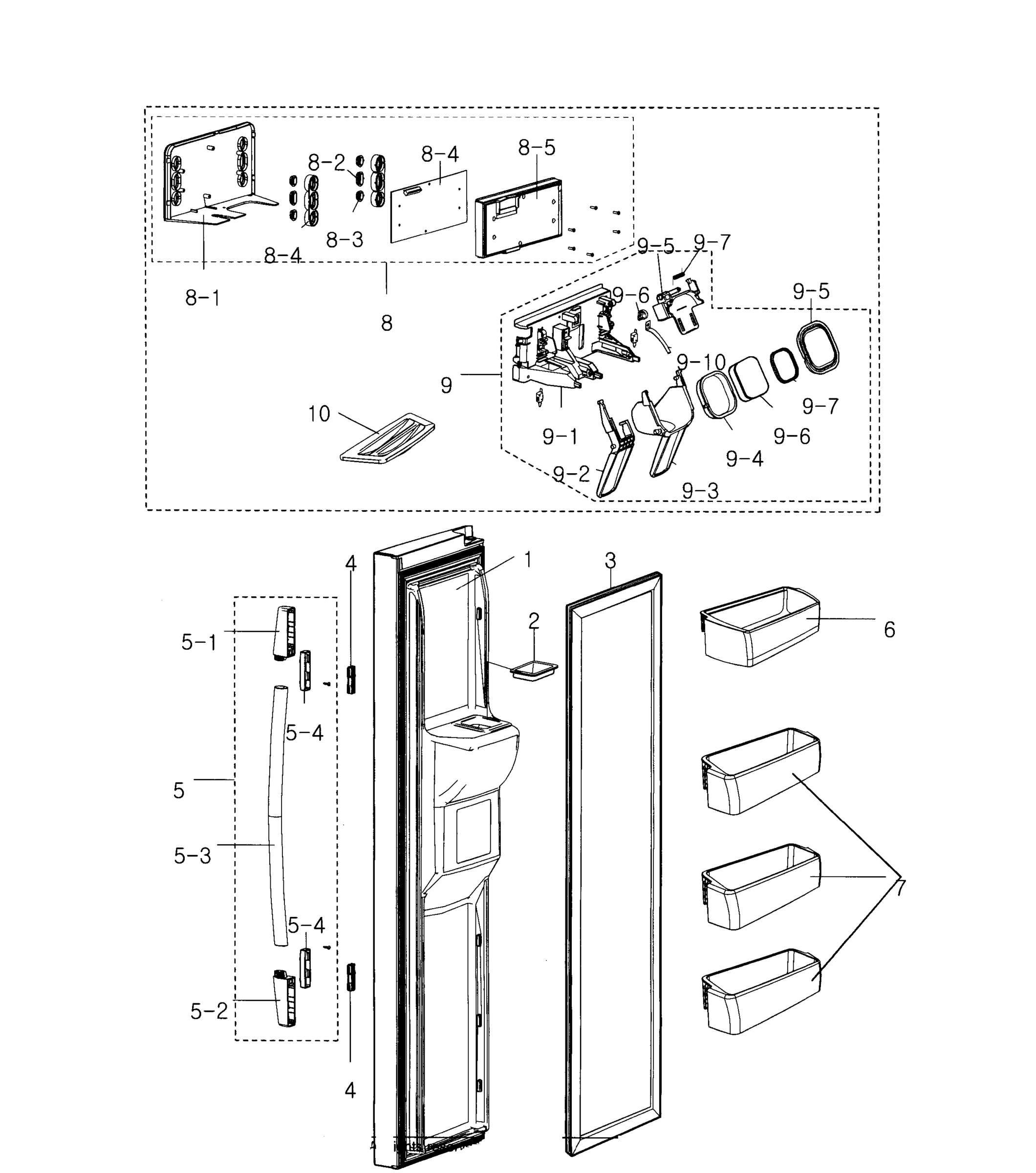

Left Door

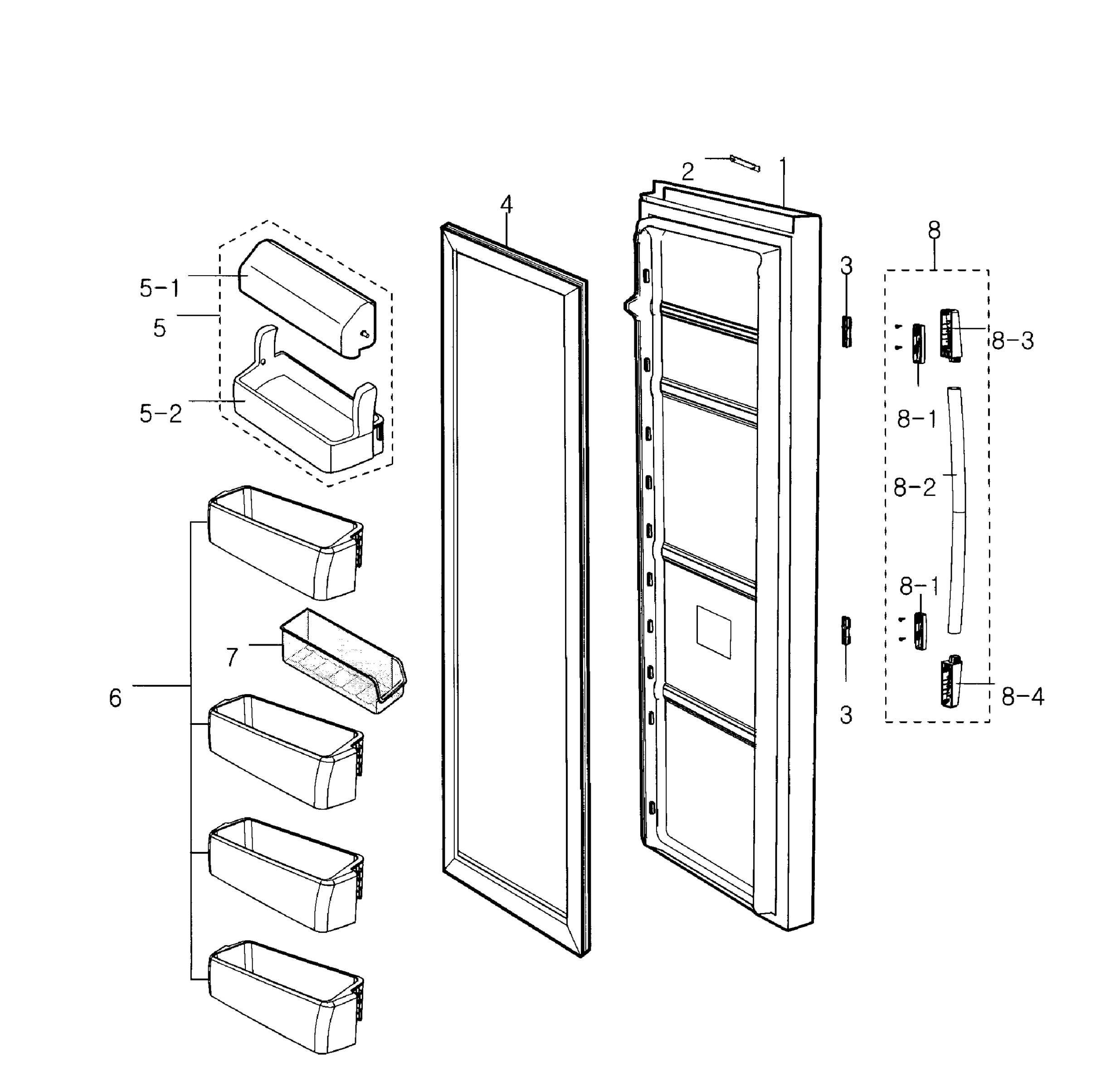

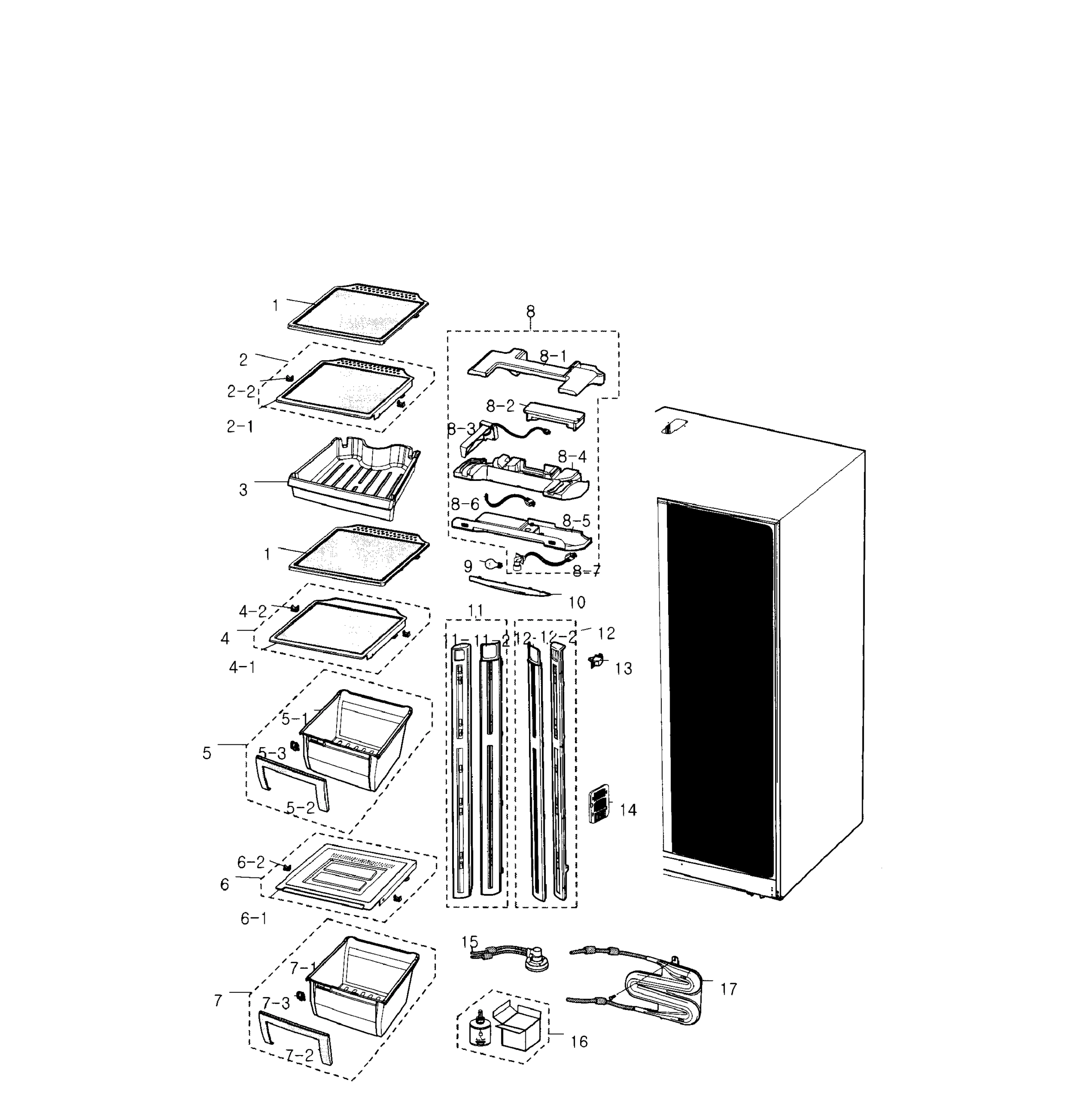

REFRIGERATOR
Right Door
Common parts from model Samsung RS2530BBP/XAA-00 Refrigerator
1
Refrigerator Ice Container Assembly SMG DA97-02058P Contact Us For Availability
1
Refrigerator freezer door SMG DA91-02370C Contact Us For Availability
1
Refrigerator door assembly SMG DA91-02371C Contact Us For Availability
2
Chute cap SMG DA67-00537B Contact Us For Availability
2
Refrigerator Shelf Assembly SMG DA97-02051B Contact Us For Availability
2
Refrigerator support SMG DA61-01356B Contact Us For Availability
2-1
Refrigerator Chiller Shelf SMG DA67-01021A Contact Us For Availability
2-2
Refrigerator Grommet SMG DA63-01565B Contact Us For Availability
2-3
Refrigerator Ice Dispenser Auger Drive Plate SMG DA61-01659B Contact Us For Availability
2-18
Refrigerator Lamp Cover SMG DA63-03113A Contact Us For Availability
3
Refrigerator Chiller Tray SMG DA63-03324A Contact Us For Availability
4-5
Refrigerator Ice Guide SMG DA61-01805A Contact Us For Availability
4-6
Refrigerator Ice Maker Assembly SMG DA97-00258E Contact Us For Availability
5-1
Refrigerator Cover SMG DA63-02009A Contact Us For Availability
5-1
Refrigerator Vegetable Case SMG DA61-01718C Contact Us For Availability
5-2
Cvr Veg-fr SMG DA63-02107A Contact Us For Availability
5-2
Refrigerator dairy bin SMG DA63-00852D Contact Us For Availability
5-3
Moisture Knob SMG DA64-00085B Contact Us For Availability
6-1
Samsung Support Cover SMG DA63-02011A Contact Us For Availability
6-1
Refrigerator Crisper Drawer Cover SMG DA63-02298A Contact Us For Availability
6-2
Refrigerator Freezer Fan Motor Support Insula SMG DA62-00703B Contact Us For Availability
7
Refrigerator Case Assembly SMG DA97-02063C Contact Us For Availability
7-1
Refrigerator Crisper Drawer SMG DA61-01717B Contact Us For Availability
8
Refrigerator Air Damper Assembly SMG DA97-02015P Contact Us For Availability
8
Refrigerator ice dispenser SMG DA97-04321E Contact Us For Availability
8-1
Samsung Refrigerator Insulation SMG DA62-00693A Contact Us For Availability
8-2
Refrigerator handle bar SMG DA64-02621A Contact Us For Availability
8-2
Btn,cont a SMG DA64-01957B Contact Us For Availability
8-2
Samsung Refrigerator Insulation SMG DA62-00695A Contact Us For Availability
8-3
Refrigerator Damper Motor SMG DA31-00101B Contact Us For Availability
8-3
Refrigerator handle cap SMG DA67-01519G Contact Us For Availability
8-4
Refrigerator handle cap SMG DA67-01518G Contact Us For Availability
8-4
Led pcb SMG DA41-00406A Contact Us For Availability
8-4
Samsung Refrigerator Insulation SMG DA62-00694A Contact Us For Availability
8-5
Refrigerator pcb cover SMG DA63-01990A Contact Us For Availability
8-5
Samsung Refrigerator Damper Control SMG DA63-01979A Contact Us For Availability
8-7
Refrigerator Lamp Holder SMG DA47-40001D Contact Us For Availability
9
Refrigerator Condenser Fan Motor Assembly SMG DA97-01948A Contact Us For Availability
9
Refrigerator dispenser control panel SMG DA97-04950J Contact Us For Availability
9
Refrigerator Ice Maker Water Fill Tube Assemb SMG DA97-04501S Contact Us For Availability
9
Refrigerator Incandescent Lamp SMG 4713-001206 Contact Us For Availability
9-1
Refrigerator Condenser Fan Blade SMG DA31-00095A Contact Us For Availability
9-1
Refrigerator pcb cover SMG DA63-03259A Contact Us For Availability
9-2
Refrigerator Fan Support SMG DA61-01633A Contact Us For Availability
9-3
Refrigerator dispenser lever SMG DA66-00294A Contact Us For Availability
9-3
Samsung Refrigerator Protector SMG DA63-01991A Contact Us For Availability
9-4
Refrigerator Grommet Motor SMG DA63-01976A Contact Us For Availability
10
Refrigerator dispenser tray SMG DA63-03256A Contact Us For Availability
10
Refrigerator Evaporator SMG DA96-00136N Contact Us For Availability
10
Refrigerator Lamp Cover SMG DA63-03309A Contact Us For Availability
10-4
Refrigerator Evaporator SMG DA59-00314B Contact Us For Availability
10-6
Seal Evaporator SMG DA62-00788A Contact Us For Availability
10-7
Refrigerator Heater Cover SMG DA63-03338A Contact Us For Availability
11
Refrigerator Power Cord SMG DA39-10165E Contact Us For Availability
11
Refrigerator Shelf Assembly SMG DA97-02335B Contact Us For Availability
11
Refrigerator Cover Assembly SMG DA97-02013A Contact Us For Availability
11-1
Refrigerator Shelf Wire SMG DA67-01022B Contact Us For Availability
11-1
Samsung Refrigerator Insulation SMG DA62-00696A Contact Us For Availability
11-2
Refrigerator Shelf Trim SMG DA64-01180A Contact Us For Availability
11-2
Samsung Refrigerator Cover SMG DA63-01982A Contact Us For Availability
12
Refrigerator Shelf Assembly SMG DA97-02037B Contact Us For Availability
12
Refrigerator Cover Assembly SMG DA97-02013B Contact Us For Availability
12-1
Refrigerator Shelf Wire SMG DA67-01023B Contact Us For Availability
12-1
Samsung Refrigerator Insulation SMG DA62-00697A Contact Us For Availability
12-2
Samsung Refrigerator Cover SMG DA63-01983A Contact Us For Availability
14
Purifier Cover SMG DA63-01077A Contact Us For Availability
15
Refrigerator Drain Plate SMG DA67-01018B Contact Us For Availability
16
Fixer Grommet SMG DA71-20252A Contact Us For Availability
16
Samsung Refrigerator Water Filter SMG DA29-00003G Contact Us For Availability
17
Refrigerator Water Reservoir Assembly SMG DA97-02094E Contact Us For Availability
24-2
Refrigerator Condenser Fan Motor and Bracket SMG DA97-01949A Contact Us For Availability
27
Refrigerator Transformer SMG DA26-00022B Contact Us For Availability
28
Refrigerator Run Capacitor SMG 2501-001045 Contact Us For Availability
2423
Refrigerator Condenser Fan SMG DA31-00003W Contact Us For Availability
NI
Refrigerator Owner's Manual SMG DA68-01606A Contact Us For Availability
× ![]()
