Model Samsung RS22HDHPNSR/AA-00 Refrigerator – Common Parts &amp; Diagrams

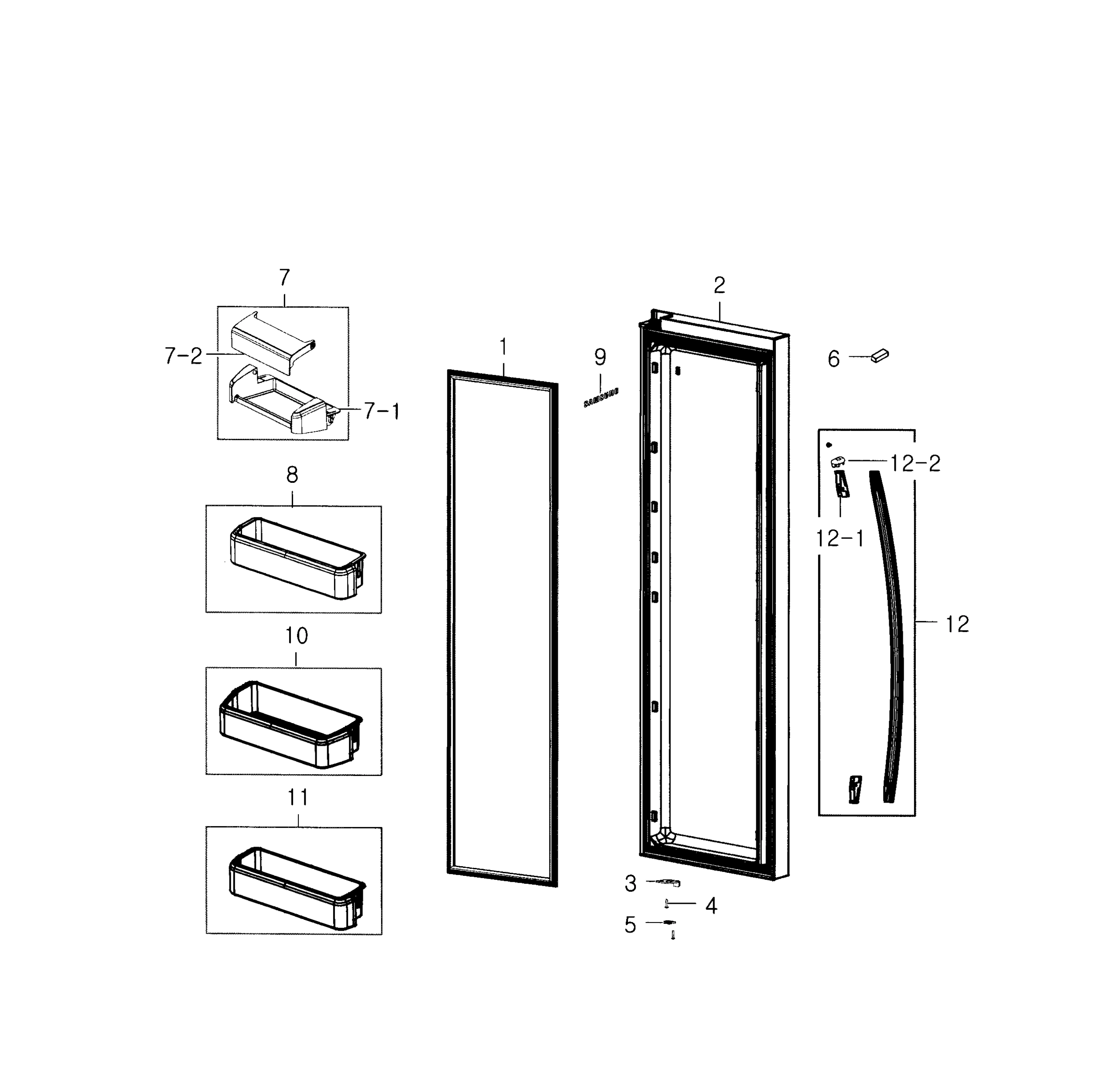

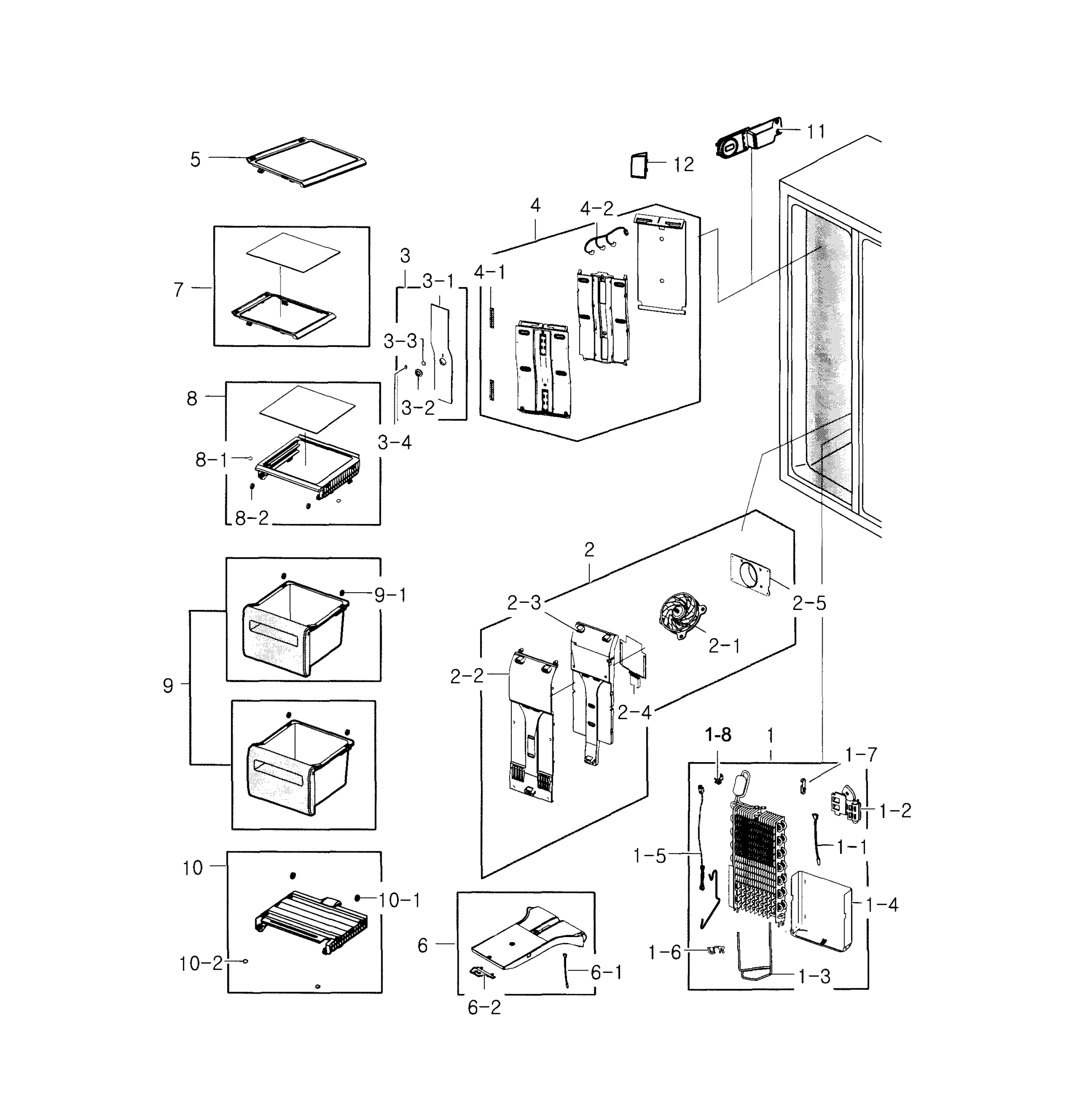

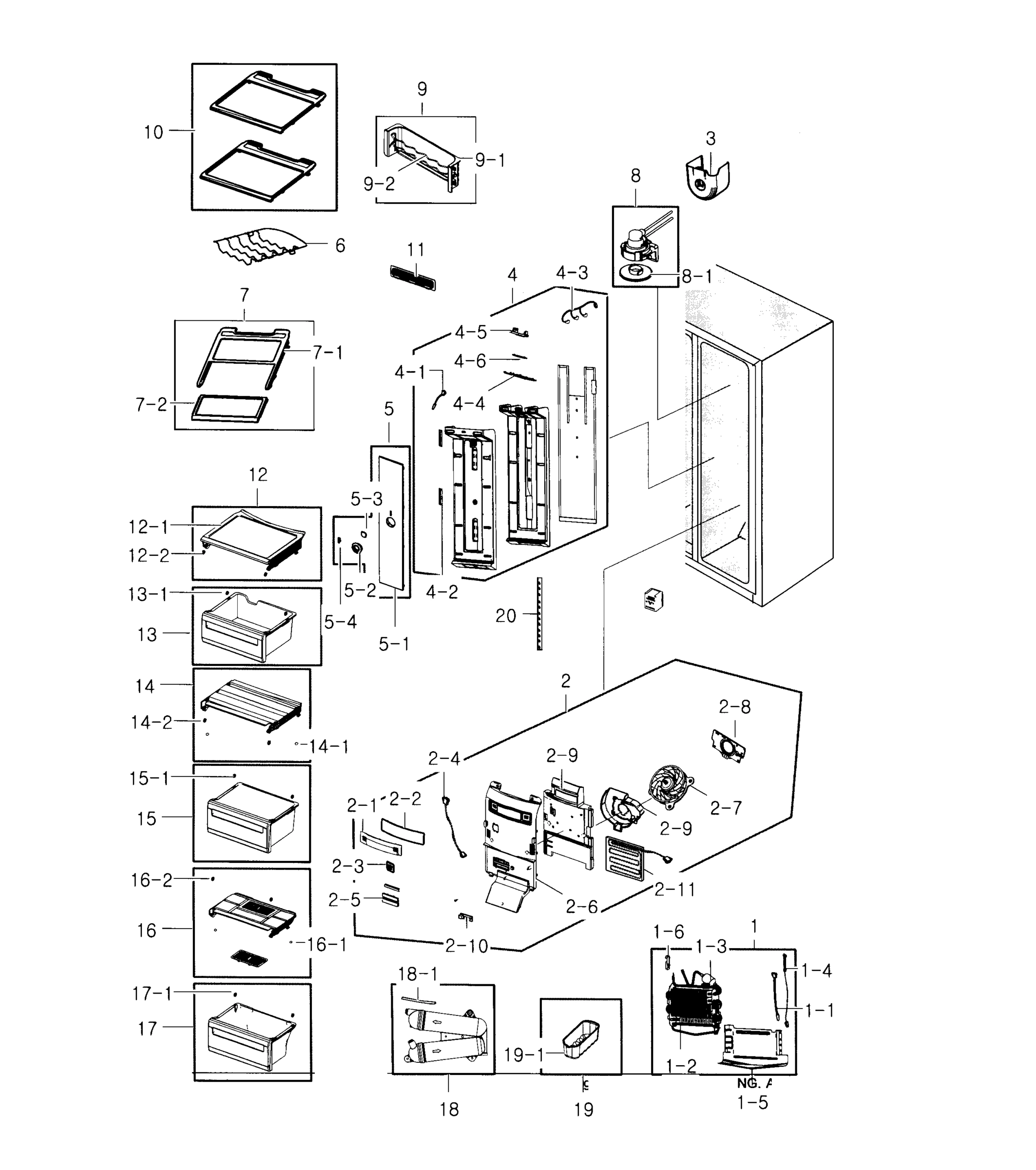

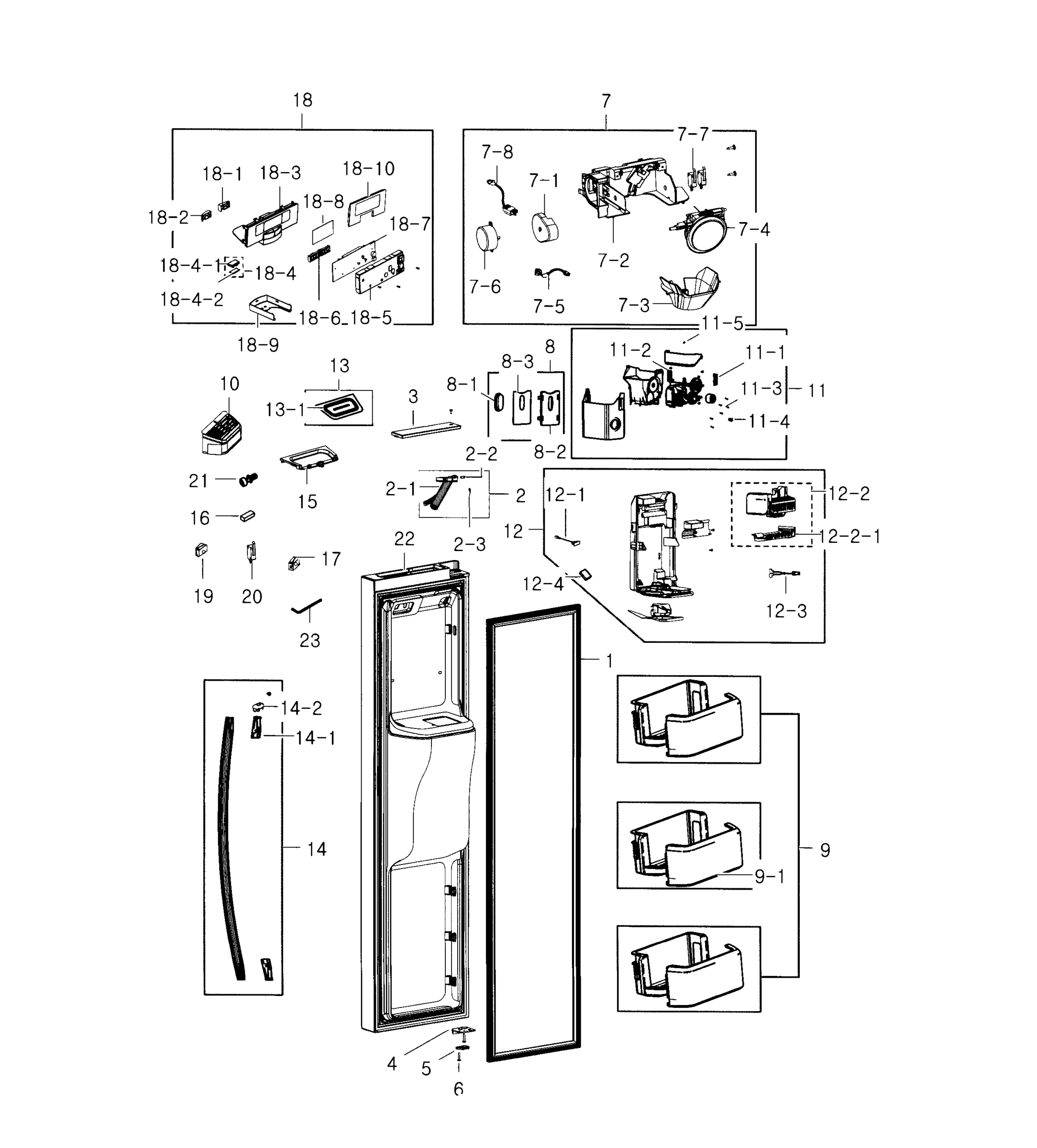

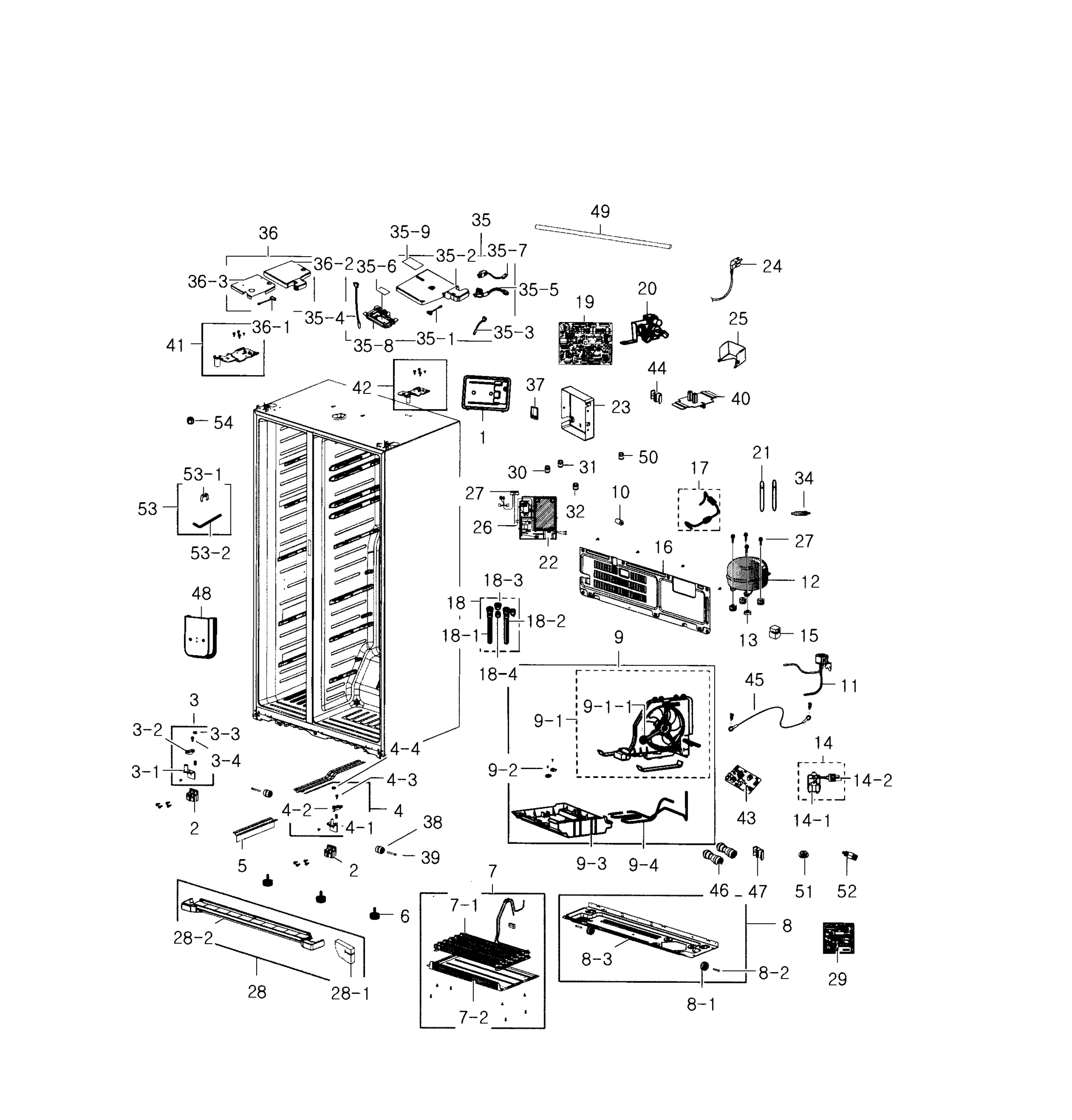

1

DA96-01052A Samsung Refrigerator Evaporator A Backorder SMG DA96-01052A $161.71

1

DA97-14689A Samsung Refrigerator Gasket Assem Backorder SMG DA97-14689A $109.99

1

DA97-14691A Samsung Refrigerator Gray Gasket Backorder SMG DA97-14691A $83.44

1-1

DA32-00029N Samsung Refrigerator Temperature In Stock SMG DA32-00029N $18.59

1-1

DA32-00029R Samsung Refrigerator Temperature In Stock SMG DA32-00029R $10.30

1-2

DA47-00465A Samsung Refrigerator Metal Sheath Backorder SMG DA47-00465A $123.27

1-2

DA61-05160A Samsung Refrigerator Fuse Holder In Stock SMG DA61-05160A $0.99

1-3

DA47-00320H Samsung Refrigerator Heater Metal Backorder SMG DA47-00320H $123.55

1-3

DA61-03683A Samsung Refrigerator Sensor Fixer In Stock SMG DA61-03683A $1.17

1-4

DA47-00301E Samsung Refrigerator Fuse Thermos Backorder SMG DA47-00301E $22.86

1-5

DA47-00301F Samsung Refrigerator Thermal Fuse Backorder SMG DA47-00301F $20.53

1-5

DA61-05702B Samsung Drain Plate Evaporator Backorder SMG DA61-05702B $34.81

1-6

DA61-02901A Samsung Refrigerator Evaporator S In Stock SMG DA61-02901A $1.17

1-6

DA61-06700A Samsung Refrigerator Heater Wire Backorder SMG DA61-06700A $4.65

2

DA61-04215A Samsung Refrigerator Low Hinge Br Backorder SMG DA61-04215A $32.74

2

DA91-04148A Samsung Refrigerator Door Foam As Backorder SMG DA91-04148A $248.16

2

DA97-12709A Samsung Refrigerator Evaporator C Backorder SMG DA97-12709A $141.55

2

DA97-14441A Samsung Refrigerator Evaporator C In Stock SMG DA97-14441A $191.93

2-1

Cover-puri SMG DA63-04129F Contact Us For Availability

2-2

DA64-02468A Samsung Low Purifier Trim Backorder SMG DA64-02468A $44.84

2-3

DA47-00104M Samsung Refrigerator Water Pipe H Backorder SMG DA47-00104M $39.62

2-3

DA61-04393A Samsung Air Guide Backorder SMG DA61-04393A $1.94

2-4

DA96-00424C Samsung Refrigerator Assembly wit Backorder SMG DA96-00424C $9.30

2-5

Cover-led SMG DA63-04128B Contact Us For Availability

2-6

Cover-evap ref SMG DA63-07037A Contact Us For Availability

2-7

DA31-00334C Samsung Refrigerator BLDC Fan Mot In Stock SMG DA31-00334C $118.00

2-8

DA61-08438A Samsung Motor Plate Backorder SMG DA61-08438A $18.21

2-9

Refrigerator support evaporator SMG DA61-08409A Contact Us For Availability

2-10

DA96-00392C Samsung Refrigerator LED Lamp Ass Backorder SMG DA96-00392C $22.75

2-11

DA47-00283B Samsung Refrigerator Water Tank H Backorder SMG DA47-00283B $38.39

3

DA61-04196A Samsung Refrigerator Door Stopper Backorder SMG DA61-04196A $14.73

3

DA63-04150A Samsung Refrigerator Filter Cover Backorder SMG DA63-04150A $12.79

3

DA97-06158B Samsung Refrigerator Low Hinge Backorder SMG DA97-06158B $60.27

3-1

DA61-04191A Samsung Refrigerator Low Left Hin Backorder SMG DA61-04191A $35.50

3-2

DA66-00560B Samsung Refrigerator Low Hinge Ri Backorder SMG DA66-00560B $2.32

4

DA61-04195A Samsung Refrigerator Door Stopper Backorder SMG DA61-04195A $21.70

4

DA97-06101D Samsung Refrigerator Multicolor C Backorder SMG DA97-06101D $93.00

4-1

DA32-00066G Samsung Refrigerator Temperature Backorder SMG DA32-00066G $24.47

4-2

DA41-00519B Samsung Refrigerator LED Lamp Ass In Stock SMG DA41-00519B $33.76

4-2

DA66-00559A Samsung Refrigerator Low Riser Ca Backorder SMG DA66-00559A $2.71

4-3

DA96-00424A Samsung Assembly LED Wire Harness Backorder SMG DA96-00424A $12.39

4-4

DA63-04126A Samsung Purifier Cover Assembly Backorder SMG DA63-04126A $3.09

4-5

Purifier cover SMG DA63-04127A Contact Us For Availability

4-6

DA64-02465A Samsung Trim Purifier Upper Backorder SMG DA64-02465A $9.30

5

DA66-00557A Samsung Refrigerator Cam Hinge Ri In Stock SMG DA66-00557A $2.32

5

DA66-00558B Samsung Refrigerator Door Closing In Stock SMG DA66-00558B $2.32

5

DA97-06092A Samsung Lamp Cover Assembly Backorder SMG DA97-06092A $35.15

5-1

DA63-04120A Samsung Cover Lamp Backorder SMG DA63-04120A $15.50

5-2

DA63-04121A Samsung Sensor Cover Mid Assembly Backorder SMG DA63-04121A $13.56

5-3

DA63-04122A Samsung Mid Sensor Cover Assembly Backorder SMG DA63-04122A $0.92

5-4

DA63-04123A Samsung Mid Sensor Cover Backorder SMG DA63-04123A $6.59

6

6001-001377 Samsung Refrigerator Machine Scre Backorder SMG 6001-001377 $0.92

6

DA61-00805F Samsung Refrigerator Black Front Backorder SMG DA61-00805F $5.42

6

DA75-00267A Samsung Refrigerator Wine Rack As Backorder SMG DA75-00267A $112.91

6-1

DA32-10105U Samsung Refrigerator Temperature Backorder SMG DA32-10105U $14.33

7

DA97-06102B Samsung Refrigerator Shelf Assemb Backorder SMG DA97-06102B $107.92

7

DA97-06178A Samsung Refrigerator Assembly Gua Backorder SMG DA97-06178A $52.59

7

DA97-06439D Samsung Refrigerator Mid Shelf As Backorder SMG DA97-06439D $20.15

7

DA97-06473B Samsung Refrigerator Ice Route Ca In Stock SMG DA97-06473B $113.88

7-1

DA67-01930B Samsung Refrigerator Fold Shelf A Backorder SMG DA67-01930B $47.91

7-1

Refrigerator dairy bin cover SMG DA63-04197A Contact Us For Availability

7-2

DA63-04198A Samsung Refrigerator Dairy Cover Backorder SMG DA63-04198A $26.88

7-2

DA67-01931B Samsung Refrigerator Folded Shelf Backorder SMG DA67-01931B $39.93

7-4

DA97-00883E Samsung Refrigerator Ice Route Co In Stock SMG DA97-00883E $40.85

8

DA97-06175E Samsung Refrigerator Guard Low Backorder SMG DA97-06175E $52.52

8

DA97-06317A Samsung Refrigerator Replacement In Stock SMG DA97-06317A $90.01

8

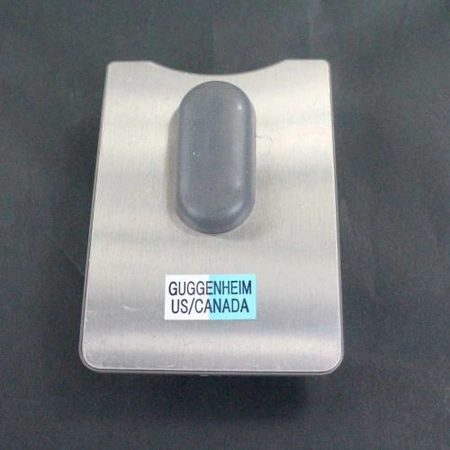

DA97-06479G Samsung Refrigerator Microswitch Backorder SMG DA97-06479G $62.54

8-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $5.42

8-1

DA67-02270A Samsung Refrigerator Water Filter Backorder SMG DA67-02270A $1.48

8-2

DA66-00649A Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649A $3.09

9

DA64-04021C Samsung Refrigerator Mascot Assem Backorder SMG DA64-04021C $21.70

9

DA97-06180D Samsung Refrigerator Freezer Door Backorder SMG DA97-06180D $67.95

9

DA97-06549A Samsung Refrigerator Carry Can As Backorder SMG DA97-06549A $104.13

9-1

DA61-04399A Samsung Refrigerator Can Carry Su Backorder SMG DA61-04399A $24.47

9-2

DA75-00209A Samsung Refrigerator Can Carry Ra Backorder SMG DA75-00209A $84.96

10

DA67-01929B Samsung Refrigerator Top Shelf Backorder SMG DA67-01929B $39.62

10

DA97-06177C Samsung Refrigerator Upper Door B Backorder SMG DA97-06177C $59.98

10

DA97-06568C Samsung Refrigerator Ice Maker As Backorder SMG DA97-06568C $40.66

DA63-06849A Samsung Refrigerator Front LED La Backorder SMG DA63-06849A $8.14

DA97-06175F Samsung Refrigerator Lower Door G Backorder SMG DA97-06175F $39.83

DA97-07070A Samsung Refrigerator Step Motor A Backorder SMG DA97-07070A $120.84

DA97-14263A Samsung Refrigerator Ice Tray Ass Backorder SMG DA97-14263A $185.66

DA97-14619A Samsung Refrigerator Auger Motor Backorder SMG DA97-14619A $176.38

11-4

DA61-02738A Samsung Refrigerator Magnet-Assem Backorder SMG DA61-02738A $5.42

12

DA97-14253A Samsung Refrigerator Indoor Ice M Backorder SMG DA97-14253A $210.32

12

MKV190CL2B/ASH Samsung Refrigerator Compresso Backorder SMG MKV190CL2B/ASH $270.76

12

Refrigerator glass shelf SMG DA97-06440B Contact Us For Availability

12-1

DA61-07859A Samsung Refrigerator Handle Suppo Backorder SMG DA61-07859A $19.38

12-1

DA67-02038B Samsung Refrigerator Low Ref Shel Backorder SMG DA67-02038B $90.77

12-2

DA97-13415B Samsung Refrigerator Ice Maker As Backorder SMG DA97-13415B $198.30

12-2

Refrigerator handle cap SMG DA67-02431C Contact Us For Availability

12-3

DA97-00151B Samsung Refrigerator Reed Switch Backorder SMG DA97-00151B $23.42

13

DA97-06441N Samsung Refrigerator Upper Veg Ca Backorder SMG DA97-06441N $105.43

13

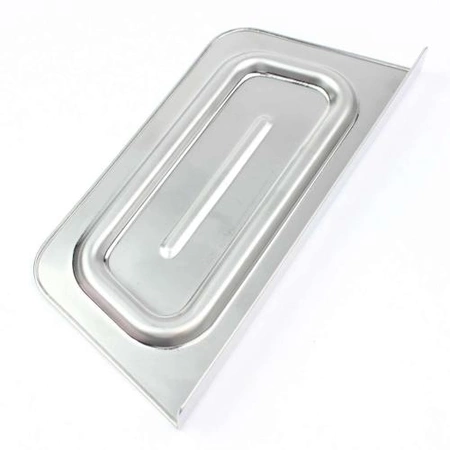

DA97-06768B Samsung Refrigerator Dispenser Tr Backorder SMG DA97-06768B $92.27

14

DA97-06136B Samsung Refrigerator Vegetable Up Backorder SMG DA97-06136B $72.33

14

DA97-08310E Samsung Refrigerator Compressor A Backorder SMG DA97-08310E $61.12

14

DA97-12054A Samsung Refrigerator Handle Bar A Backorder SMG DA97-12054A $128.36

14-1

DA34-00004D Samsung Refrigerator Compressor O In Stock SMG DA34-00004D $22.05

14-2

DA39-00154D Samsung Refrigerator Wire Harness In Stock SMG DA39-00154D $41.01

15

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $10.85

15

DA97-06132R Samsung Refrigerator Middle Veg C Backorder SMG DA97-06132R $107.05

16

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $1.94

16

DA97-07839B Samsung Refrigerator Vegetable Lo Backorder SMG DA97-07839B $50.98

17

DA97-06131P Samsung Refrigerator Low Vegetabl Backorder SMG DA97-06131P $109.77

18

DA97-04049D Samsung Refrigerator Drain Tube C In Stock SMG DA97-04049D $17.82

18

DA97-08536F Samsung Refrigerator Water Tank A Backorder SMG DA97-08536F $108.38

18

DA97-11879K Samsung Refrigerator Dispenser Co Backorder SMG DA97-11879K $152.72

18-1

Refrigerator water line SMG DA62-02429T Contact Us For Availability

18-2

DA63-00951B Samsung Refrigerator Drain Hose G Backorder SMG DA63-00951B $5.03

18-2

DA64-02567A Samsung Refrigerator Water Dispen Backorder SMG DA64-02567A $46.37

18-3

Refrigerator dispenser cover SMG DA63-04367F Contact Us For Availability

18-4

DA97-02847A Samsung Refrigerator Lamp Door As Backorder SMG DA97-02847A $38.08

18-4-1

DA63-02446A Samsung Refrigerator Epel ABS Coo Backorder SMG DA63-02446A $2.32

18-4-2

DA41-00217B Samsung Refrigerator LED Dispense In Stock SMG DA41-00217B $42.38

18-5

DA63-04361B Samsung Cover PCB Panel Rear Backorder SMG DA63-04361B $5.42

18-6

DA63-04482A Samsung Grommet Button Control Backorder SMG DA63-04482A $10.47

18-7

DA92-00607A Samsung Refrigerator LED Touch Di In Stock SMG DA92-00607A $142.10

18-8

Window-cvr SMG DA64-02582B Contact Us For Availability

18-9

DA64-02596A Samsung Faucet Decoration Backorder SMG DA64-02596A $61.68

18-10

DA61-04384B Samsung Refrigerator Dispenser Co Backorder SMG DA61-04384B $38.25

19

DA63-04377B Samsung Dispenser Tray Grommet Backorder SMG DA63-04377B $5.42

19

DA92-00606A Samsung Refrigerator Main PCB Ass In Stock SMG DA92-00606A $247.51

19

DA97-02806G Samsung Egg Tray Assembly Backorder SMG DA97-02806G $22.86

19-1

Egg tray SMG DA63-05113A Contact Us For Availability

20

DA41-00519V Samsung LED Lamp Assembly Backorder SMG DA41-00519V $23.42

20

DA62-02439C Samsung Refrigerator 2-Way Water In Stock SMG DA62-02439C $116.06

21

DA61-03734A Samsung Refrigerator Door Handle In Stock SMG DA61-03734A $2.65

22

DA91-04149A Samsung Refrigerator Foam Door As Backorder SMG DA91-04149A $325.60

23

DA80-00026B Samsung Refrigerator Spanner Wren Backorder SMG DA80-00026B $2.71

24

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $52.52

26

DA27-00019H Samsung Refrigerator EMI Coil Fil Backorder SMG DA27-00019H $108.83

29

DA92-00486A Samsung Refrigerator Module Assem In Stock SMG DA92-00486A $112.32

31

DA60-00280A Samsung Refrigerator Fitting-Lokr Backorder SMG DA60-00280A $5.03

35-1

DA34-00043A Samsung Refrigerator Switch Reed- Backorder SMG DA34-00043A $22.86

35-3

DA32-00034B Samsung Refrigerator Humidity Sen Backorder SMG DA32-00034B $53.75

35-4

DA32-10105B Samsung Refrigerator Temperature In Stock SMG DA32-10105B $14.73

36-1

DA34-00043C Samsung Refrigerator Reed Switch Backorder SMG DA34-00043C $24.47

38

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $6.59

39

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.09

42

DA61-04189B Samsung Refrigerator Upper Hinge Backorder SMG DA61-04189B $20.53

43

DA92-00483C Samsung Refrigerator Inverter Ass In Stock SMG DA92-00483C $152.71

46

DA60-00258B Samsung Refrigerator Tube Fitting Backorder SMG DA60-00258B $18.59

52

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $17.06

53-1

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $0.92

54

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $6.20

6011-001442 Samsung Refrigerator Socket Bolt Backorder SMG 6011-001442 $1.17

DA34-00011A Samsung Refrigerator Micro Switch Backorder SMG DA34-00011A $8.14

DA63-04402A Samsung Cover Grommet Assembly Backorder SMG DA63-04402A $1.17

DA66-10104C Samsung Refrigerator Freezer Door Backorder SMG DA66-10104C $1.56
