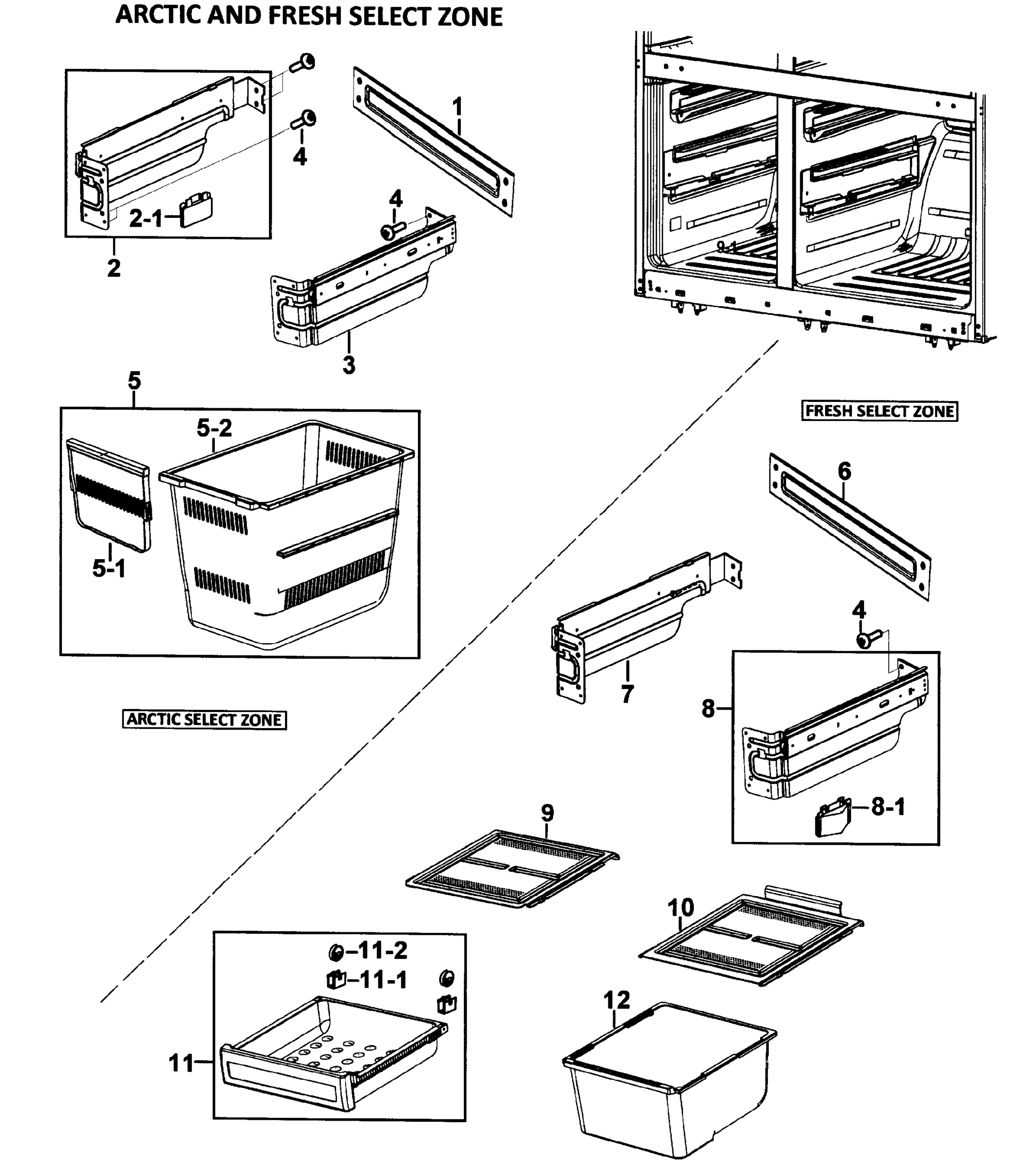

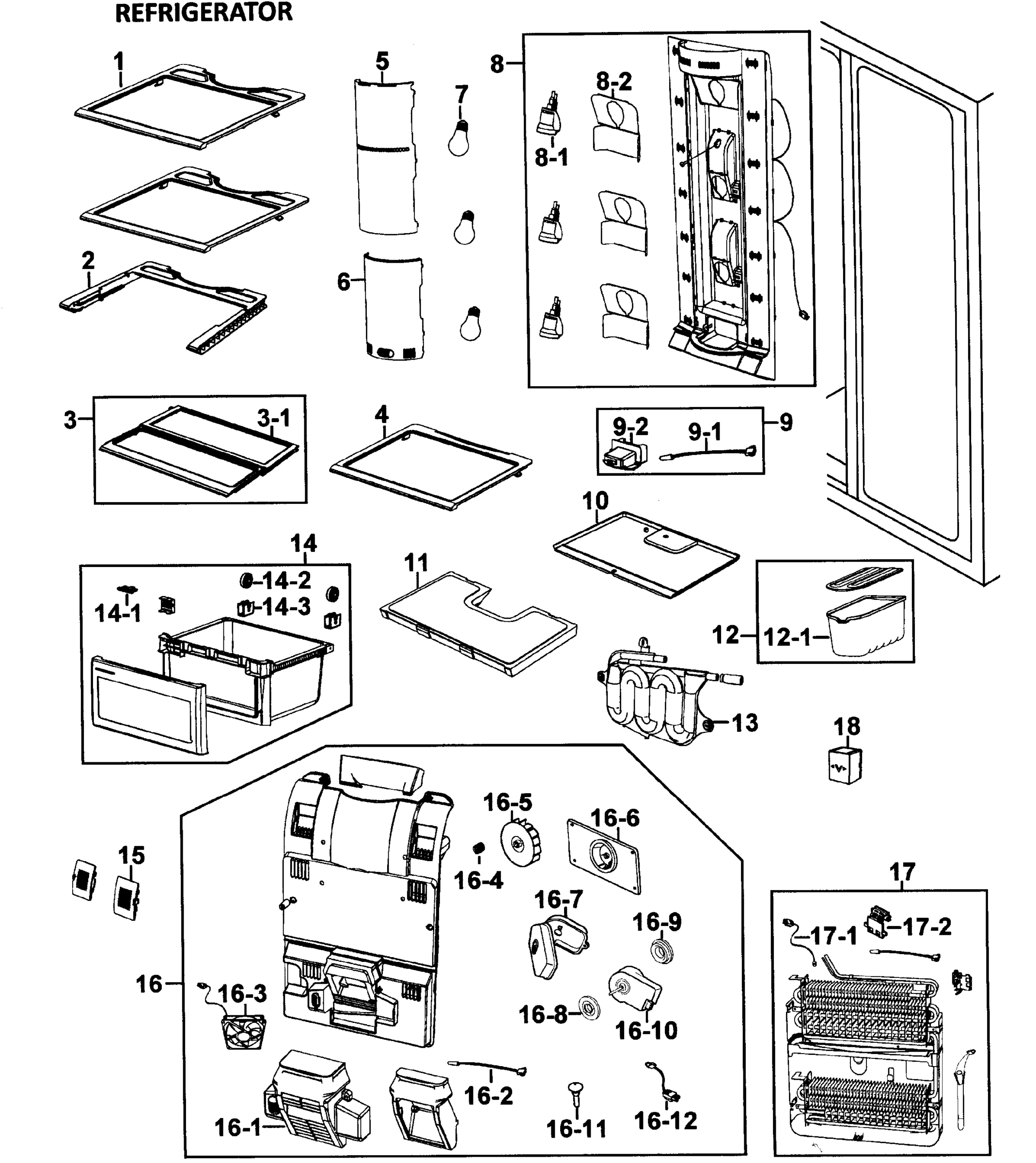

Model Samsung RM257ABRS/XAA-00 Refrigerator – Common Parts &amp; Diagrams

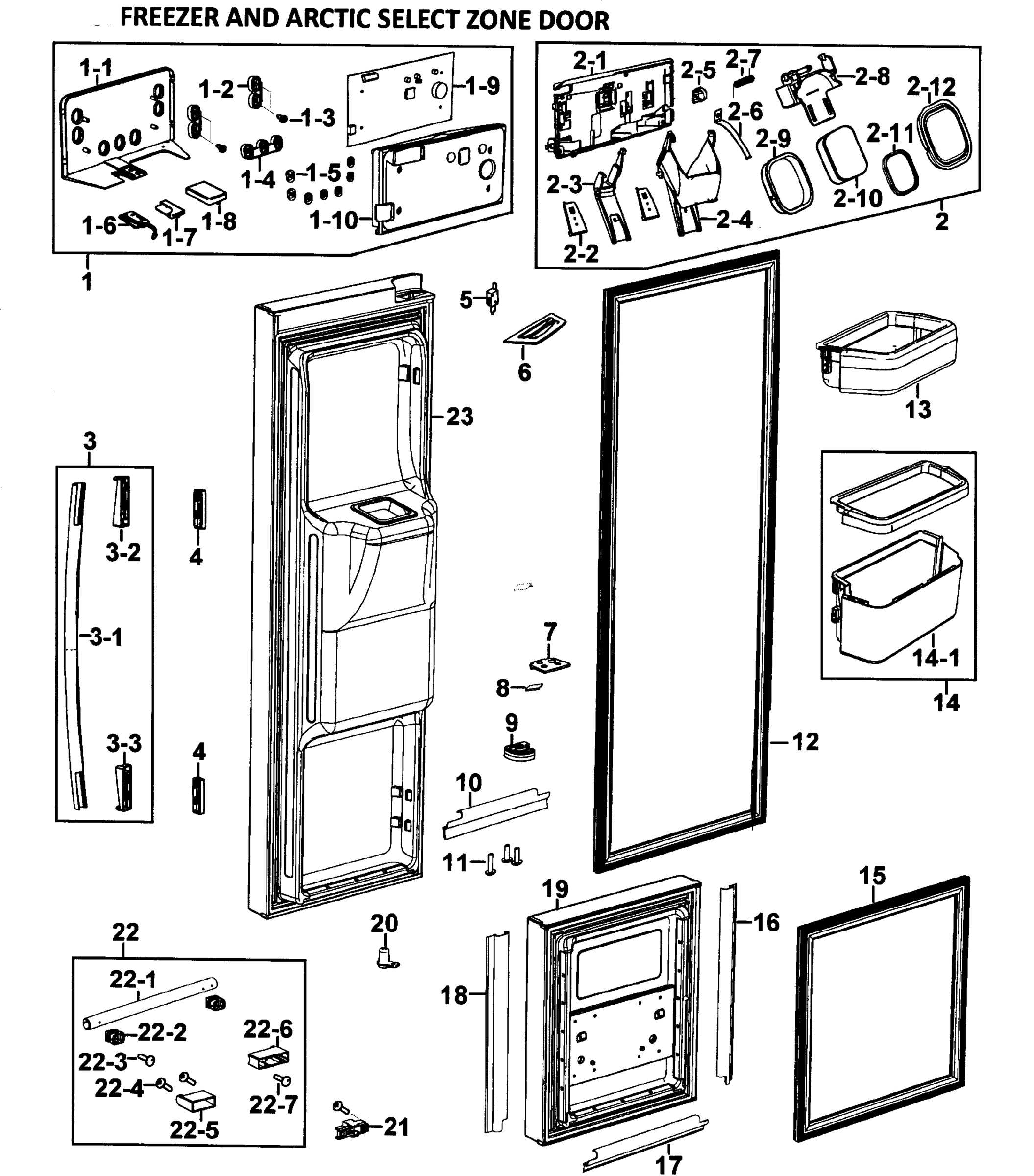

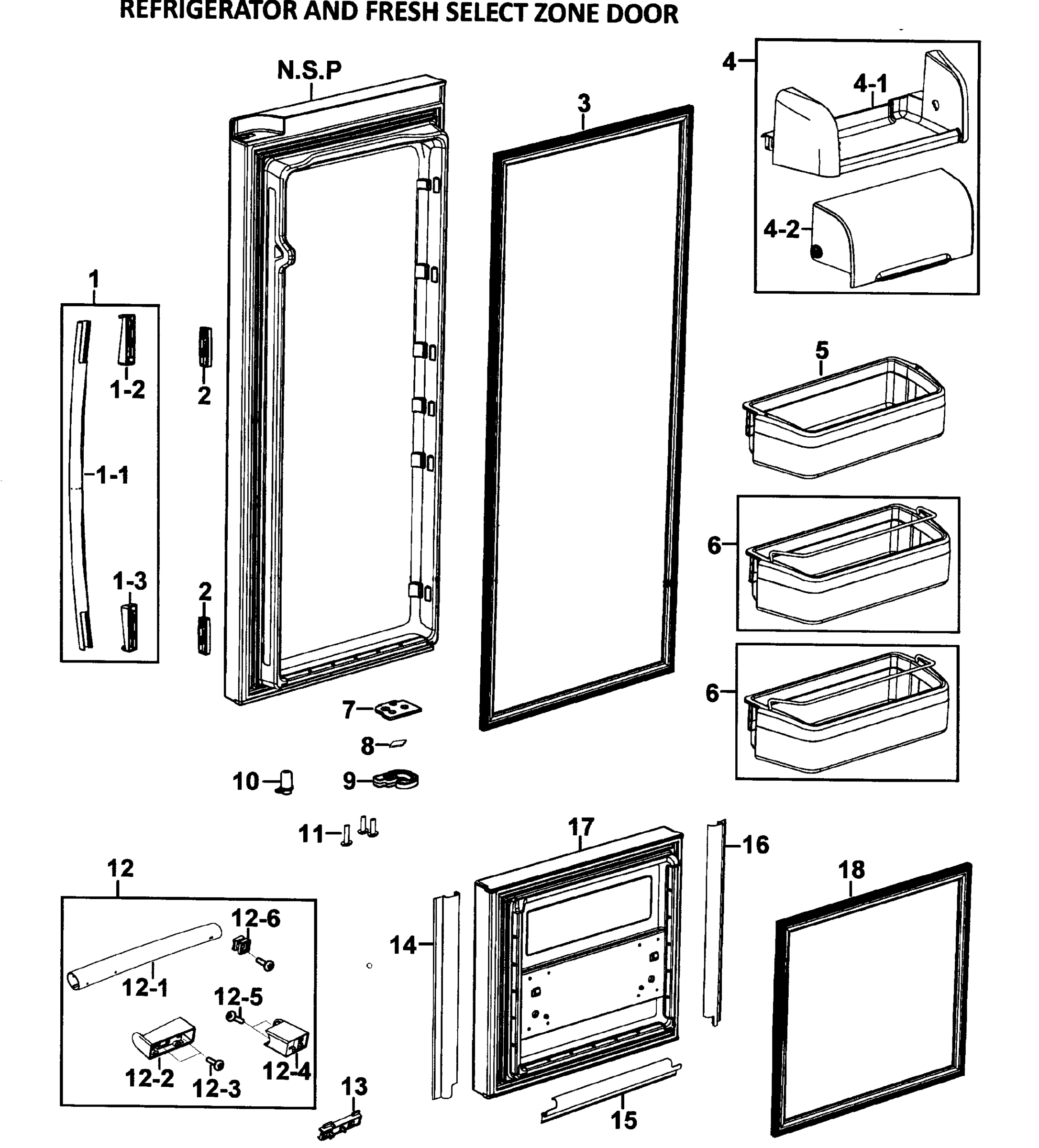

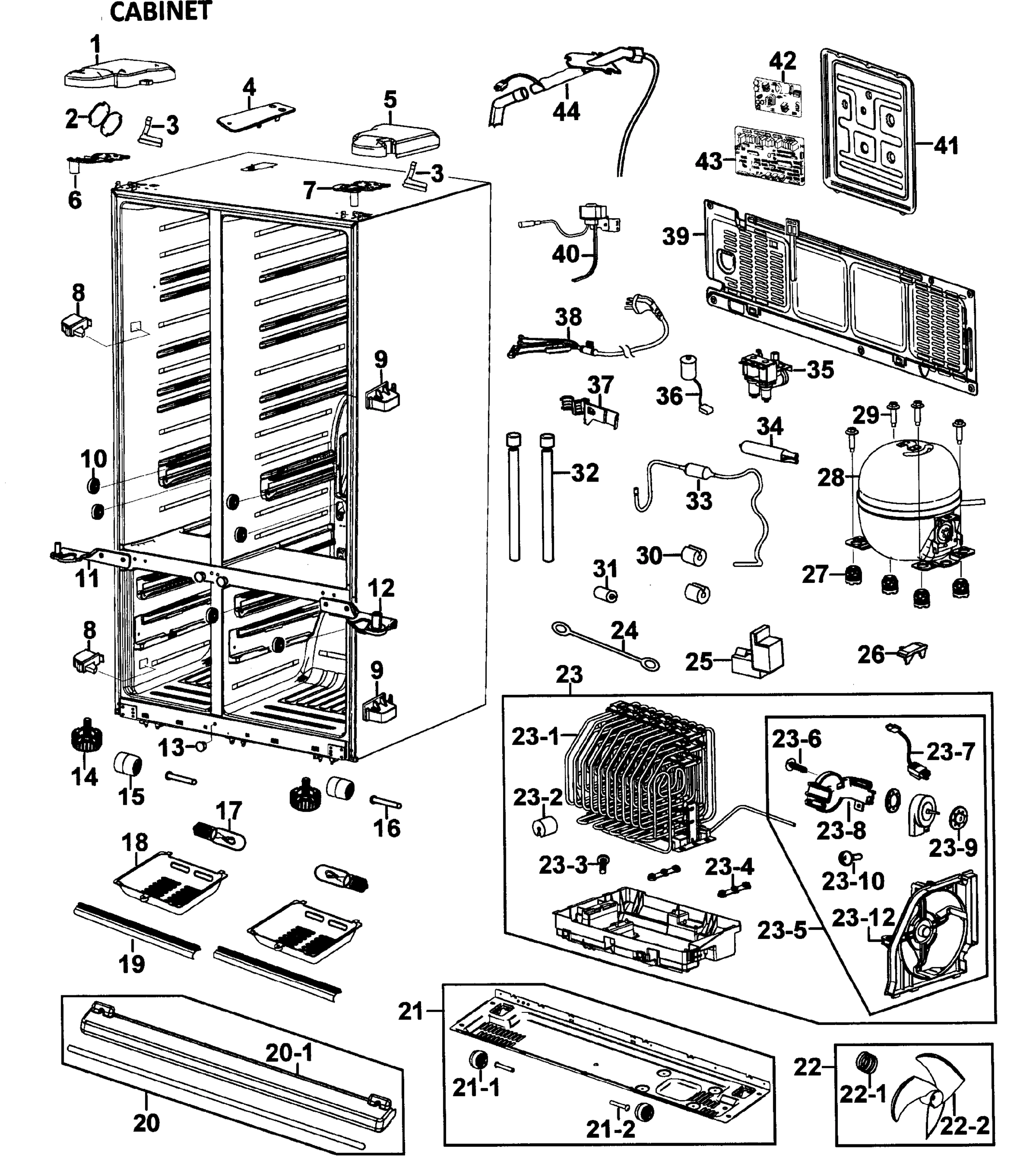

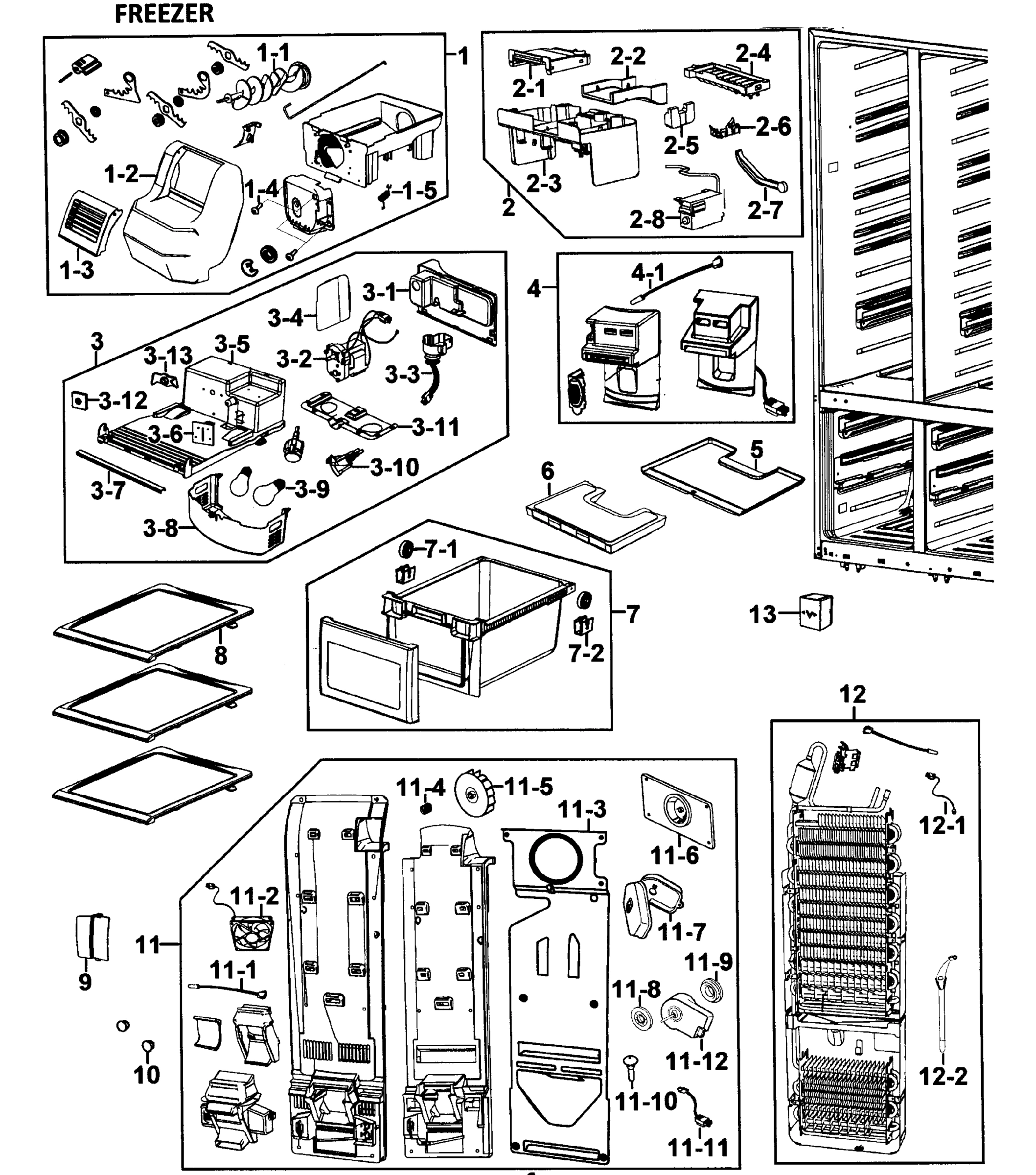

1

DA97-04417E Samsung Refrigerator Bar Handle A Backorder SMG DA97-04417E $101.22

1

Refrigerator dispenser cover SMG DA97-05115H Contact Us For Availability

1-1

Refrigerator cover SMG DA63-03671A Contact Us For Availability

1-1

Refrigerator freezer handle bar SMG DA64-01979E Contact Us For Availability

1-2

Refrigerator door handle end cap, upper SMG DA67-01527F Contact Us For Availability

1-2

Refrigerator grommet SMG DA63-03675A Contact Us For Availability

1-3

6002-000466 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000466 $0.92

1-3

Refrigerator door handle end cap, lower SMG DA67-01528F Contact Us For Availability

1-4

Refrigerator grommet SMG DA63-03674A Contact Us For Availability

1-5

Refrigerator control button SMG DA64-02038B Contact Us For Availability

1-6

DA41-00217A Samsung Refrigerator Printed Circ In Stock SMG DA41-00217A $33.76

1-7

Refrigerator gasket SMG DA63-03914A Contact Us For Availability

1-8

Refrigerator lamp cap SMG DA67-01706A Contact Us For Availability

1-9

Refrigerator dispenser control board and pane SMG DA41-00447A Contact Us For Availability

1-10

DA63-03670A Samsung Refrigerator Cover PCB Pa Backorder SMG DA63-03670A $6.59

2

Pcb panel cover assembly, rear SMG DA97-05114G Contact Us For Availability

2

Refrigerator shelf SMG DA67-01372A Contact Us For Availability

2-1

Refrigerator dispenser electronic control boa SMG DA63-03668A Contact Us For Availability

2-2

Refrigerator dispenser lever SMG DA66-00352F Contact Us For Availability

2-3

Lever dispenser-water SMG DA66-00354G Contact Us For Availability

2-4

Refrigerator dispenser lever SMG DA66-00365G Contact Us For Availability

2-5

DA61-01800A Samsung Refrigerator Ice Maker Fi In Stock SMG DA61-01800A $25.84

2-5

DA61-01869A Samsung Refrigerator Oil Damper Backorder SMG DA61-01869A $11.62

2-6

DA61-01616A Samsung SPRING ETC-LEVER DISP WAT Backorder SMG DA61-01616A $1.56

2-6

DA63-02183A Samsung Refrigerator Sensor Cover In Stock SMG DA63-02183A $1.94

2-7

DA61-01651A Samsung Refrigerator Ice Route Co Backorder SMG DA61-01651A $3.50

2-8

DA63-01970A Samsung Refrigerator Ice Route Co In Stock SMG DA63-01970A $4.26

2-9

DA63-01971B Samsung Ice Route Cover Assembly Backorder SMG DA63-01971B $3.09

2-10

DA62-00058E Samsung Seal Cover Ice Route Backorder SMG DA62-00058E $1.56

2-11

DA62-00058F Samsung Refrigerator Ice Route Co Backorder SMG DA62-00058F $0.92

2-12

DA63-01972A Samsung Refrigerator Gasket Cover Backorder SMG DA63-01972A $12.79

3

DA71-20267A Samsung Refrigerator Upper Hinge Backorder SMG DA71-20267A $7.74

3

Refrigerator shelf assembly SMG DA97-03645A Contact Us For Availability

3

Refrigerator door gasket, right SMG DA97-04567H Contact Us For Availability

3-1

DA67-00903C Samsung Folder Shelf Backorder SMG DA67-00903C $52.81

3-1

Cover-auge SMG DA63-02736A Contact Us For Availability

3-2

DA31-00105A Samsung Refrigerator Auger Motor Backorder SMG DA31-00105A $140.35

3-3

Refrigerator cover assembly SMG DA97-02120B Contact Us For Availability

3-4

Refrigerator partition SMG DA67-01305A Contact Us For Availability

3-5

Case auger SMG DA61-02412A Contact Us For Availability

3-6

DA73-00168A Samsung Refrigerator Solenoid Rub Backorder SMG DA73-00168A $6.20

3-7

DA61-00239A Samsung Auger Motor Case Support Backorder SMG DA61-00239A $16.65

3-8

DA63-02735A Samsung Refrigerator Lamp Cover D Backorder SMG DA63-02735A $13.18

3-10

Refrigerator lamp holder SMG DA47-40001D Contact Us For Availability

3-11

DA61-02409A Samsung Lamp Plate Assembly Backorder SMG DA61-02409A $6.20

3-12

DA71-00163A Samsung Refrigerator Nut Fixer Backorder SMG DA71-00163A $10.85

3-13

Refrigerator ice dispenser auger drive plate SMG DA61-01659B Contact Us For Availability

4

DA61-02984A Samsung Refrigerator Handle Fixer In Stock SMG DA61-02984A $2.67

4

DA67-01283C Samsung Lower Shelf Backorder SMG DA67-01283C $74.46

4

DA97-03130B Samsung Assembly Multi Cover, Backorder SMG DA97-03130B $69.38

4

Refrigerator freezer door bin SMG DA97-03100A Contact Us For Availability

4-1

DA32-10105C Samsung Refrigerator Temperature Backorder SMG DA32-10105C $13.56

4-1

Refrigerator dairy bin cover SMG DA63-02690A Contact Us For Availability

4-2

Guard-dair SMG DA63-02689A Contact Us For Availability

5

DA34-00011B Samsung Refrigerator Micro Switch Backorder SMG DA34-00011B $11.24

5

DA97-03098A Samsung Refrigerator Guard Assemb Backorder SMG DA97-03098A $52.03

5

Cover part SMG DA63-02708A Contact Us For Availability

5

Refrigerator lamp cover SMG DA63-02710A Contact Us For Availability

6

DA63-03669A Samsung Dispenser Tray Backorder SMG DA63-03669A $16.27

6

Refrigerator partition SMG DA97-03135C Contact Us For Availability

6

Refrigerator lamp cover SMG DA63-02711A Contact Us For Availability

6

Refrigerator guard assembly SMG DA97-03562B Contact Us For Availability

7

DA97-03149A Samsung Refrigerator Upper Hinge Backorder SMG DA97-03149A $25.49

7

Refrigerator incandescent lamp SMG 4713-001206 Contact Us For Availability

7

Refrigerator freezer drawer assembly SMG DA97-02944A Contact Us For Availability

7

Refrigerator door stopper SMG DA61-02373B Contact Us For Availability

7-2

DA71-20277A Samsung Refrigerator Fixer-Roller Backorder SMG DA71-20277A $1.17

8

DA34-10120E Samsung Refrigerator Door Switch Backorder SMG DA34-10120E $26.19

8

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $0.92

8

Shelf fre SMG DA97-02955B Contact Us For Availability

8

Refrigerator cover assembly SMG DA97-03131A Contact Us For Availability

8-1

DA47-40001C Samsung Lamp Holder-Assy Backorder SMG DA47-40001C $12.39

8-2

Refrigerator lamp plate SMG DA61-02375A Contact Us For Availability

9

DA61-15273A Samsung Refrigerator Door Close S In Stock SMG DA61-15273A $7.36

9

Refrigerator freezer diffuser panel cover SMG DA63-02701A Contact Us For Availability

9

Refrigerator cover assembly SMG DA97-03116A Contact Us For Availability

9-1

DA32-10105U Samsung Refrigerator Temperature Backorder SMG DA32-10105U $14.33

9-2

Cover sensor SMG DA63-02713A Contact Us For Availability

DA67-30266K Samsung Refrigerator Cap Screw Backorder SMG DA67-30266K $0.92

Gasket-sub SMG DA63-02724B Contact Us For Availability

Grommet hi SMG DA63-02775A Contact Us For Availability

Refrigerator cover assembly SMG DA97-03134B Contact Us For Availability

11

6001-001377 Samsung Refrigerator Machine Scre Backorder SMG 6001-001377 $0.92

11

DA97-03114C Samsung Refrigerator Evaporator C Backorder SMG DA97-03114C $174.44

11

Assy parti SMG DA97-03136B Contact Us For Availability

11-3

Plate insert SMG DA61-02369A Contact Us For Availability

11-5

DA31-00053A Samsung Refrigerator Backward Fan Backorder SMG DA31-00053A $17.44

DA97-04567G Samsung Refrigerator Freezer Door Backorder SMG DA97-04567G $106.80

Refrigerator evaporator assembly SMG DA97-03153W Contact Us For Availability

Refrigerator egg bin SMG DA97-02806A Contact Us For Availability

Refrigerator handle bar SMG DA97-05123A Contact Us For Availability

12-1

DA63-02492A Samsung Tray Egg Backorder SMG DA63-02492A $31.02

12-1

DA64-02174A Samsung Bar-Handle Backorder SMG DA64-02174A $76.60

12-2

Refrigerator drain tube SMG DA97-03241A Contact Us For Availability

12-2

Refrigerator freezer door handle end cap, rig SMG DA67-01710A Contact Us For Availability

12-3

6002-000215 Samsung Air Conditioner Tapping S In Stock SMG 6002-000215 $0.92

12-4

DA67-01708A Samsung Refrigerator Handle Cap - Backorder SMG DA67-01708A $15.88

13

DA97-02432E Samsung Refrigerator Water Tank A Backorder SMG DA97-02432E $89.76

13

DA97-03099A Samsung Refrigerator Upper Guard Backorder SMG DA97-03099A $38.59

13

Refrigerator handle SMG DA61-03485A Contact Us For Availability

14

DA63-02727A Samsung Refrigerator Gasket Sub-C Backorder SMG DA63-02727A $15.50

14

DA97-02943A Samsung Refrigerator Ref Veg Case Backorder SMG DA97-02943A $114.40

14

Refrigerator low guard SMG DA97-05116A Contact Us For Availability

14-1

DA63-03672A Samsung Refrigerator Lower Freeze Backorder SMG DA63-03672A $37.77

14-1

DA64-00817A Samsung Refrigerator Humidity Kno Backorder SMG DA64-00817A $9.30

14-2

DA97-22036A Samsung Refrigerator Roller Assem In Stock SMG DA97-22036A $4.65

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $6.59

DA63-02707A Samsung Purifier Cover Assembly Backorder SMG DA63-02707A $1.56

DA63-02725A Samsung Low Subconventional Gaske Backorder SMG DA63-02725A $13.56

Refrigerator convenience door gasket SMG DA97-04567J Contact Us For Availability

16

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.09

16

Gasket-sub SMG DA63-02726A Contact Us For Availability

16

Refrigerator evaporator cover assembly SMG DA97-03113D Contact Us For Availability

16-1

Refrigerator evaporator cover, front SMG DA63-02704B Contact Us For Availability

16-2

DA32-00011C Samsung Refrigerator Temperature In Stock SMG DA32-00011C $9.97

16-3

Refrigerator evaporator fan motor assembly SMG DA31-00125A Contact Us For Availability

16-4

DA61-20128A Samsung Refrigerator Spring and F Backorder SMG DA61-20128A $0.92

16-5

DA31-00123A Samsung Refrigerator Backward Fan Backorder SMG DA31-00123A $8.14

16-6

DA61-00417A Samsung Refrigerator Motor Case Backorder SMG DA61-00417A $20.15

16-7

DA63-01809A Samsung Refrigerator BLDC Motor C Backorder SMG DA63-01809A $10.07

16-9

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $3.50

17

4713-001172 Samsung Refrigerator Incandescent Backorder SMG 4713-001172 $10.07

17

DA97-03154N Samsung Refrigerator Evaporator A Backorder SMG DA97-03154N $208.44

17

Refrigerator door assembly SMG DA91-02474A Contact Us For Availability

17-1

Refrigerator defrost bi-metal thermostat SMG DA47-00133F Contact Us For Availability

17-2

DA61-00453A Samsung Refrigerator Ice Maker Se Backorder SMG DA61-00453A $0.92

18

DA63-02902B Samsung Refrigerator Housing Fixe In Stock SMG DA63-02902B $5.82

18

DA97-04567K Samsung Refrigerator Crisper Door Backorder SMG DA97-04567K $52.30

19

Door assembly SMG DA91-02476A Contact Us For Availability

21-2

DA66-00649A Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649A $3.09

22

DA31-00010D Samsung Refrigerator Fan Blade In Stock SMG DA31-00010D $13.18

22

Refrigerator convenience door handle assembly SMG DA97-05124A Contact Us For Availability

22-1

DA64-02175A Samsung Refrigerator Bar Handle A Backorder SMG DA64-02175A $65.11

22-2

DA63-02552A Samsung Grommet-Fixer Refrigerato Backorder SMG DA63-02552A $0.92

22-3

Tapping screw SMG 6002-000216 Contact Us For Availability

22-4

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $0.92

22-5

Refrigerator freezer door handle end cap, rig SMG DA67-01709A Contact Us For Availability

23

Refrigerator door foam SMG DA91-02475A Contact Us For Availability

23-7

DA96-00042A Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042A $10.85

23-9

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $3.09

25

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $10.85

26

DA34-00004D Samsung Refrigerator Compressor O In Stock SMG DA34-00004D $22.05

28

BK190CL2X/ASH Samsung Refrigerator 9.08cc BLD Backorder SMG BK190CL2X/ASH $241.79

35

DA62-00914B Samsung Refrigerator Water Inlet In Stock SMG DA62-00914B $99.14

38

Refrigerator power cord SMG DA39-10165E Contact Us For Availability

40

DA97-06506A Samsung Refrigerator Assembly Mot Backorder SMG DA97-06506A $139.04

42

Refrigerator power control board SMG DA41-00320A Contact Us For Availability

43

Refrigerator power control board SMG DA41-00359C Contact Us For Availability

1610

DA31-00146E Samsung Refrigerator Evaporator F In Stock SMG DA31-00146E $110.59

1611

DA63-40167A Samsung Refrigerator Grommet Cove Backorder SMG DA63-40167A $1.17

1612

DA39-00060K Samsung Refrigerator Motor with H Backorder SMG DA39-00060K $111.53

NI

DA61-02542A Samsung Refrigerator Ice Maker Su Backorder SMG DA61-02542A $36.87

NI

Samsung refrigerator water filter SMG DA29-00003G Contact Us For Availability
