Model Samsung RM257ABBP/XAA-00 Refrigerator – Common Parts &amp; Diagrams

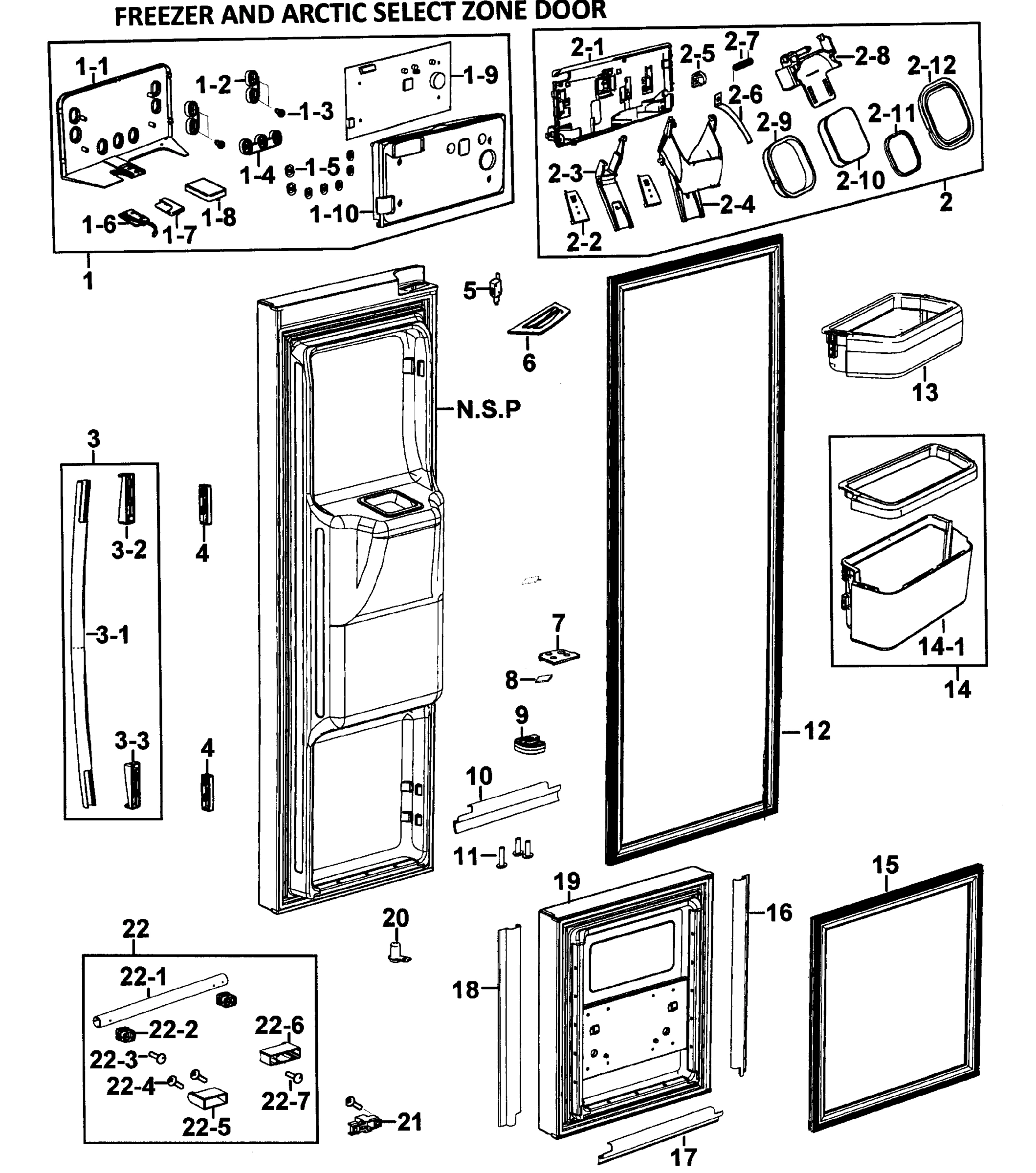

1

Refrigerator dispenser cover SMG DA97-05115F Contact Us For Availability

1

Refrigerator handle bar SMG DA97-04417H Contact Us For Availability

1-1

DA64-01979A Samsung Refrigerator Bar Handle Backorder SMG DA64-01979A $76.32

1-1

Refrigerator cover SMG DA63-03671A Contact Us For Availability

1-2

Refrigerator grommet SMG DA63-03675A Contact Us For Availability

1-2

Refrigerator handle cap SMG DA67-01527G Contact Us For Availability

1-3

6002-000466 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000466 $0.97

1-3

Refrigerator handle cap SMG DA67-01528G Contact Us For Availability

1-4

Refrigerator grommet SMG DA63-03674A Contact Us For Availability

1-5

Refrigerator button SMG DA64-02038A Contact Us For Availability

1-6

DA41-00217A Samsung Refrigerator Printed Circ Backorder SMG DA41-00217A $33.81

1-7

DA63-03914A Samsung Gasket-Lamp PCB;AD,SILICO Backorder SMG DA63-03914A $3.17

1-8

Refrigerator lamp cap SMG DA67-01706A Contact Us For Availability

1-9

Refrigerator dispenser control board and pane SMG DA41-00447A Contact Us For Availability

1-10

DA63-03670A Samsung Refrigerator Cover PCB Pa Backorder SMG DA63-03670A $7.70

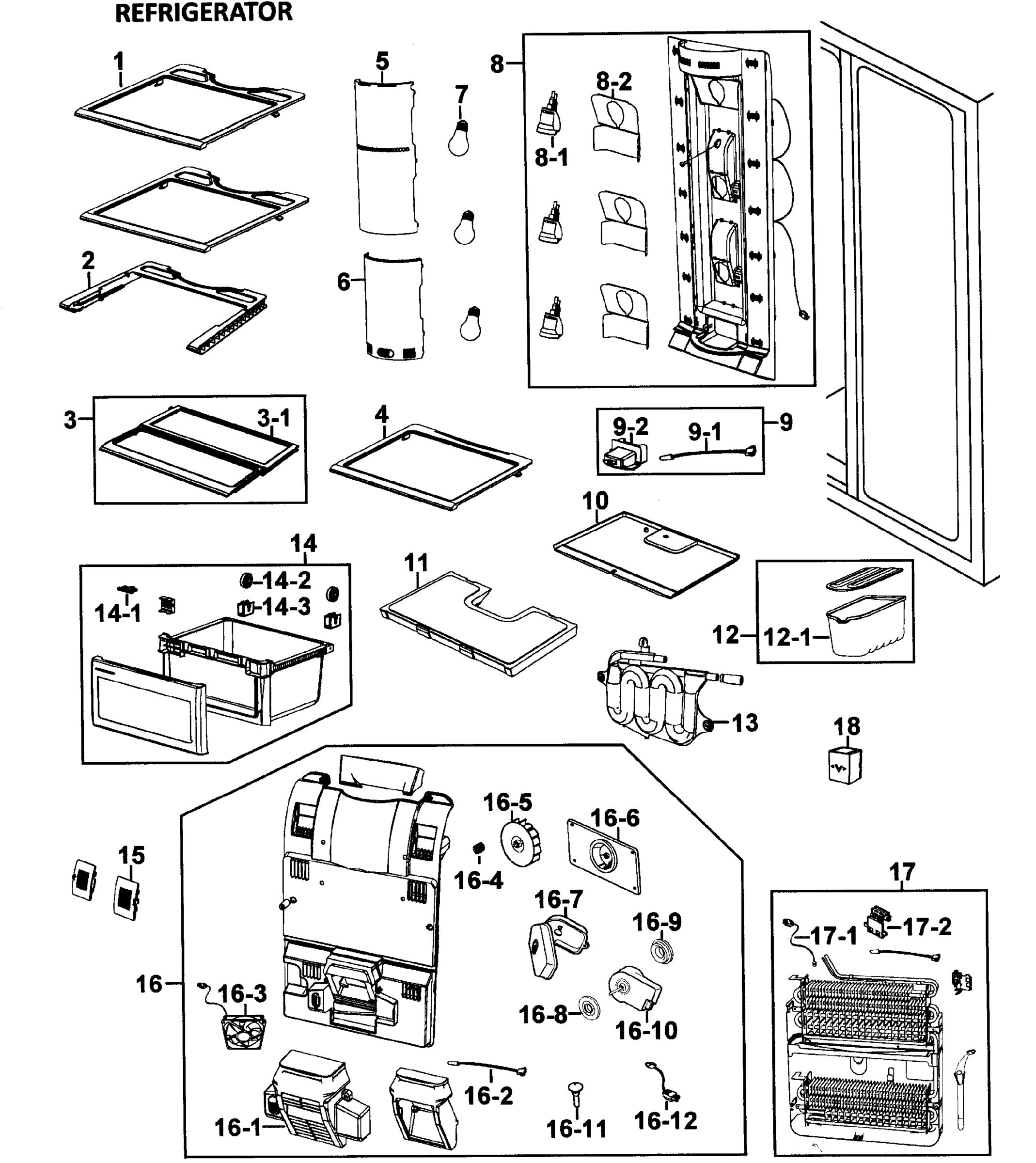

2

Pcb panel cover assembly, rear SMG DA97-05114J Contact Us For Availability

2

Refrigerator Shelf SMG DA67-01372A Contact Us For Availability

2-1

Refrigerator dispenser electronic control boa SMG DA63-03668A Contact Us For Availability

2-2

DA66-00352A Samsung Refrigerator Dispenser Le Backorder SMG DA66-00352A $12.22

2-2

Refrigerator Insulation SMG DA62-01059A Contact Us For Availability

2-3

DA61-02542A Samsung Refrigerator Ice Maker Su Backorder SMG DA61-02542A $43.06

2-3

Refrigerator dispenser lever SMG DA66-00354A Contact Us For Availability

2-4

DA66-00365A Samsung Refrigerator Ice Dispense Backorder SMG DA66-00365A $7.70

2-4

Refrigerator Ice Bin SMG DA63-02284A Contact Us For Availability

2-5

DA61-01800A Samsung Refrigerator Ice Maker Fi In Stock SMG DA61-01800A $26.25

2-5

DA61-01869A Samsung Refrigerator Oil Damper Backorder SMG DA61-01869A $13.57

2-6

DA61-01616A Samsung SPRING ETC-LEVER DISP WAT Backorder SMG DA61-01616A $1.81

2-6

DA63-02183A Samsung Refrigerator Sensor Cover In Stock SMG DA63-02183A $2.26

2-7

DA61-01651A Samsung Refrigerator Ice Route Co Backorder SMG DA61-01651A $4.07

2-7

Refrigerator Ice Guide SMG DA61-00954A Contact Us For Availability

2-8

DA63-01970A Samsung Refrigerator Ice Route Co Backorder SMG DA63-01970A $4.98

2-9

DA63-01971B Samsung Ice Route Cover Assembly Backorder SMG DA63-01971B $3.63

2-10

DA62-00058E Samsung Seal Cover Ice Route Backorder SMG DA62-00058E $1.81

2-11

DA62-00058F Samsung Refrigerator Ice Route Co Backorder SMG DA62-00058F $0.97

2-12

DA63-01972A Samsung Refrigerator Gasket Cover Backorder SMG DA63-01972A $14.94

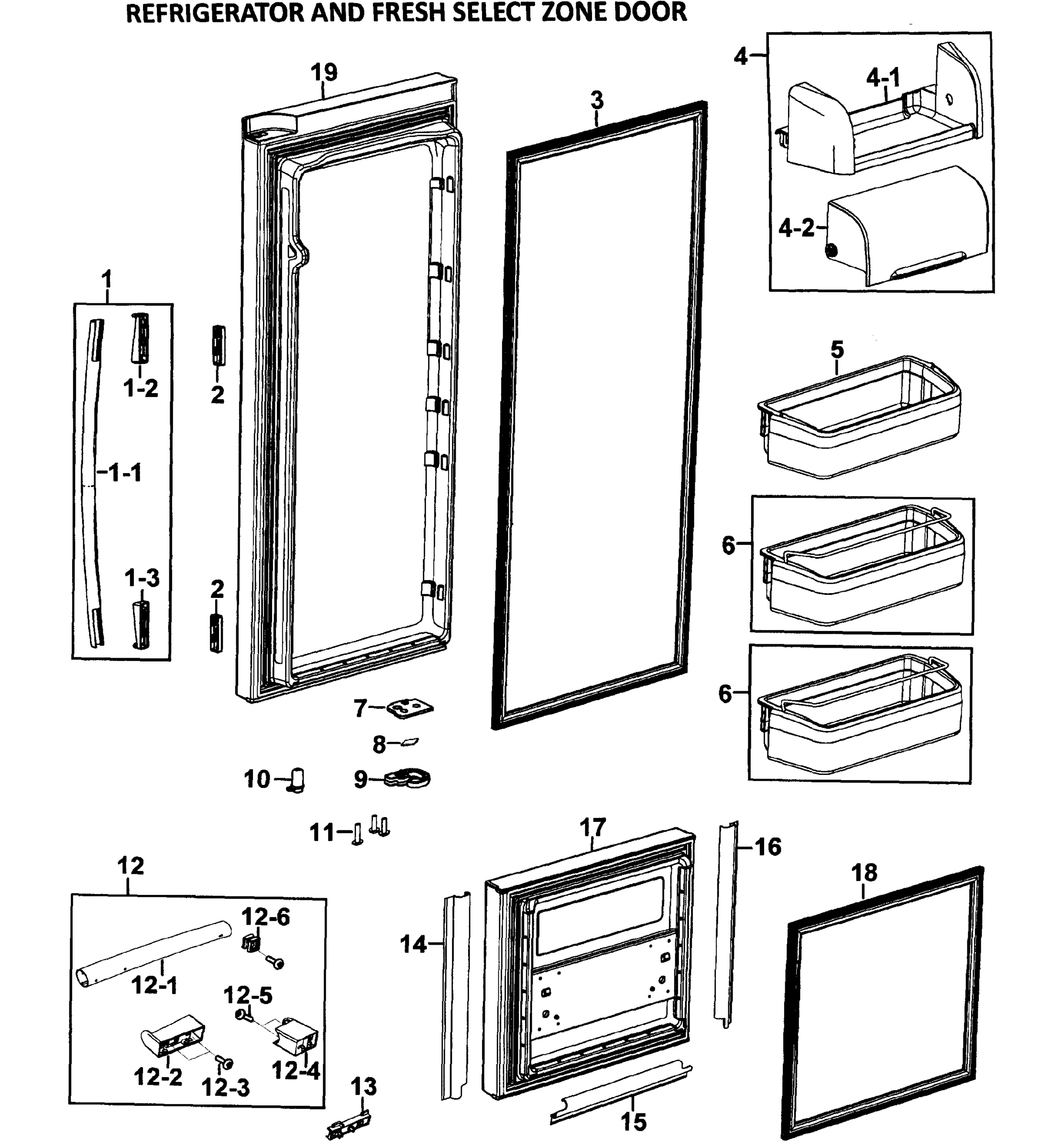

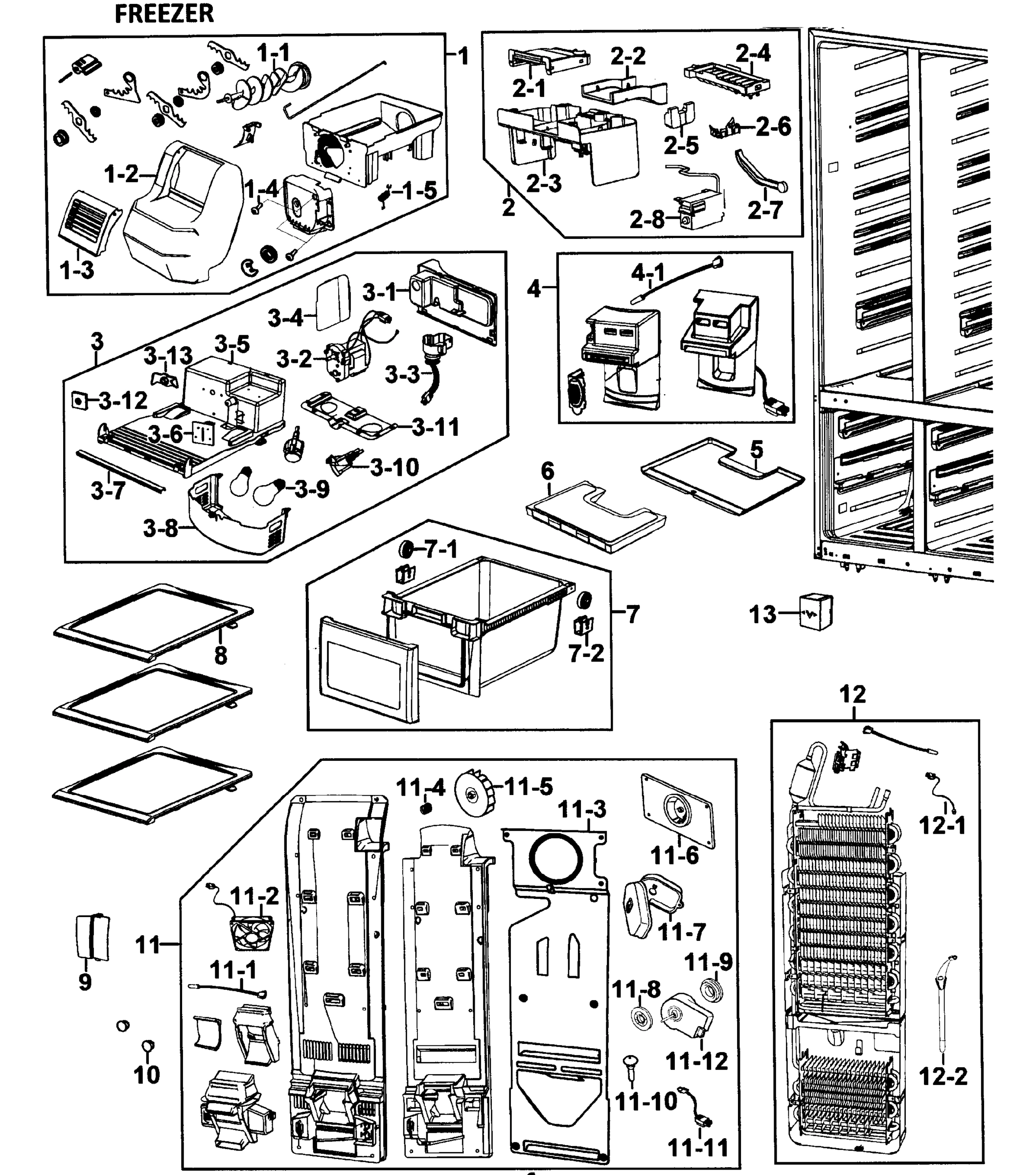

3

DA71-20267A Samsung Refrigerator Upper Hinge Backorder SMG DA71-20267A $9.05

3

DA97-04567R Samsung Assembly-Gasket DOOR REF; Backorder SMG DA97-04567R $74.91

3

Refrigerator Motor Case SMG DA97-03167F Contact Us For Availability

3

Refrigerator Shelf Assembly SMG DA97-03645A Contact Us For Availability

3-1

DA67-00903C Samsung Folder Shelf Backorder SMG DA67-00903C $61.04

3-1

Cover-auge SMG DA63-02736A Contact Us For Availability

3-2

DA31-00105A Samsung Refrigerator Auger Motor Backorder SMG DA31-00105A $164.18

3-3

Refrigerator Cover Assembly SMG DA97-02120B Contact Us For Availability

3-4

Refrigerator Partition SMG DA67-01305A Contact Us For Availability

3-5

Case Auger SMG DA61-02412A Contact Us For Availability

3-6

DA73-00168A Samsung Refrigerator Solenoid Rub Backorder SMG DA73-00168A $7.24

3-7

DA61-00239A Samsung Auger Motor Case Support Backorder SMG DA61-00239A $19.45

3-8

DA63-02735A Samsung Refrigerator Lamp Cover D Backorder SMG DA63-02735A $13.90

3-10

Refrigerator Lamp Holder SMG DA47-40001D Contact Us For Availability

3-11

DA61-02409A Samsung Lamp Plate Assembly Backorder SMG DA61-02409A $7.24

3-12

DA71-00163A Samsung Refrigerator Nut Fixer Backorder SMG DA71-00163A $12.66

3-13

Refrigerator Ice Dispenser Auger Drive Plate SMG DA61-01659B Contact Us For Availability

4

DA61-02984A Samsung Refrigerator Handle Fixer In Stock SMG DA61-02984A $5.89

4

DA67-01283C Samsung Lower Shelf Backorder SMG DA67-01283C $87.02

4

DA97-03130B Samsung Assembly Multi Cover, Backorder SMG DA97-03130B $81.08

4

Refrigerator freezer door bin SMG DA97-03100A Contact Us For Availability

4-1

DA32-10105C Samsung Refrigerator Temperature Backorder SMG DA32-10105C $14.30

4-1

Refrigerator dairy bin cover SMG DA63-02690A Contact Us For Availability

4-2

Guard-dair SMG DA63-02689A Contact Us For Availability

5

DA34-00011B Samsung Refrigerator Micro Switch Backorder SMG DA34-00011B $14.48

5

DA97-03098A Samsung Refrigerator Guard Assemb Backorder SMG DA97-03098A $60.13

5

Cover Part SMG DA63-02708A Contact Us For Availability

5

Refrigerator Lamp Cover SMG DA63-02710A Contact Us For Availability

6

Refrigerator Partition SMG DA97-03135C Contact Us For Availability

6

Tray-dispe SMG DA63-03669C Contact Us For Availability

6

Refrigerator Lamp Cover SMG DA63-02711A Contact Us For Availability

6

Refrigerator guard assembly SMG DA97-03562B Contact Us For Availability

7

DA97-03149A Samsung Refrigerator Upper Hinge Backorder SMG DA97-03149A $29.78

7

Refrigerator Incandescent Lamp SMG 4713-001206 Contact Us For Availability

7

Refrigerator Freezer Drawer Assembly SMG DA97-02944A Contact Us For Availability

7

Refrigerator door stopper SMG DA61-02373B Contact Us For Availability

7-2

DA71-20277A Samsung Refrigerator Fixer-Roller Backorder SMG DA71-20277A $1.35

8

DA34-10120E Samsung Refrigerator Door Switch Backorder SMG DA34-10120E $28.18

8

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $0.97

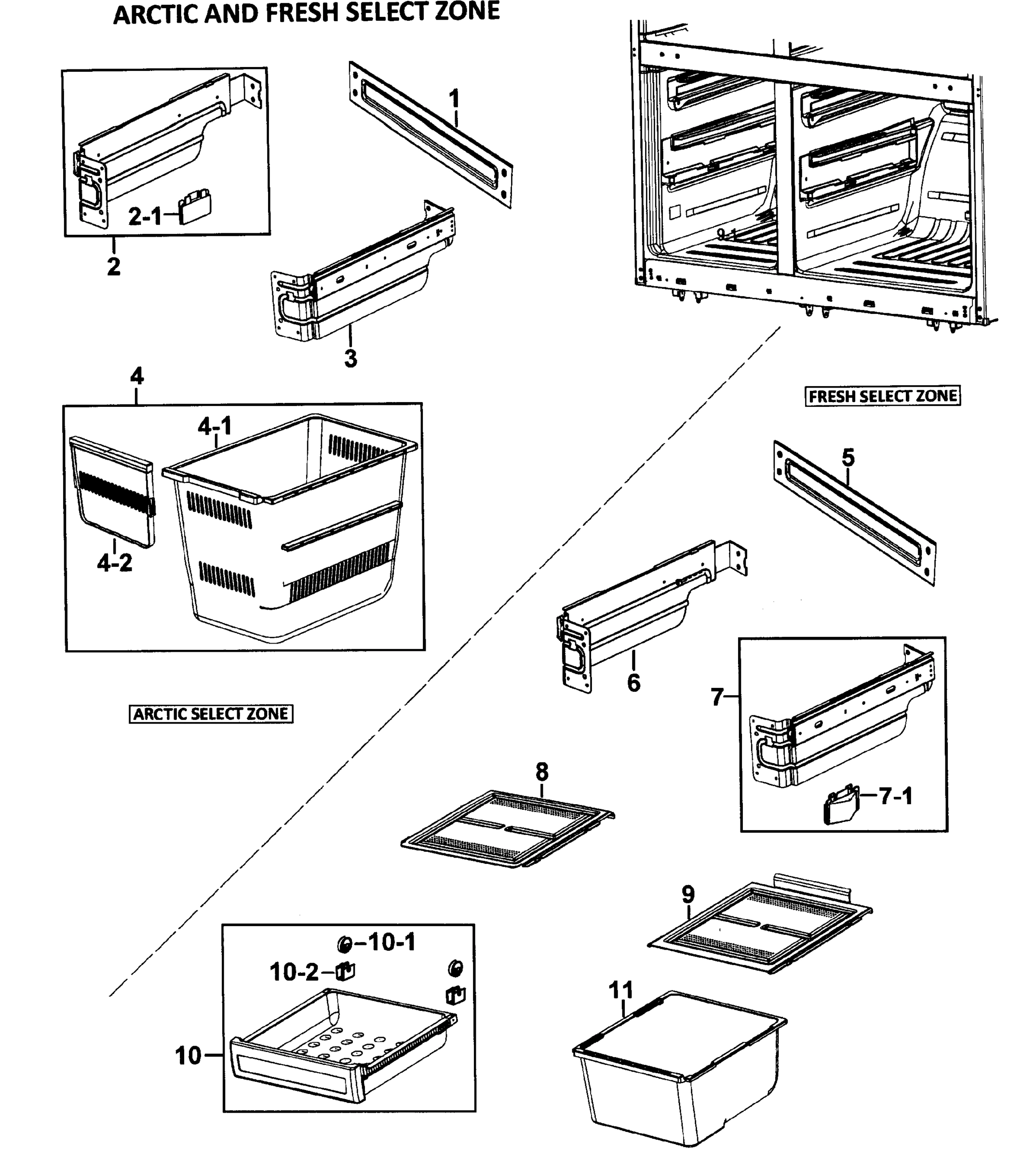

8

Shelf Fre SMG DA97-02955B Contact Us For Availability

8

Refrigerator Cover Assembly SMG DA97-03131A Contact Us For Availability

8-1

DA47-40001C Samsung Lamp Holder-Assy Backorder SMG DA47-40001C $13.07

8-2

Refrigerator Lamp Plate SMG DA61-02375A Contact Us For Availability

9

DA61-15273A Samsung Refrigerator Door Close S Backorder SMG DA61-15273A $6.79

9

Refrigerator Freezer Diffuser Panel Cover SMG DA63-02701A Contact Us For Availability

9

Refrigerator Cover Assembly SMG DA97-03116A Contact Us For Availability

9-1

DA32-10105U Samsung Refrigerator Temperature Backorder SMG DA32-10105U $15.38

9-2

Cover Sensor SMG DA63-02713A Contact Us For Availability

DA67-30266K Samsung Refrigerator Cap Screw Backorder SMG DA67-30266K $0.97

Gasket-sub SMG DA63-02724B Contact Us For Availability

Grommet hi SMG DA63-02775A Contact Us For Availability

Refrigerator Cover Assembly SMG DA97-03134B Contact Us For Availability

11

6001-001377 Samsung Refrigerator Machine Scre Backorder SMG 6001-001377 $0.97

11

DA97-03114C Samsung Refrigerator Evaporator C Backorder SMG DA97-03114C $184.24

11

Assy Parti SMG DA97-03136B Contact Us For Availability

11-2

Refrigerator Evaporator Fan Motor Assembly SMG DA31-00125A Contact Us For Availability

11-3

Plate Insert SMG DA61-02369A Contact Us For Availability

11-5

DA31-00053A Samsung Refrigerator Backward Fan Backorder SMG DA31-00053A $20.36

DA97-04567Q Samsung Refrigerator Door Gasket Backorder SMG DA97-04567Q $90.46

Refrigerator Evaporator Assembly SMG DA97-03153W Contact Us For Availability

Refrigerator Egg Bin SMG DA97-02806A Contact Us For Availability

Refrigerator handle bar SMG DA97-05123C Contact Us For Availability

12-1

DA63-02492A Samsung Tray Egg Backorder SMG DA63-02492A $32.71

12-1

Refrigerator handle bar SMG DA64-02174C Contact Us For Availability

12-2

Refrigerator Drain Tube SMG DA97-03241A Contact Us For Availability

12-2

Refrigerator freezer door handle end cap, rig SMG DA67-01710C Contact Us For Availability

12-3

6002-000215 Samsung Air Conditioner Tapping S In Stock SMG 6002-000215 $0.97

12-4

Refrigerator handle cap SMG DA67-01708C Contact Us For Availability

13

DA97-02432E Samsung Refrigerator Water Tank A Backorder SMG DA97-02432E $104.90

13

DA97-03099A Samsung Refrigerator Upper Guard Backorder SMG DA97-03099A $45.08

13

Refrigerator handle SMG DA61-03485A Contact Us For Availability

14

DA63-02727A Samsung Refrigerator Gasket Sub-C Backorder SMG DA63-02727A $18.10

14

DA97-02943A Samsung Refrigerator Ref Veg Case Backorder SMG DA97-02943A $120.83

14

Refrigerator low guard SMG DA97-05116A Contact Us For Availability

14-1

DA63-03672A Samsung Refrigerator Lower Freeze Backorder SMG DA63-03672A $39.84

14-1

DA64-00817A Samsung Refrigerator Humidity Kno Backorder SMG DA64-00817A $10.87

14-2

DA97-22036A Samsung Refrigerator Roller Assem Backorder SMG DA97-22036A $5.42

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $5.89

DA63-02707A Samsung Purifier Cover Assembly Backorder SMG DA63-02707A $1.64

DA63-02725A Samsung Low Subconventional Gaske Backorder SMG DA63-02725A $14.30

DA97-04567S Samsung Door Gasket Assembly Backorder SMG DA97-04567S $57.51

16

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $2.26

16

Gasket-sub SMG DA63-02726A Contact Us For Availability

16

Refrigerator Evaporator Cover Assembly SMG DA97-03113D Contact Us For Availability

16-1

Refrigerator Evaporator Cover, Front SMG DA63-02704B Contact Us For Availability

16-2

DA32-00011C Samsung Refrigerator Temperature In Stock SMG DA32-00011C $10.89

16-4

DA61-20128A Samsung Refrigerator Spring and F Backorder SMG DA61-20128A $0.97

16-5

DA31-00123A Samsung Refrigerator Backward Fan Backorder SMG DA31-00123A $8.59

16-6

DA61-00417A Samsung Refrigerator Motor Case Backorder SMG DA61-00417A $23.53

16-7

DA63-01809A Samsung Refrigerator BLDC Motor C Backorder SMG DA63-01809A $11.77

16-9

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $4.07

17

DA97-03154N Samsung Refrigerator Evaporator A Backorder SMG DA97-03154N $220.28

17

Refrigerator Light Bulb SMG 4713-001172 Contact Us For Availability

17

Door refre SMG DA91-02474C Contact Us For Availability

17-1

Refrigerator Defrost Bi-Metal Thermostat SMG DA47-00133F Contact Us For Availability

17-2

DA61-00453A Samsung Refrigerator Ice Maker Se Backorder SMG DA61-00453A $0.97

18

DA63-02902B Samsung Refrigerator Housing Fixe Backorder SMG DA63-02902B $6.79

18

Refrigerator door gasket SMG DA97-04567T Contact Us For Availability

19

Door-freez SMG DA91-02476C Contact Us For Availability

19

Door refr SMG DA91-02473C Contact Us For Availability

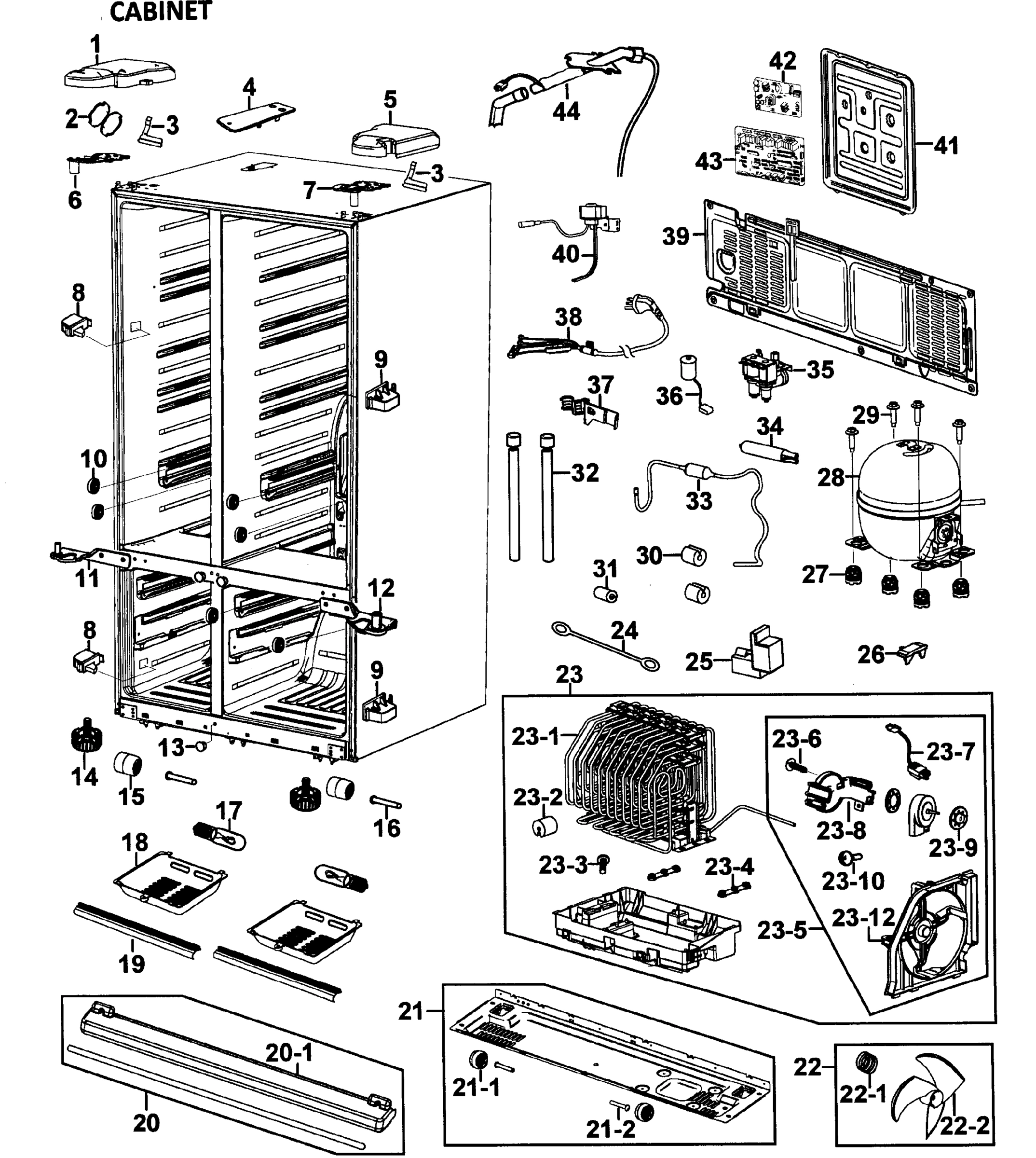

21-2

DA66-00649A Samsung Refrigerator Caster Shaft Backorder SMG DA66-00649A $3.63

22

DA31-00010D Samsung Refrigerator Fan Blade In Stock SMG DA31-00010D $14.48

22

DA97-05124C Samsung Refrigerator CF Handle As Backorder SMG DA97-05124C $84.23

22-1

Refrigerator handle bar SMG DA64-02175C Contact Us For Availability

22-2

DA63-02552A Samsung Grommet-Fixer Refrigerato Backorder SMG DA63-02552A $0.97

22-3

Tapping screw SMG 6002-000216 Contact Us For Availability

22-4

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $0.97

22-5

Refrigerator handle cap SMG DA67-01709C Contact Us For Availability

23-7

DA96-00042A Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042A $12.66

23-9

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $3.63

25

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $9.50

26

DA34-00004D Samsung Refrigerator Compressor O In Stock SMG DA34-00004D $25.77

28

BK190CL2X/ASH Samsung Refrigerator 9.08cc BLD Backorder SMG BK190CL2X/ASH $283.00

35

DA62-00914B Samsung Refrigerator Water Inlet In Stock SMG DA62-00914B $99.14

38

Refrigerator Power Cord SMG DA39-10165E Contact Us For Availability

40

DA97-06506A Samsung Refrigerator Assembly Mot Backorder SMG DA97-06506A $162.62

42

Refrigerator Power Control Board SMG DA41-00320A Contact Us For Availability

43

Refrigerator Power Control Board SMG DA41-00359C Contact Us For Availability

1610

DA31-00146E Samsung Refrigerator Evaporator F In Stock SMG DA31-00146E $120.24

1611

DA63-40167A Samsung Refrigerator Grommet Cove Backorder SMG DA63-40167A $1.35

1612

DA39-00060K Samsung Refrigerator Motor with H Backorder SMG DA39-00060K $130.23

NI

Samsung Refrigerator Water Filter SMG DA29-00003G Contact Us For Availability
